MHL760

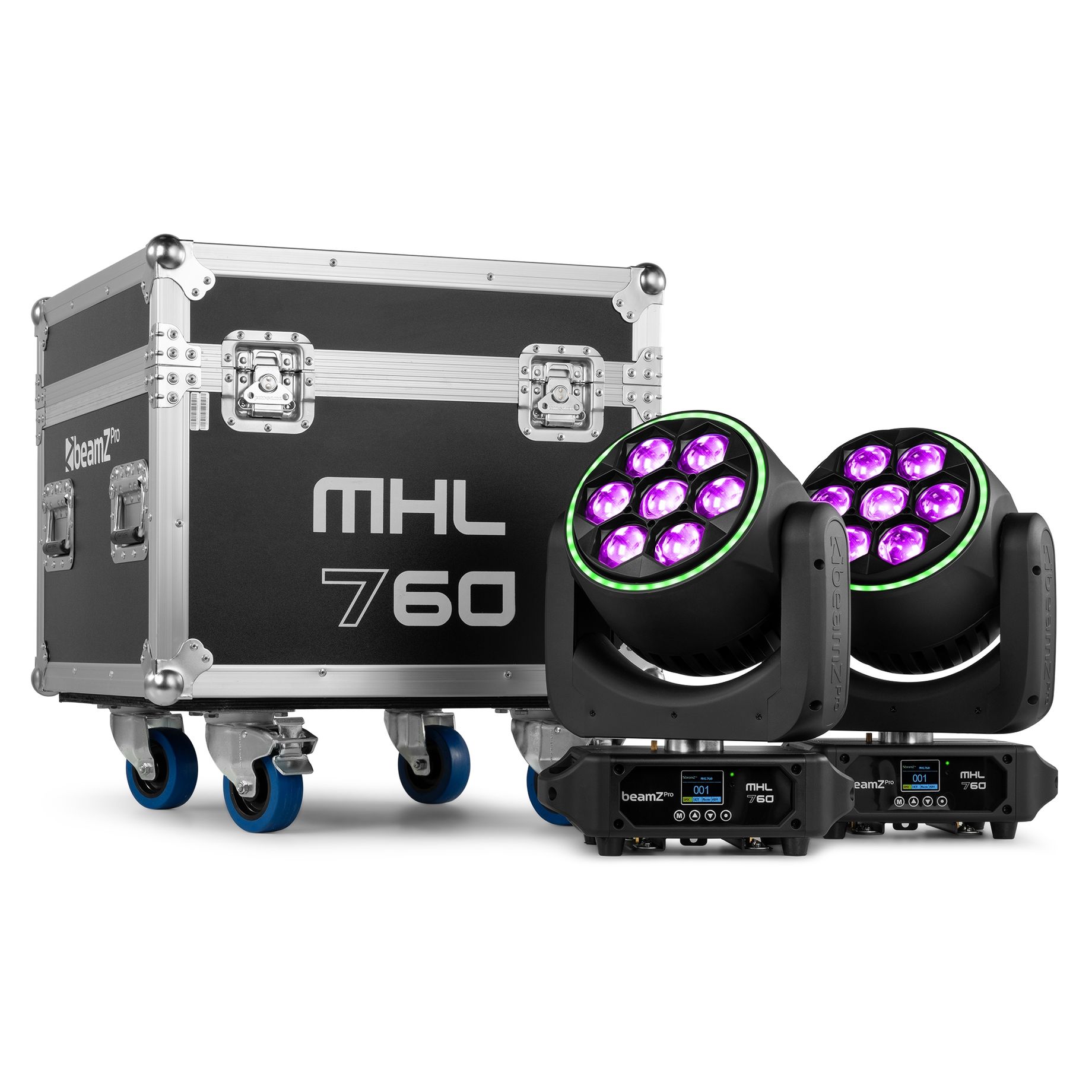

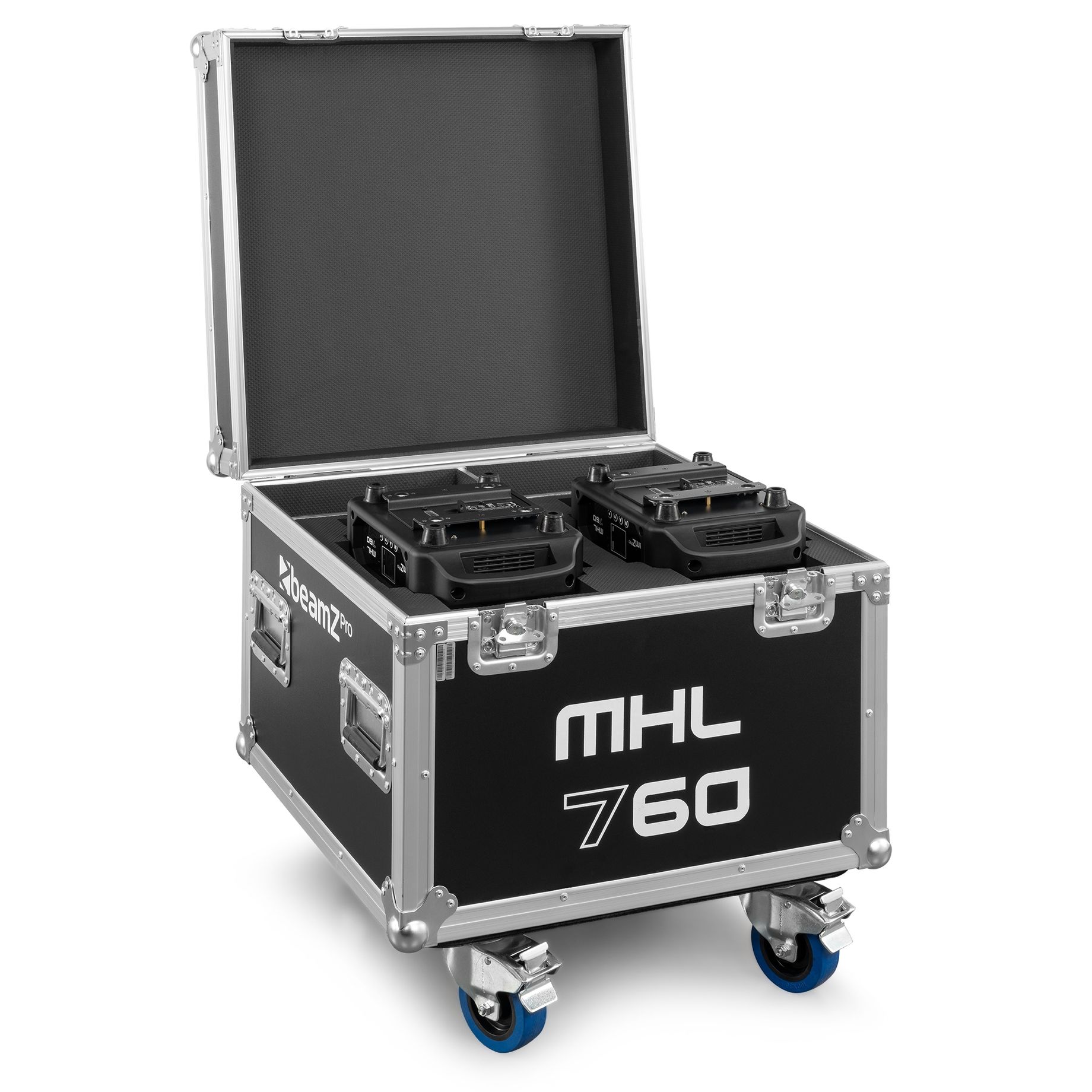

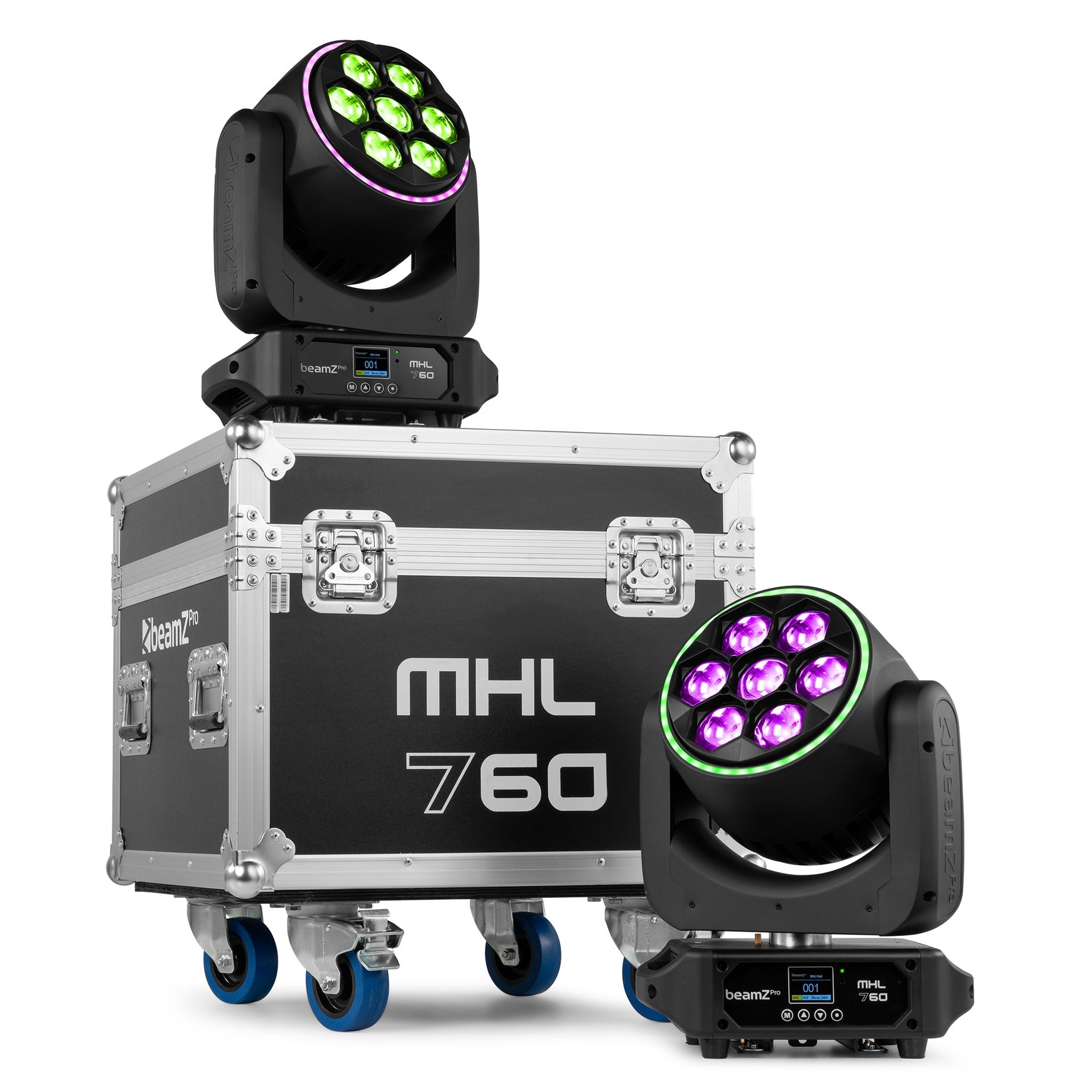

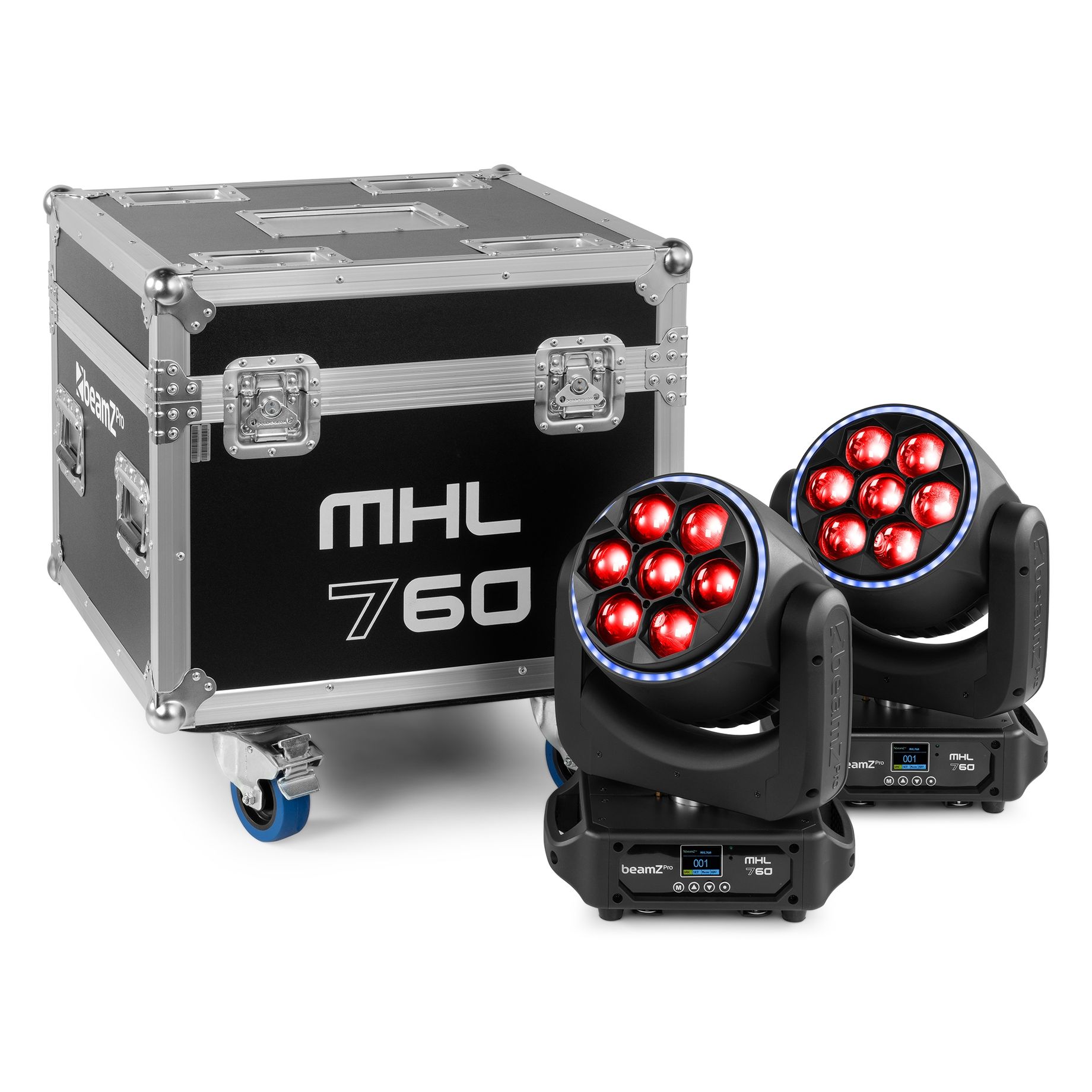

LED Bee Eye Moving Head with Zoom 2pcs in Flightcase
SKU 152.127
|EAN 8715693346084
+16
All product information
Compare
MHL series
Description
Highlights

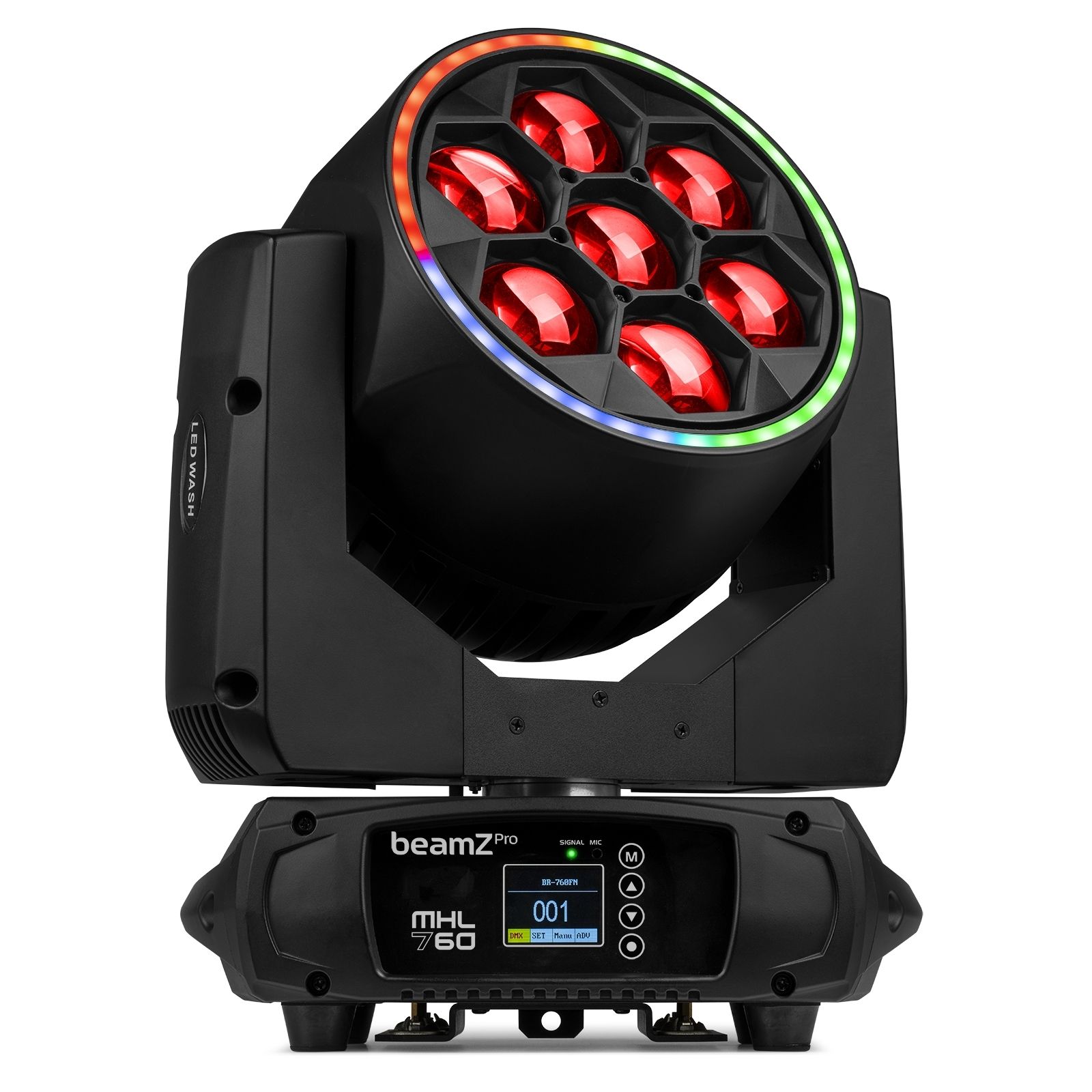

- Bee Eye moving head with rotating lenses and zoom
- 7x 60W 4-in-1 RGBW LEDs
- Aura Effect Ring: 39 RGB SMD LEDs
- Motorized zoom
- 26, 38 or 66 DMX channels
- CTB & CTO Filter
- Pre-programmed macro effects with variable speed
- 9 Sound and auto mode programs
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- Scan position memory
- 0-100% Smooth linear LED dimmer
- Single pixel control
- Controle panel with LCD display
- DMX in/output via 3/5-pin XLR
- Powerconnector input/output
- Quick lock omega clamps included

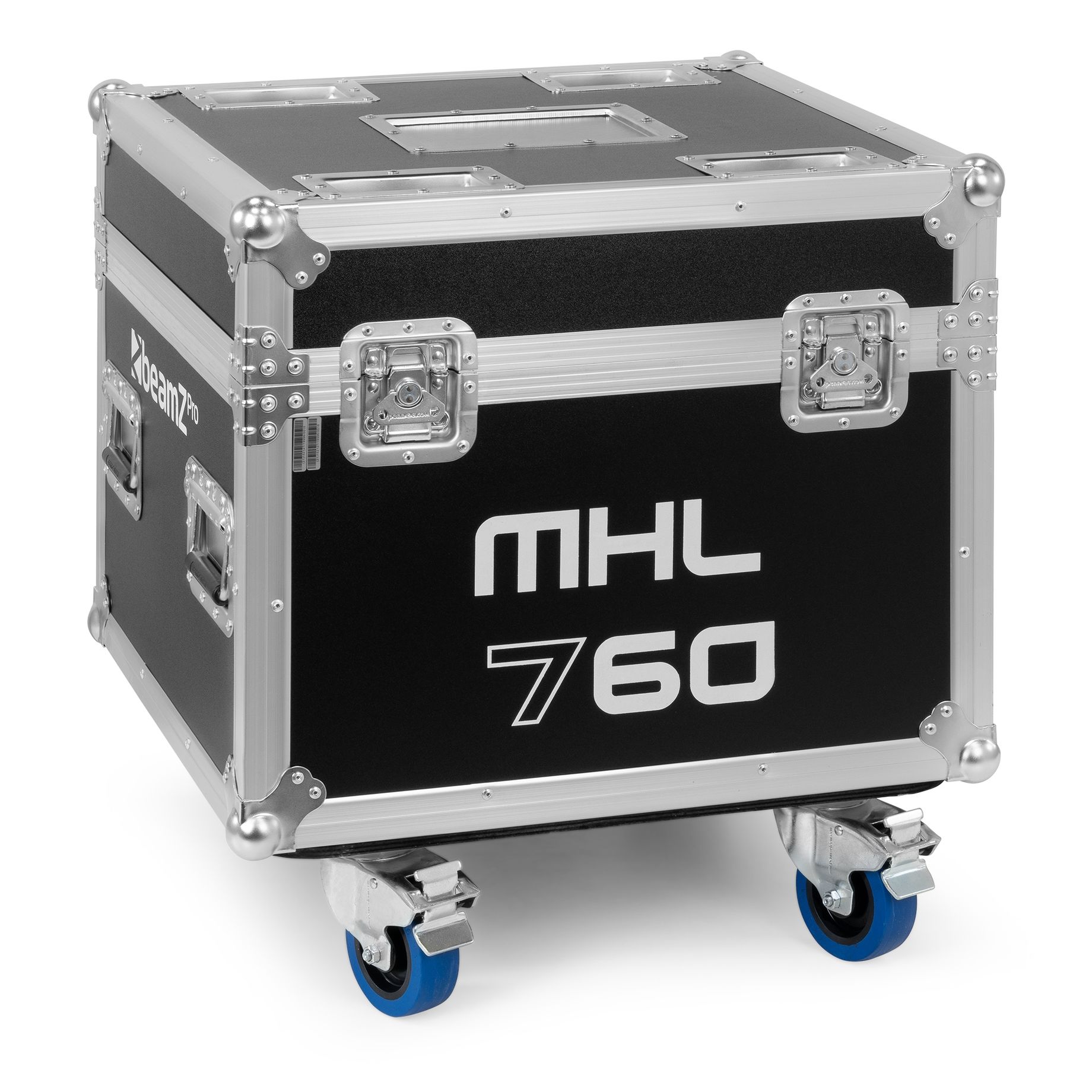

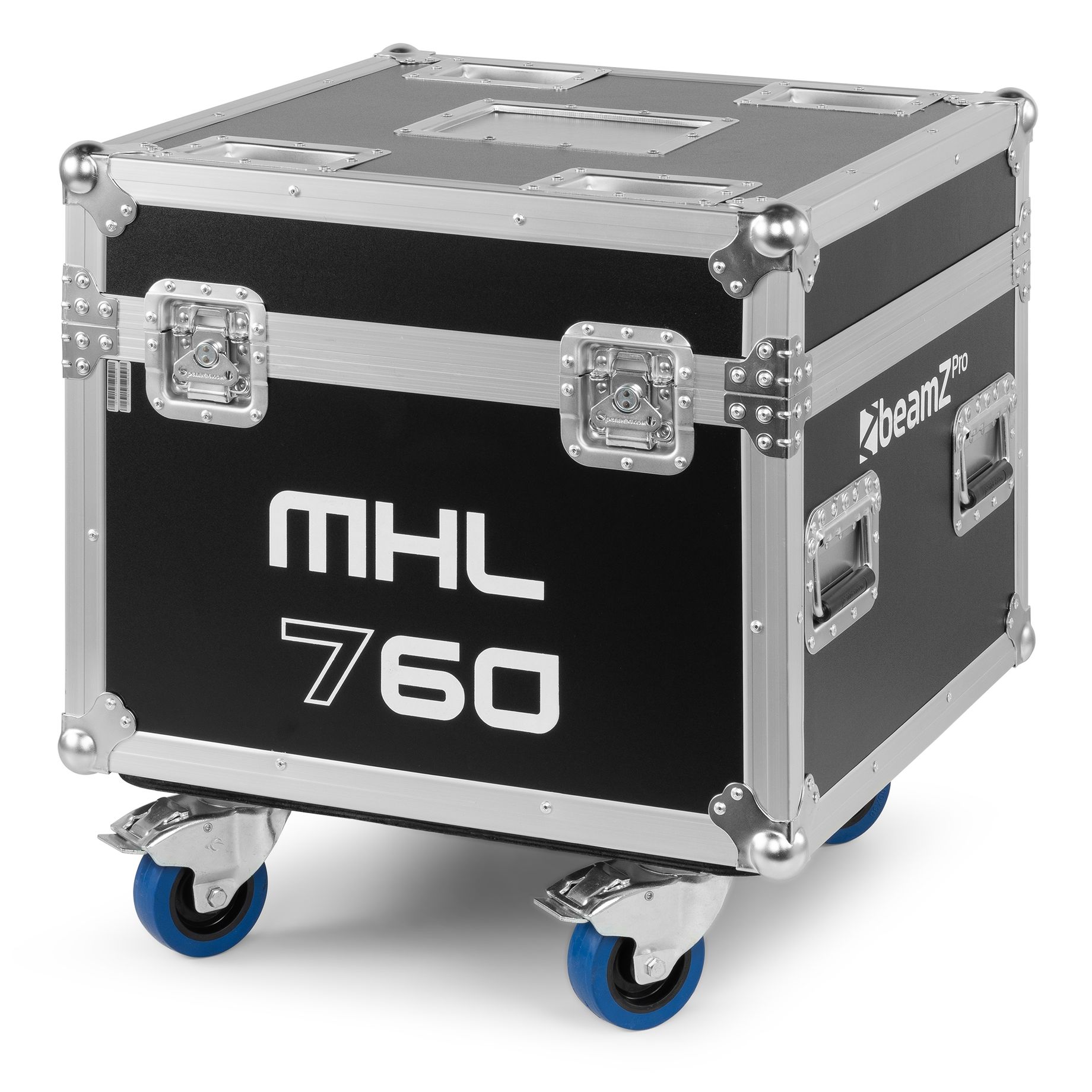

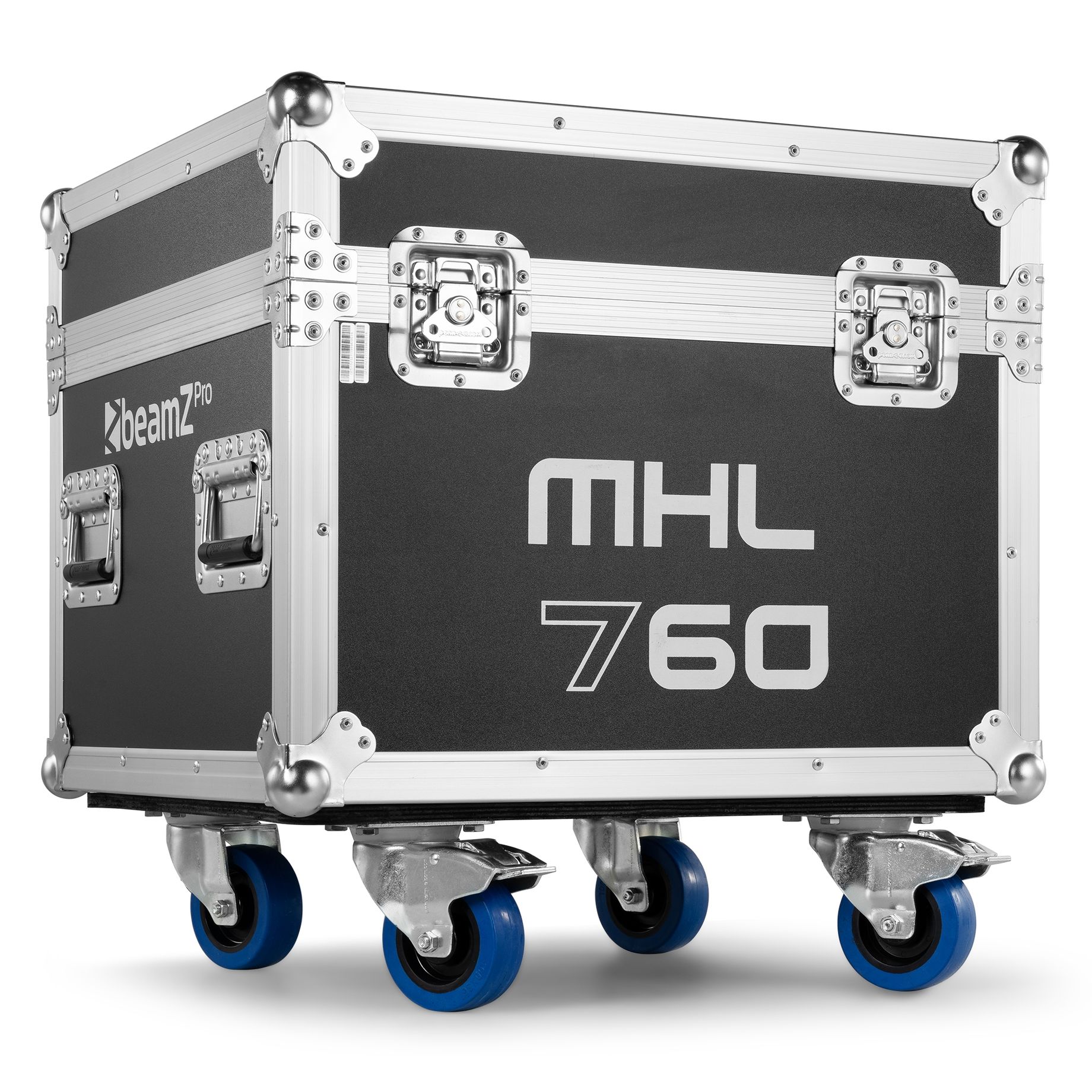

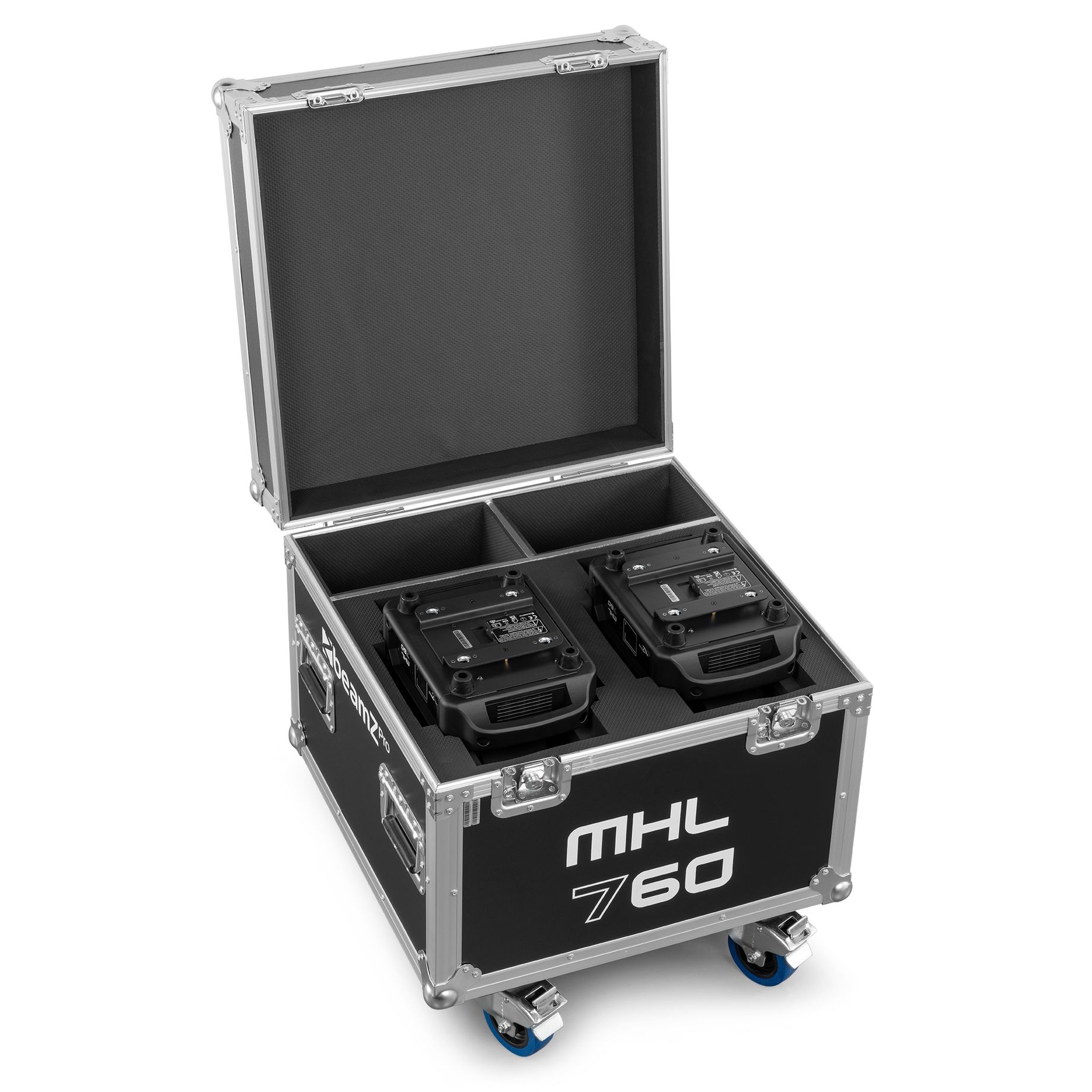

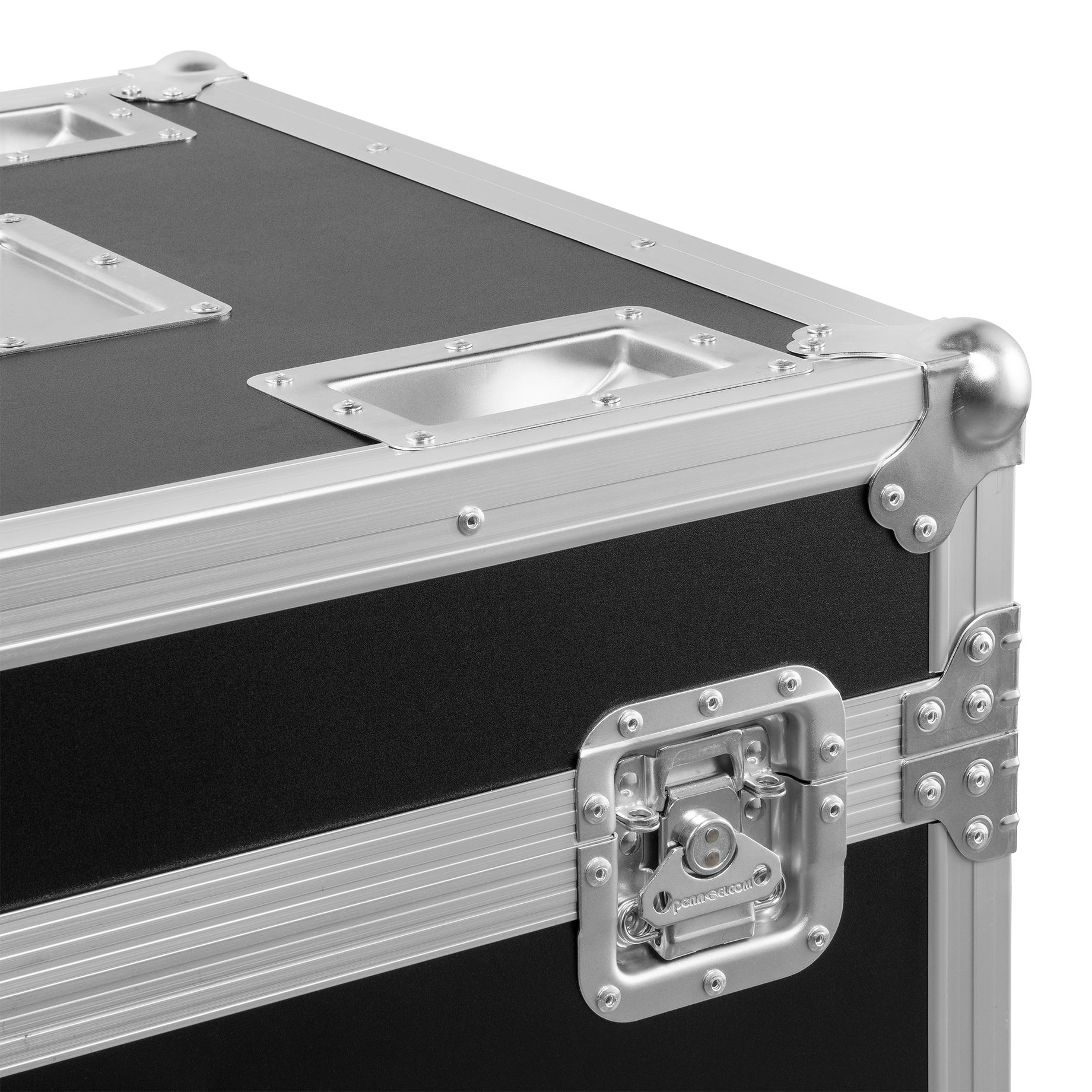

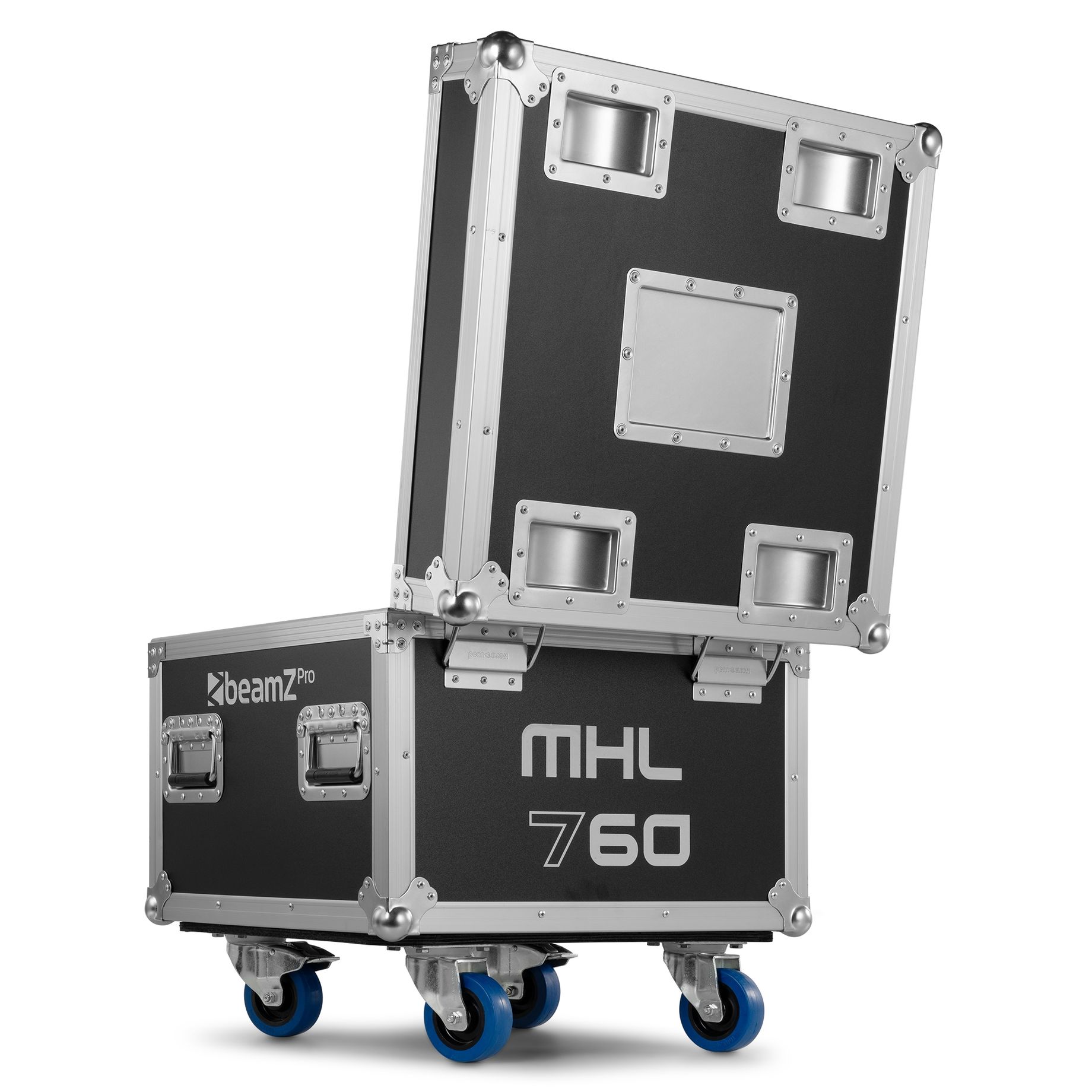

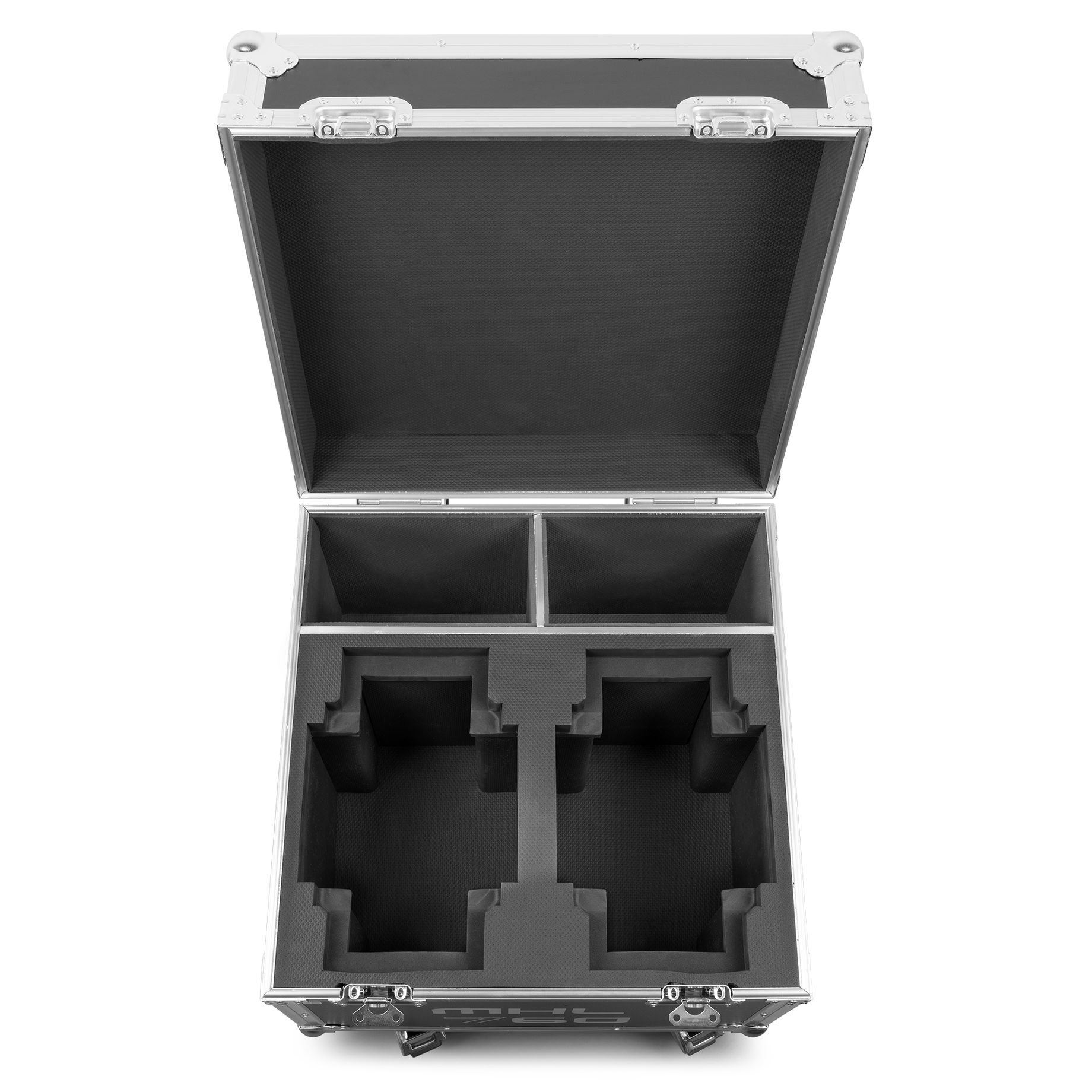

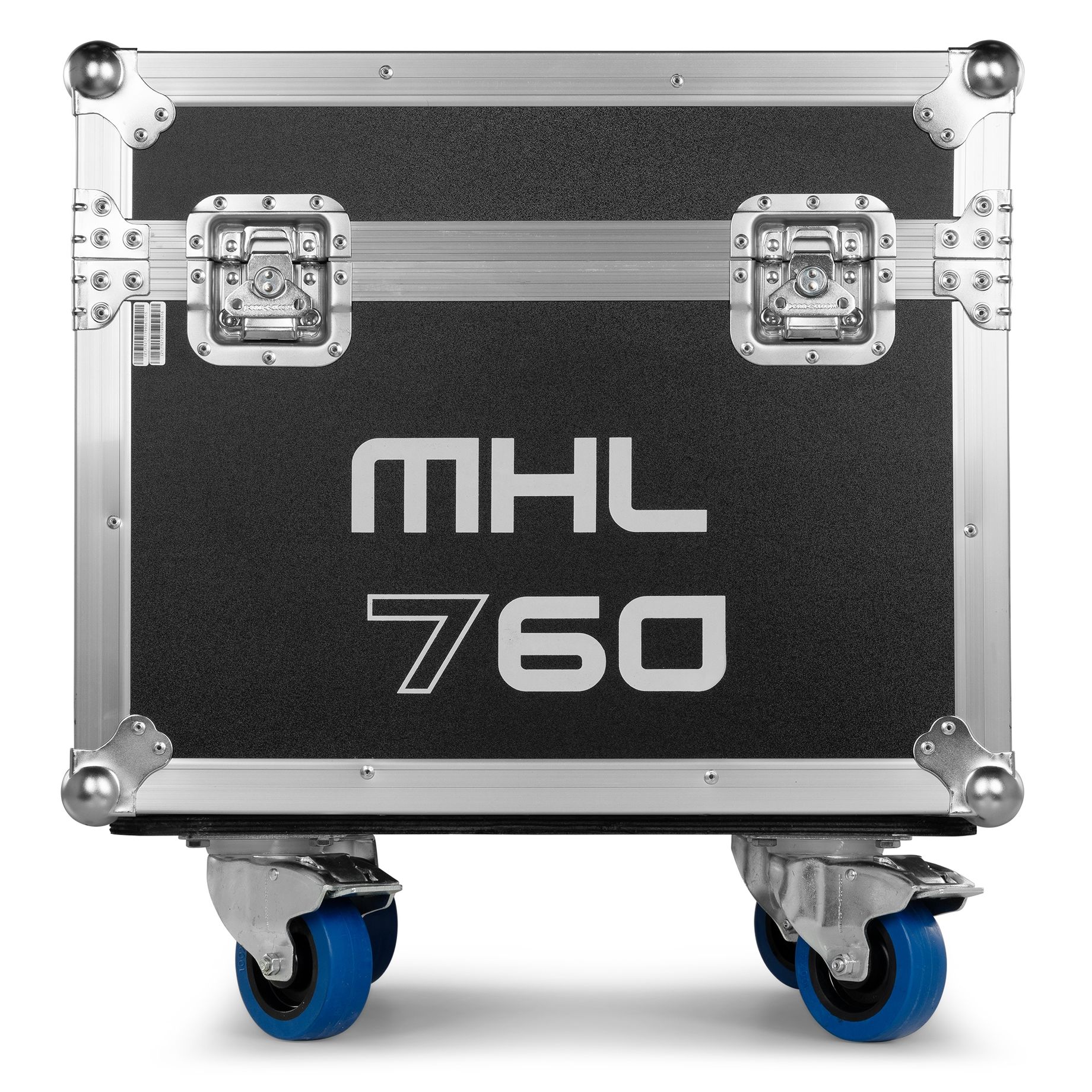

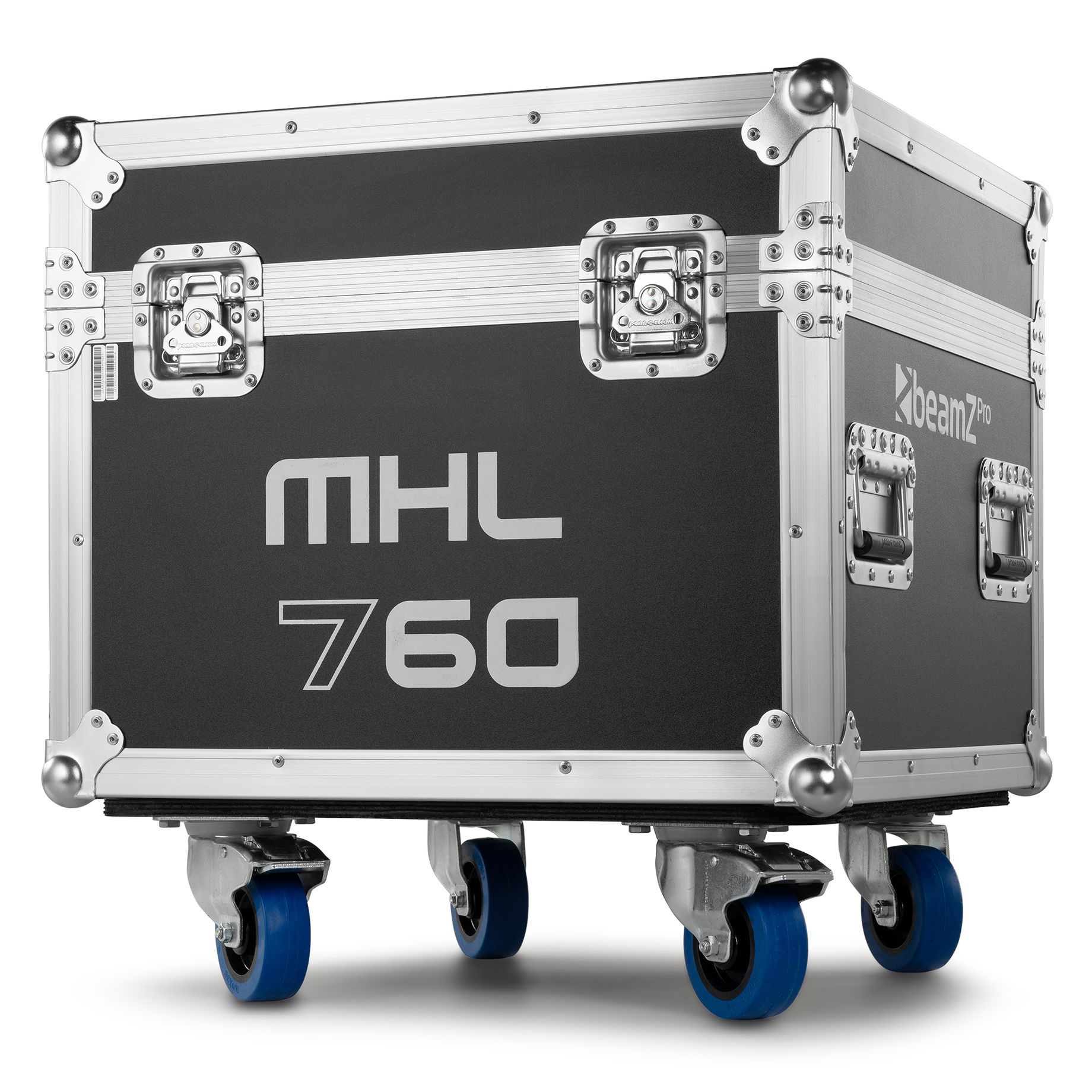

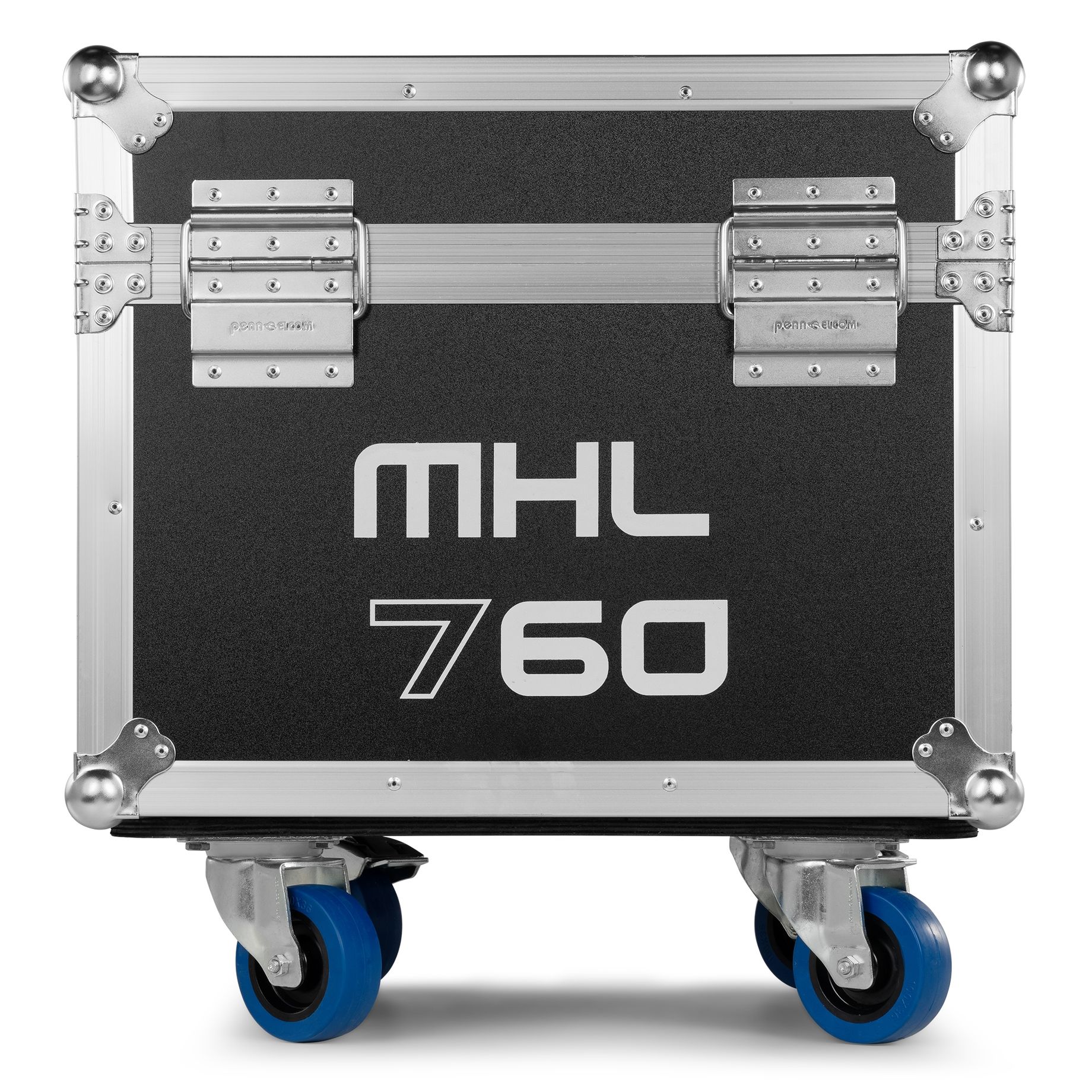

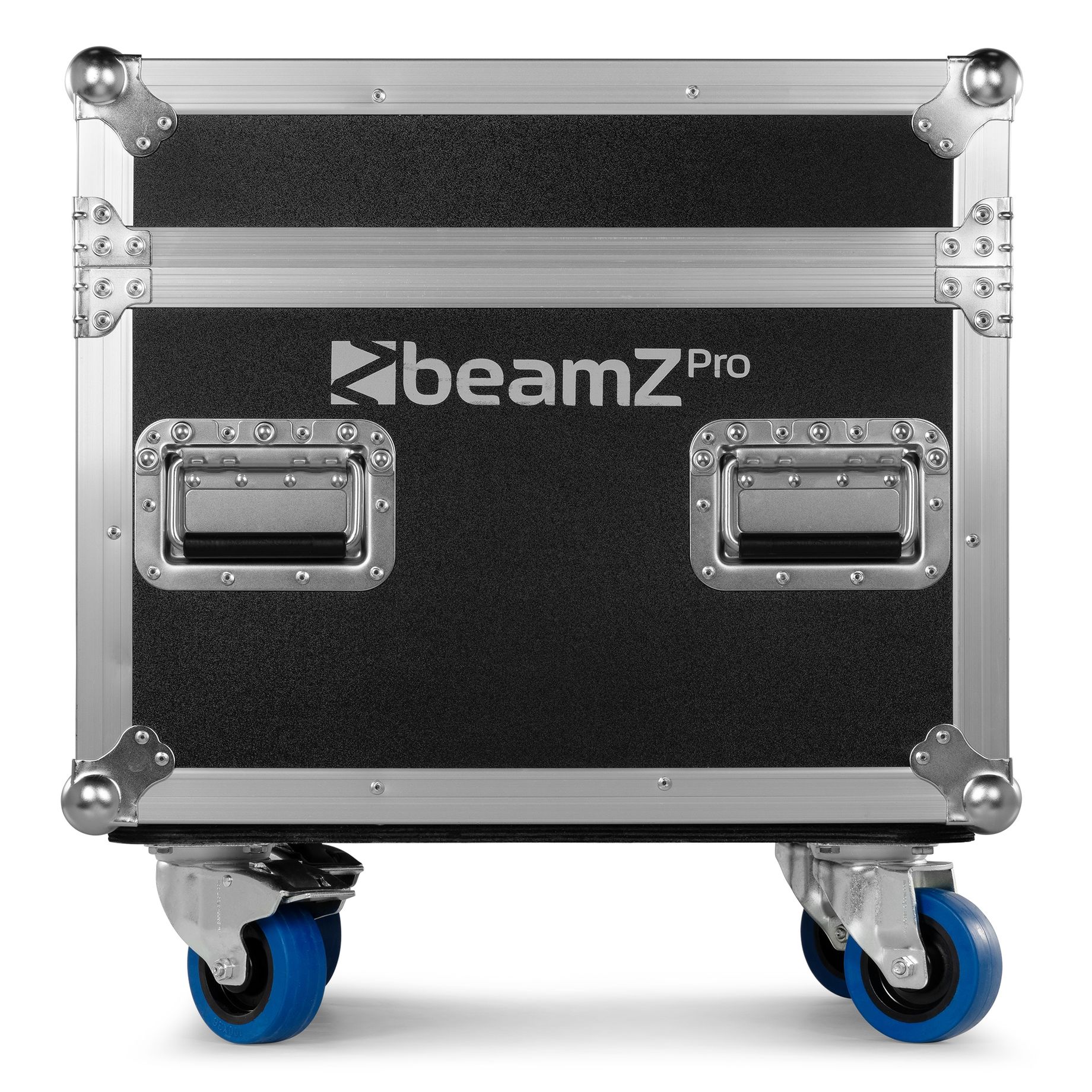

- Solid flightcase on wheels
Specifications
BrandbeamZ Professional
Product serieMHL series
ColourBlack
Moving head typeWash
Light source
Light source: Wash
- 7x 60W RGBW LED
Light source: Aura Effect Ring
- 39x RGB SMD LED
Colour Temperature2.7 - 8 K
Illuminance120643 lx @ 1m
Optics
Beam angle: Wash
- 11 - 28
ZoomYes
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second1 - 21 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels26, 38, 66
DMX connector3-pin XLR, 5-pin XLR

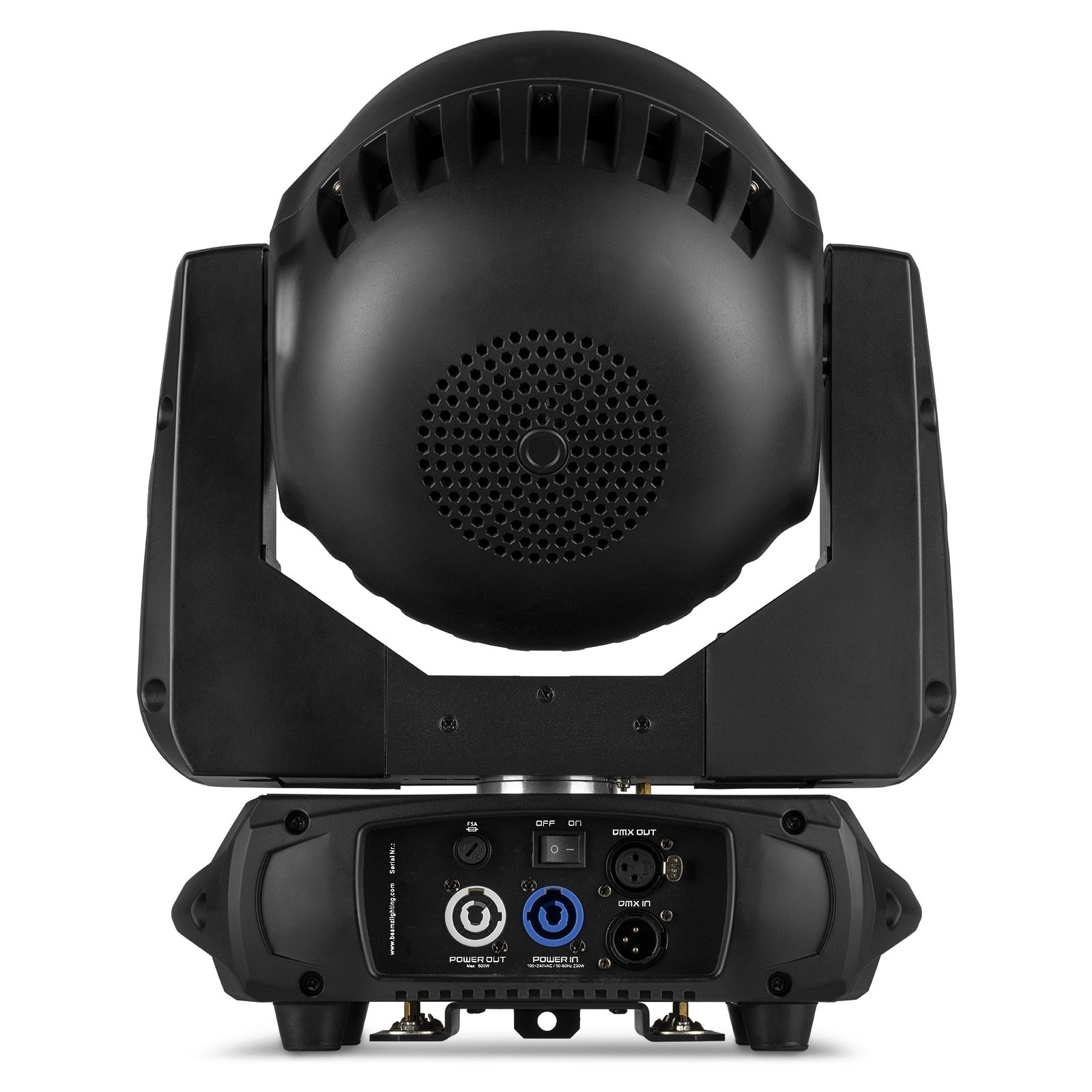

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (M)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions: Set
- 595 x 595 x 495 mm (W x D x H)
Weight: Set
- 51.8 kg
Dimensions: Each
- 335 x 215 x 365 mm (W x D x H)
Weight: Each
- 10.3 kg
Accessories
Included Accessories
- Mounting bracket
