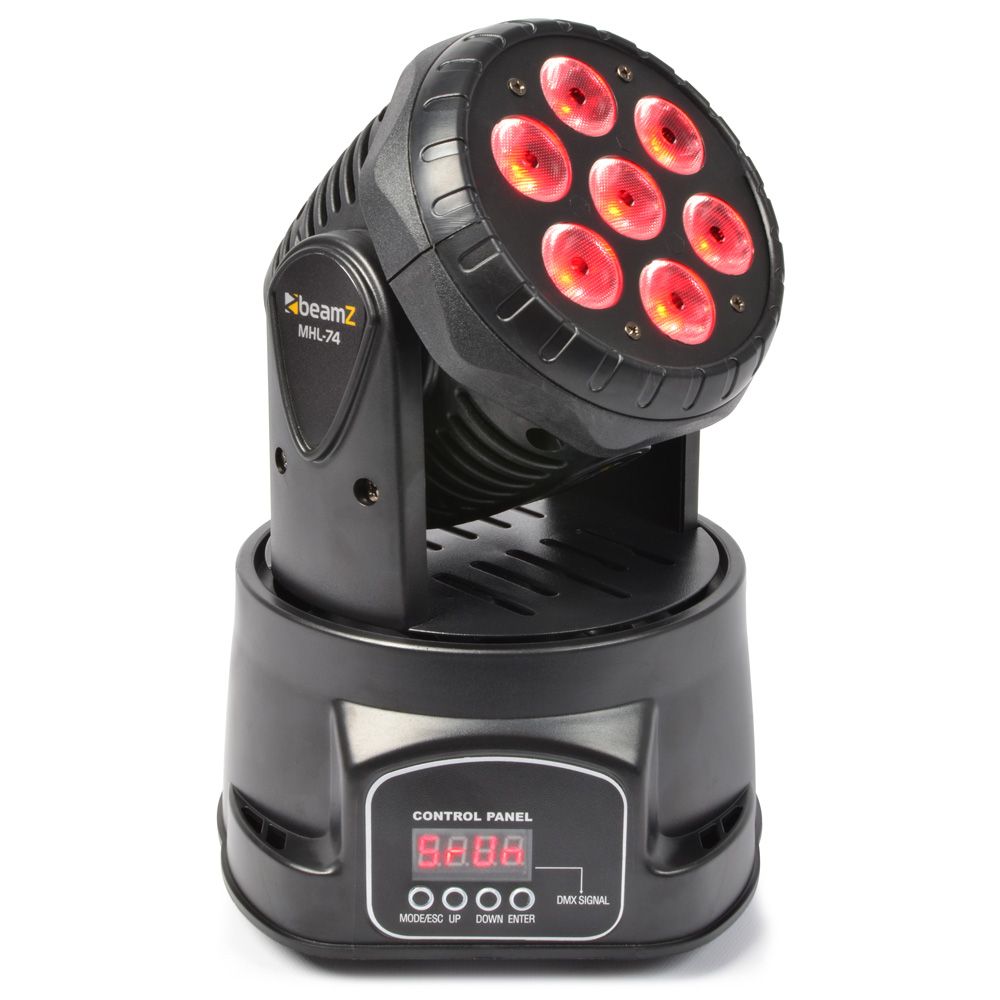

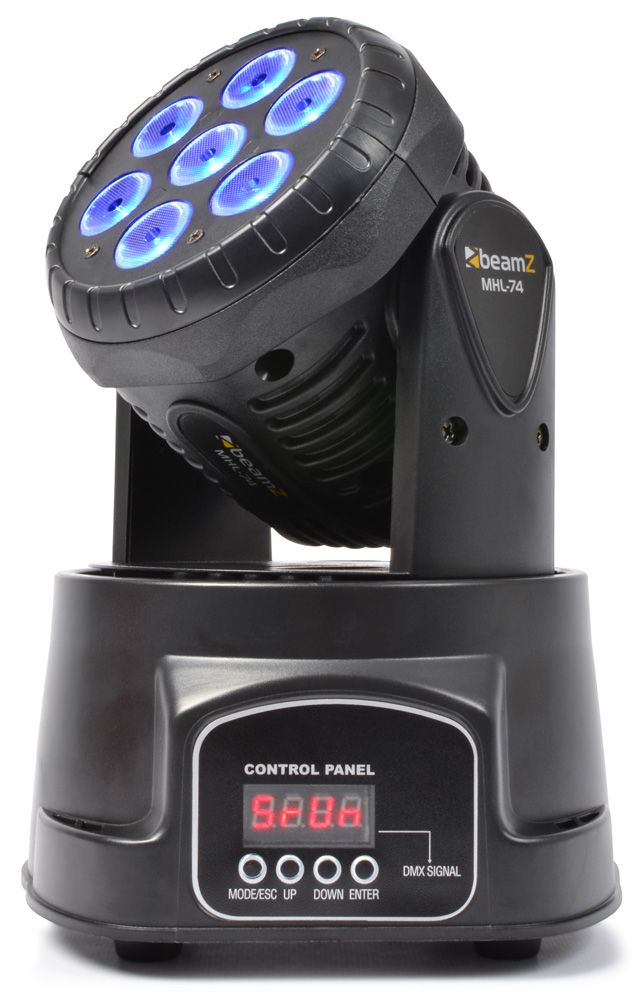

MHL74
LED Wash Moving Head 7x10W Black
SKU 150.518
|EAN 8715693261929
All product information
Compare
MHL series
Description
Highlights
- High power 7x 10W 4-in-1 LEDs
- RGBW colour mixing
- 7 or 12 Channel DMX mode
- Adjustable strobe speed
- 0-100% Dimmer
- DMX and Stand-alone mode
- Master/Slave function
- Reset function
- LED display and control panel
- DMX in/output via 3-pin XLR
Specifications
BrandbeamZ
Product serieMHL series
ColourBlack
Moving head typeWash
Light source
Light source
- 7x 10W RGBW
Illuminance8000 lx @ 1m
Optics
Beam angle
- 20°
ZoomNo
Movement
Pan Movement540°
Tilt Movement180°
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Control
Control modesAuto programs, DMX, Master/Slave, Manual
DMX Channels7, 12
RDMNo
DMX connector3-pin XLR

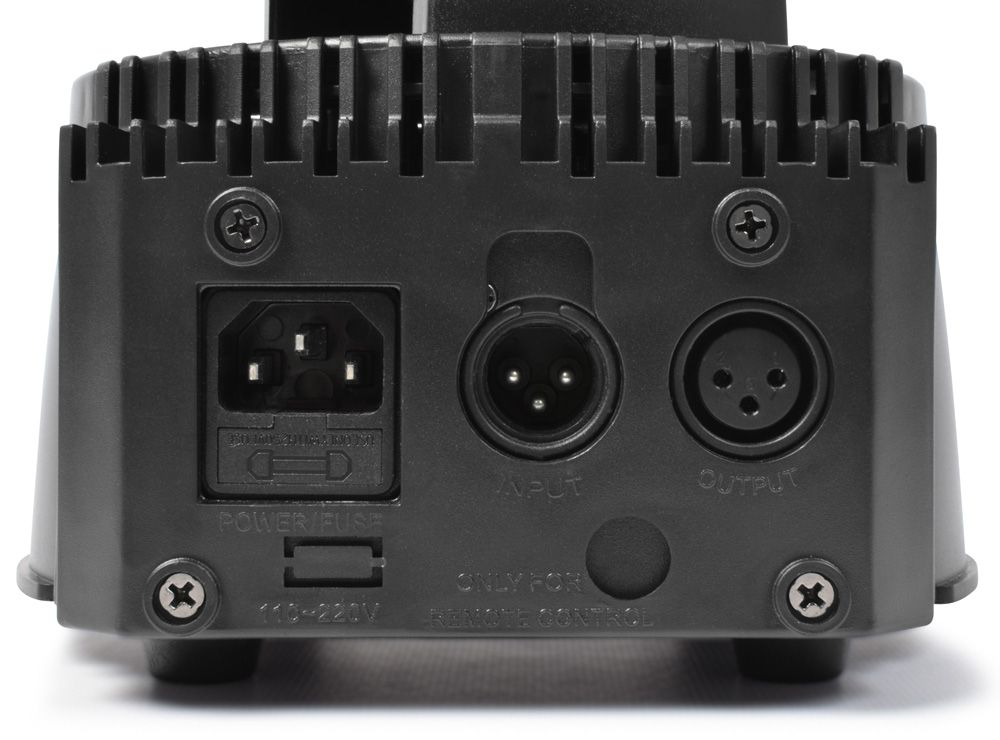

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 175 x 175 x 240 mm (W x D x H)
Weight
- 3.4 kg
Manuals & Documents
Manual
PDF
