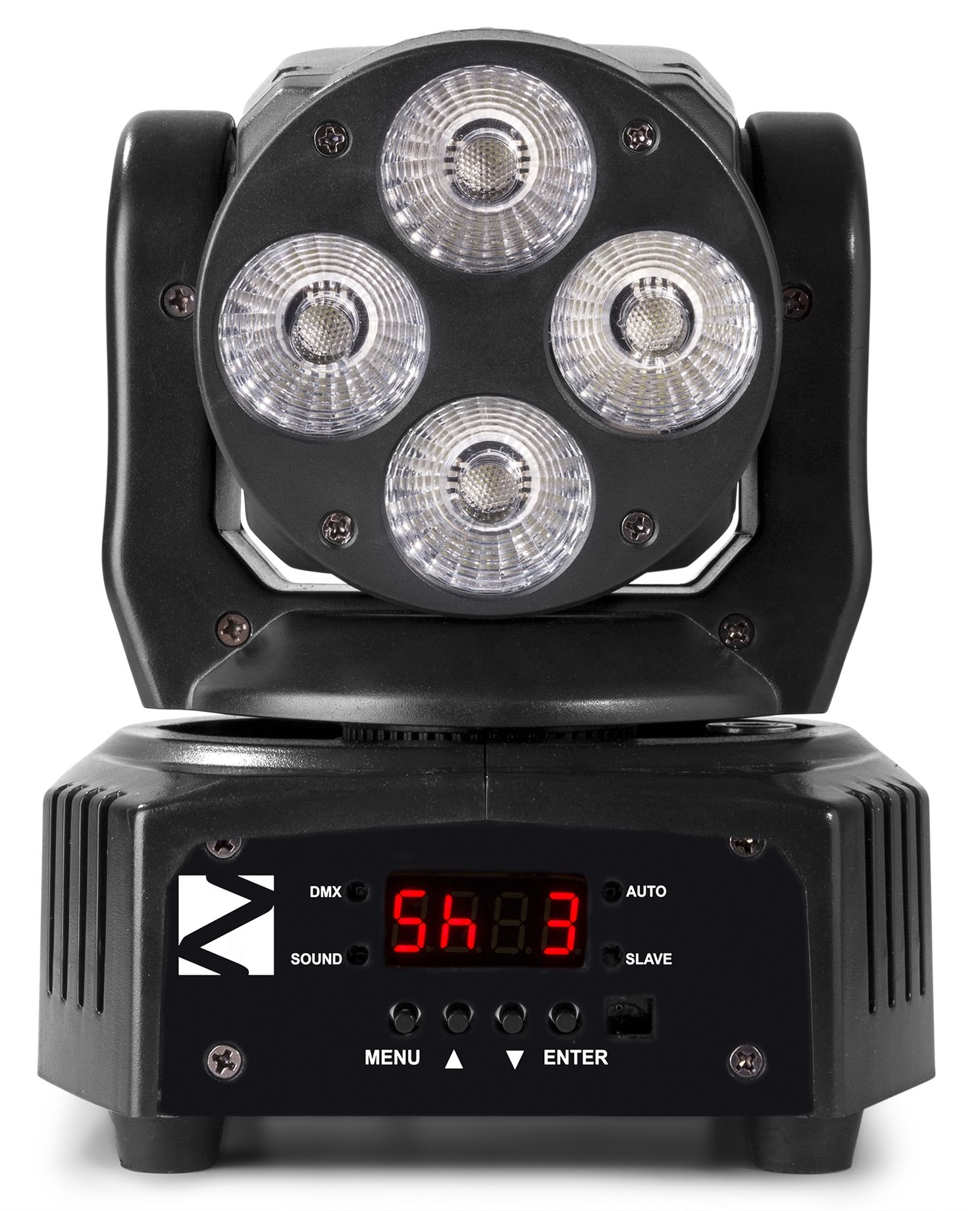

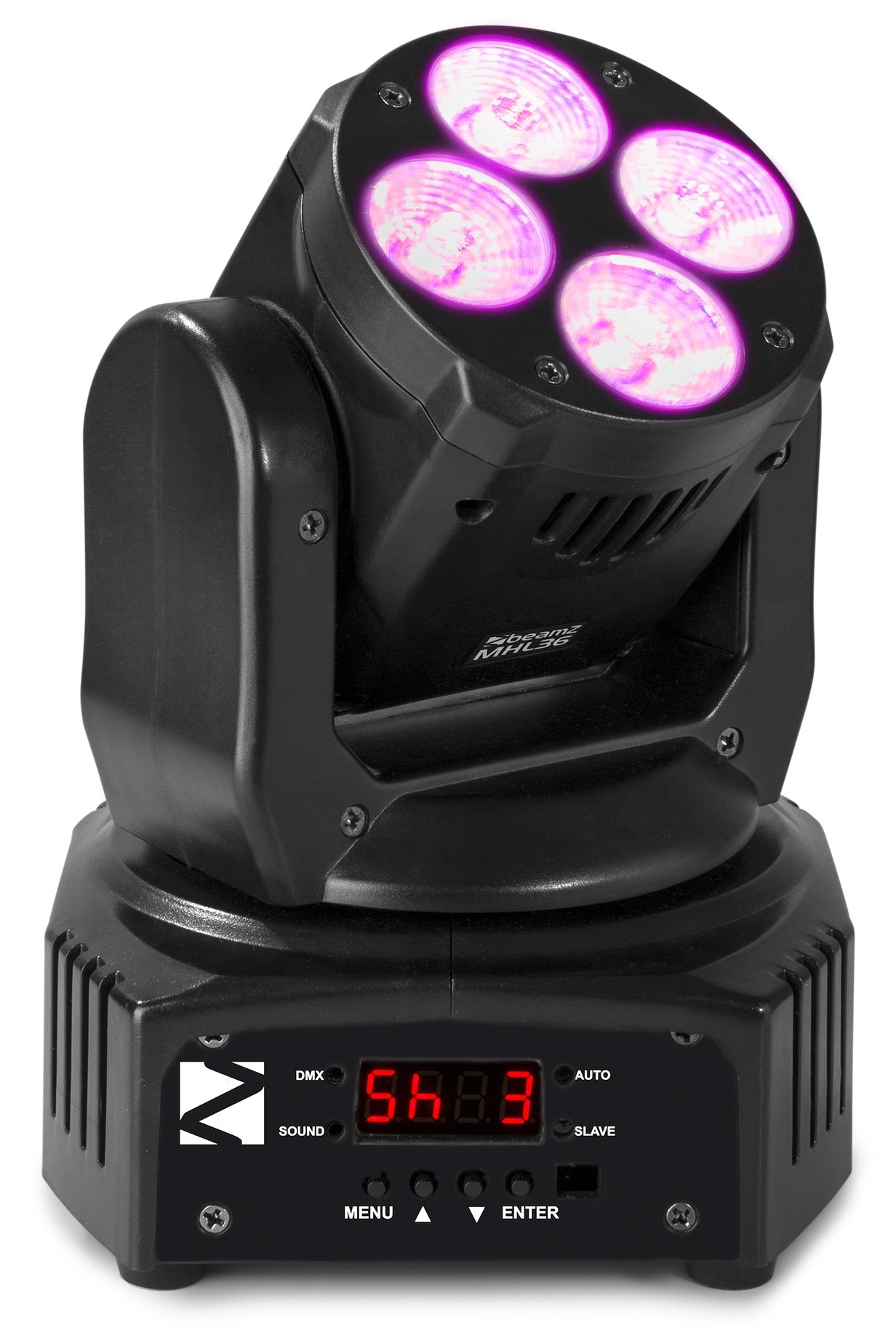

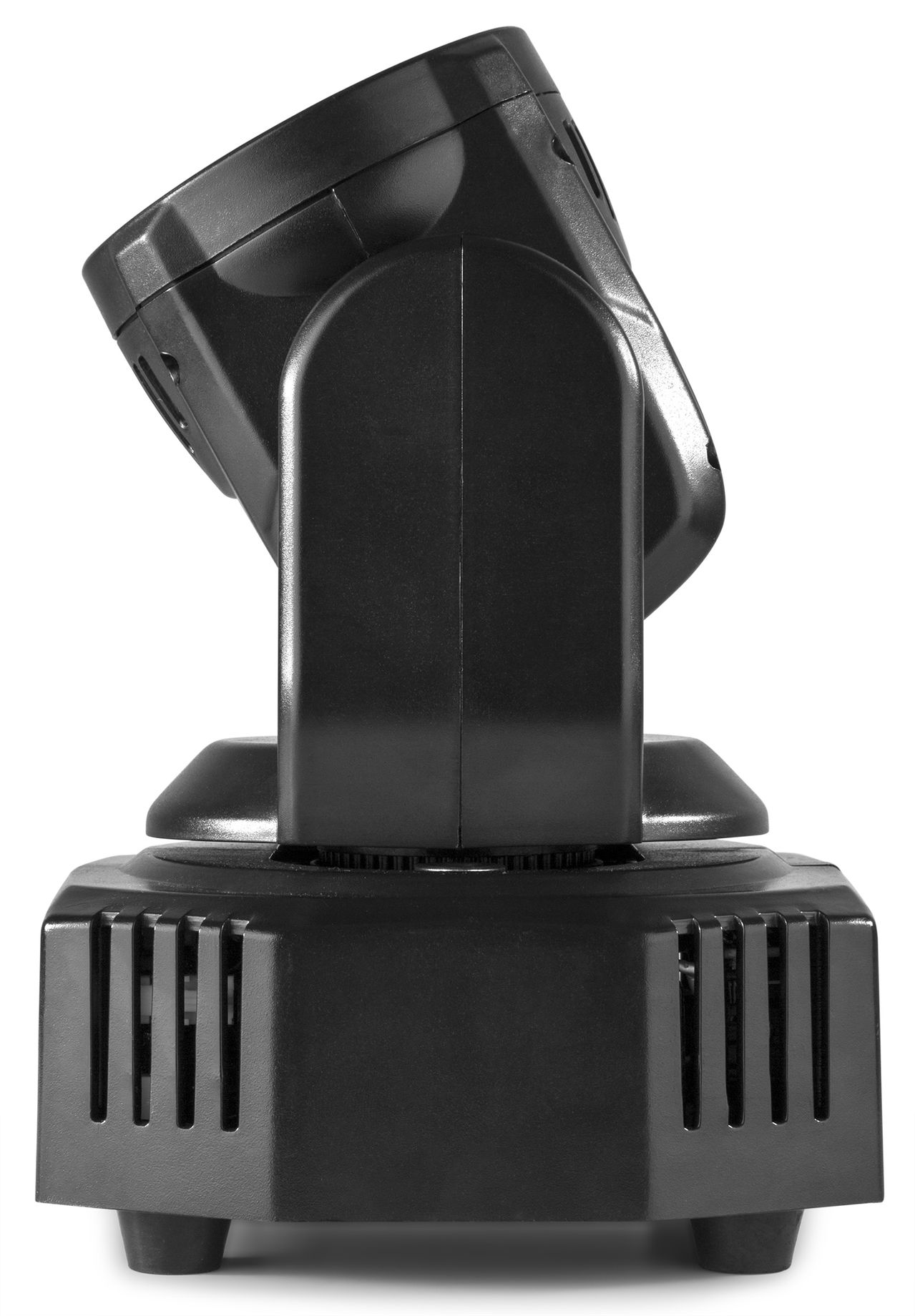

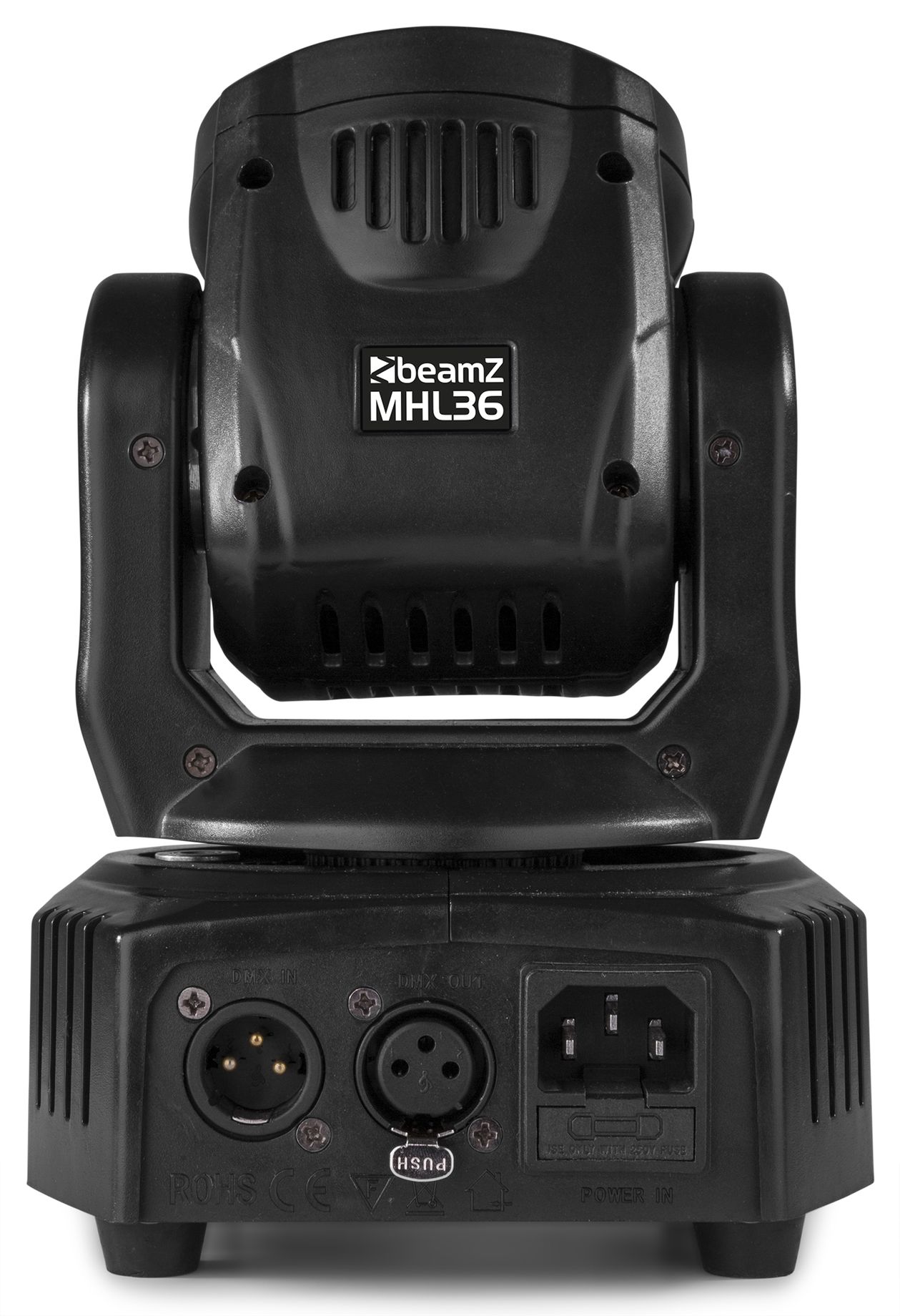

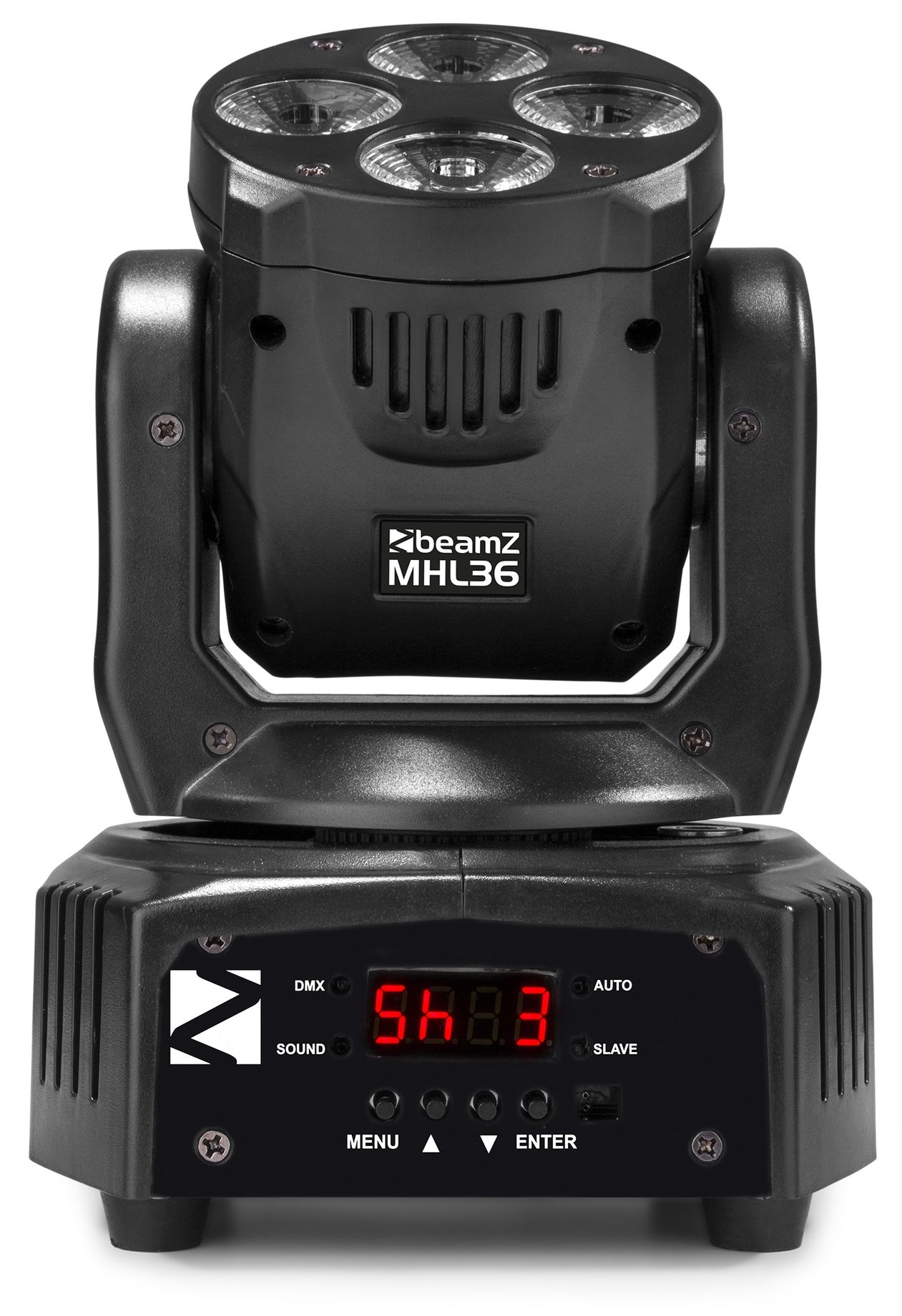

MHL36

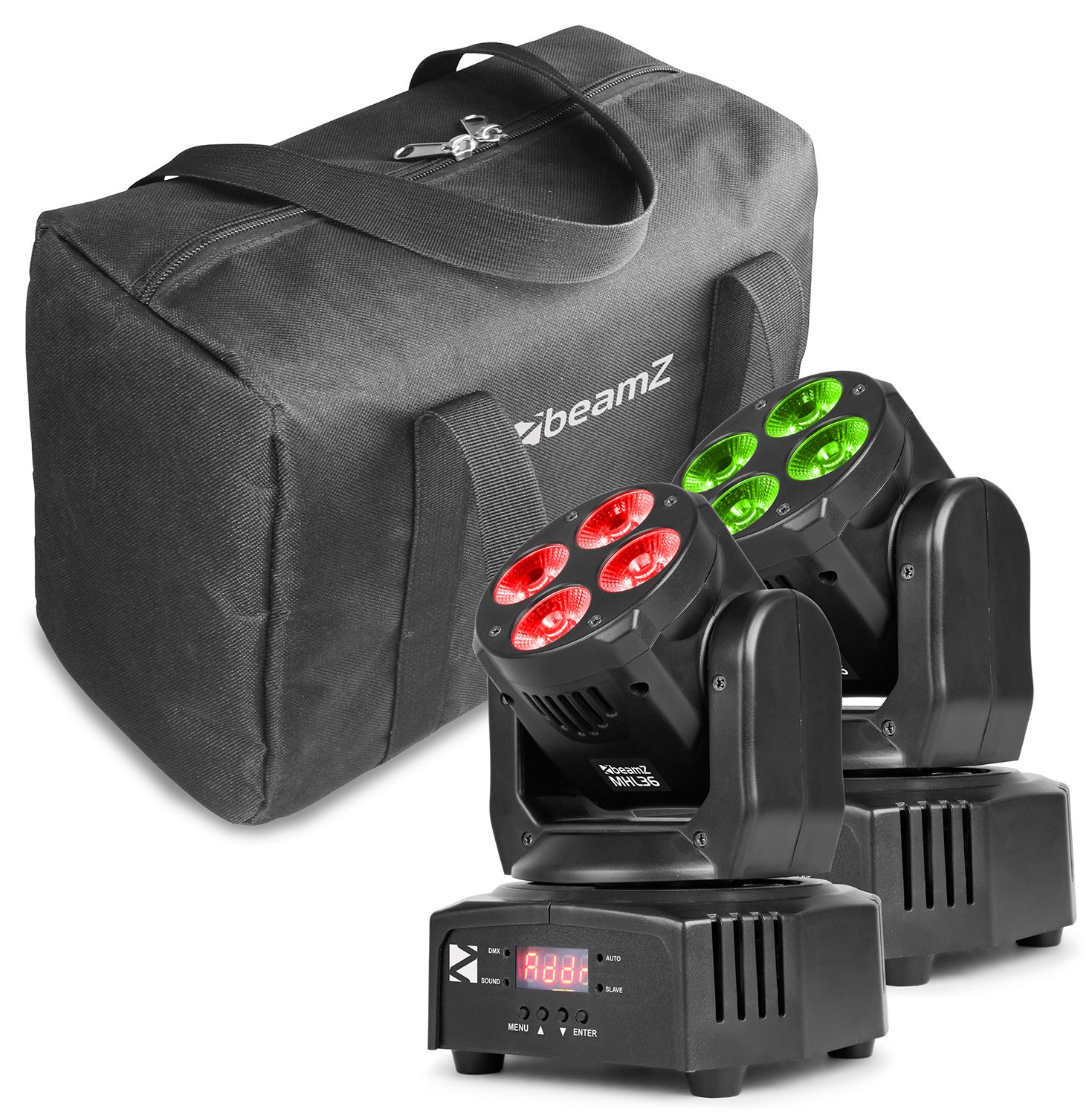

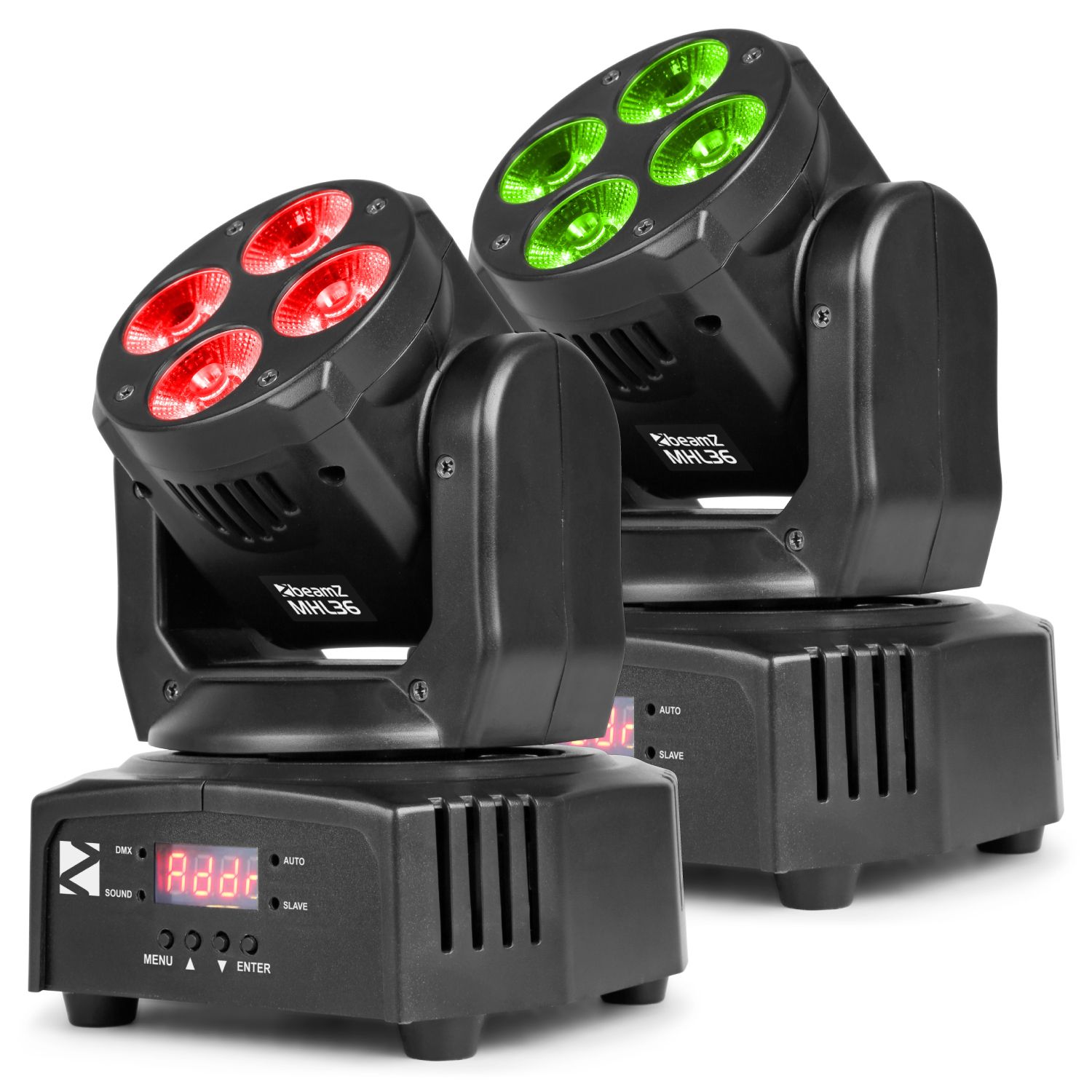

LED Wash Moving Head 4x 9W 2pcs in bag
SKU 150.532
|EAN 8715693289572
+7
All product information
Compare
MHL series
Description
Highlights
- High power 4x 9W 4-in-1 LEDs
- RGBW colour mixing
- Different colour presets
- 4 pre-programmed shows
- Electronic dimming: 0 - 100%
- 14 or 16 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- Auto mode with adjustable speed
- Pan/tilt reverse
- Reset function
- LED display and control panel
- DMX in/outputs via 3-pin XLR
- IEC-connector input
Specifications
BrandbeamZ
Product serieMHL series
ColourBlack
Moving head typeWash
Light source
Light source
- 4x 9W RGBW
Illuminance2320 lx @ 1m
Optics
Beam angle
- 26°
ZoomNo
Movement
Pan Movement540°
Tilt Movement180°
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second0 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels14, 16
RDMNo
DMX connector3-pin XLR

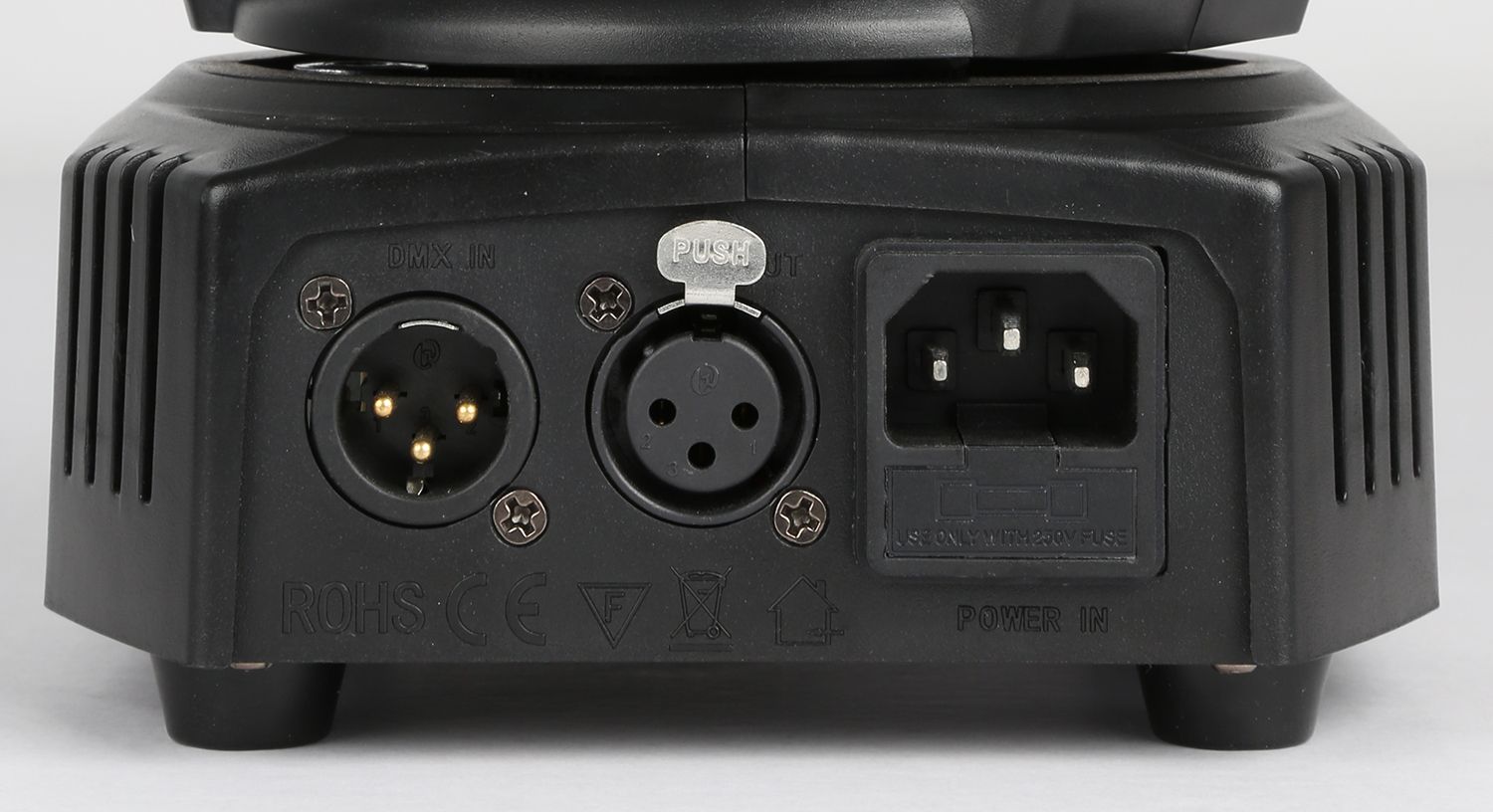

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 145 x 140 x 180 mm (W x D x H)
Weight
- 4.1 kg
Manuals & Documents
Manual
PDF
