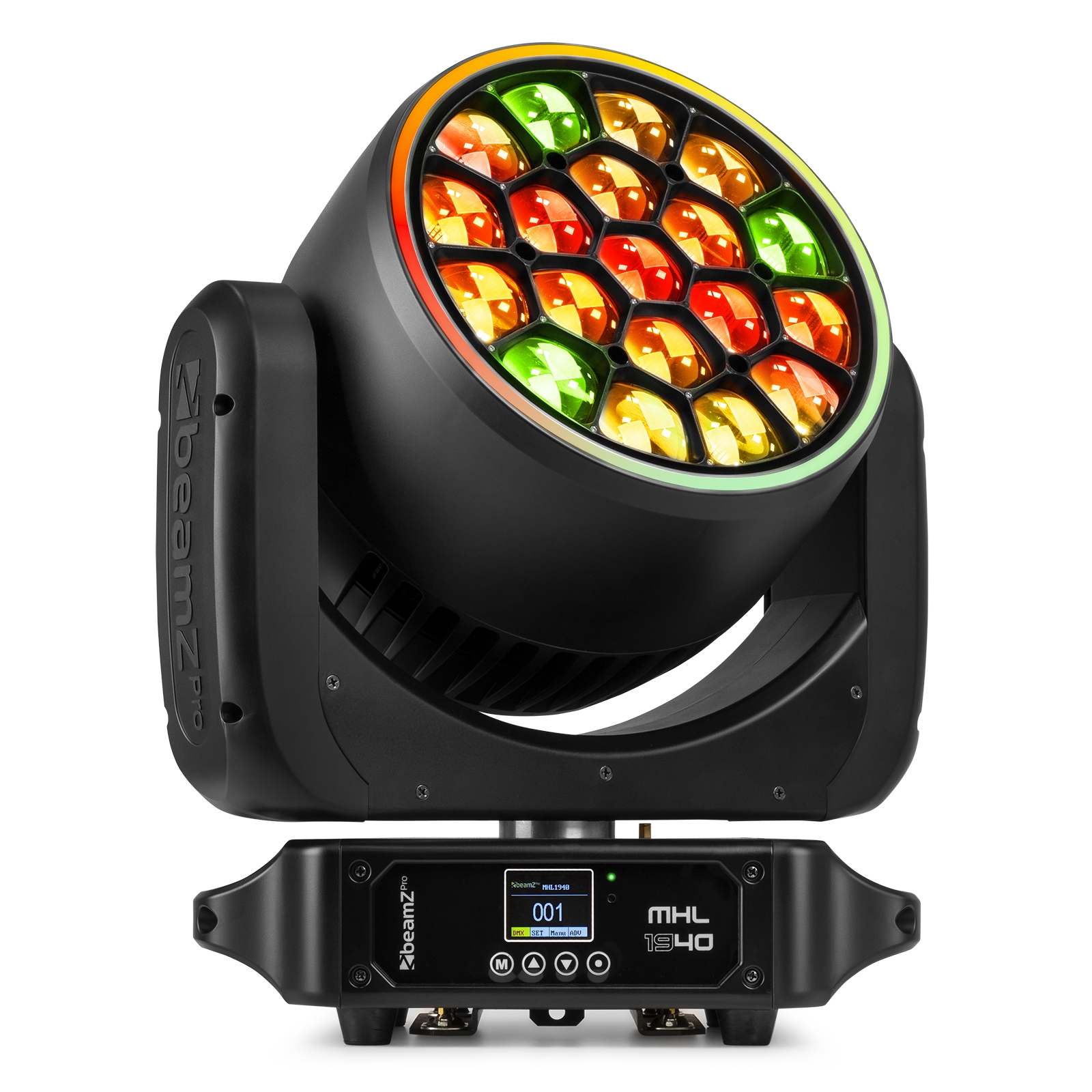

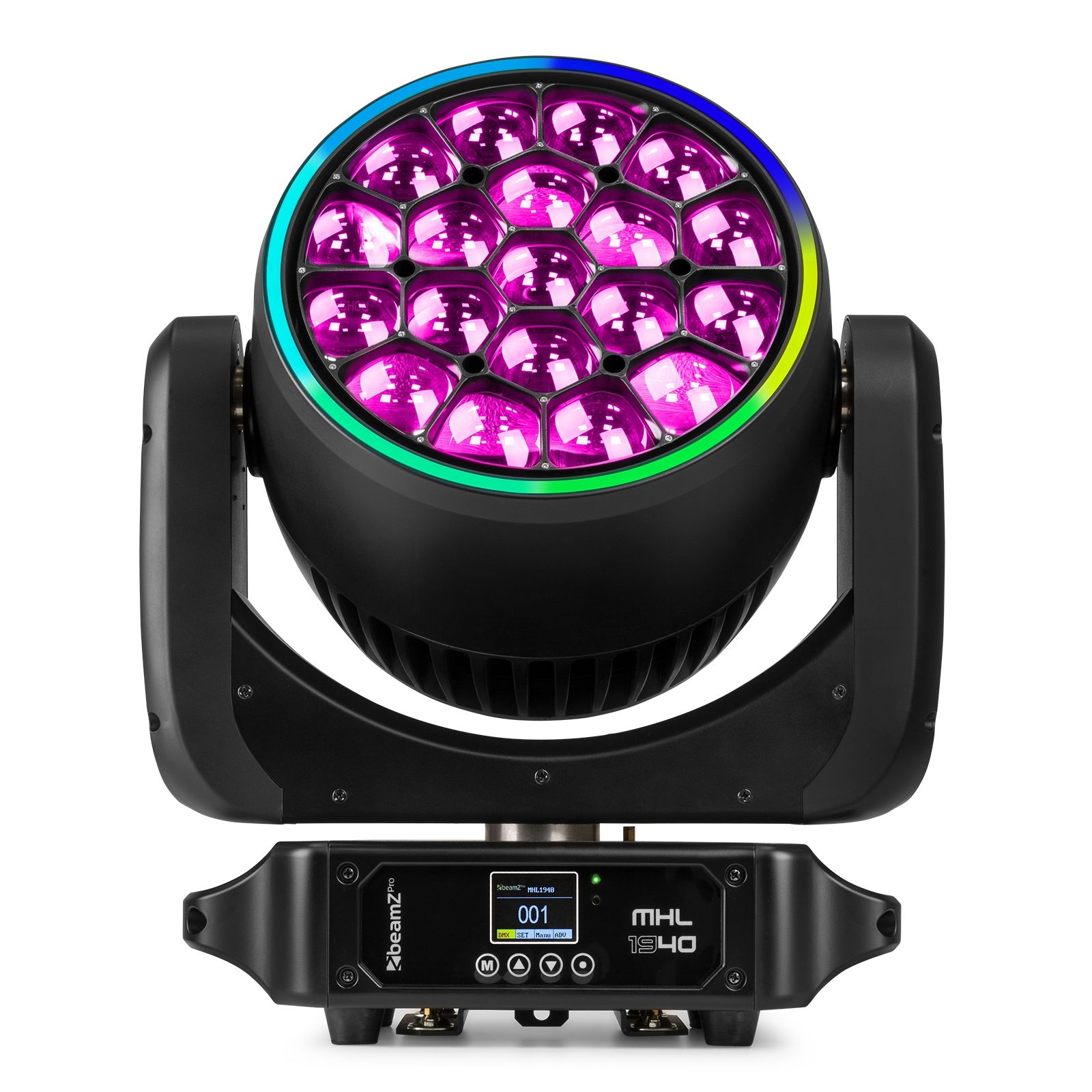

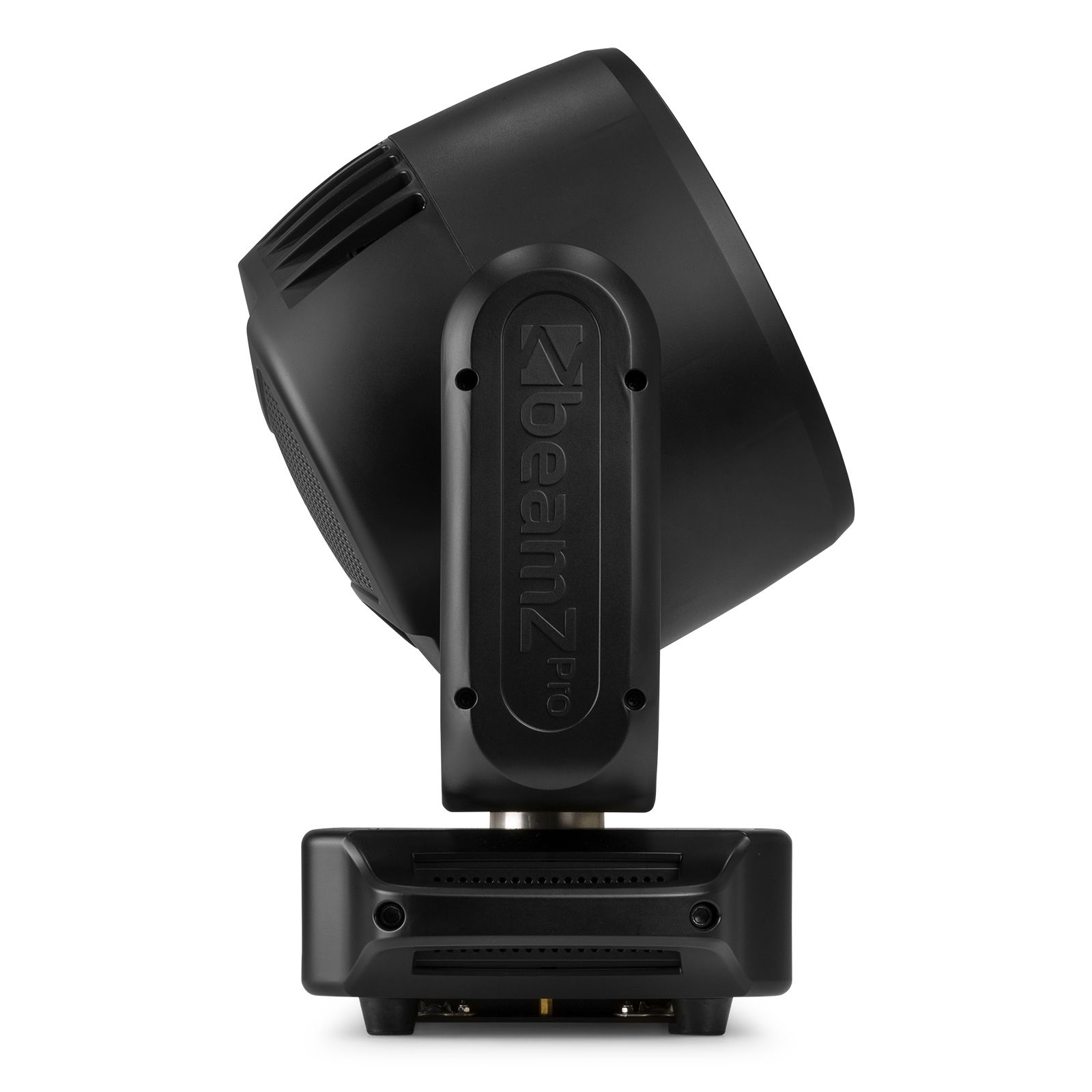

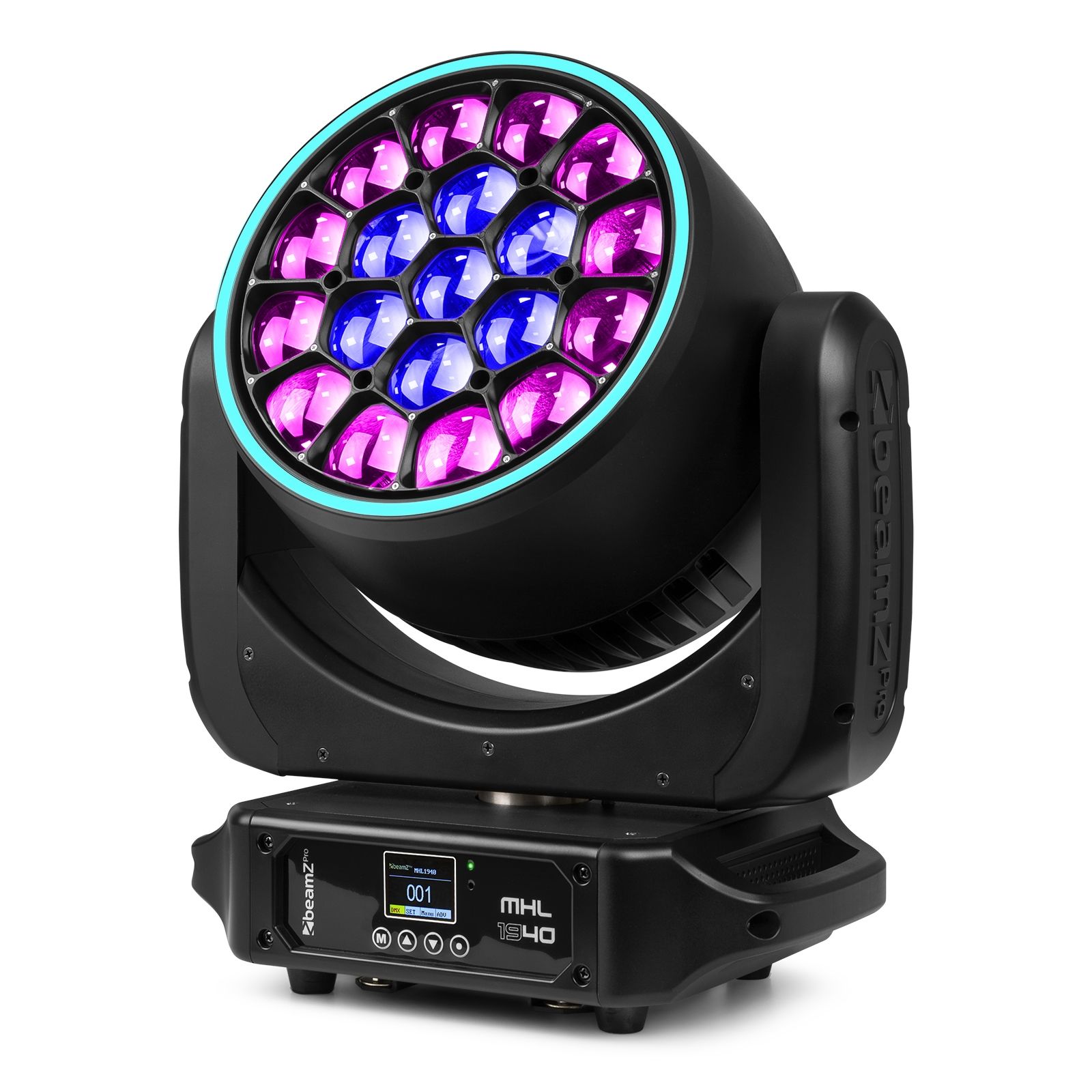

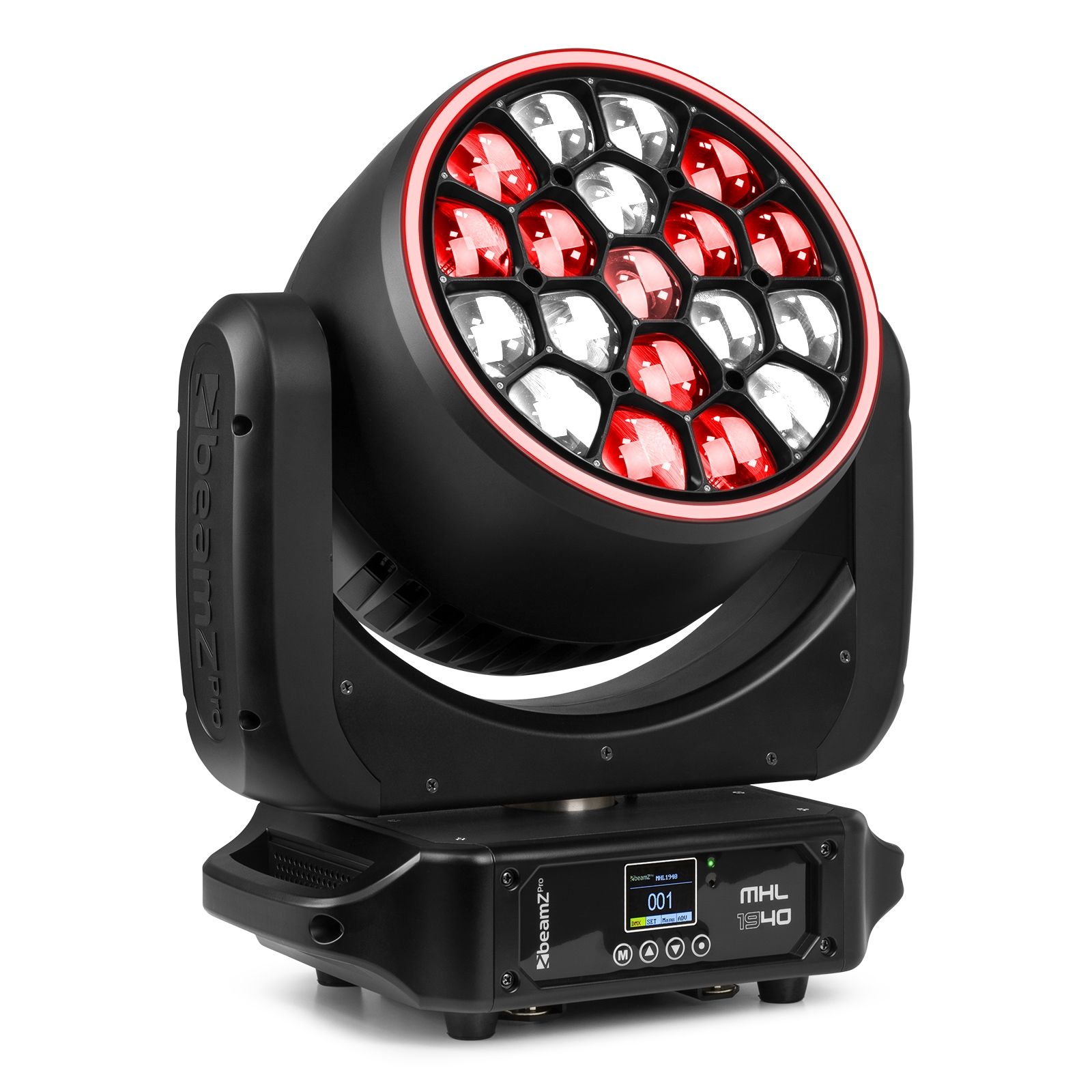

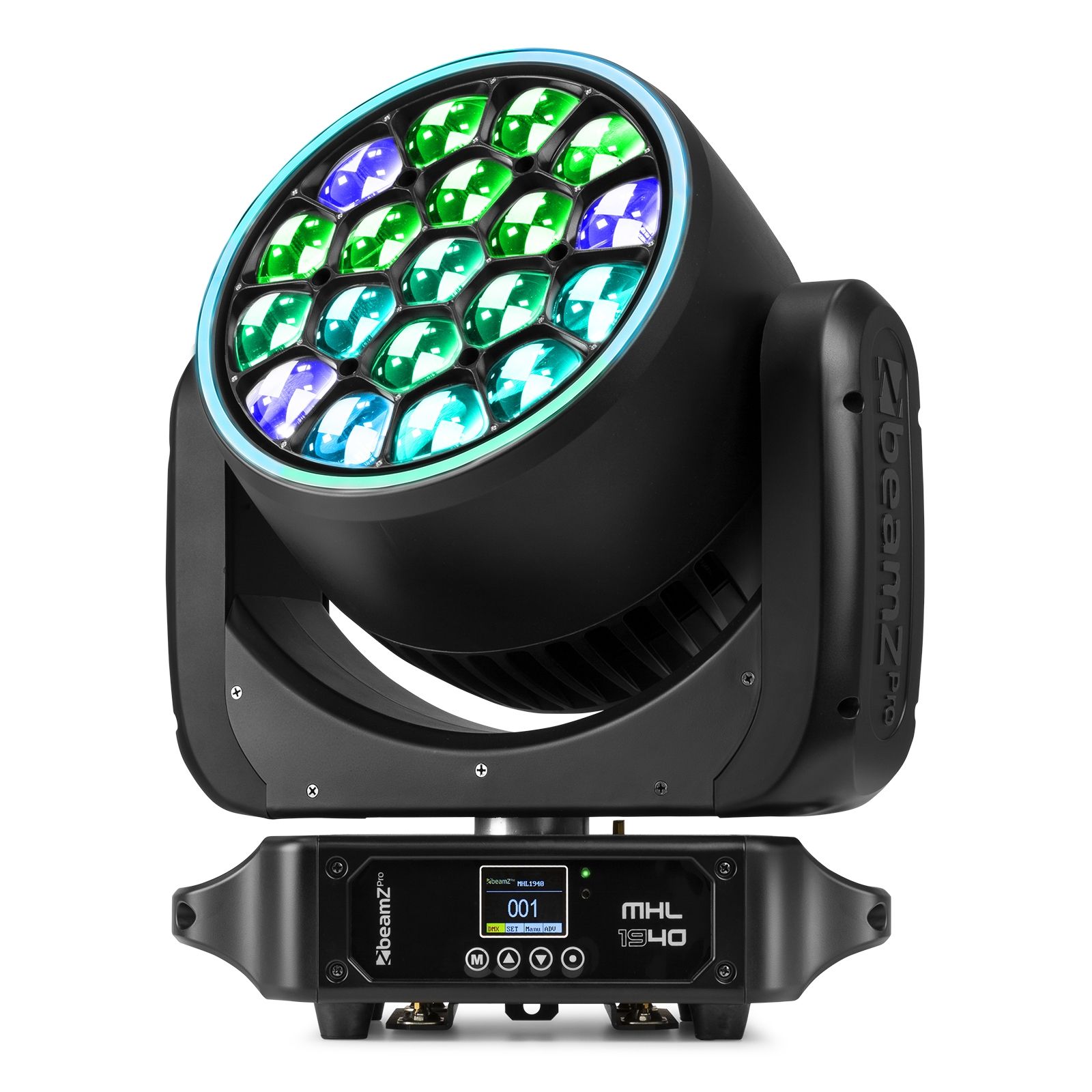

MHL1940
LED Bee Eye Moving Head with Zoom
SKU 150.106
|EAN 8715693336924
+13
All product information
Compare
MHL series
Description
Highlights
- Bee Eye moving head with rotating lenses and zoom
- 19x 40W 4-in-1 RGBW LEDs
- Aura Effect Ring: 48x RGB SMD LEDs
- Motorized zoom
- 26, 38, 102 or 114 DMX channels
- CTB & CTO Filter
- Pre-programmed macro effects with variable speed
- 8 Sound mode and 8 auto mode programs
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- Scan position memory
- 0-100% Smooth linear LED dimmer
- Single pixel control
- Controle panel with LCD display
- DMX in/output via 3/5-pin XLR
- Powerconnector input/output
- Quick lock omega clamp included
Specifications
BrandbeamZ Professional
Product serieMHL series
ColourBlack
Moving head typeWash
Light source
Light source: Wash
- 19x 40W RGBW LED
Light source: Aura Effect Ring
- 48x RGB SMD LED
Colour Temperature2.7 - 8 K
Illuminance94960 lx @ 1m
Optics
Beam angle
- 10 - 31
ZoomYes
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second1 - 25 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels26, 38, 102, 114
RDMNo
DMX connector3-pin XLR, 5-pin XLR

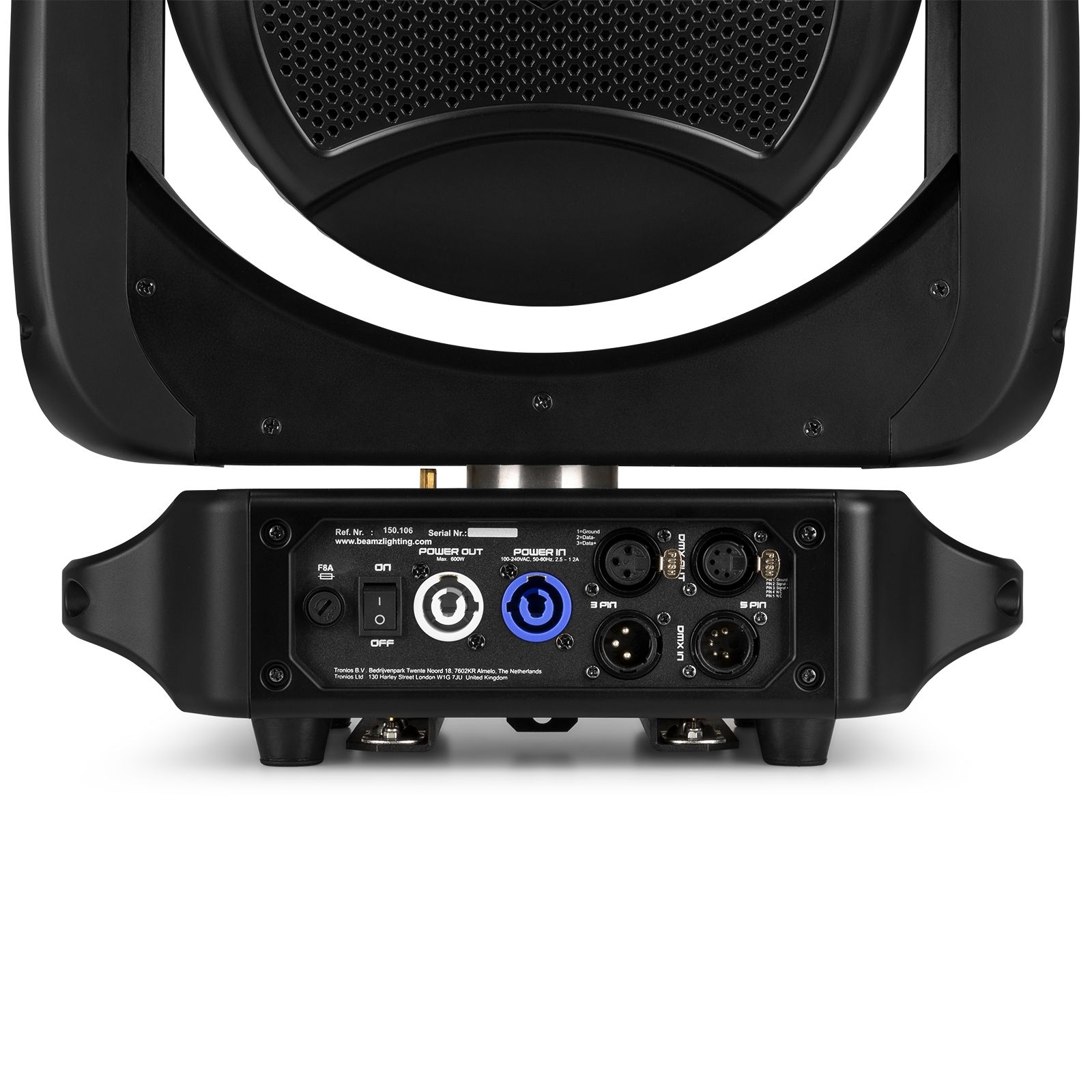

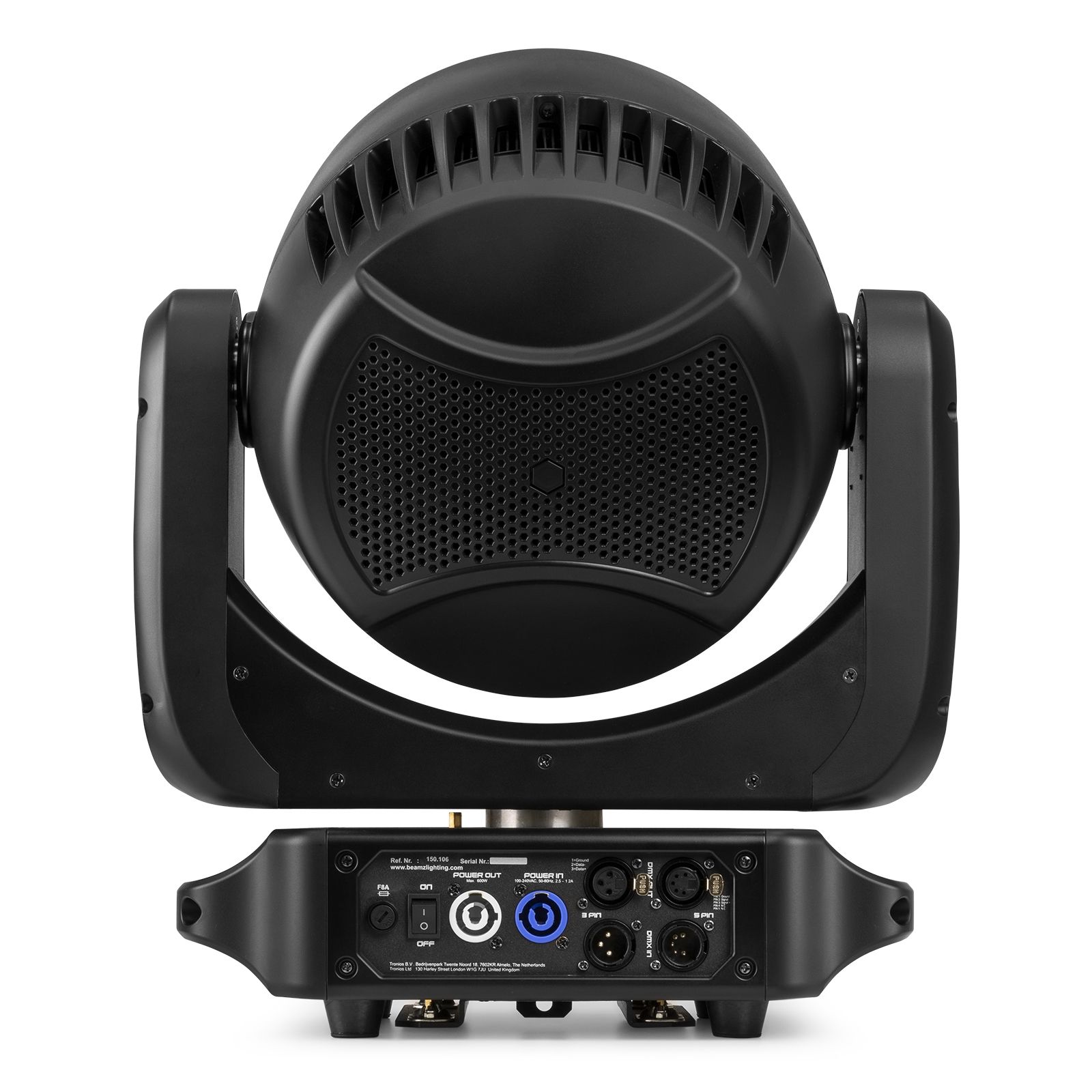

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 405 x 405 x 412 mm (W x D x H)
Weight
- 16.15 kg
Accessories

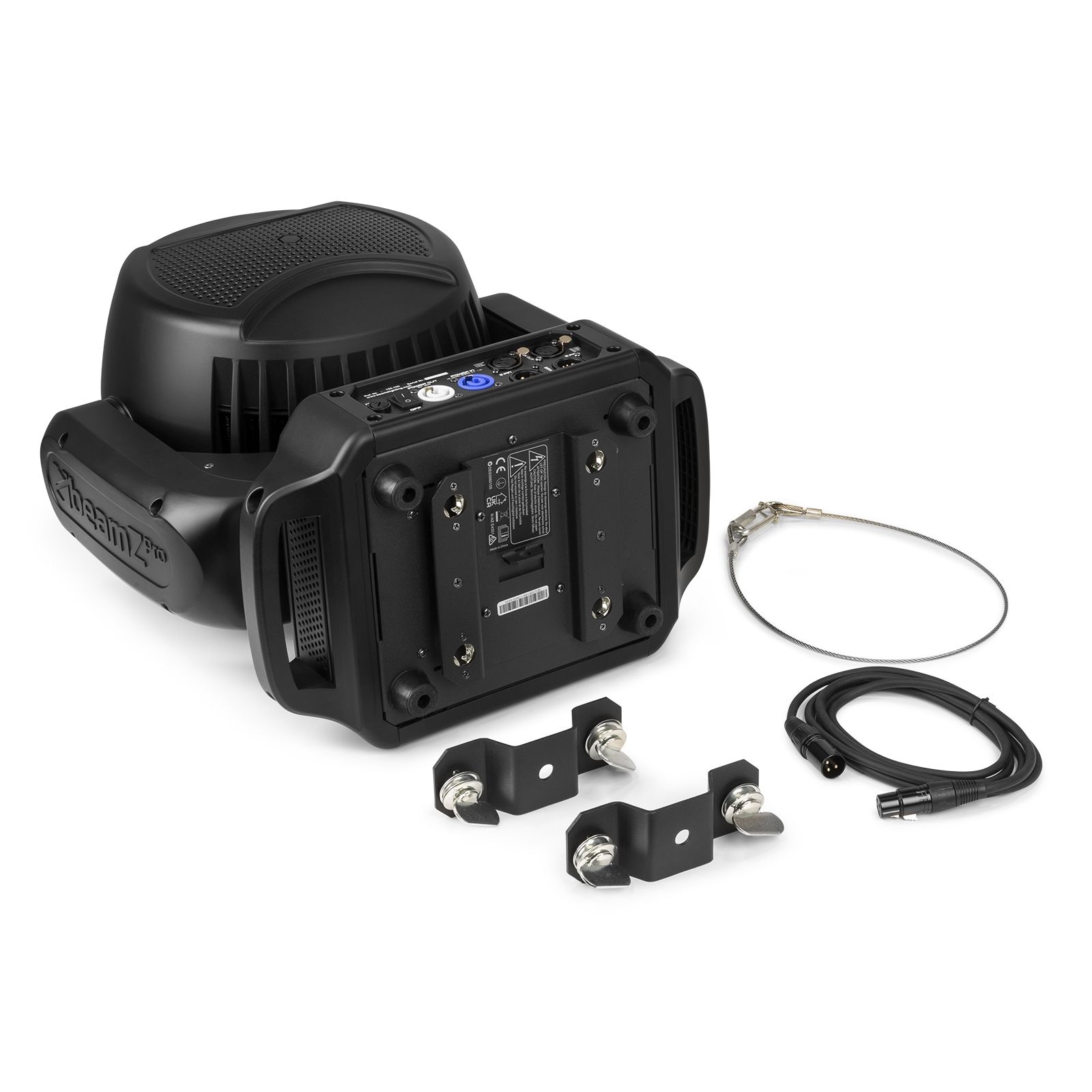

Included Accessories
- Mounting bracket
