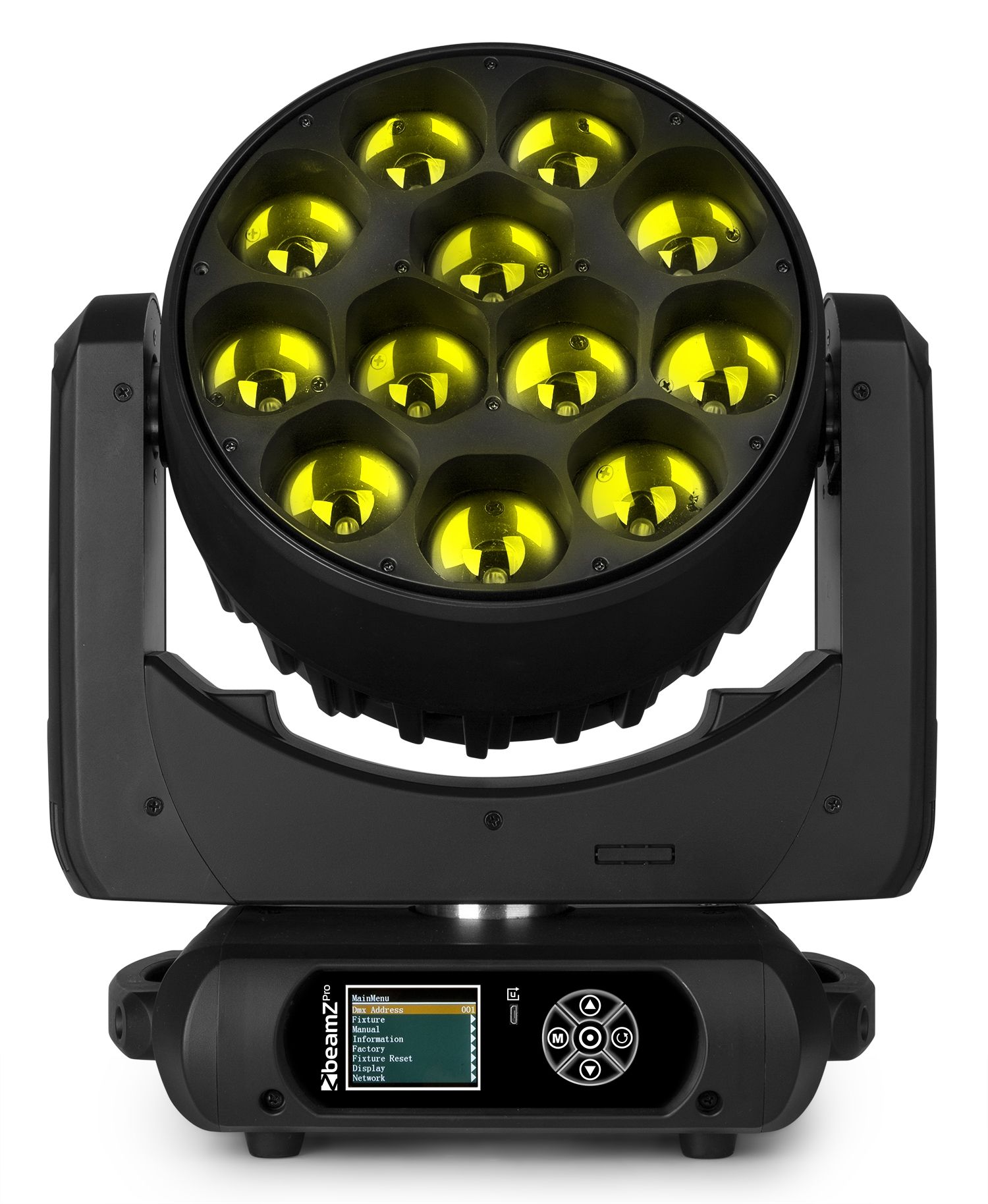

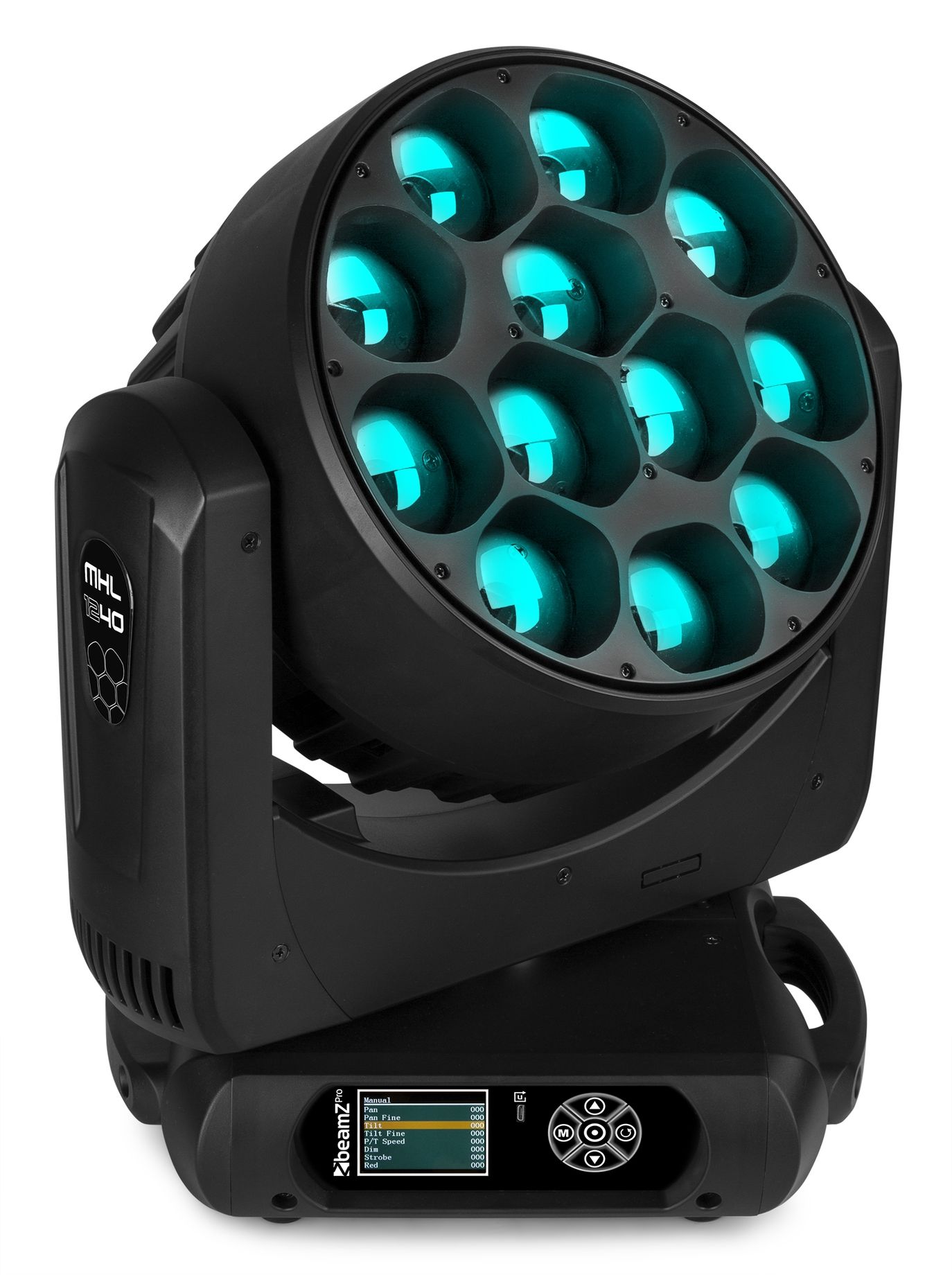

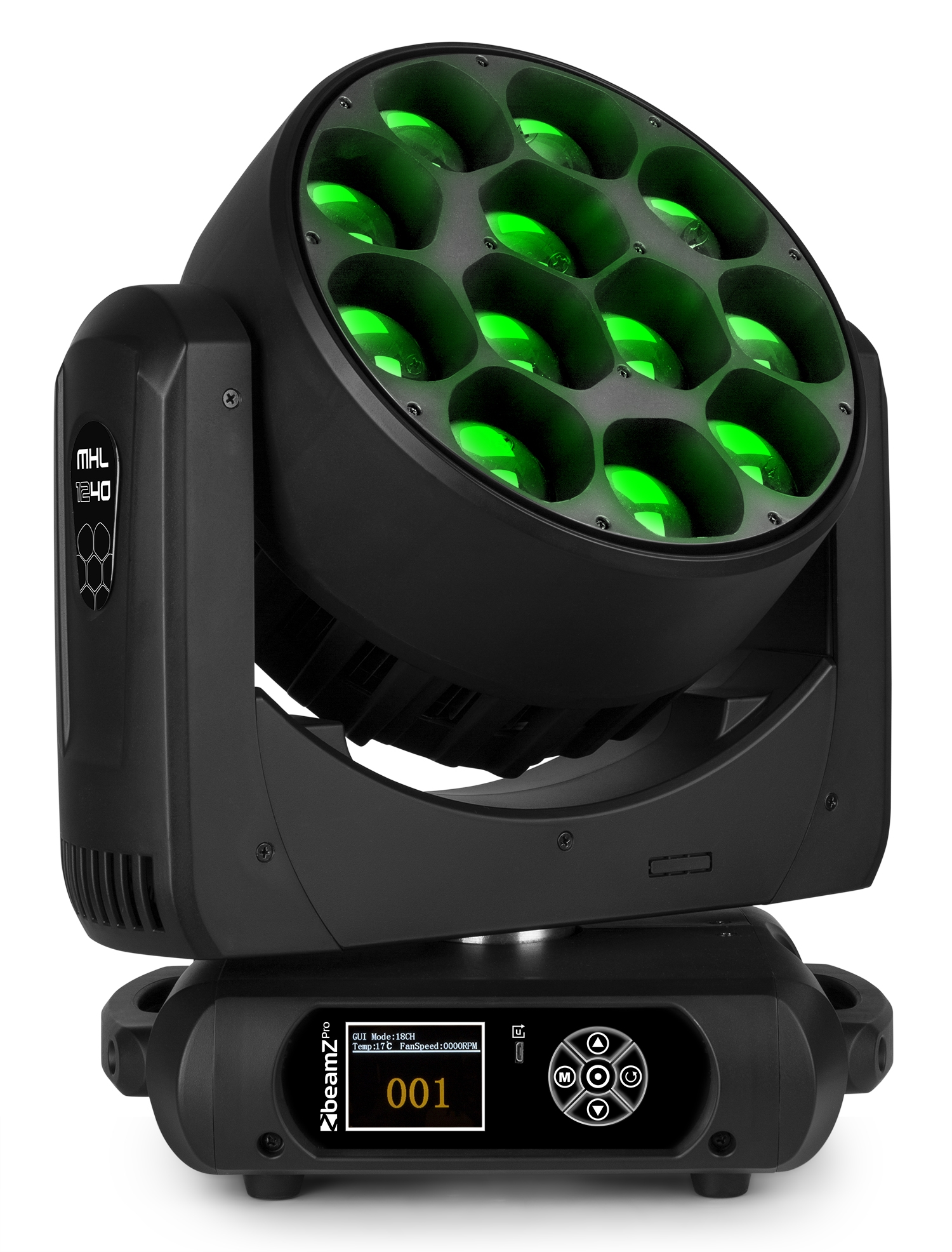

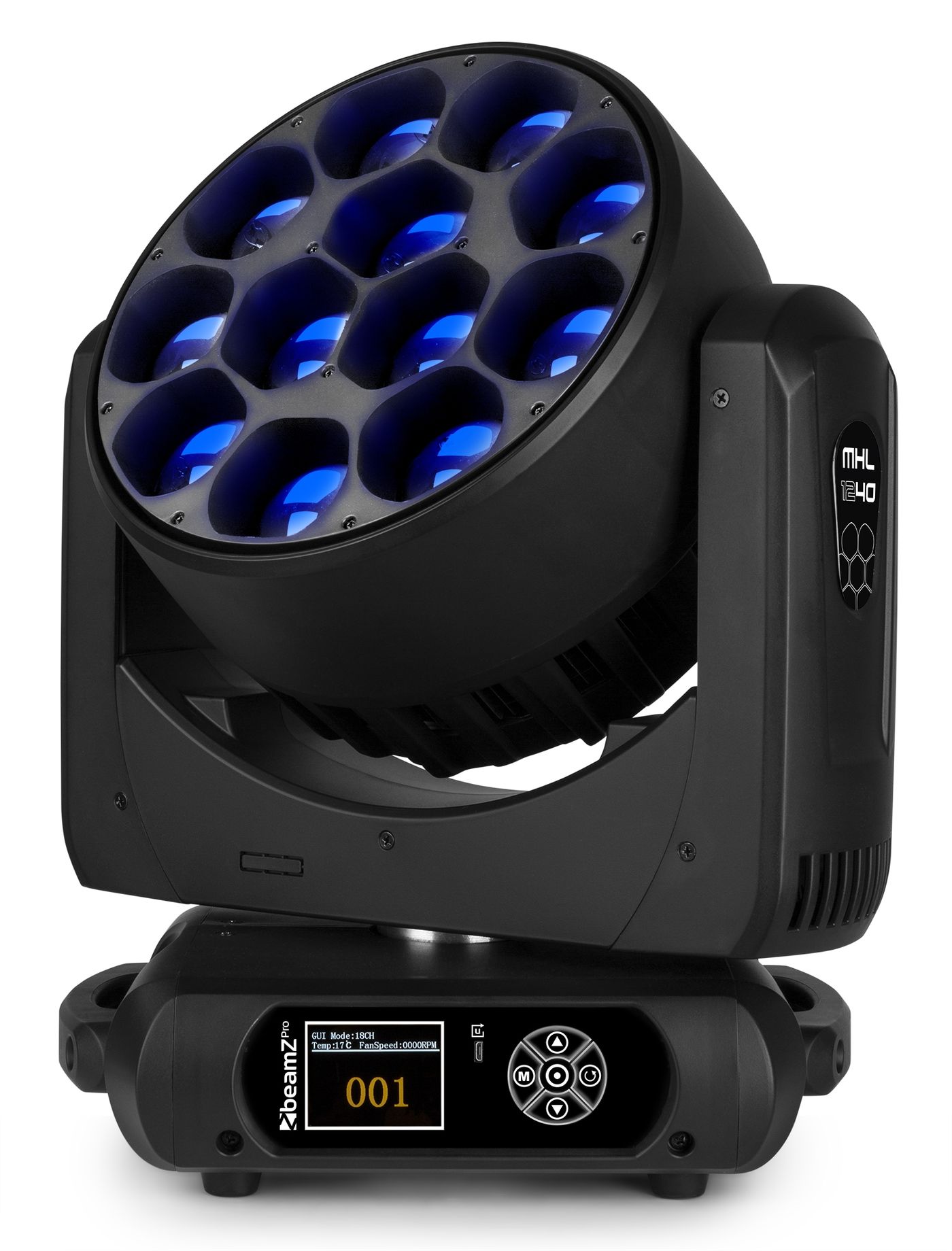

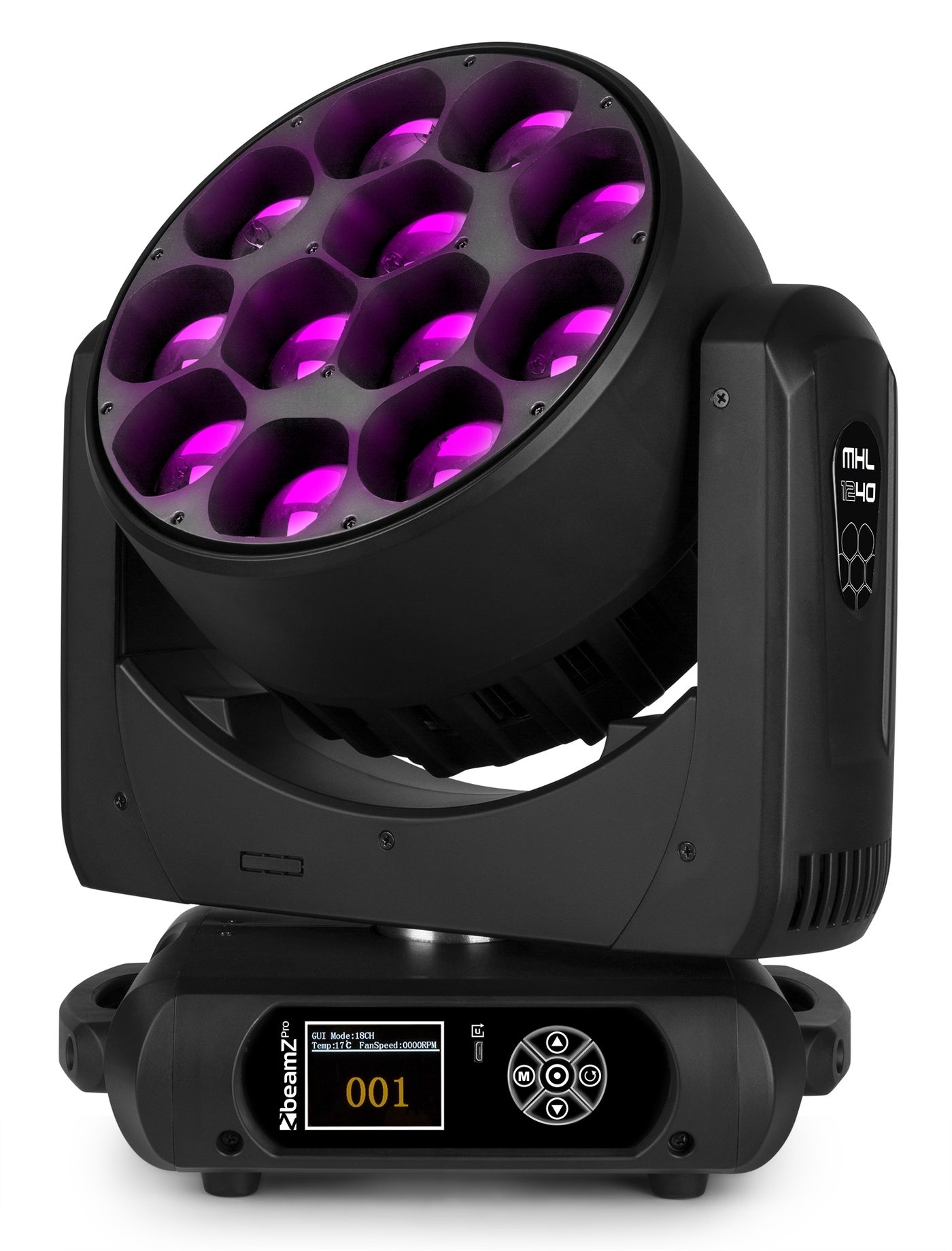

MHL1240
LED Wash Moving Head with Zoom
SKU 150.101
|EAN 8715693341690
+8
All product information
Compare
MHL series
Description
Highlights
- 12x 40W 4-in-1 RGBW LED
- Motorized zoom
- 11, 17, 18 or 58 DMX channels
- RDM/DMX Protocols
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- 0-100% Electronic Dimmer
- Single pixel control
- Controle panel with LCD display
- DMX in/output via 3-pin or 5-pin XLR
- Powerconnector input/output

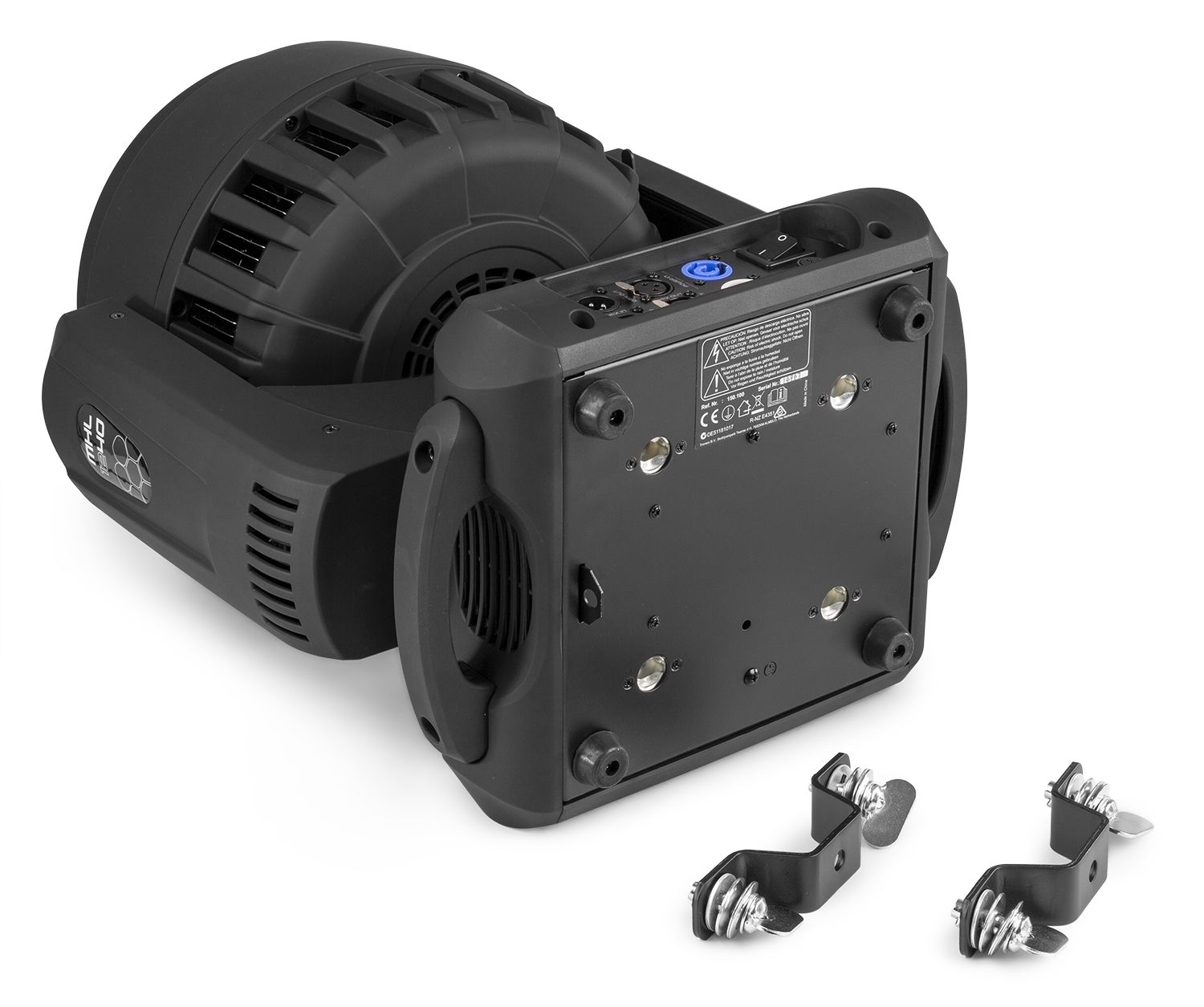

- Quick lock omega clamps included
- DMX cable included
- Powerconnector cable included
Specifications
BrandbeamZ Professional
Product serieMHL series
ColourBlack
Moving head typeWash
Light source
Light source
- 12x 40W RGBW
Colour Temperature2,800 - 8,000 K
Illuminance 99.000 lx @ 3m
Optics
Beam angle
- 4.5 - 31
ZoomYes
Movement
Pan Movement540°
Tilt Movement220°
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second0 - 18 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels11, 17, 18, 58
RDMYes
DMX connector3-pin XLR, 5-pin XLR

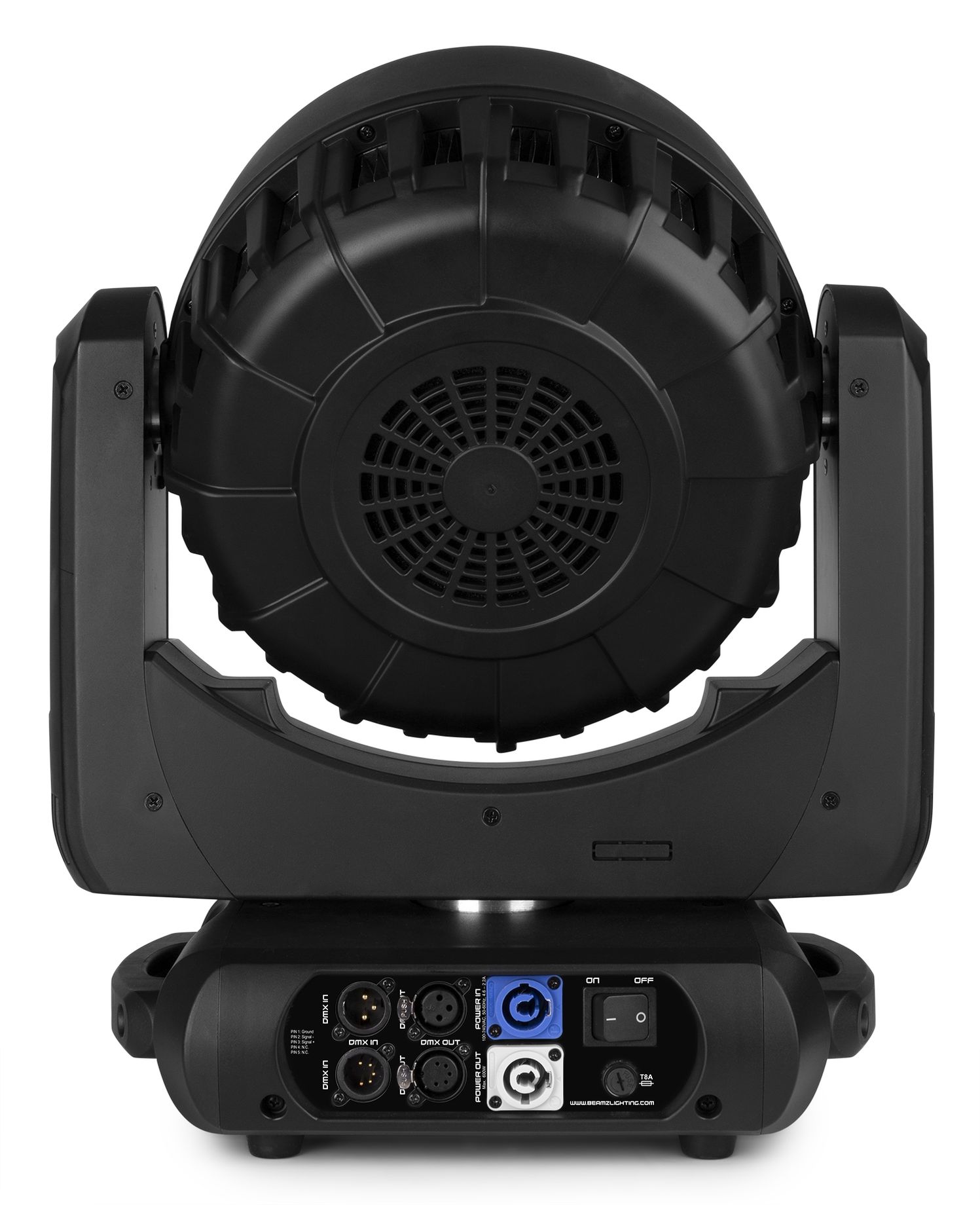

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Weight
- 14.7 kg
Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
