MHL1912

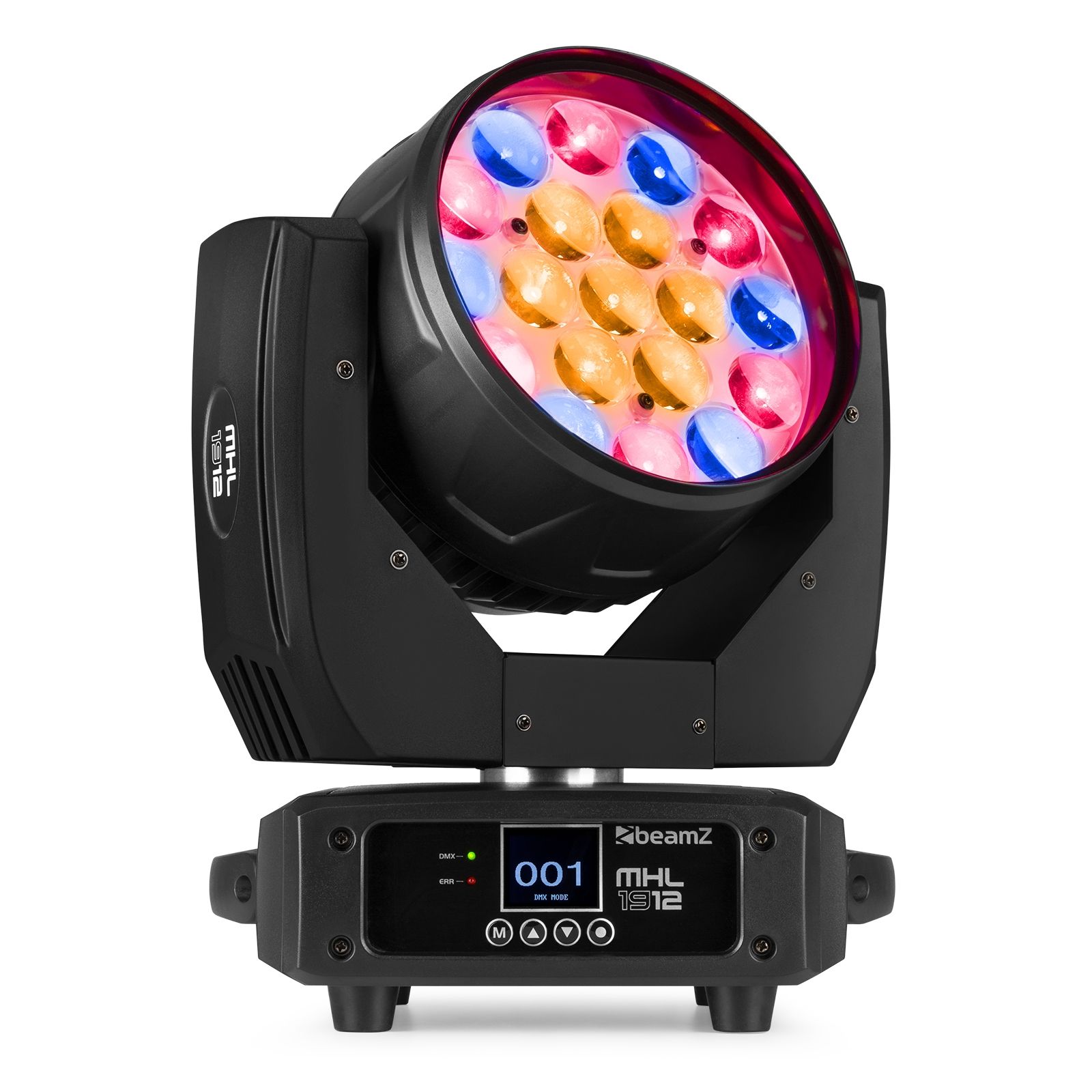

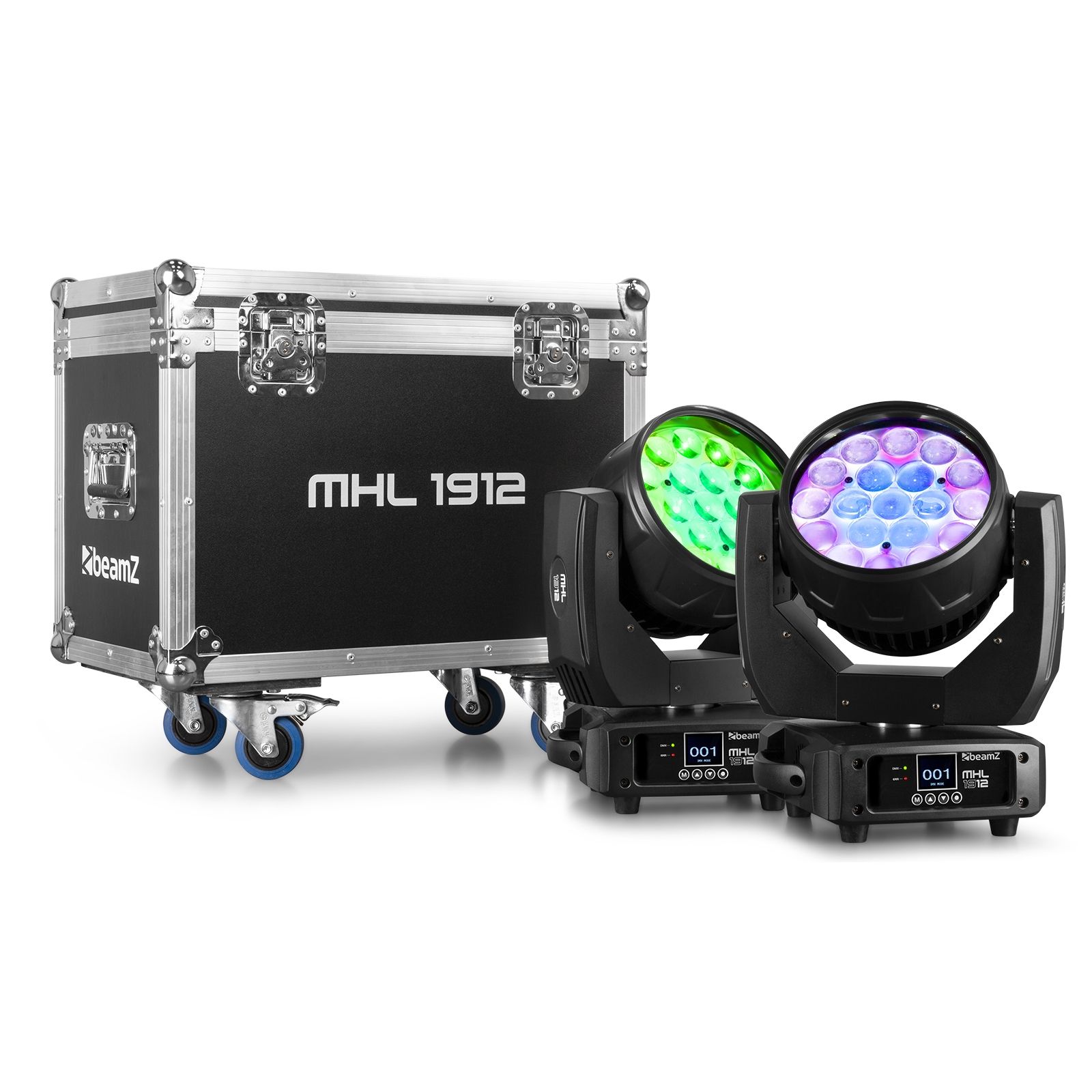

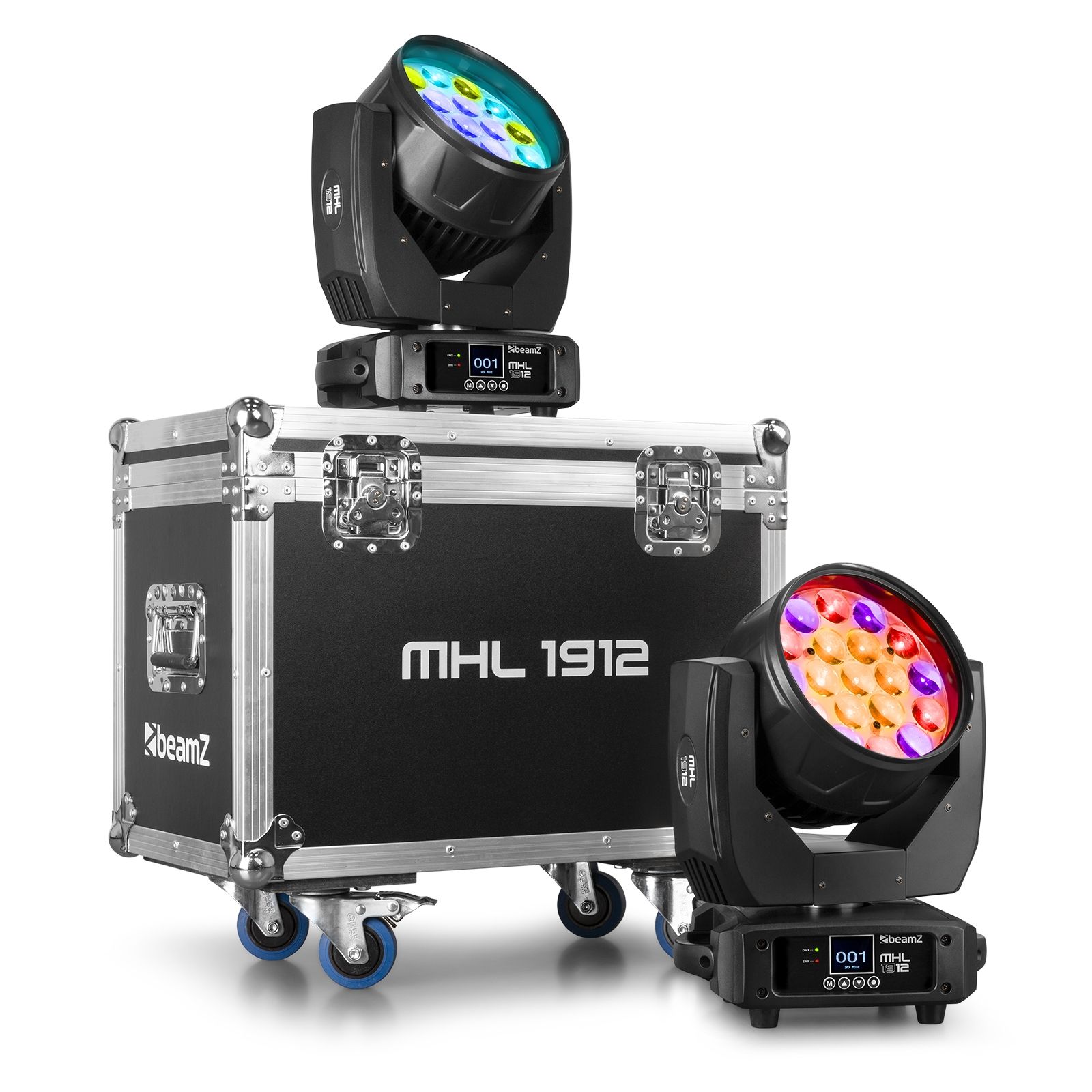

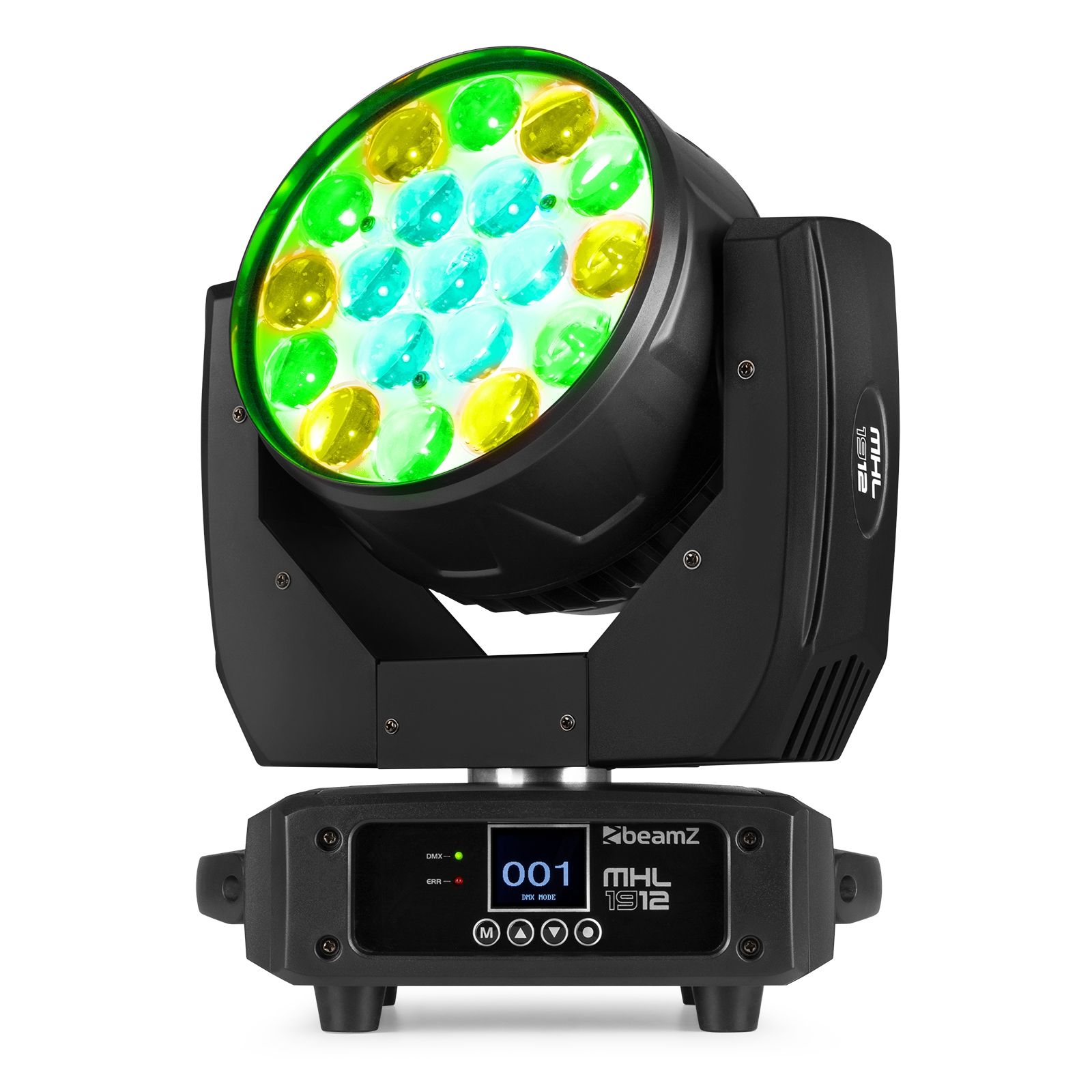

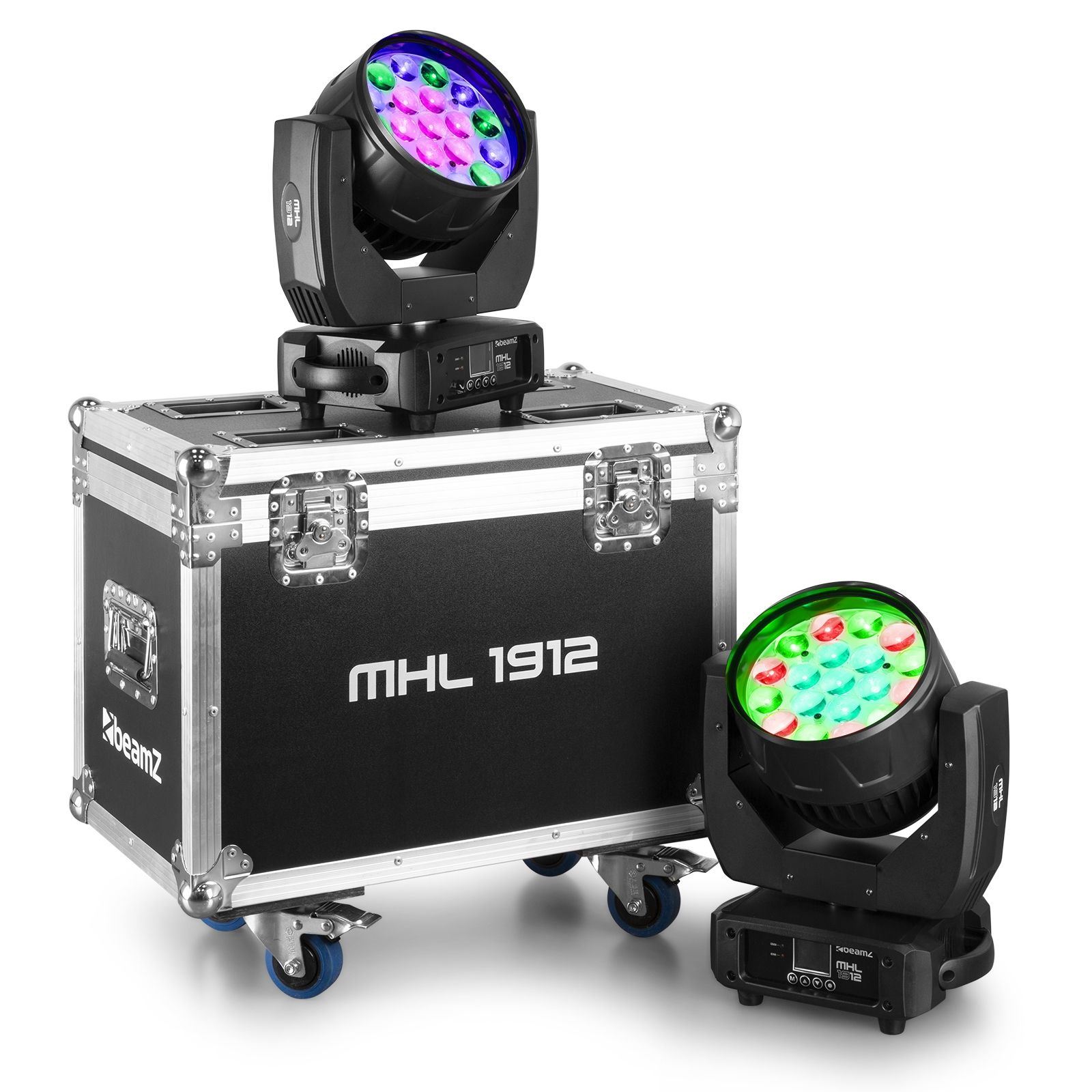

LED Wash Moving Head with Zoom 2pcs in Flightcase
SKU 150.120
|EAN 8715693336290
+11
All product information
Compare
MHL series
Description
Highlights
- 19x 12W 4-in-1 RGBW LEDs
- 15 or 23 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated
- Auto mode
- Screen rotation
- Motorized zoom
- 3 LED zones with individual control
- 0-100% Electronic Dimmer
- Strobe: 0-20Hz
- Reset function
- Control panel with LCD display
- DMX in/output via 3-pin XLR
- Powerconnector input
- Quick lock omega clamp included (2x)
- DMX cable included
- Powerconnector cable included

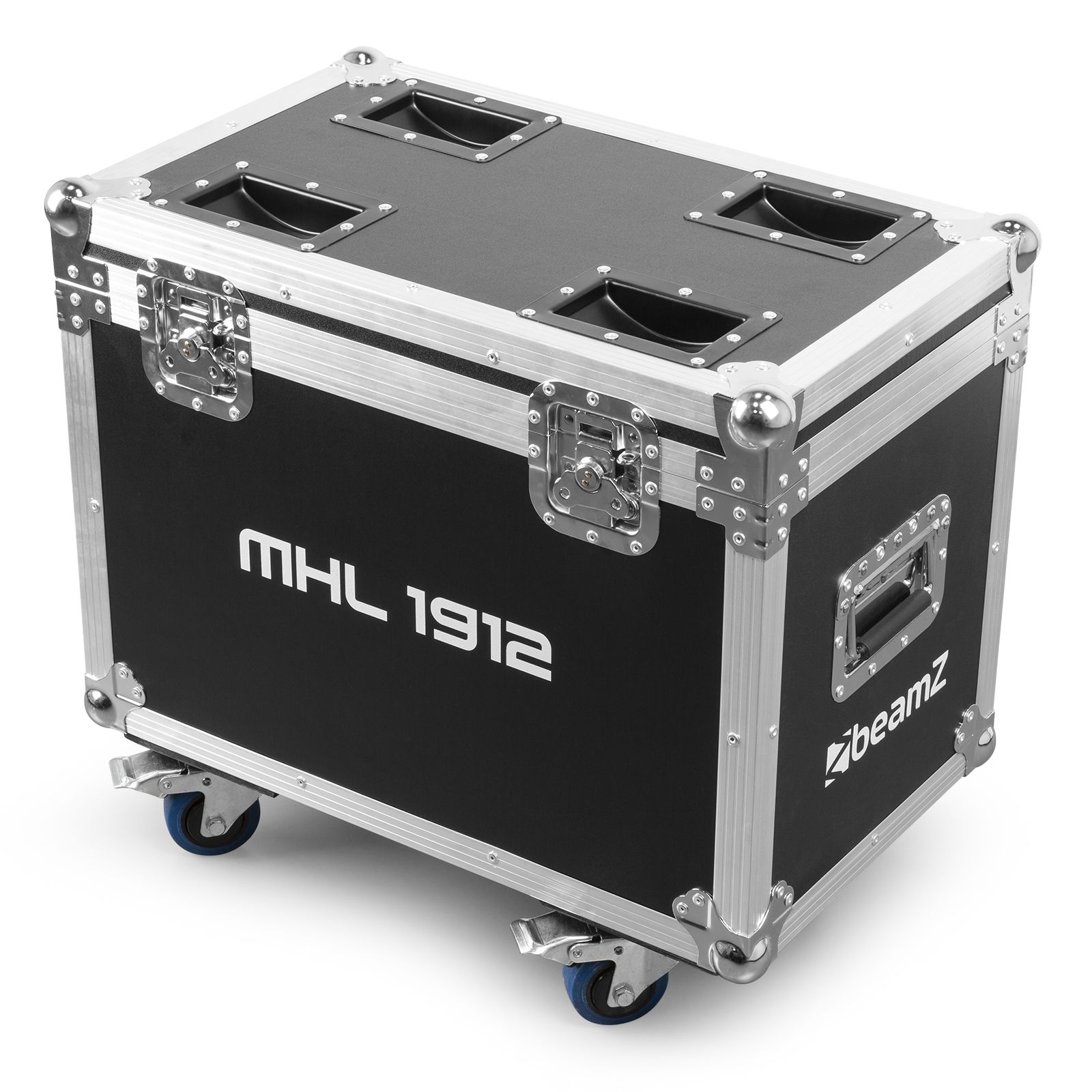

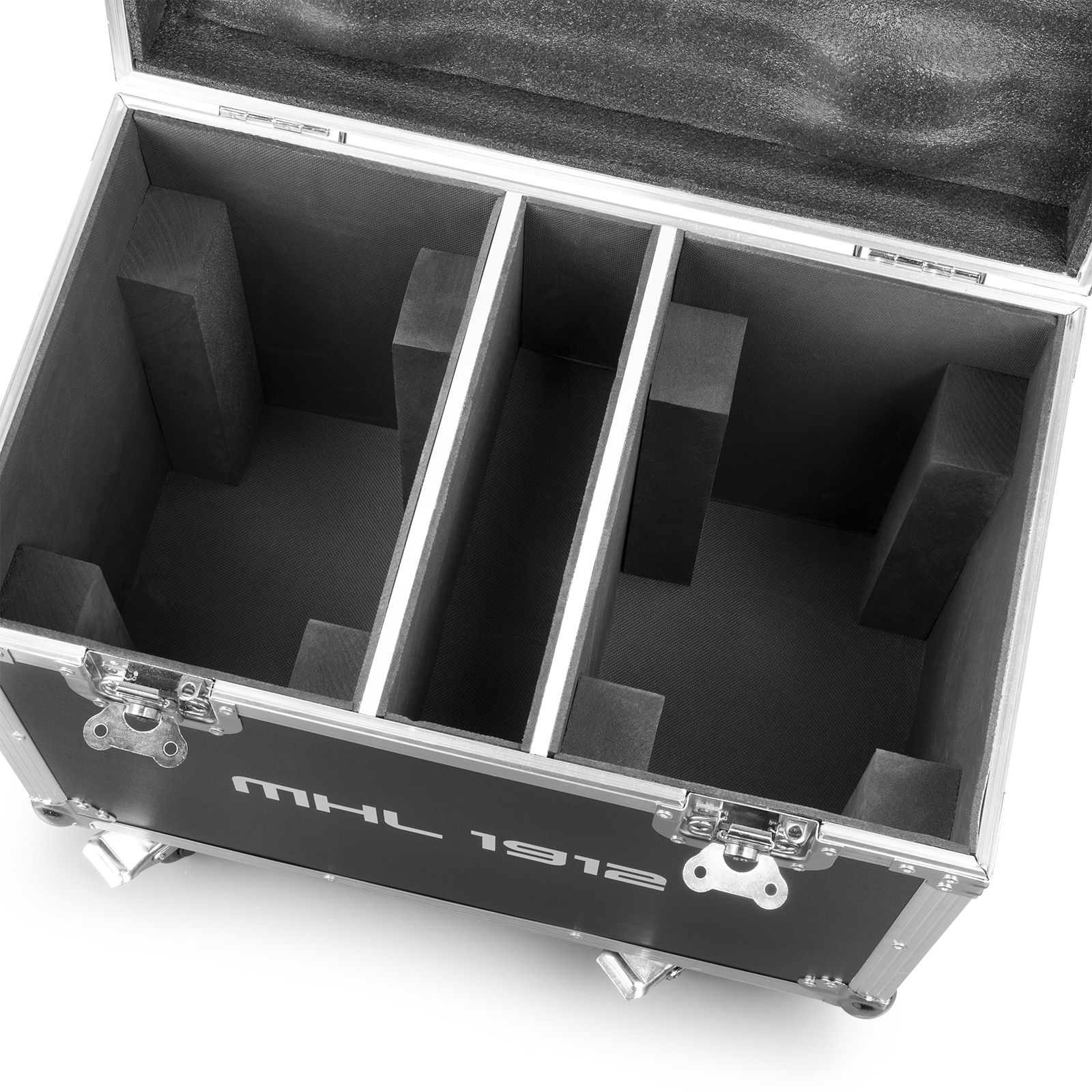

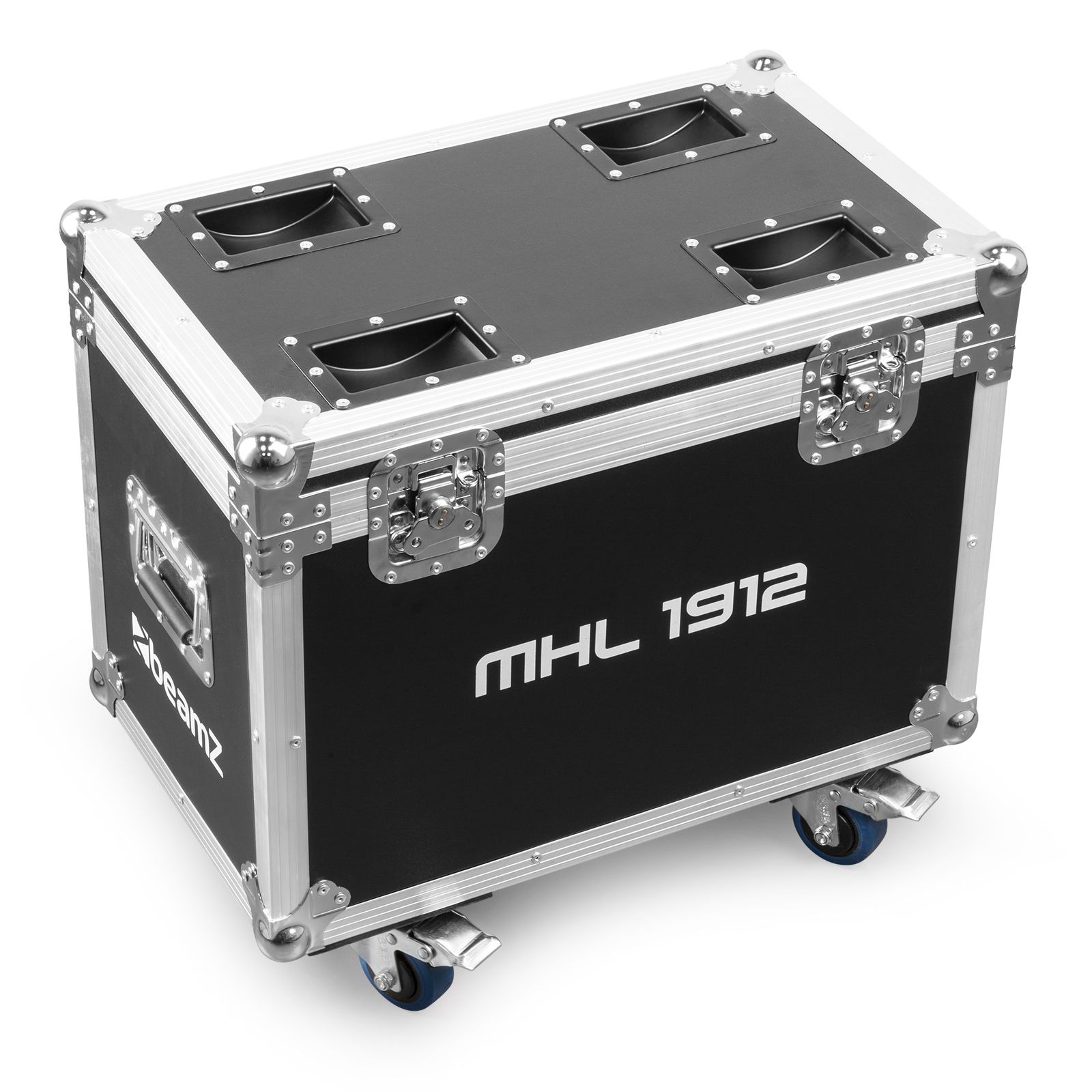

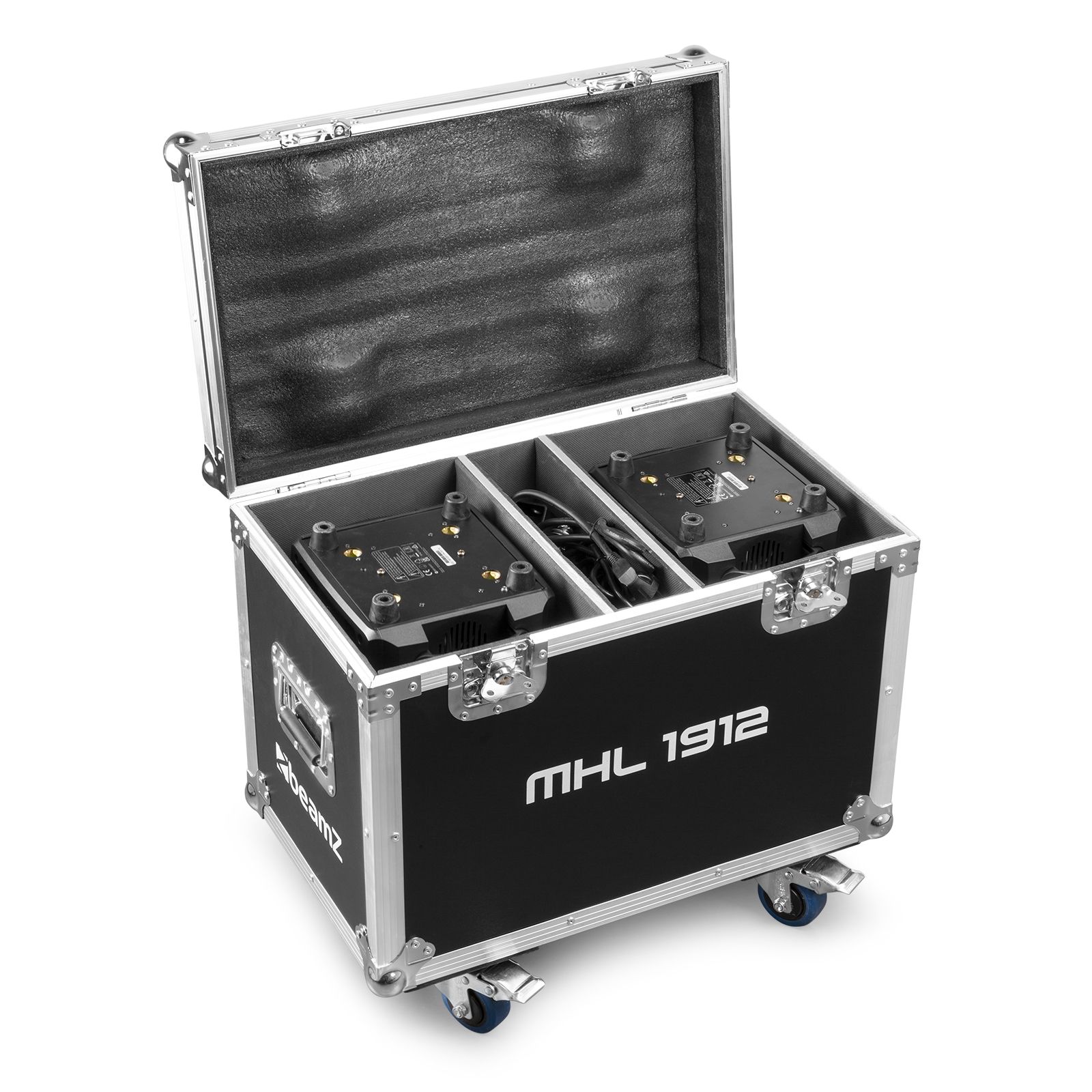

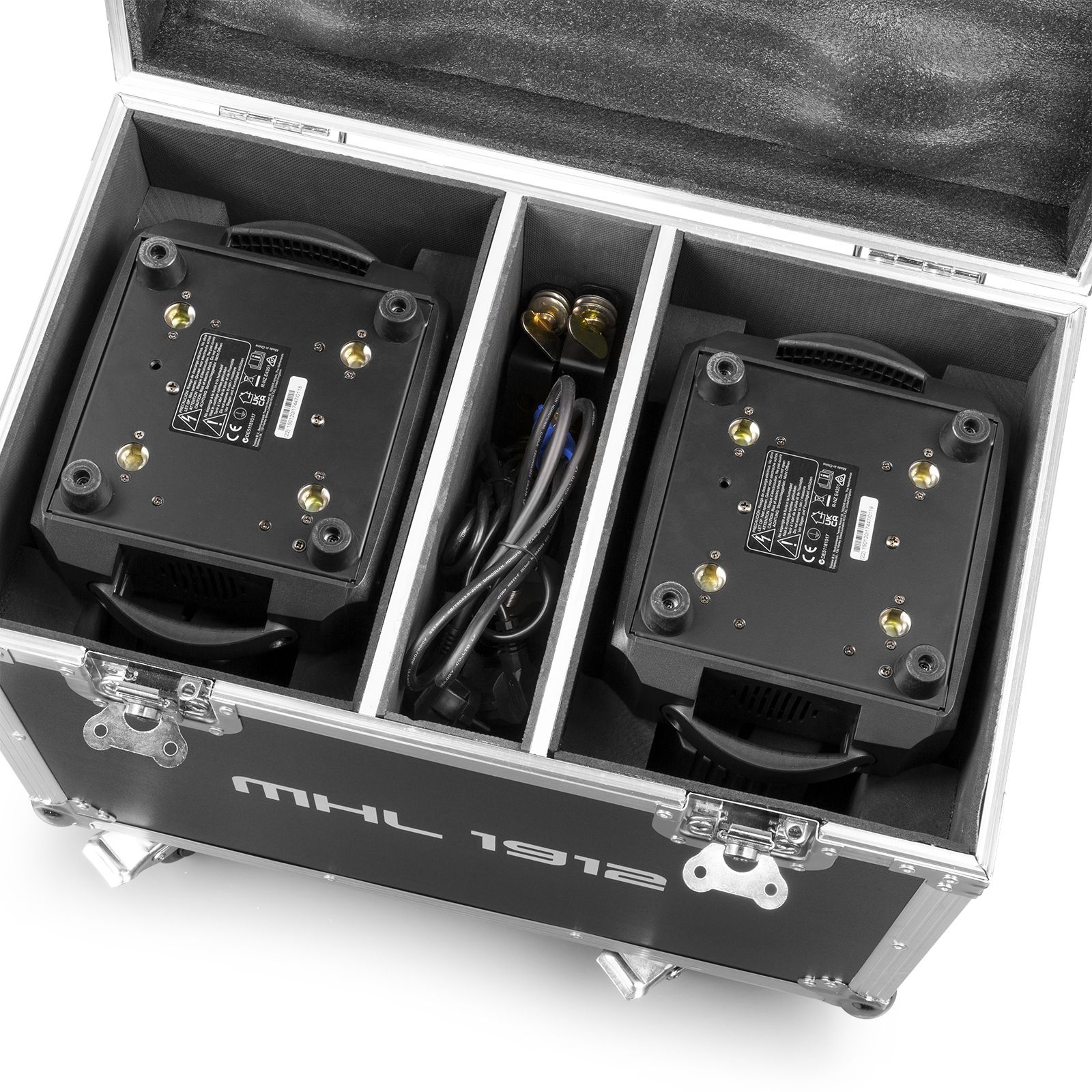

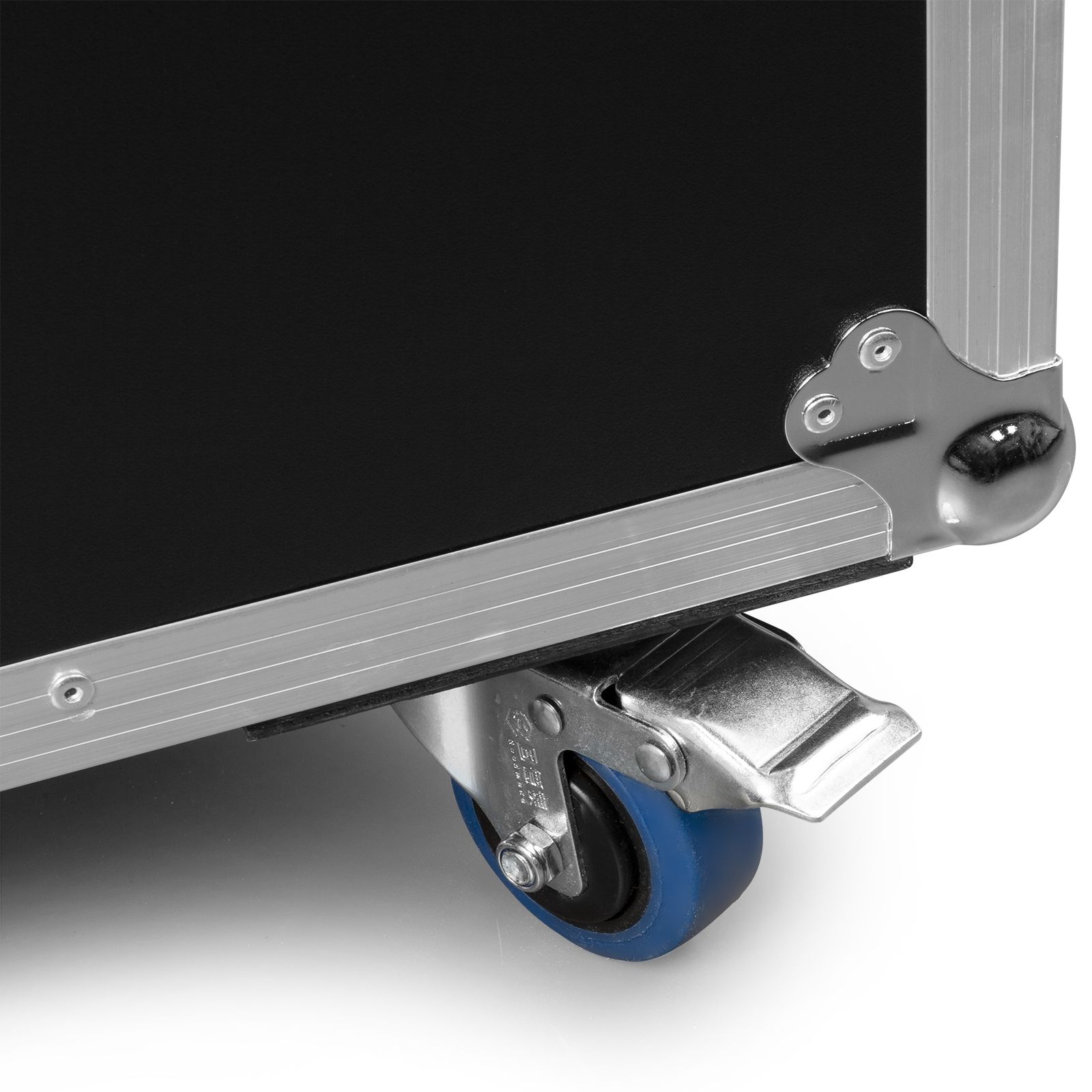

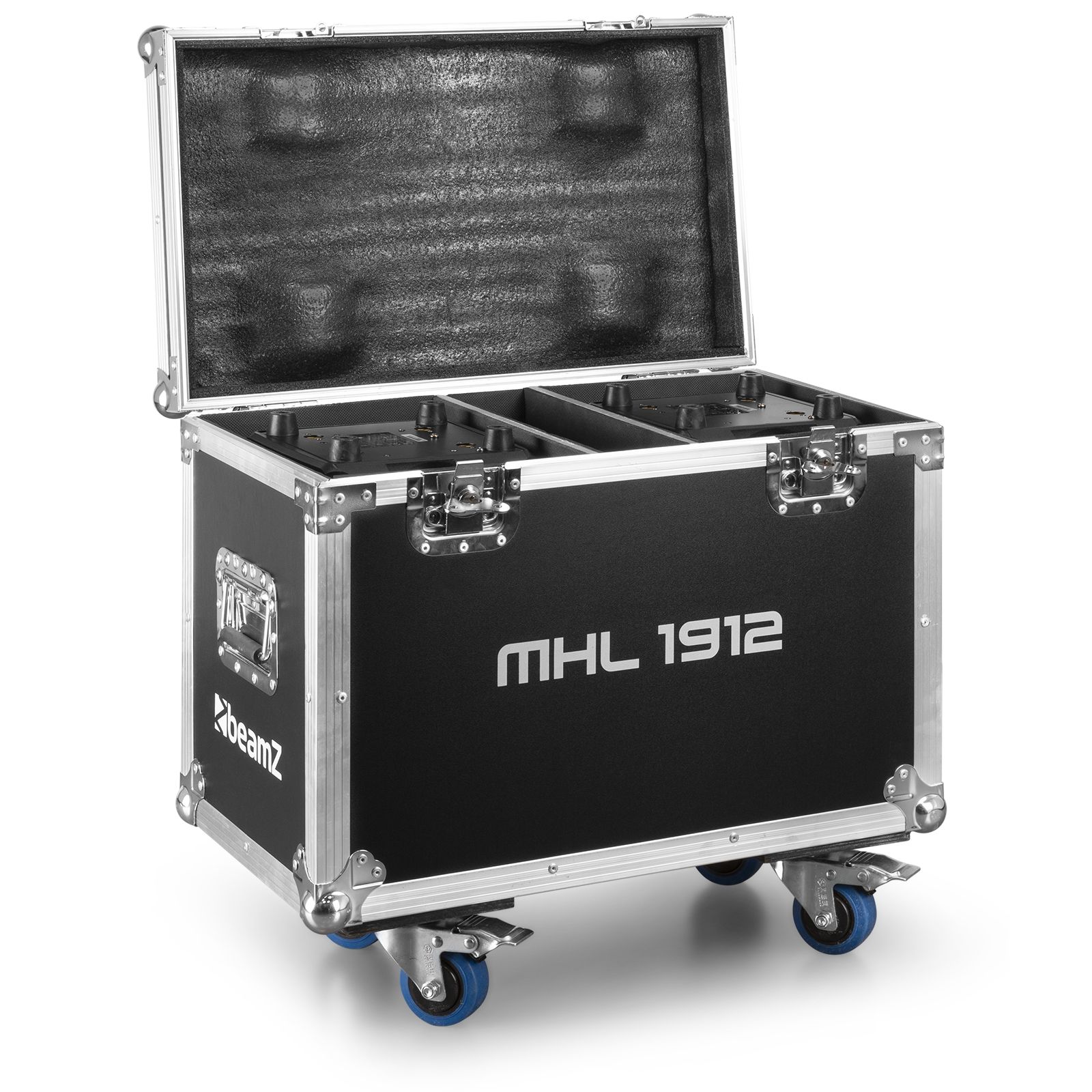

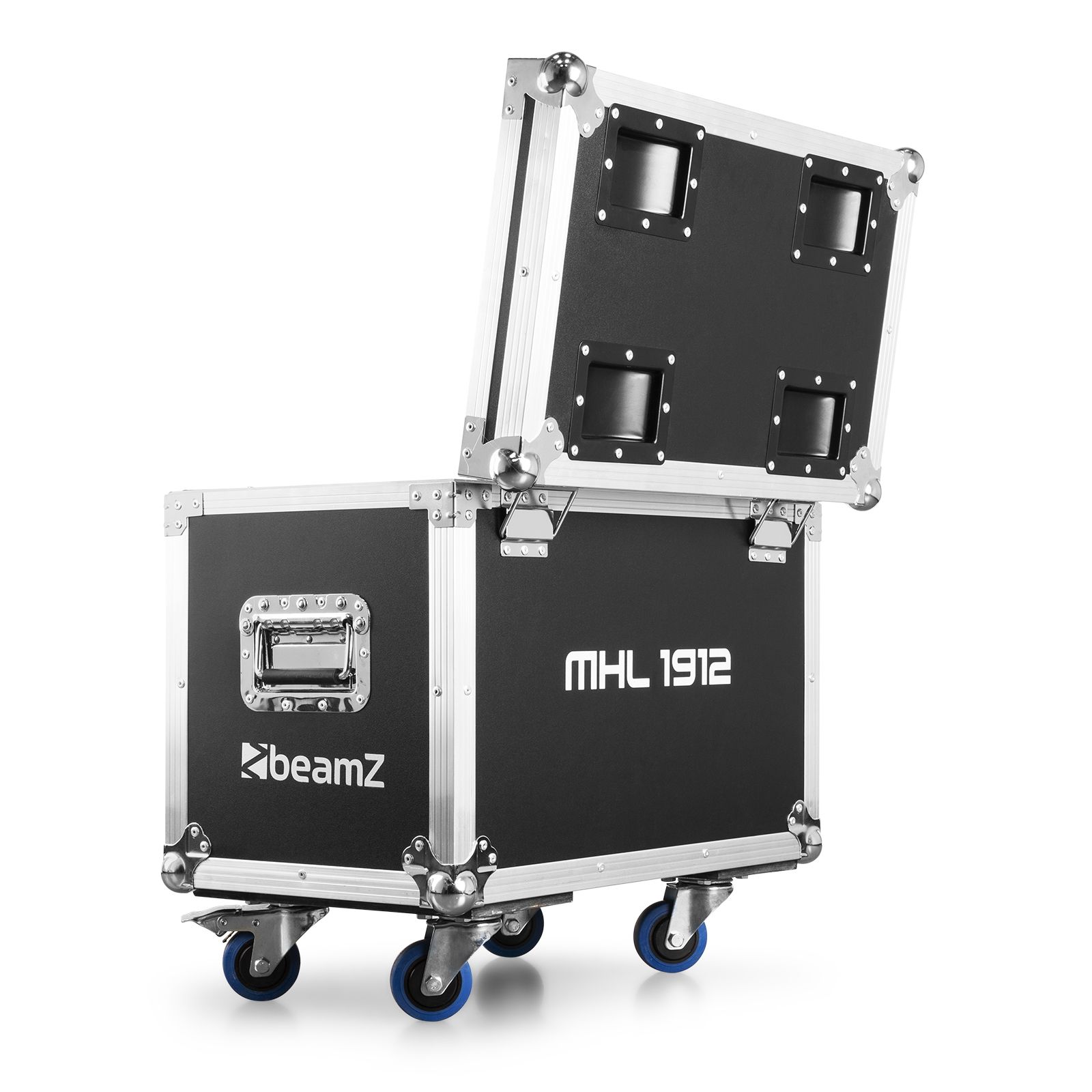

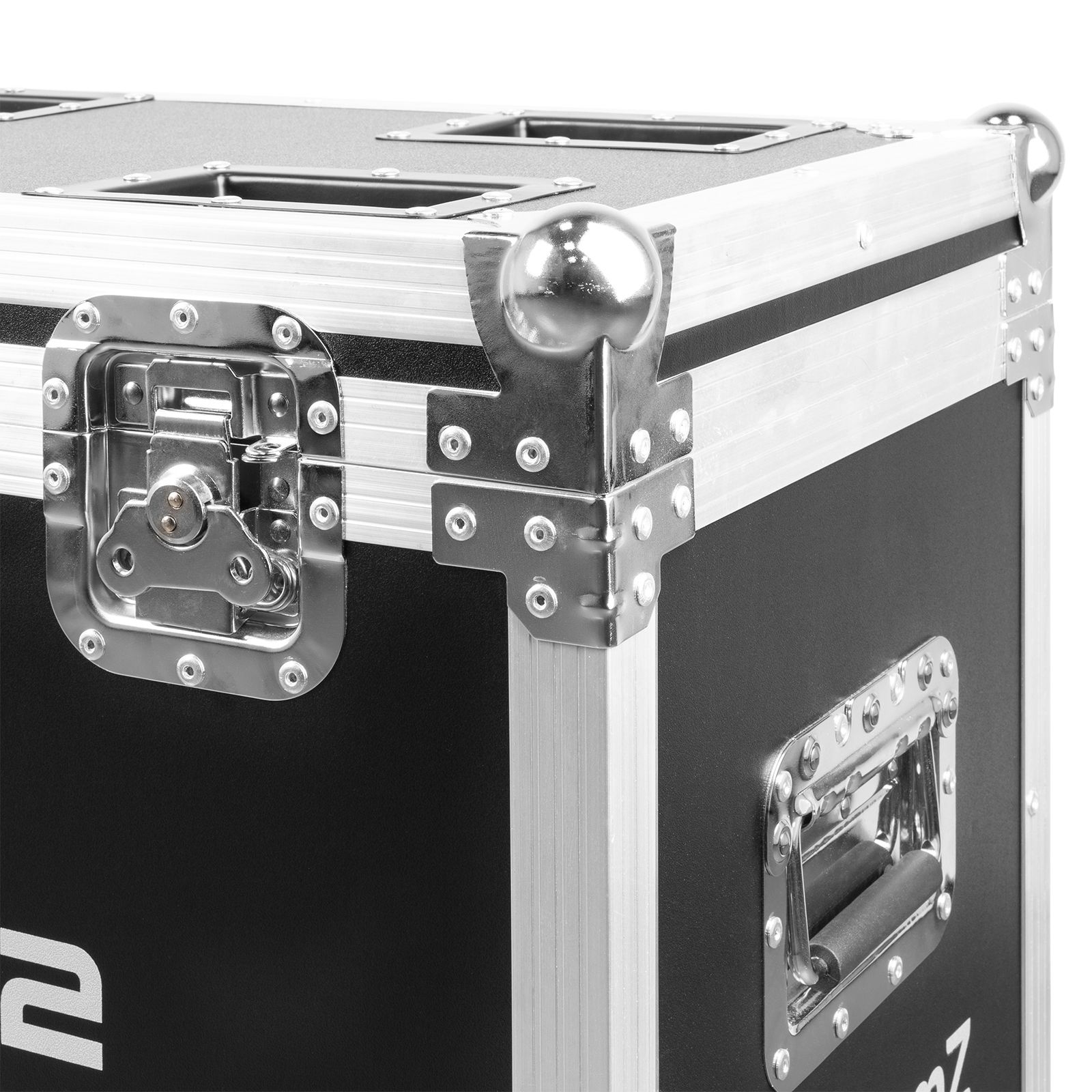

- Solid flightcase on wheels
Specifications
BrandbeamZ
Product serieMHL series
ColourBlack
Moving head typeWash
Light source
Light source: Wash
- 19x 12W RGBW LED
Illuminance111265 lx @ 1m
Optics
Beam angle: Wash
- 10 - 30
ZoomYes
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Frost FilterNo
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels15, 23
RDMNo
DMX connector3-pin XLR

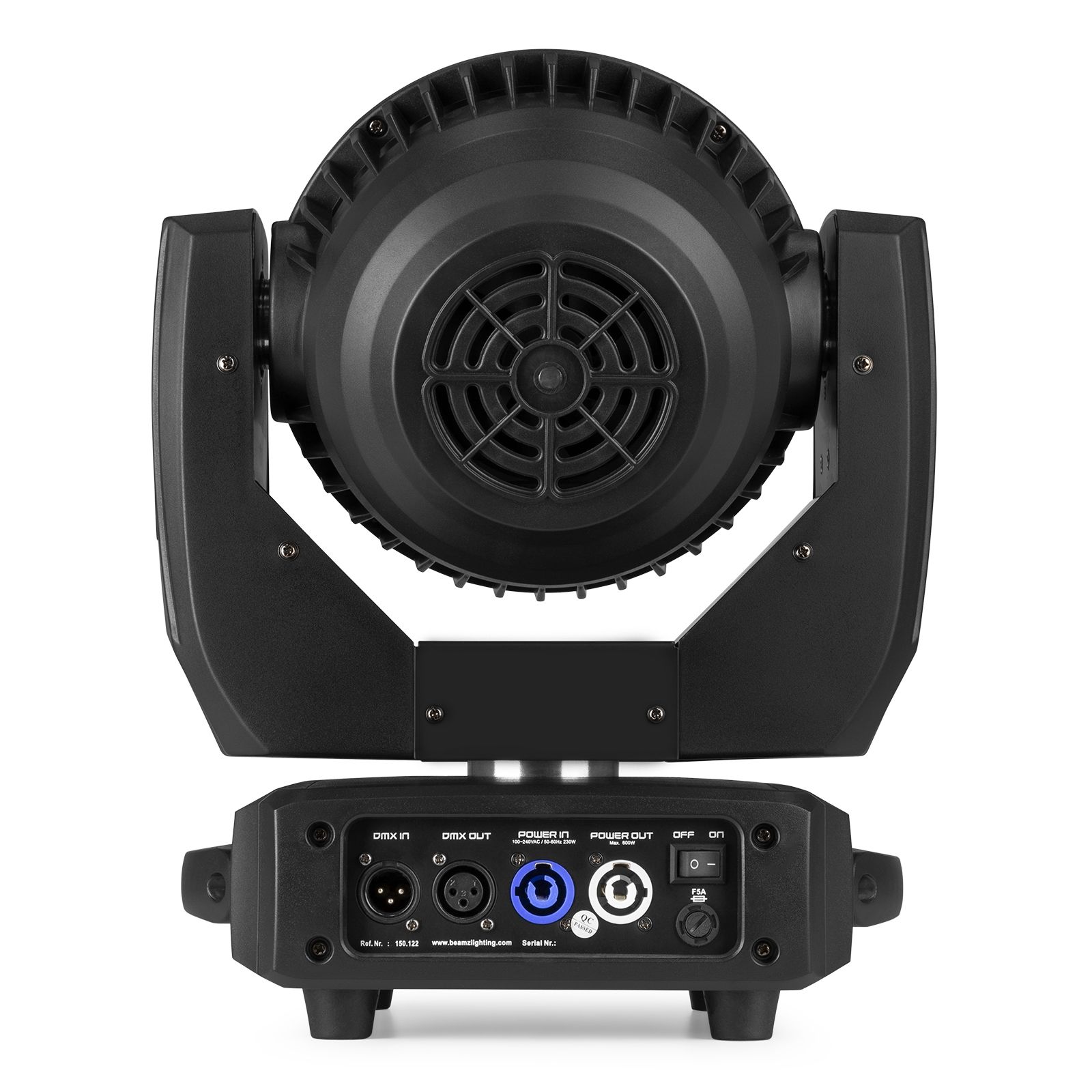

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions: Set
- 380 x 620 x 460 mm (W x D x H)
Weight: Set
- 32.55 kg
Dimensions: Each
- 305 x 210 x 400 mm (W x D x H)
Weight: Each
- 7.85 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
- Safety cord
Manuals & Documents
Manual
PDF
