MHL108MK4

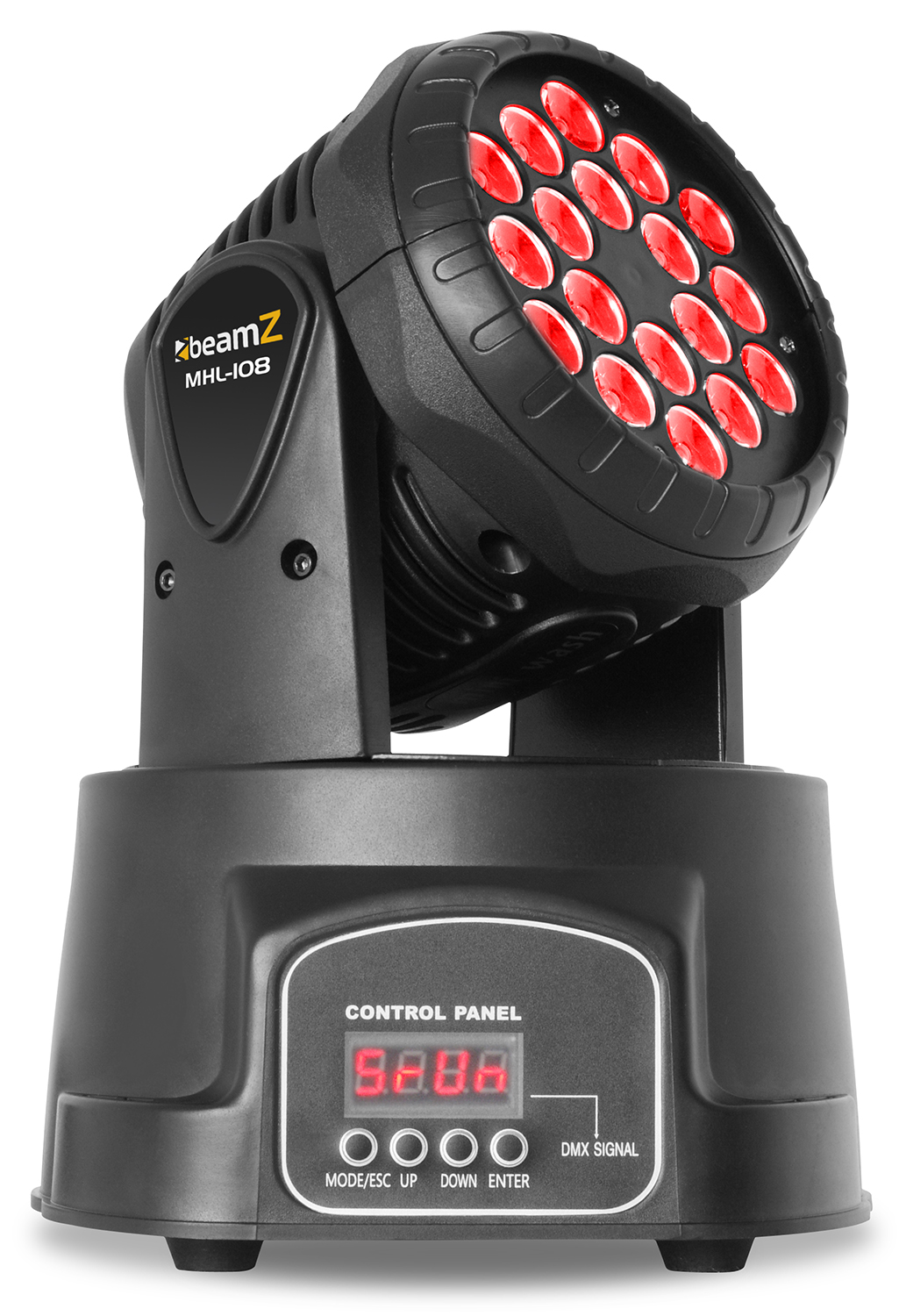

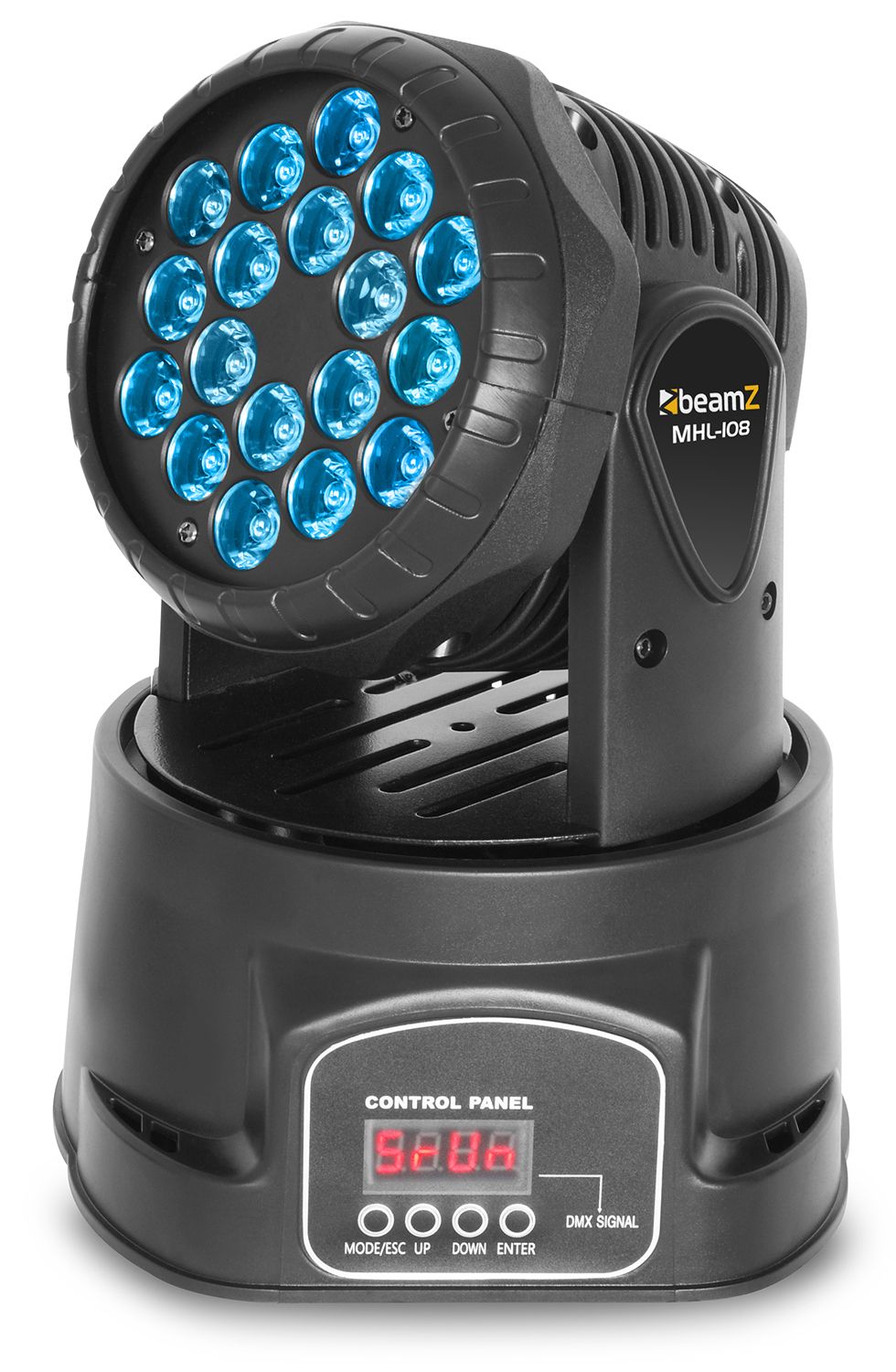

LED Wash Moving Head 18x 3W
SKU 150.999
|EAN 8715693294859
+3
All product information
Compare
MHL series
Description
Highlights
- 6 or 11 DMX channels
- 18x 3W Bright LEDs (3-in-1 RGB)
- RGB color mixing
- Extensive function control
- Pan → 540 °, Tilt → 270 ° (high resolution)
- Faster pan / tilt speed control
- Macro programs
- Variable electronic strobe and dimmer (0-100%)
- Works as a master / slave, independently, music or DMX controlled
- Reset to factory setting
Specifications
BrandbeamZ
Product serieMHL series
ColourBlack
Moving head typeWash
Light source
Light source
- 18x 3W RGB LED
Optics
Beam angle
- 15°
ZoomNo
Movement
Pan Movement540°
Tilt Movement180°
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second0 - 10 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels6, 11
RDMNo
DMX connector3-pin XLR

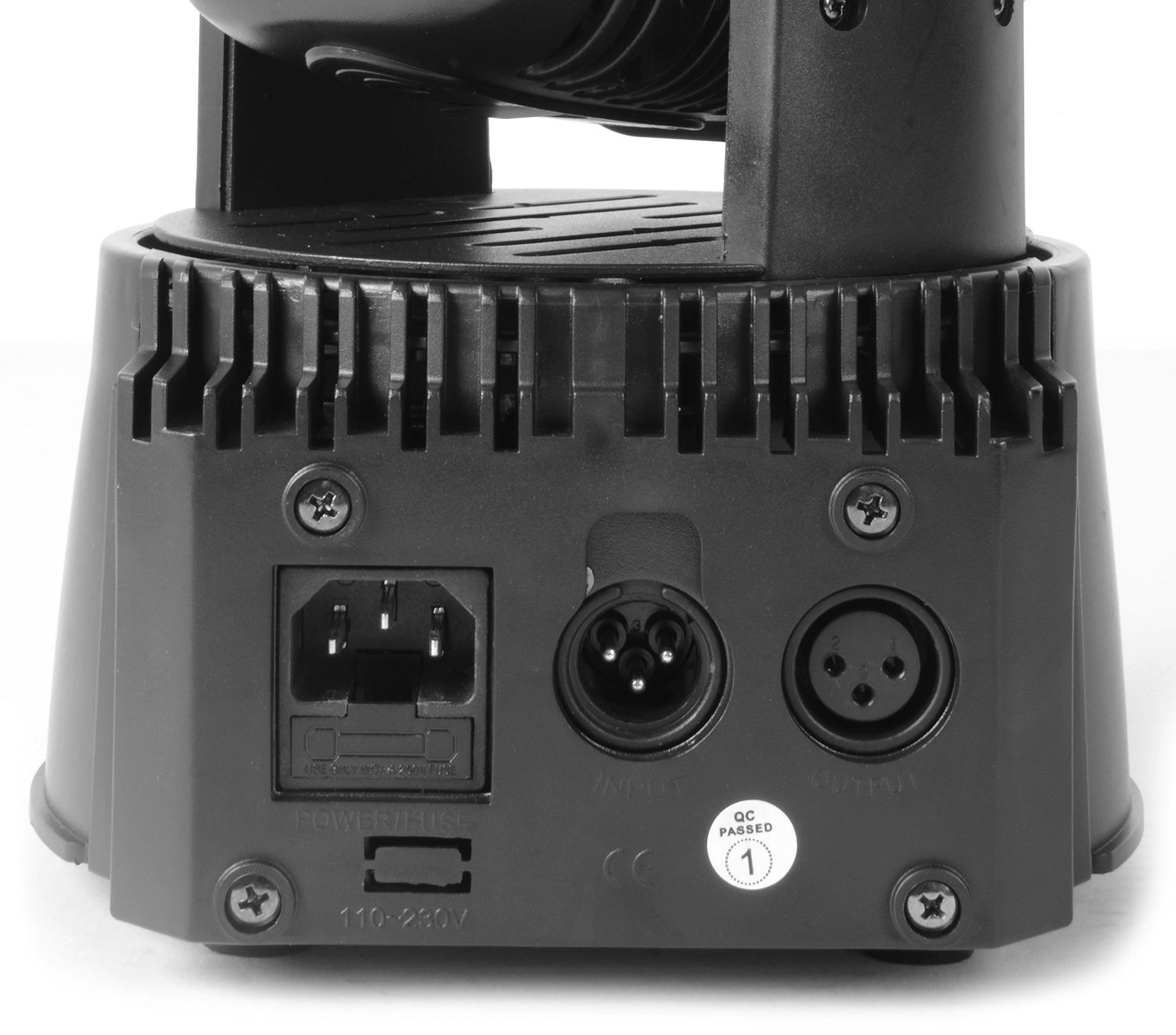

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 180 x 165 x 240 mm (W x D x H)
Weight
- 3.45 kg
Manuals & Documents
Manual
PDF
