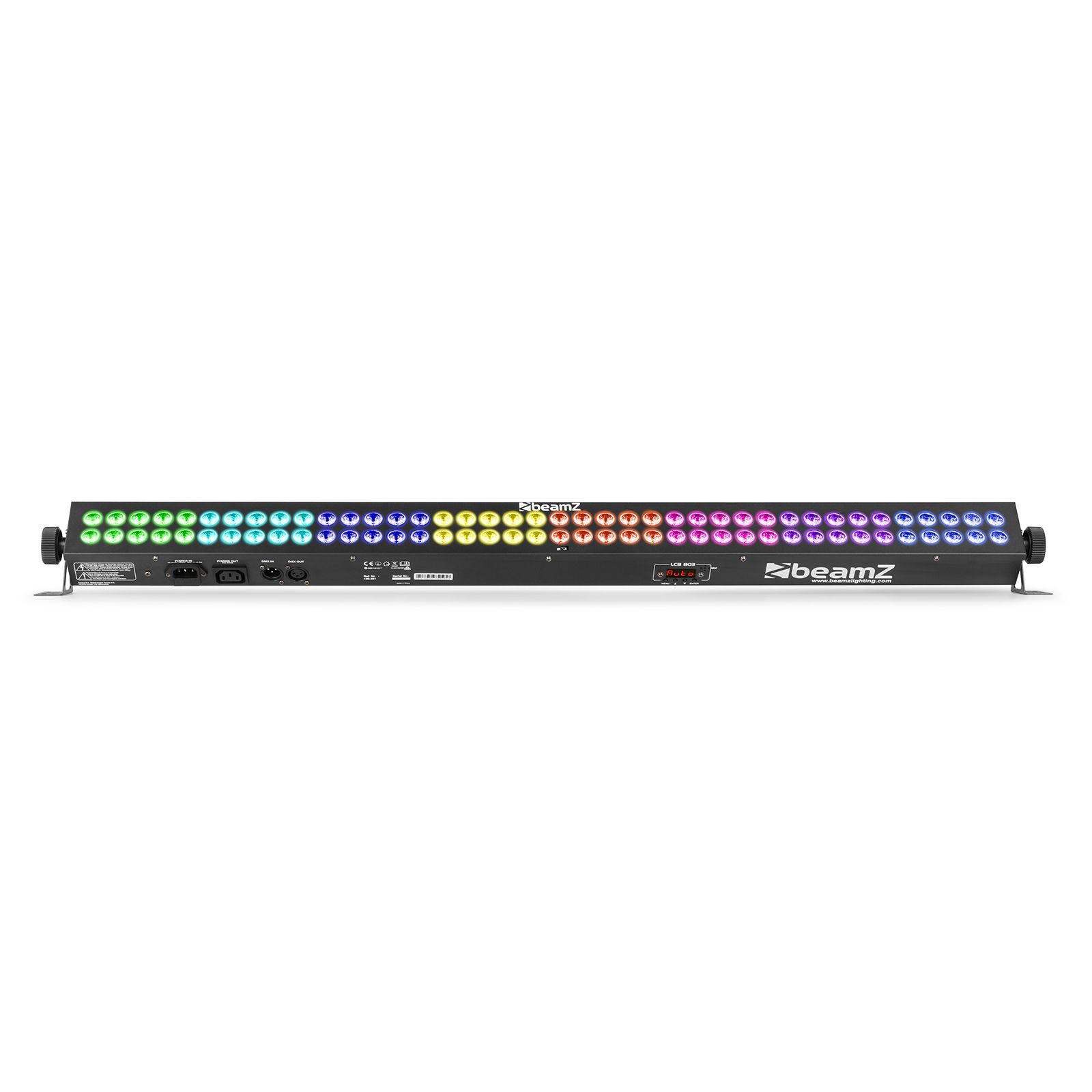

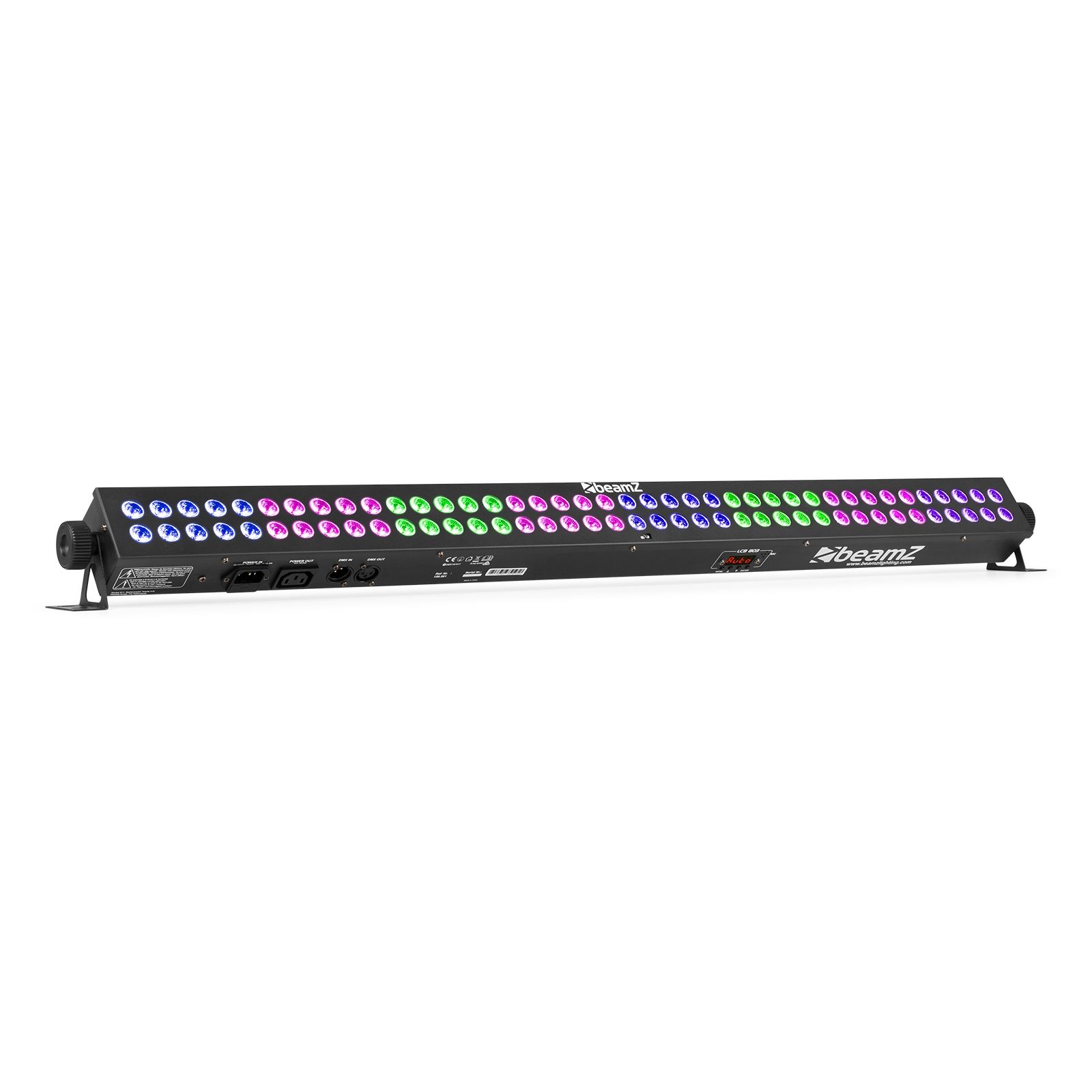

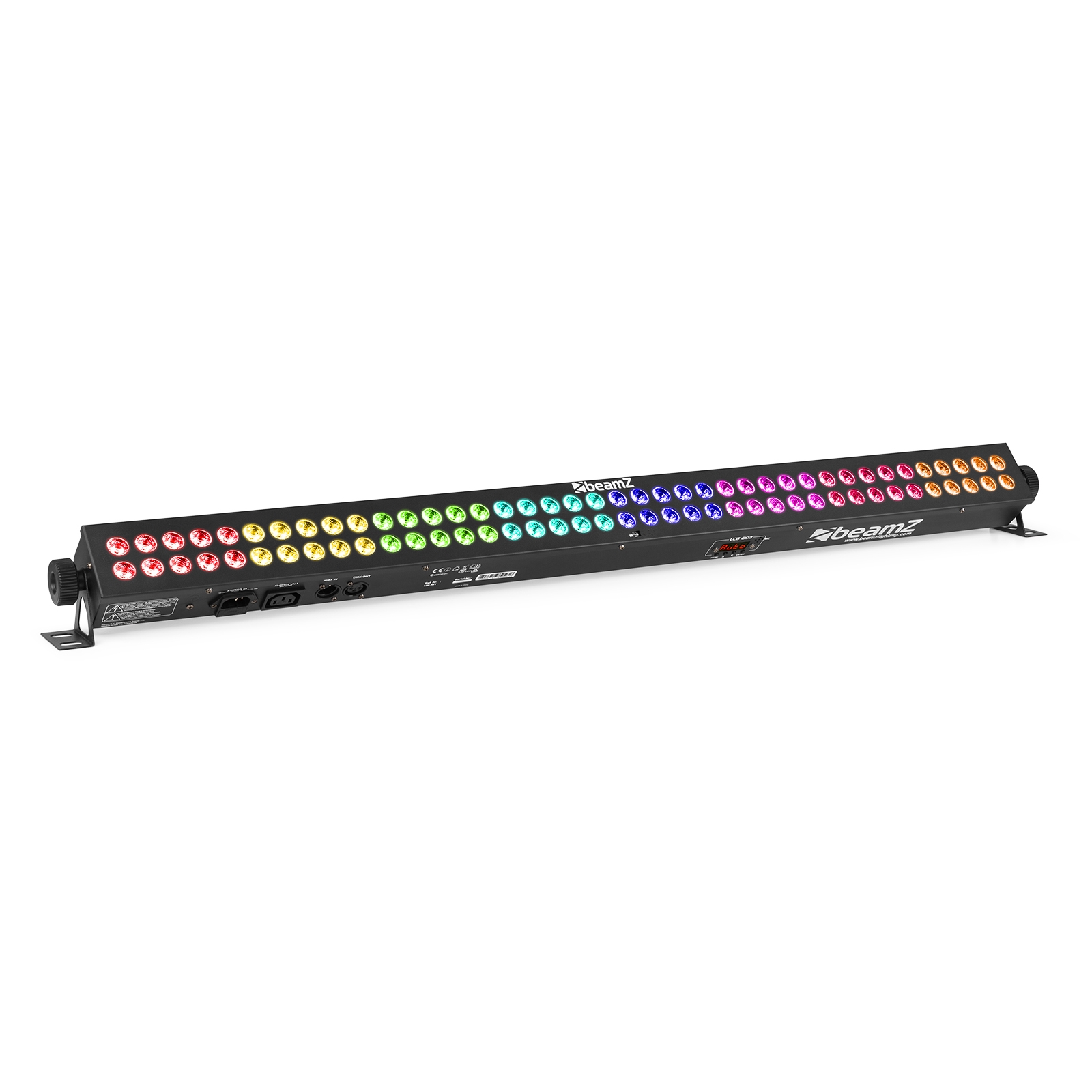

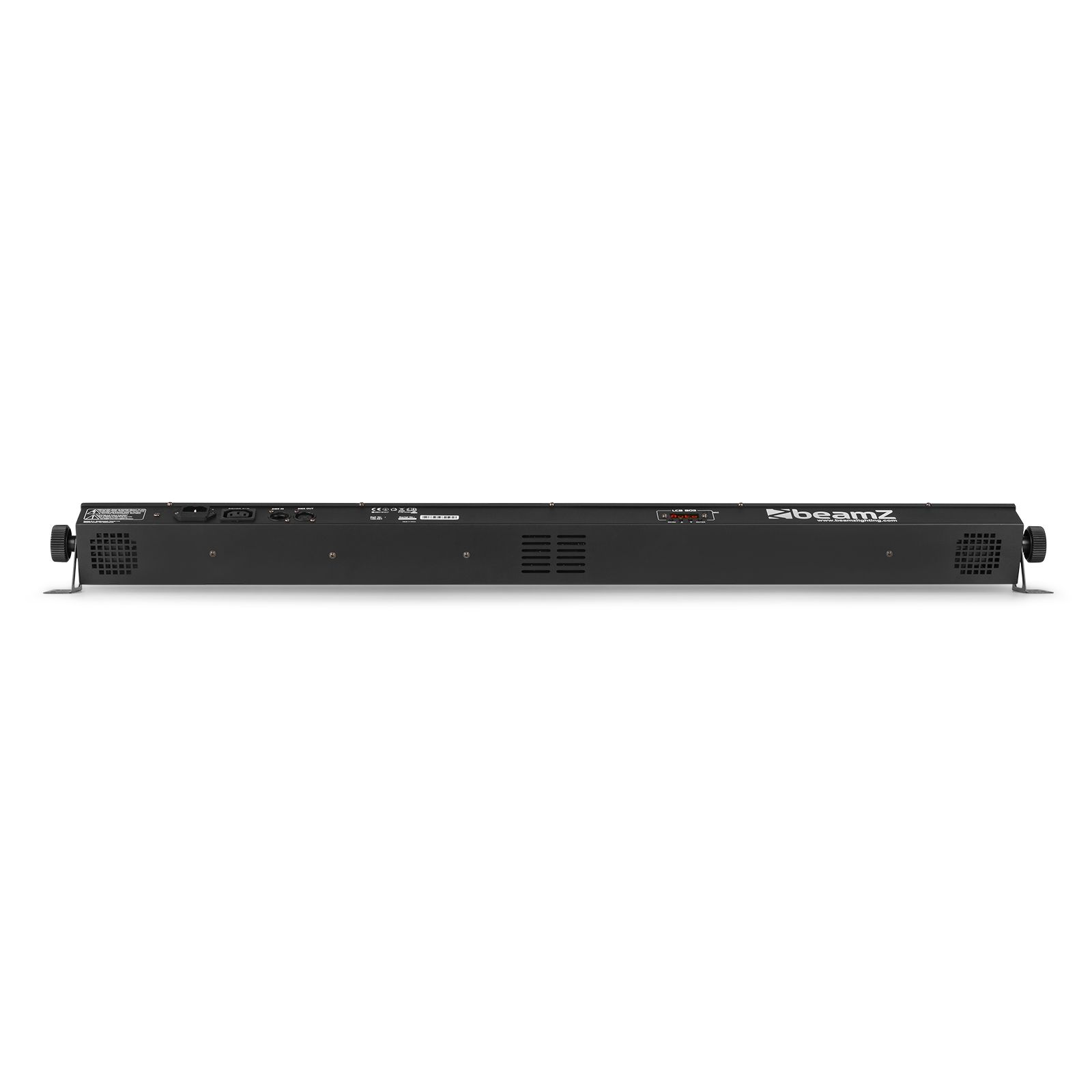

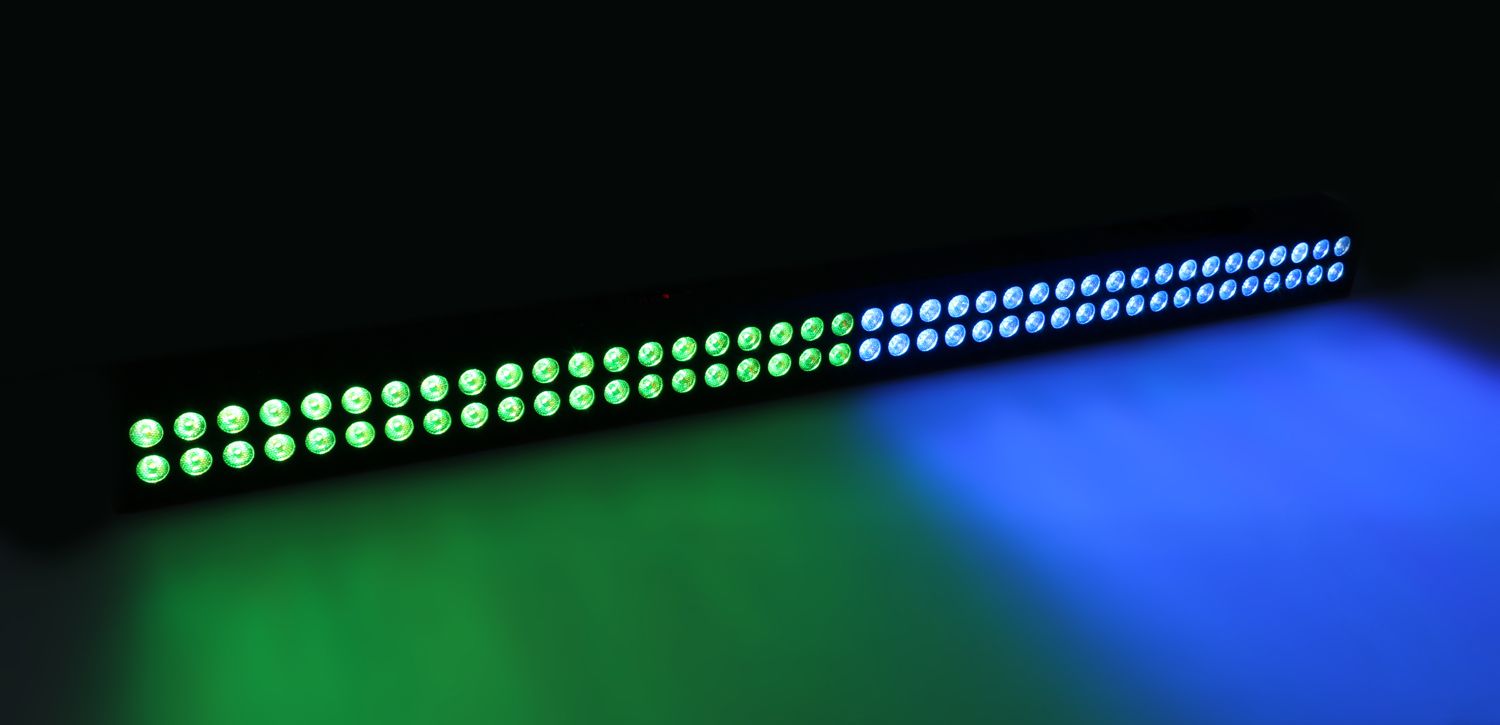

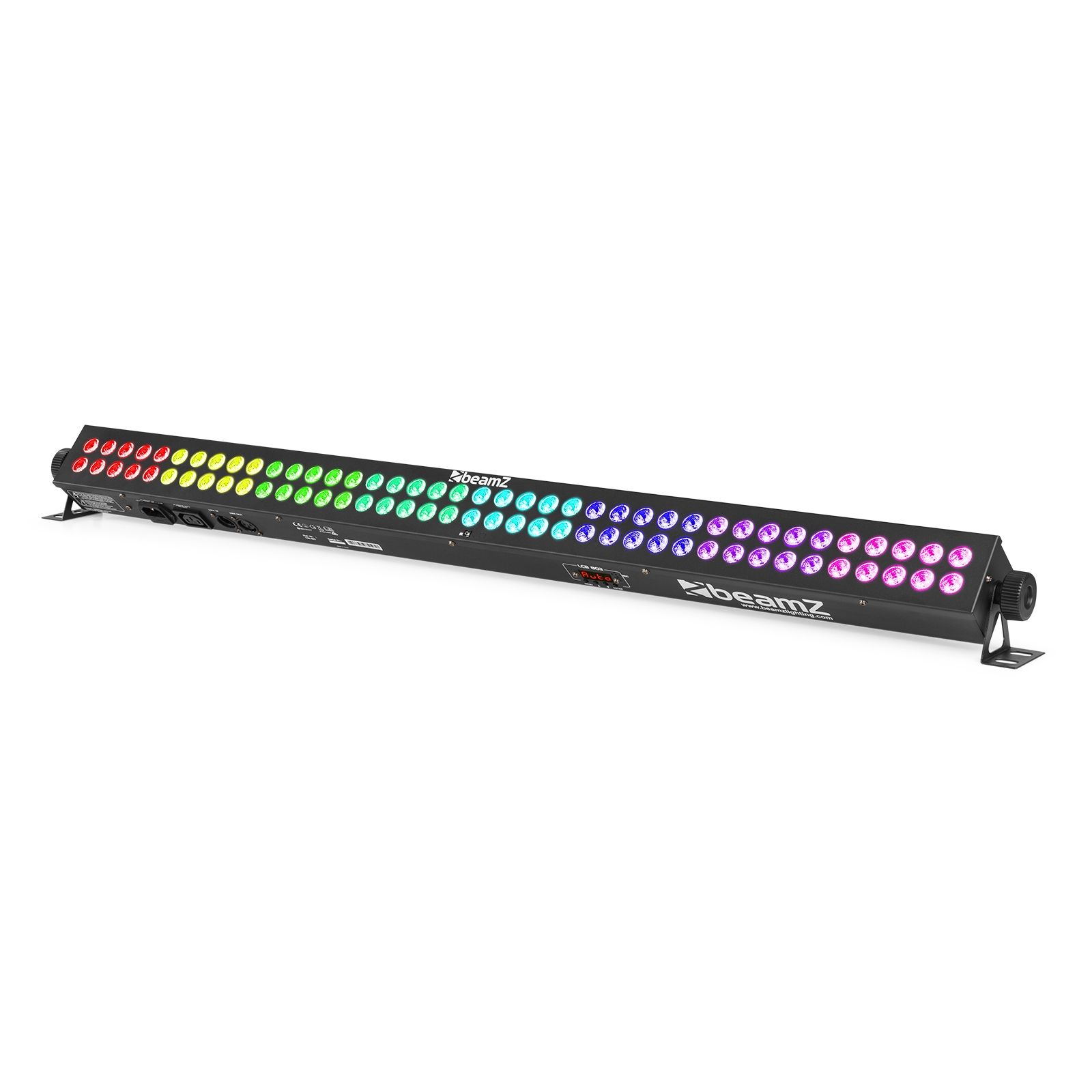

LCB803

LED BAR 80x 3-in-1 DMX IRC
SKU 150.561
|
EAN 8715693289480

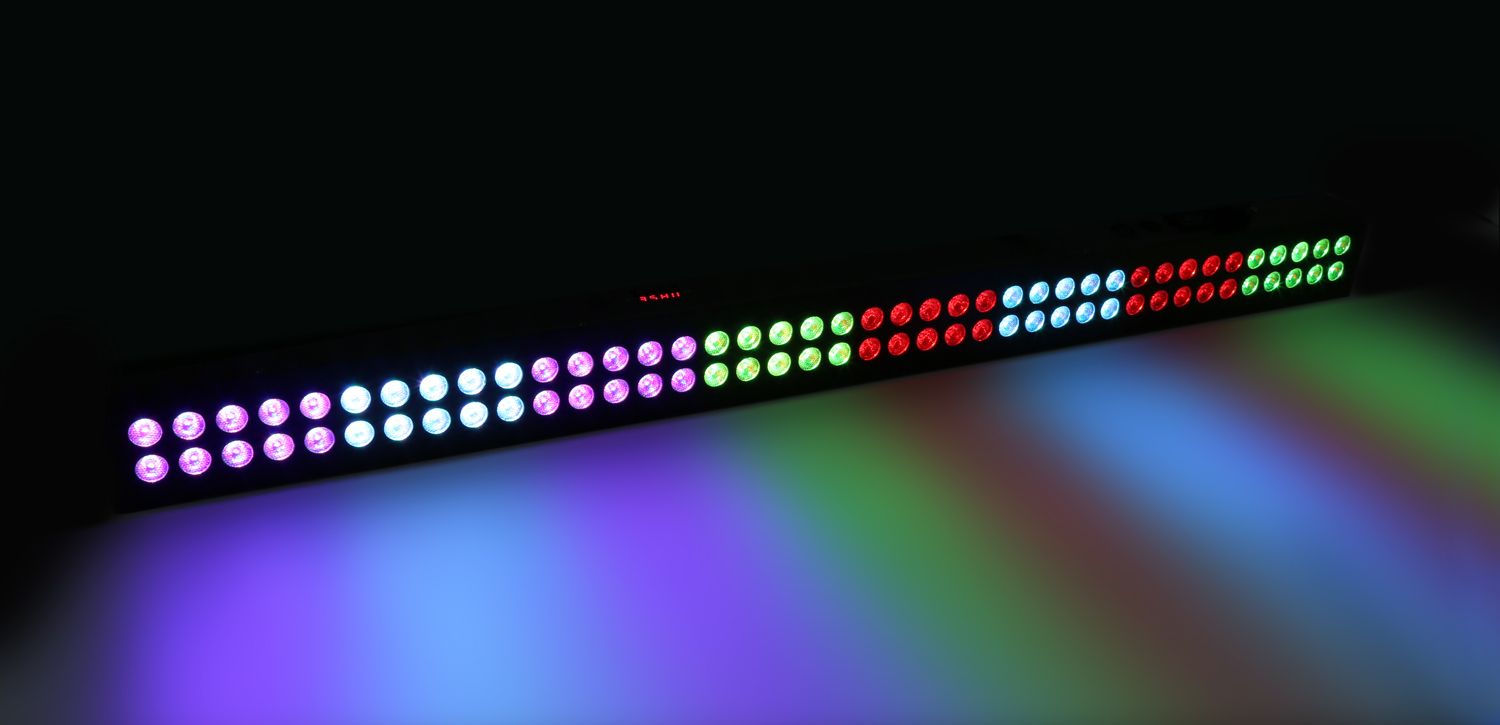

LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
+5
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
LCB803 LED BAR 80x 3-in-1 DMX IRC
All product information
Compare
LCB series
SKUShort descriptionRSP price
LCB803 LED BAR 80x 3-in-1 DMX IRC150.561
LCB803 LED BAR 80x 3-in-1 DMX IRC
£139.95
incl. VAT
LCB300 LED BAR 36x3W RGBW150.220
LCB300 LED BAR 36x3W RGBW
£239.95
incl. VAT
LCB288 LED Bar Wash and Strobe RGB+W150.224
LCB288 LED Bar Wash and Strobe RGB+W
£189.95
incl. VAT
LCB246 LED BAR 24x6W RGBAW-UV150.546
LCB246 LED BAR 24x6W RGBAW-UV
£229.00
incl. VAT
LCB244 LED Bar 24x 4W RGBW150.575
LCB244 LED Bar 24x 4W RGBW
£219.95
incl. VAT
LCB48 UV LED Bar with DMX150.610
LCB48 UV LED Bar with DMX
£99.90
incl. VAT
LCB366 Hybrid LED Panel Pixel Control150.675
LCB366 Hybrid LED Panel Pixel Control
£358.95
incl. VAT
Choose your accessories
LCB155 LED Bar Pixel Control150.701
LCB155 LED Bar Pixel Control
£359.95
incl. VAT
LCB183 LED Bar 18x 3W RGB150.705
LCB183 LED Bar 18x 3W RGB
£95.00
incl. VAT
LCB144 MKII LED Colour Bar150.706
LCB144 MKII LED Colour Bar
£89.95
incl. VAT
LCB14C Hybrid LED BAR RGBW/RGB Pixel Control150.709
LCB14C Hybrid LED BAR RGBW/RGB Pixel Control
£145.00
incl. VAT
LCB14 Hybrid LED BAR WW/RGB Pixel Control150.710
LCB14 Hybrid LED BAR WW/RGB Pixel Control
£145.00
incl. VAT
Choose your accessories
LCB99 LED Bar 2-in-1 Effect RGBW & UV150.711
LCB99 LED Bar 2-in-1 Effect RGBW & UV
£86.00
incl. VAT
LCB224 LED Bar 224x SMD RGB150.713
LCB224 LED Bar 224x SMD RGB
£119.90
incl. VAT
Description
Highlights
  • 80x 3W RGB 3-in-1 LEDs
  • Red, green and blue colour mixing
  • 3, 6, 12, 24 or 48 DMX channels
  • 1, 2, 4 or 8 Sections controllable
  • DMX and stand-alone mode
  • Master/slave synchronization
  • Sound activated
  • Auto mode with adjustable speed
  • DMX in-/output via 3-pin XLR
  • IEC-connector in-/output
  • Control panel with LED-display

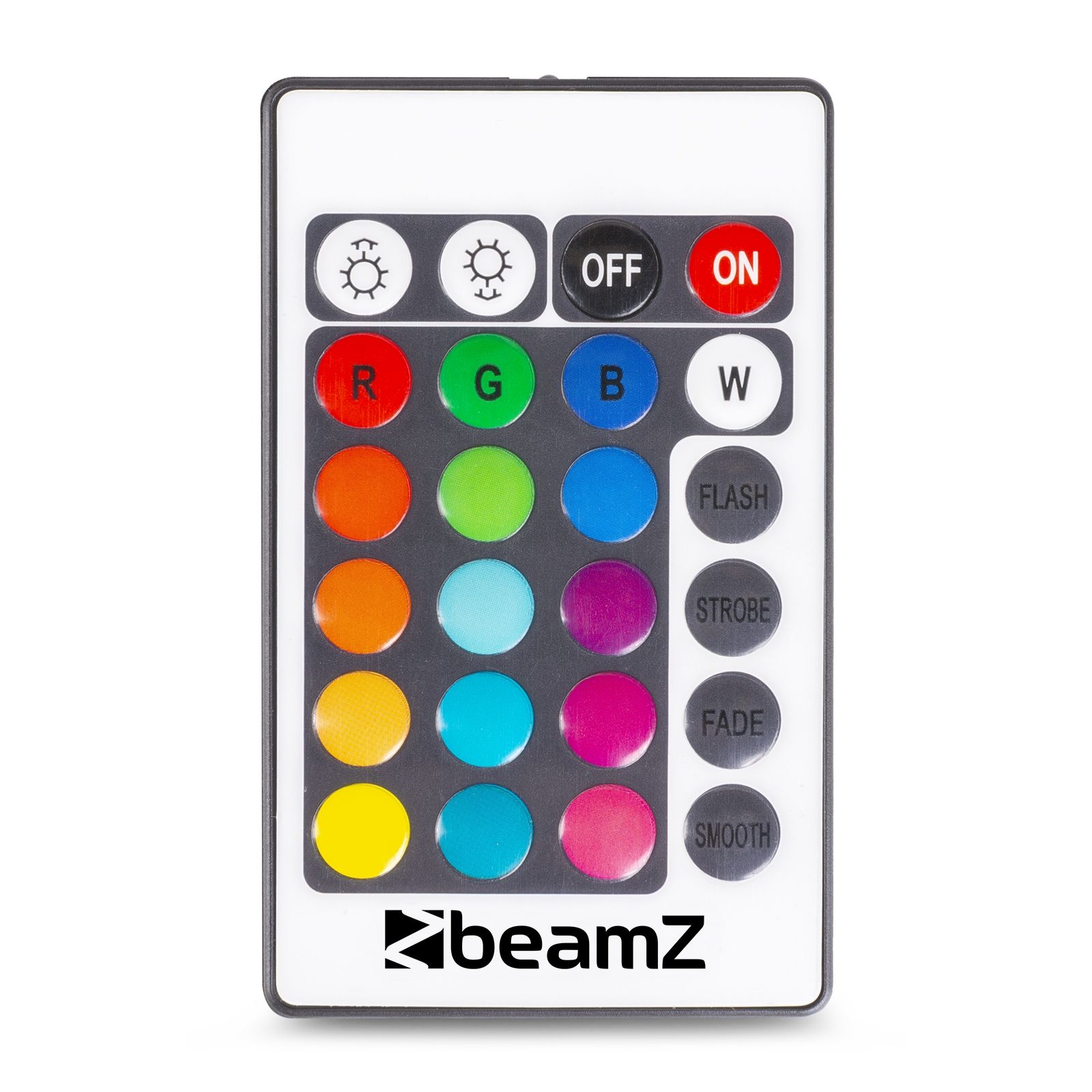

  • IR-Remote control
Specifications
BrandbeamZ
Product serieLCB series
ColourBlack
Light source
Light source
  • 80x 3W RGB LED
Illuminance6700 lx @ 1m
Optics
Beam angle
  • 15°
Features
Flash Per Second1 - 20 Hz
Daisy ChainYes (max. 6 bars)
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels3, 6, 12, 24, 48
DMX connector3-pin XLR

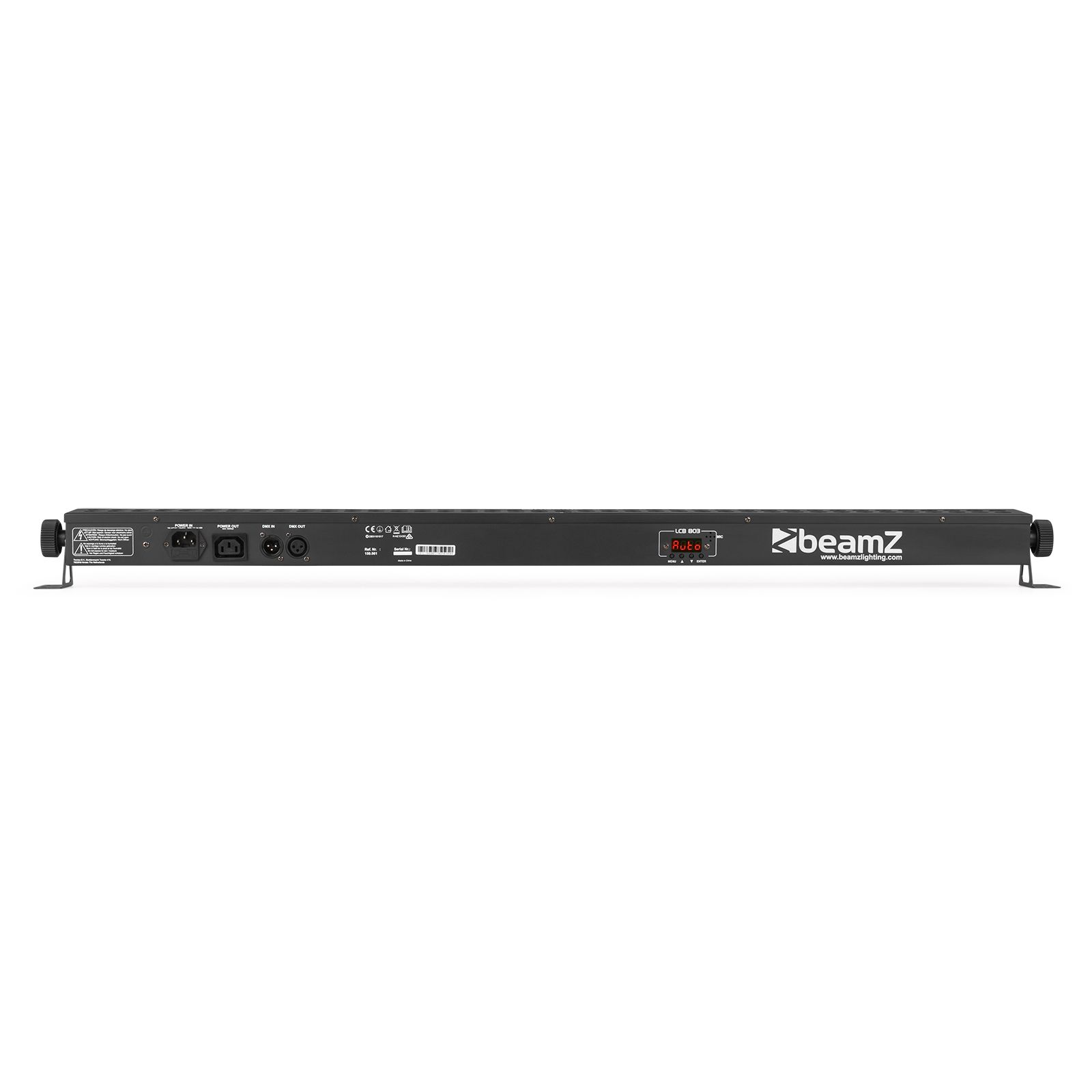

Connections
Input connections
  • 1x Power - IEC (M)
  • 1x DMX - 3-pin XLR (M)
Output connections
  • 1x Power - IEC (F)
  • 1x DMX - 3-pin XLR (F)
Hardware features
CoolingConvection
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
  • 990 x 85 x 75 mm (W x D x H)
Weight
  • 3.85 kg
Manuals & Documents
Manual
PDF
Download
