LCB144

MKII LED Colour Bar
SKU 150.706
|
EAN 8715693333831

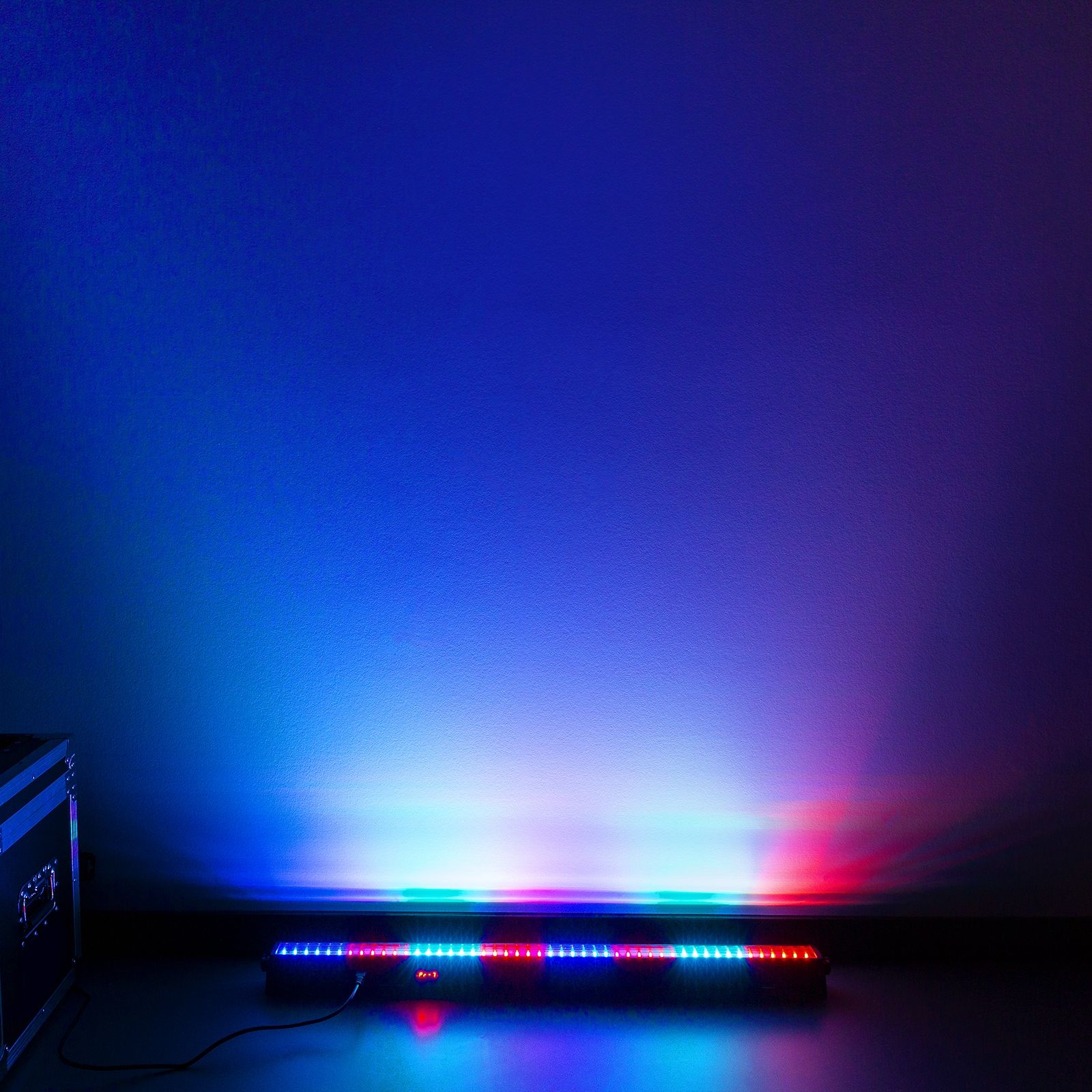

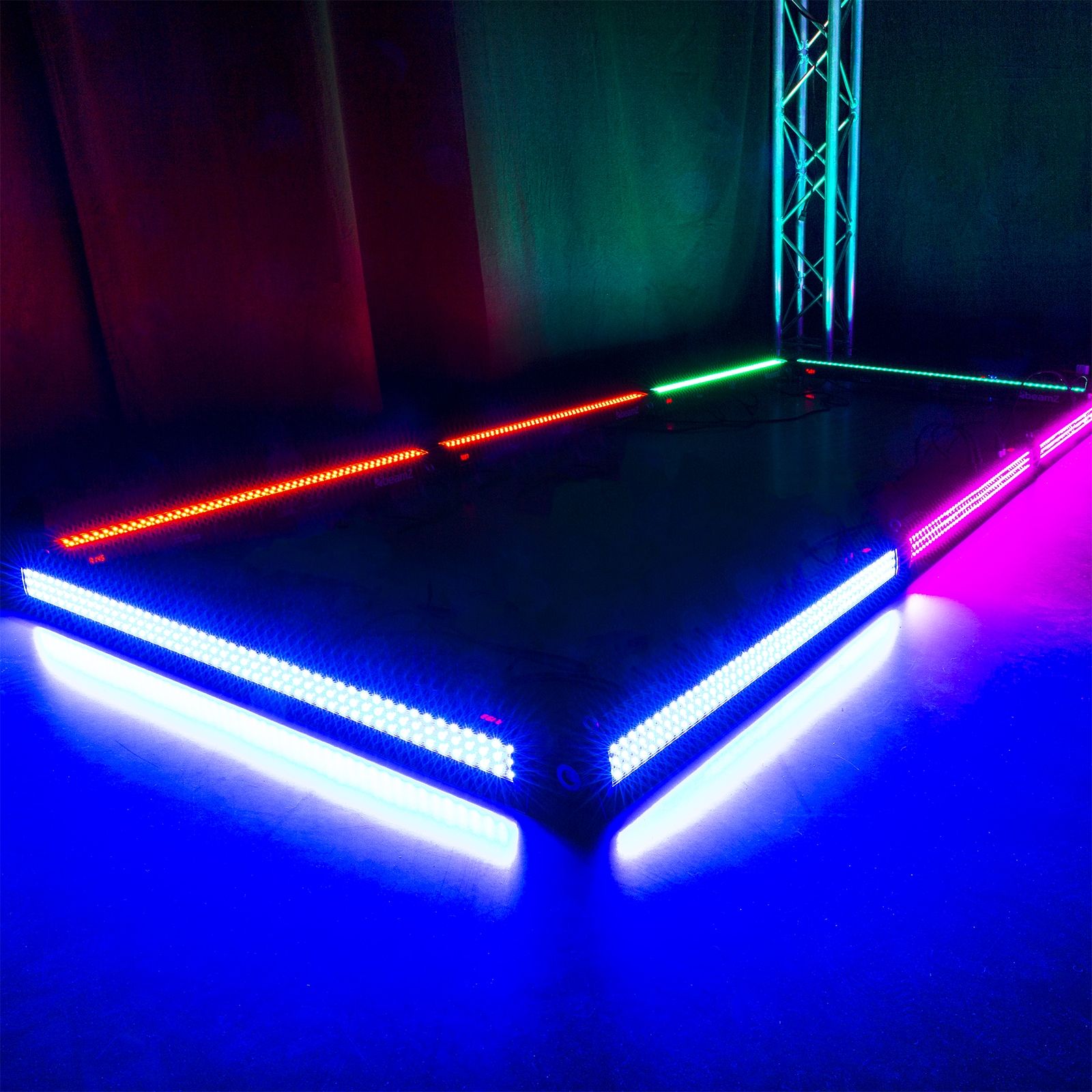

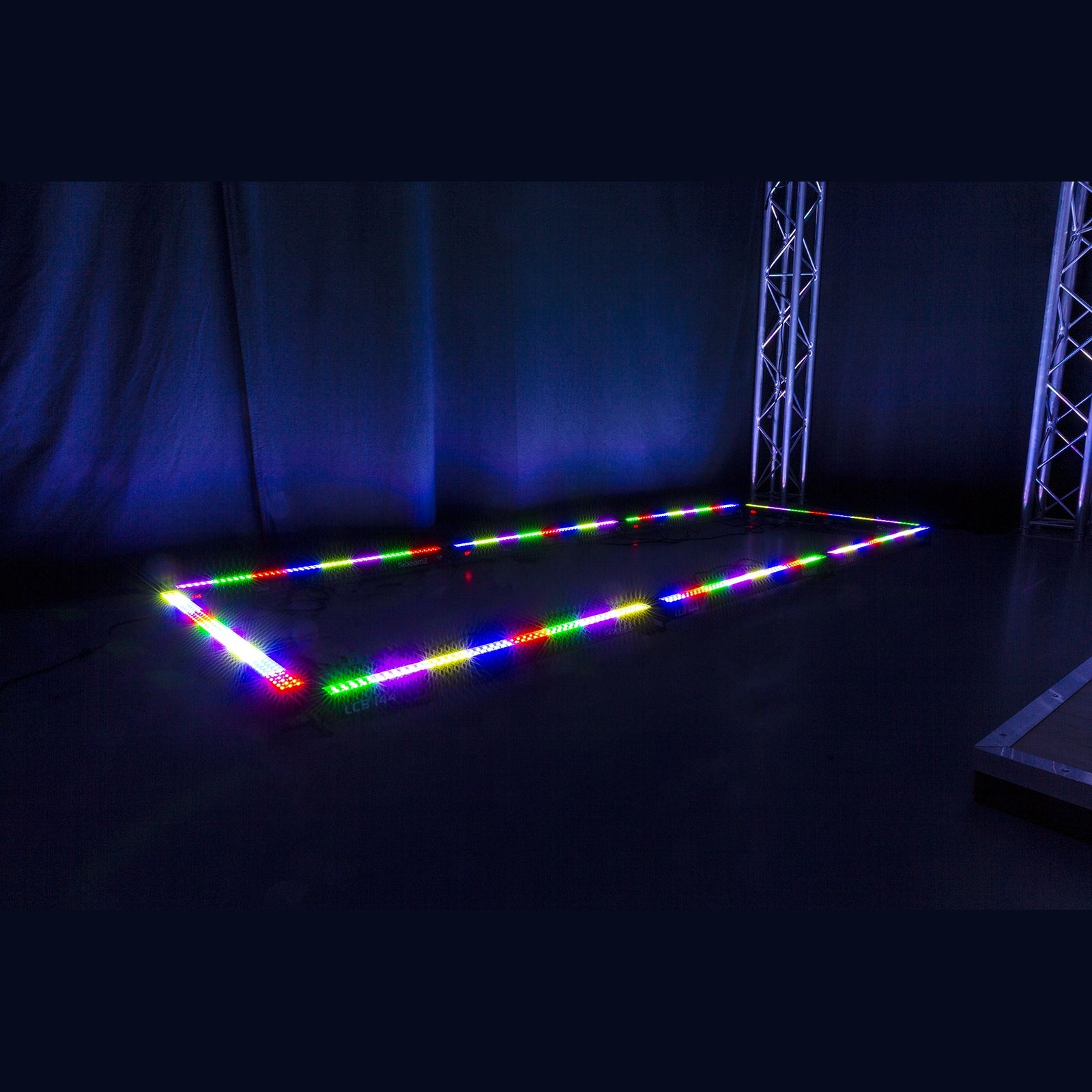

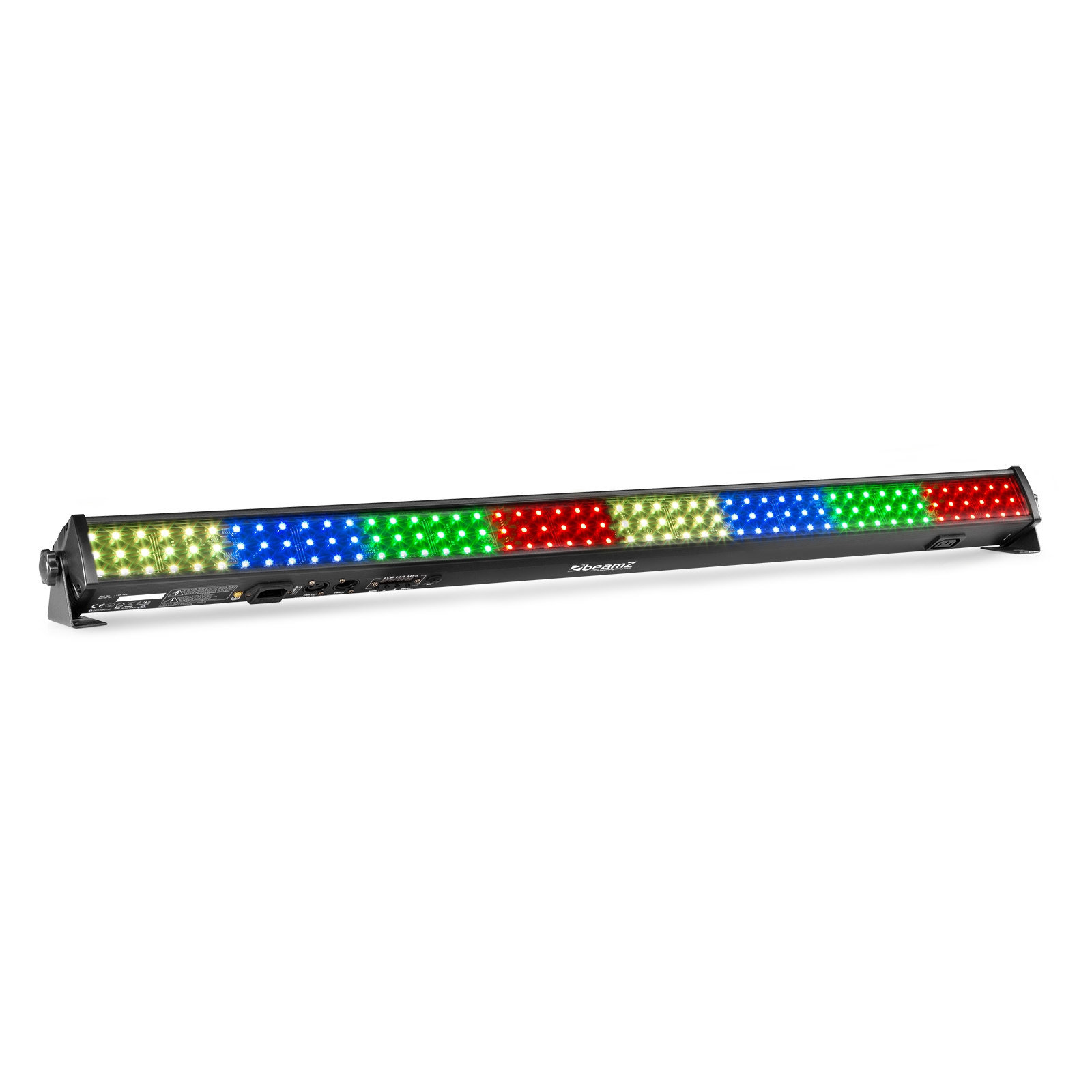

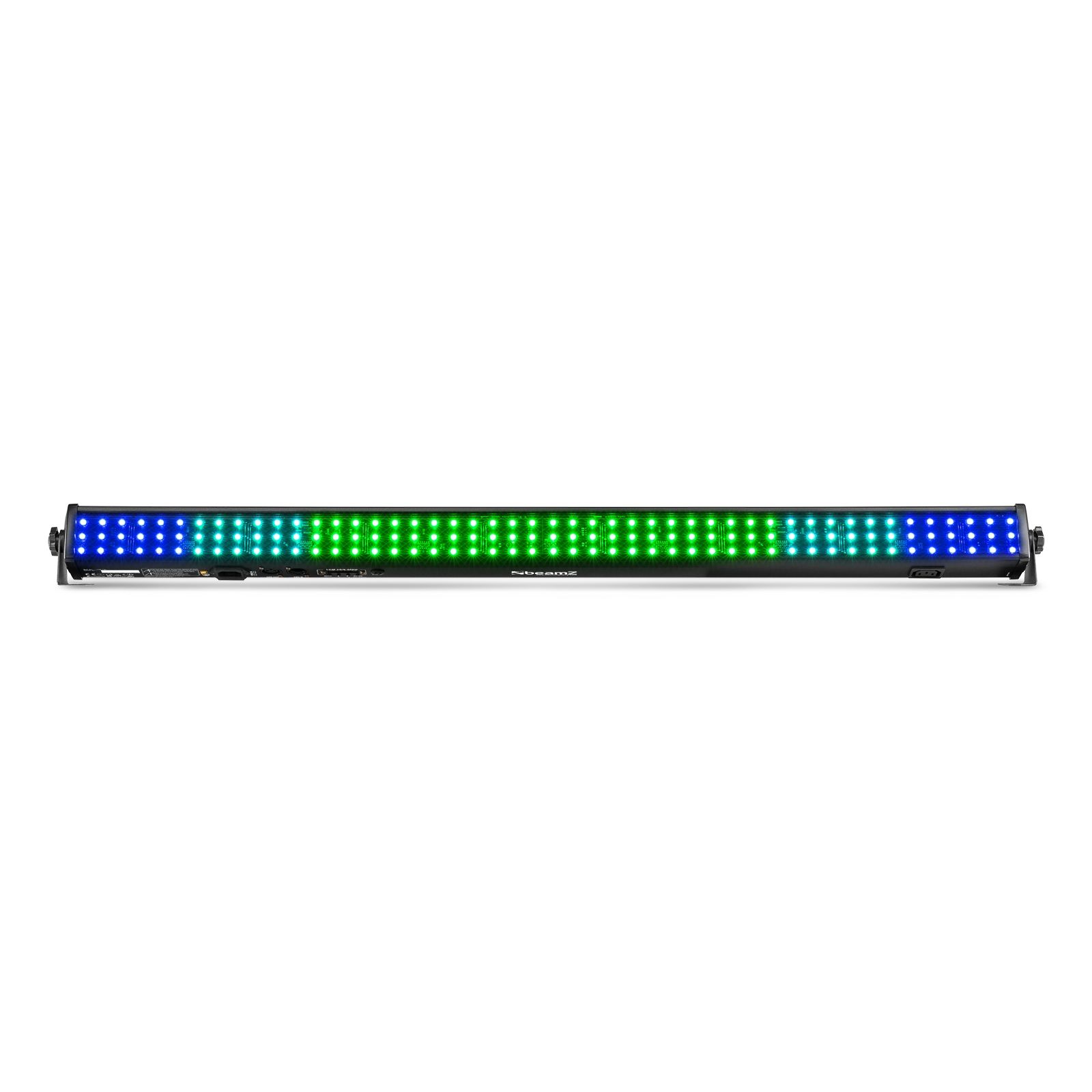

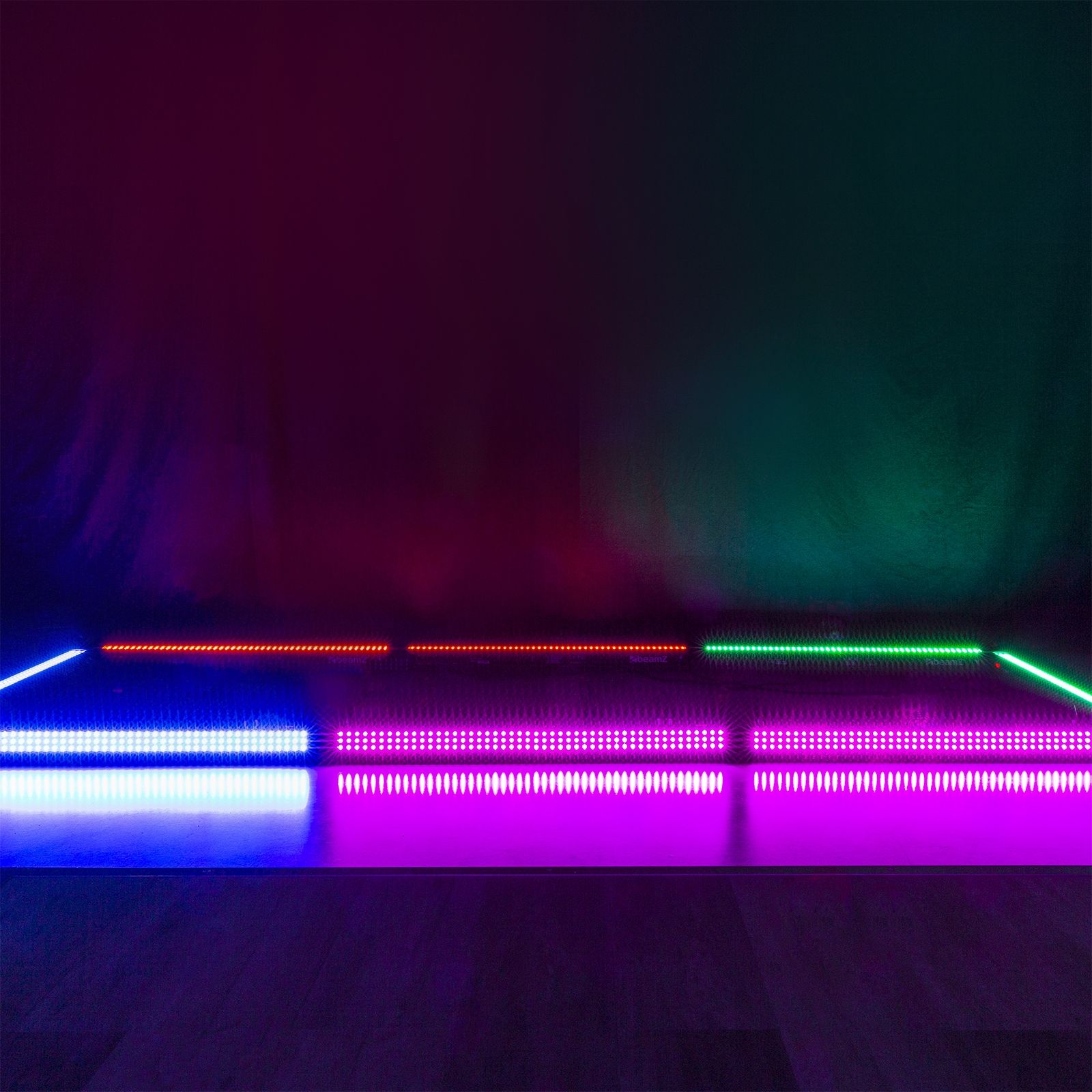

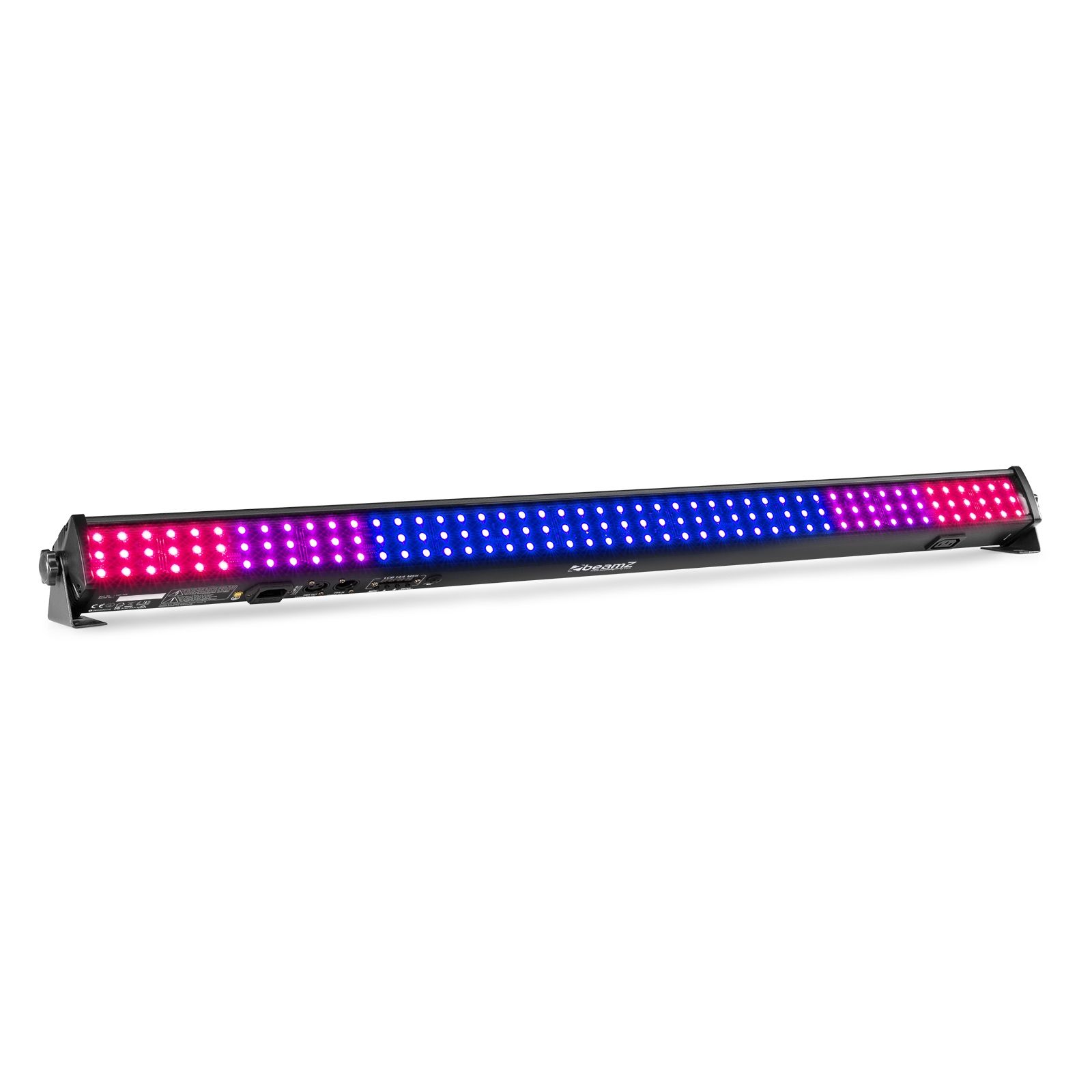

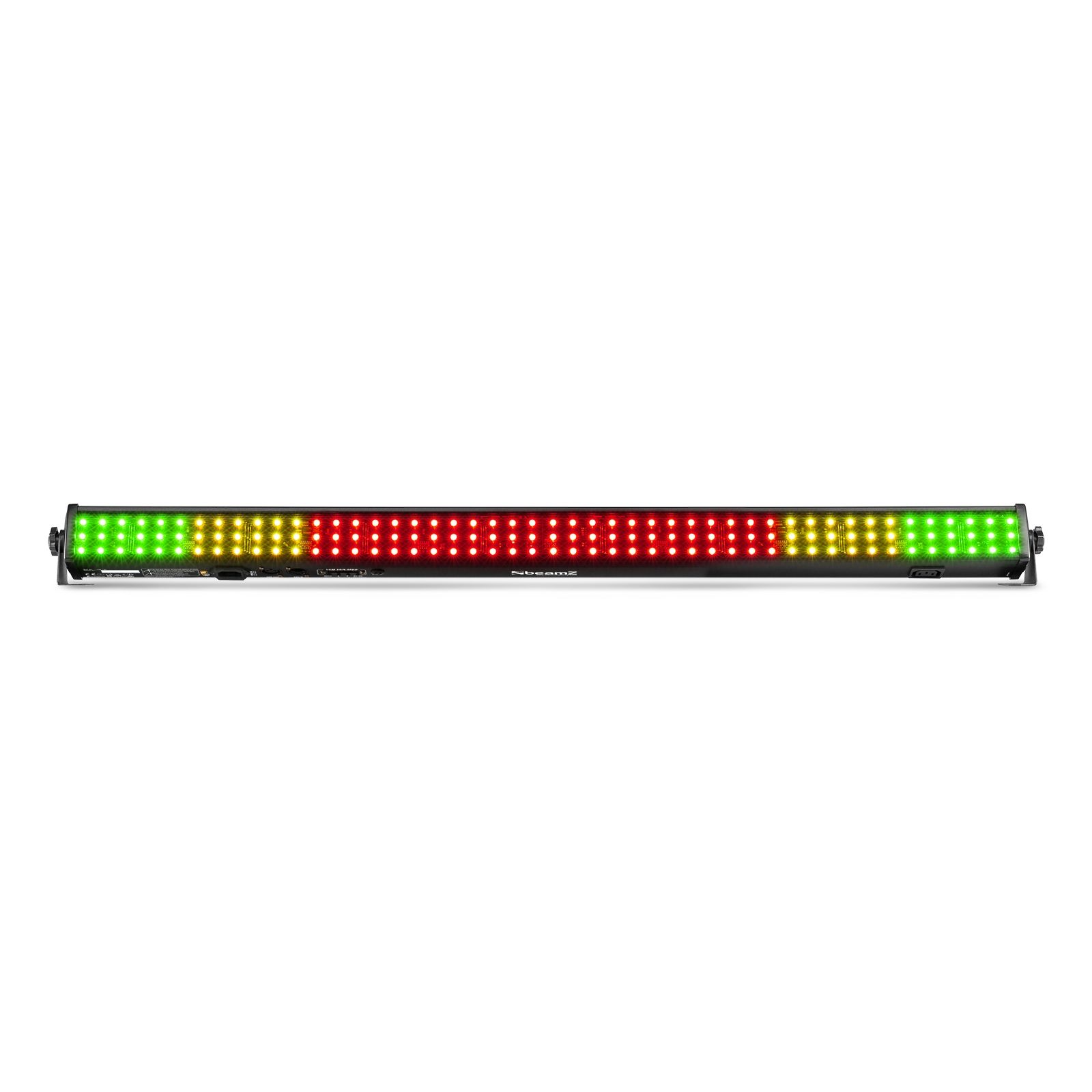

LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
+10
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
LCB144 MKII LED Colour Bar
All product information
Compare
LCB series
SKUShort descriptionRSP price
LCB144 MKII LED Colour Bar150.706
LCB144 MKII LED Colour Bar
£89.95
incl. VAT
LCB300 LED BAR 36x3W RGBW150.220
LCB300 LED BAR 36x3W RGBW
£239.95
incl. VAT
LCB288 LED Bar Wash and Strobe RGB+W150.224
LCB288 LED Bar Wash and Strobe RGB+W
£189.95
incl. VAT
LCB246 LED BAR 24x6W RGBAW-UV150.546
LCB246 LED BAR 24x6W RGBAW-UV
£229.00
incl. VAT
LCB803 LED BAR 80x 3-in-1 DMX IRC150.561
LCB803 LED BAR 80x 3-in-1 DMX IRC
£139.95
incl. VAT
LCB244 LED Bar 24x 4W RGBW150.575
LCB244 LED Bar 24x 4W RGBW
£219.95
incl. VAT
LCB48 UV LED Bar with DMX150.610
LCB48 UV LED Bar with DMX
£99.90
incl. VAT
LCB366 Hybrid LED Panel Pixel Control150.675
LCB366 Hybrid LED Panel Pixel Control
£358.95
incl. VAT
Choose your accessories
LCB155 LED Bar Pixel Control150.701
LCB155 LED Bar Pixel Control
£359.95
incl. VAT
LCB183 LED Bar 18x 3W RGB150.705
LCB183 LED Bar 18x 3W RGB
£95.00
incl. VAT
LCB14C Hybrid LED BAR RGBW/RGB Pixel Control150.709
LCB14C Hybrid LED BAR RGBW/RGB Pixel Control
£145.00
incl. VAT
LCB14 Hybrid LED BAR WW/RGB Pixel Control150.710
LCB14 Hybrid LED BAR WW/RGB Pixel Control
£145.00
incl. VAT
Choose your accessories
LCB99 LED Bar 2-in-1 Effect RGBW & UV150.711
LCB99 LED Bar 2-in-1 Effect RGBW & UV
£86.00
incl. VAT
LCB224 LED Bar 224x SMD RGB150.713
LCB224 LED Bar 224x SMD RGB
£119.90
incl. VAT
Description
Highlights
  • 144x SMD RGB LEDs
  • 3, 4, 7, 24 or 28 DMX channels

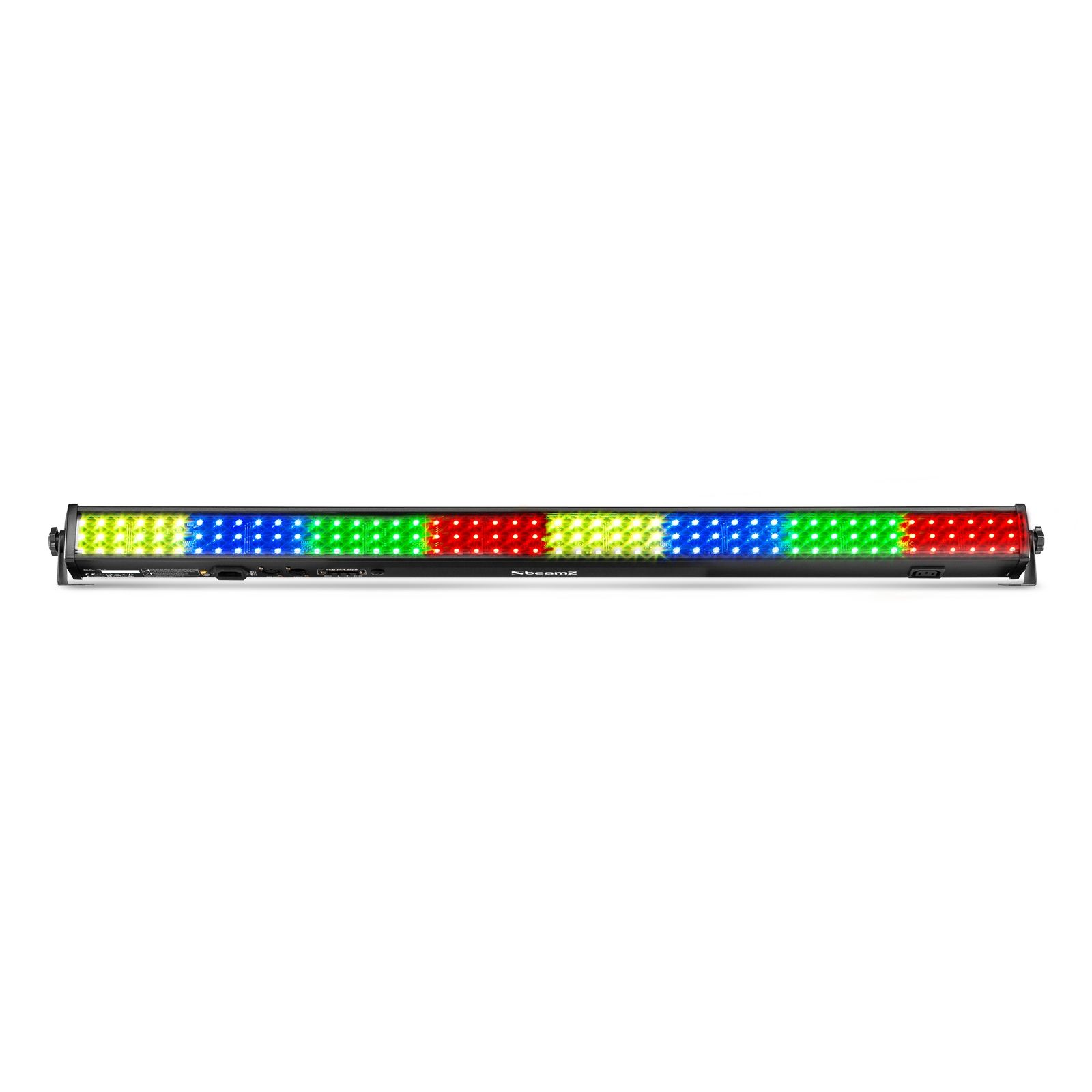

  • 8 Sections controllable
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • IR remote control
  • DMX in/output via 3-pin XLR
  • IEC-connector input/output
  • Control panel with LED display
Specifications
BrandbeamZ
Product serieLCB series
ColourBlack
Light source
Light source
  • 144x RGB LED
Illuminance126 lx @ 1m
Optics
Beam angle
  • 127°
Features
Flash Per Second1 - 24 Hz
Daisy ChainYes (max. 6 bars)
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels3, 4, 7, 24, 28
DMX connector3-pin XLR

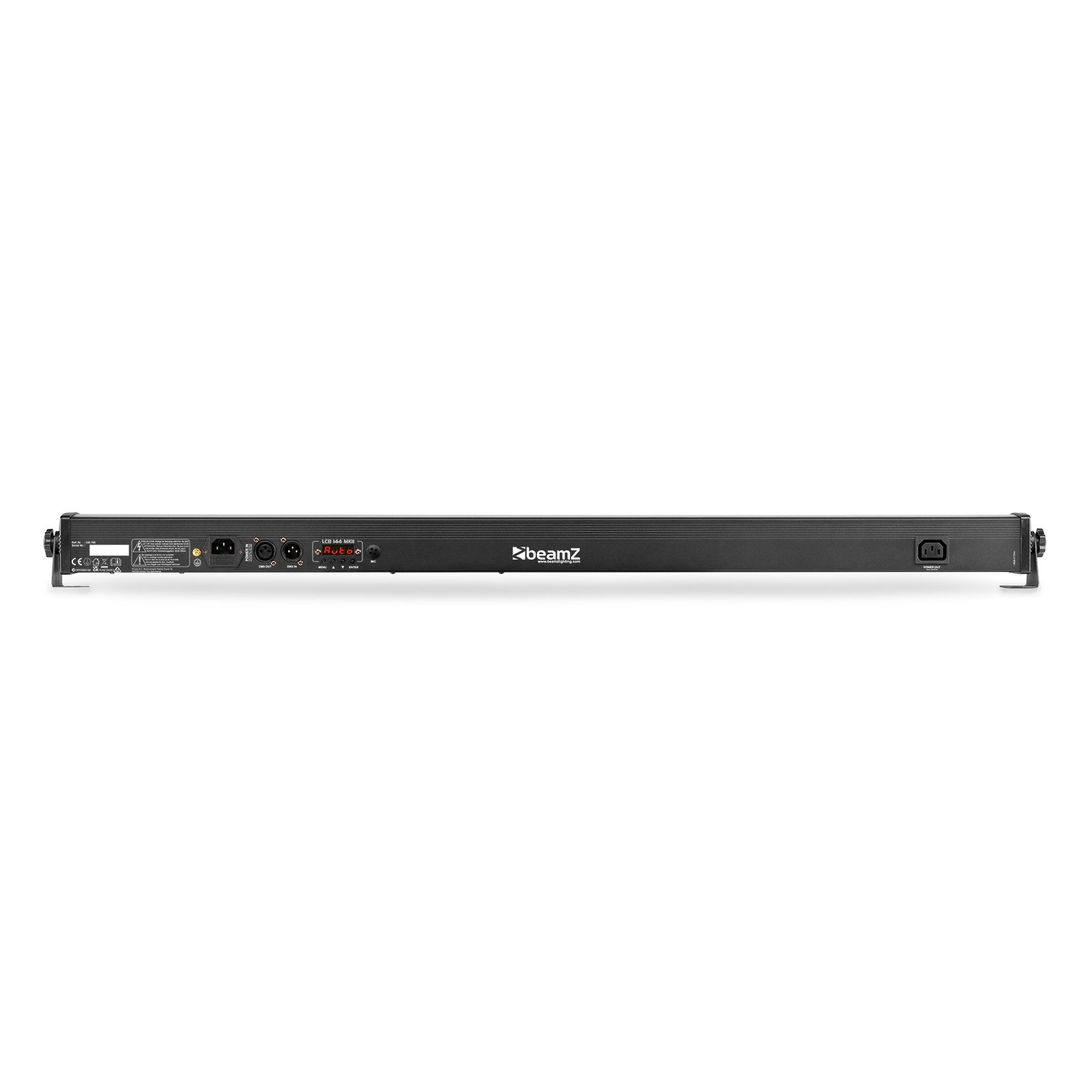

Connections
Input connections
  • 1x Power - IEC (M)
  • 1x DMX - 3-pin XLR (M)
Output connections
  • 1x Power - IEC (F)
  • 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingConvection
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
  • 1080 x 100 x 100 mm (W x D x H)
Weight
  • 1.45 kg
Accessories
Included Accessories
  • Mounting bracket
  • Power cable

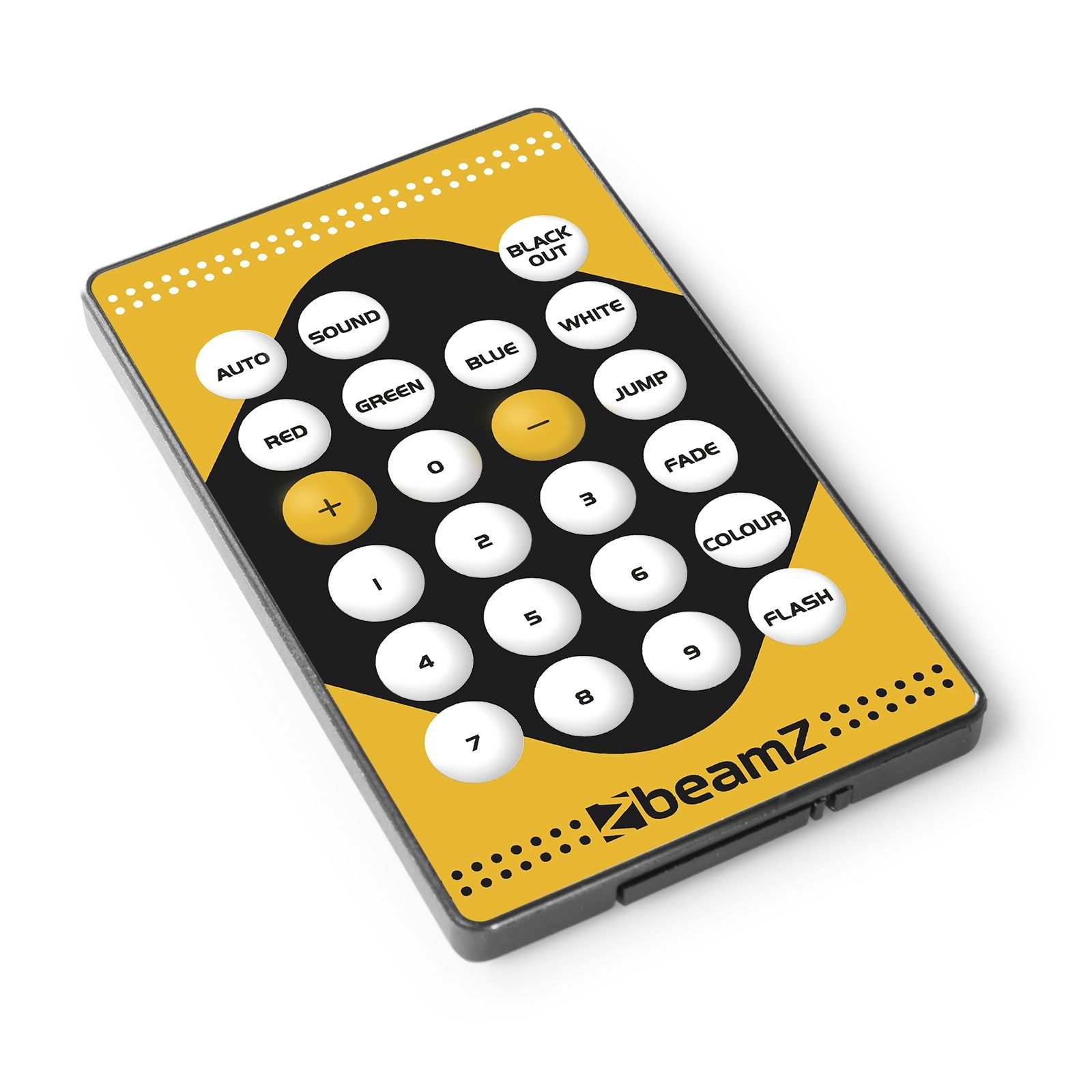

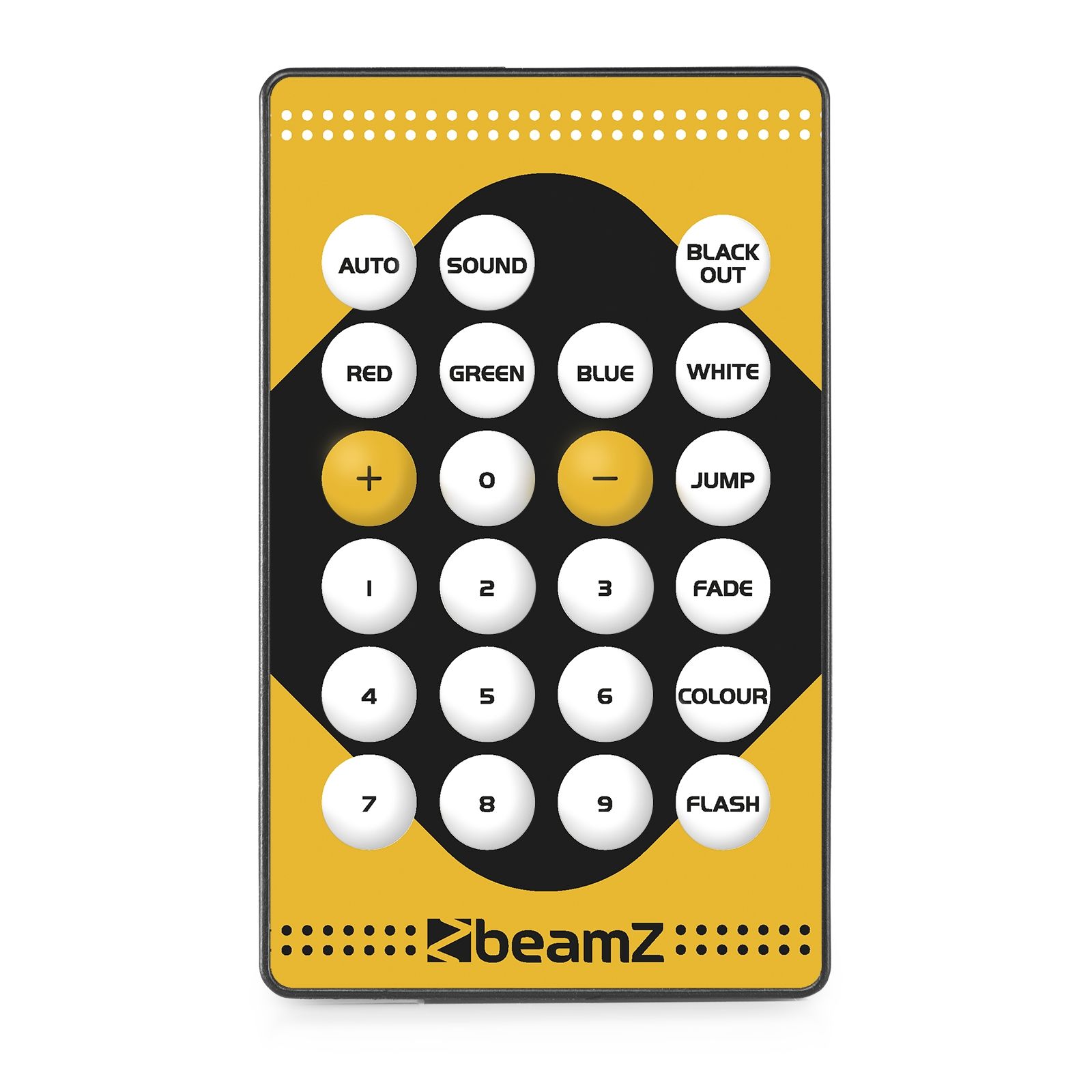

  • Remote control (wireless)
Manuals & Documents
Manual
PDF
Download
