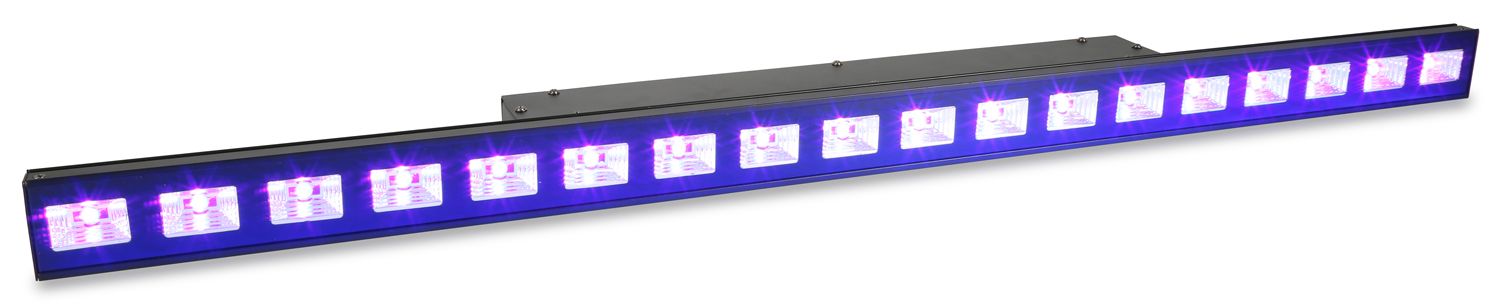

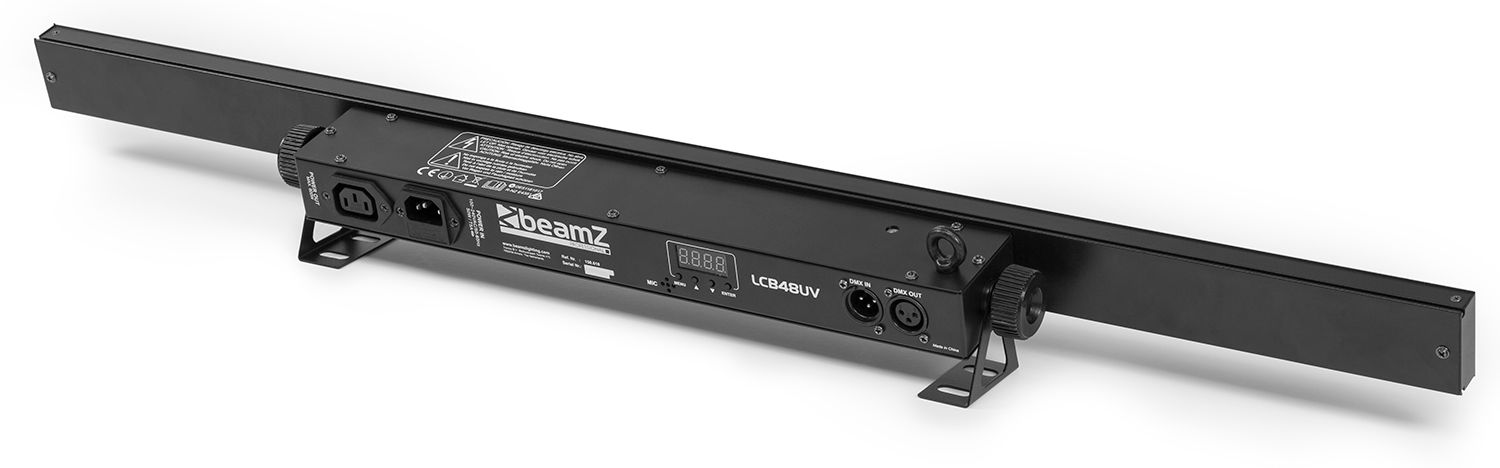

LCB48
UV LED Bar with DMX
SKU 150.610
|EAN 8715693293845
All product information
Compare
LCB series
Description
Highlights
- 18x 3W UV LEDs
- Parabolic reflector
- 9 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated
- Auto mode with adjustable speed
- IEC-connector input/output
Specifications
BrandbeamZ
Product serieLCB series
ColourBlack
Light source
Light source
- 18x 3W UV LED
Optics
Beam angle
- 120°
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels9
DMX connector3-pin XLR

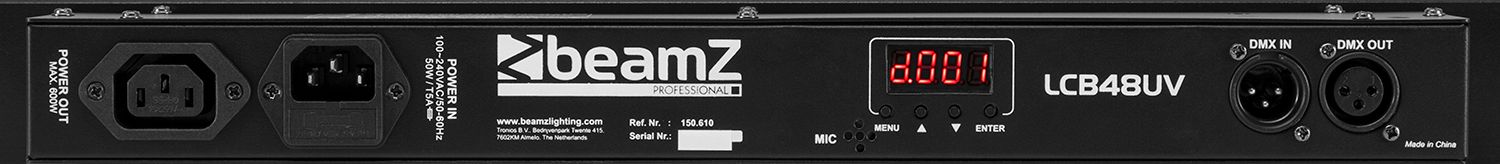

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - IEC (F)
- 1x DMX - 3-pin XLR (F)
Hardware features
CoolingConvection
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 950 x 50 x 80 mm (W x D x H)
Weight
- 2.15 kg
Manuals & Documents
Manual
PDF
