LCB300

Name: LCB300 LED BAR 36x3W RGBW undefined
Brand: Tronios
SKU: 150.220
Price: 239.95 GBP
Availability: OutOfStock

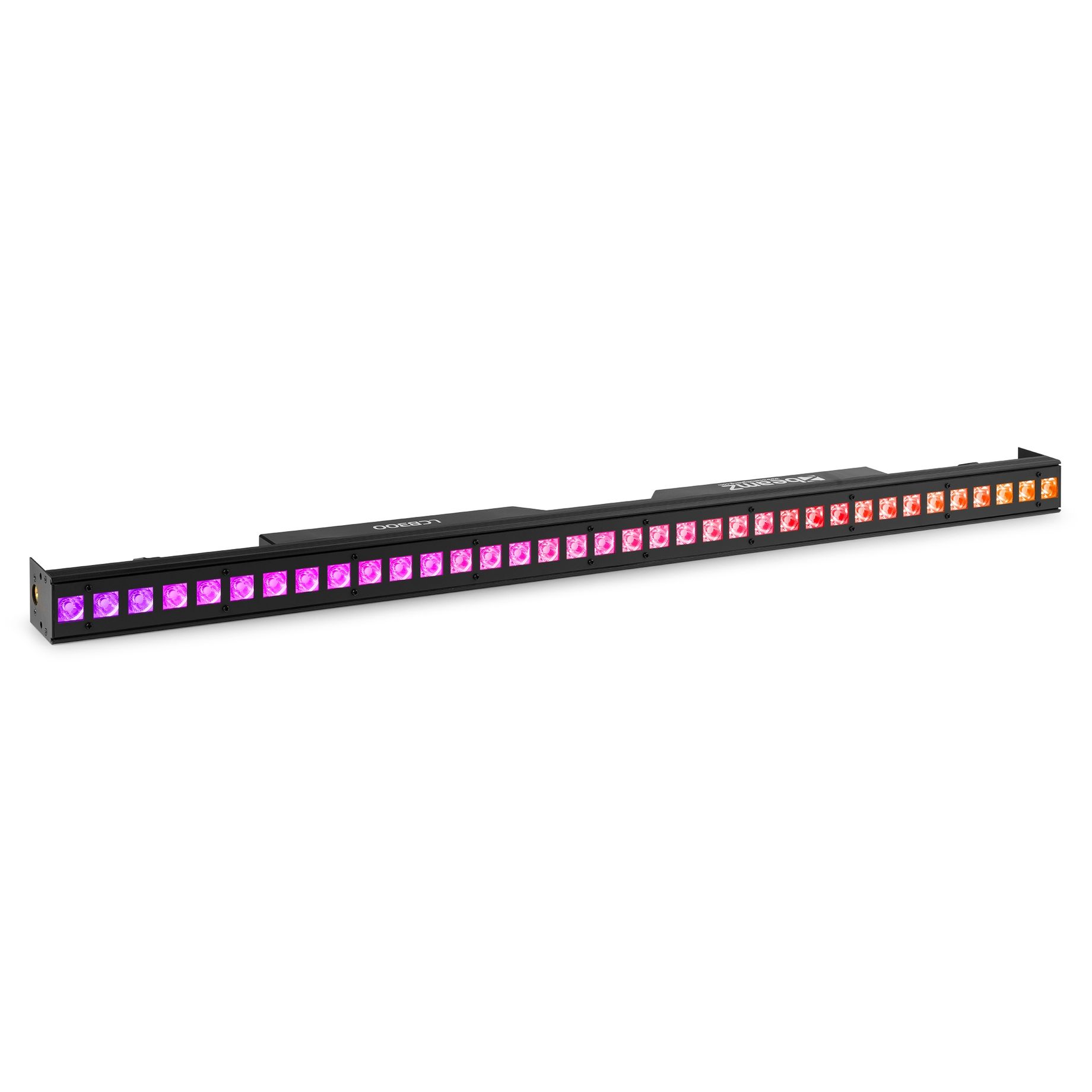

LED BAR 36x3W RGBW

SKU 150.220

EAN 8715693342666

+10

All product information

Compare

LCB series

SKU	Short description	RSP price
150.220	LCB300 LED BAR 36x3W RGBW	£239.95 incl. VAT
150.224	LCB288 LED Bar Wash and Strobe RGB+W	£189.95 incl. VAT
150.546	LCB246 LED BAR 24x6W RGBAW-UV	£229.00 incl. VAT
150.561	LCB803 LED BAR 80x 3-in-1 DMX IRC	£139.95 incl. VAT
150.575	LCB244 LED Bar 24x 4W RGBW	£219.95 incl. VAT
150.610	LCB48 UV LED Bar with DMX	£99.90 incl. VAT
150.675	LCB366 Hybrid LED Panel Pixel Control	£358.95 incl. VAT
Choose your accessories
150.701	LCB155 LED Bar Pixel Control	£359.95 incl. VAT
150.705	LCB183 LED Bar 18x 3W RGB	£95.00 incl. VAT
150.706	LCB144 MKII LED Colour Bar	£89.95 incl. VAT
150.709	LCB14C Hybrid LED BAR RGBW/RGB Pixel Control	£145.00 incl. VAT
150.710	LCB14 Hybrid LED BAR WW/RGB Pixel Control	£145.00 incl. VAT
Choose your accessories
150.711	LCB99 LED Bar 2-in-1 Effect RGBW & UV	£86.00 incl. VAT
150.713	LCB224 LED Bar 224x SMD RGB	£119.90 incl. VAT

Description

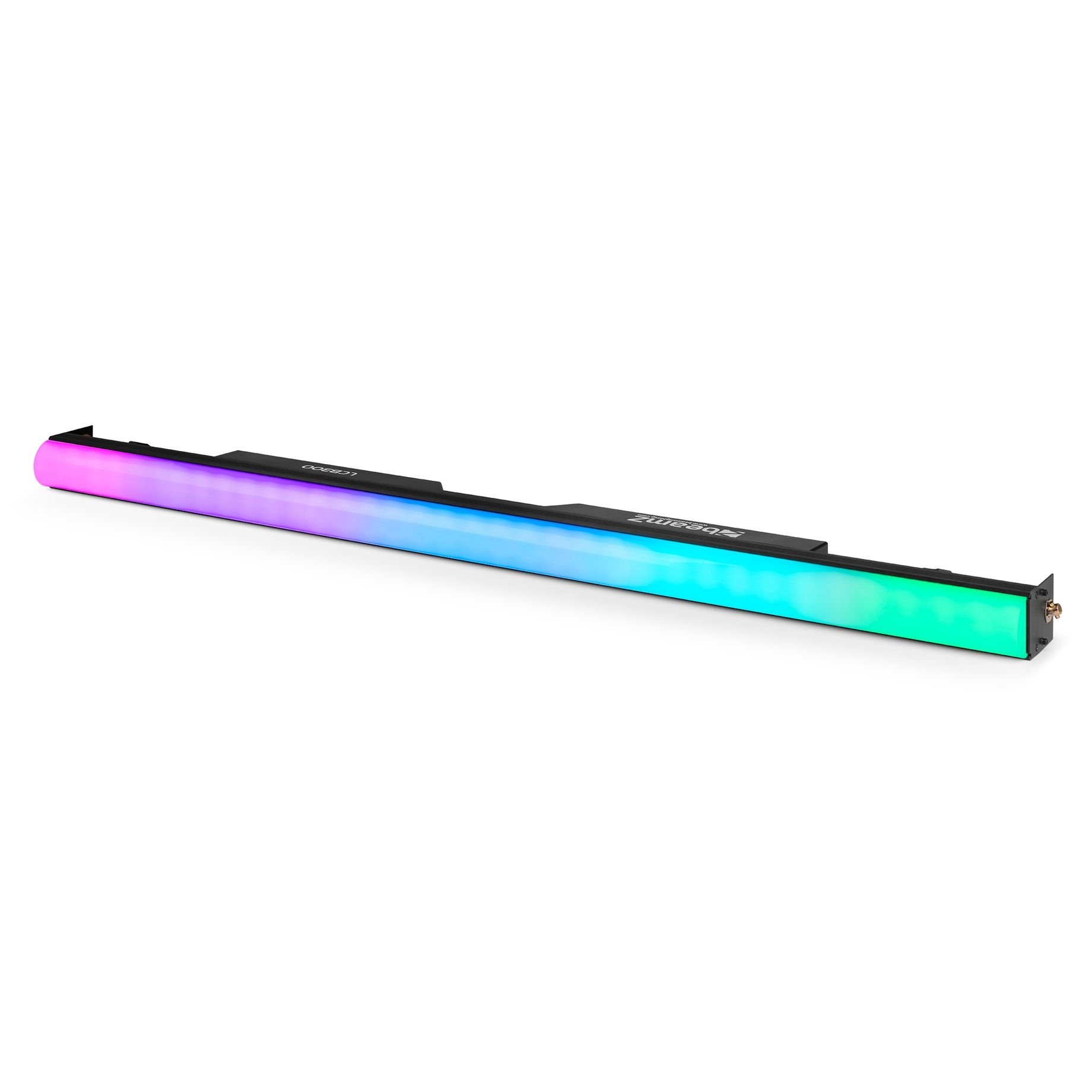

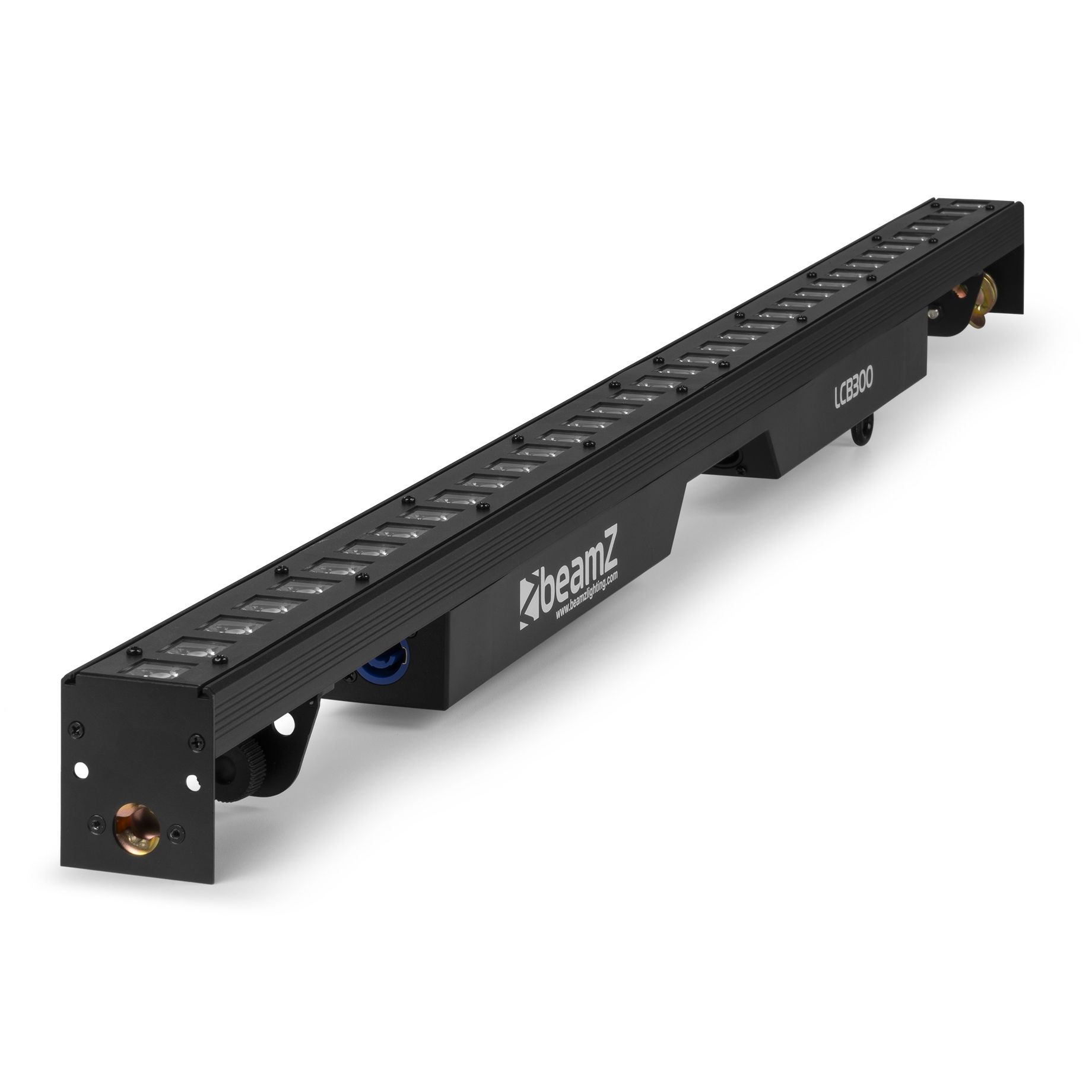

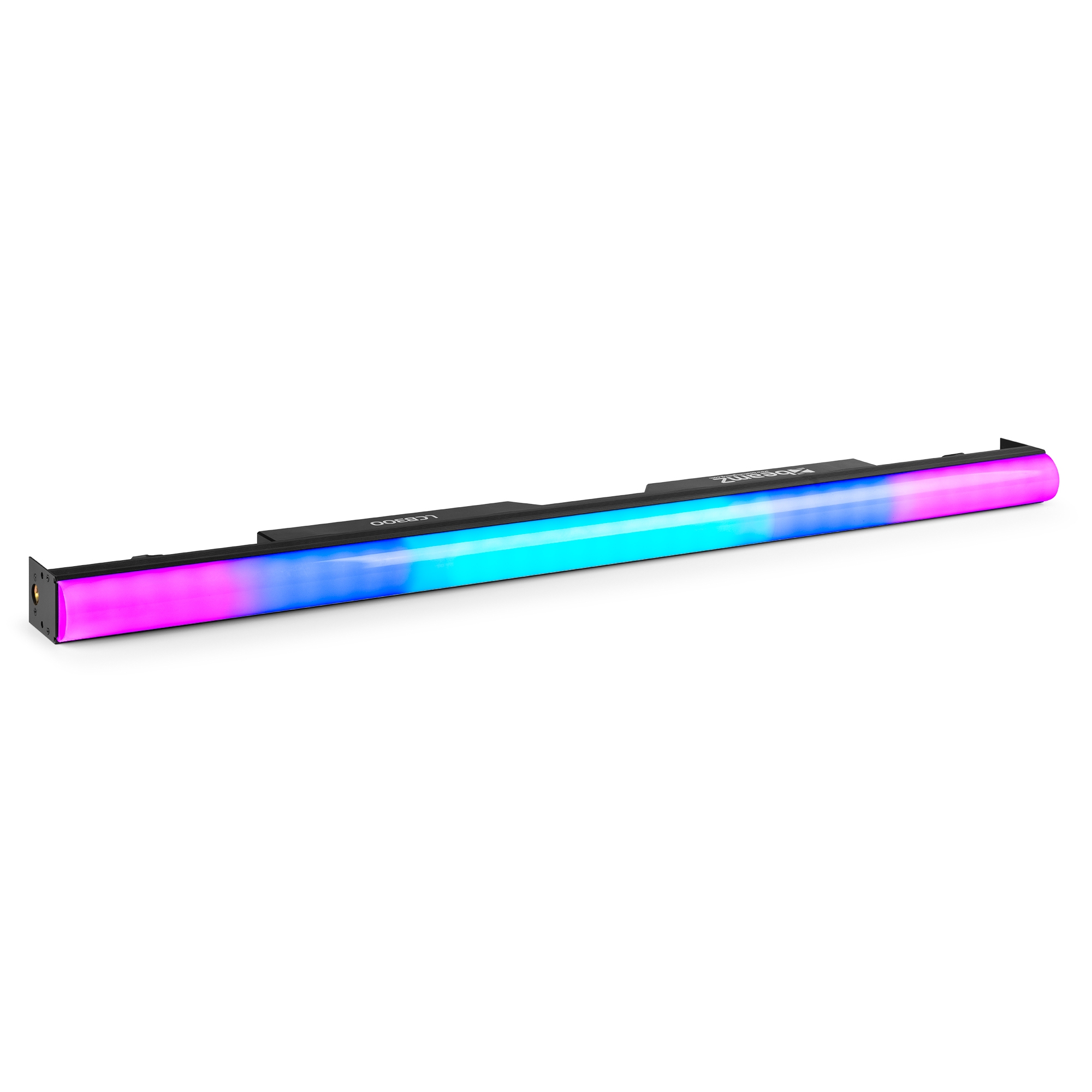

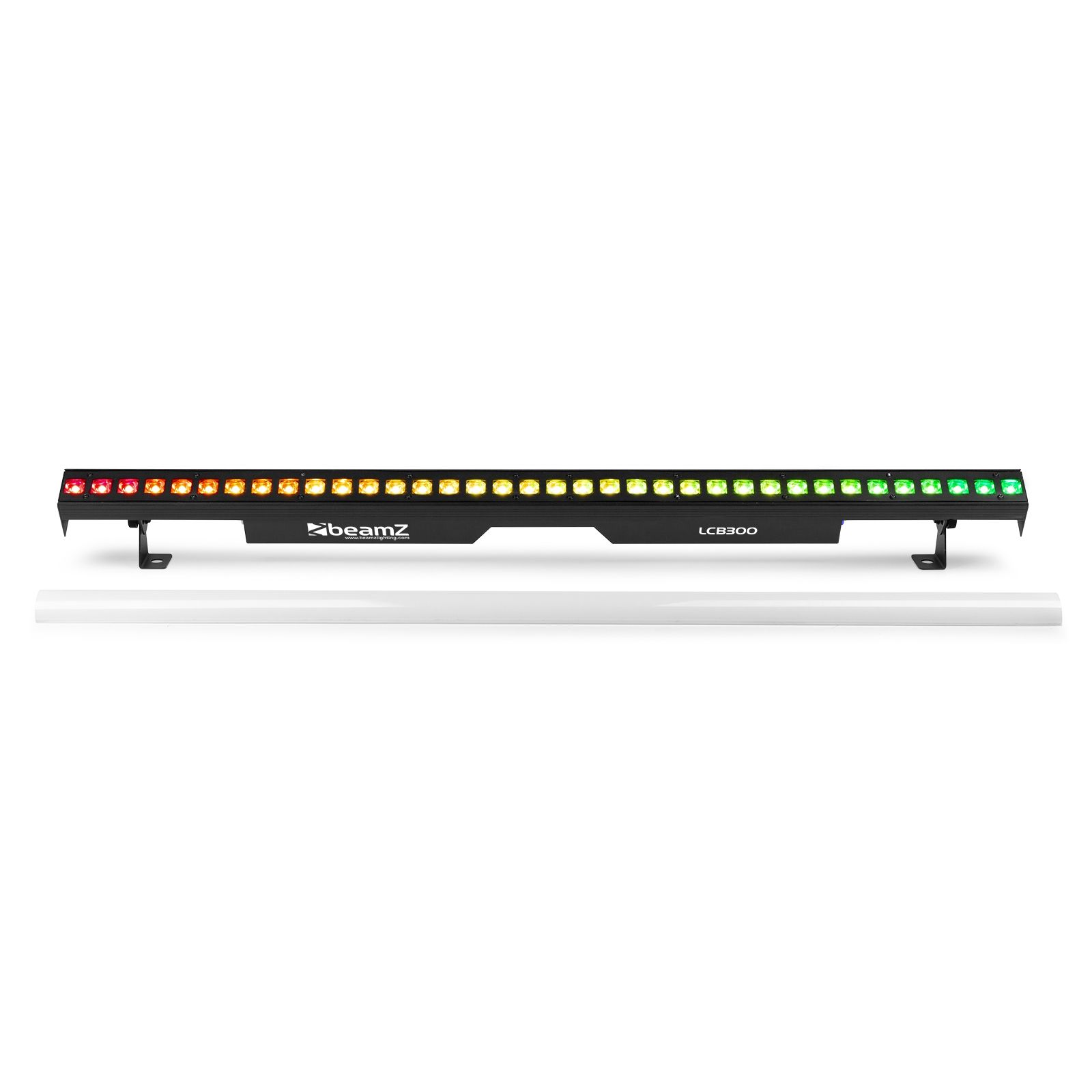

The LCB300 is a cutting-edge fixture that is packed with a lot of features to highlight any event or venue. With its 36x 3W RGBW LEDs, the LCB300 delivers powerful and versatile lighting performance. The LEDs are divided into 12 individually controllable sections, each comprising 3 LEDs. This level of control allows you to create mesmerizing light shows with stunning precision and flexibility. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBW mode. The extra power output enables you to simply link the power of multiple units together into a single socket.

Highlights

36x 3W 4-in-1 LEDs
RGBW colour mixing
12 separate controllable sections
56 Pre-programmed shows
2 Sound modes with adjustable sensitivity
Auto mode
4, 6, 9, 48 or 52 DMX channels
RDM controllable
Linear dimming 0-100%
DMX and Stand-alone mode
Master/slave function
DMX in/output via 3-pin XLR
Control panel with LED display
P-Con in/output

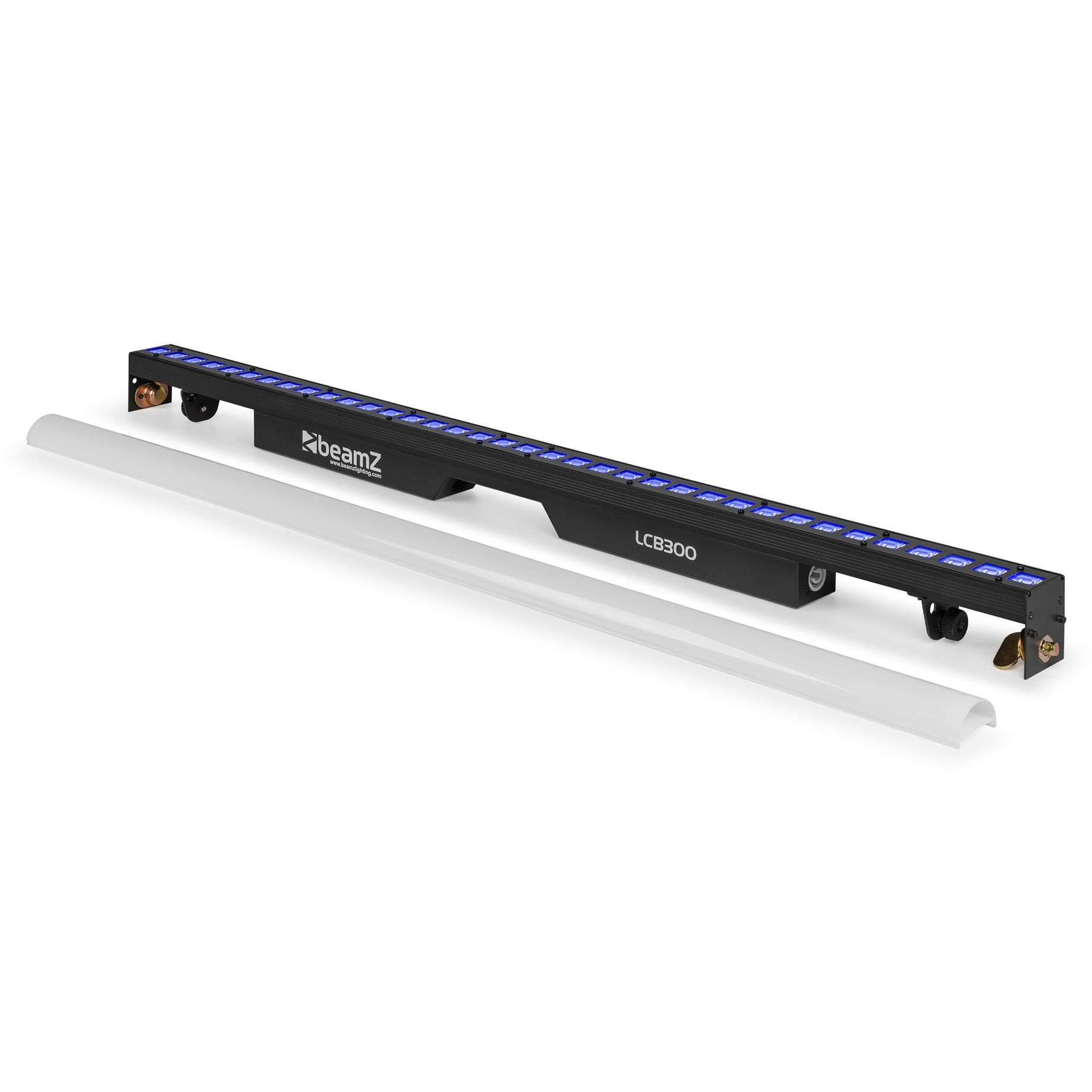

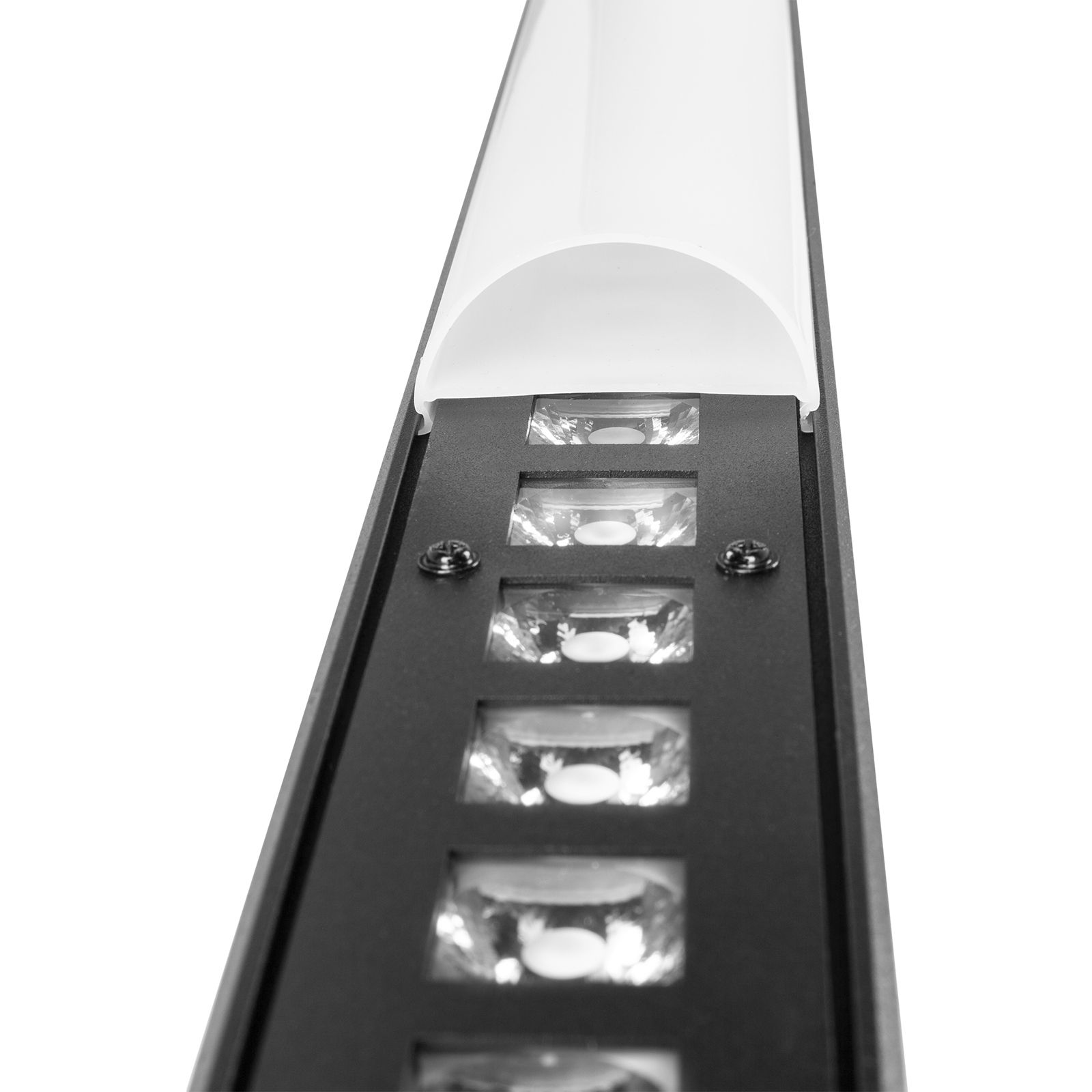

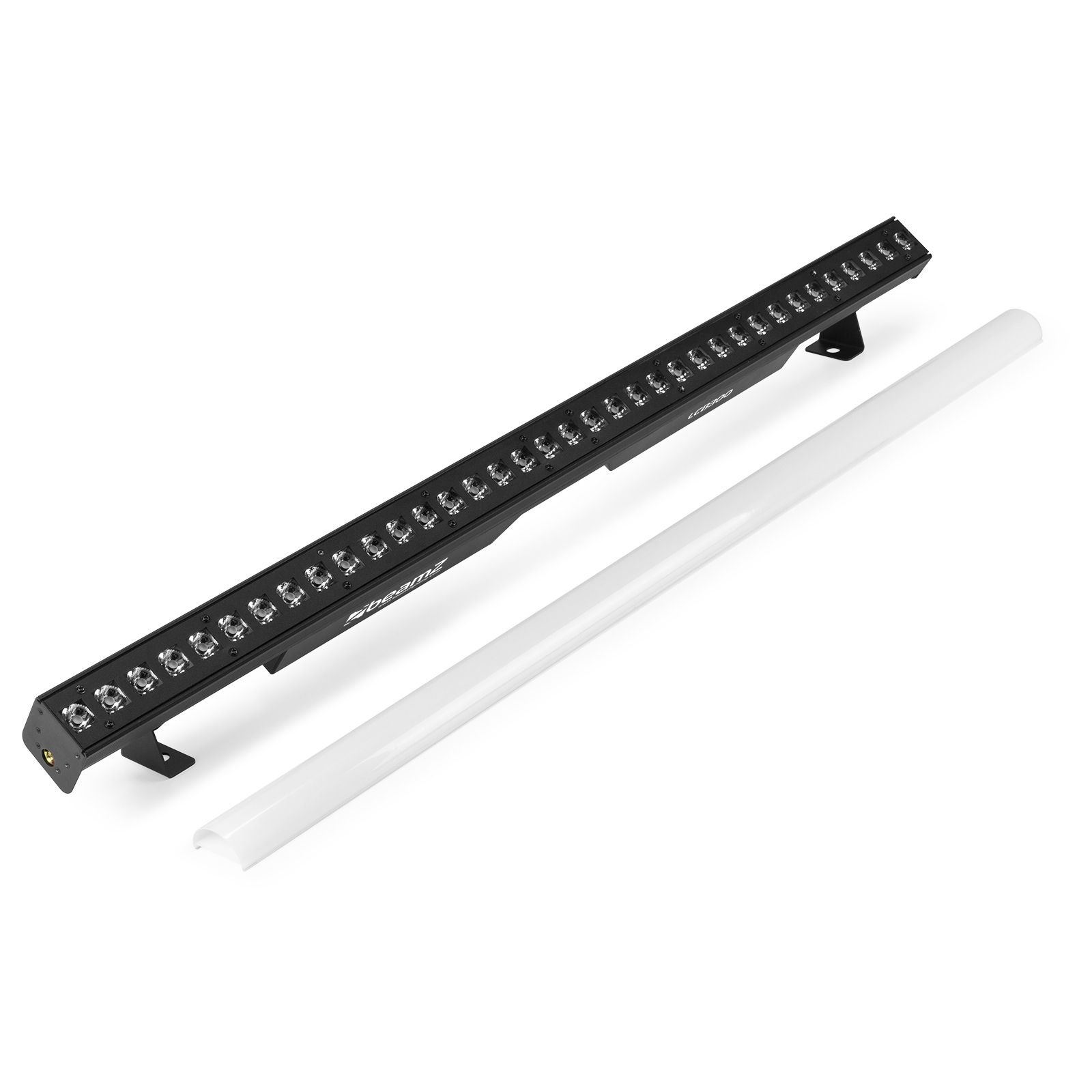

Including matte cover tube

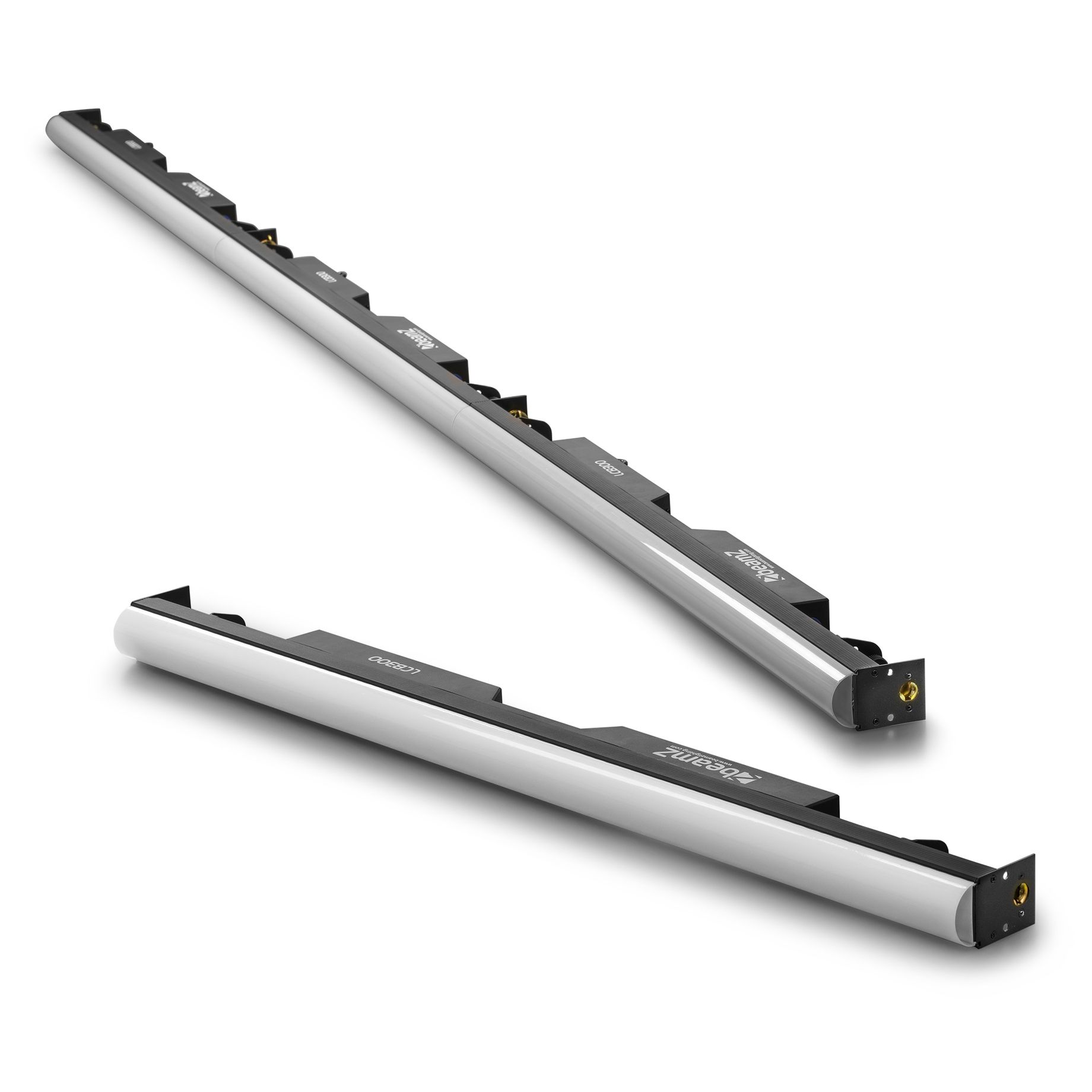

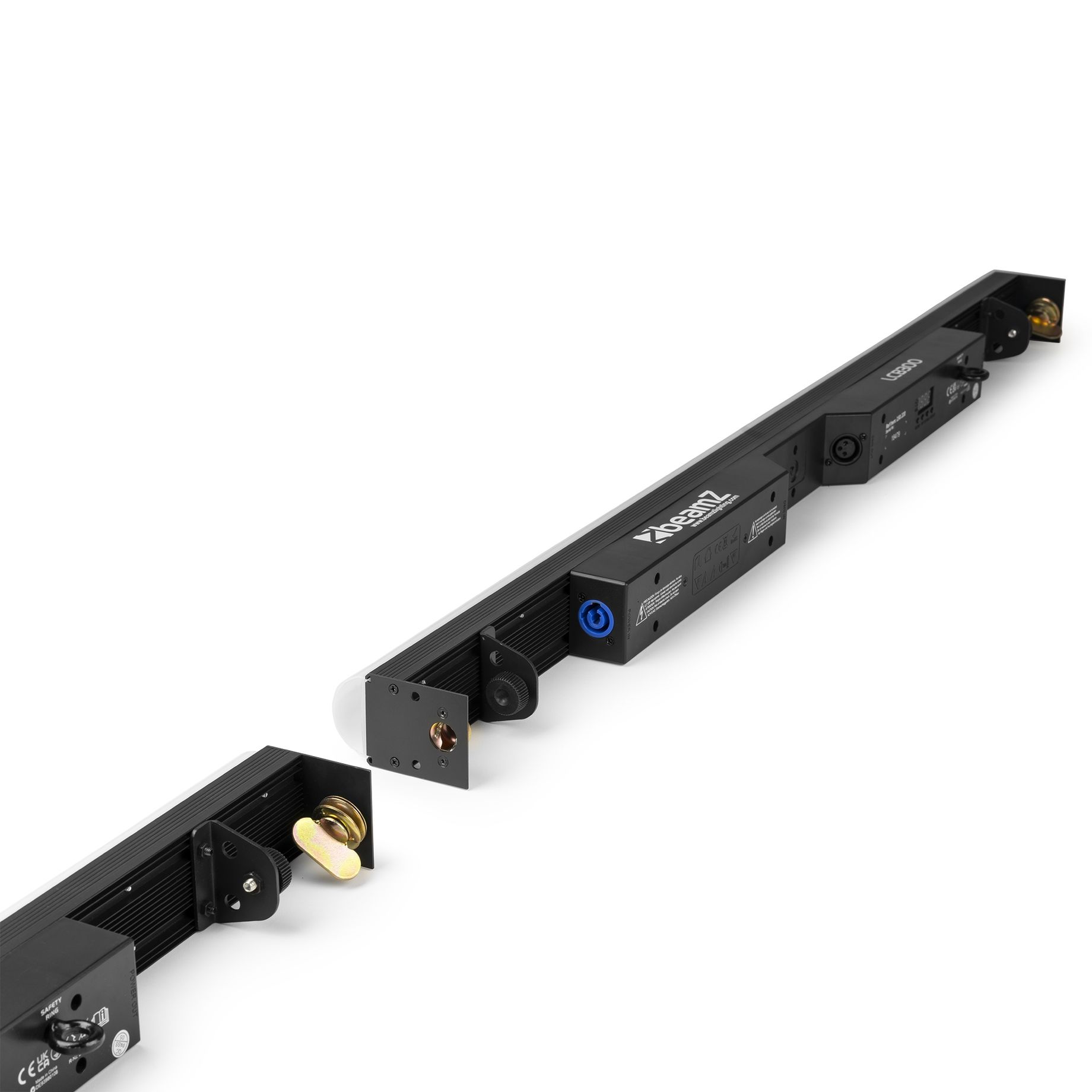

Including Quick Lock coupling system

Specifications

BrandbeamZ

Product serieLCB series

ColourBlack

Light source

36x 3W RGBW LED

Illuminance12060 lx @ 1m

Optics

Beam angle

Features

Flash Per Second1 - 20 Hz

Daisy ChainYes (max. 6 bars)

Control

Control modesAuto programs, DMX, Master/Slave, Manual, Sound

DMX Channels4, 6, 9, 48, 52

RDMYes

DMX connector3-pin XLR

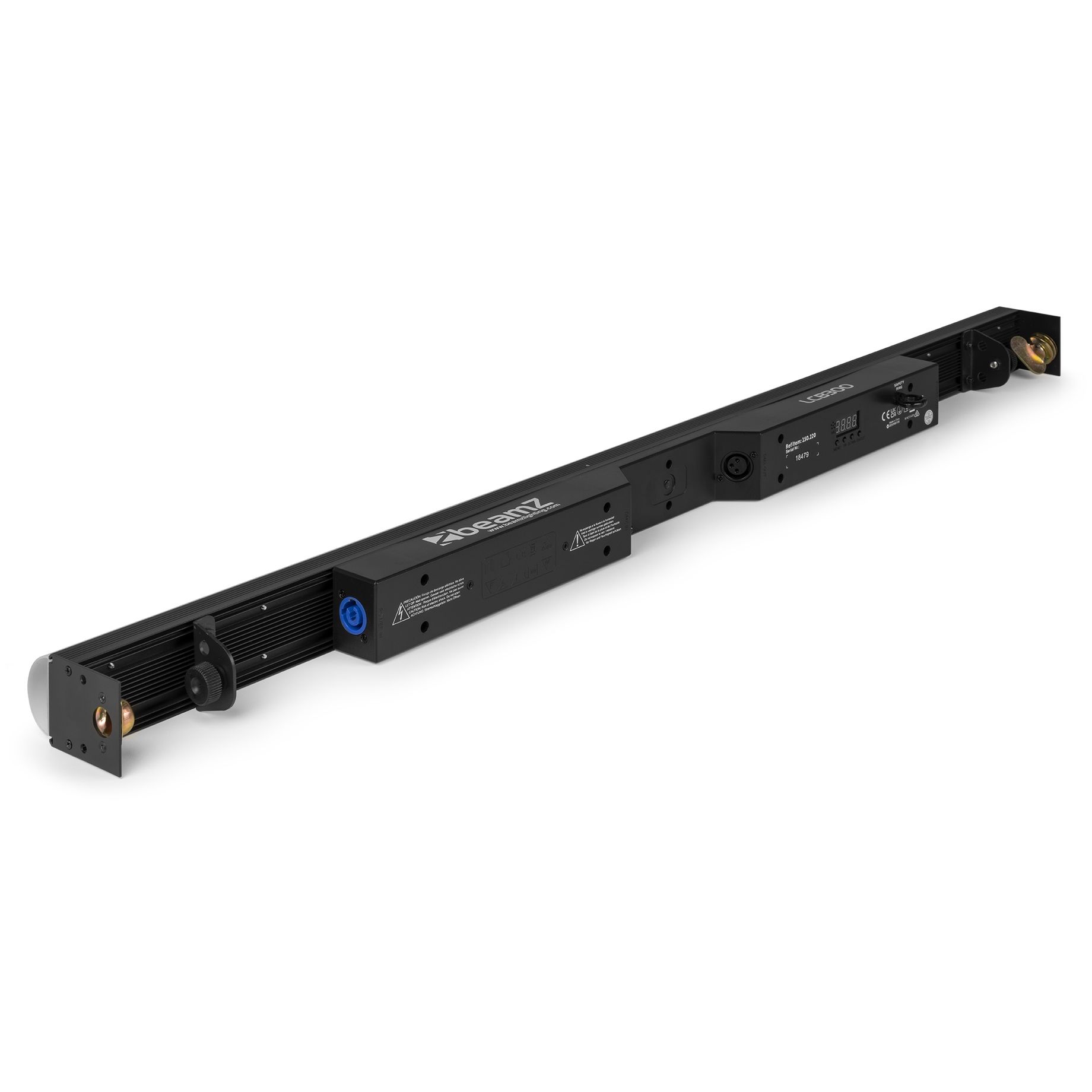

Connections

Input connections

1x Power - Powerconnector (A)
1x DMX - 3-pin XLR (M)

Output connections

1x Power - Powerconnector (B)
1x DMX - 3-pin XLR (F)

Hardware features

Display typeLED

CoolingConvection

Environmental

IP ratingIP20

Electrical

Power Supply100-240VAC 50/60Hz

Mechanical

Dimensions

1004 x 55 x 120 mm (W x D x H)

Weight

1.9 kg

Accessories

Included Accessories

Mounting bracket
Power cable

Manuals & Documents

Manual

PDF

Download
