LCB244

Name: LCB244 LED Bar 24x 4W RGBW undefined
Brand: Tronios
SKU: 150.575
Price: 219.95 GBP
Availability: OutOfStock

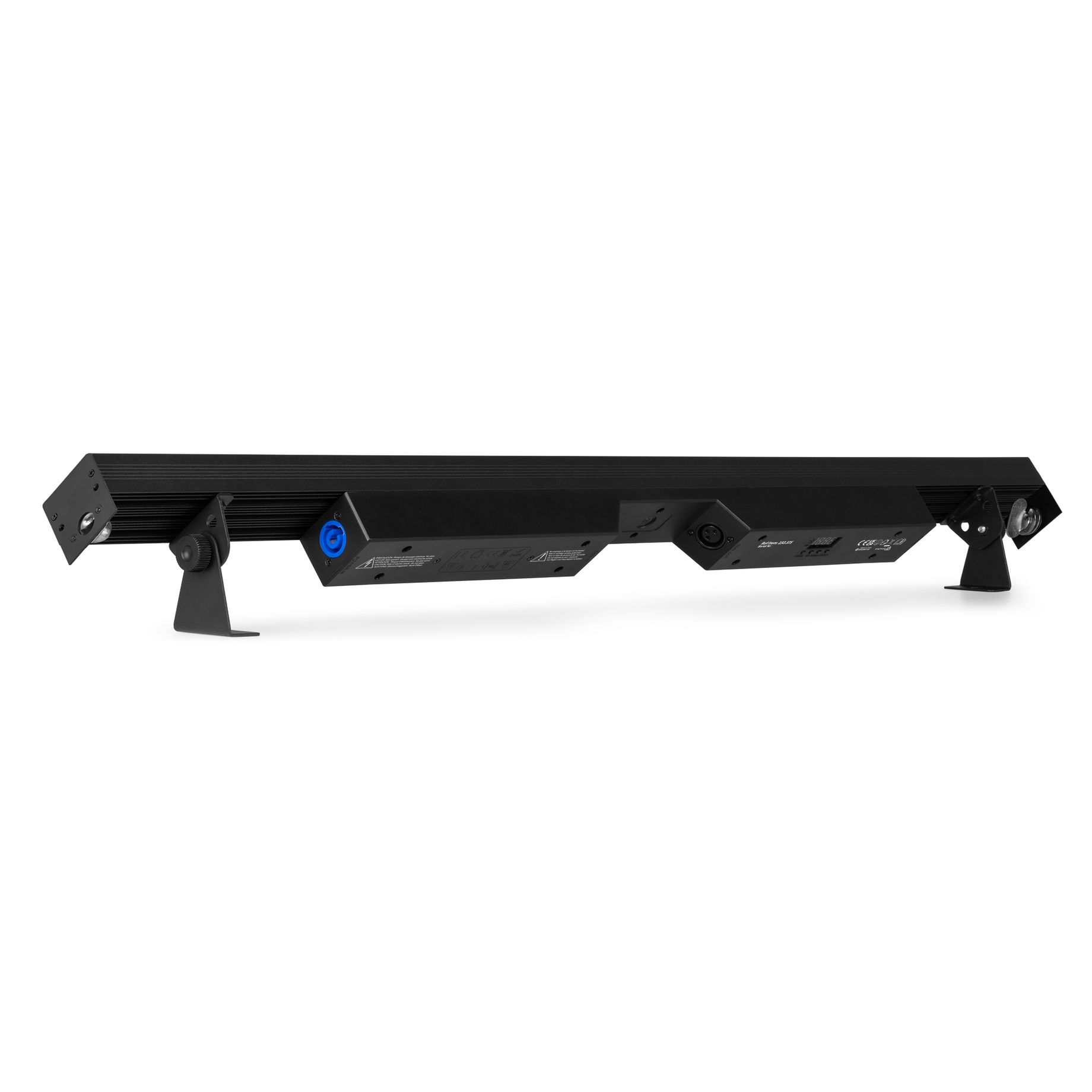

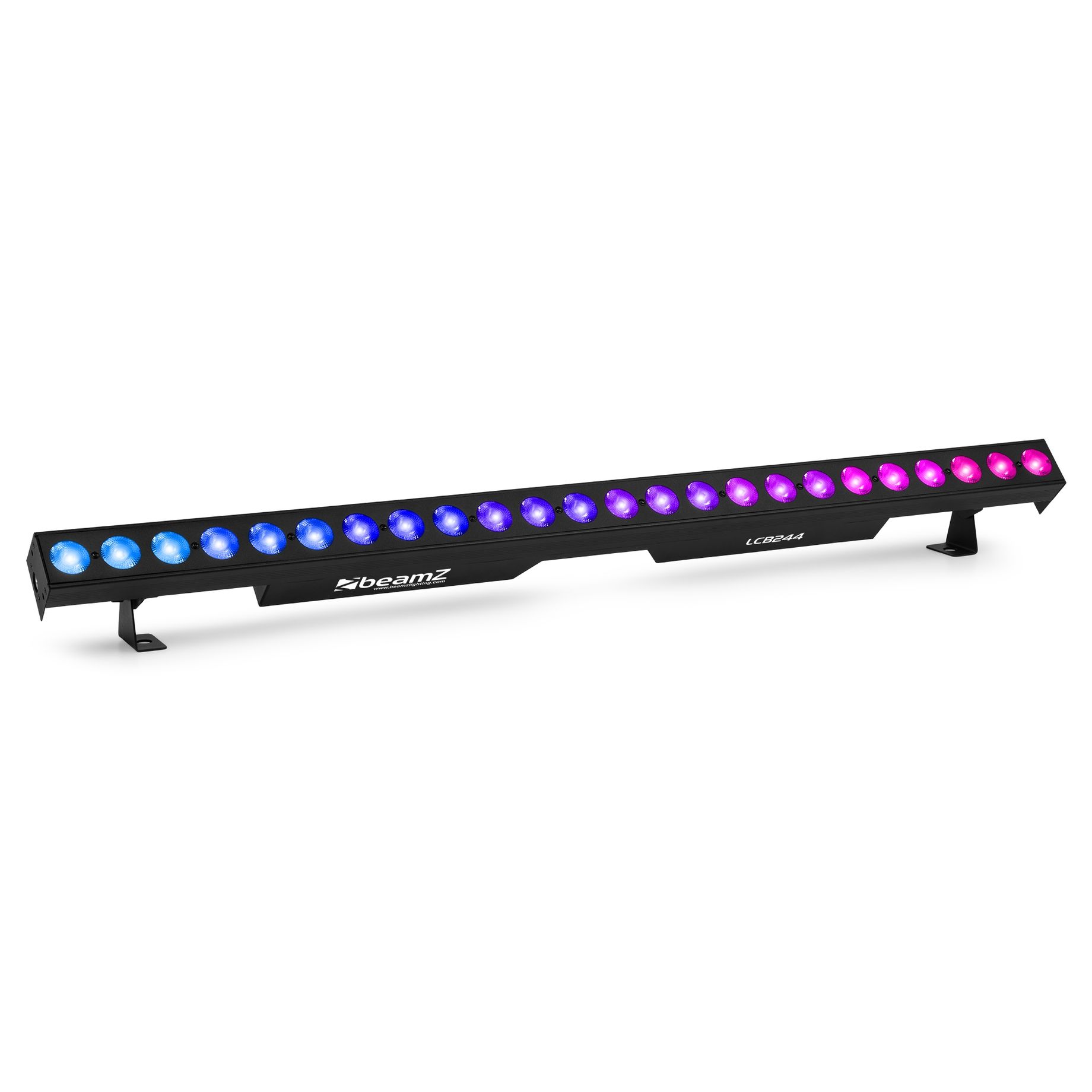

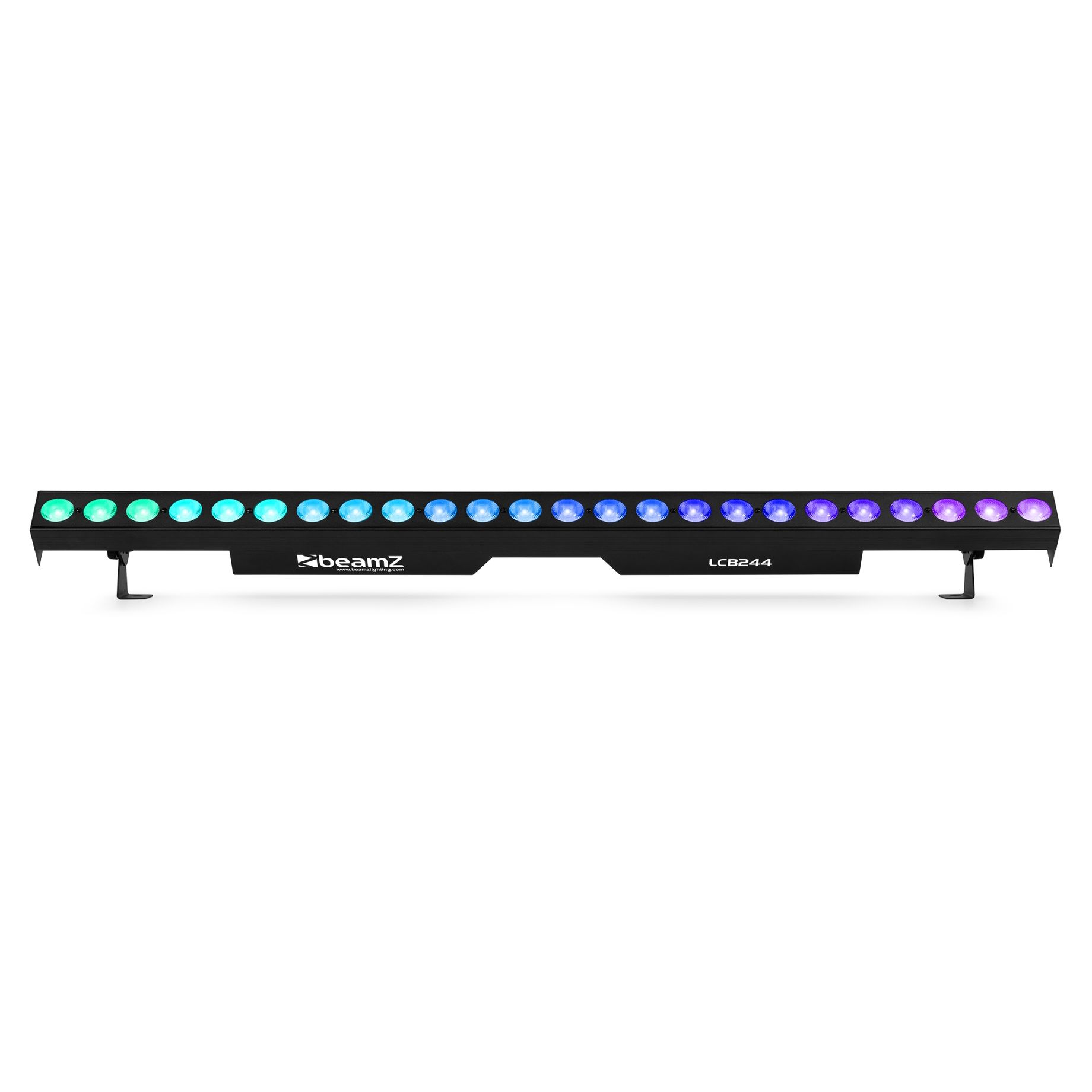

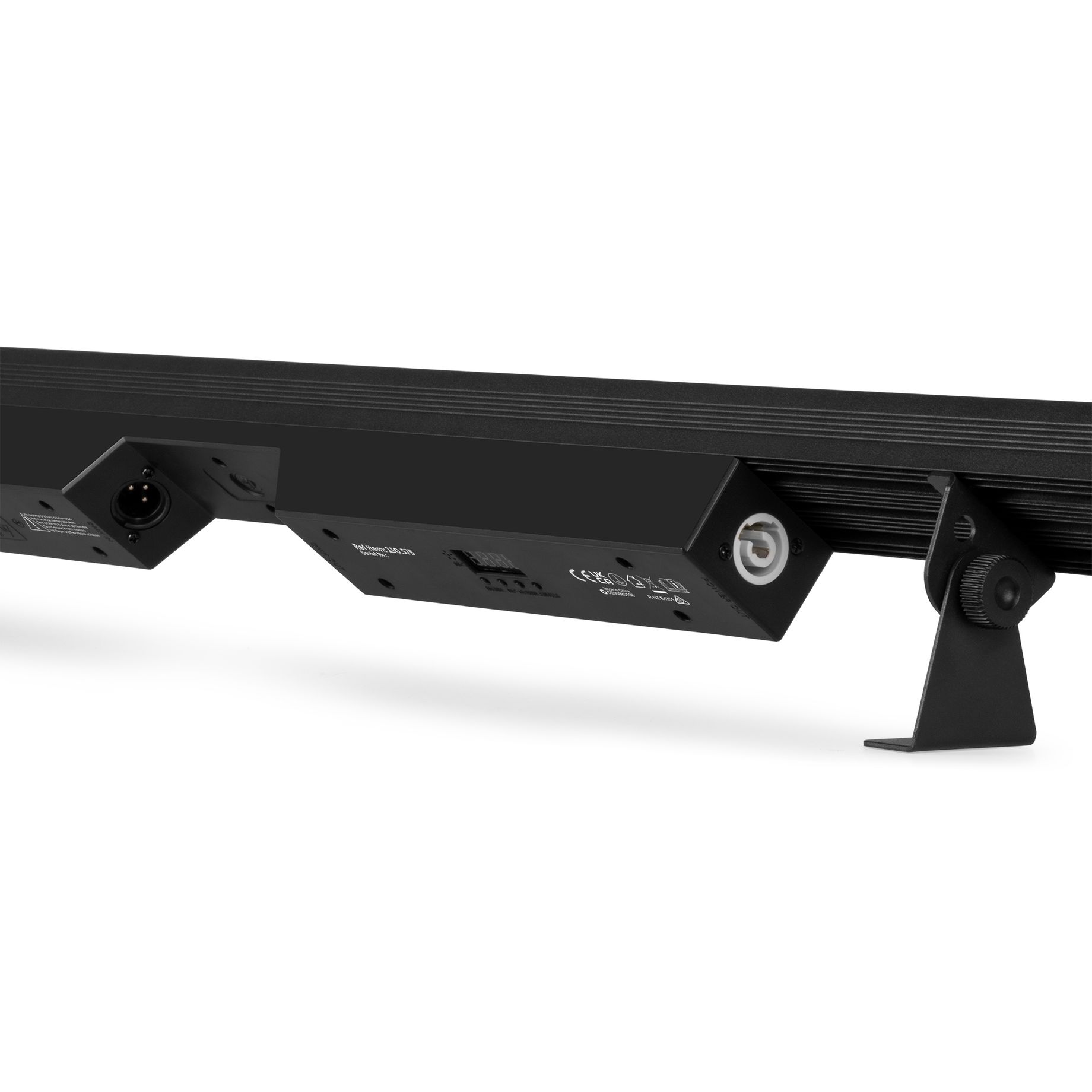

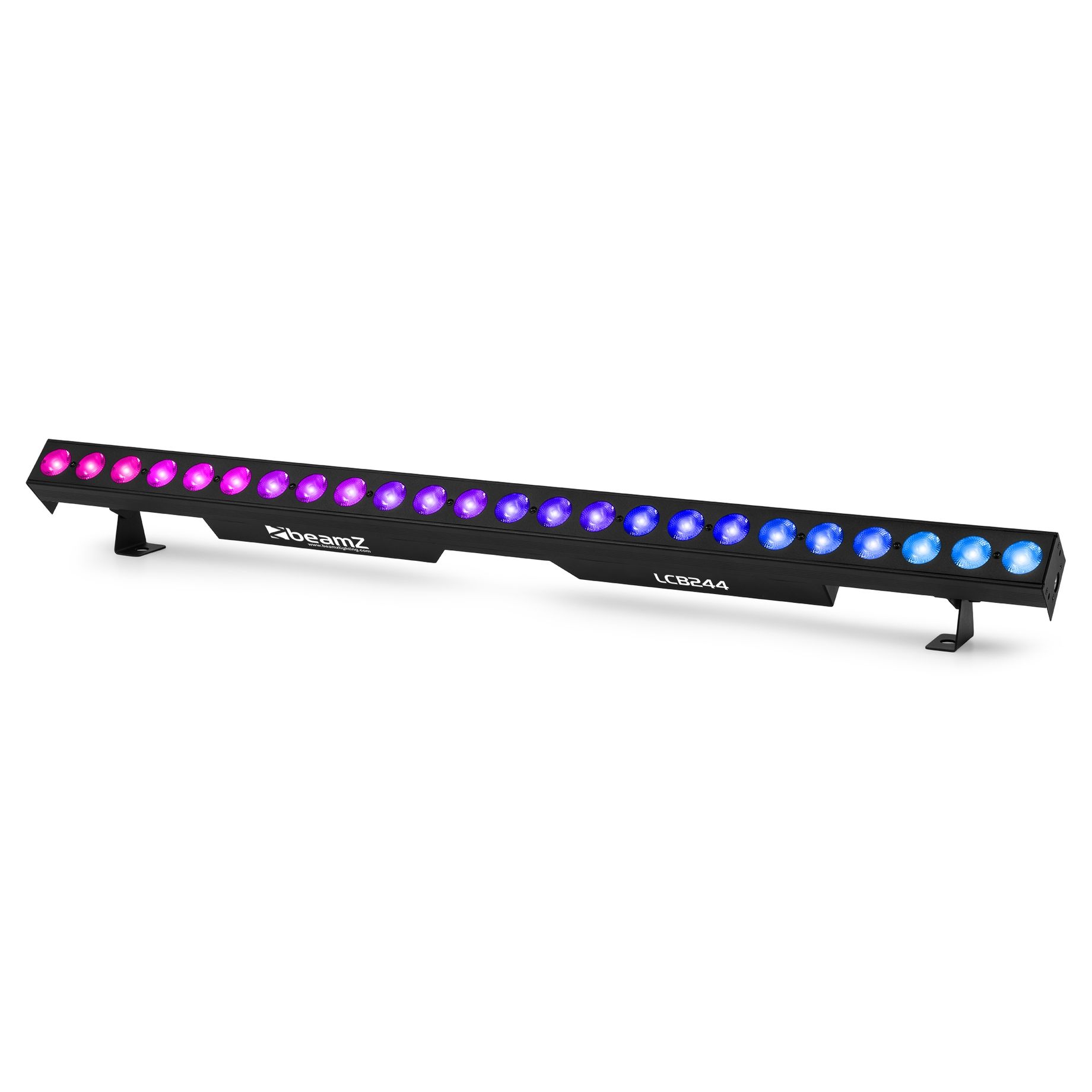

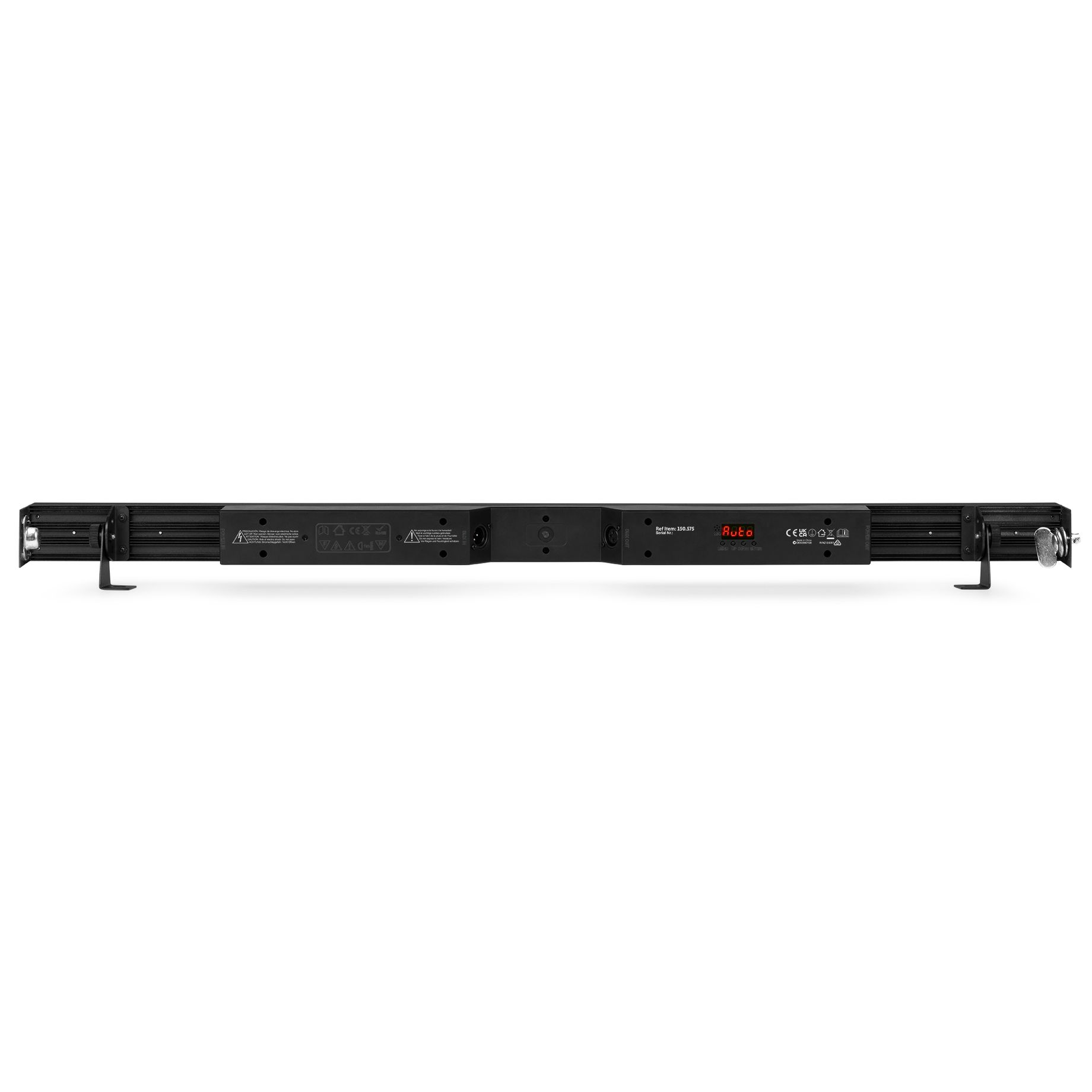

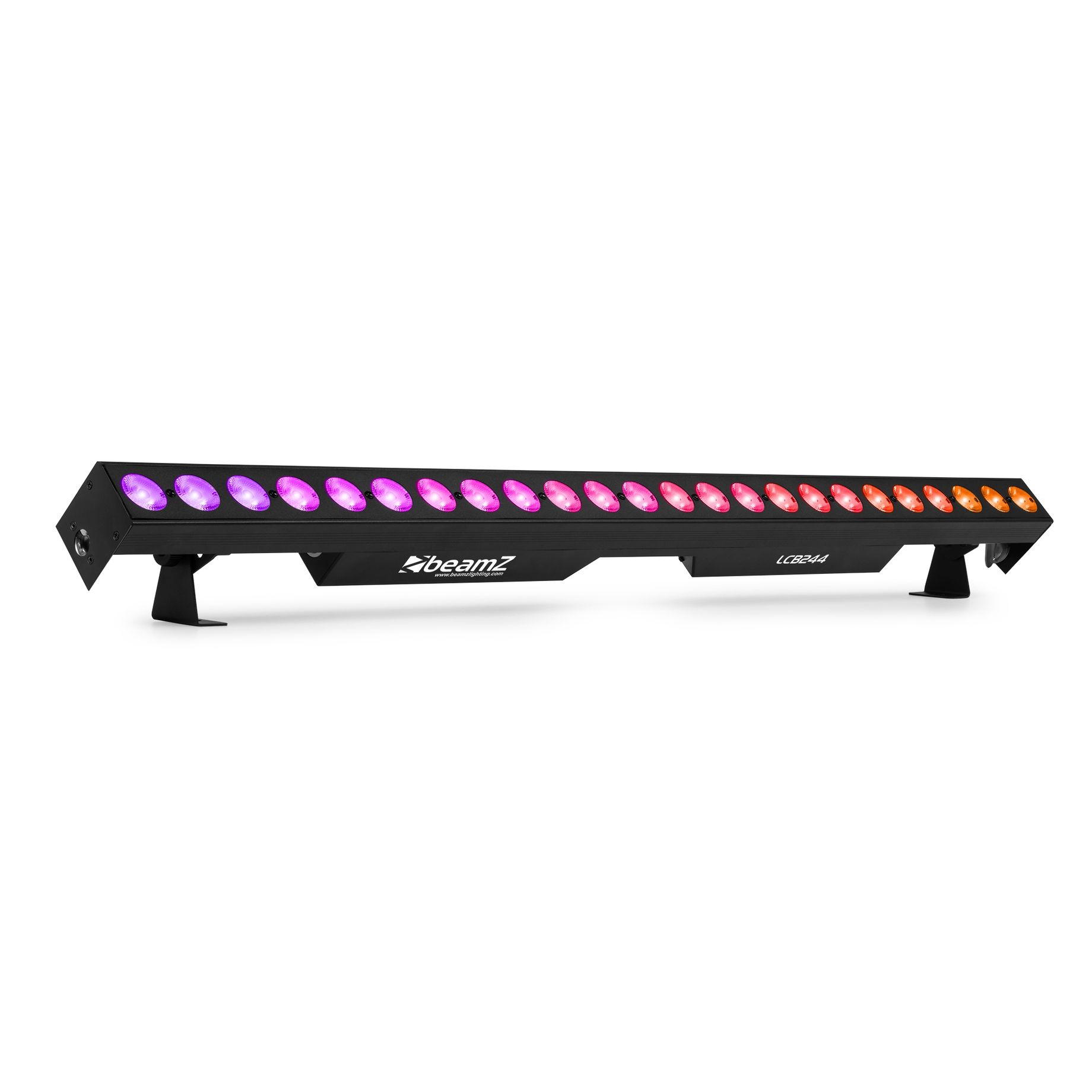

LED Bar 24x 4W RGBW

SKU 150.575

EAN 8715693355345

All product information

Compare

LCB series

SKU	Short description	RSP price
150.575	LCB244 LED Bar 24x 4W RGBW	£219.95 incl. VAT
150.220	LCB300 LED BAR 36x3W RGBW	£239.95 incl. VAT
150.224	LCB288 LED Bar Wash and Strobe RGB+W	£189.95 incl. VAT
150.546	LCB246 LED BAR 24x6W RGBAW-UV	£229.00 incl. VAT
150.561	LCB803 LED BAR 80x 3-in-1 DMX IRC	£139.95 incl. VAT
150.610	LCB48 UV LED Bar with DMX	£99.90 incl. VAT
150.675	LCB366 Hybrid LED Panel Pixel Control	£358.95 incl. VAT
Choose your accessories
150.701	LCB155 LED Bar Pixel Control	£359.95 incl. VAT
150.705	LCB183 LED Bar 18x 3W RGB	£95.00 incl. VAT
150.706	LCB144 MKII LED Colour Bar	£89.95 incl. VAT
150.709	LCB14C Hybrid LED BAR RGBW/RGB Pixel Control	£145.00 incl. VAT
150.710	LCB14 Hybrid LED BAR WW/RGB Pixel Control	£145.00 incl. VAT
Choose your accessories
150.711	LCB99 LED Bar 2-in-1 Effect RGBW & UV	£86.00 incl. VAT
150.713	LCB224 LED Bar 224x SMD RGB	£119.90 incl. VAT

Description

The LCB244 is a LED bar with 4-in-1 RGBW LEDs. The unit is divided in 8 separately controllable sections. While using the fixture in stand-alone mode there are 54 pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBW mode. The extra P-Con output enables you to simply link the power of multiple units together into a single socket. Convection cooling for noiseless operation!

Highlights

24x 4W 4-in-1 LEDs
RGBW Colour mixing
Colour presets
Pre programmed shows
Electronic Dimming: 0 - 100%
DMX and Stand-alone mode
Master/slave function
Sound activated with adjustable sensitivity
Auto mode with adjustable speed
DMX in/output via 3-pin XLR
Control panel with LED display
Aluminium housing
Powerconnector input/output
Incl. Quick Lock Brackets

Specifications

BrandbeamZ

Product serieLCB series

ColourBlack

Light source

24x 4W RGBW LED

Illuminance13157 lx @ 1m

Optics

Beam angle

11°

Features

Flash Per Second1 - 23 Hz

Control

Control modesAuto programs, DMX, Master/Slave, Manual, Sound

DMX Channels4, 6, 9, 32, 36

RDMNo

DMX connector3-pin XLR

Connections

Input connections

1x Power - Powerconnector (A)
1x DMX - 3-pin XLR (M)

Output connections

1x Power - Powerconnector (B)
1x DMX - 3-pin XLR (F)

Hardware features

Display typeLED

CoolingConvection

Environmental

IP ratingIP20

Electrical

Power Supply100-240VAC 50/60Hz

Mechanical

Dimensions

1000 x 55 x 105 mm (W x D x H)

Weight

2.45 kg

Accessories

Included Accessories

Mounting bracket
Power cable

Manuals & Documents

Manual

PDF

Download
