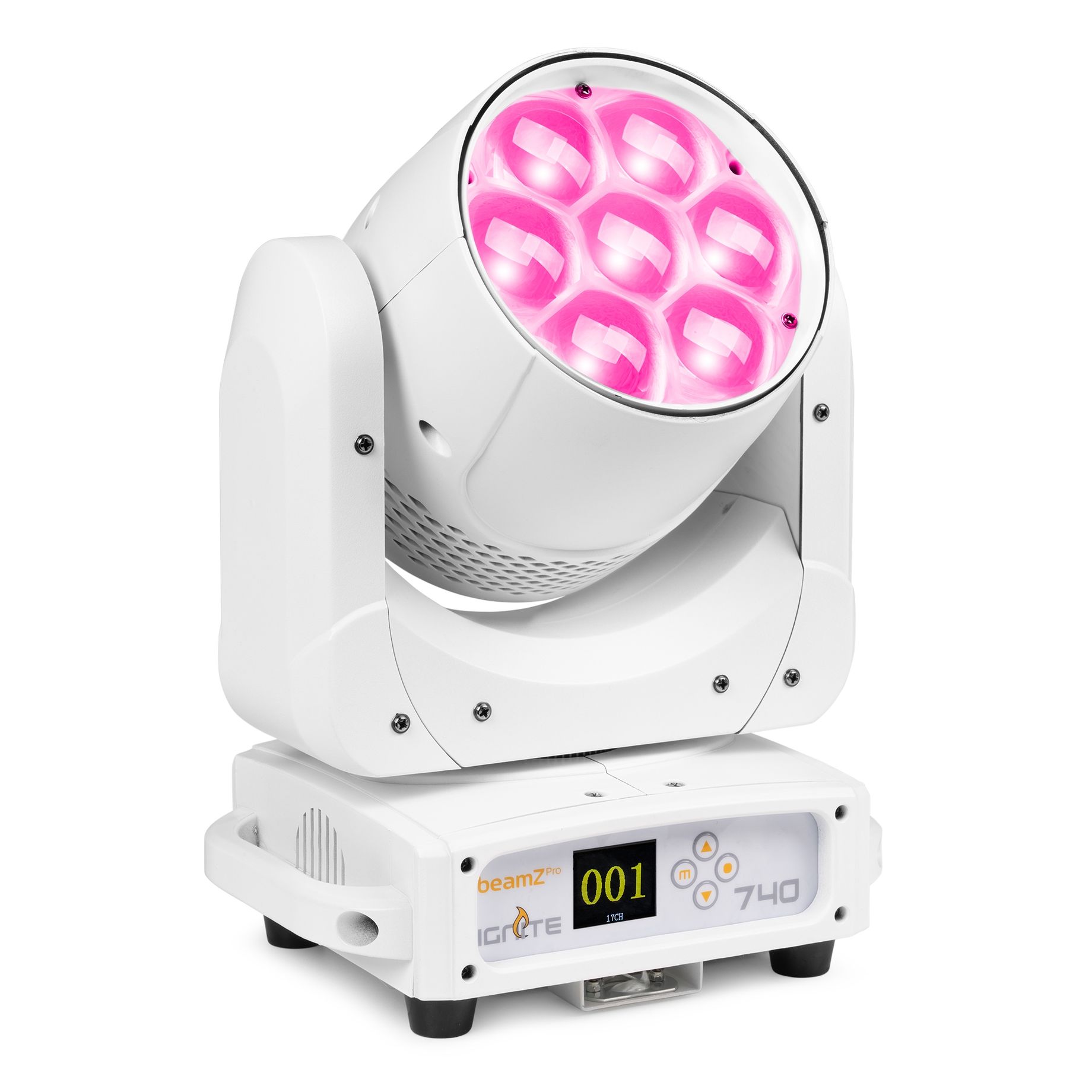

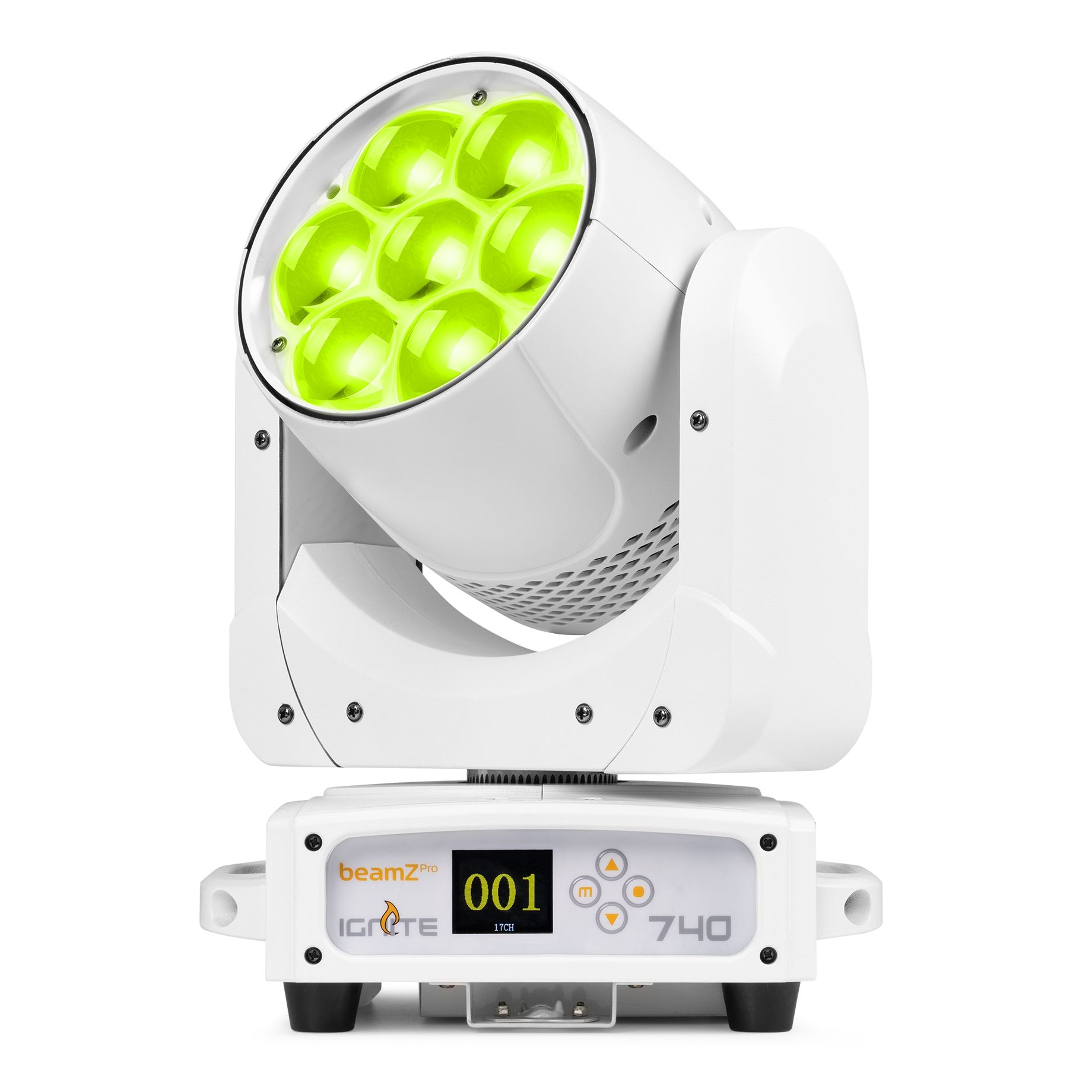

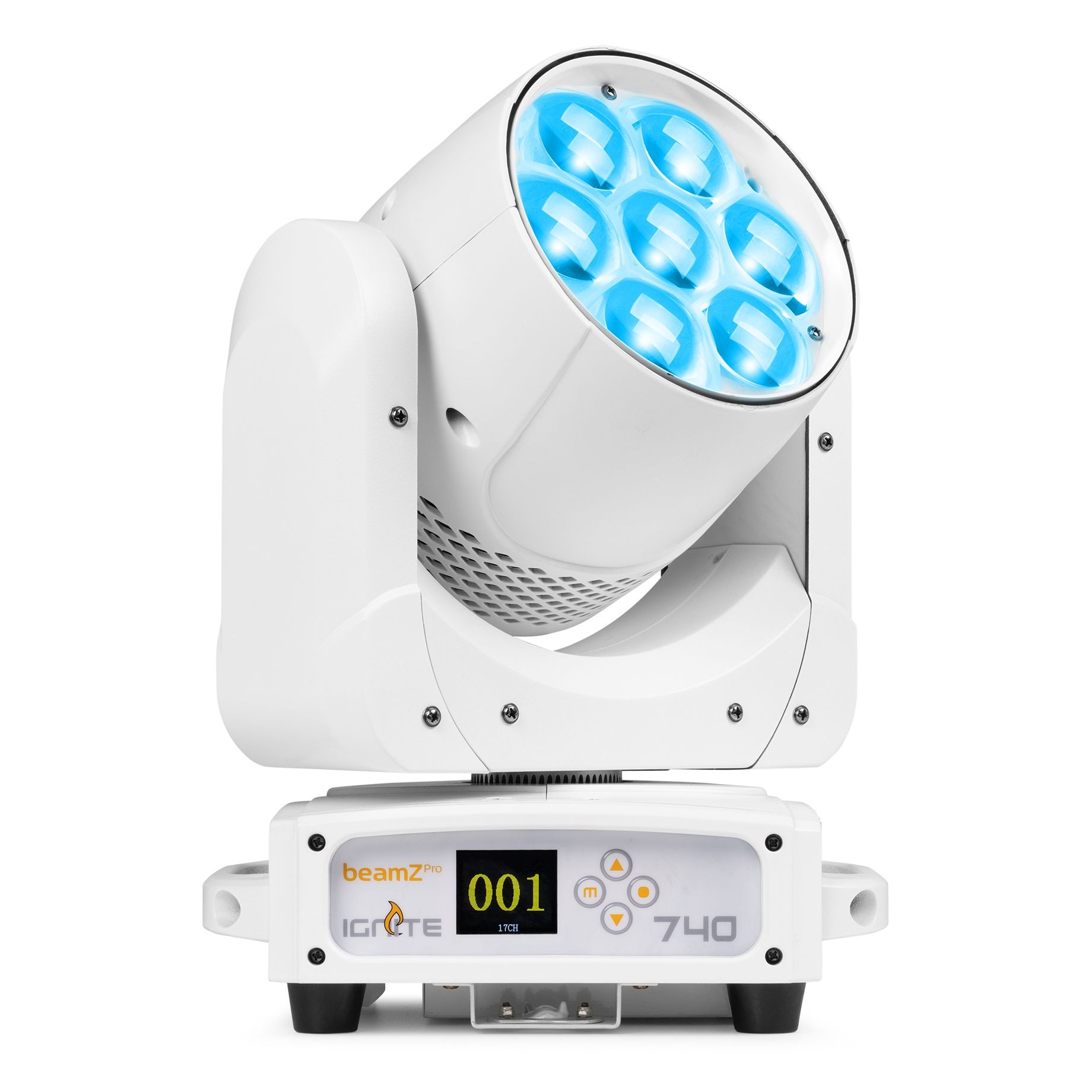

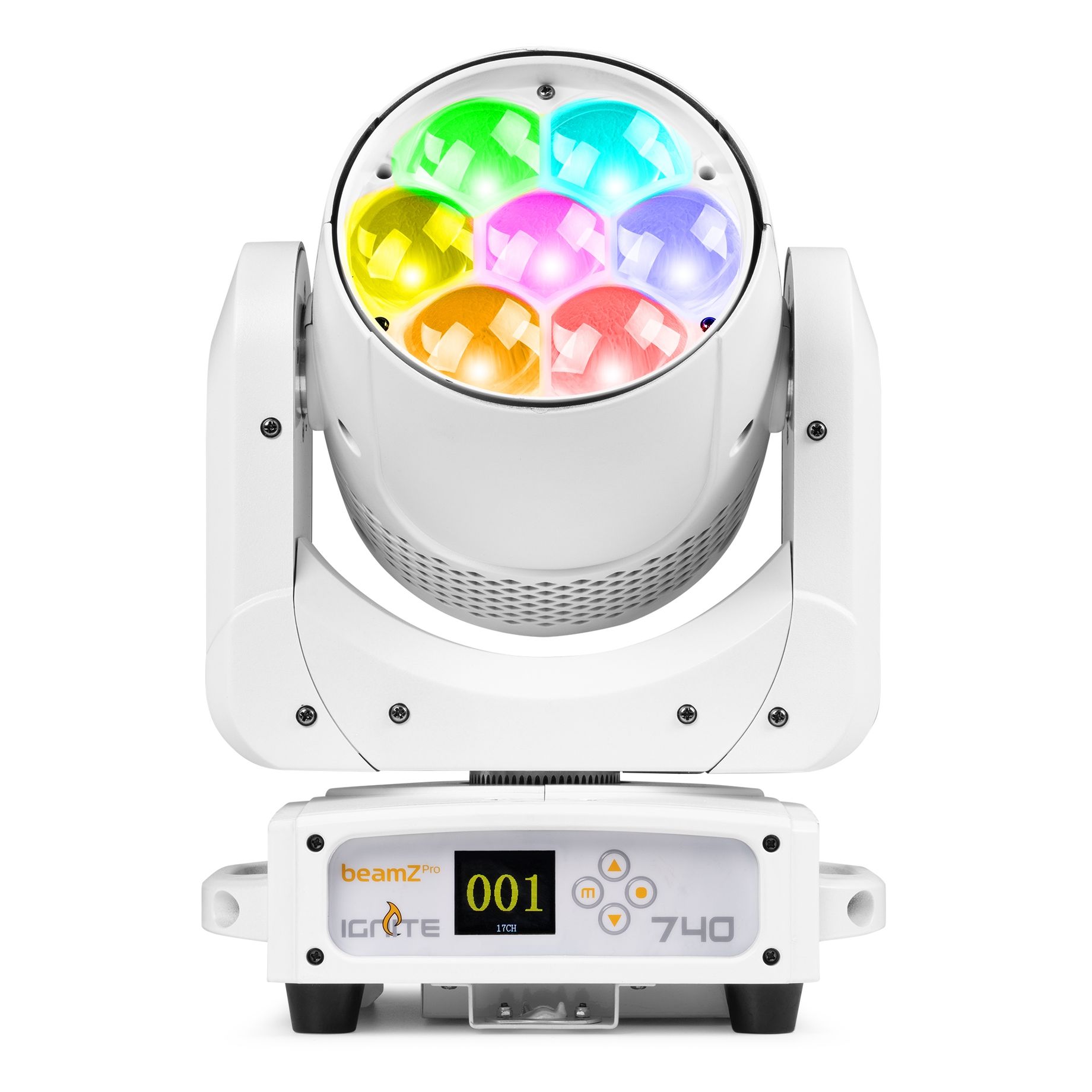

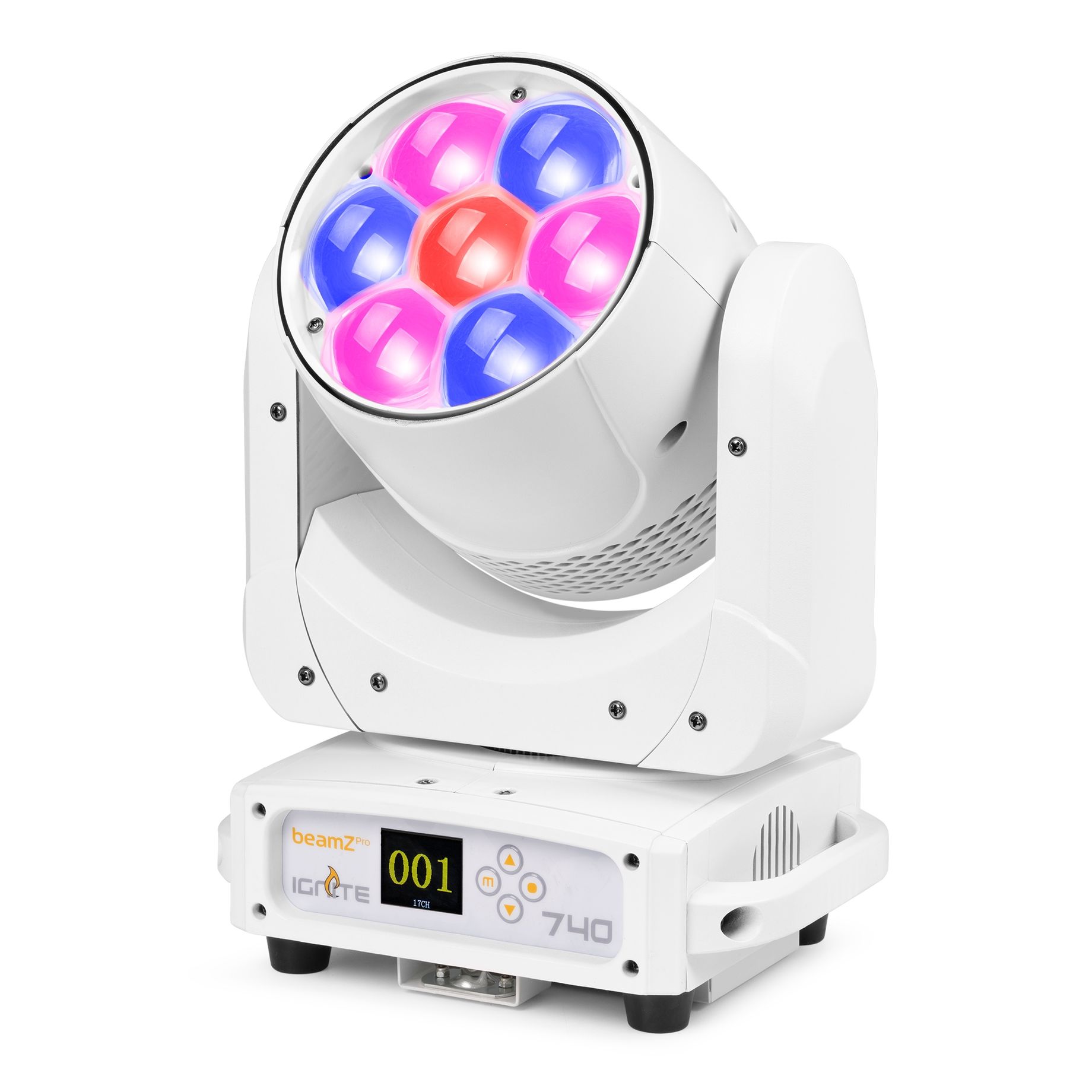

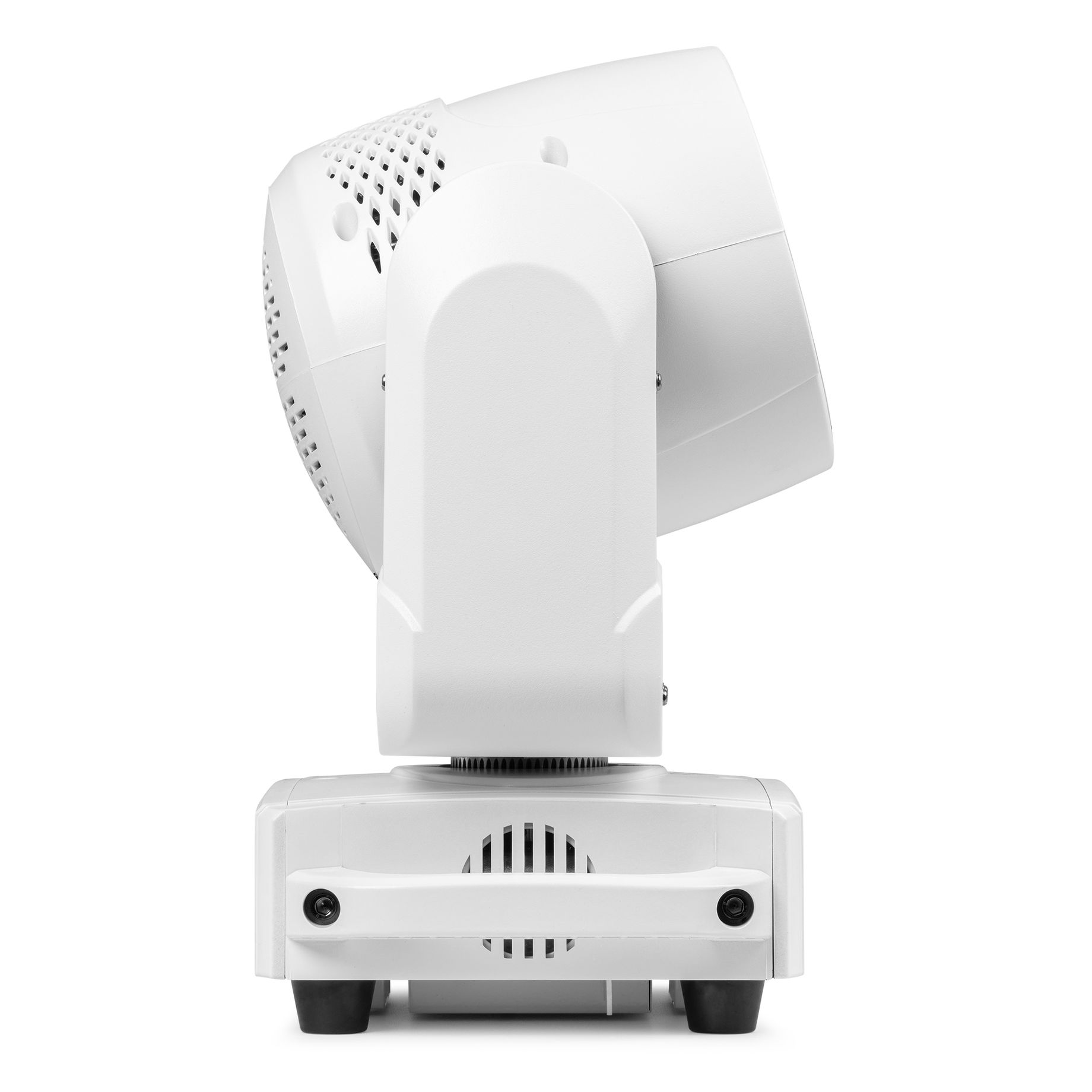

IGNITE740WH
LED Wash Moving Head with Zoom
SKU 152.121
|EAN 8715693352955
All product information
Compare
IGNITE series
Description
Highlights
- Wash Moving Head with zoom
- 7x 40W 4-in-1 RGBW LED
- Single Pixel Control
- Motorized linear zoom
- 17 or 45 DMX channels
- Variable CTO
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- 0-100% Electronic Dimmer
- Control panel with LCD display
- DMX in/output via 5-pin XLR
- Powerconnector input/output
- Quick lock omega clamp included
Specifications
BrandbeamZ Professional
Product serieIGNITE series
ColourWhite
Moving head typeWash
Light source
Light source
- 7x 40W RGBW LED
Colour Temperature2.8 - 8,500 K
Illuminance120712 lx @ 1m
Optics
Beam angle
- 3 - 26
ZoomYes
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Interchangeable GoboNo
Frost FilterNo
Flash Per Second0 - 18 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels17, 45
RDMYes
DMX connector5-pin XLR

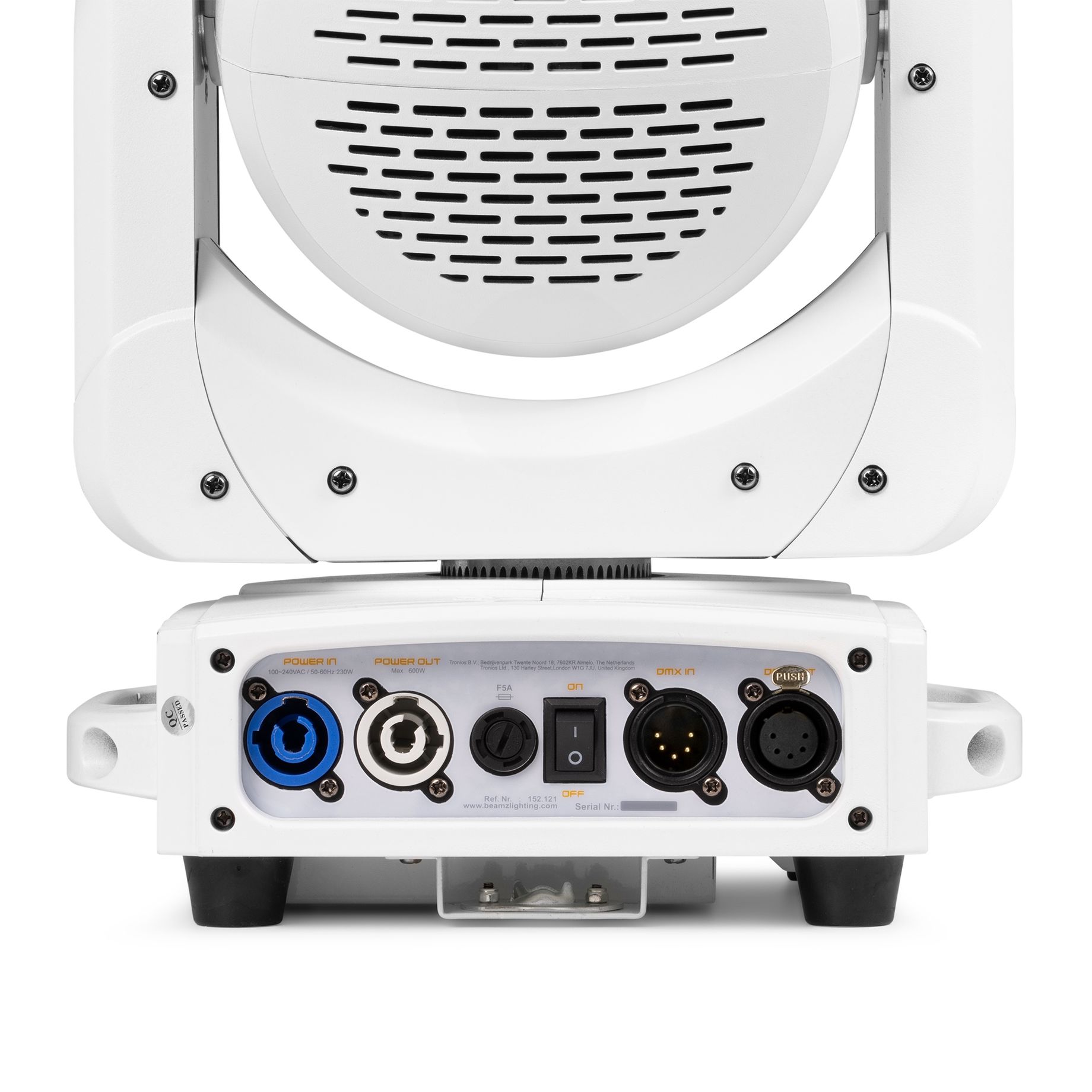

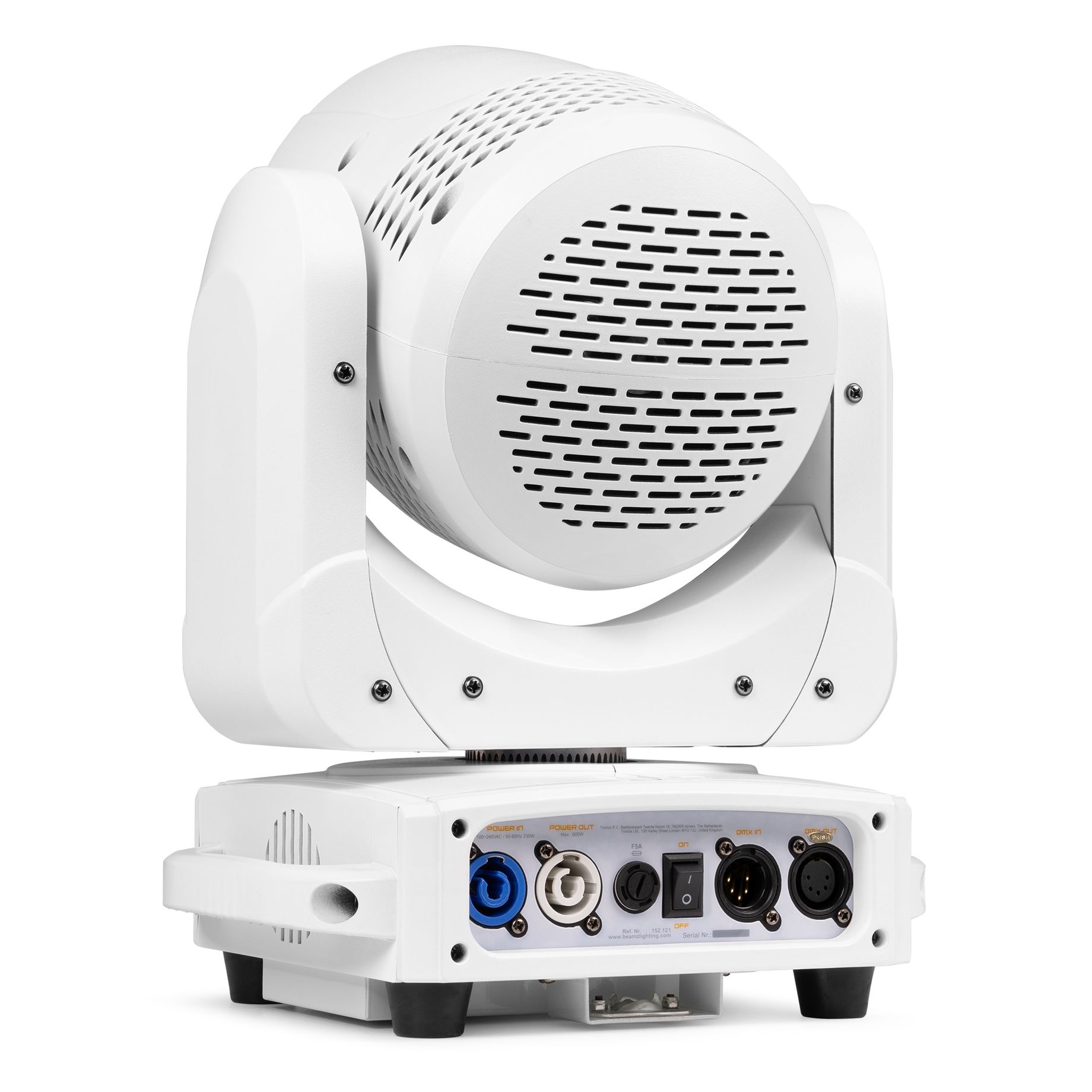

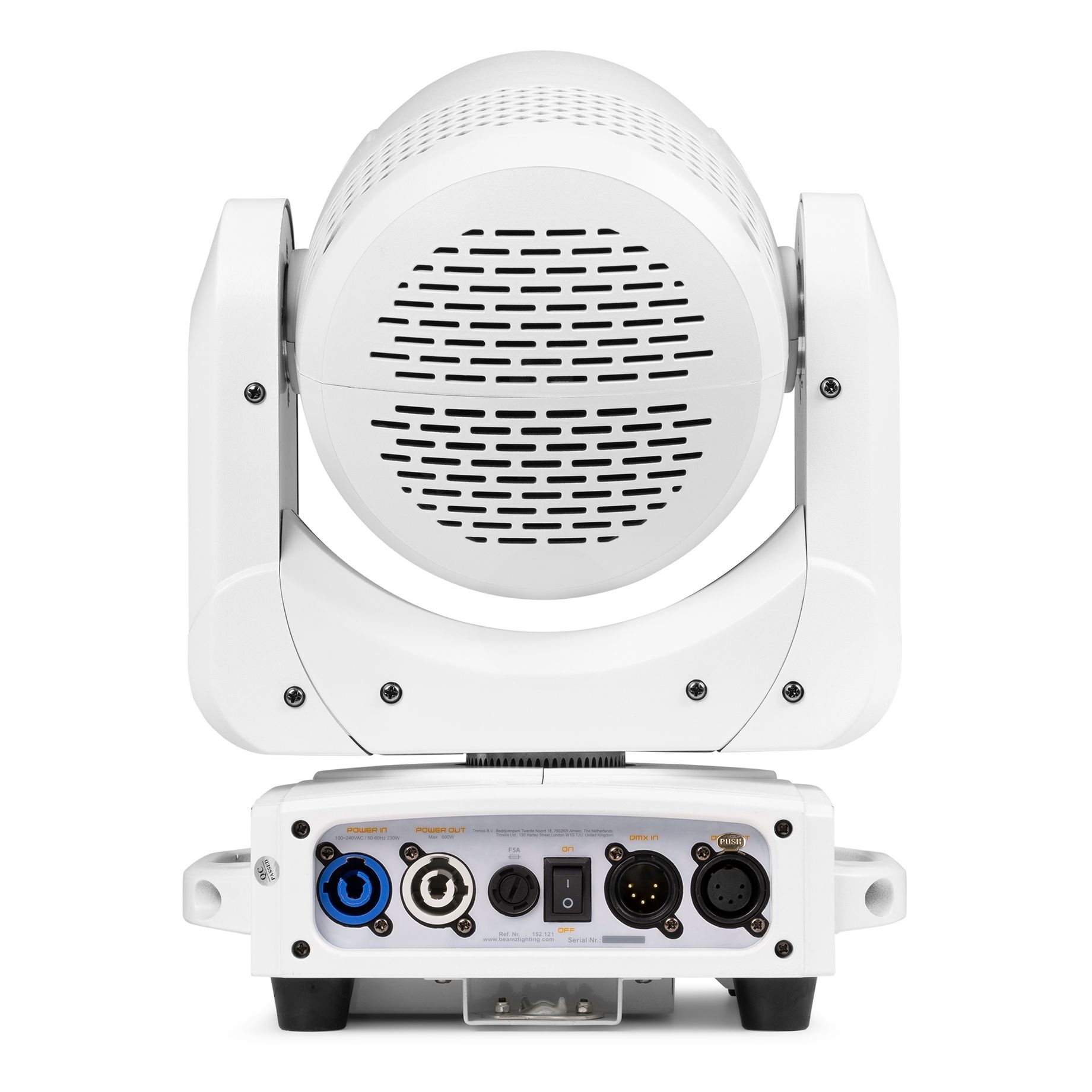

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 170 x 215 x 335 mm (W x D x H)
Weight
- 6.15 kg
Accessories
Included Accessories

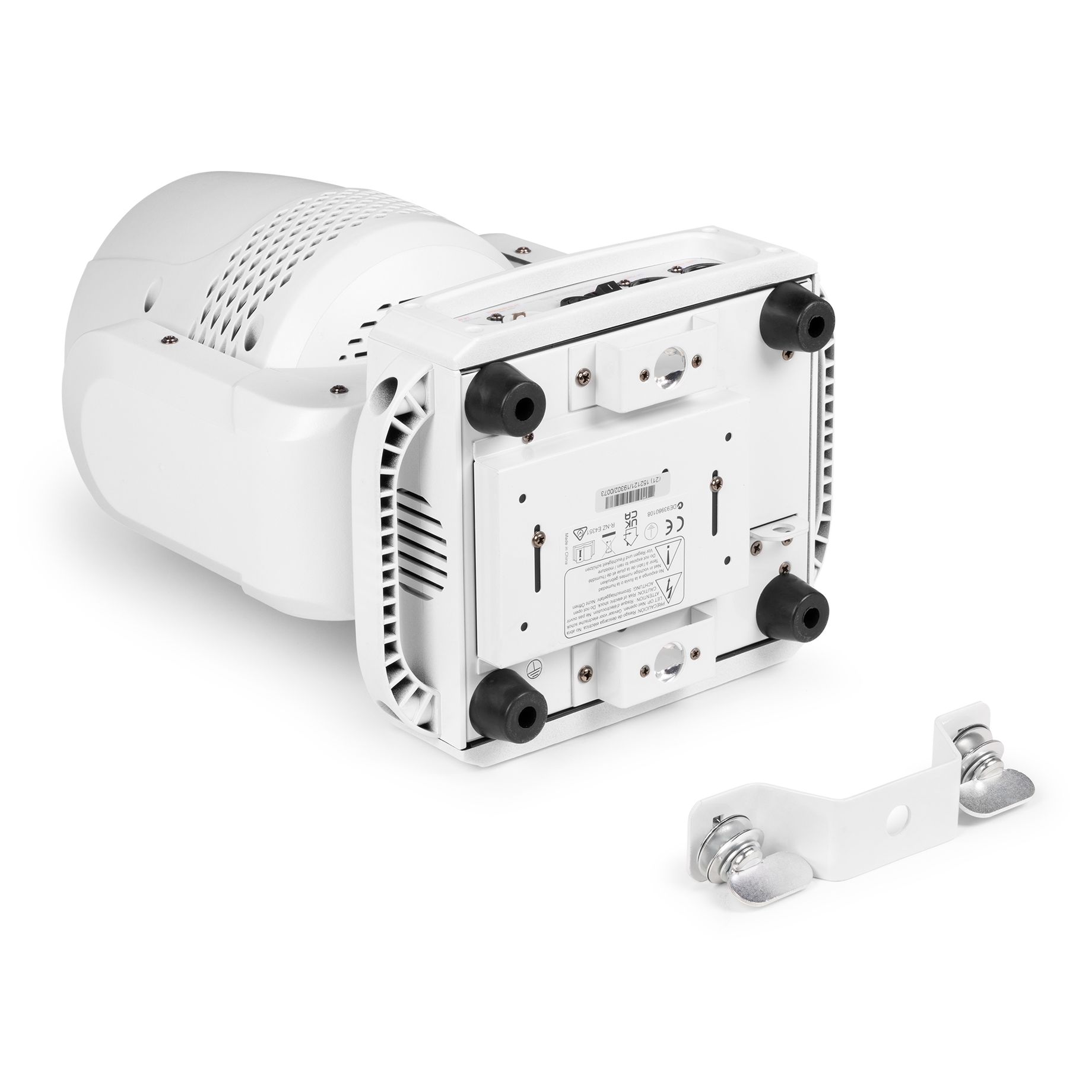

- Mounting bracket
Manuals & Documents
Manual
PDF
