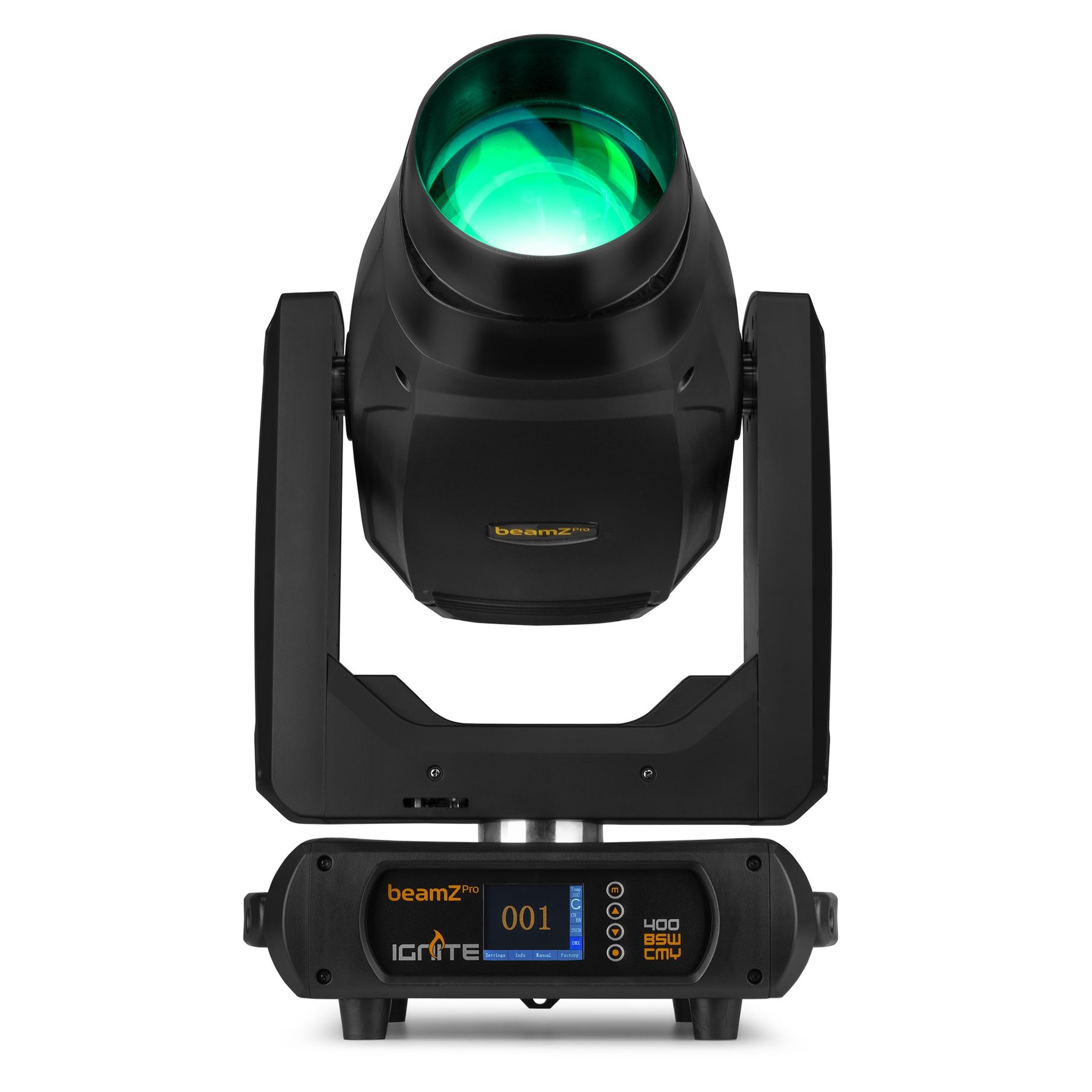

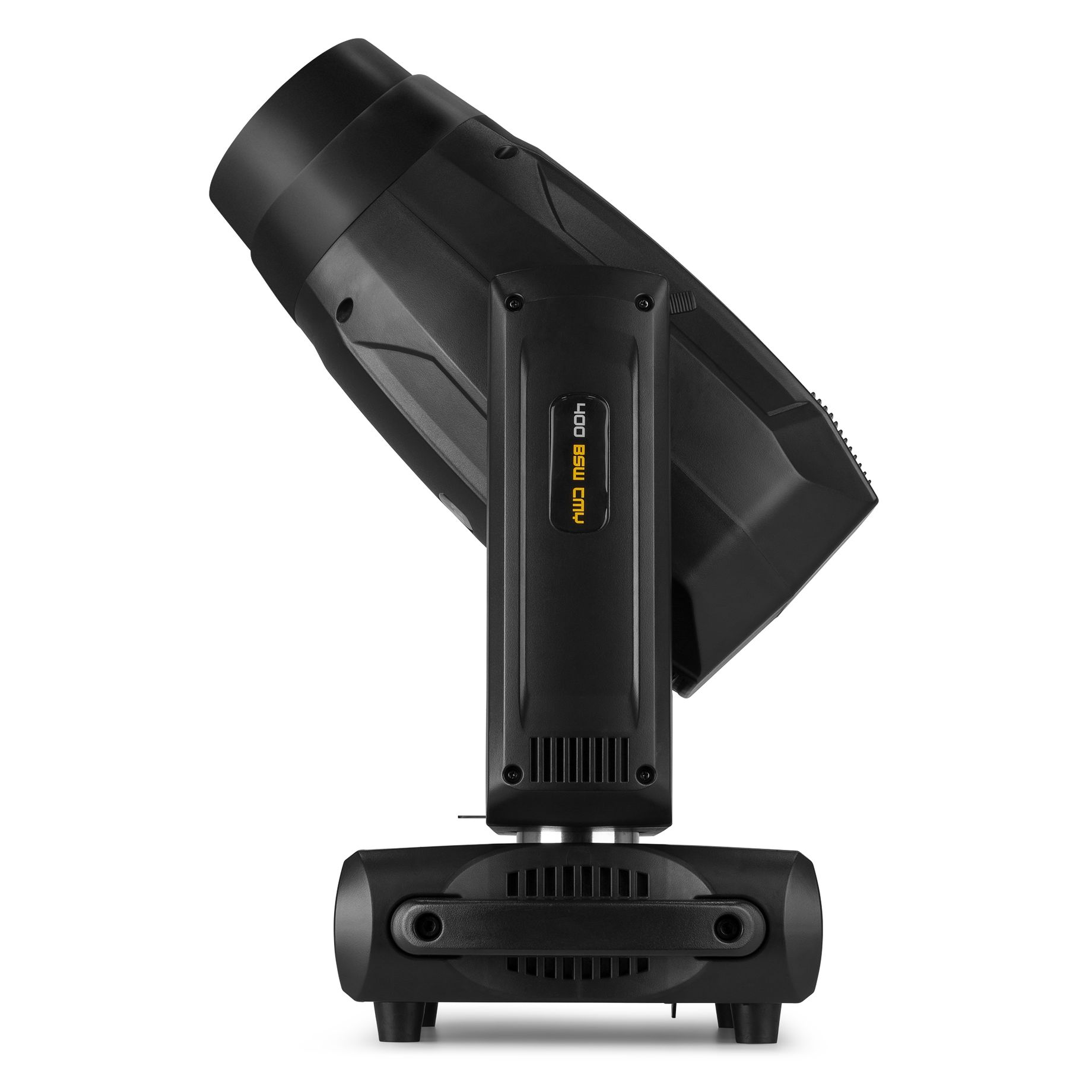

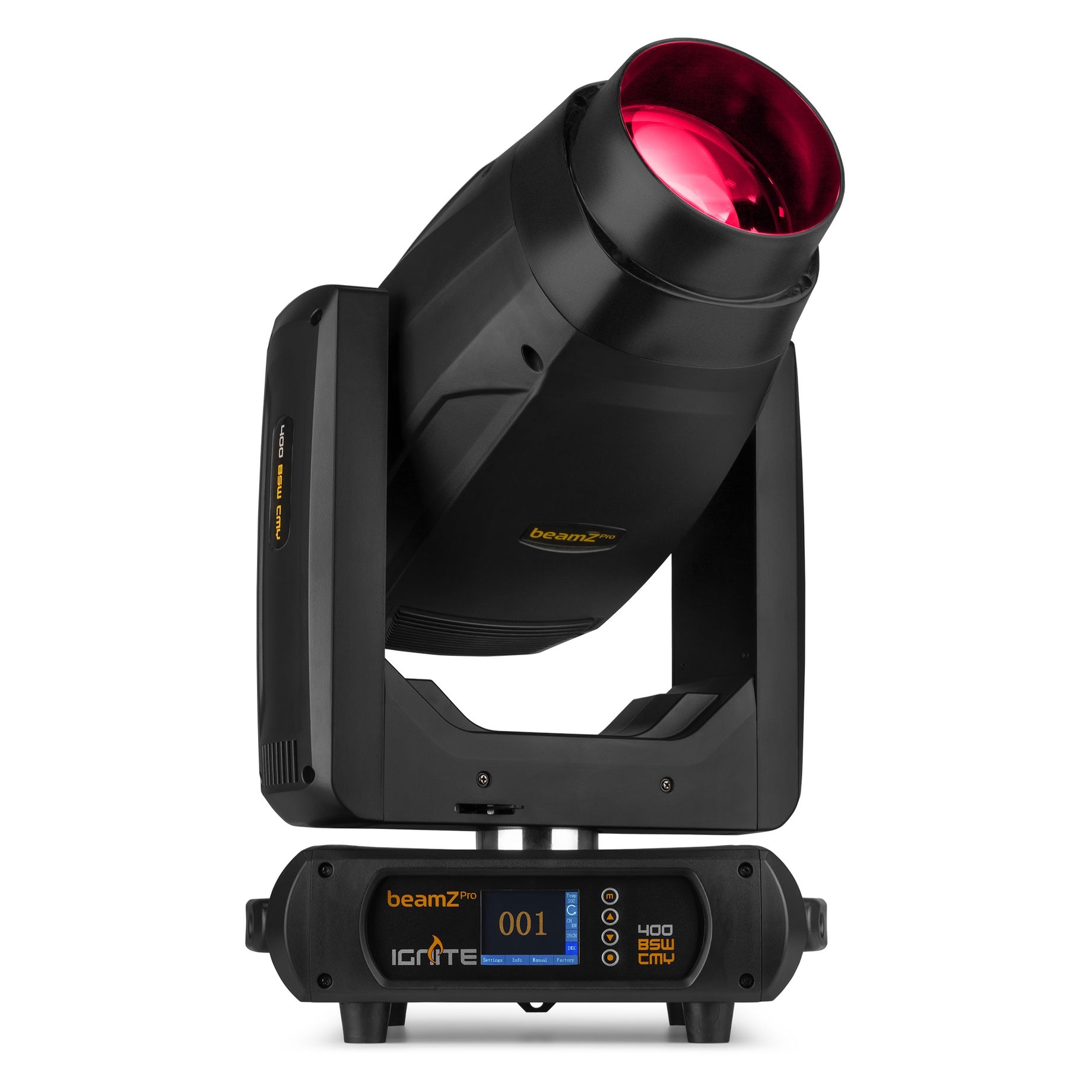

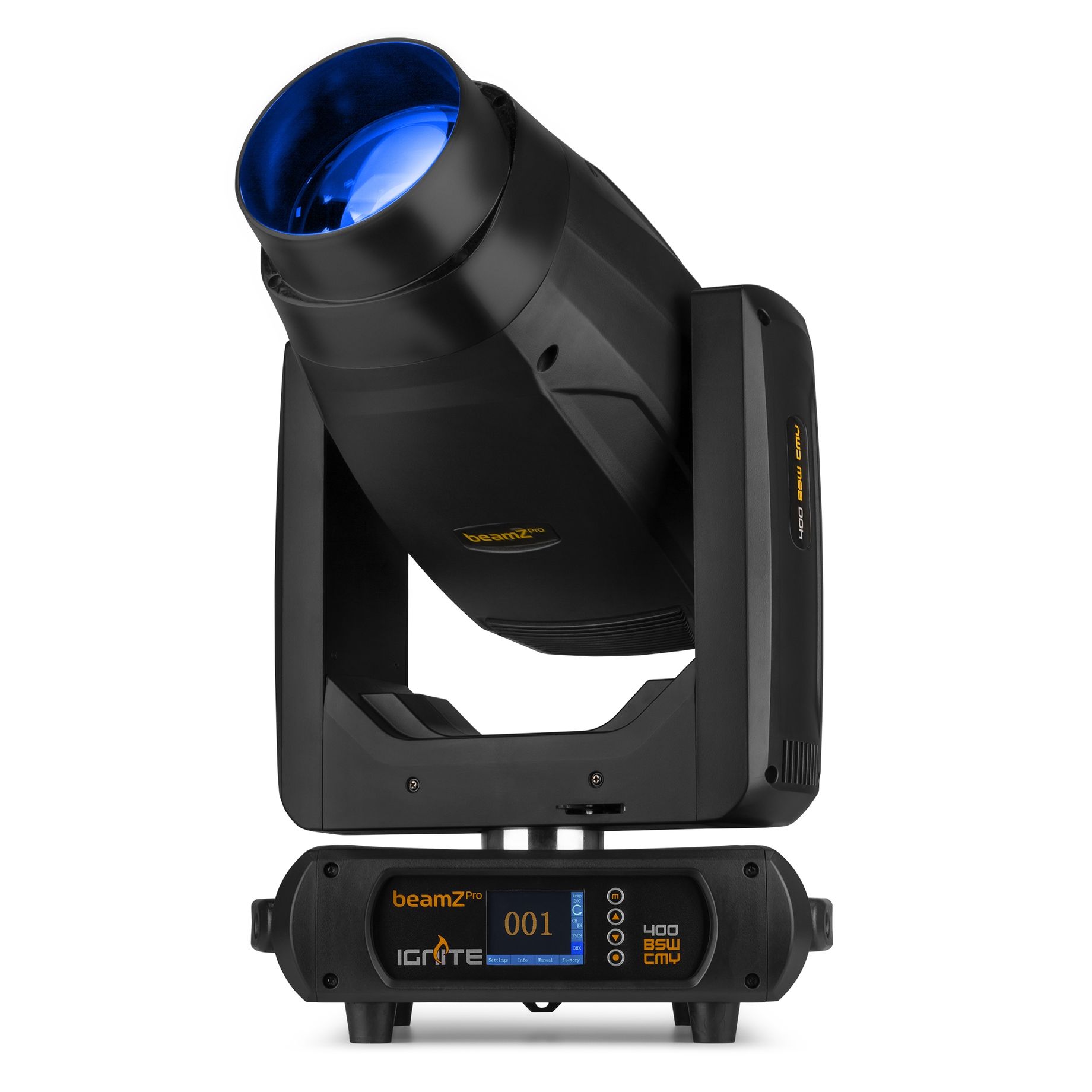

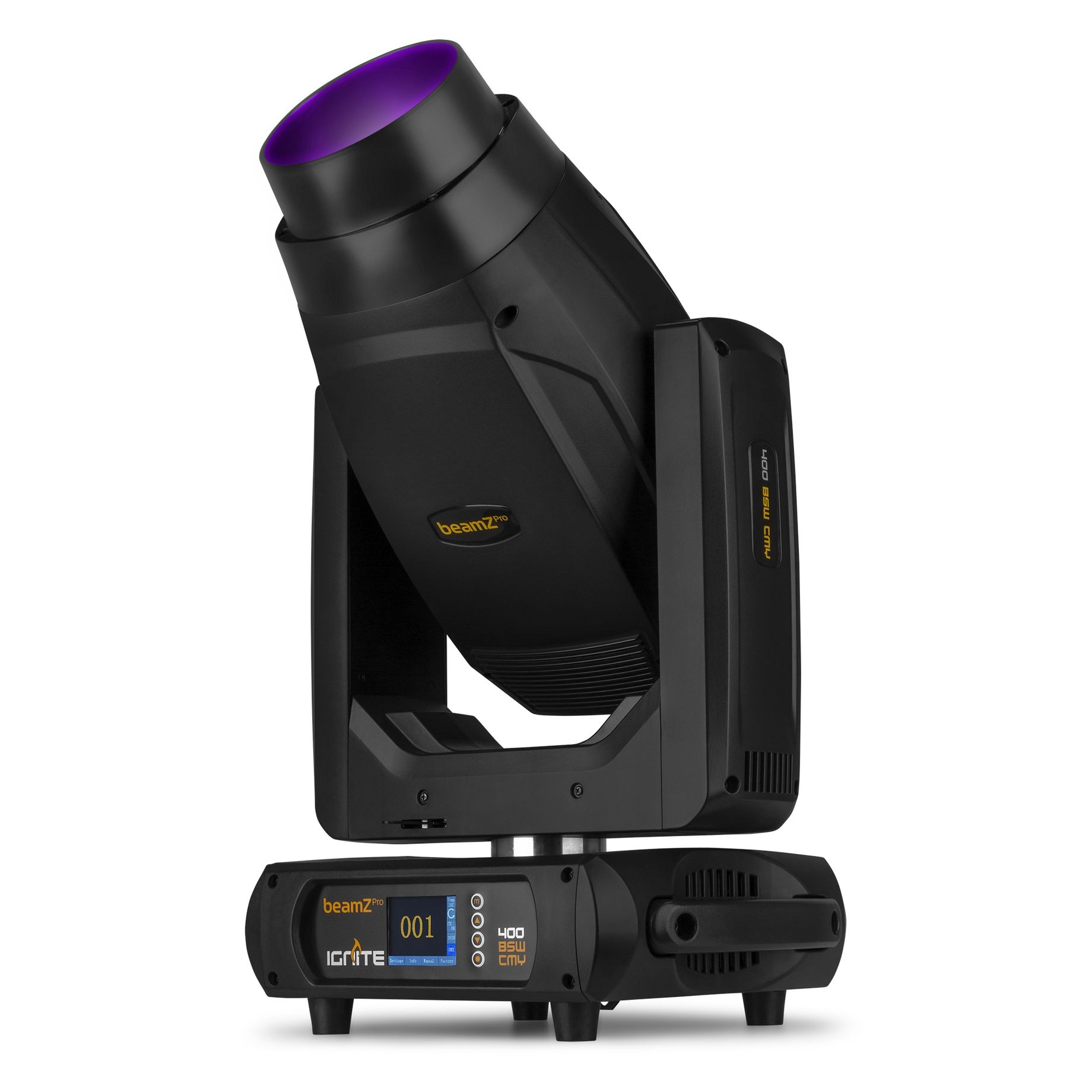

IGNITE400
LED BSW Moving Head with CMY
SKU 152.092
|EAN 8715693341539
+4
All product information
Compare
IGNITE series
Description
Highlights
- 3-in-1: Beam, Spot and Wash Moving Head with CMY
- 400W High Intensity white LED
- Gobo Wheel 1 : 10 static gobos
- Gobo Wheel 2 : 8 replaceable glass gobos
- Colour Wheel: 8 colours + white
- CTO and CMY colour system
- Motorized linear zoom
- Frost effect filter
- Rotatable 3 and 5 facet prisms (can be overlapped) with adjustable rotating speed and direction
- Linear motorized focus
- Dimmer: 0 – 100% linear dimmer
- 25 DMX Channels
- DMX, Auto mode and Master/Slave function
- Pan: 540° and Tilt: 270° Movement
- With pan/tilt lock mechanism
- Pan/Tilt Resolution: 16bit
- Control panel with touch screen LCD display
- DMX in/output via 3-pin or 5-pin XLR
- Powerconnector input/output

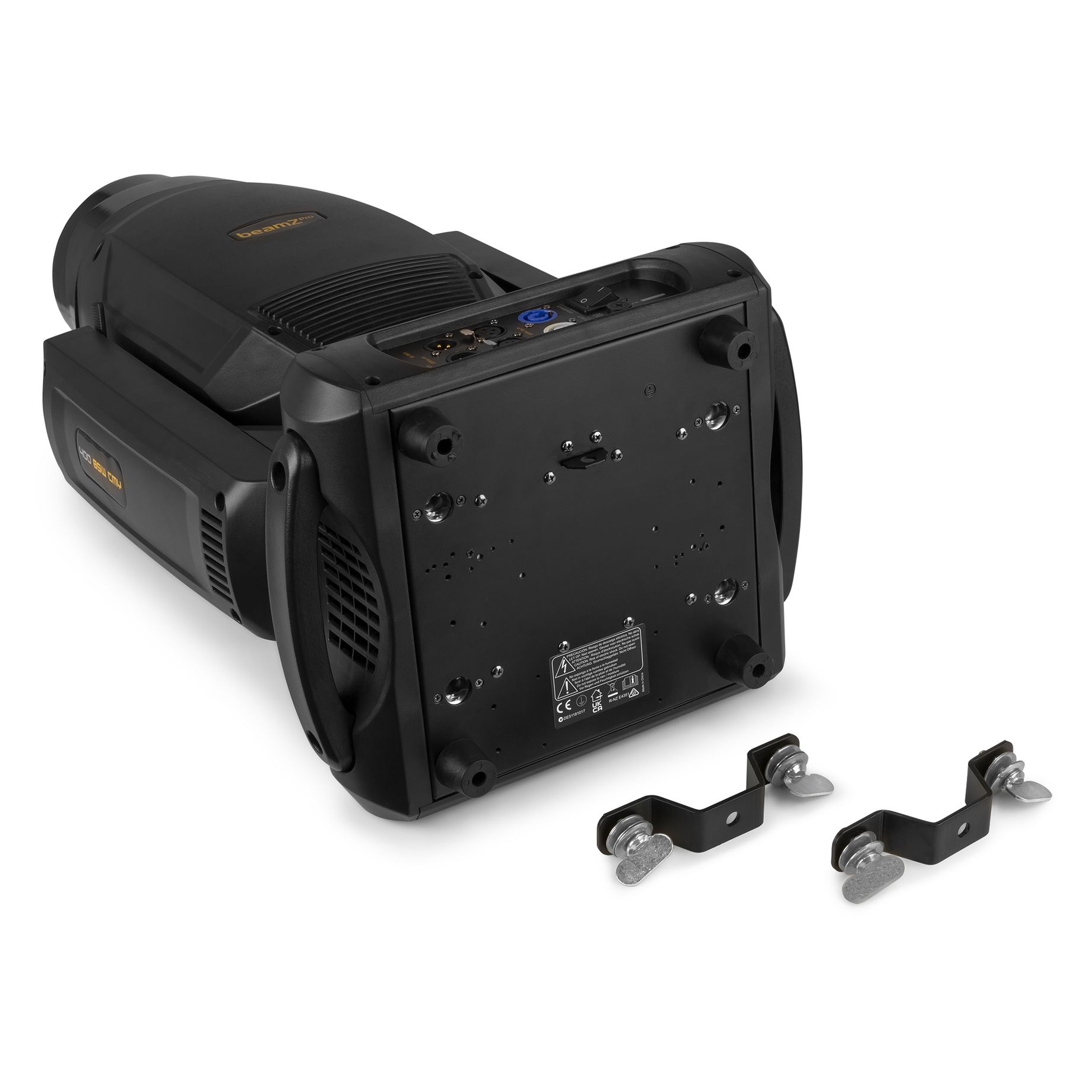

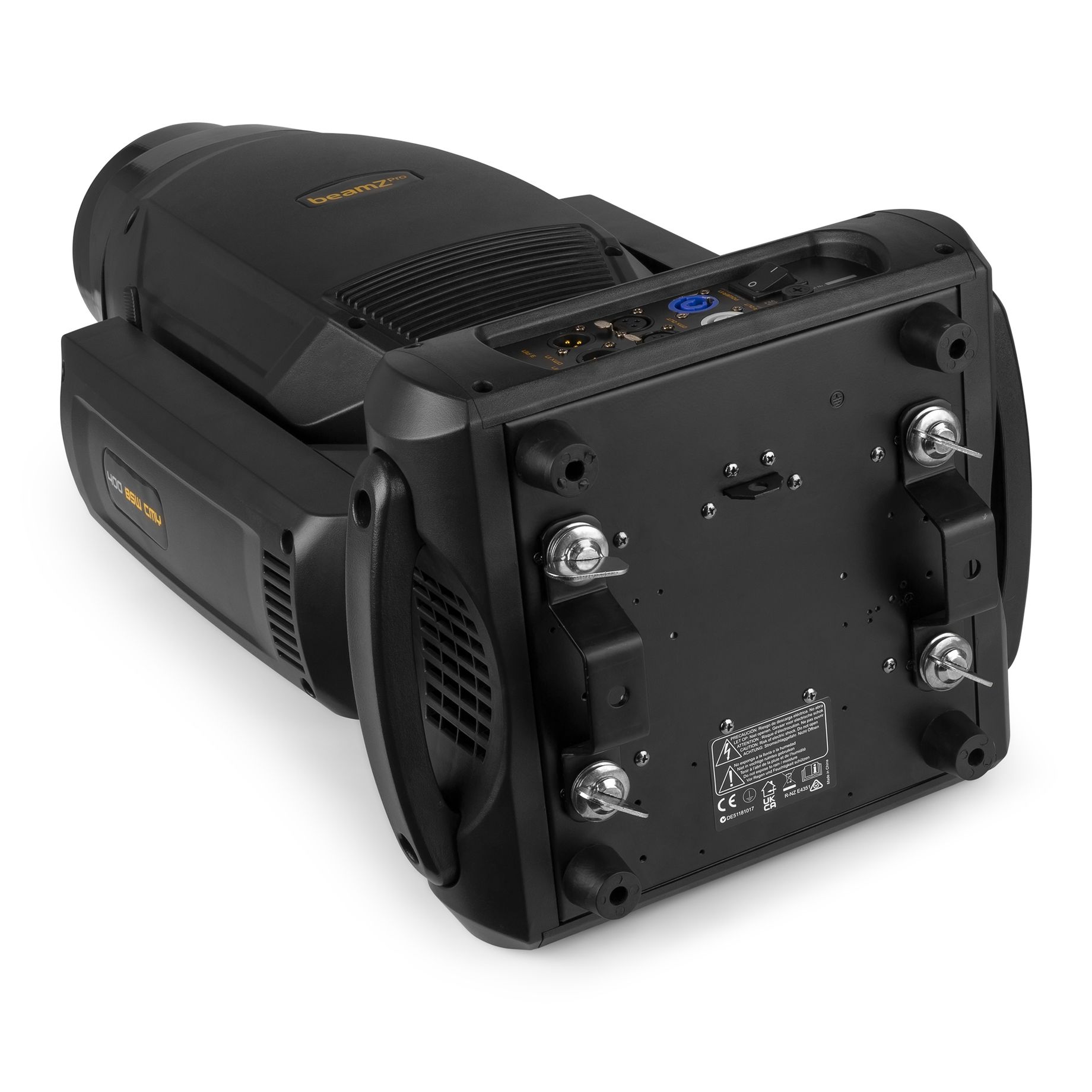

- Quick lock omega clamp included
Specifications
BrandbeamZ Professional
Product serieIGNITE series
ColourBlack
Moving head typeHybrid
Light source
Light source
- 1x 400W White LED (7000K)
Colour Temperature3 - 7 K
Illuminance209026 lx @ 1m
Optics
Beam angle
- 2 - 28
ZoomYes
FocusMotorised
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Manual
DMX Channels25
RDMYes
DMX connector3-pin XLR, 5-pin XLR
Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 370 x 360 x 660 mm (W x D x H)
Weight
- 20.6 kg

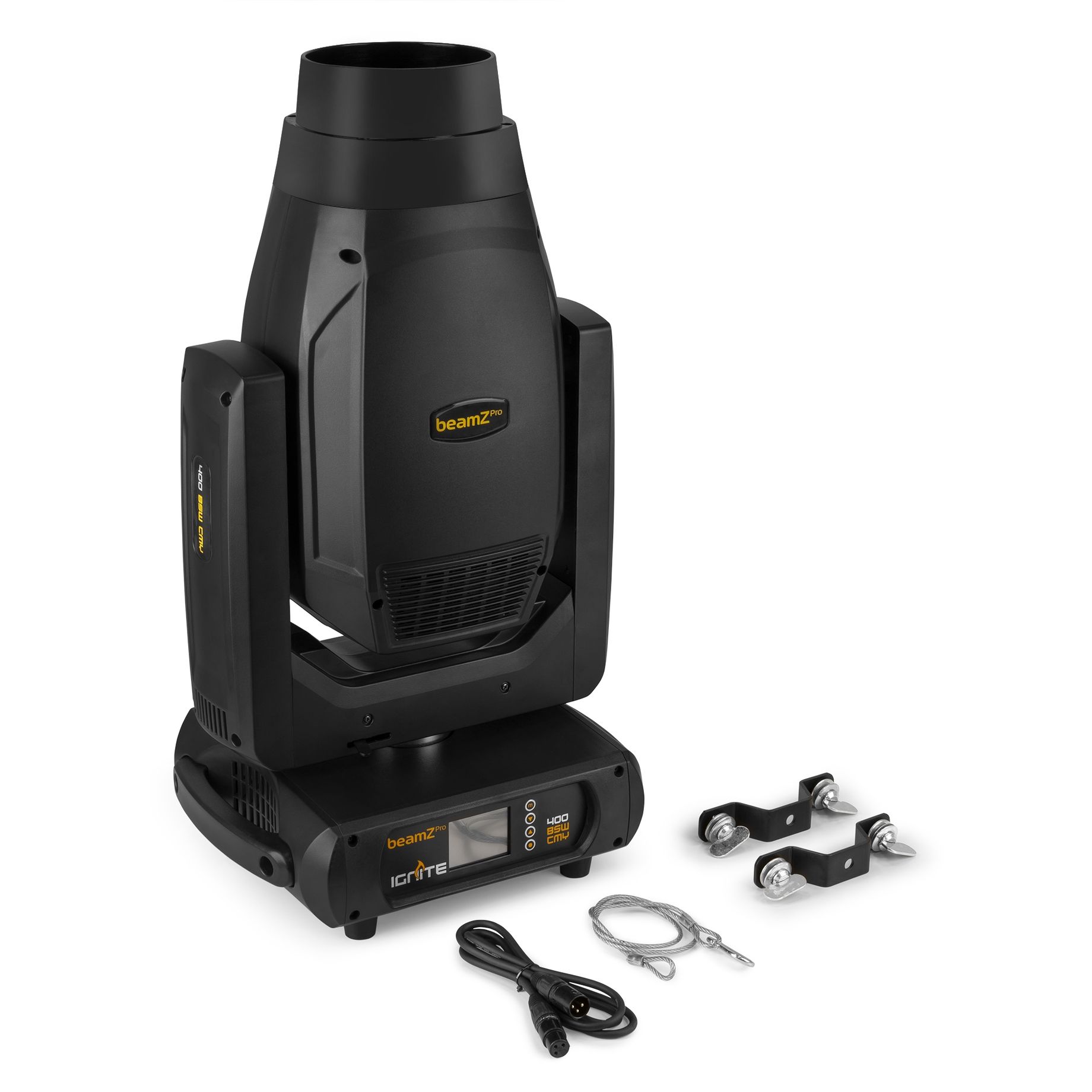

Accessories
Included Accessories
- Mounting bracket
