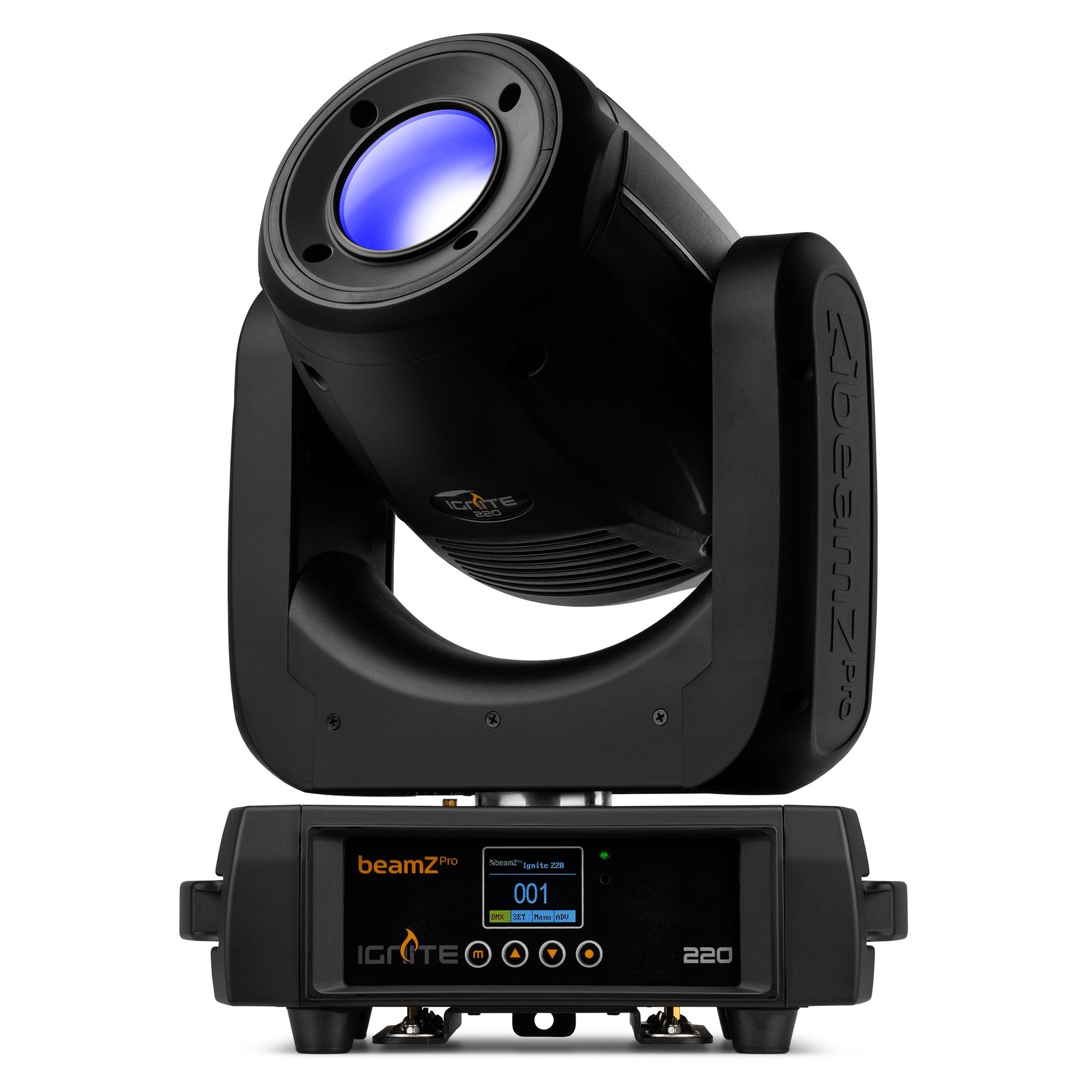

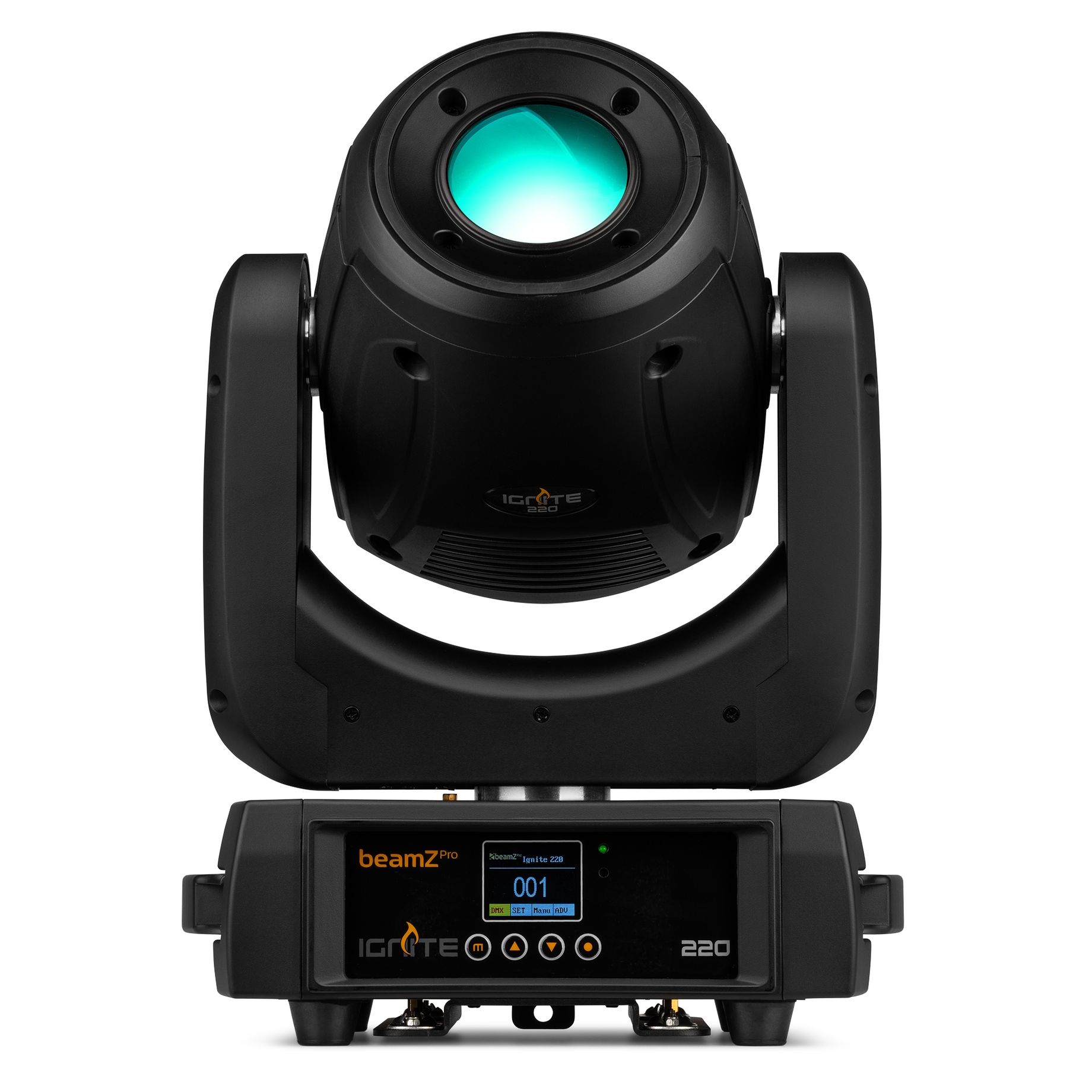

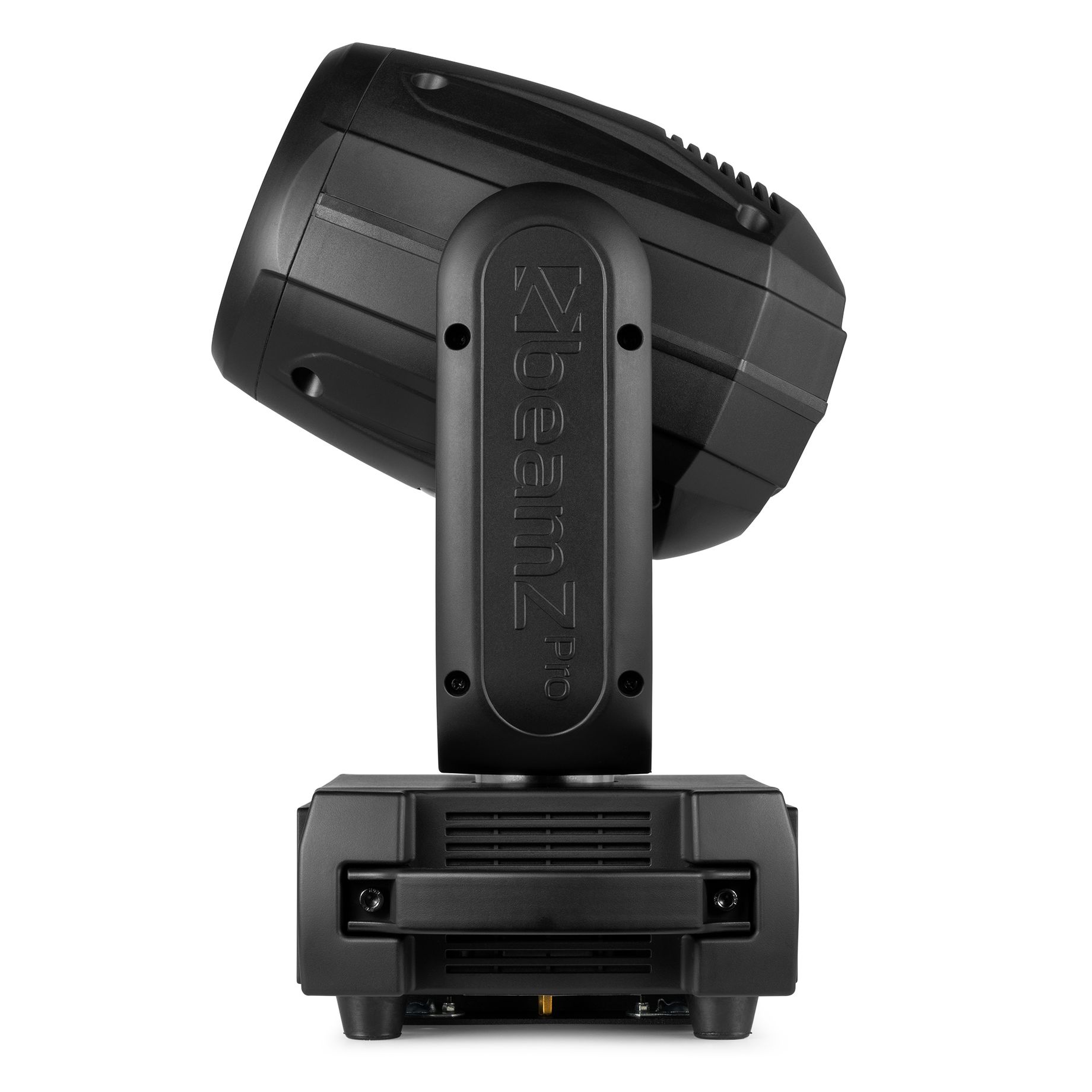

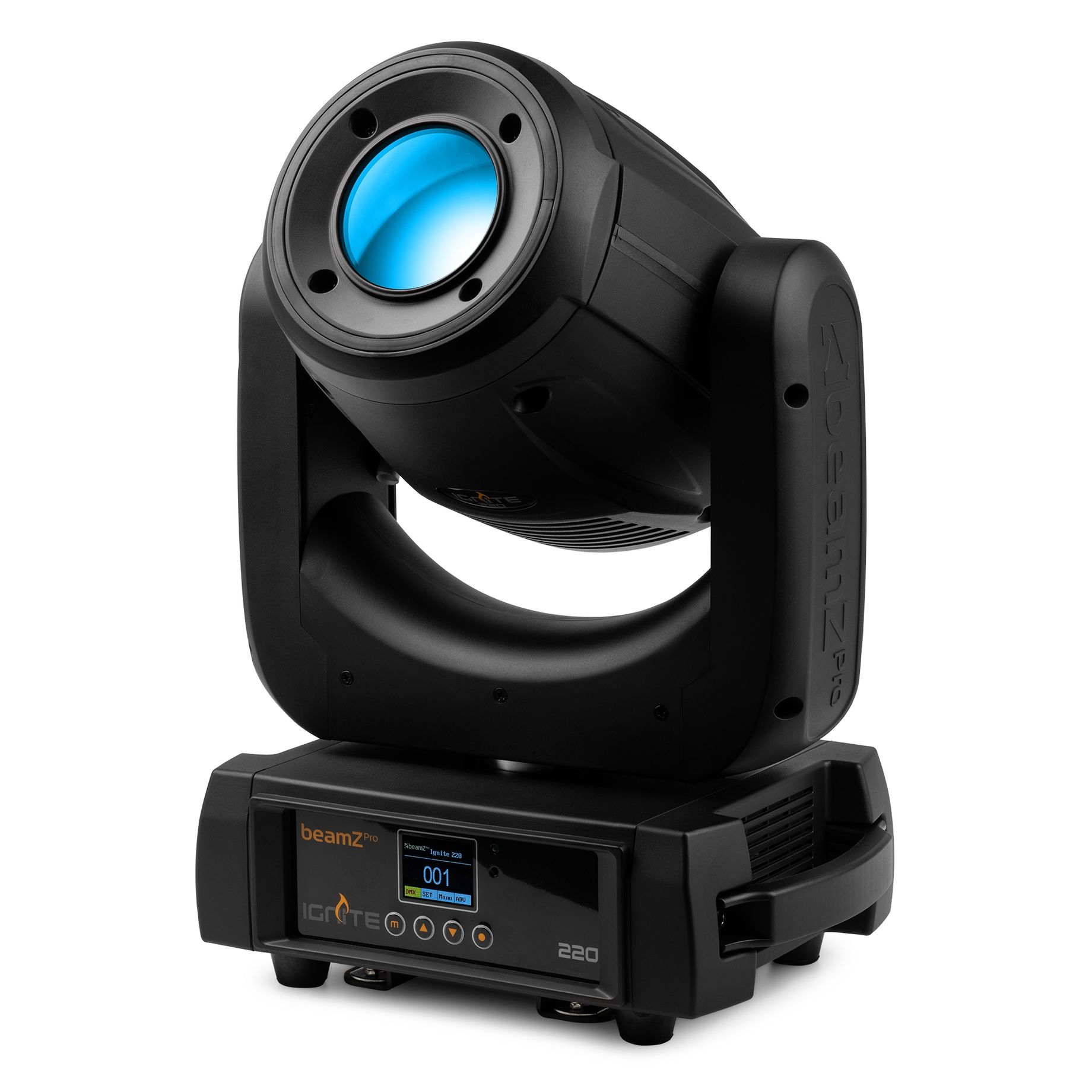

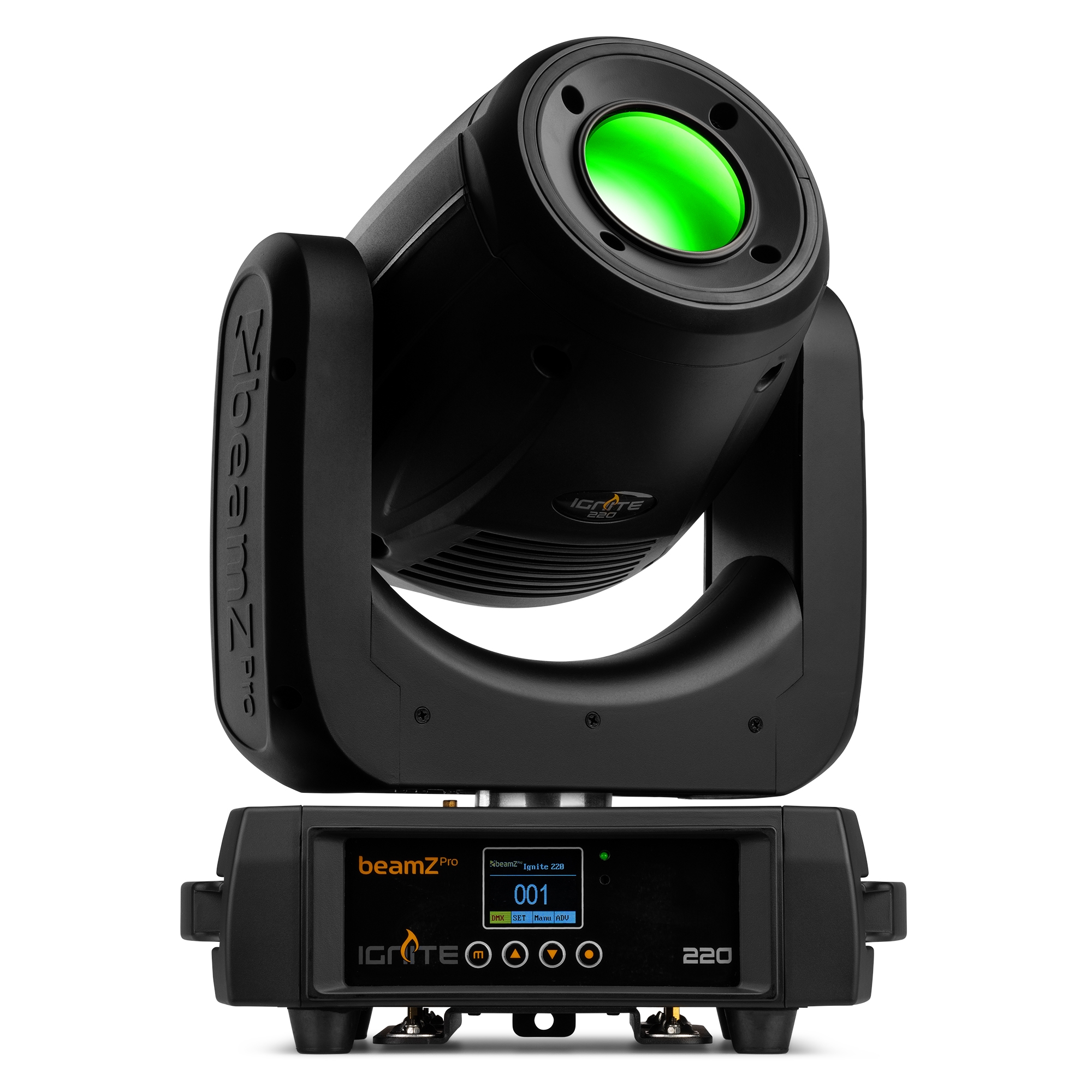

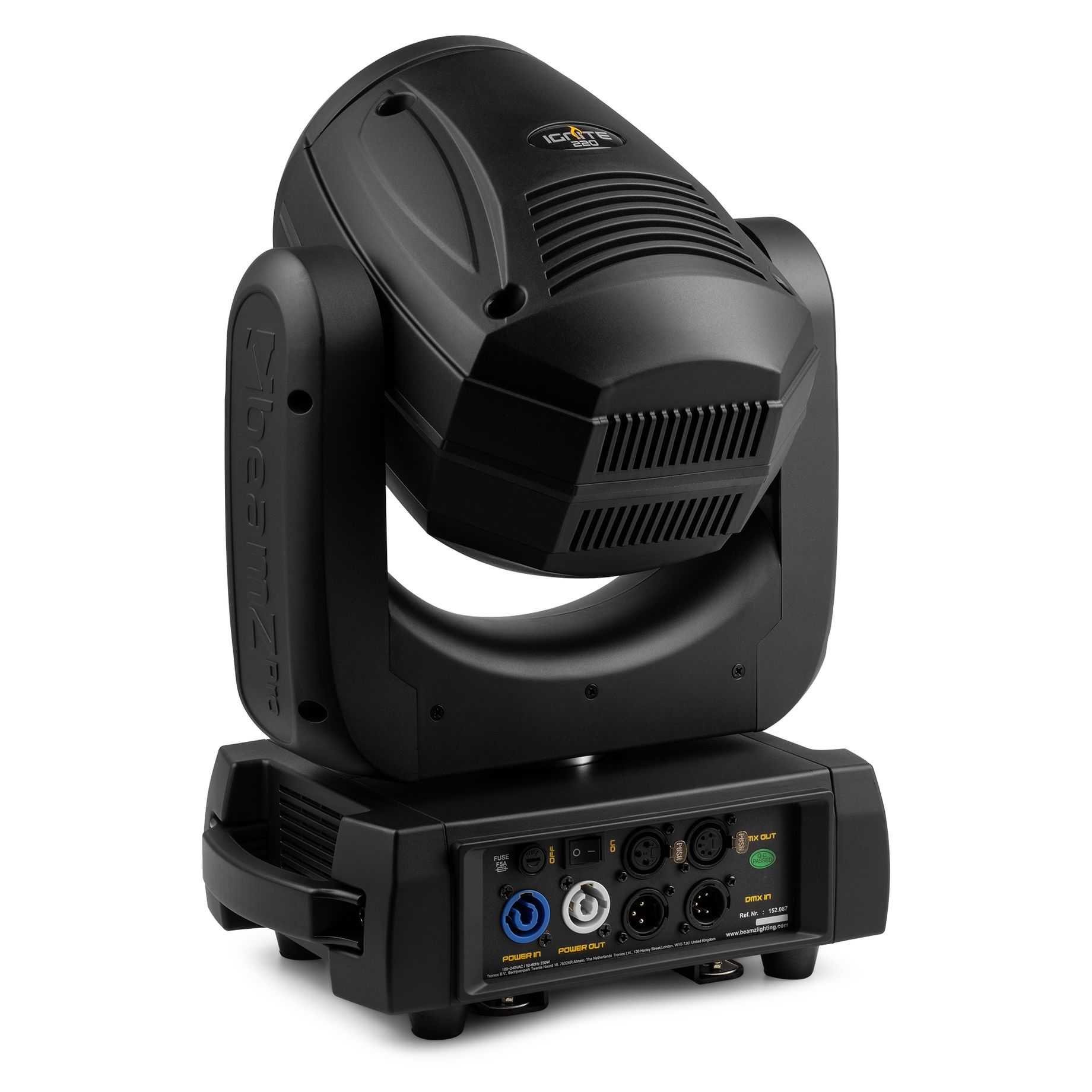

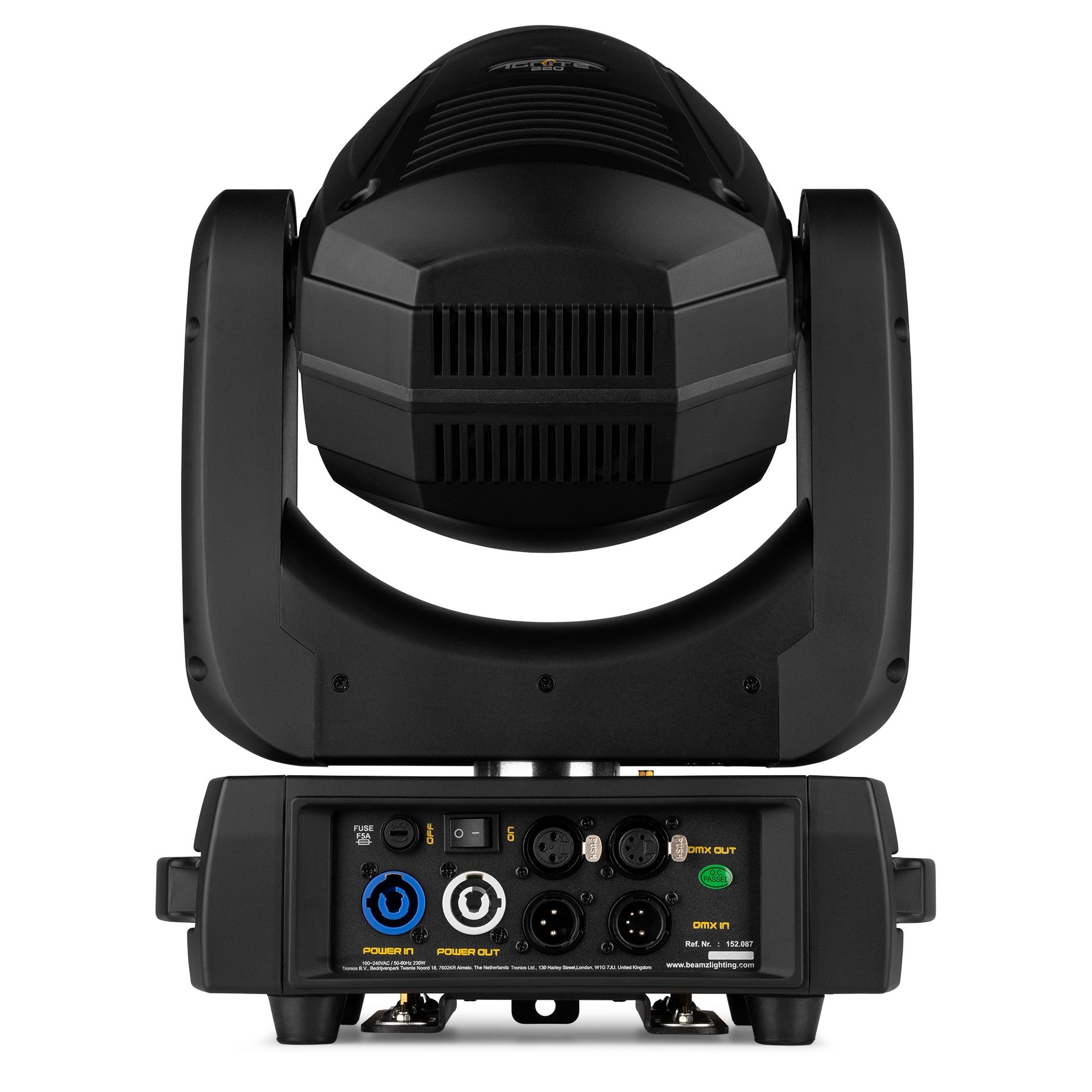

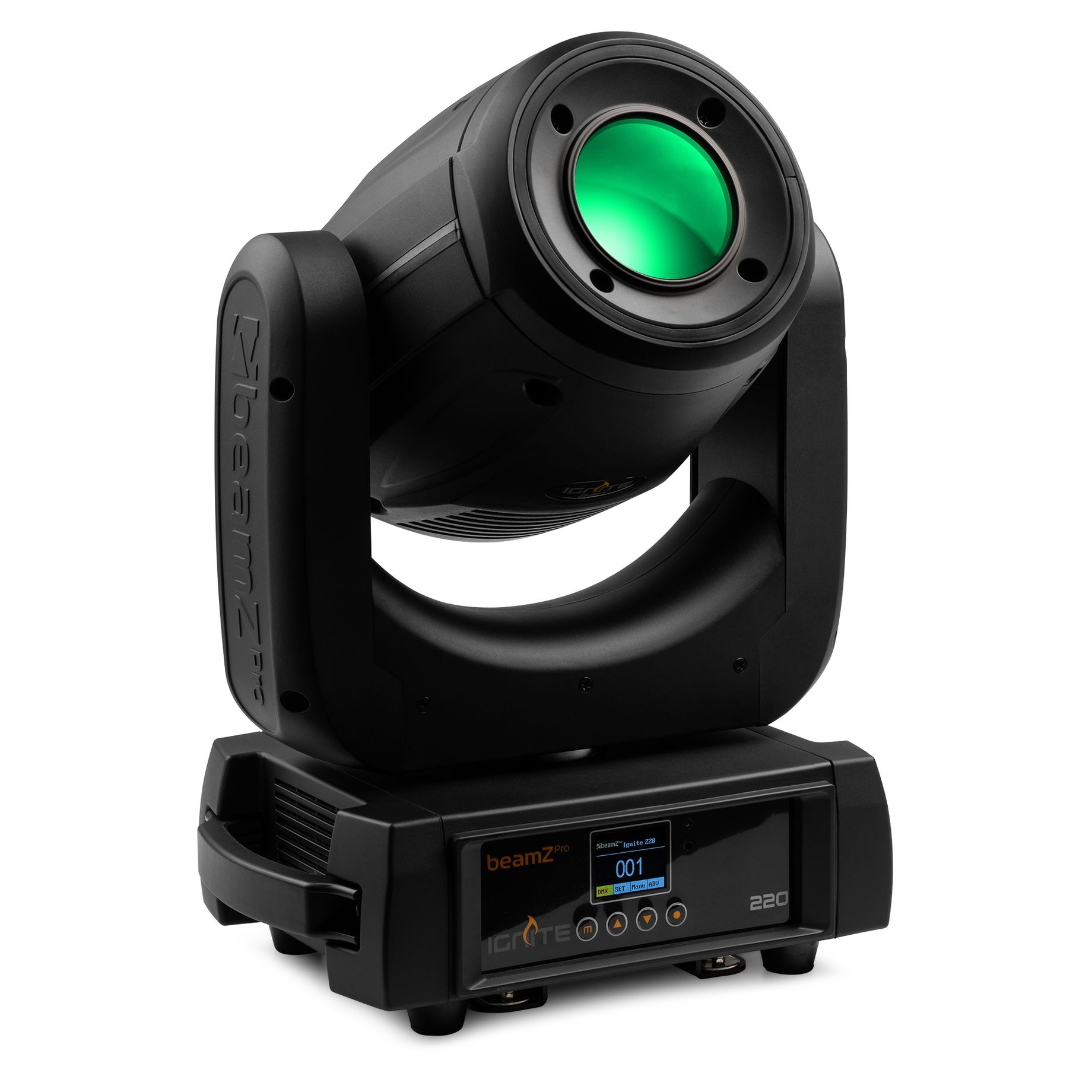

IGNITE220
LED Spot Moving Head
SKU 152.087
|EAN 8715693341584
+6
All product information
Compare
IGNITE series
Description
Highlights
- Spot Moving Head with zoom
- 220W High Intensity White LED
- Linear motorized zoom
- Static Gobo Wheel: 7x gobos + open
- Rotating Gobo Wheel: 6x gobos + open (interchangeable)
- Colour wheel: 7 Colours + open
- Rotatable 3 facet prism
- 0-100% Electronic Dimmer
- Electric focus 2.5m – 30m
- 13, 15 or 17 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated mode (9 programs)
- Auto mode (9 programs)
- Invertible pan/tilt
- Control panel with LCD display
- DMX in/output via 3/5-pin XLR
- Powerconnector input/output
- Quick lock omega clamp included
Specifications
BrandbeamZ Professional
Product serieIGNITE series
ColourBlack
Moving head typeSpot
Light source
Light source
- 1x 220W White LED (7000K)
Illuminance110331 lx @ 1m
Optics
Beam angle
- 11 - 17
ZoomYes
FocusMotorised
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Manual
DMX Channels13, 15, 17
RDMNo
DMX connector3-pin XLR, 5-pin XLR

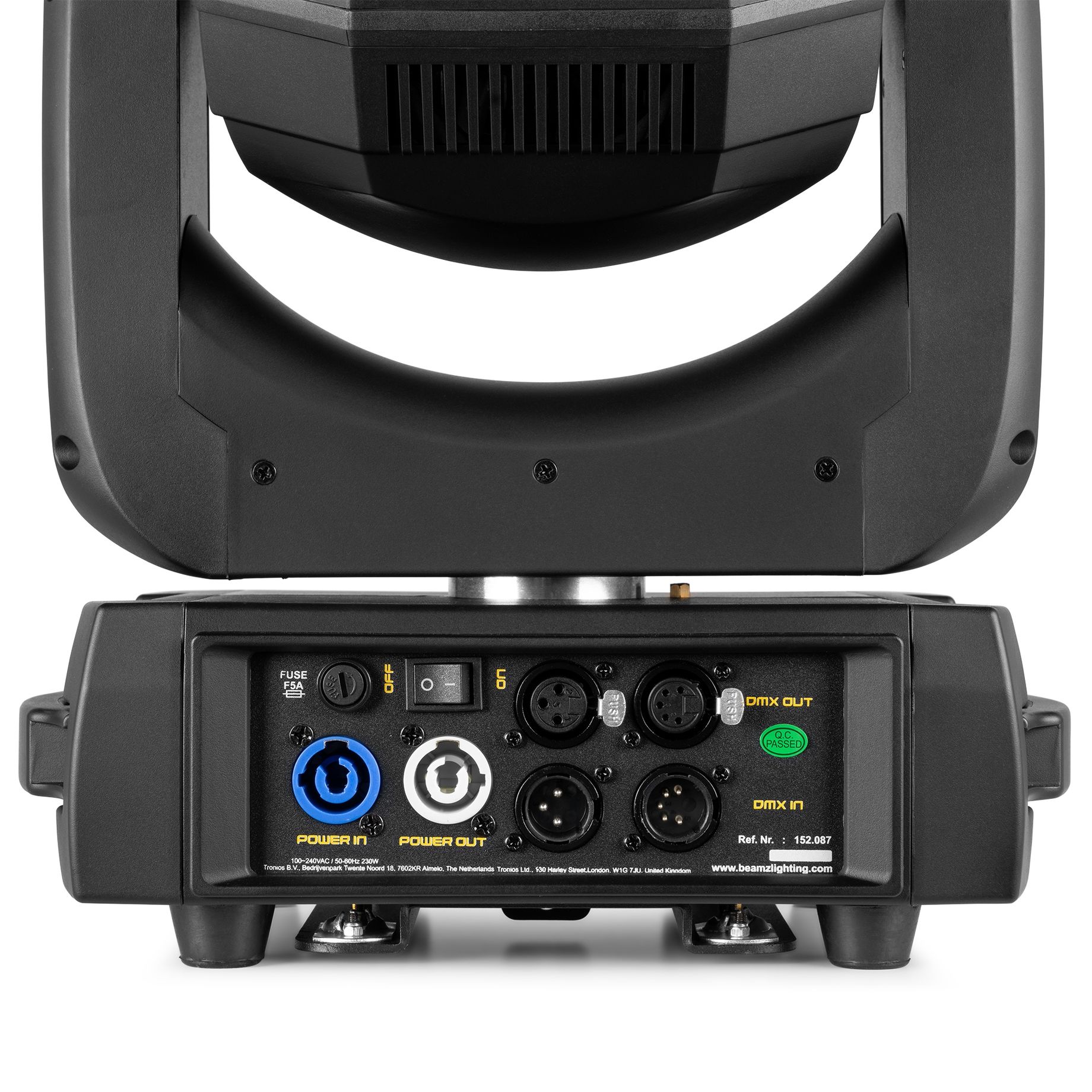

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 305 x 225 x 420 mm (W x D x H)
Weight
- 10.3 kg
Accessories

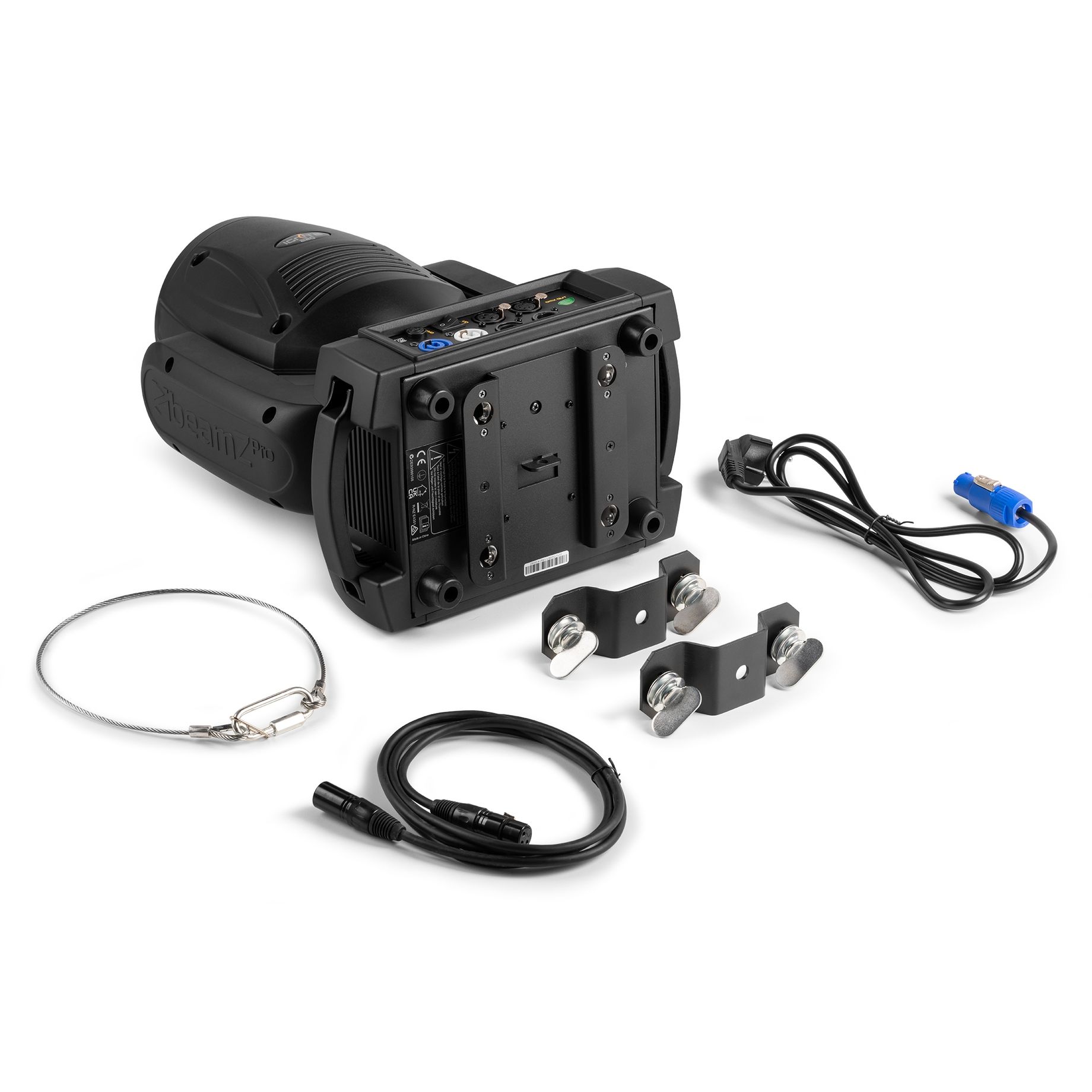

Included Accessories
- Mounting bracket
- Safety cord
Manuals & Documents
Manual
PDF
