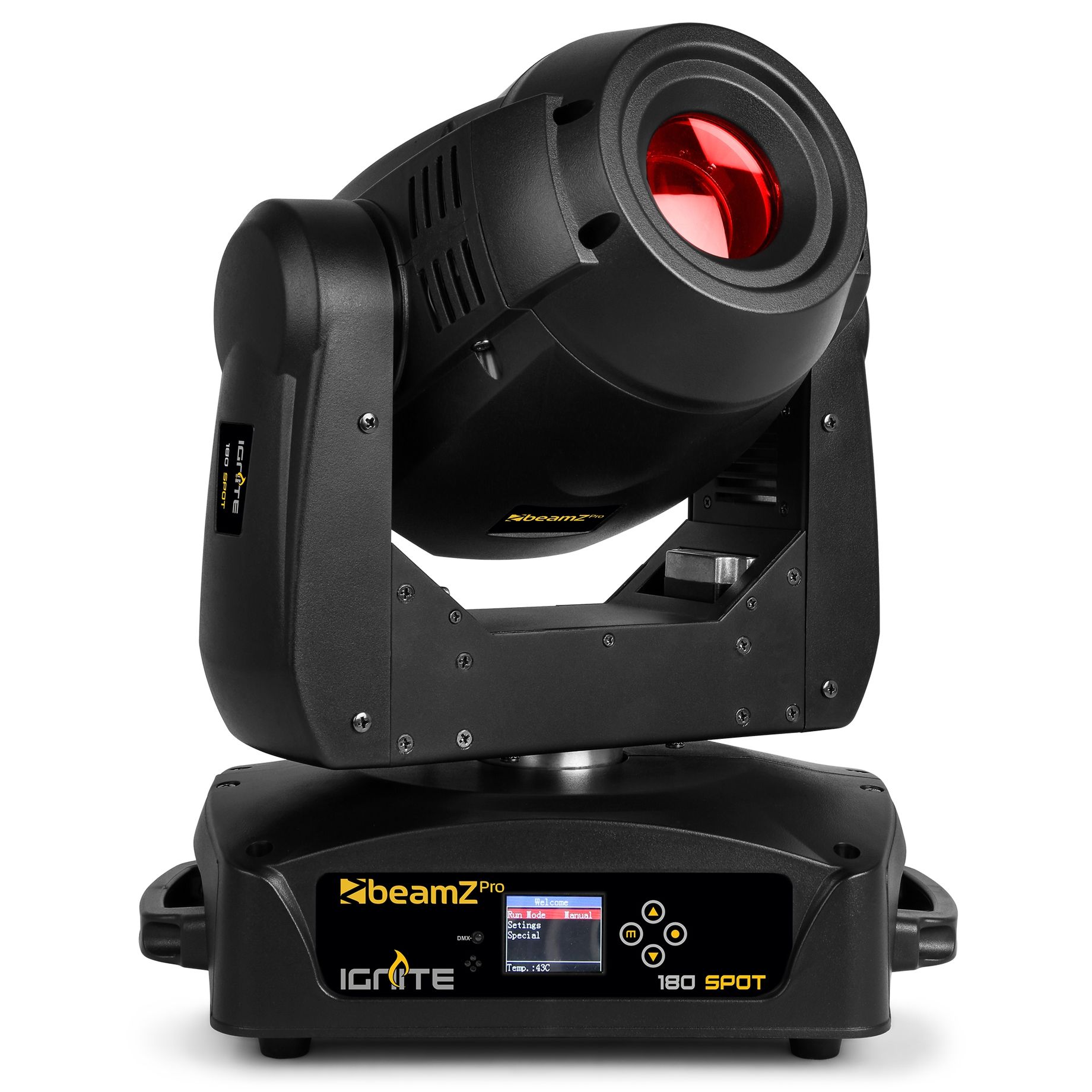

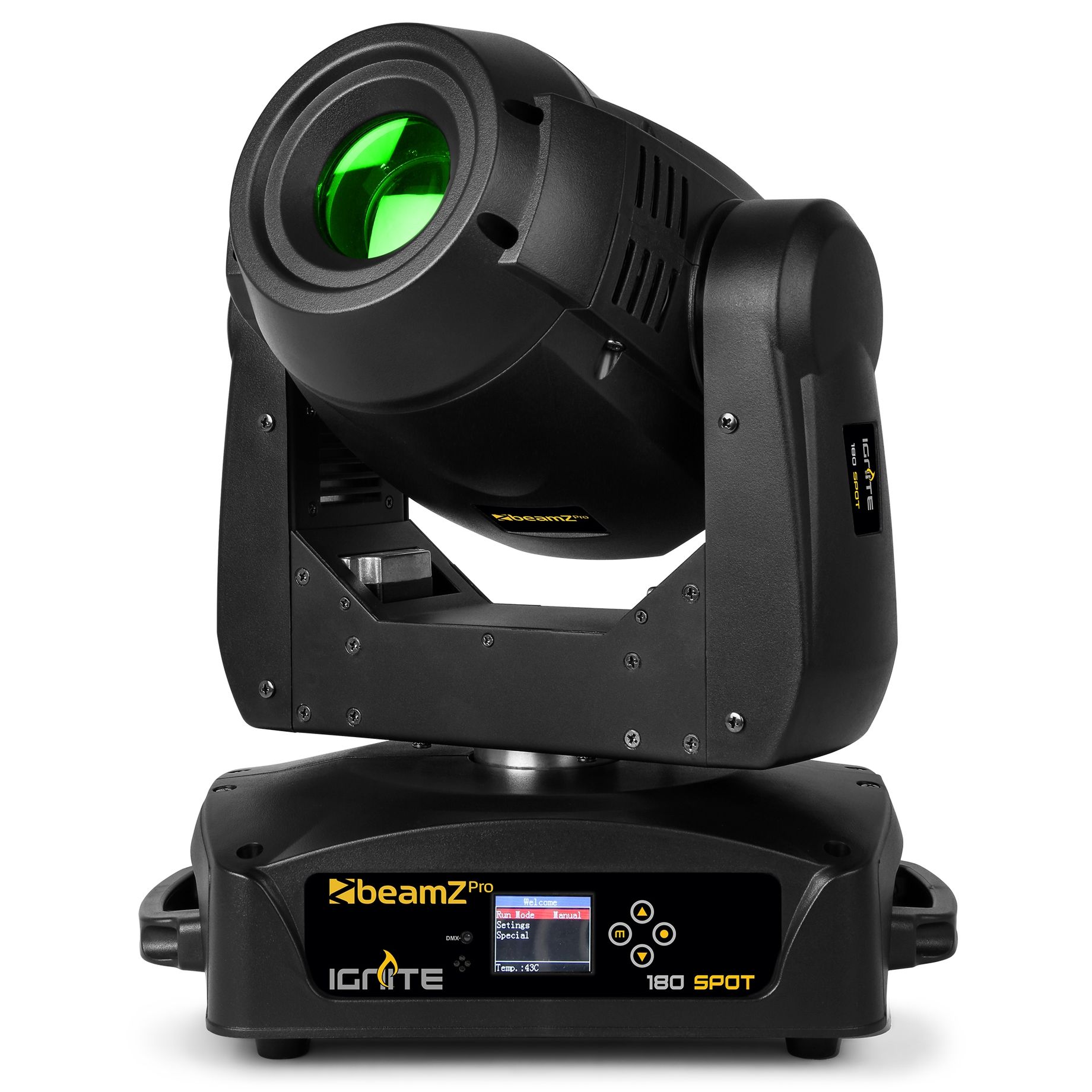

IGNITE180S
LED Spot Moving Head
SKU 150.371
|EAN 8715693294996
+10
All product information
Compare
IGNITE series
Description
Highlights
- 180W High Intensity LED
- 13 or 17 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- Auto mode
- Beam angle 15°
- Gobo Wheel 1: 3x glass and 3x metal gobos + open (interchangeable)
- Gobo Wheel 2: 8x metal gobos + open
- Gobo functions: gobo shake and gobo rotation
- 7 Colours + open
- Split colour, rainbow effect
- Rotatable 3 facet prism
- Rotatable 6 facet prism - Linear
- Motorized focus
- 0-100% Electronic Dimmer
- Strobe: 0-20Hz
- Automatic pan/tilt correction
- Reset function
- Control panel with full-colour LCD display
- DMX in/output via 3-pin XLR
- Powerconnector input/output

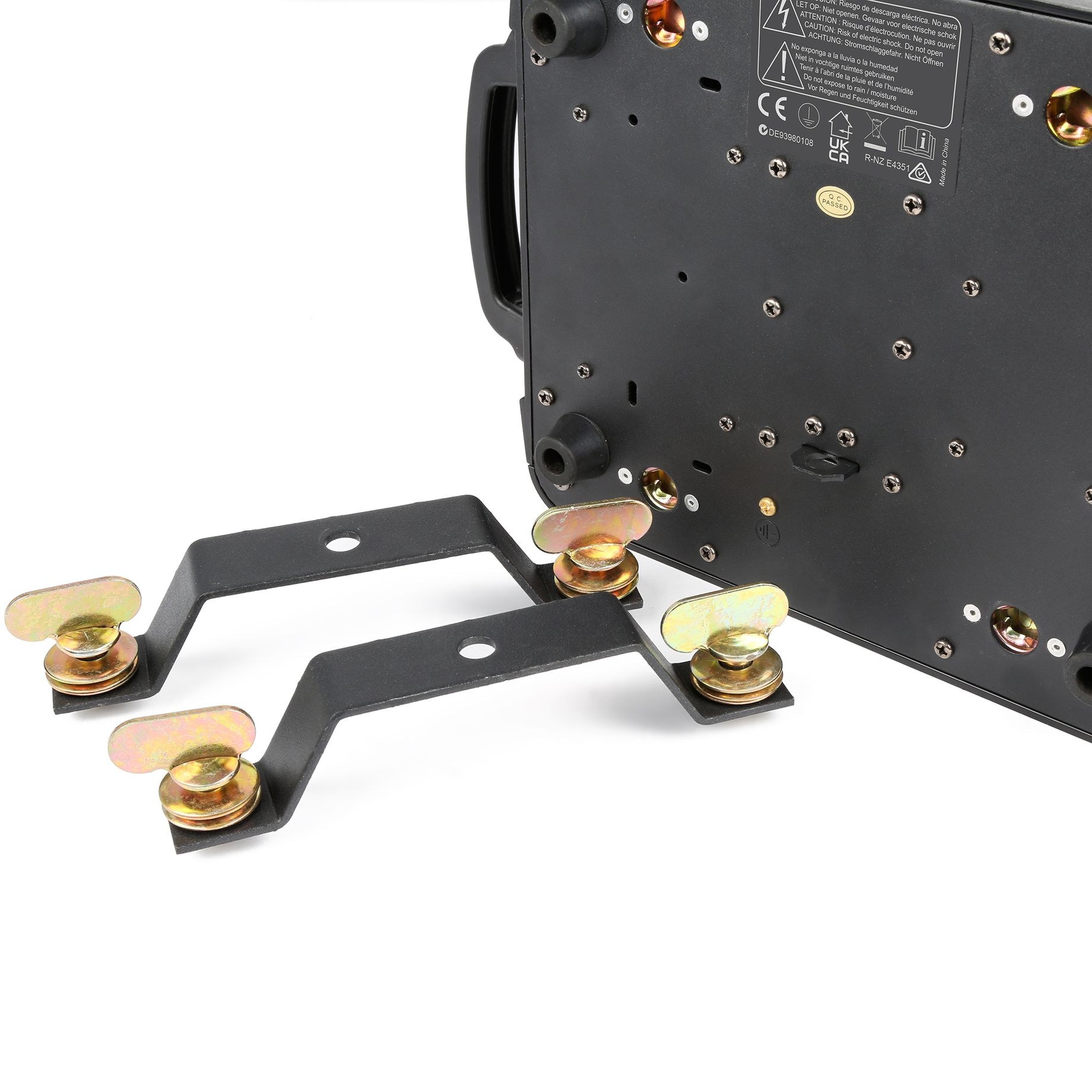

- Quick lock omega clamp included (2x)
Specifications
BrandbeamZ Professional
Product serieIGNITE series
ColourBlack
Moving head typeSpot
Light source
Light source
- 1x 180W White LED (6500K)
Illuminance130000 lx @ 1m
Optics
Beam angle
- 15°
ZoomNo
FocusMotorised
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Manual
DMX Channels13, 17
RDMNo
DMX connector3-pin XLR

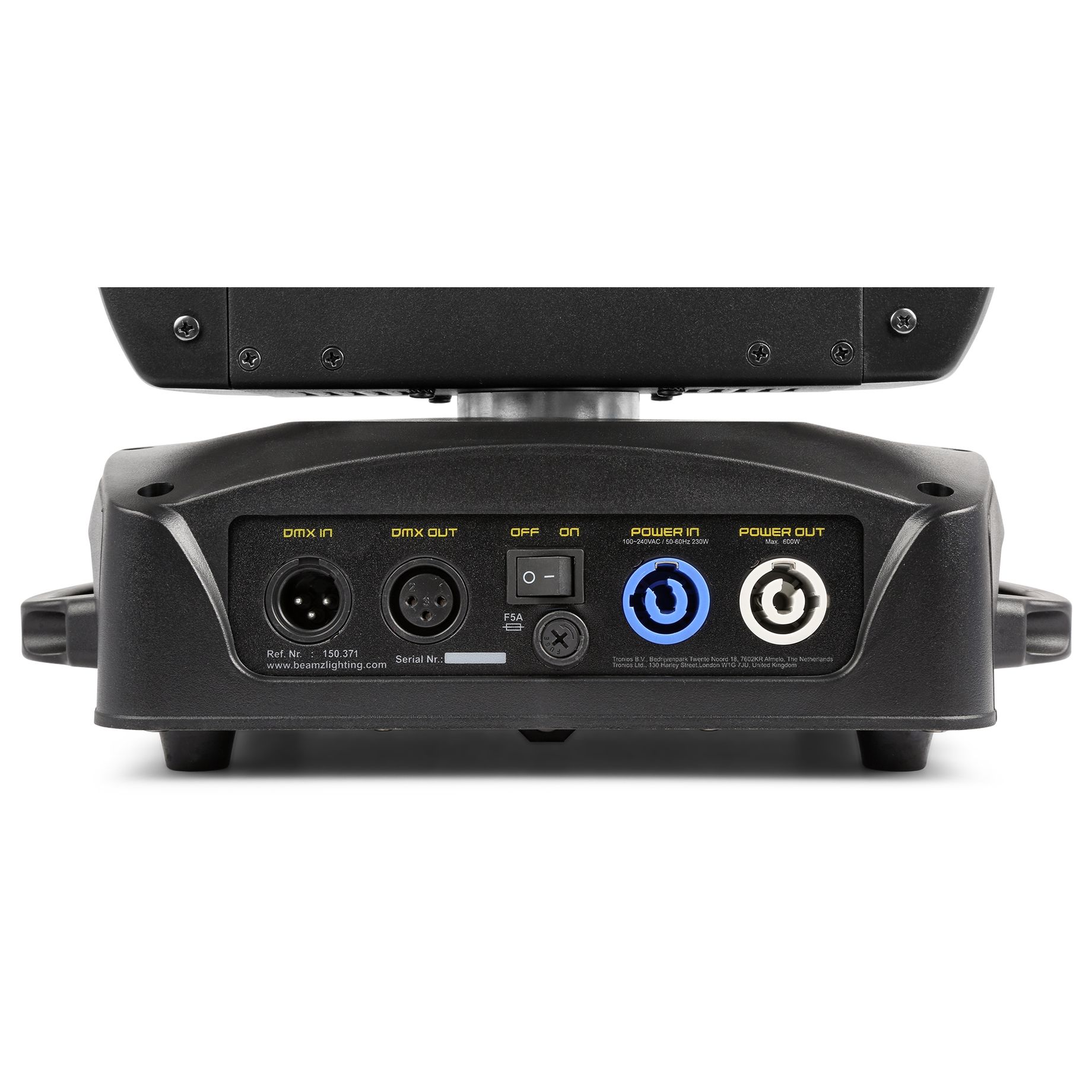

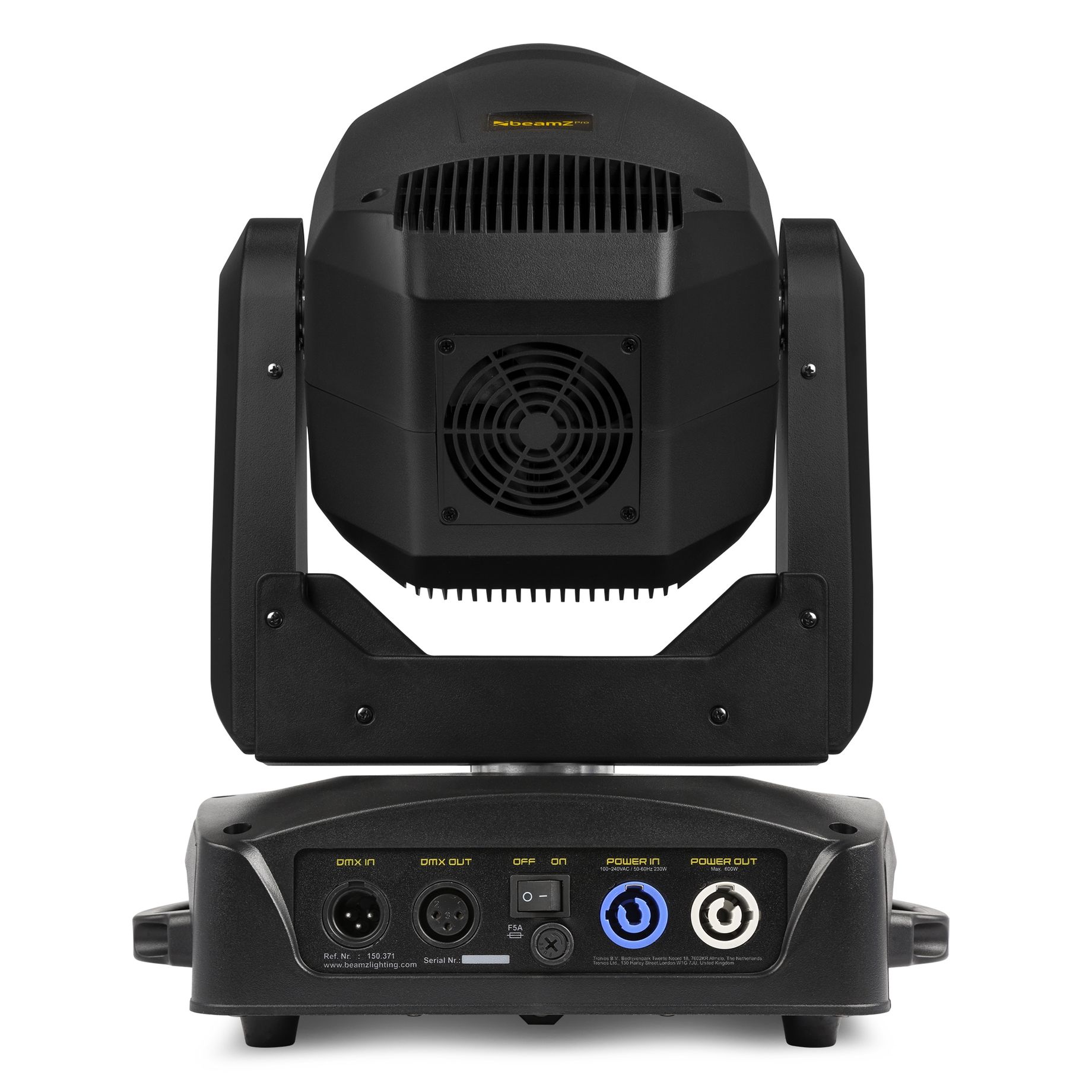

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 320 x 220 x 360 mm (W x D x H)
Weight
- 10.2 kg
Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
