IGNITE300
LED BSW Moving Head 2pcs in Flightcase
SKU 152.110
|EAN 8715693336146
+9
All product information
Compare
IGNITE series
Description
Highlights
- Beam, spot and wash light in one device
- 300W High Intensity LED
- Gobo Wheel 1: 2x glass and 5x metal gobos + open (interchangeable)
- Gobo Wheel 2: 9x fixed gobos + open (split colours)
- Gobo functions: gobo shake, gobo rotation and rainbow effect
- 2 Effect Wheels with adjustable rotating speed and direction
- Rotatable 3 and 8 facet prisms (can be overlapped)
- Motorized linear zoom
- 20 DMX channels
- DMX, Sound activation, master/slave and stand-alone mode
- 0-100% Electronic Dimmer
- Automatic pan/tilt correction
- RDM Remote Control, bidirectional data transmission
- DMX in/output via 3-pin and 5-pin XLR
- Powerconnector in/output
- Quick lock omega clamp included

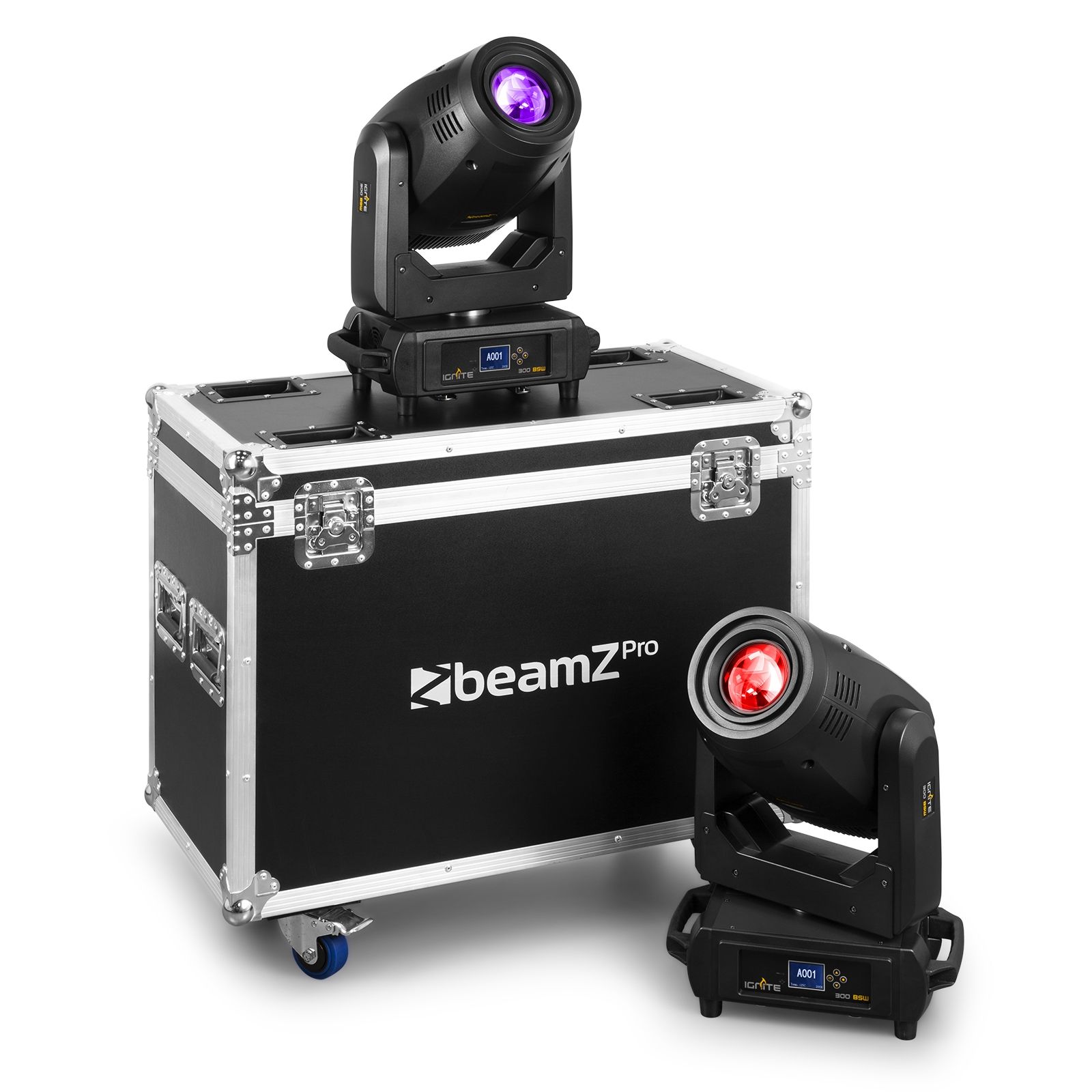

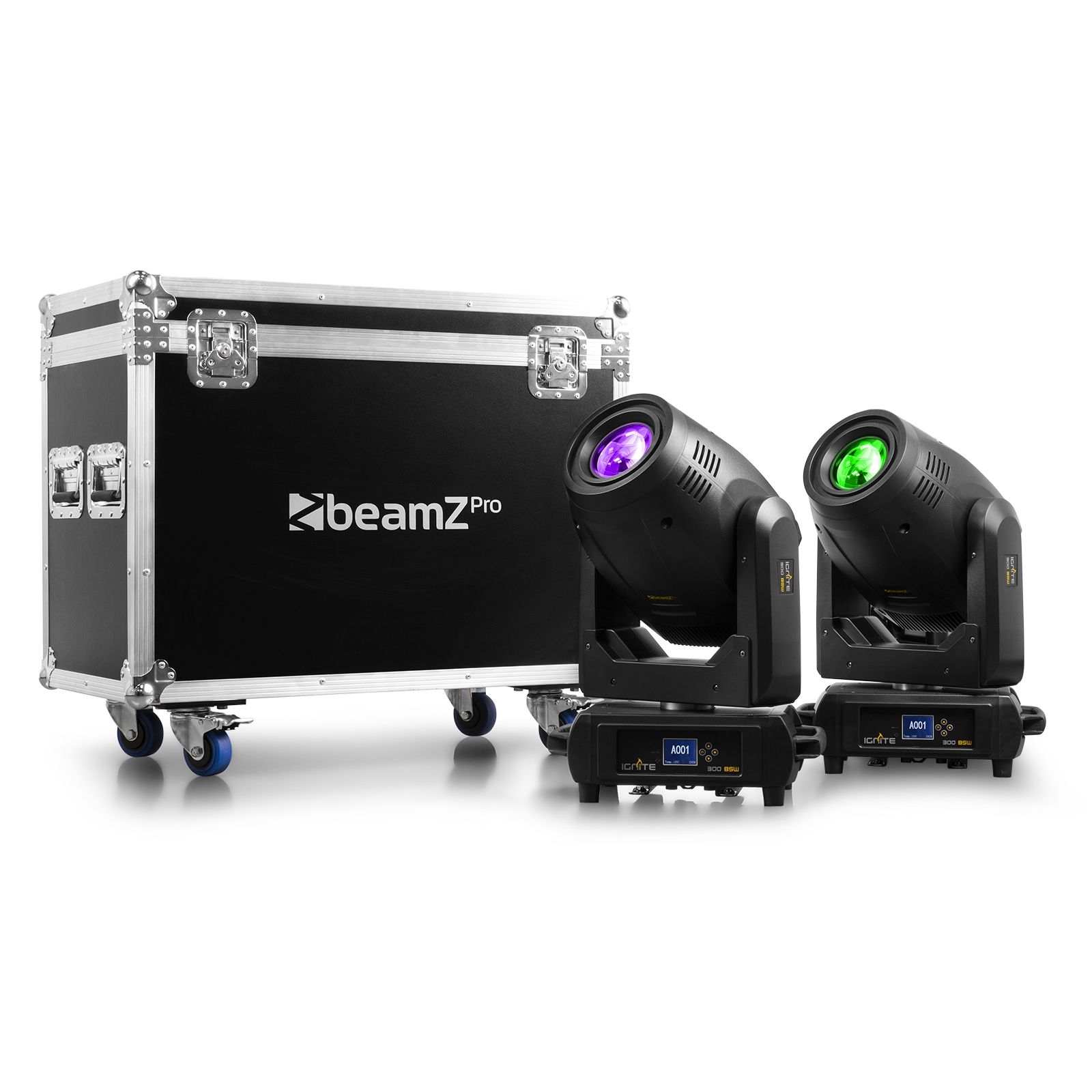

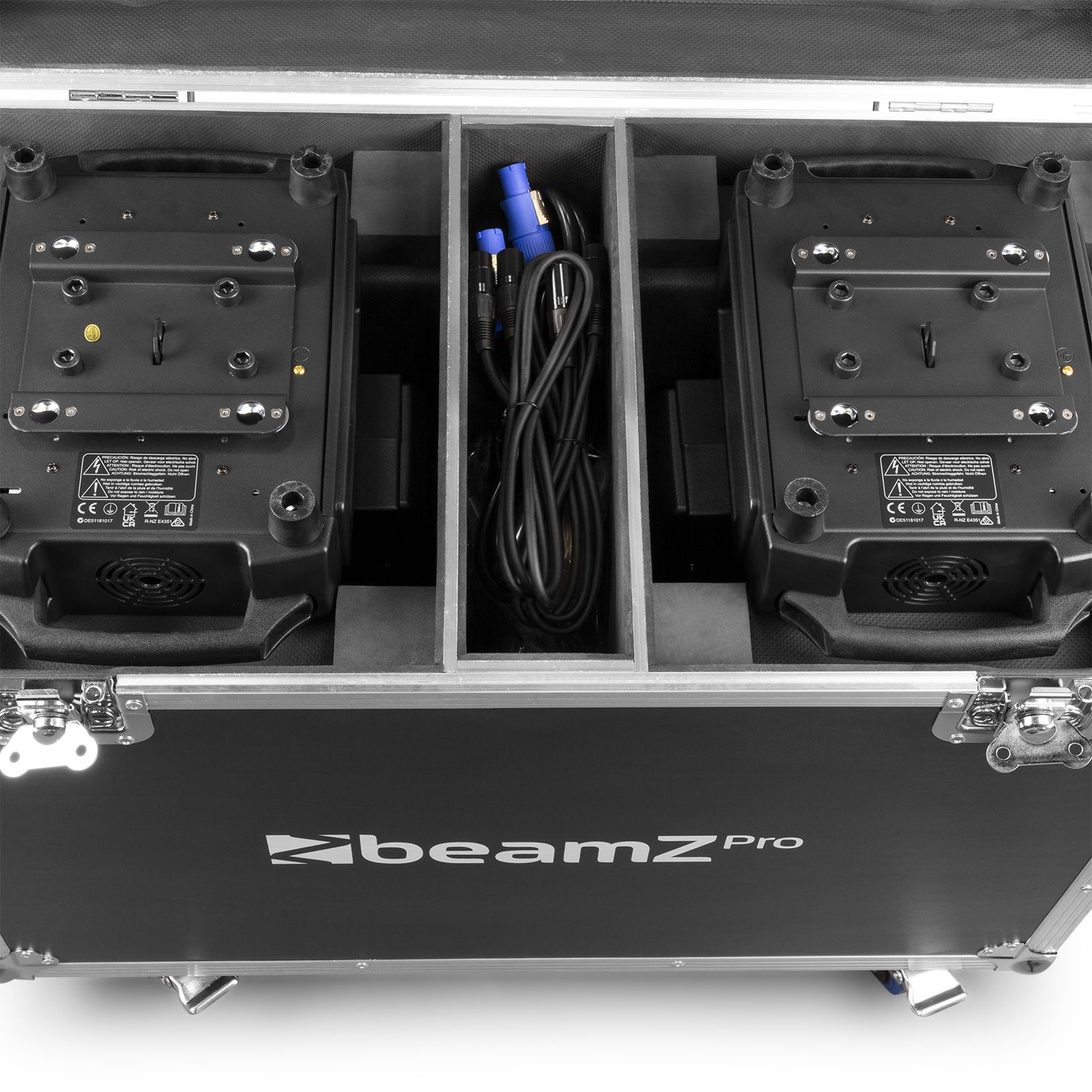

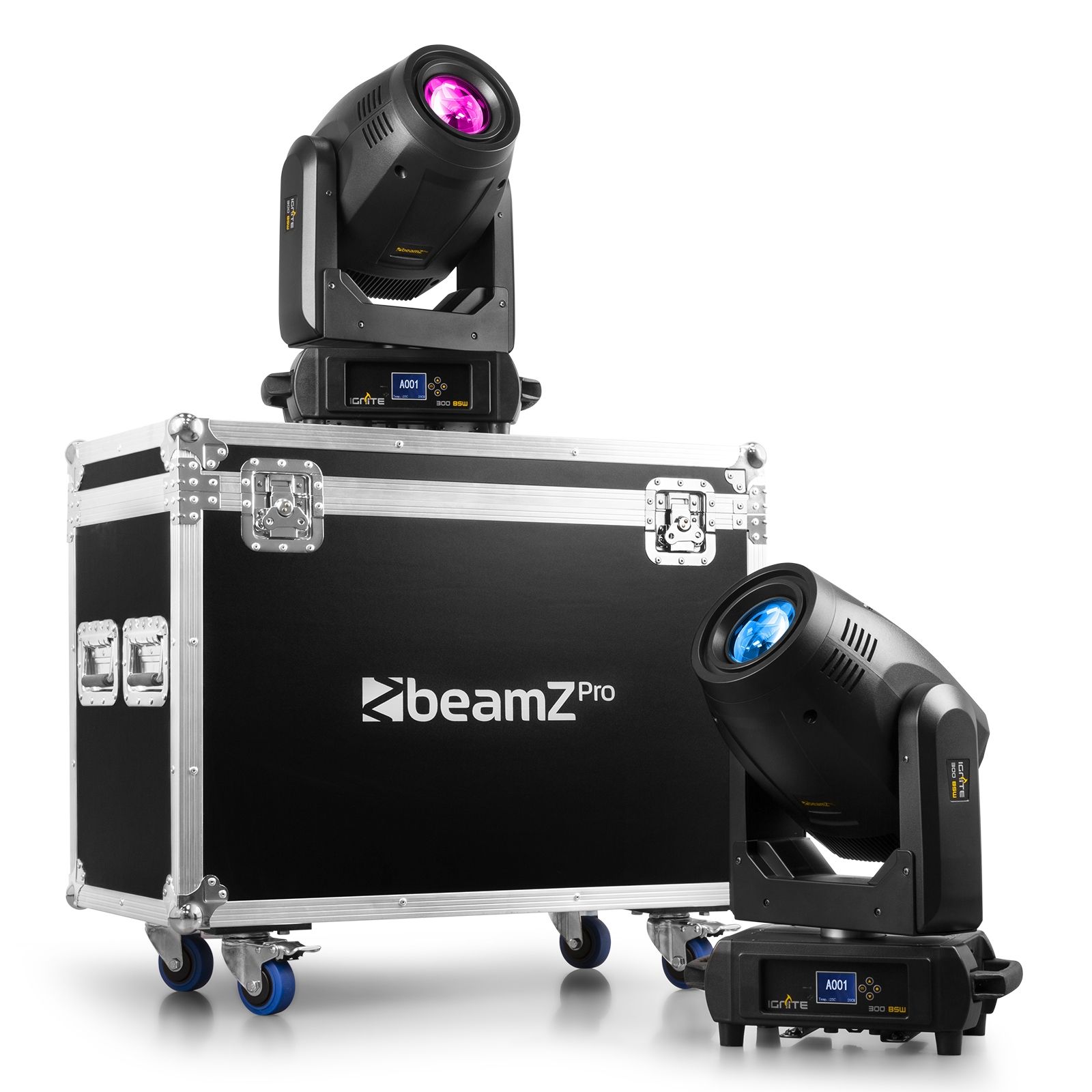

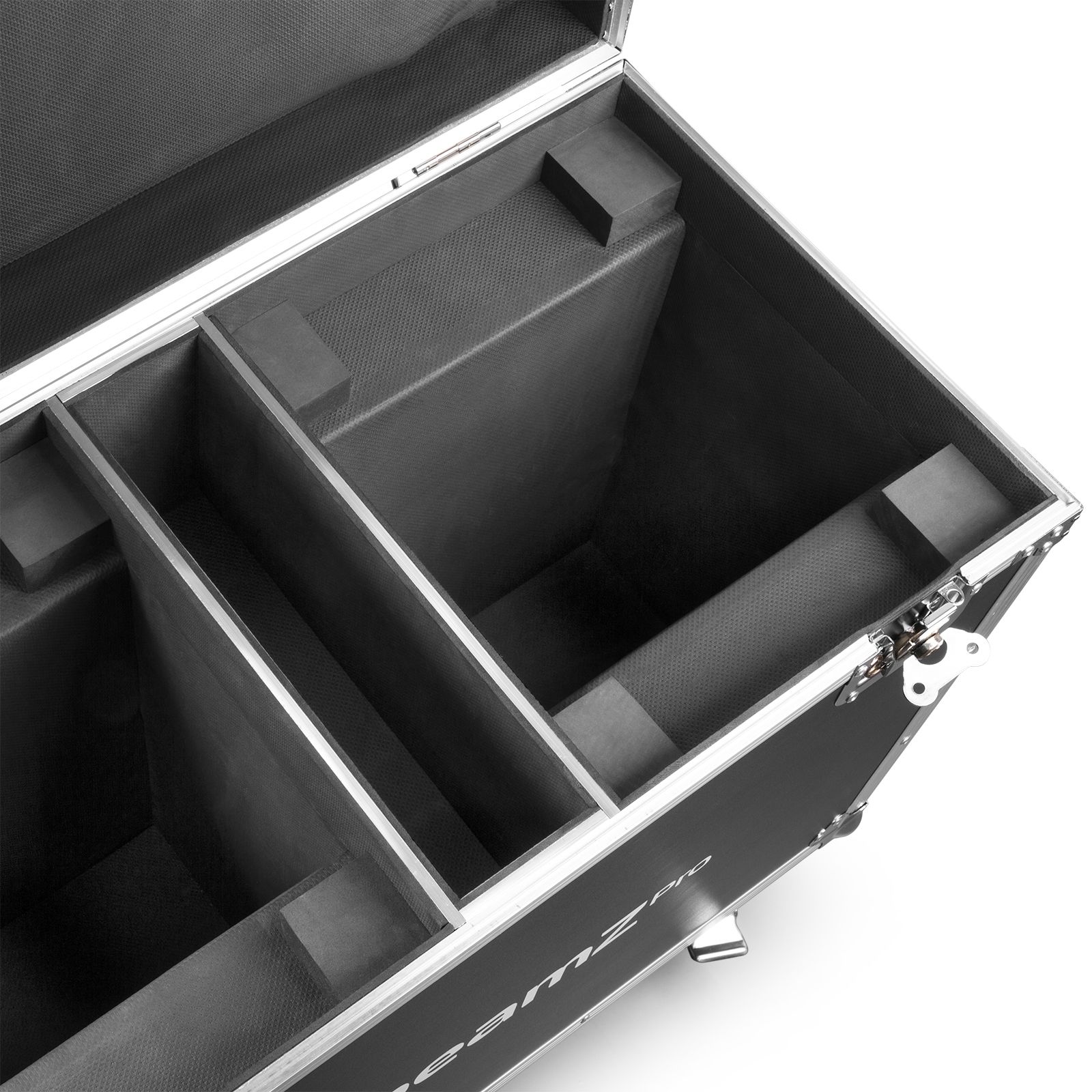

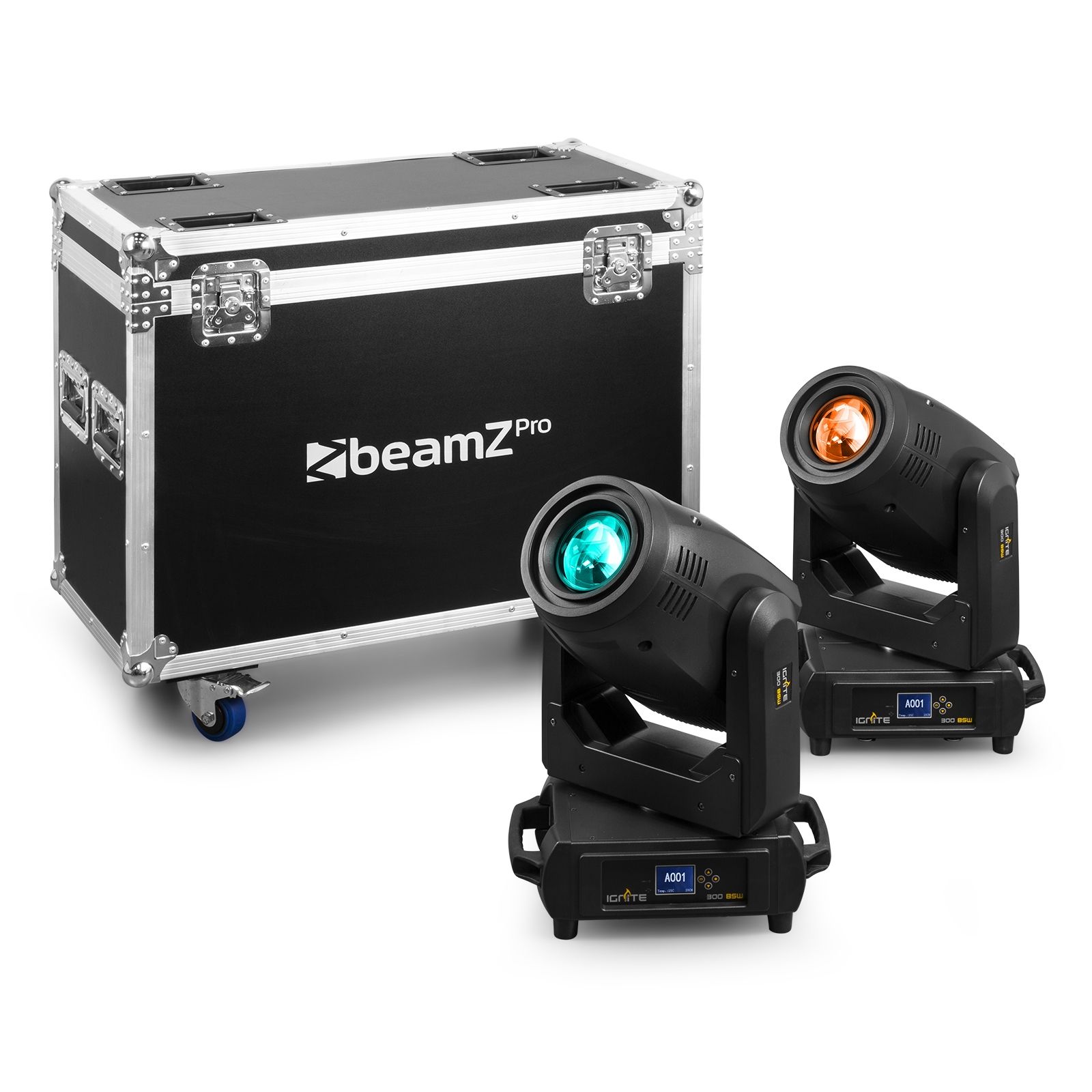

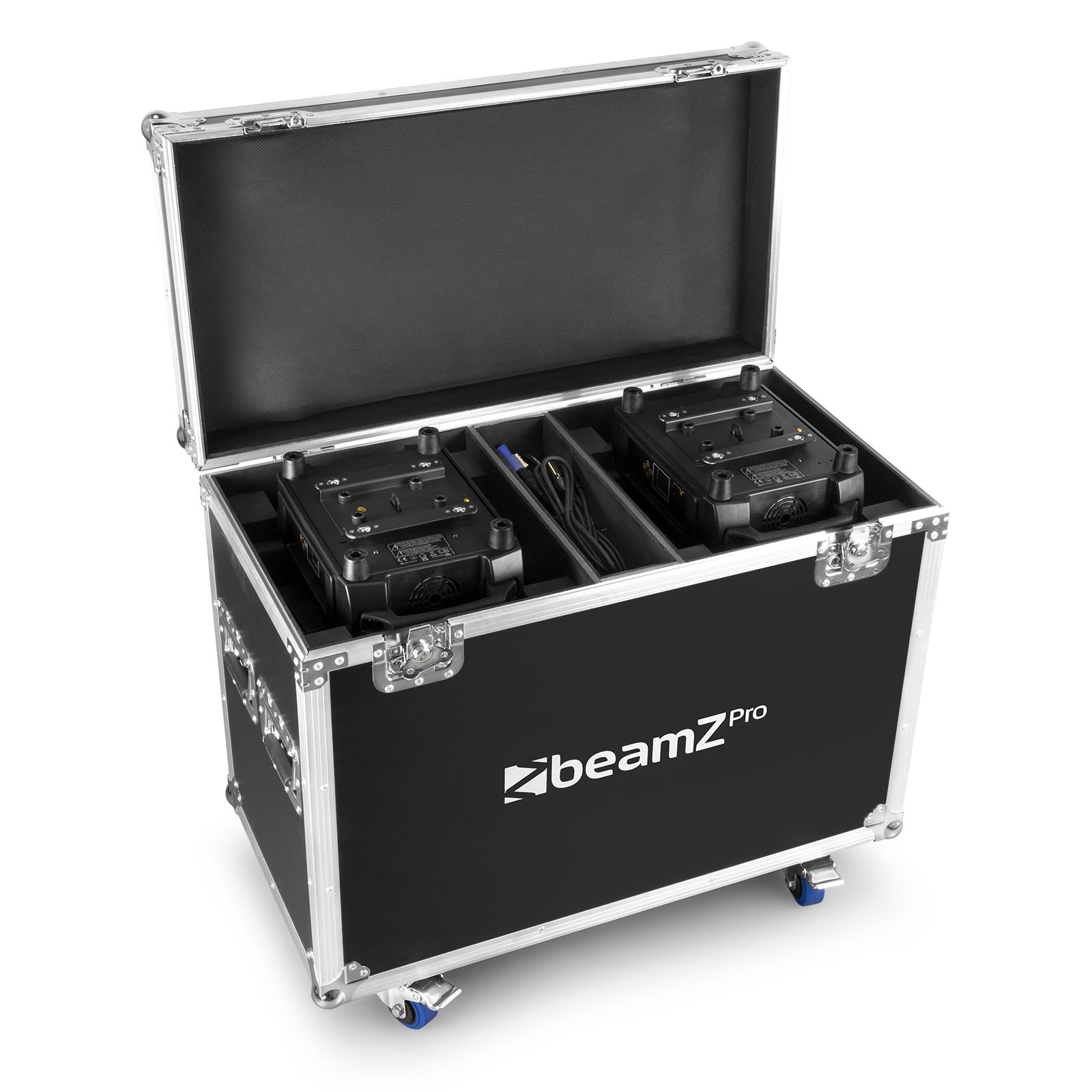

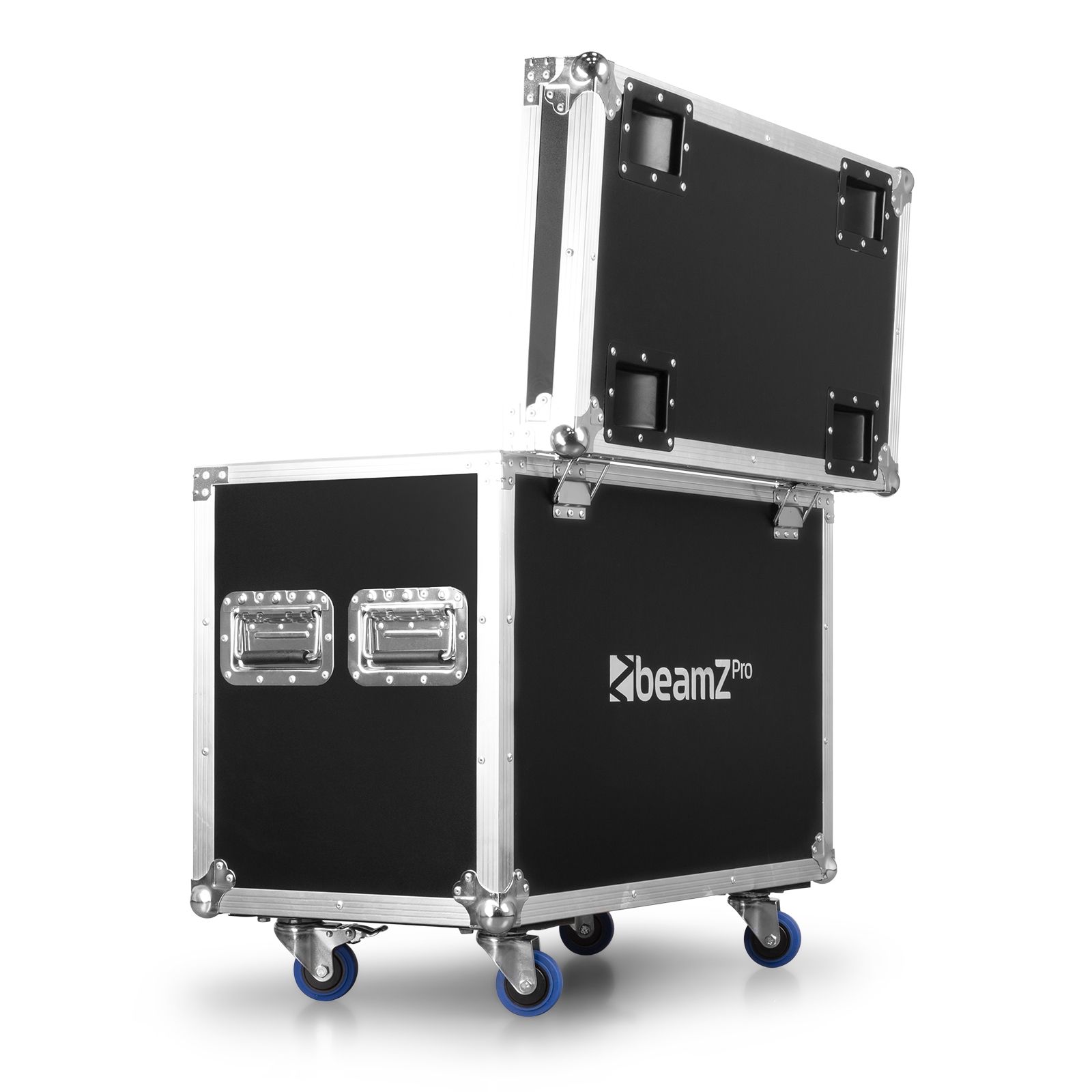

- Solid flightcase on wheels
Specifications
BrandbeamZ Professional
Product serieIGNITE series
ColourBlack
Moving head typeHybrid
Light source
Light source
- 1x 300W White LED (7000K)
Illuminance197822 lx @ 1m
Optics
Beam angle
- 8 - 24
ZoomYes
FocusMotorised
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Manual
DMX Channels20
RDMYes
DMX connector3-pin XLR, 5-pin XLR

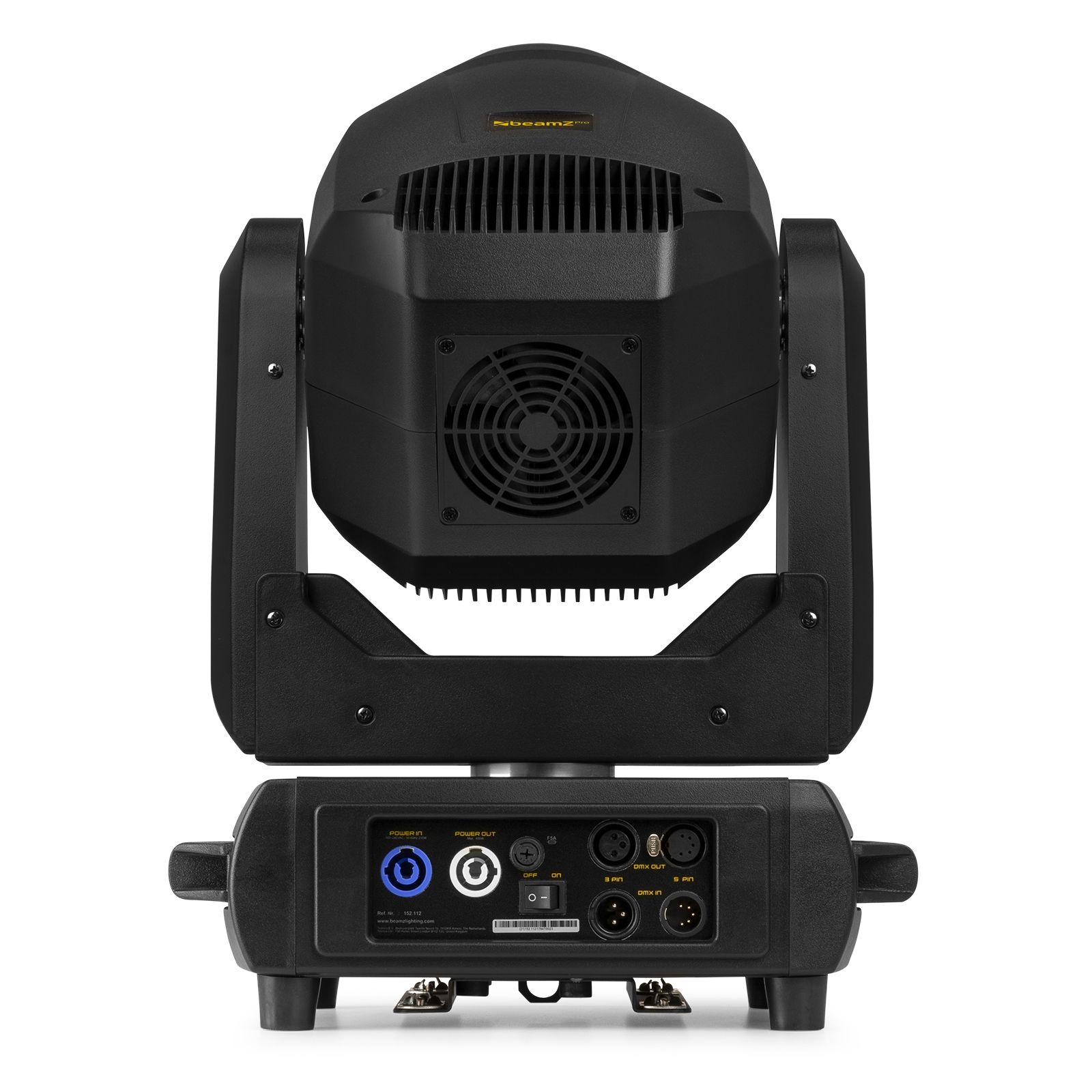

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions: Set
- 440 x 440 x 625 mm (W x D x H)
Weight: Set
- 62.5 kg
Dimensions: Each
- 365 x 225 x 530 mm (W x D x H)
Weight: Each
- 15.6 kg
Accessories
Included Accessories

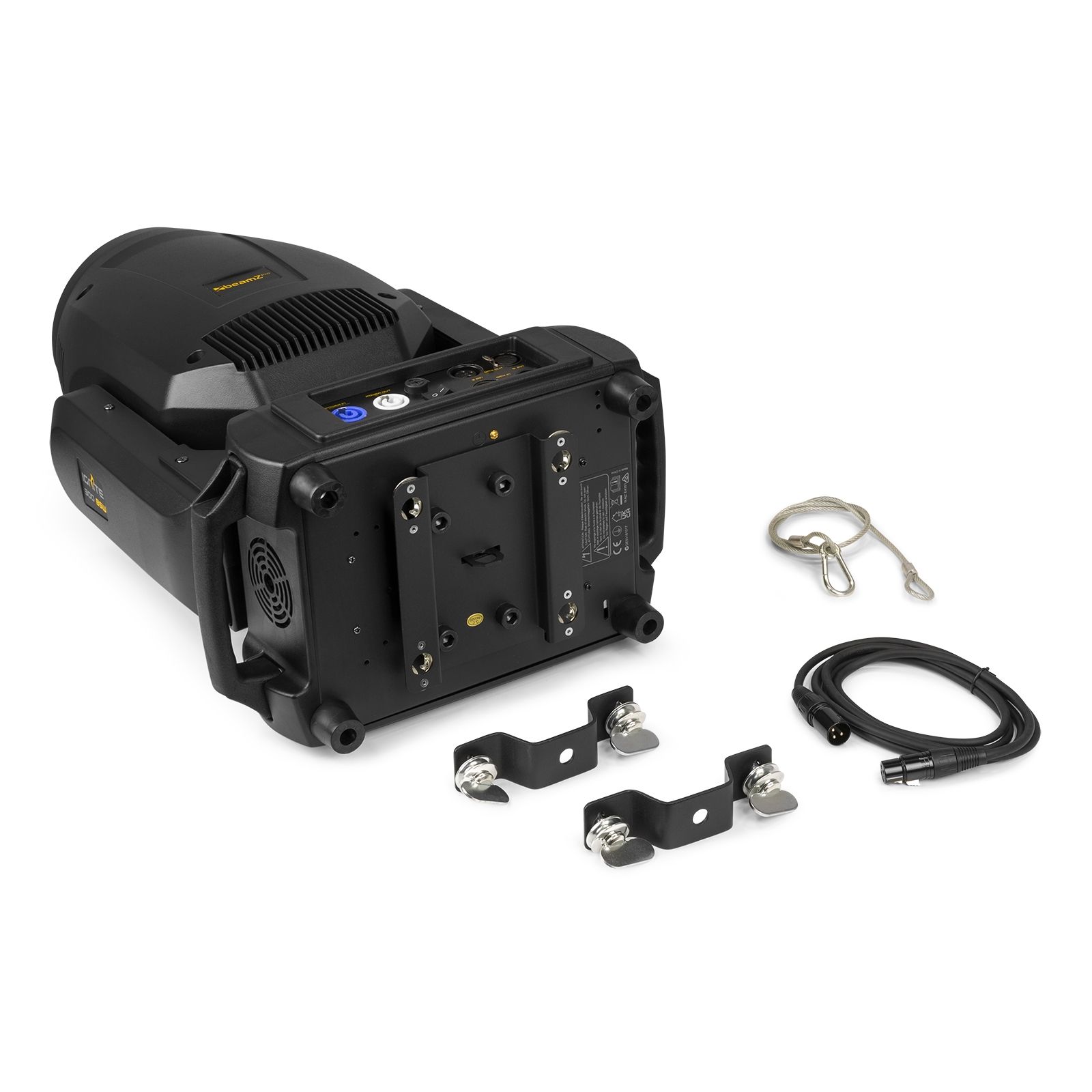

- Mounting bracket
Manuals & Documents
Manual
PDF
