Fuze2812

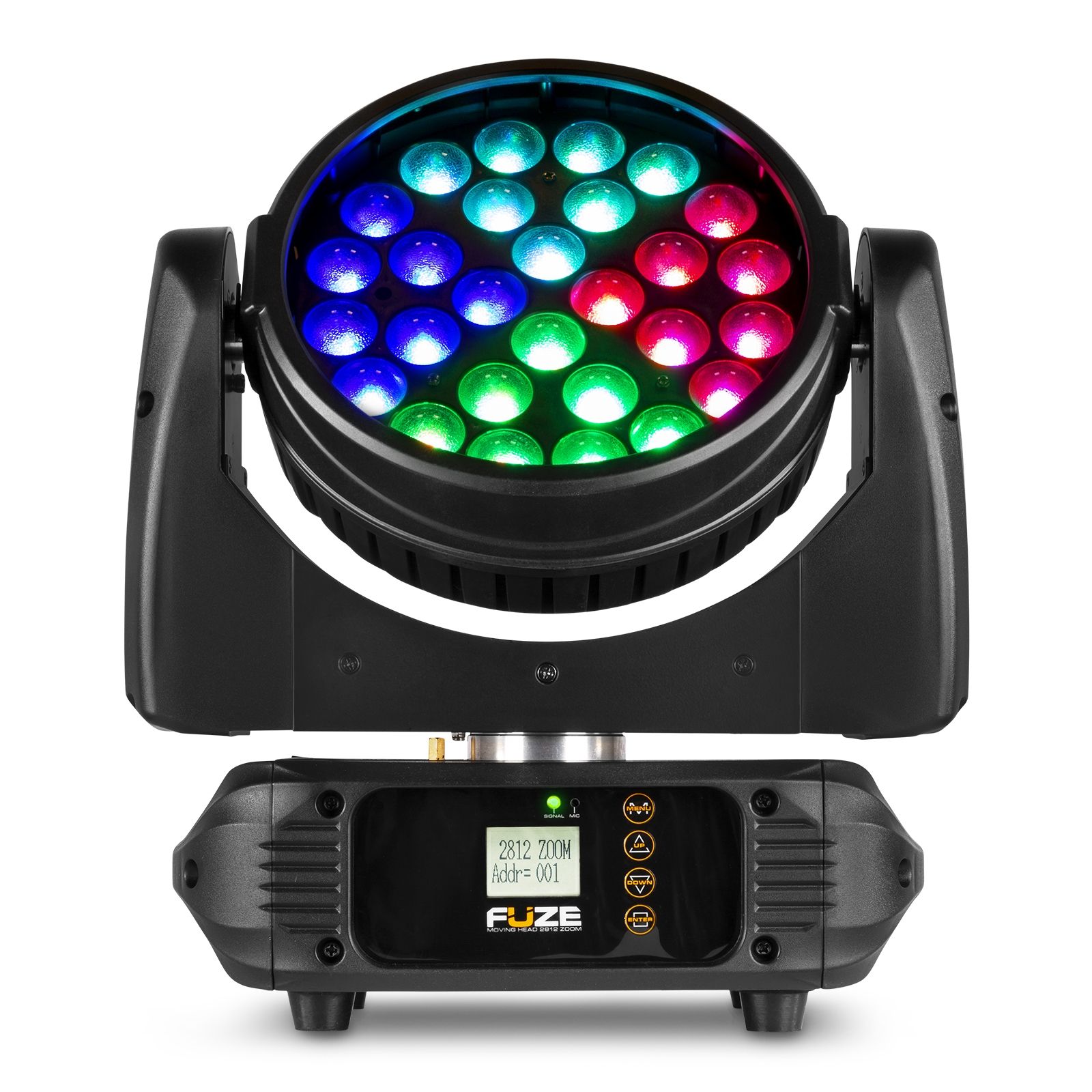

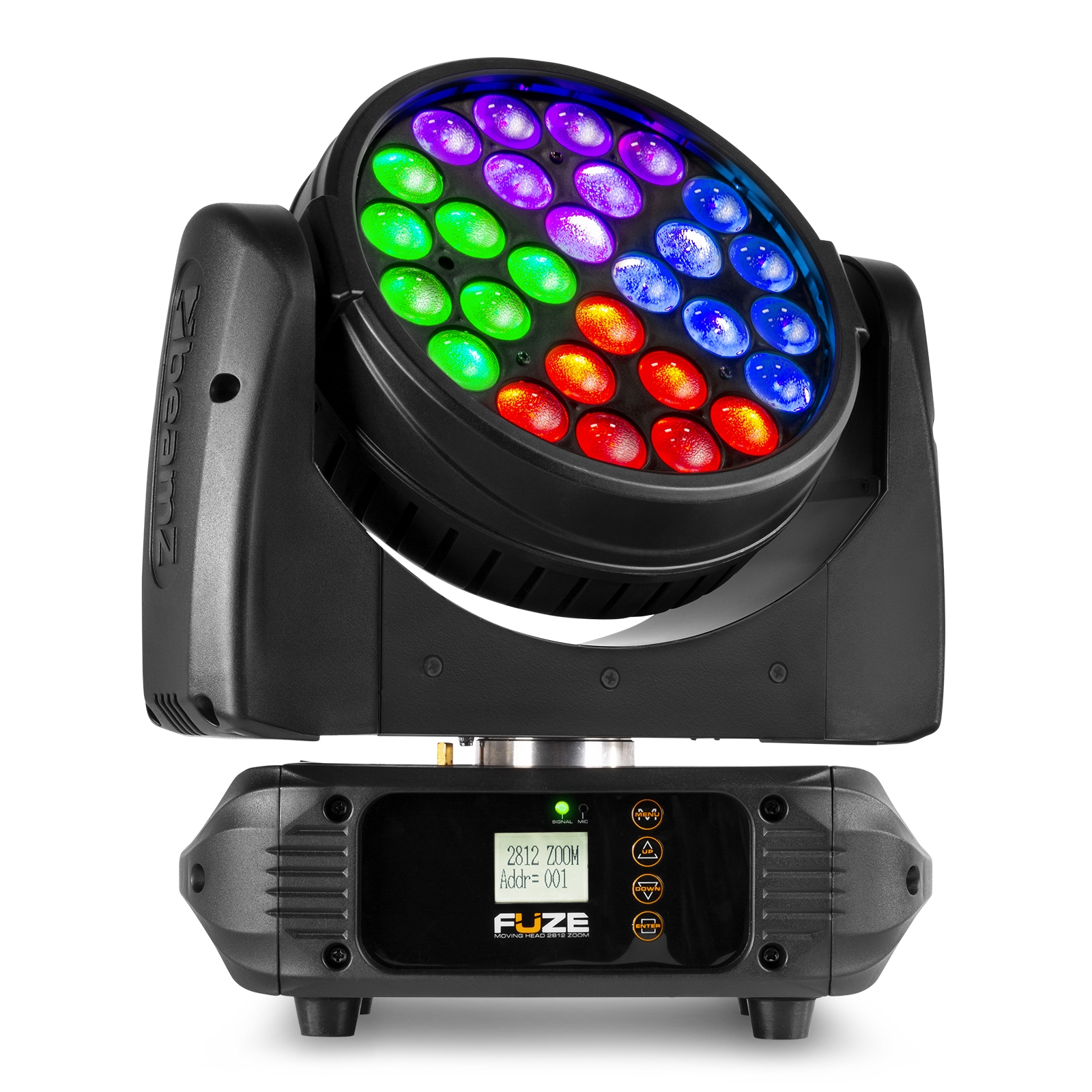

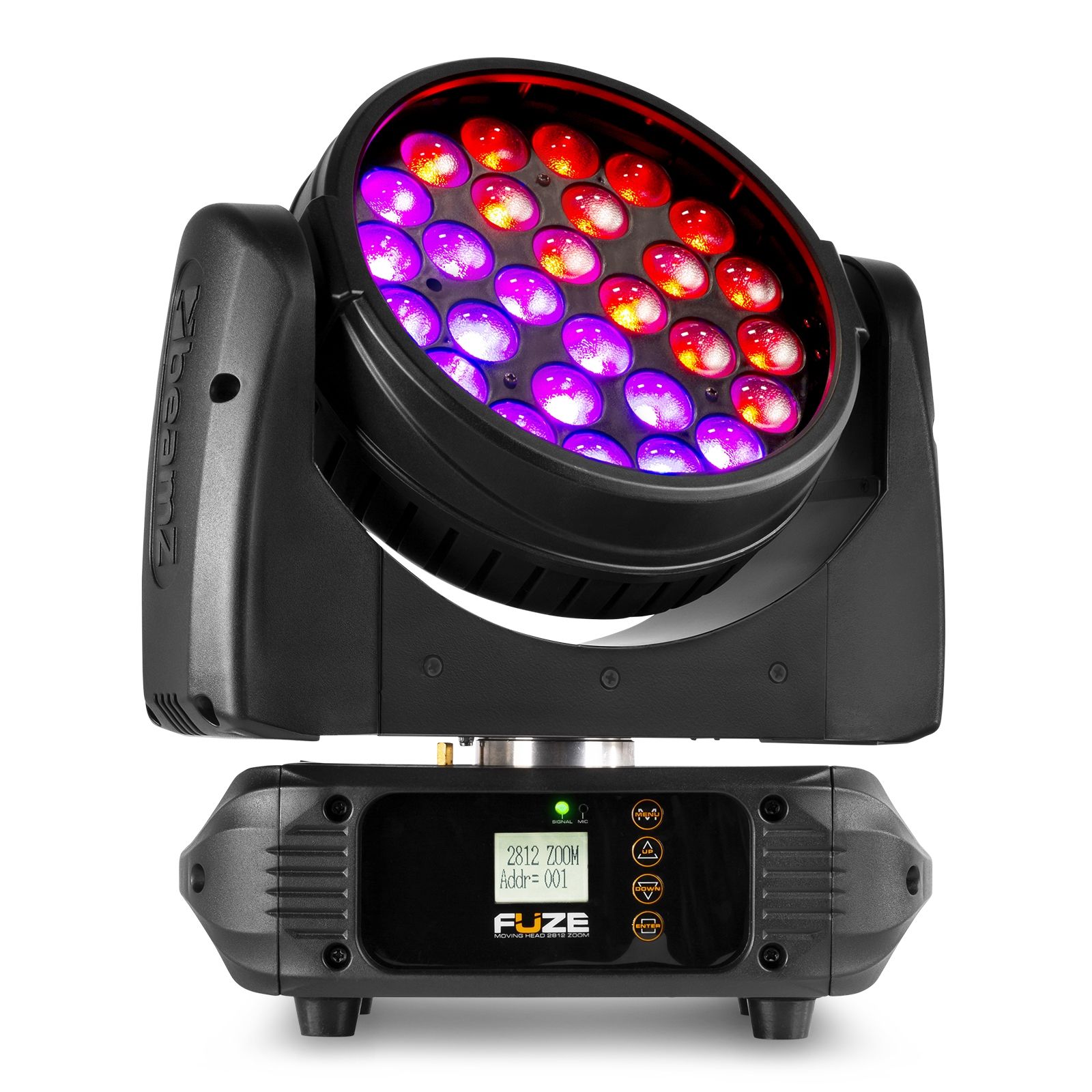

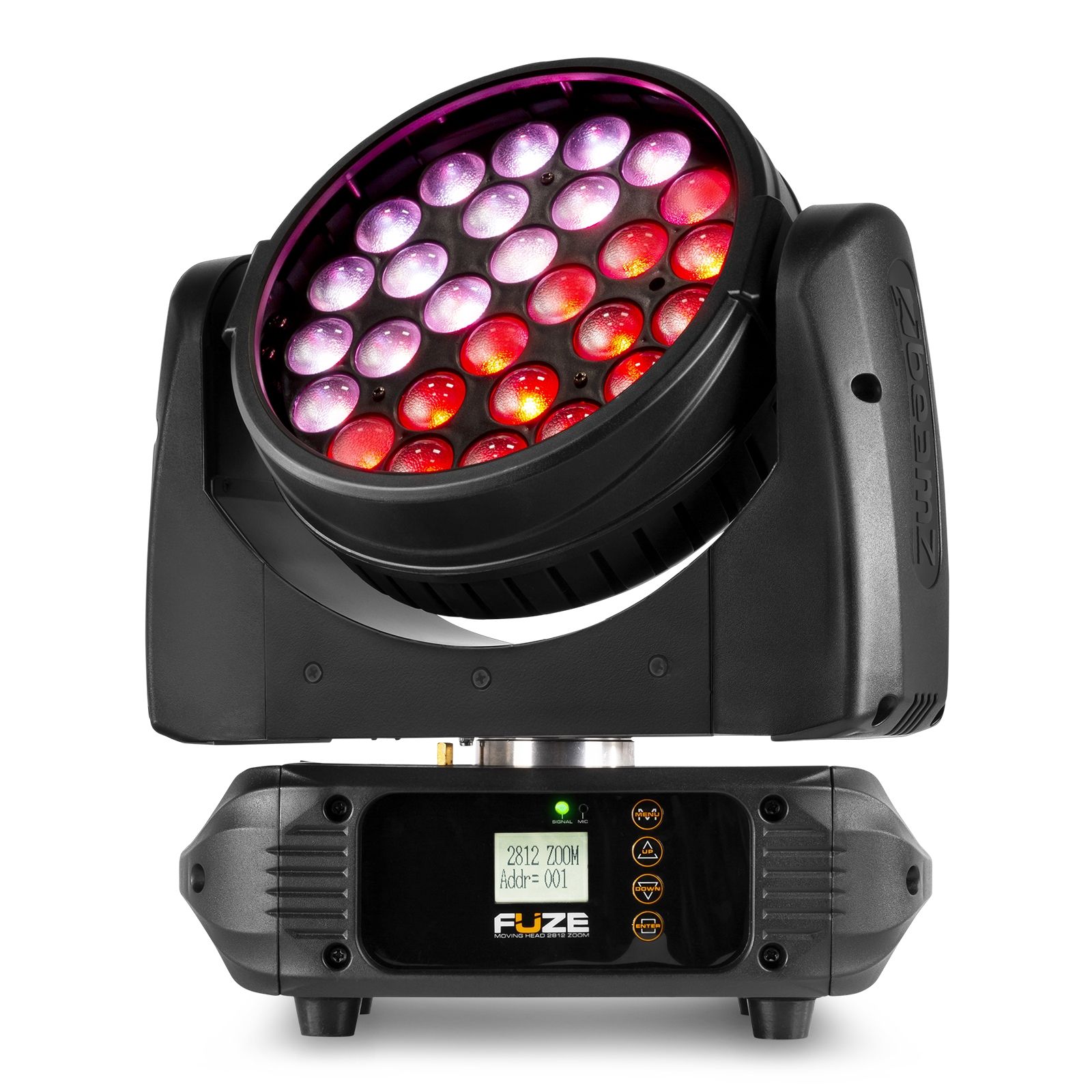

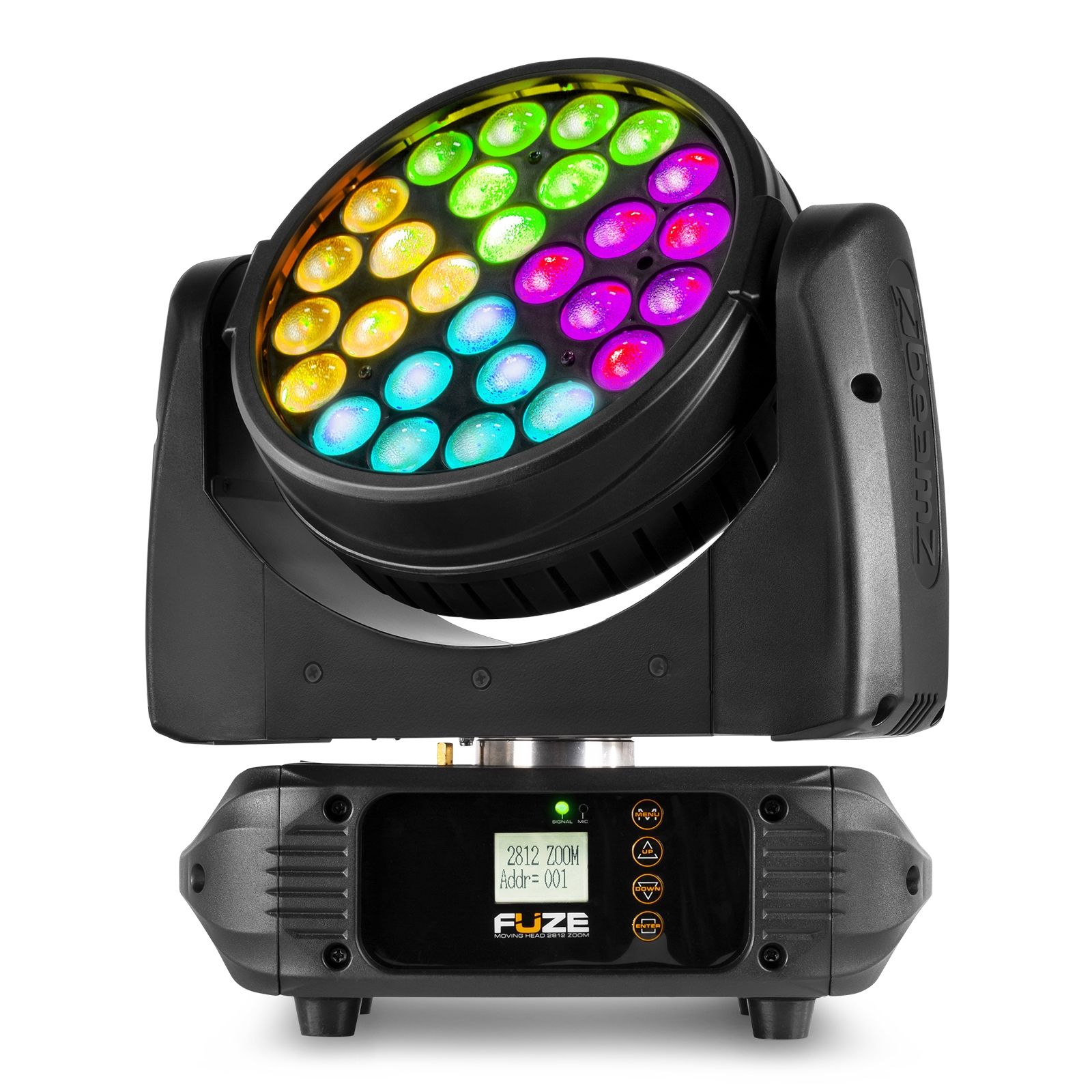

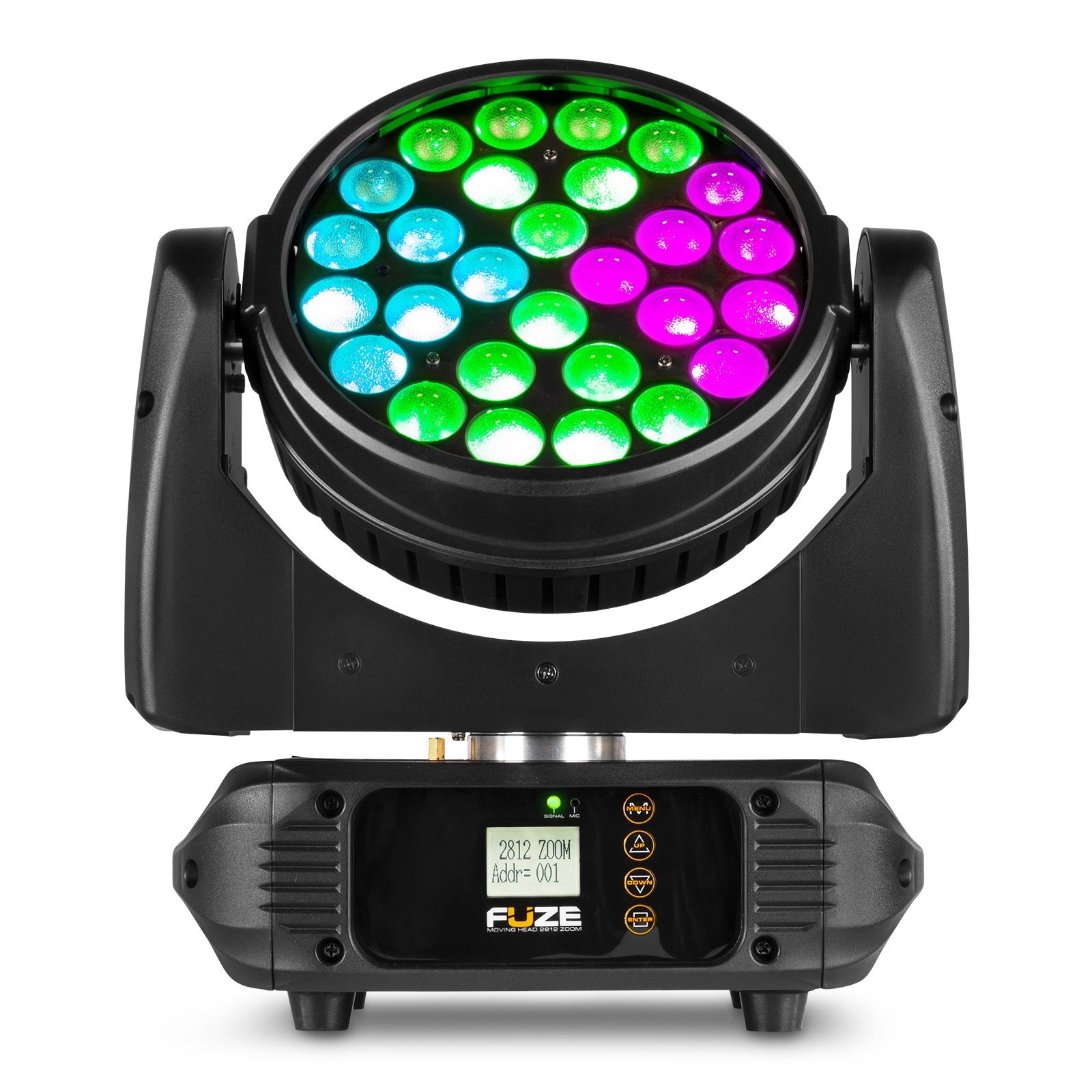

LED Wash Moving Head with Zoom
SKU 150.350
|EAN 8715693330632
+11
All product information
Compare
Fuze series
Description
Highlights
- Compact moving head wash with motorized zoom
- 28x 12W 6-in-1 LEDs
- RGBWA-UV Colour mix (red, green, blue, white, amber and UV)
- Linear colour temperature 2800K-8000K
- Group pixel control (4 x 7 LEDs)
- 21 or 45 DMX channels
- DMX, Auto, Sound and Stand-alone mode
- Master/slave synchronization
- Motorized zoom with beam angle from 18°-54°
- 0-100% Electronic Dimmer
- Wide pan and tilt range with smooth movement
- Reset function
- Control panel with TFT LCD display

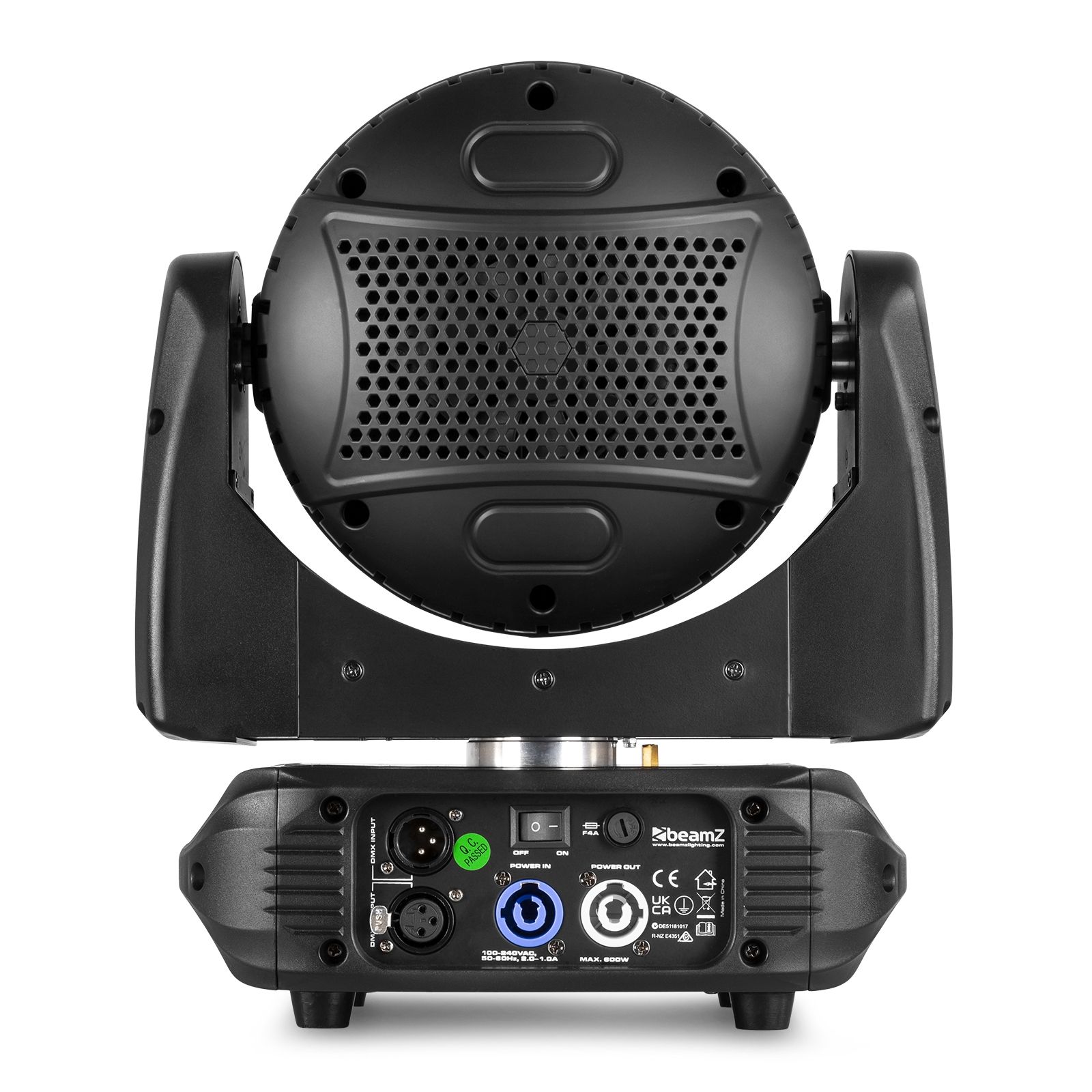

- DMX in/output via 3-pin XLR
- Quick release omega style brackets included
- Powerconnector cable, DMX cable and safety cord included
Specifications
BrandbeamZ
Product serieFuze series
ColourBlack
Light source
Light source
- 28x 12W RGBWA-UV
Colour Temp. White LED4000K
Optics
Beam angle
- 18 - 54
ZoomYes
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second0 - 21 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels21, 45
RDMNo
DMX connector3-pin XLR
Connections
Input connections
- N/A
- N/A
Output connections
- N/A
- N/A
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical

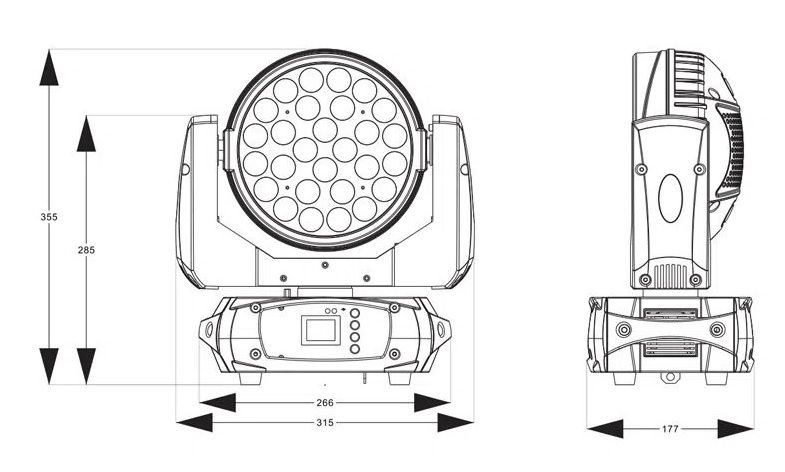

Dimensions
- 230 x 245 x 290 mm (W x D x H)
Weight
- 5.3 kg
Dimensions
- 270 x 310 x 360 mm (W x D x H)
Weight
- 6 kg
Accessories
Included Accessories
- DMX cable
- Mounting bracket
- Power adapter
- Power cable
- Safety cord
