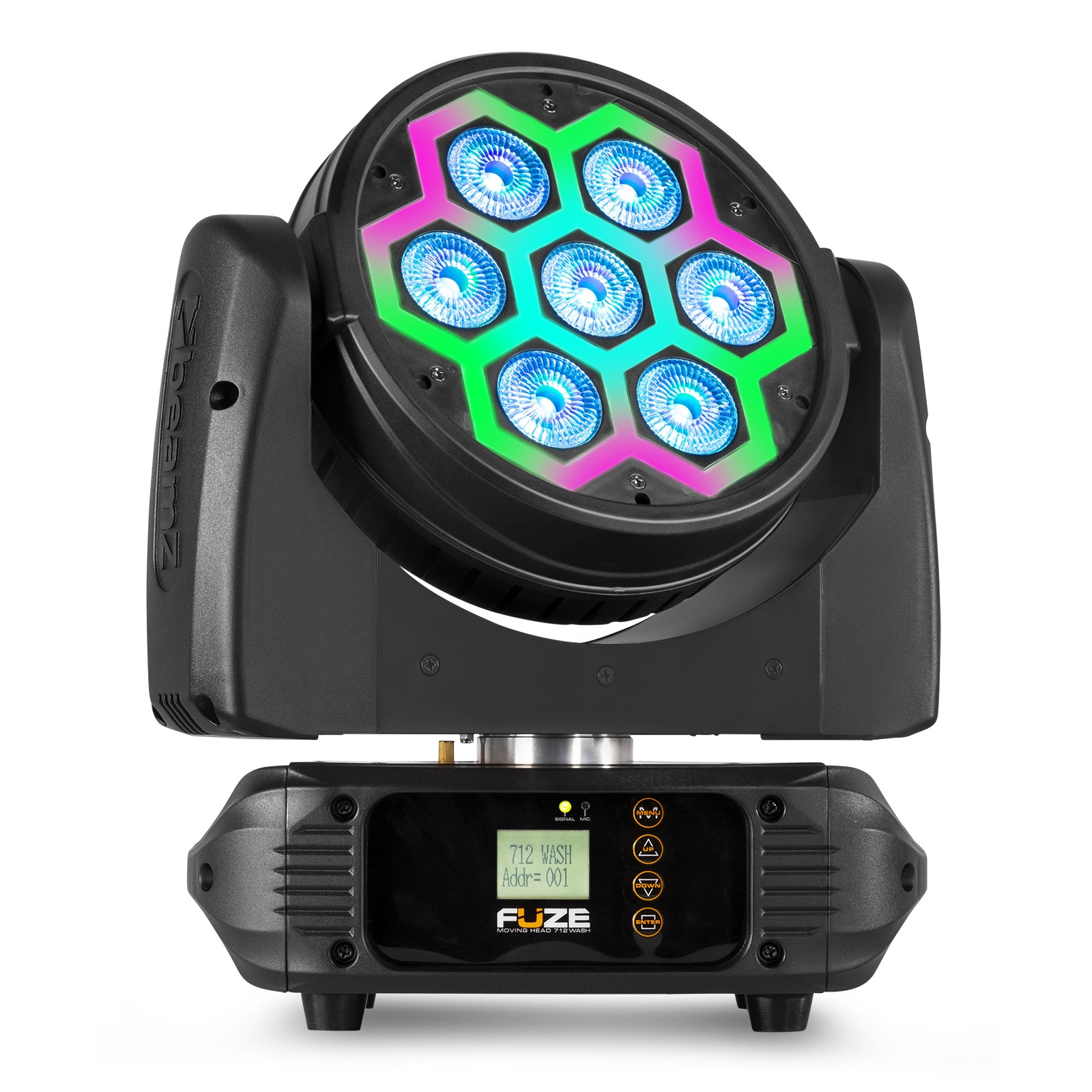

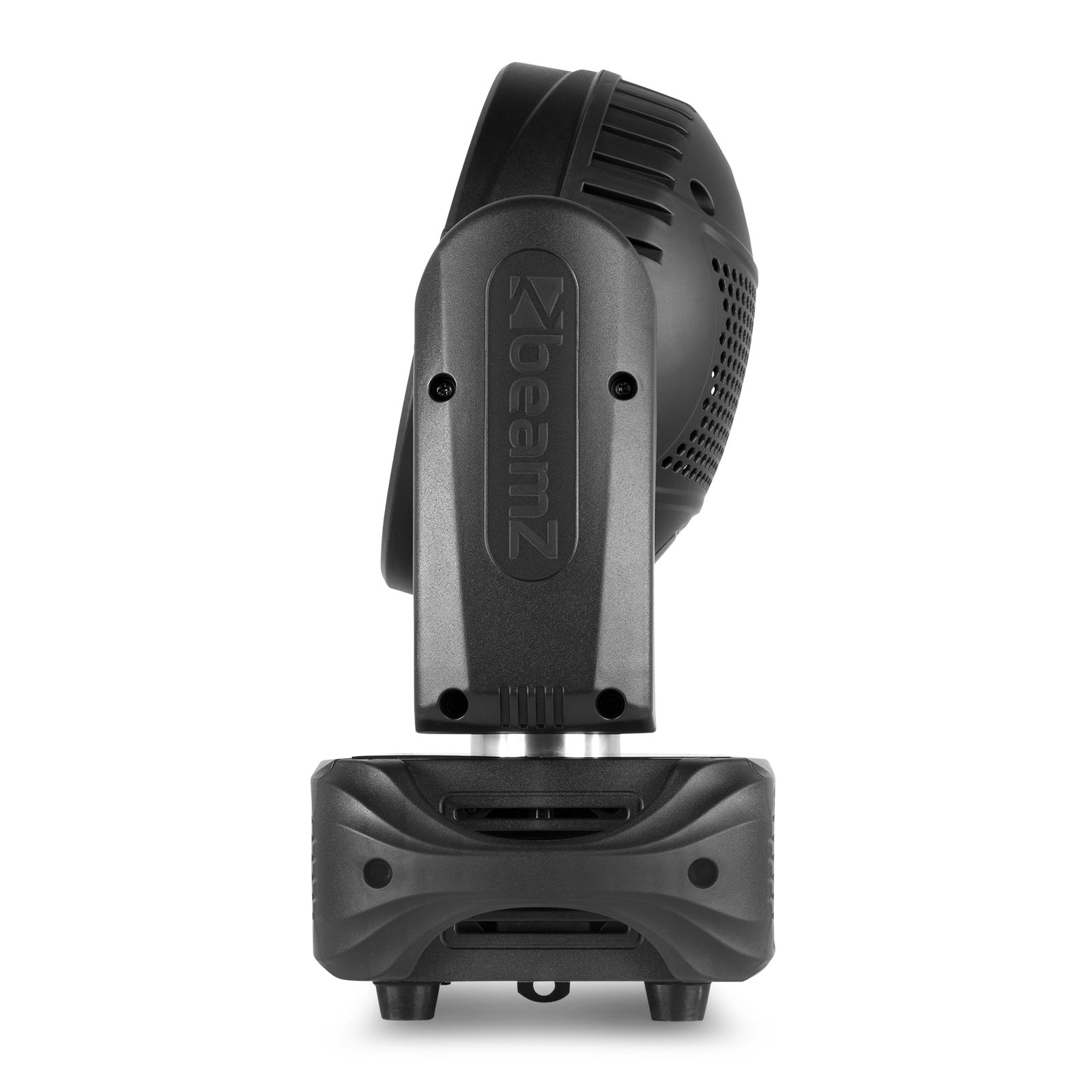

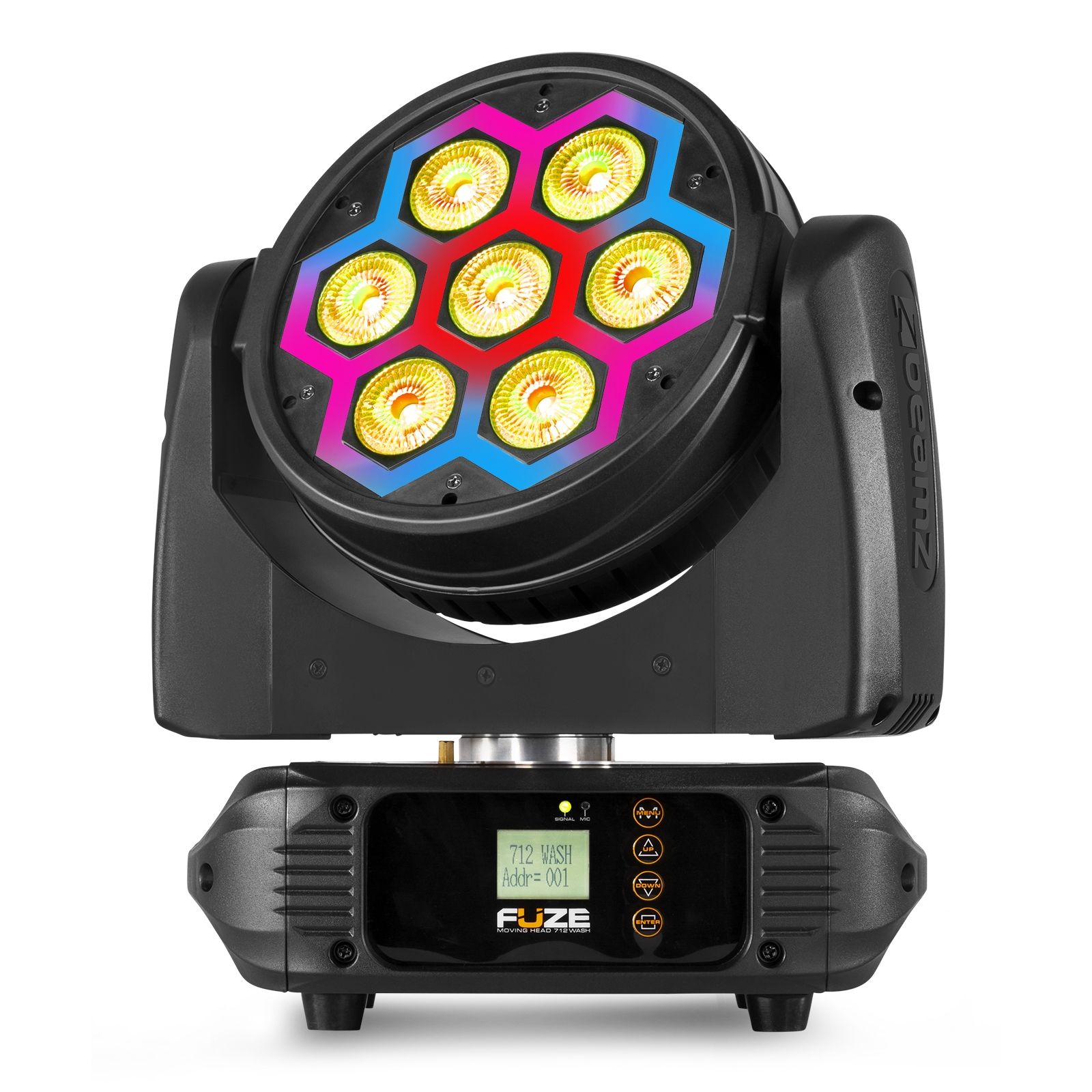

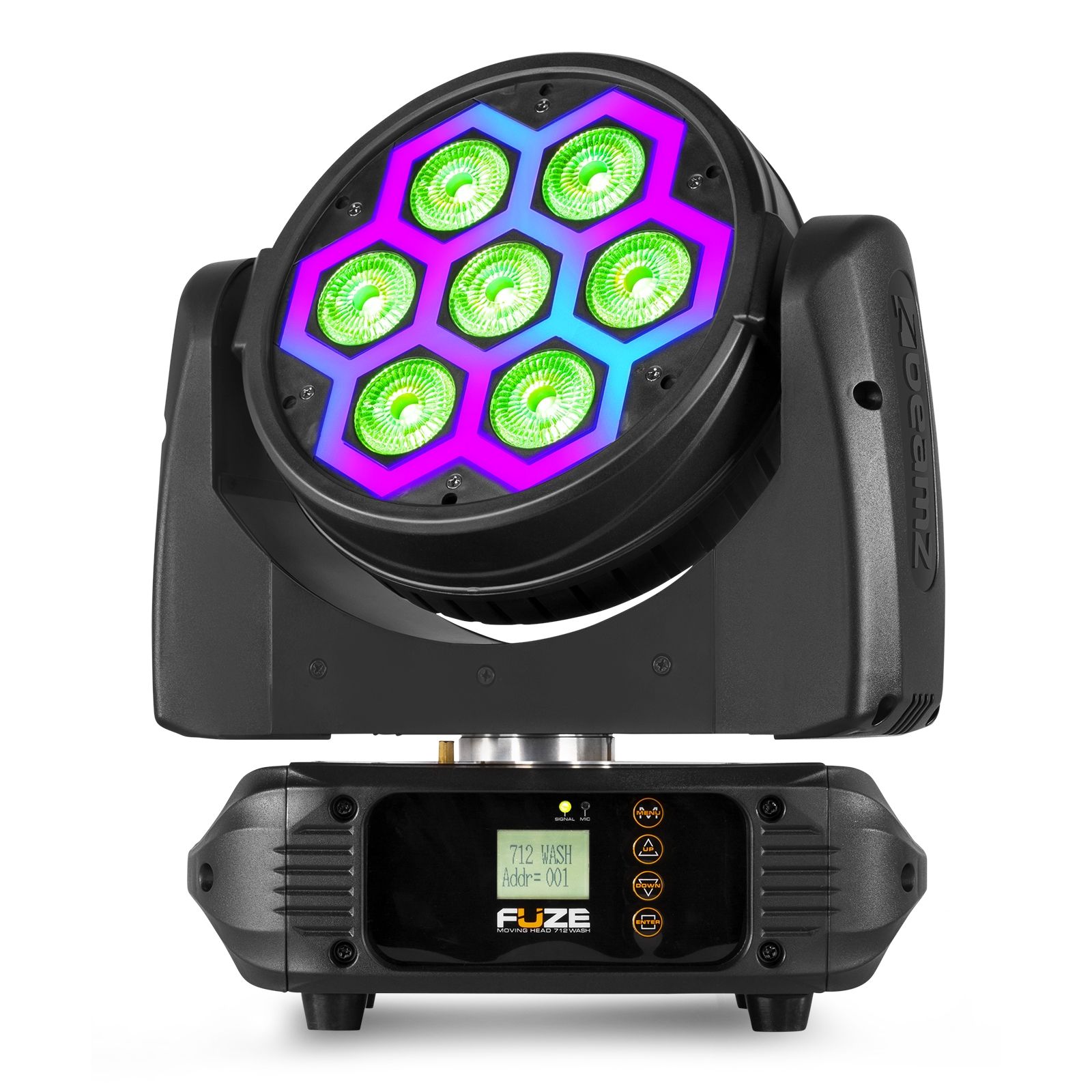

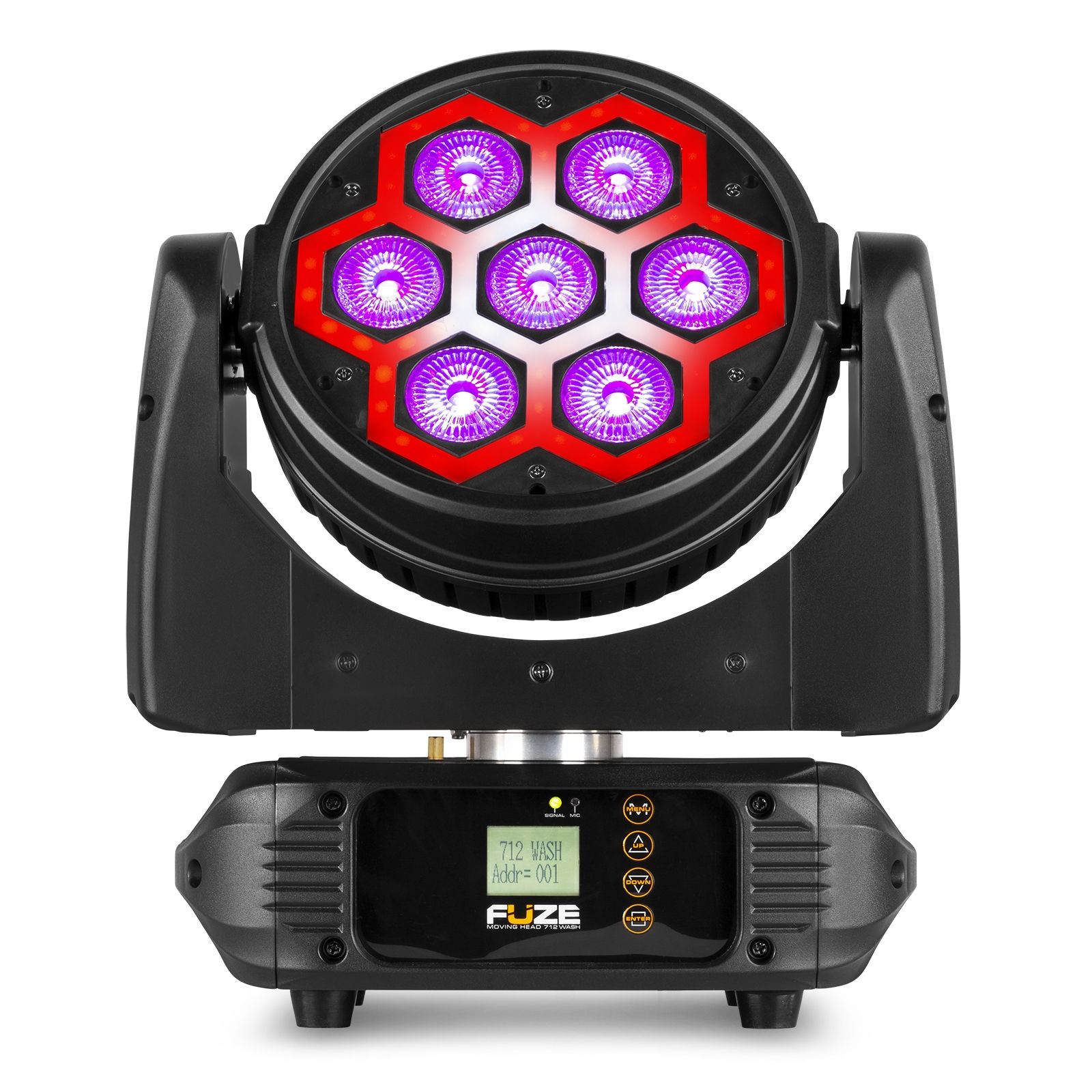

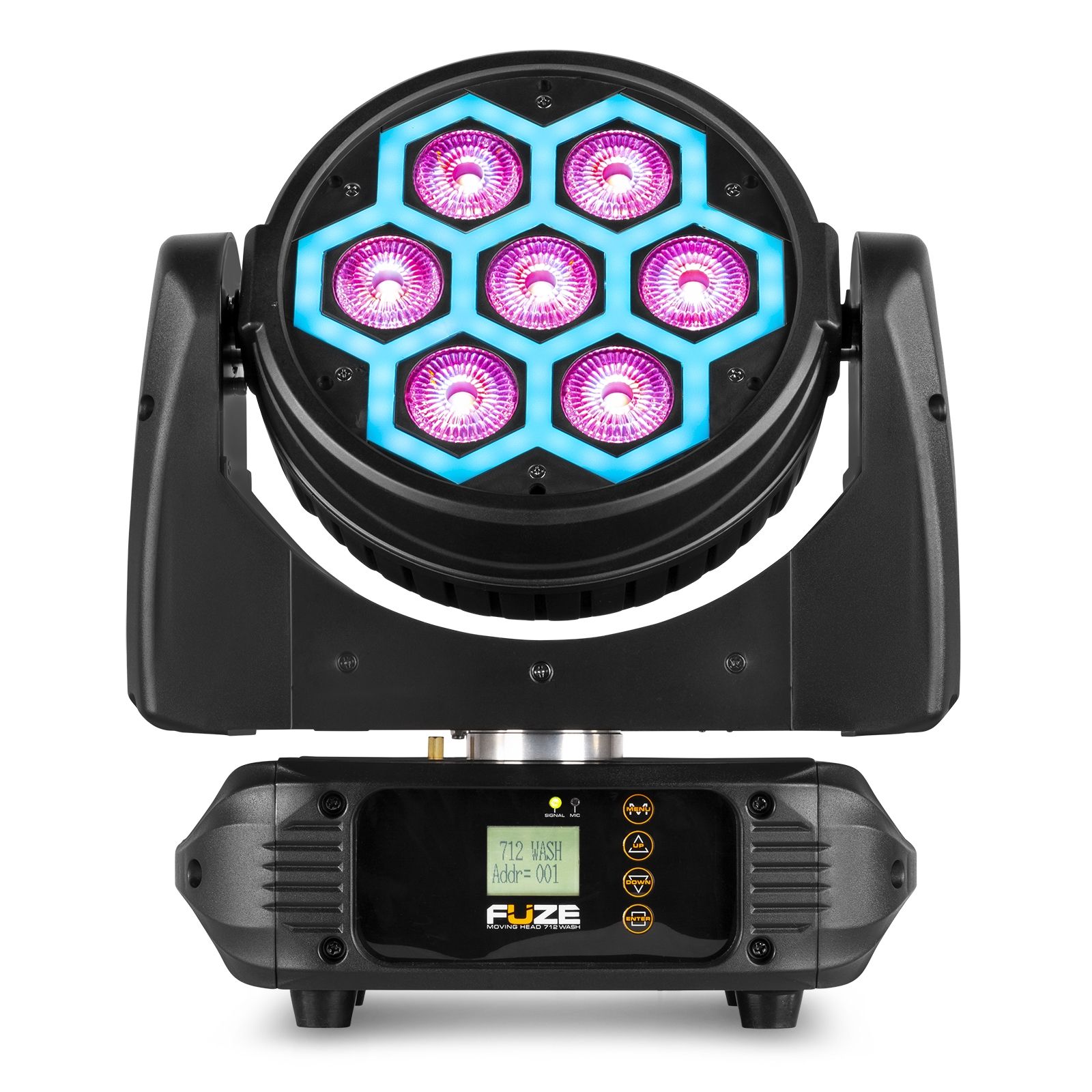

Fuze712
LED Wash Moving Head with SMD Effect
SKU 150.352
|EAN 8715693330649
+10
All product information
Compare
Fuze series
Description
Highlights
- Compact moving head wash SMD LED effect
- 7x 12W 4-in-1 LEDs
- RGBW Colour mix (red, green, blue and white)
- 60x SMD RGB LEDs for Neon light effect
- Linear colour temperature 2800K-8000K
- Full LED controllable
- 23 or 28 DMX channels
- DMX, Auto, Sound and Static colour mode
- Master/slave synchronization
- 0-100% Electronic Dimmer
- Wide pan and tilt range with smooth movement
- Reset function
- Control panel with TFT LCD display

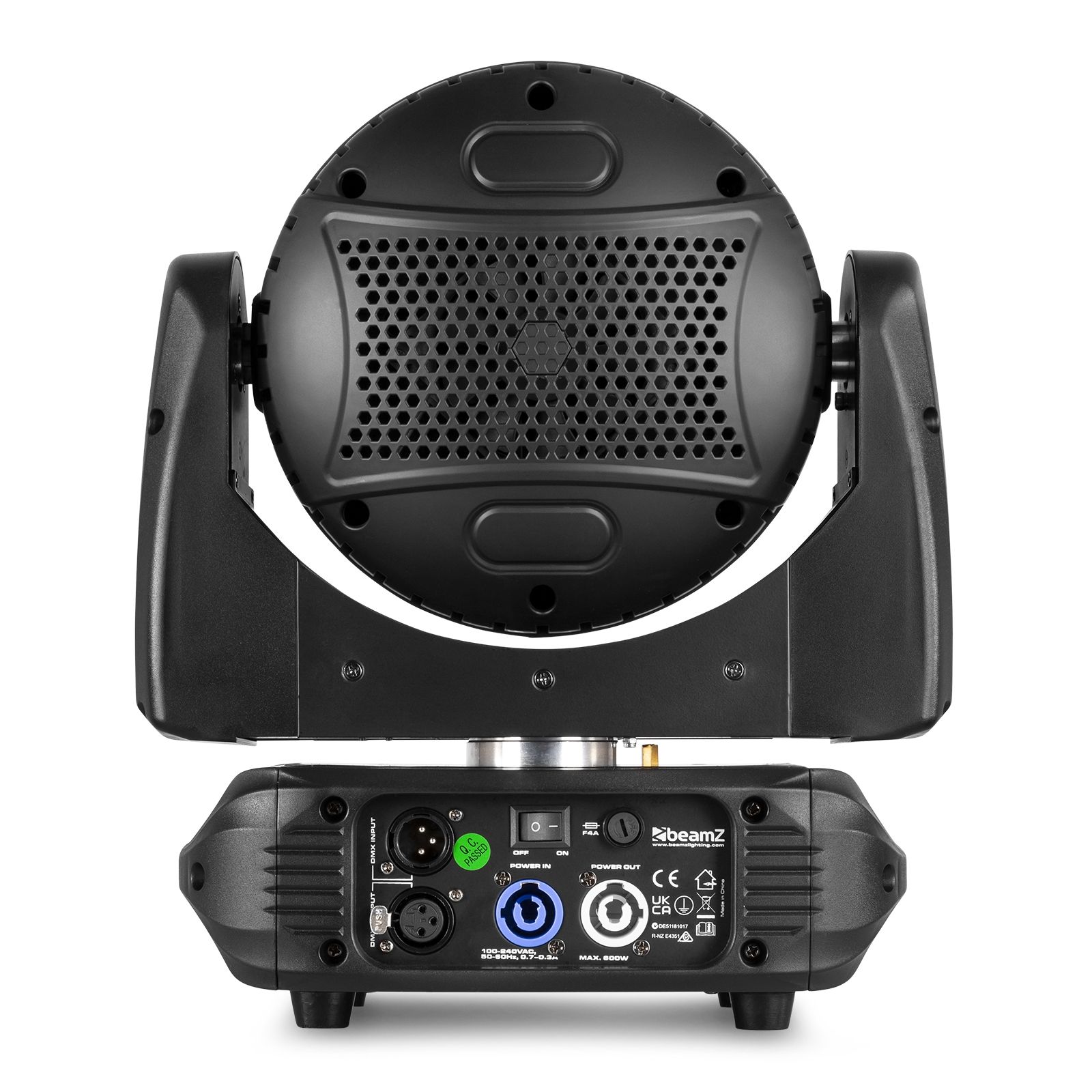

- DMX in/output via 3-pin XLR
- Quick release omega style brackets included
- Powerconnector cable, DMX cable and safety cord included
Specifications
BrandbeamZ
Product serieFuze series
ColourBlack
Light source
Light source
- 7x 12W RGBW
Colour Temp. White LED4000K
Optics
Beam angle
- 23°
ZoomNo
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second0 - 21 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels23
RDMNo
DMX connector3-pin XLR
Connections
Input connections
- N/A
- N/A
Output connections
- N/A
- N/A
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical

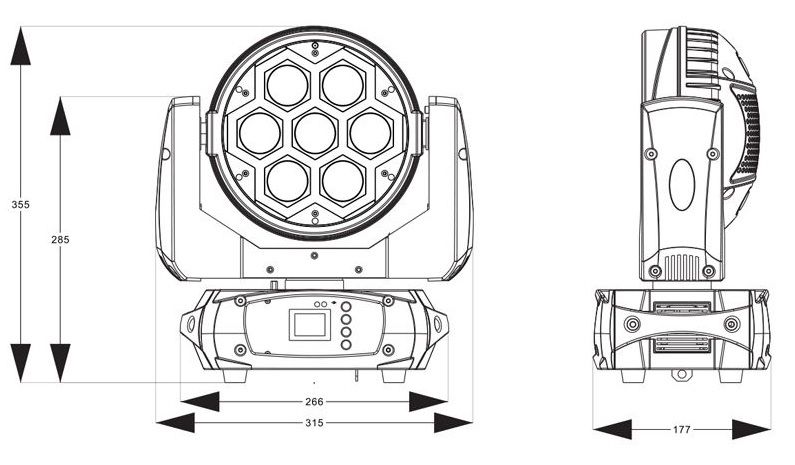

Dimensions
- 230 x 245 x 290 mm (W x D x H)
Weight
- 5.3 kg
Dimensions
- 270 x 310 x 360 mm (W x D x H)
Weight
- 5.4 kg
Accessories
Included Accessories
- DMX cable
- Mounting bracket
- Power adapter
- Power cable
- Safety cord
