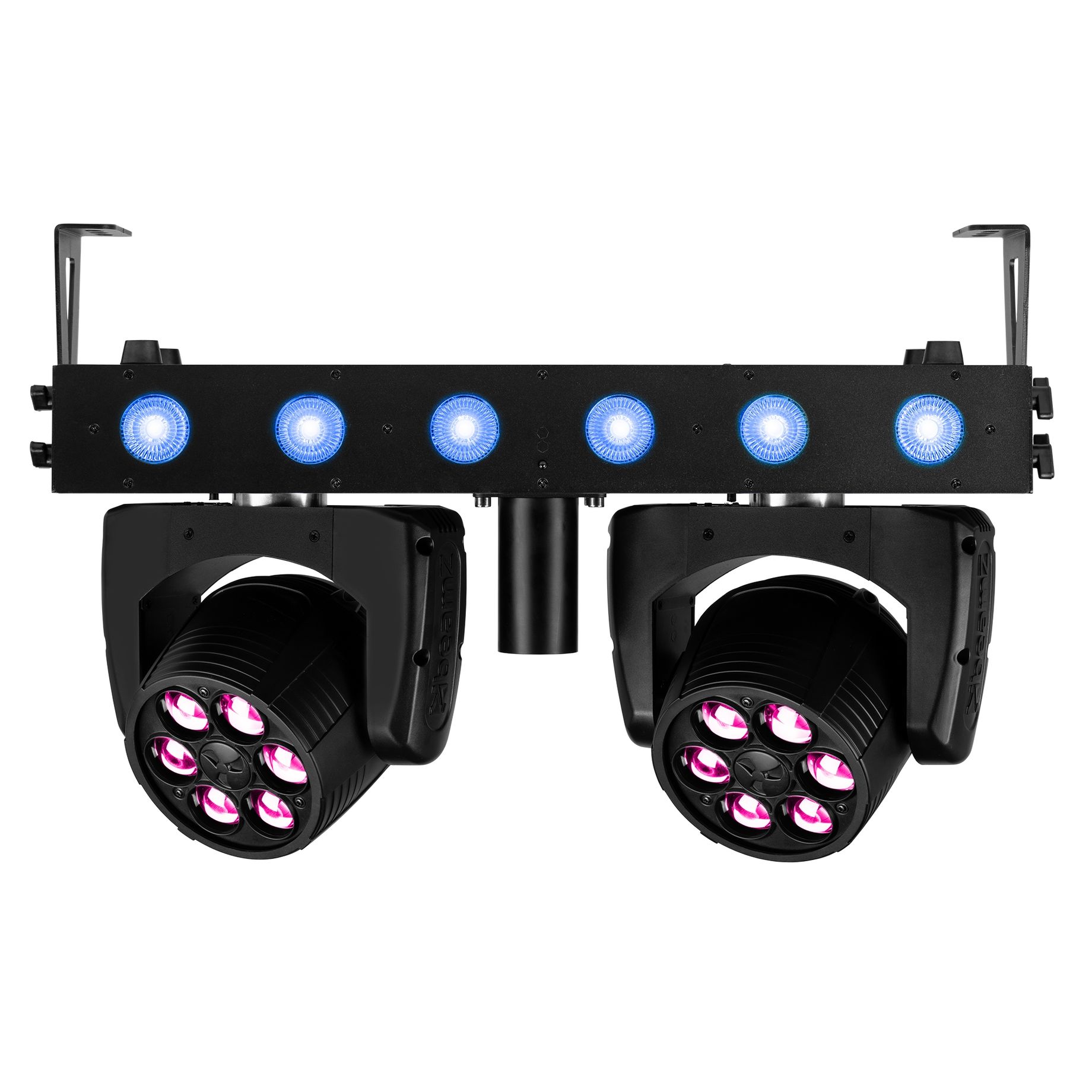

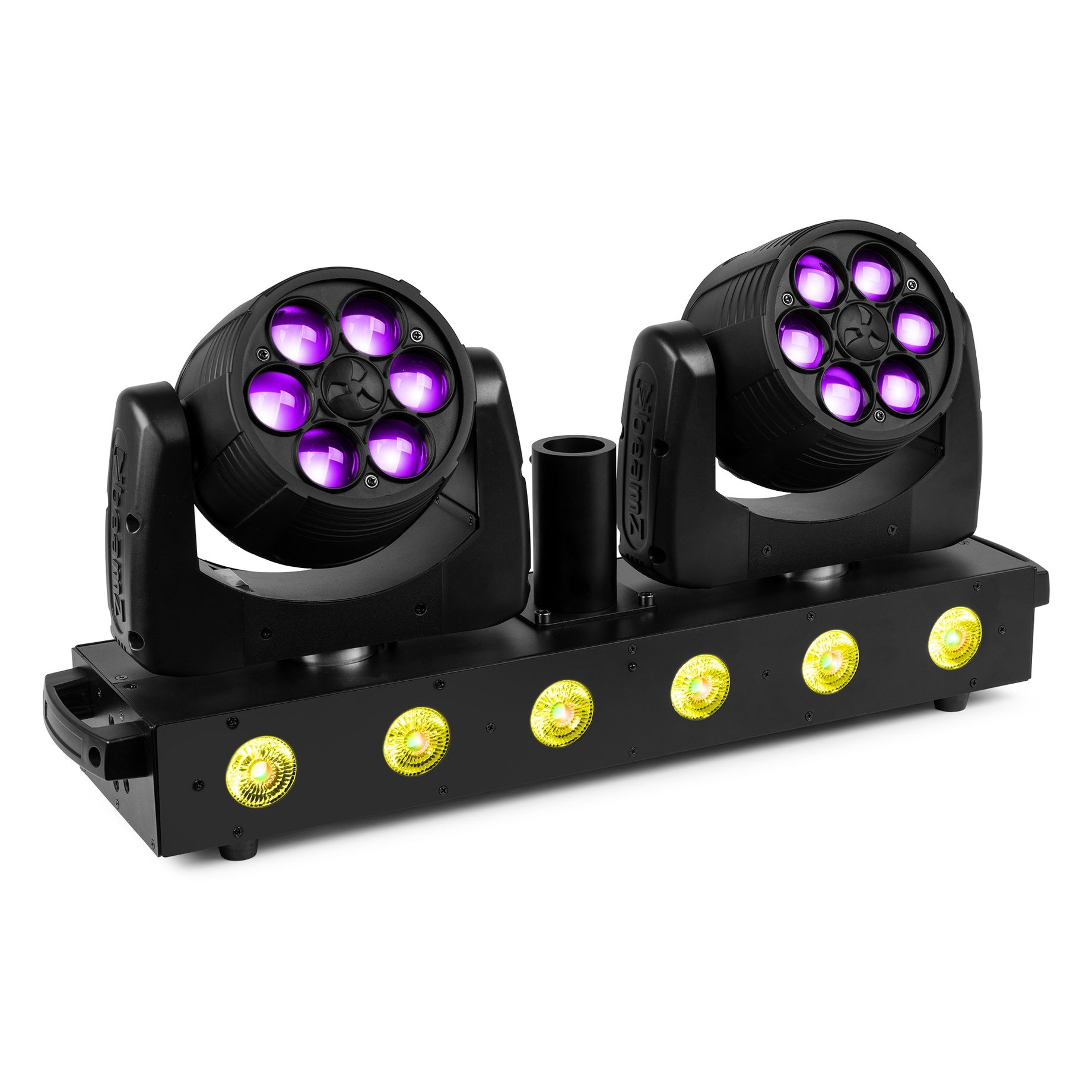

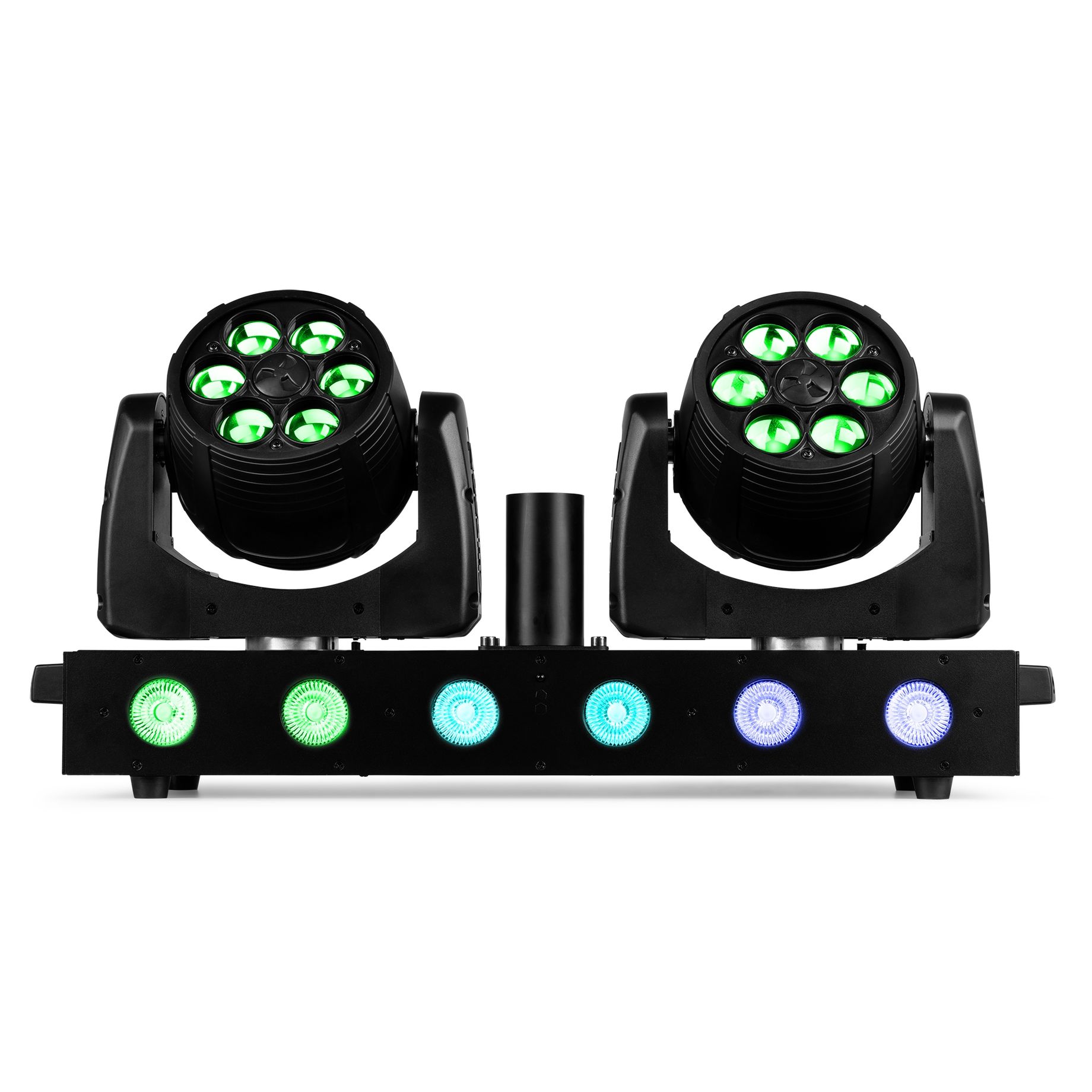

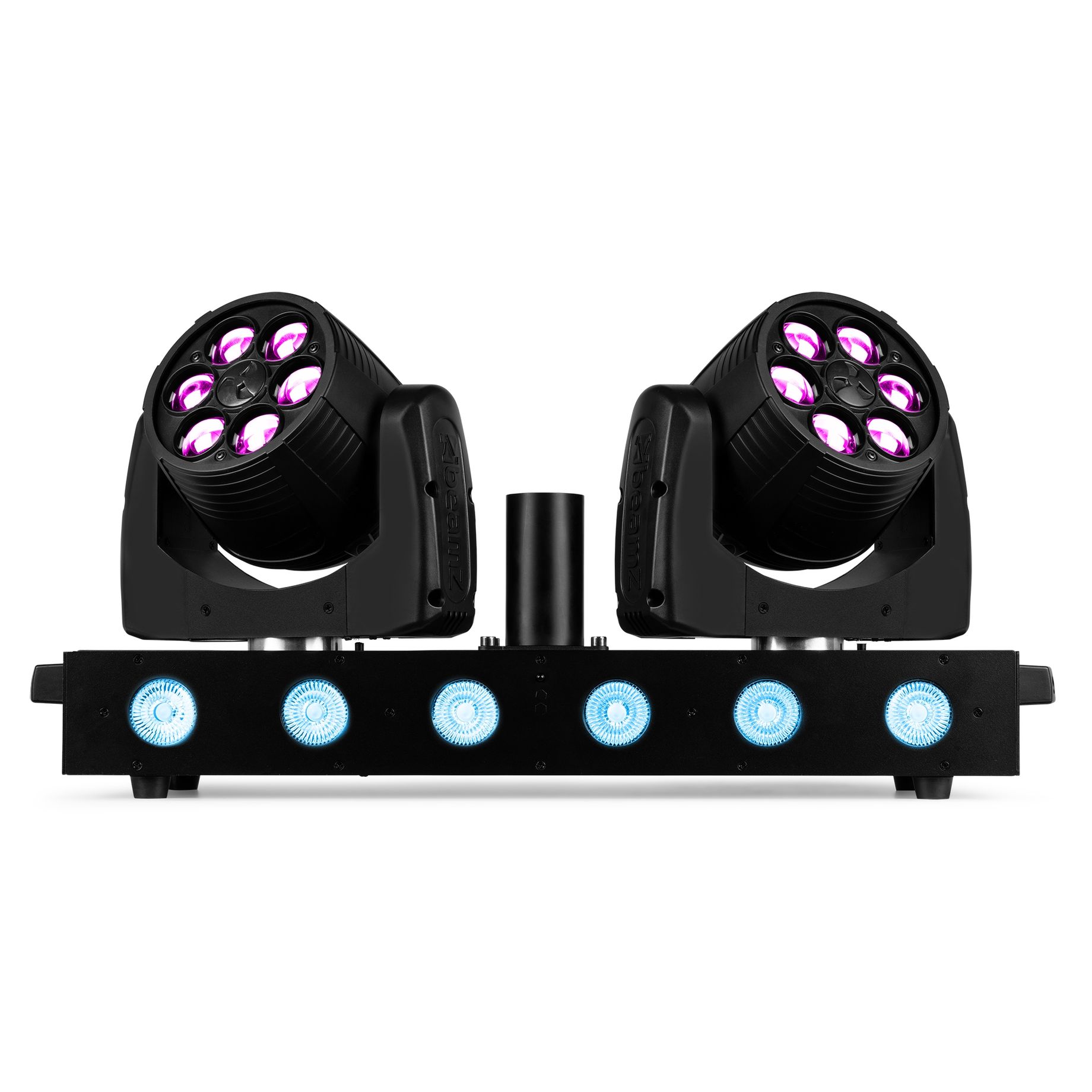

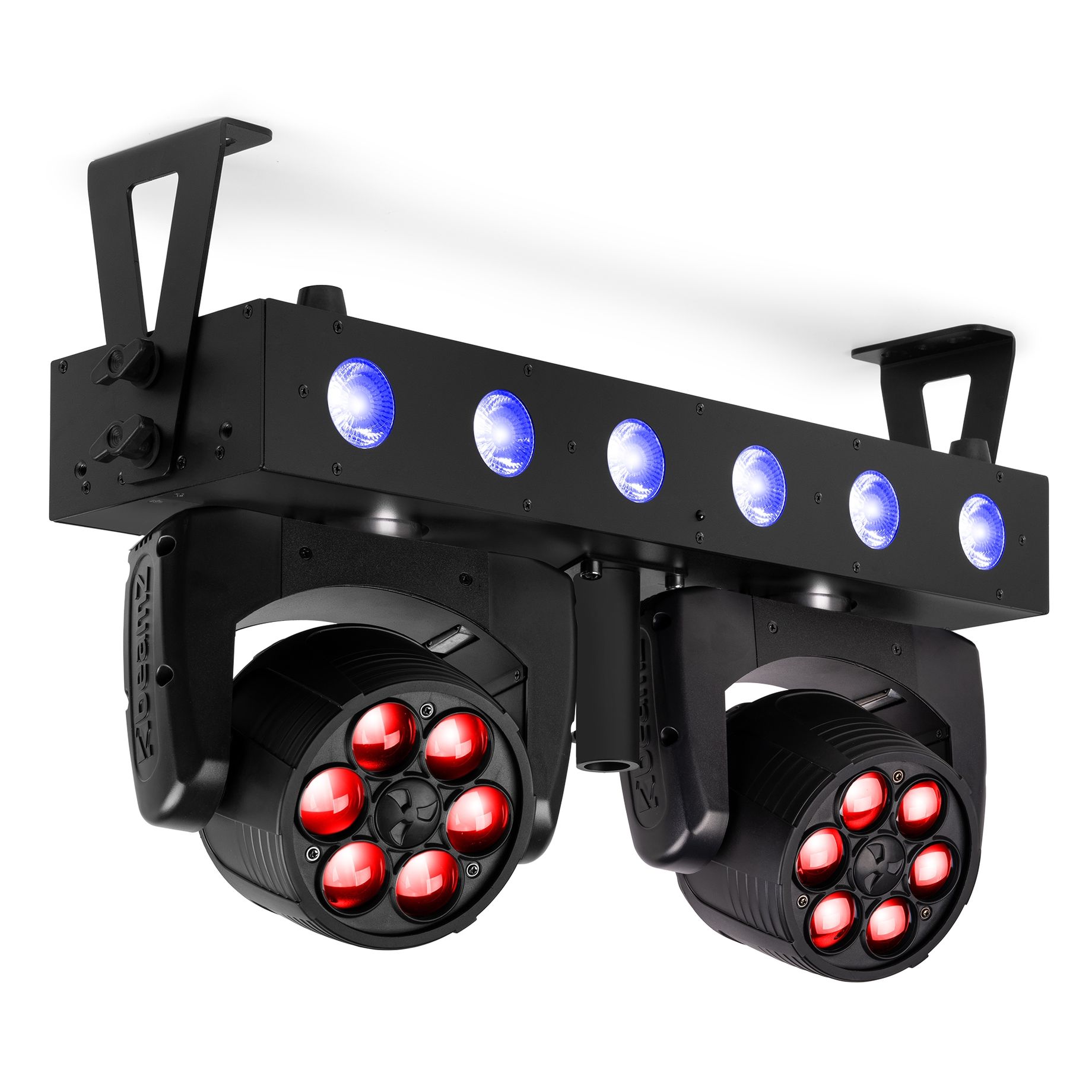

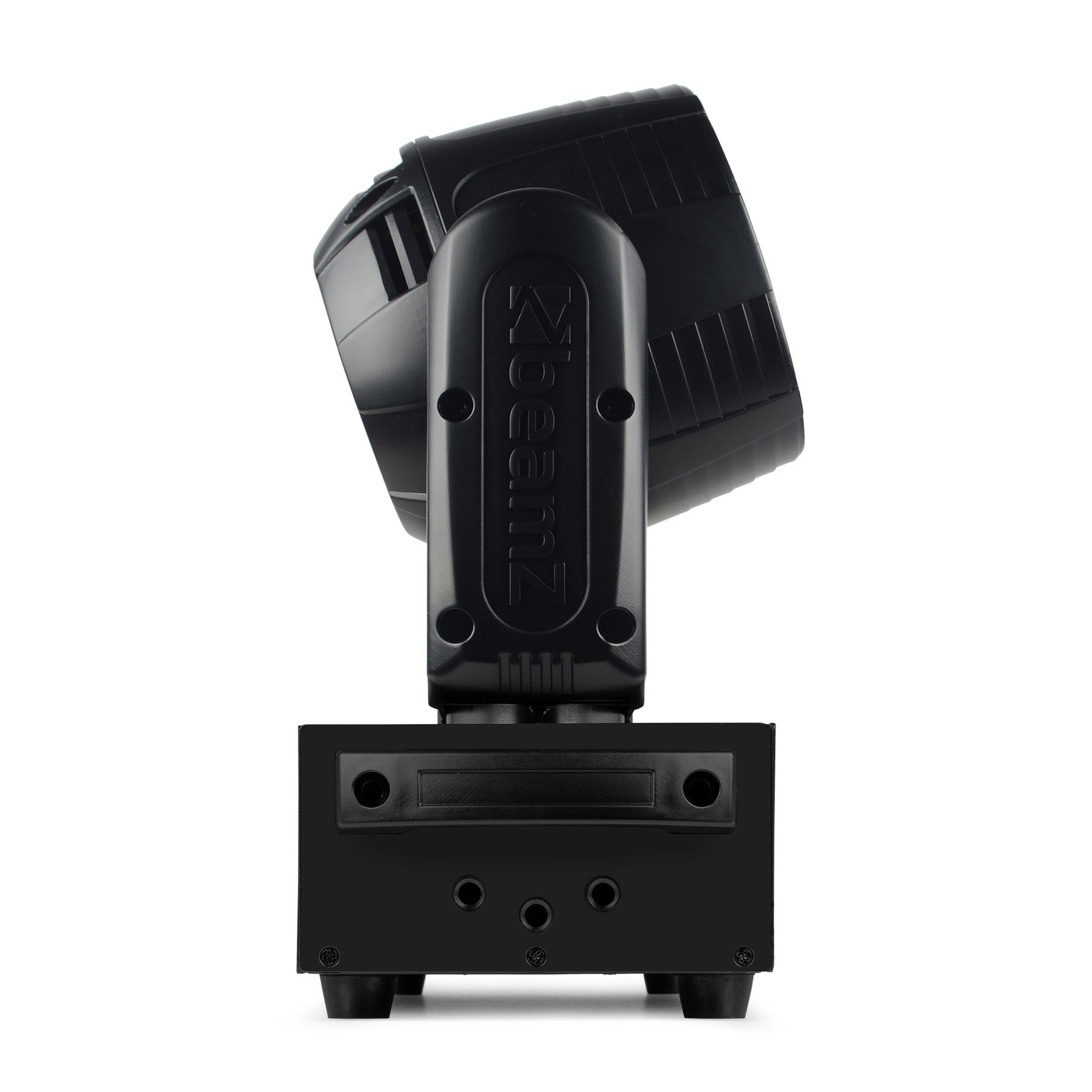

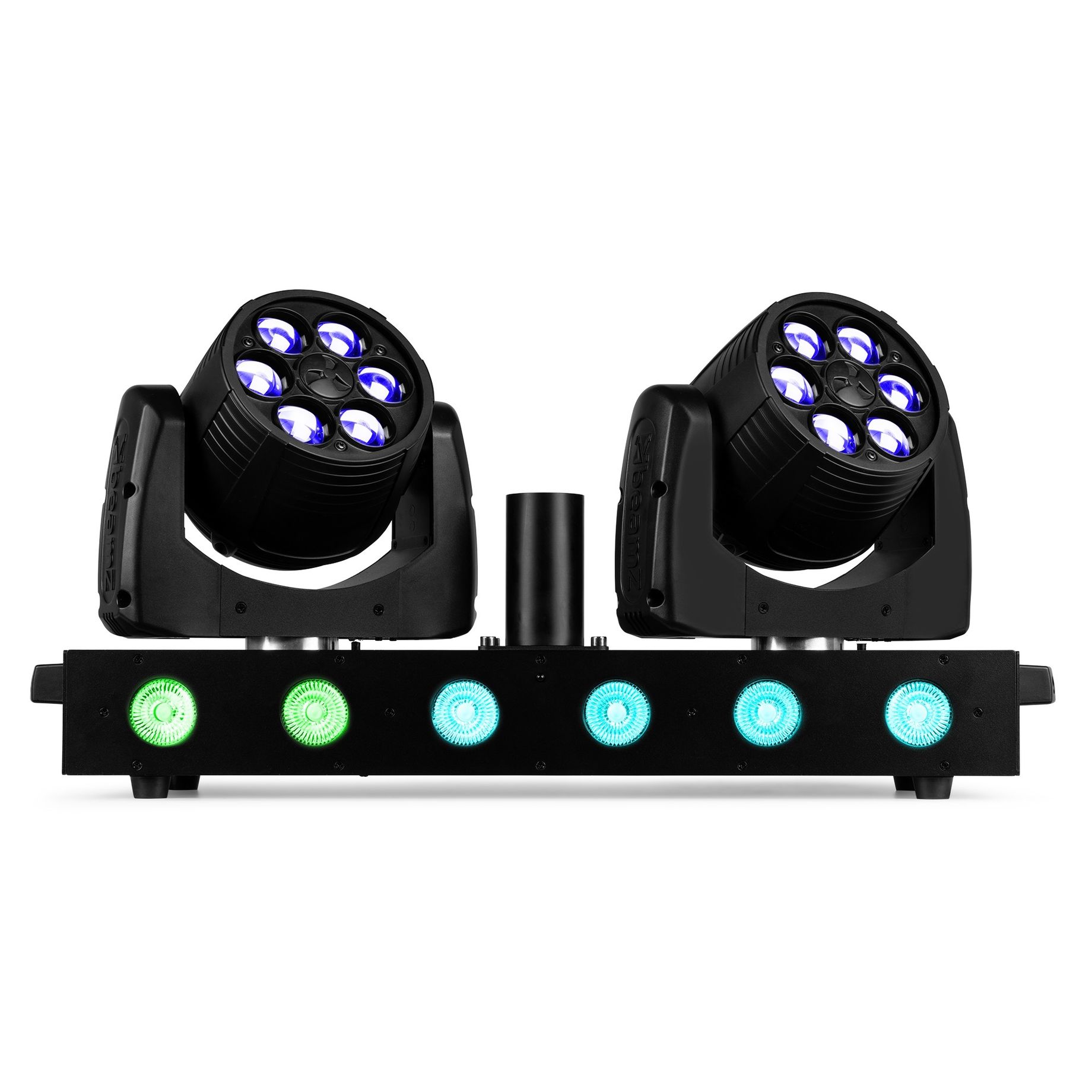

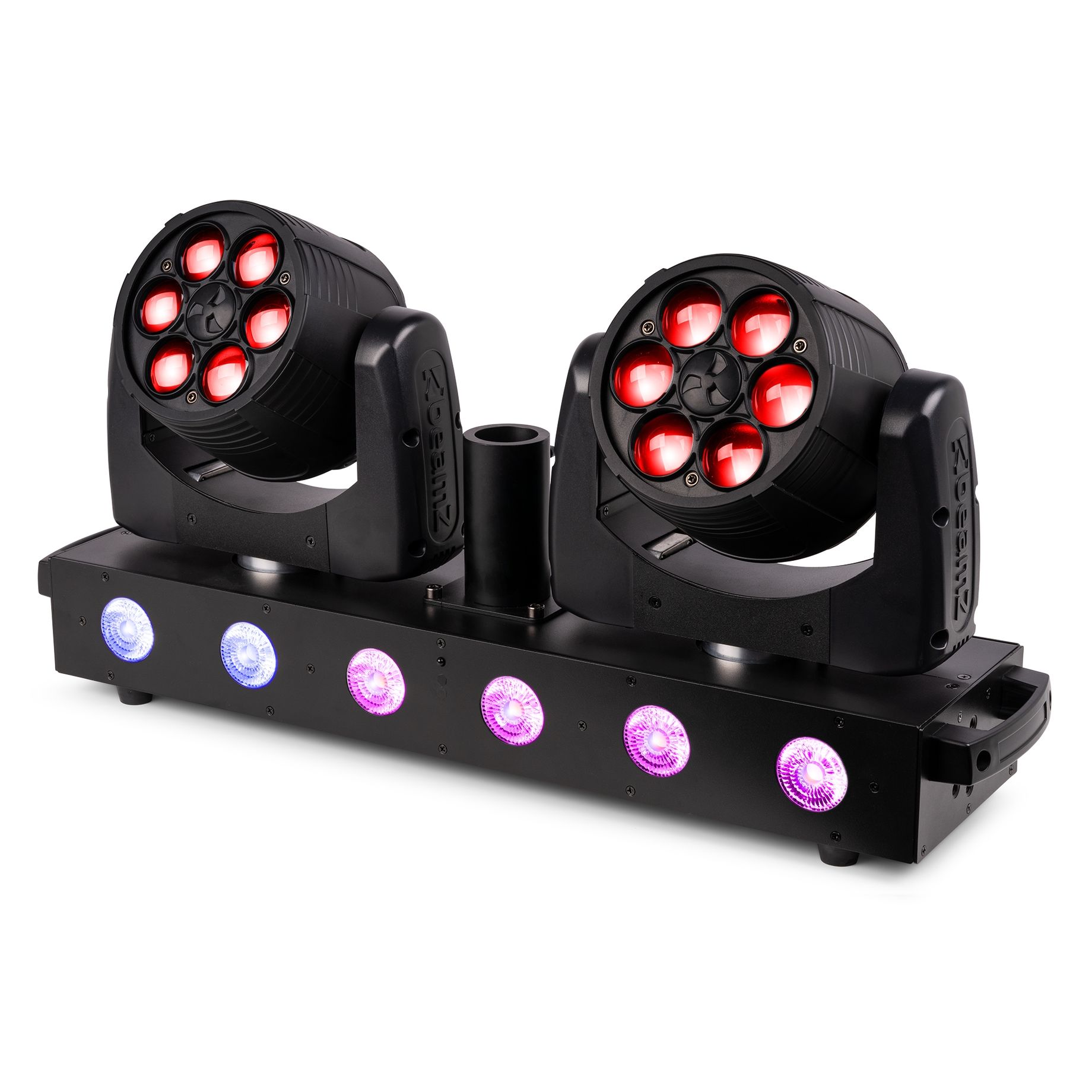

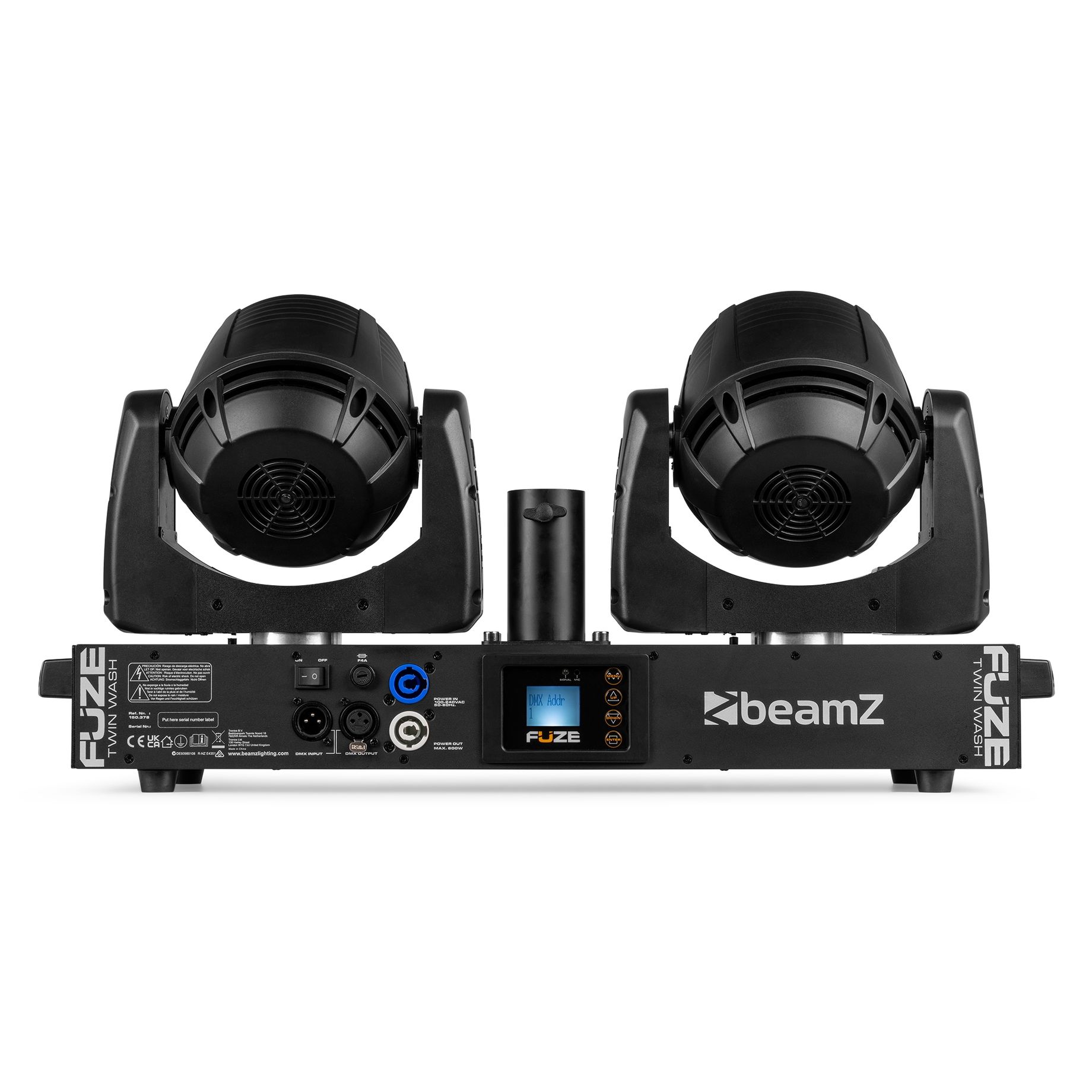

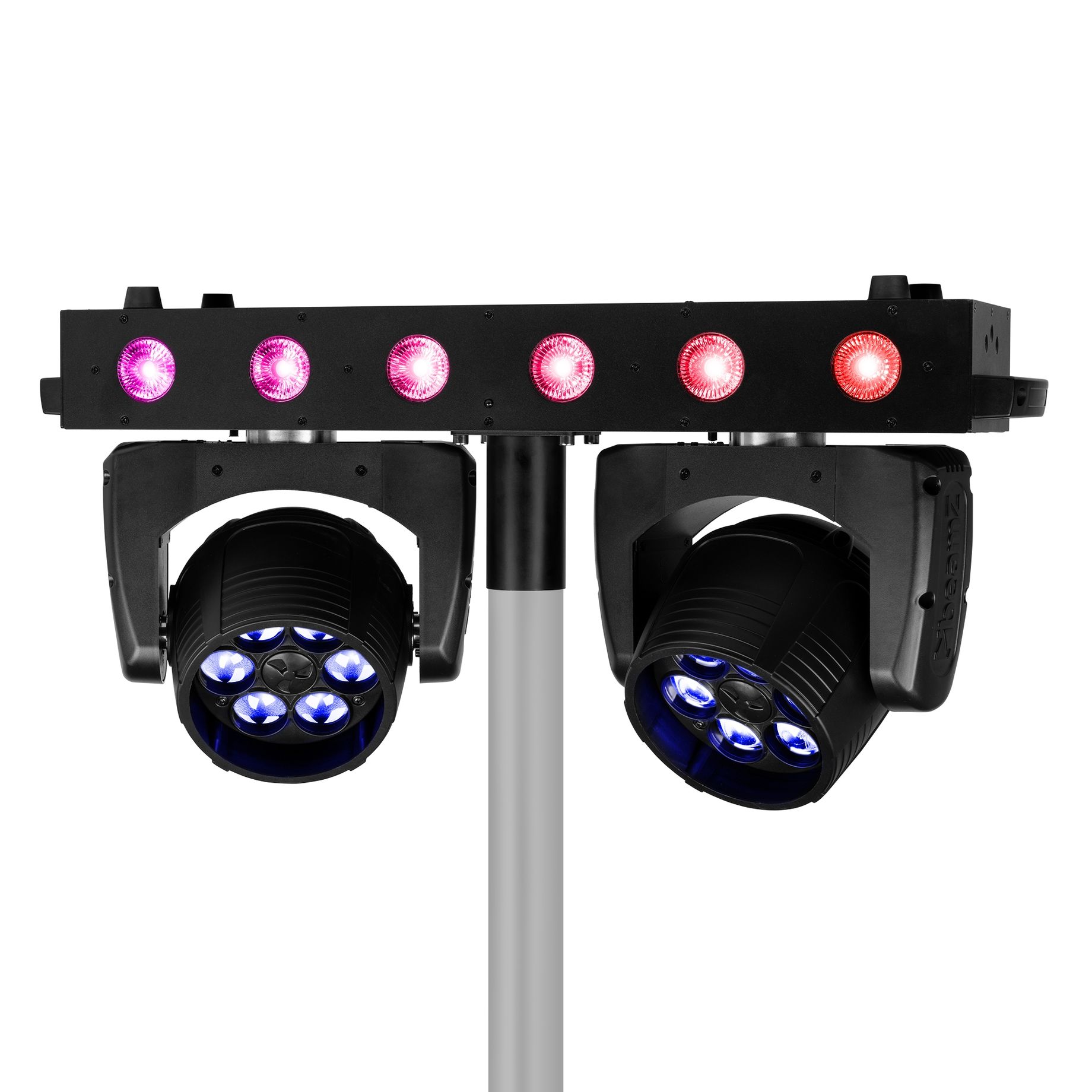

Twin LED Wash Moving Head Bar
SKU 150.378
|EAN 8715693359336
All product information
Compare
Fuze series
Description
Highlights
- Moving heads: 6x 12W RGBW LEDs each
- LED T-Bar: 6x 15W RGBW LEDs
- DMX and Stand-alone mode
- 0-100% Electronic Dimmer
- User-selectable pan and tilt
- Strobe: 1-16Hz
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- Auto programs and Sound programs
- Control panel with LCD display
- DMX in/output via 3-pin XLR
- P-Con input/output
- Two handles for easy transport
Specifications
BrandbeamZ
Product serieFuze series
ColourBlack
Moving head typeWash
Light source
Light source: Moving head
- 6x 12W RGBW LED
Light source: LED bar
- 6x 15W RGBW LED
Colour Temperature3.2 - 8 K
Illuminance39000 lx @ 1m
Optics
Beam angle: Wash
- 2 - 24
ZoomYes
Movement
Pan Movement630° (16-bit)
Tilt Movement270° (16-bit)
Features
Flash Per Second1 - 21 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels23, 38
RDMNo
DMX connector3-pin XLR
Connections
Input connections
- N/A
- N/A
Output connections
- N/A
- N/A
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 570 x 143 x 330 mm (W x D x H)
Weight
- 8.85 kg
Accessories

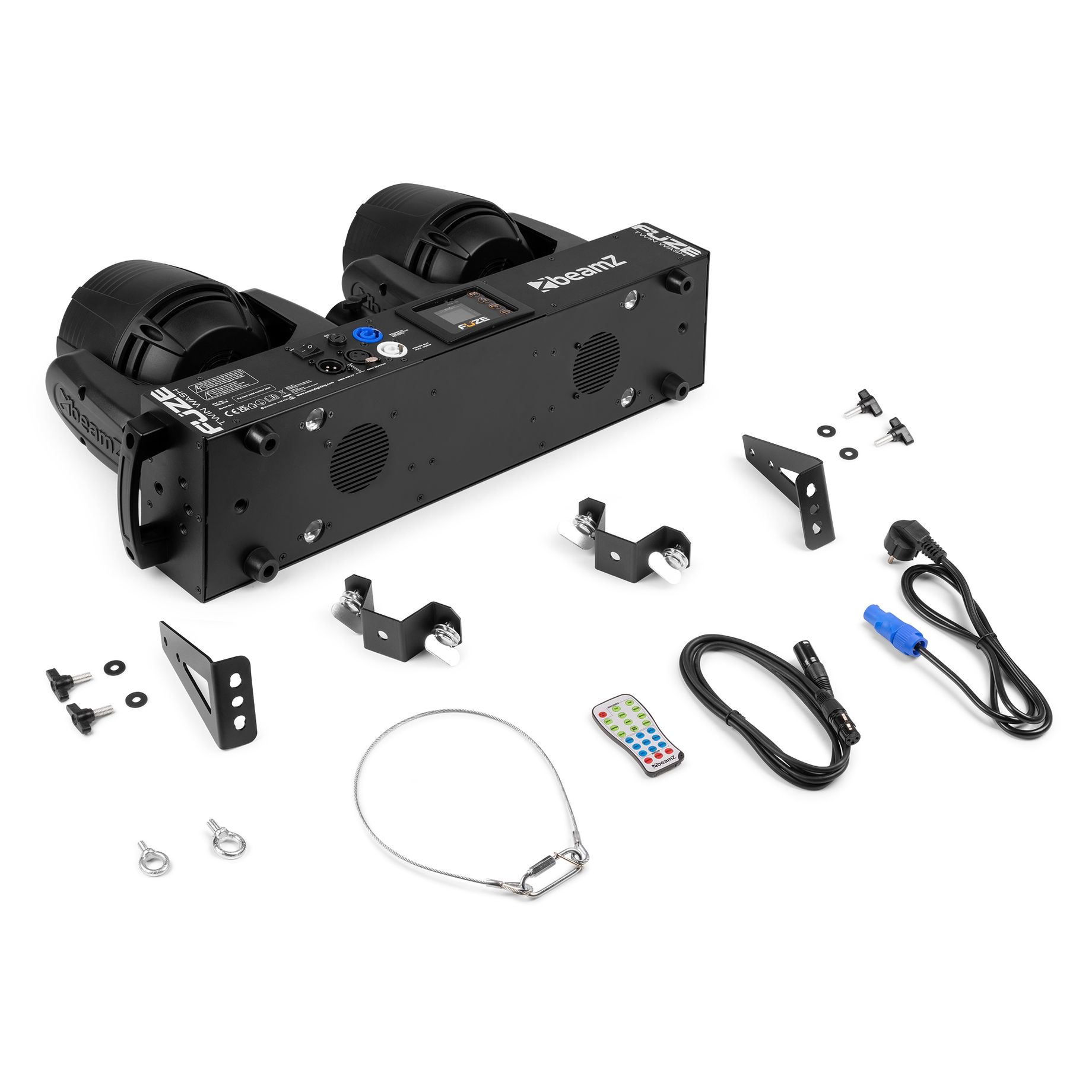

Included Accessories
- DMX cable
- Mounting bracket
- Power cable

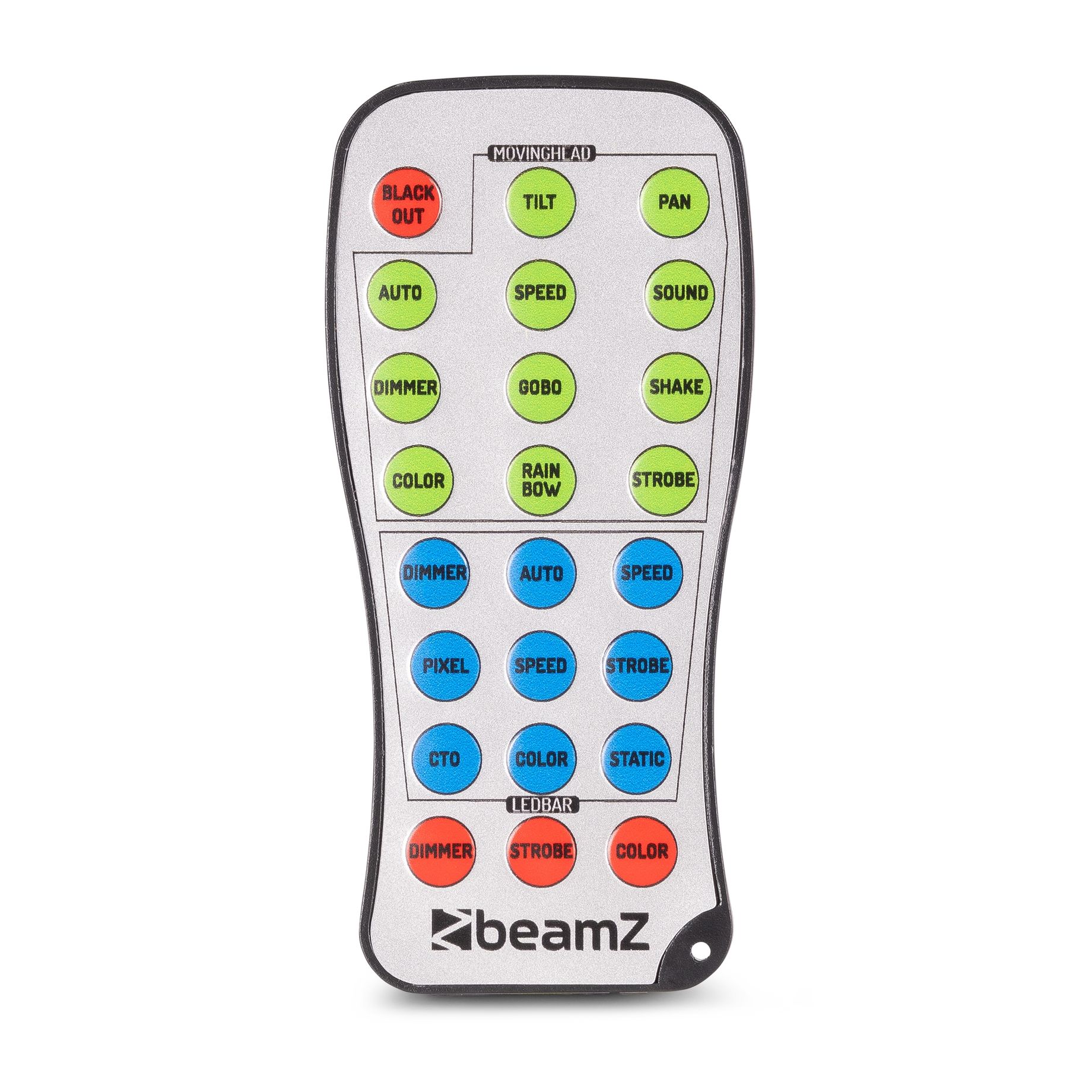

- Remote control (wireless)
- Safety cord
Manuals & Documents
Manual
PDF
