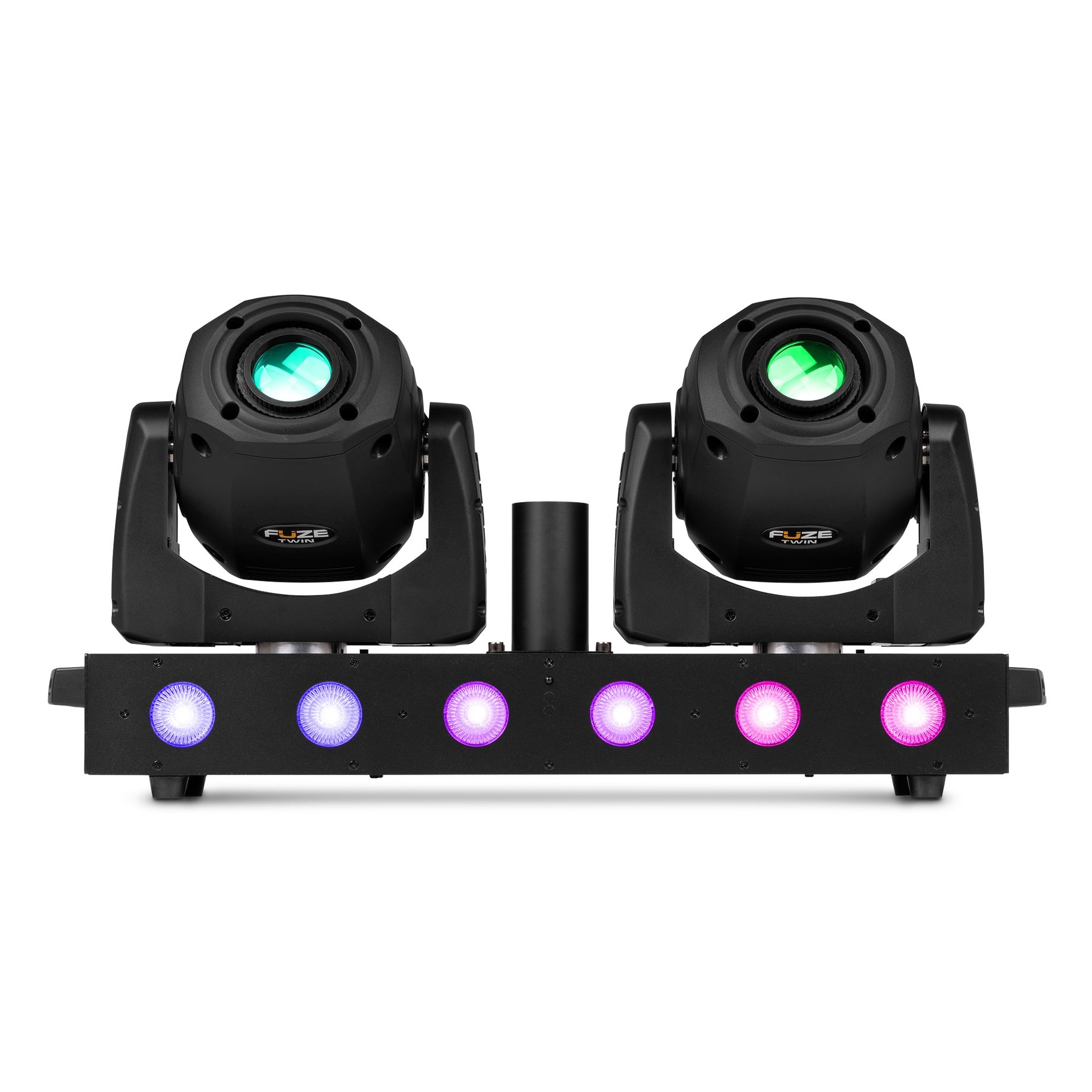

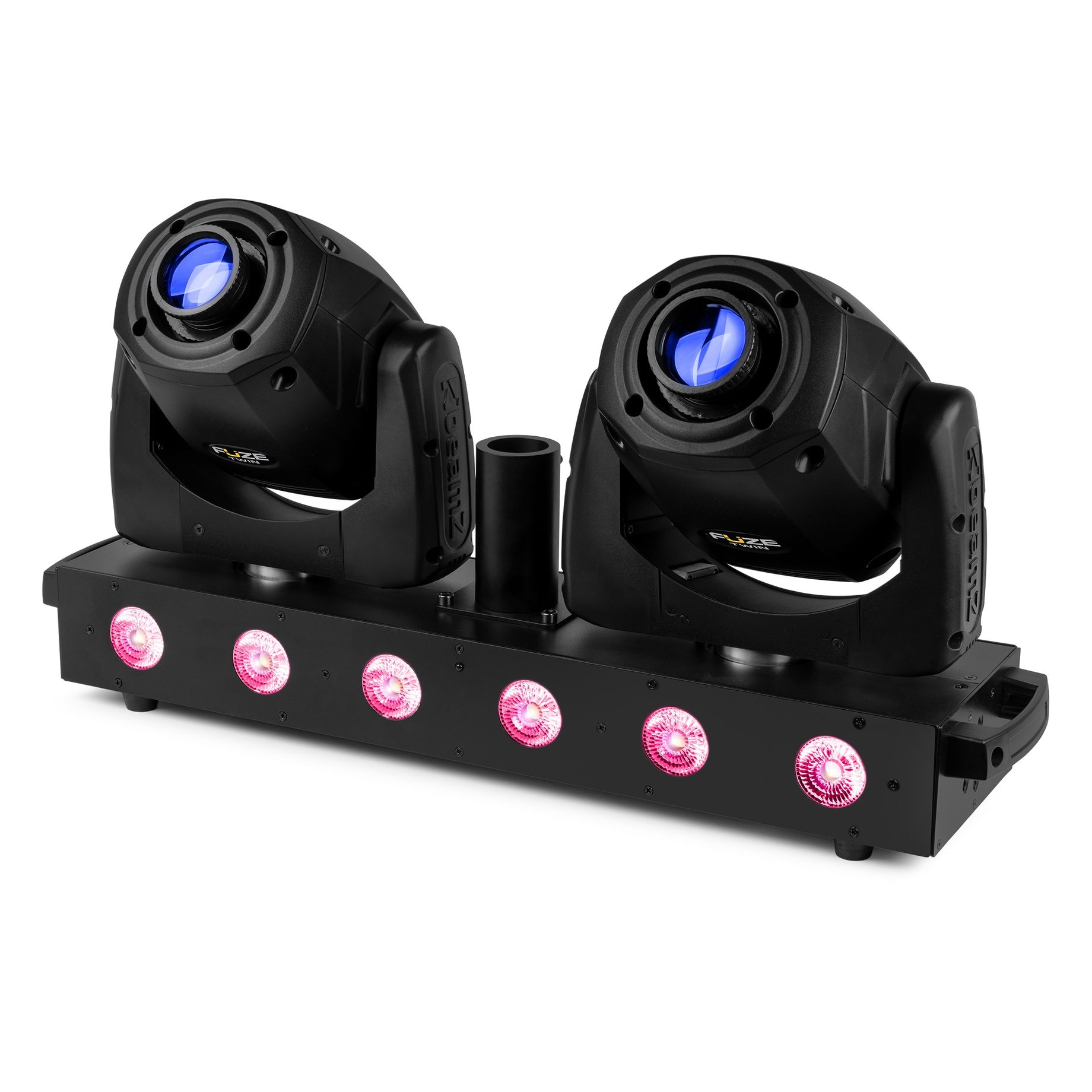

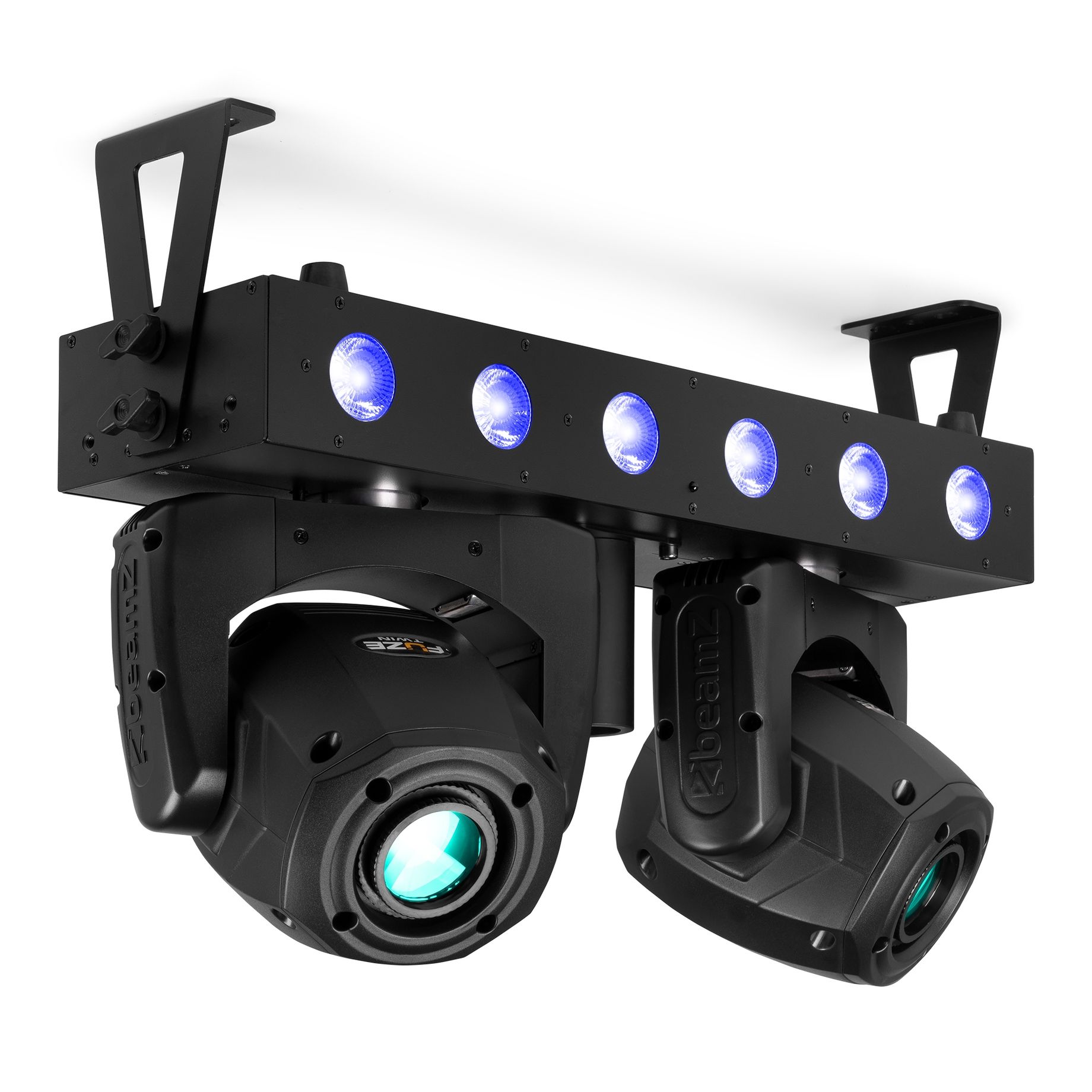

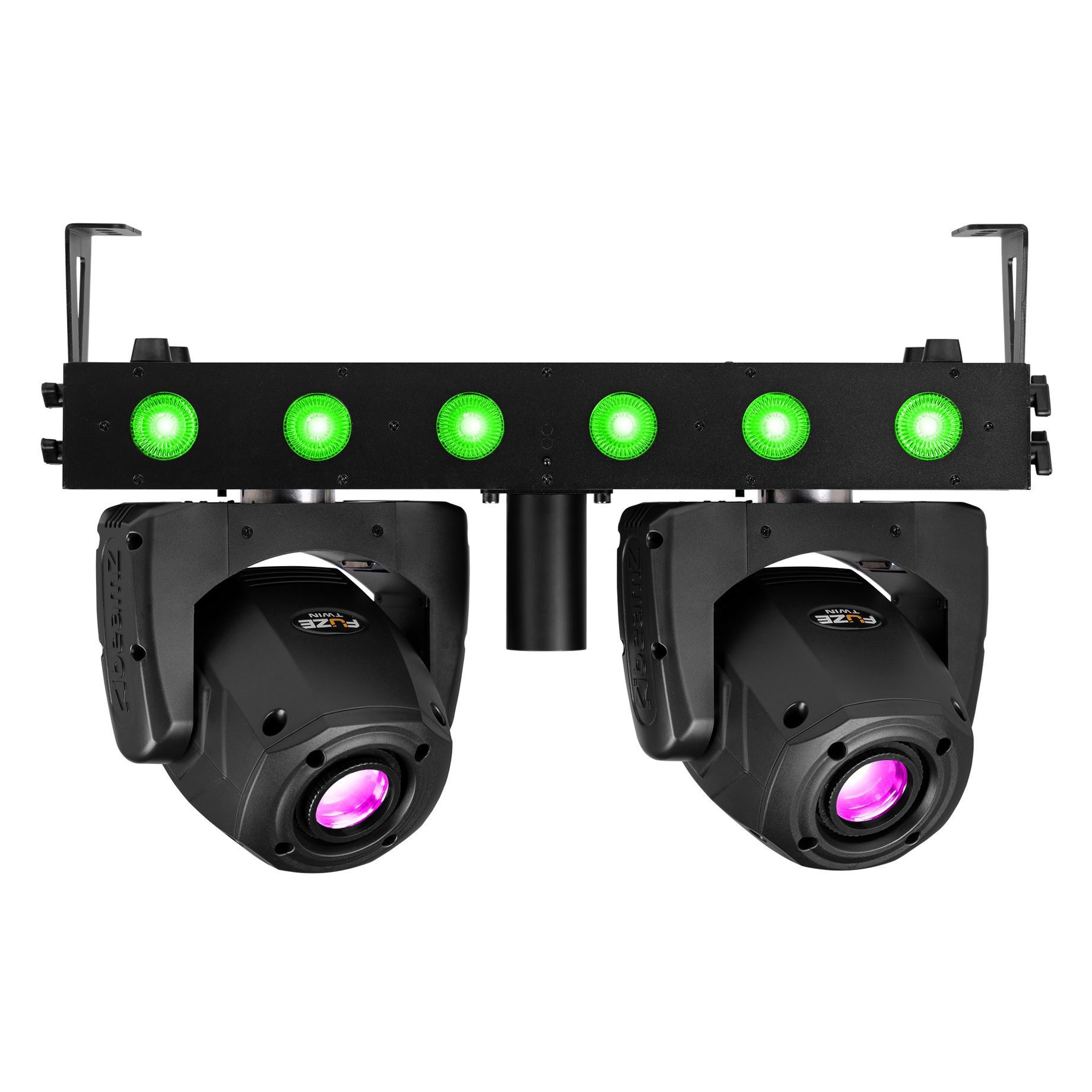

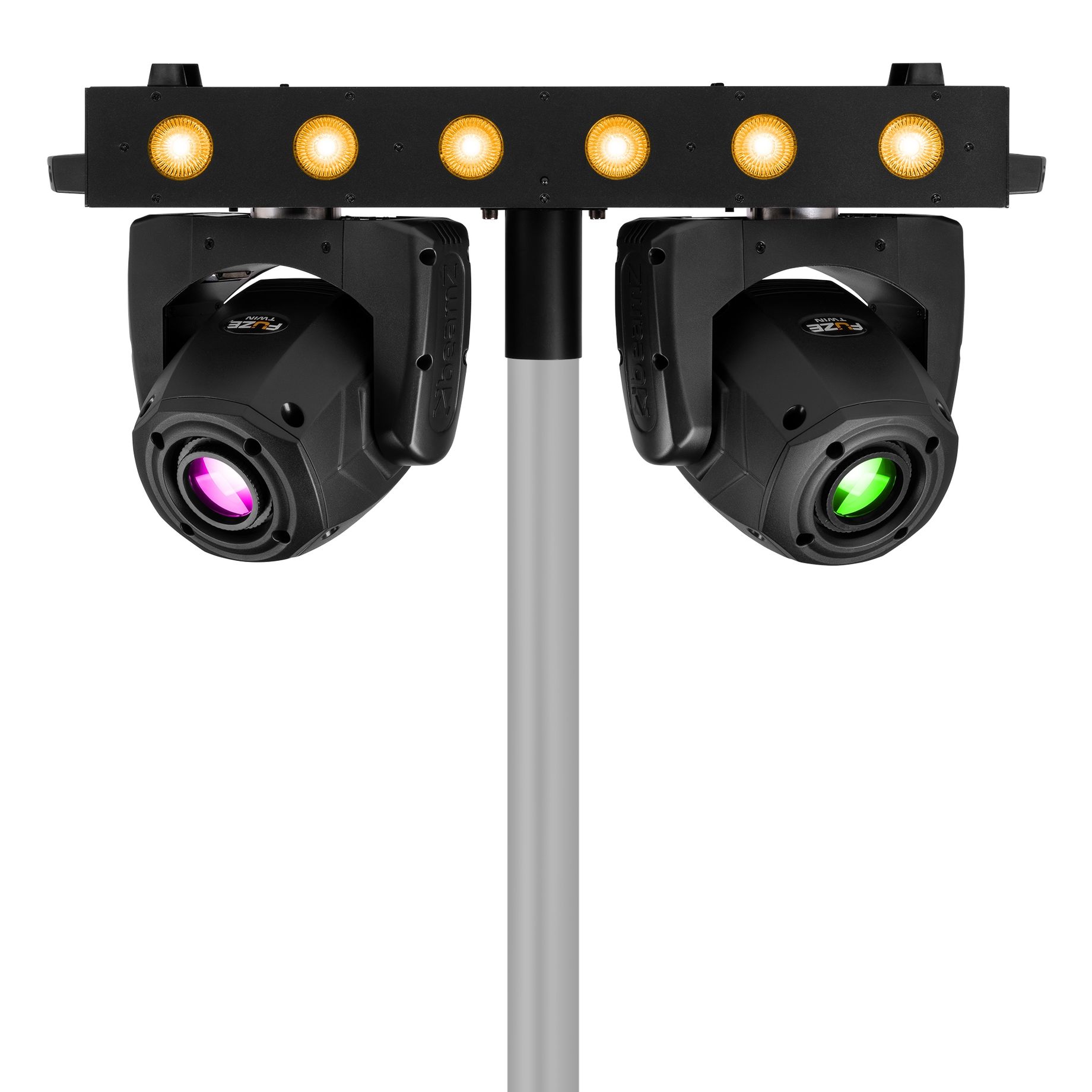

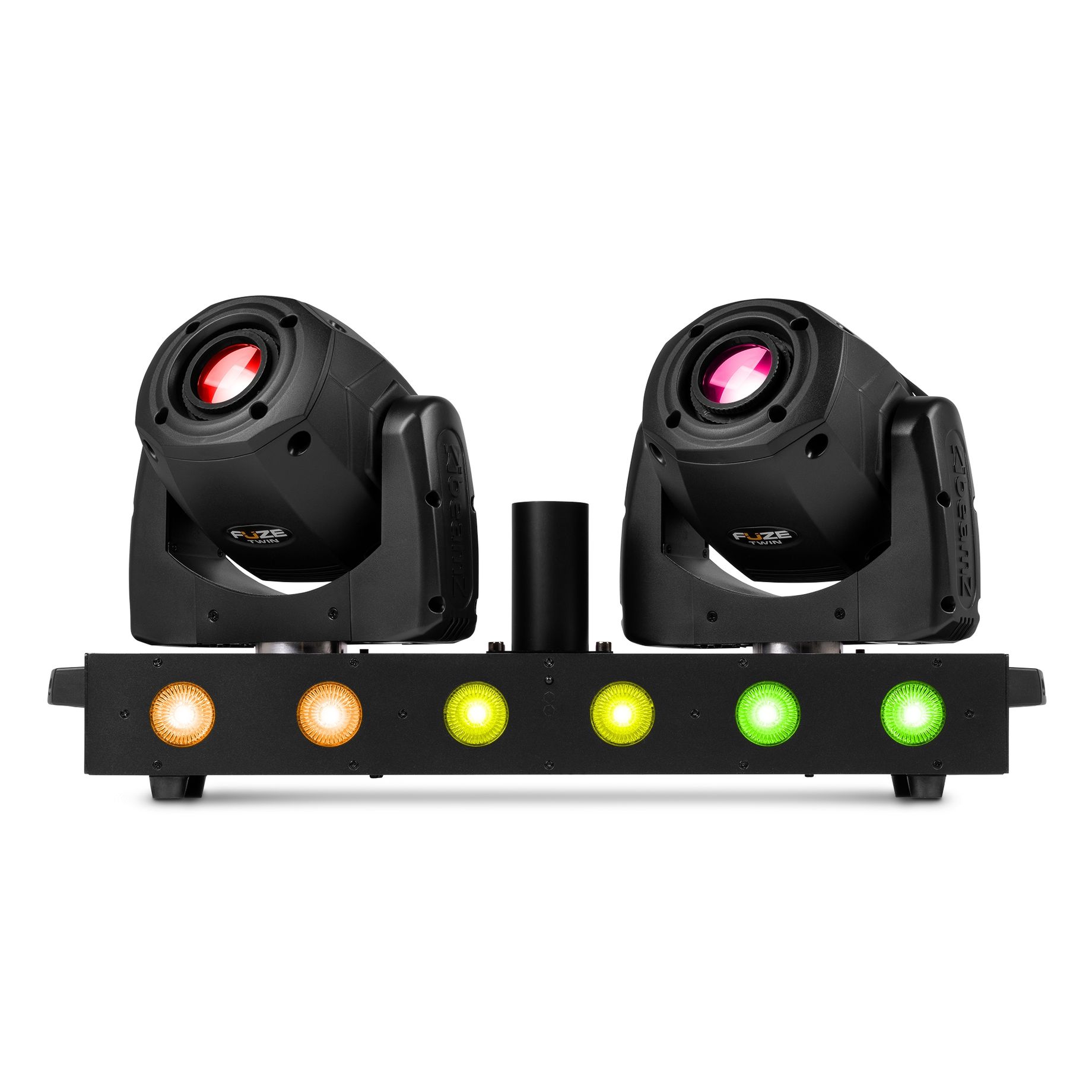

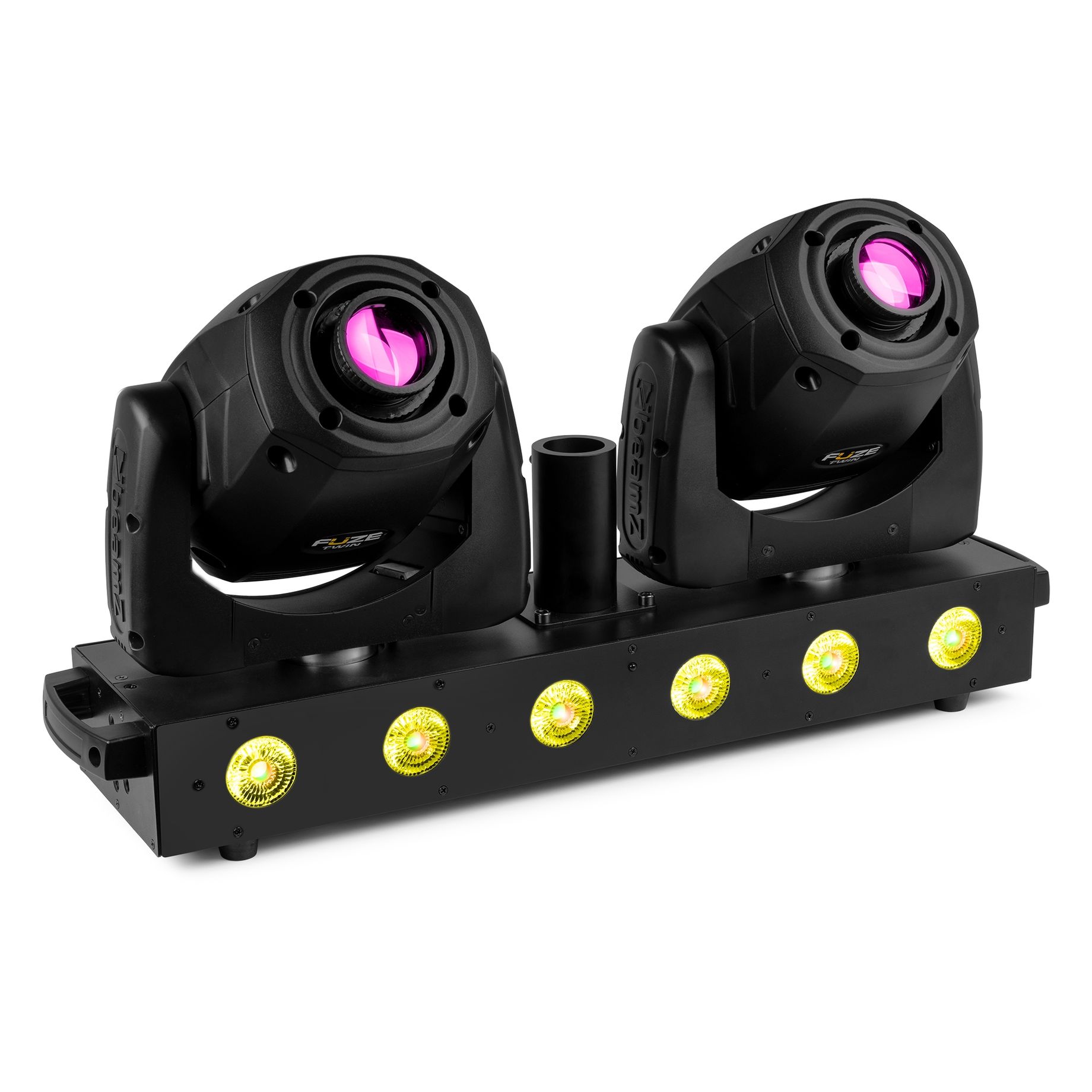

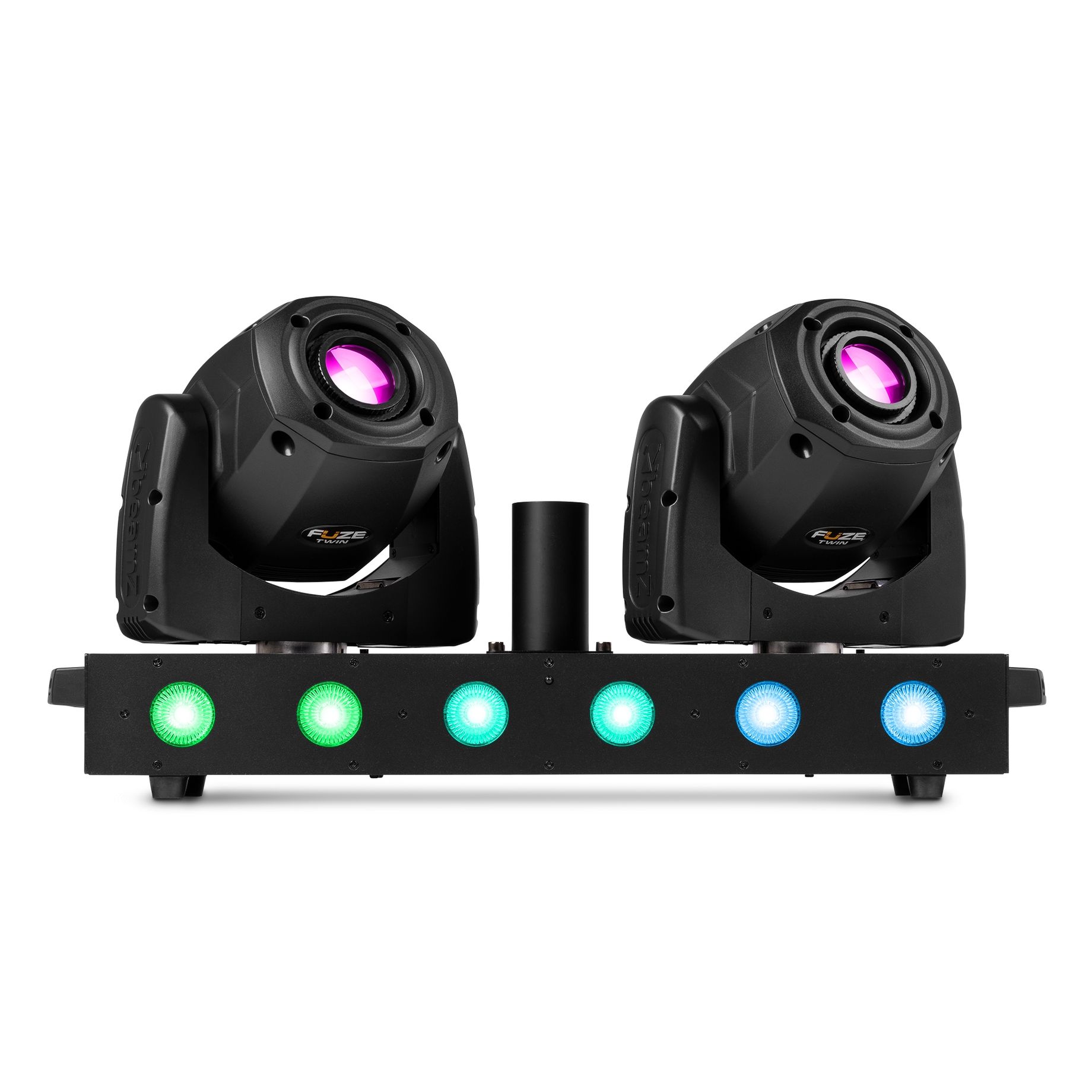

Twin LED Spot Moving Head Bar
SKU 150.388
|EAN 8715693346190
All product information
Compare
Fuze series
Description
Highlights

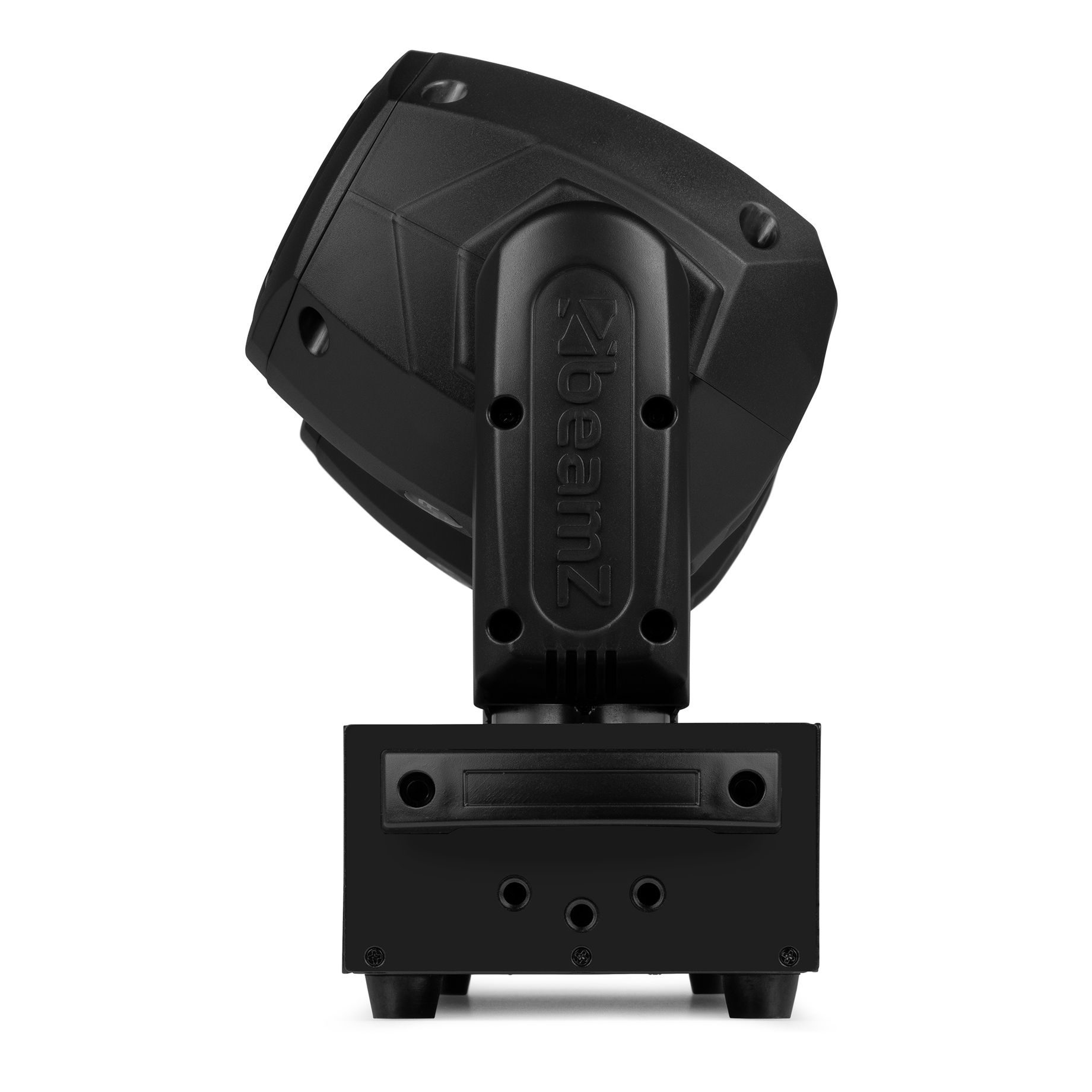

- Moving heads: 75W High Intensity White LED
- LED T-Bar: 6x 15W RGBW LEDs
- DMX and Stand-alone mode
- Beam angle: 12° with manual focus
- Gobo Wheel: 7x fixed metal gobos + open
- Colour wheel: 8 colours + open
- 0-100% Electronic Dimmer
- User-selectable pan and tilt
- Strobe: 1-16Hz
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- 9 Auto programs and 9 Sound programs

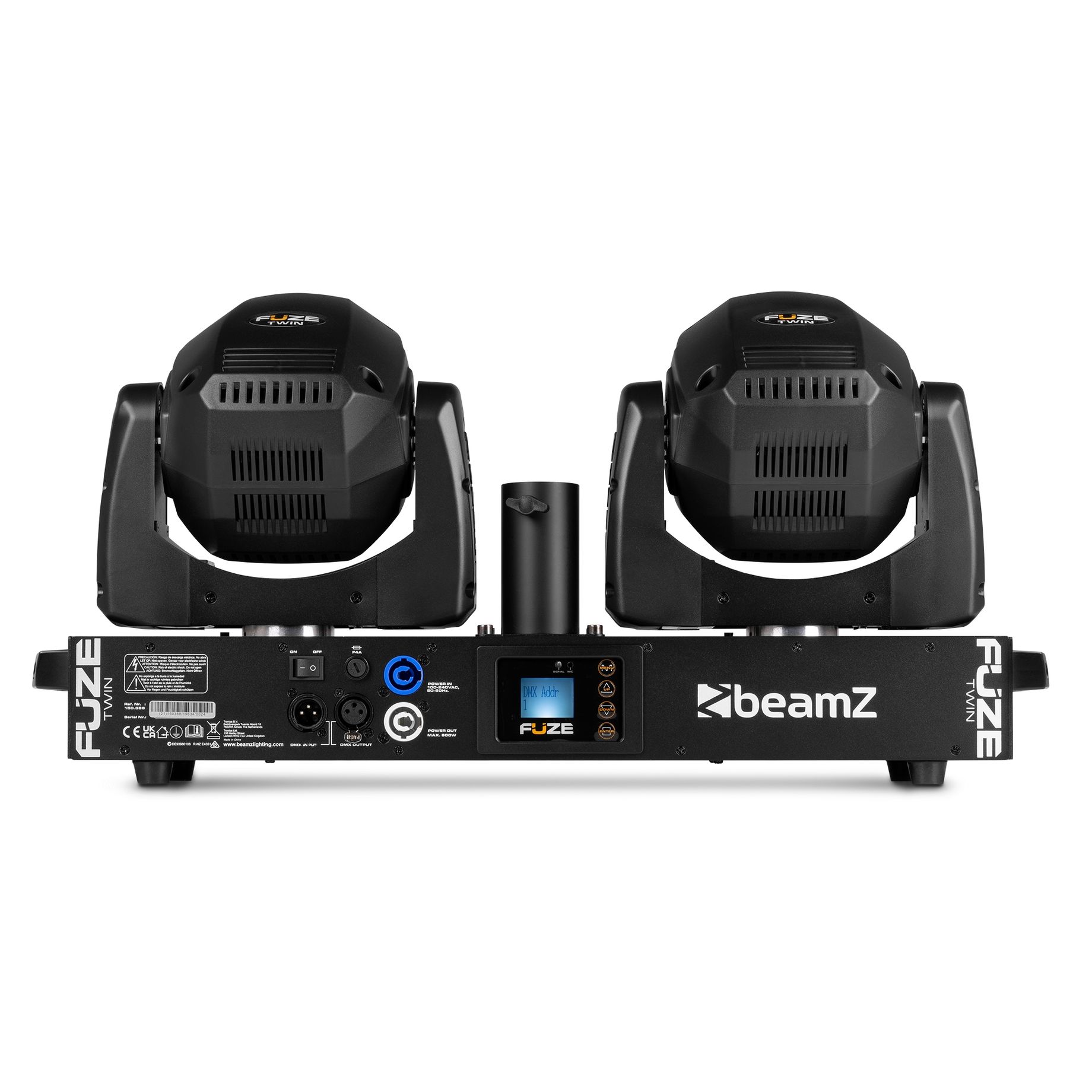

- Control panel with LCD display
- DMX in/output via 3-pin XLR
- P-Con input/output
- Two handles for easy transport
Specifications
BrandbeamZ
Product serieFuze series
ColourBlack
Moving head typeSpot
Light source
Light source: Moving head
- 1x 75W White LED
Light source: LED bar
- 6x 15W RGBW LED
Colour Temp. White LED4000K
Illuminance55198 lx @ 1m
Optics
Beam angle: Moving head
- 9°
ZoomNo
FocusManual
Movement
Pan Movement540° (16-bit)
Tilt Movement180° (16-bit)
Features
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels18, 28, 52
RDMNo
DMX connector3-pin XLR
Connections
Input connections
- N/A
- N/A
Output connections
- N/A
- N/A
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 570 x 143 x 330 mm (W x D x H)
Weight
- 8.85 kg

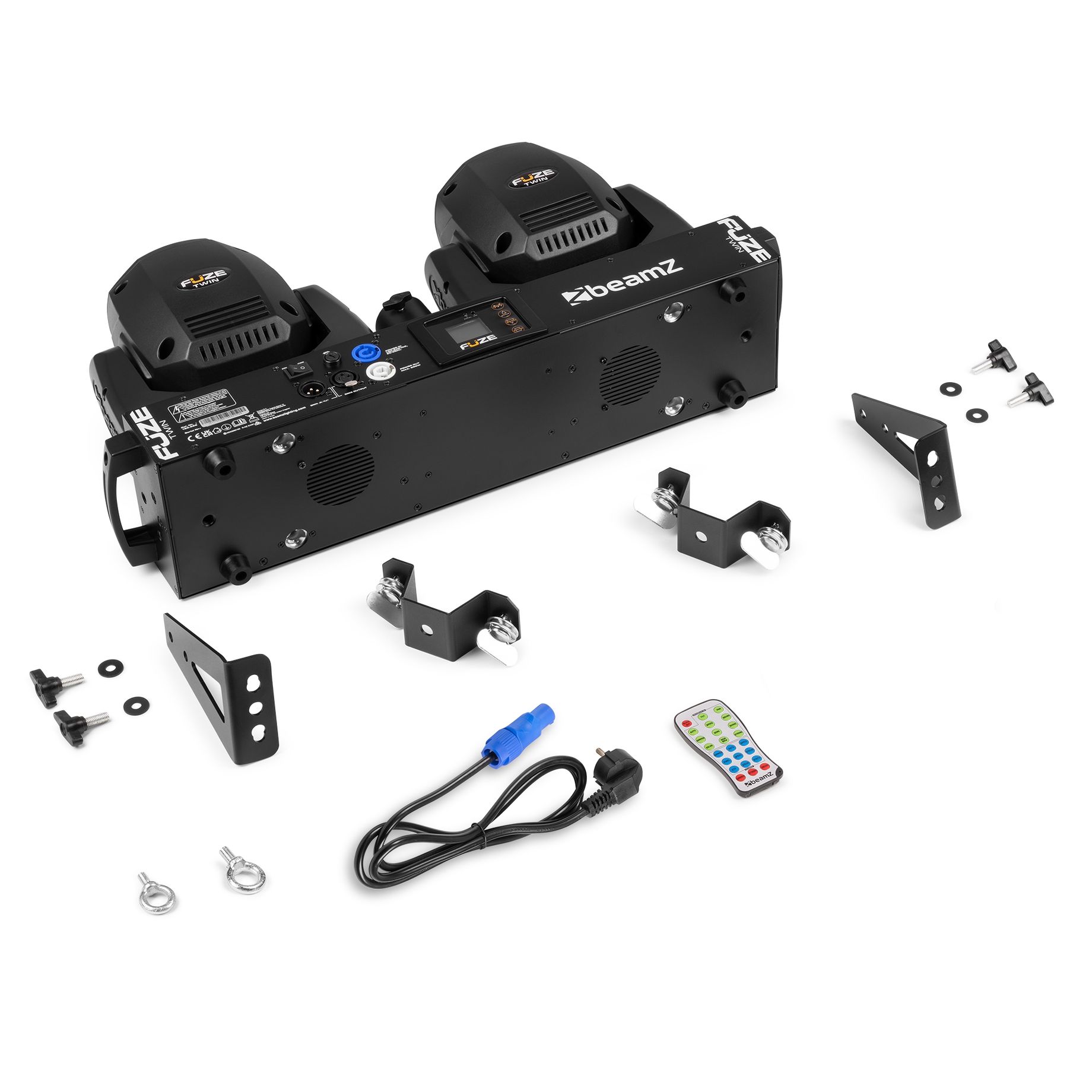

Accessories
Included Accessories
- DMX cable
- Mounting bracket
- Power cable

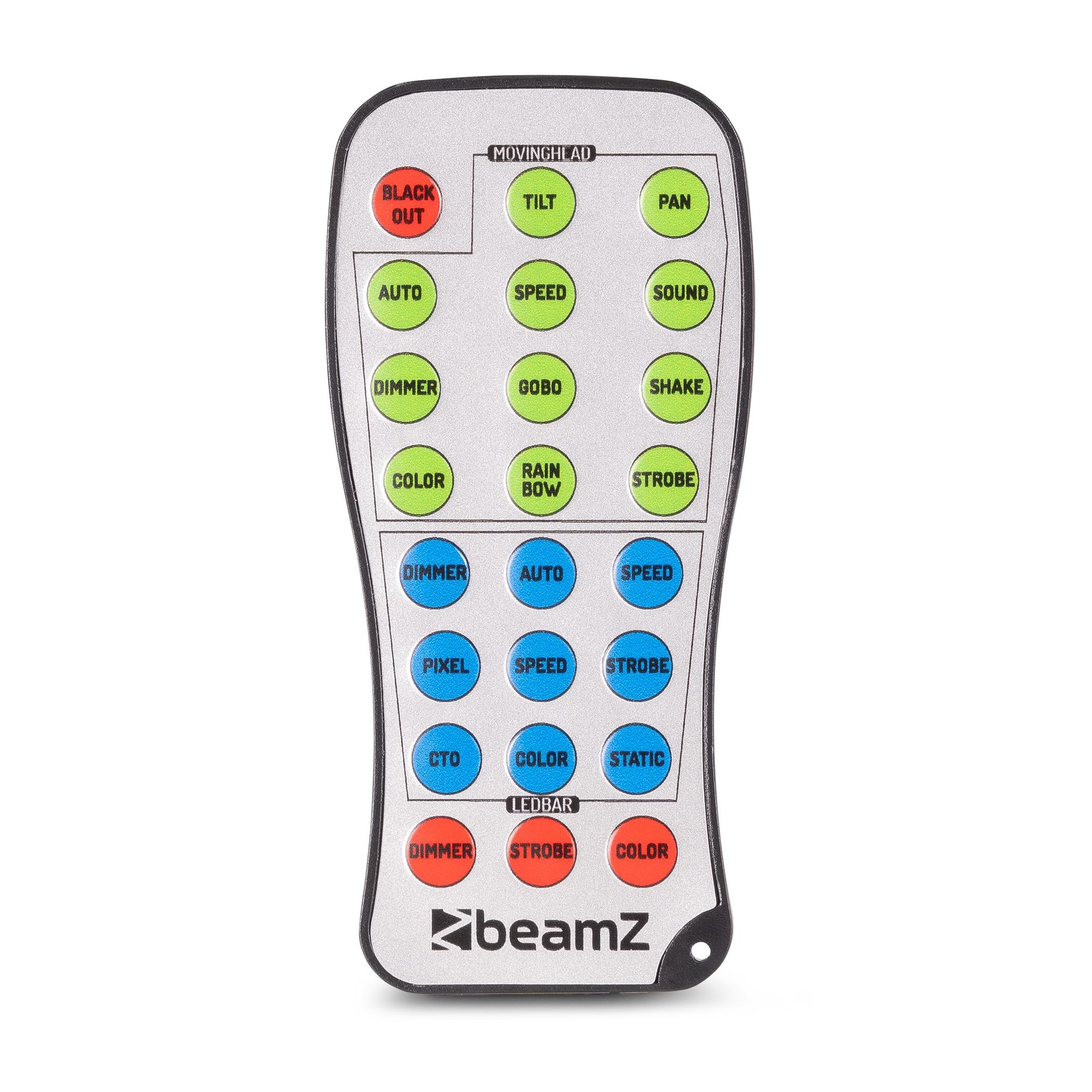

- Remote control (wireless)
- Safety cord
