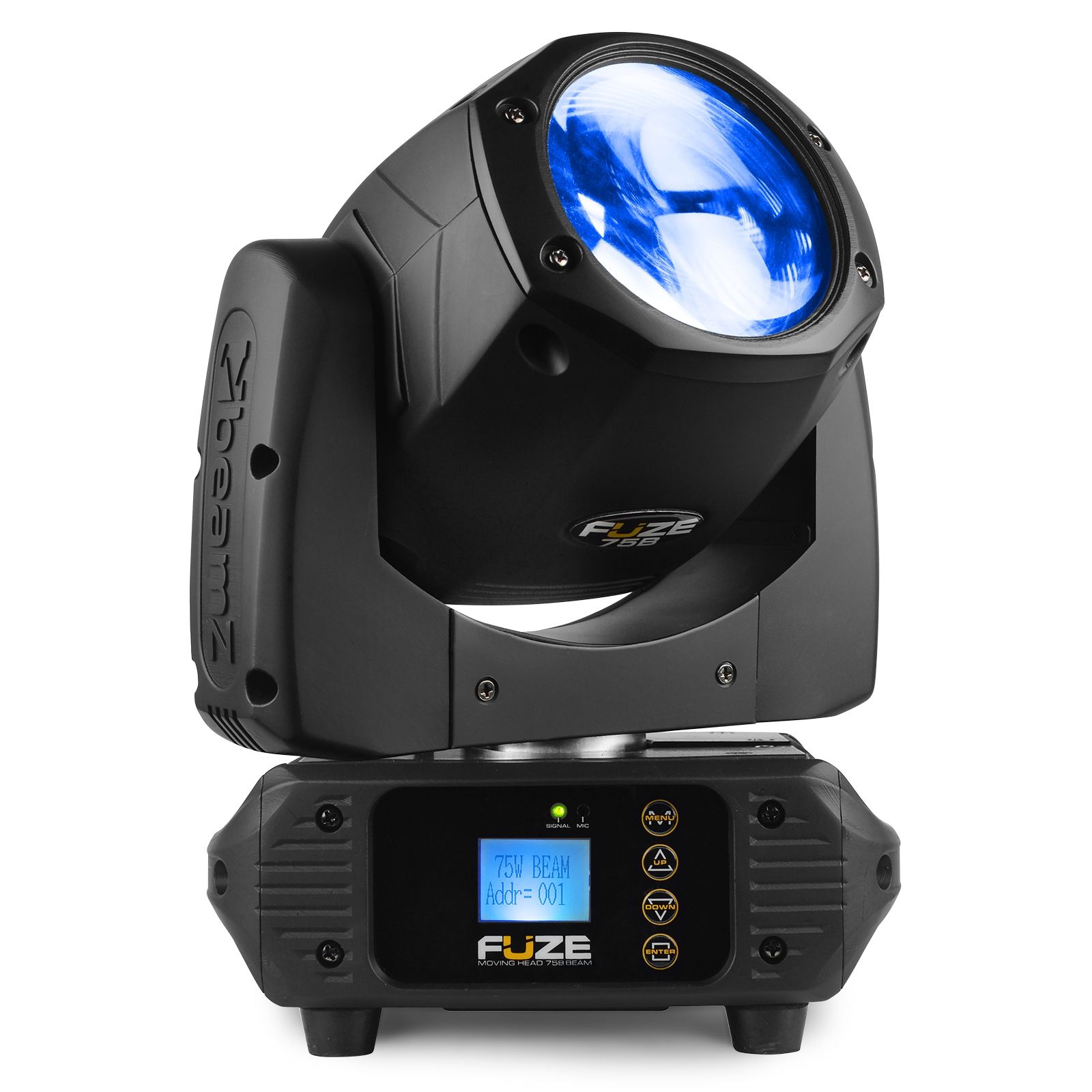

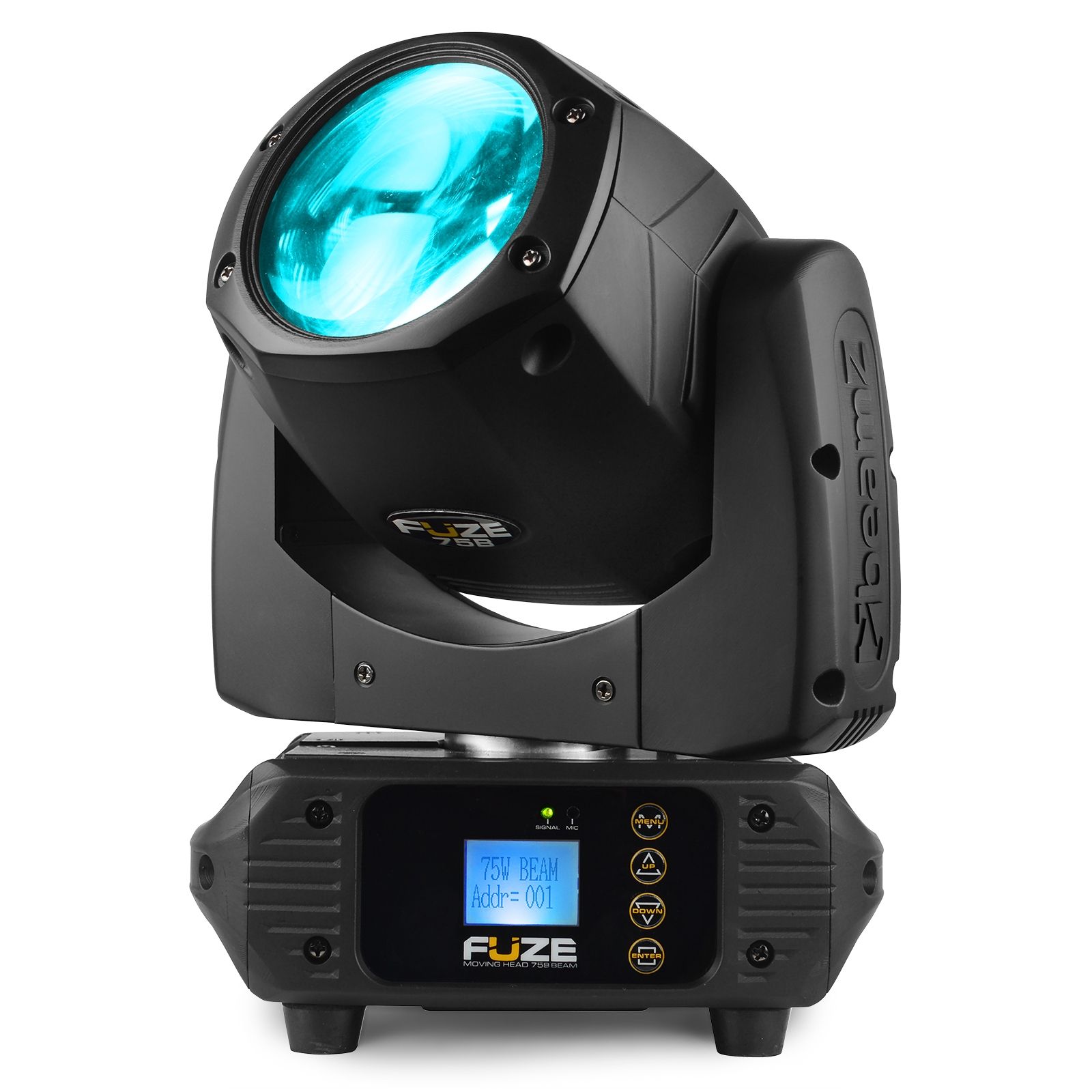

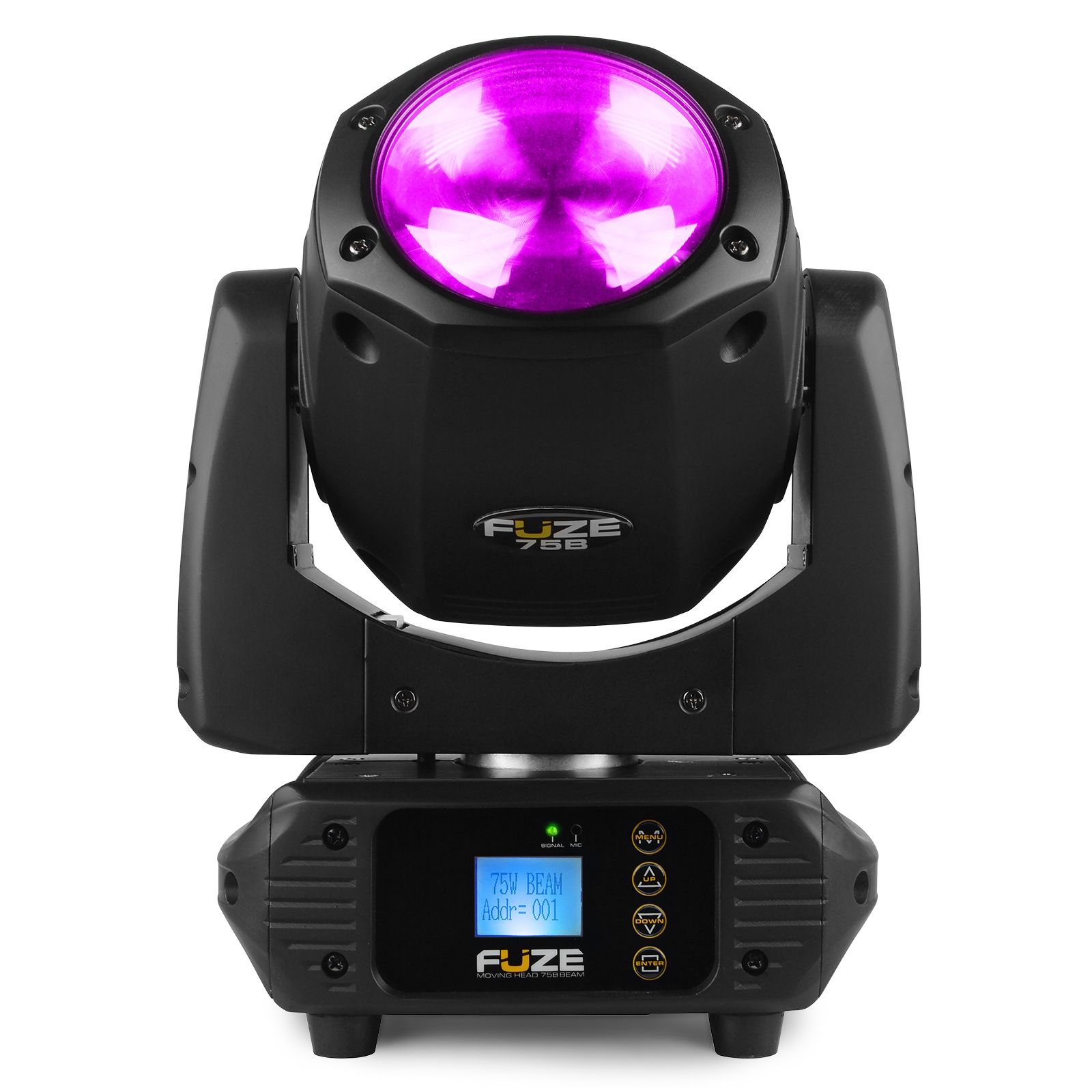

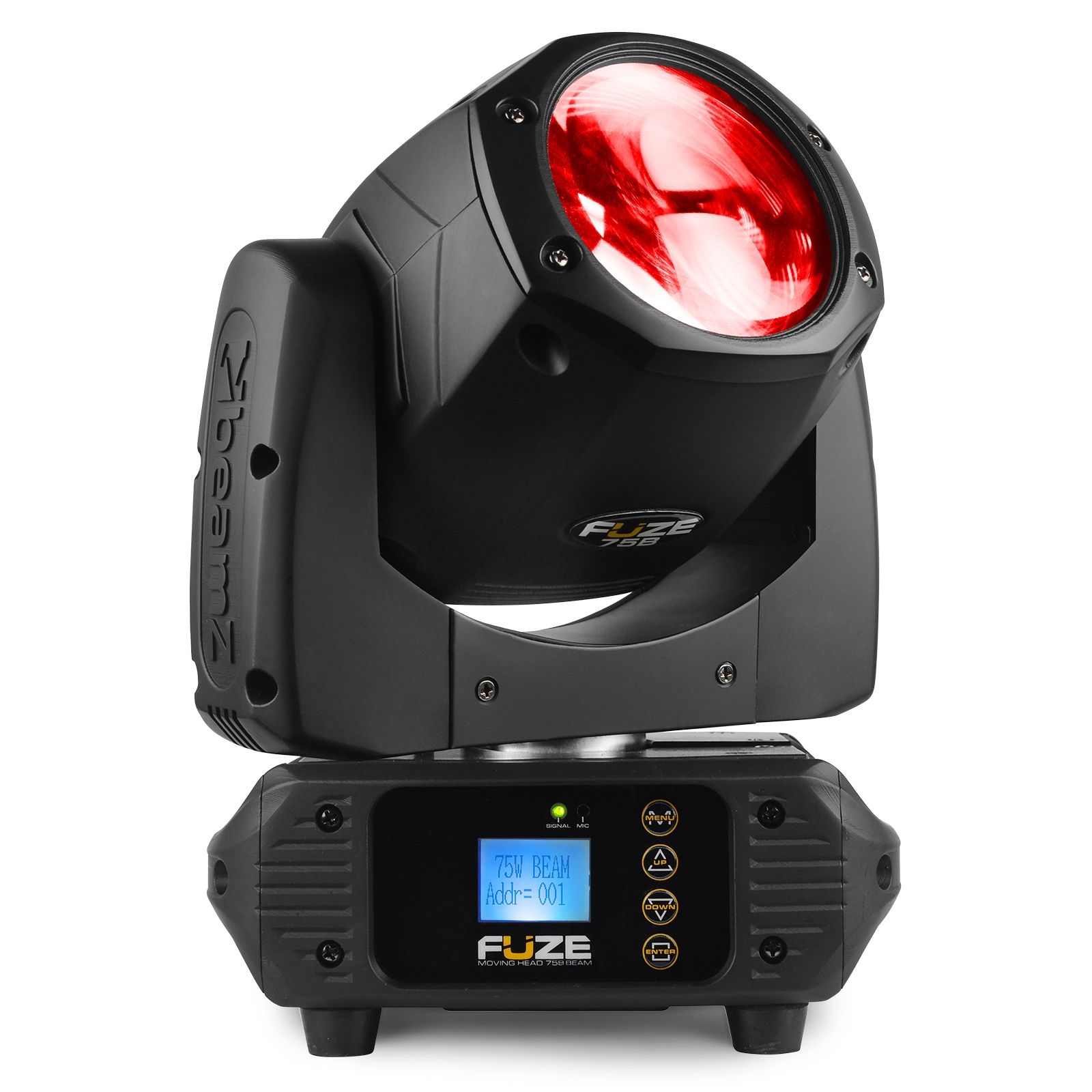

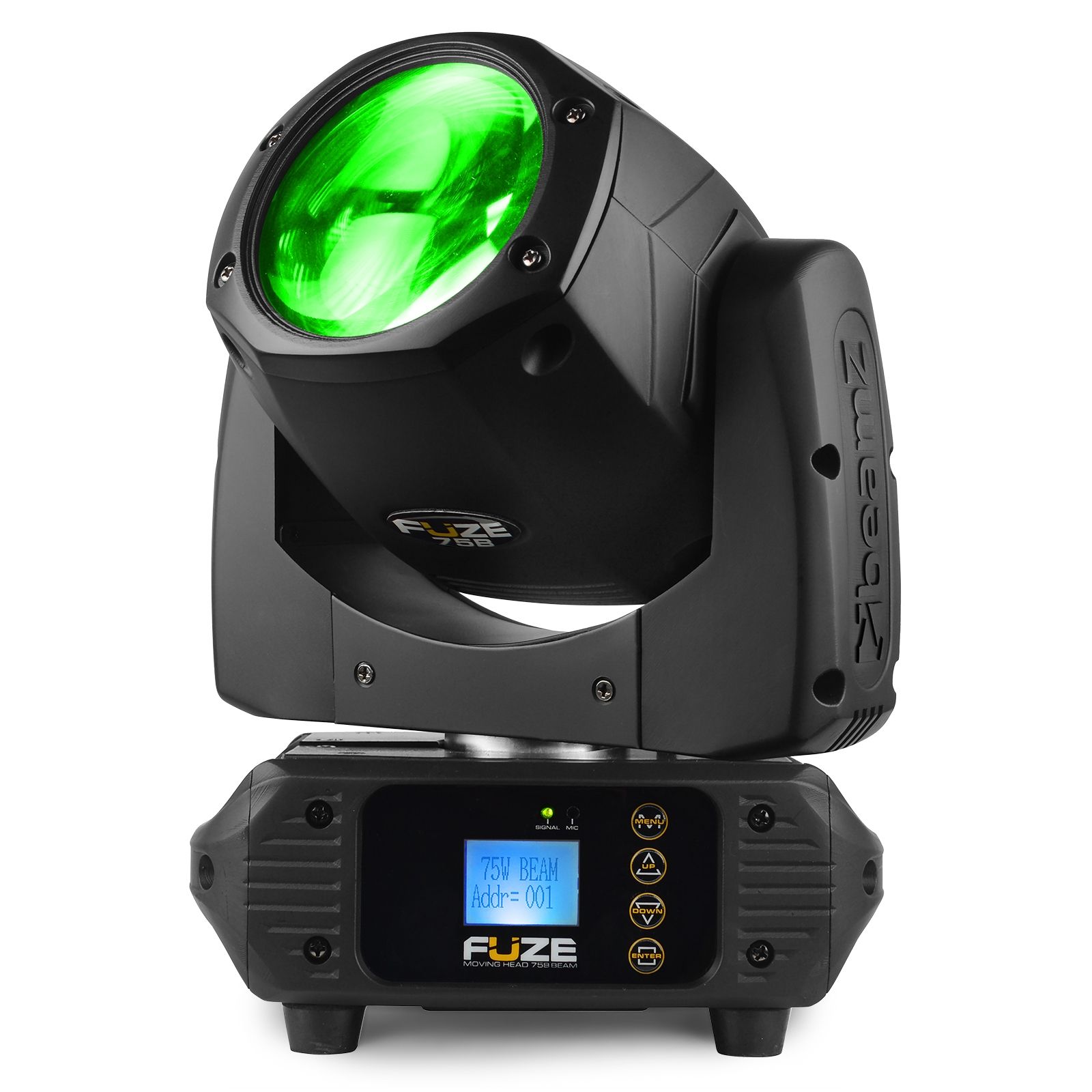

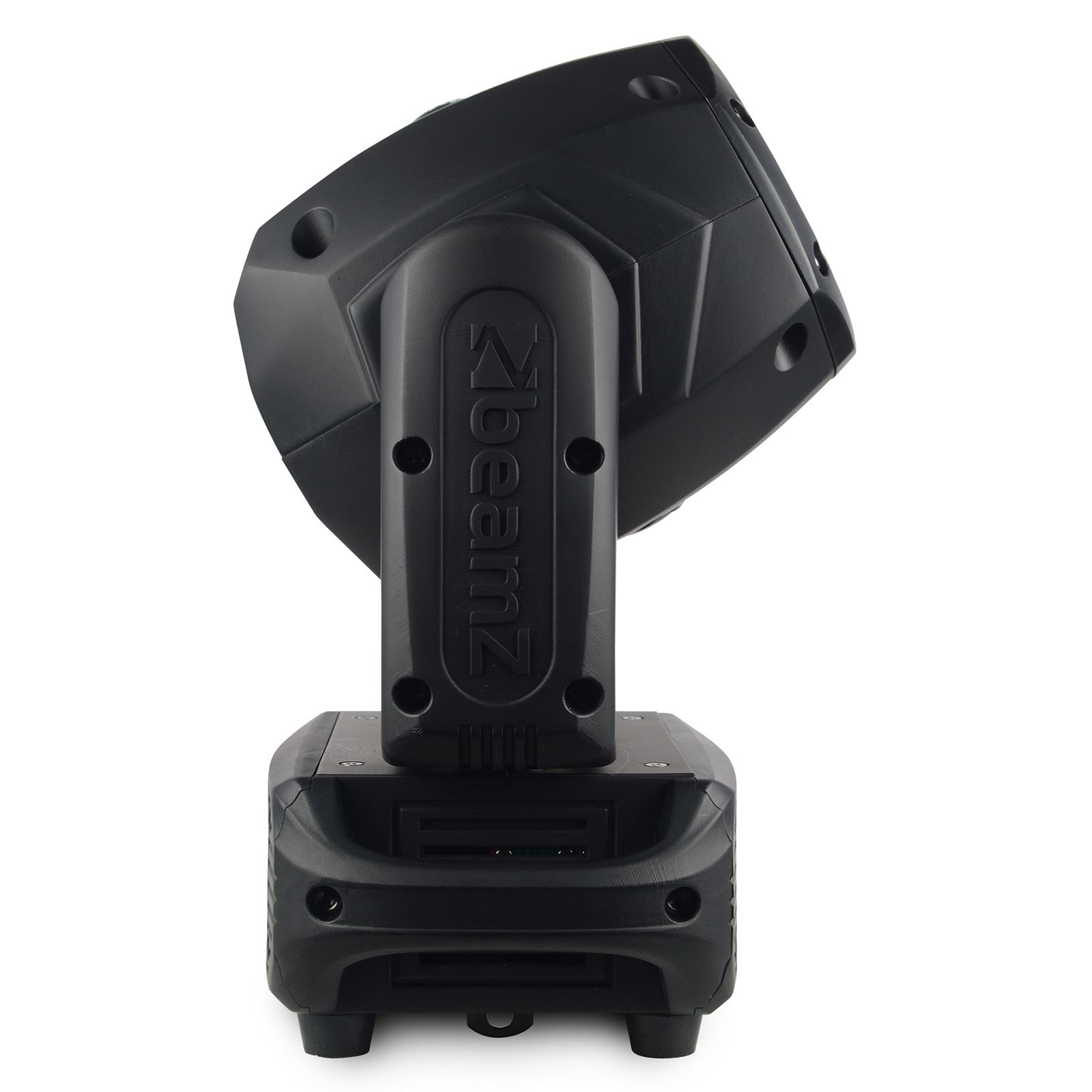

Fuze75B
LED Beam Moving Head
SKU 150.384
|EAN 8715693309744
+11
All product information
Compare
Fuze series
Description
Highlights
- 75W High Intensity White LED
- 10 or 12 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- Auto mode
- Beam angle 2°
- Fresnel lens

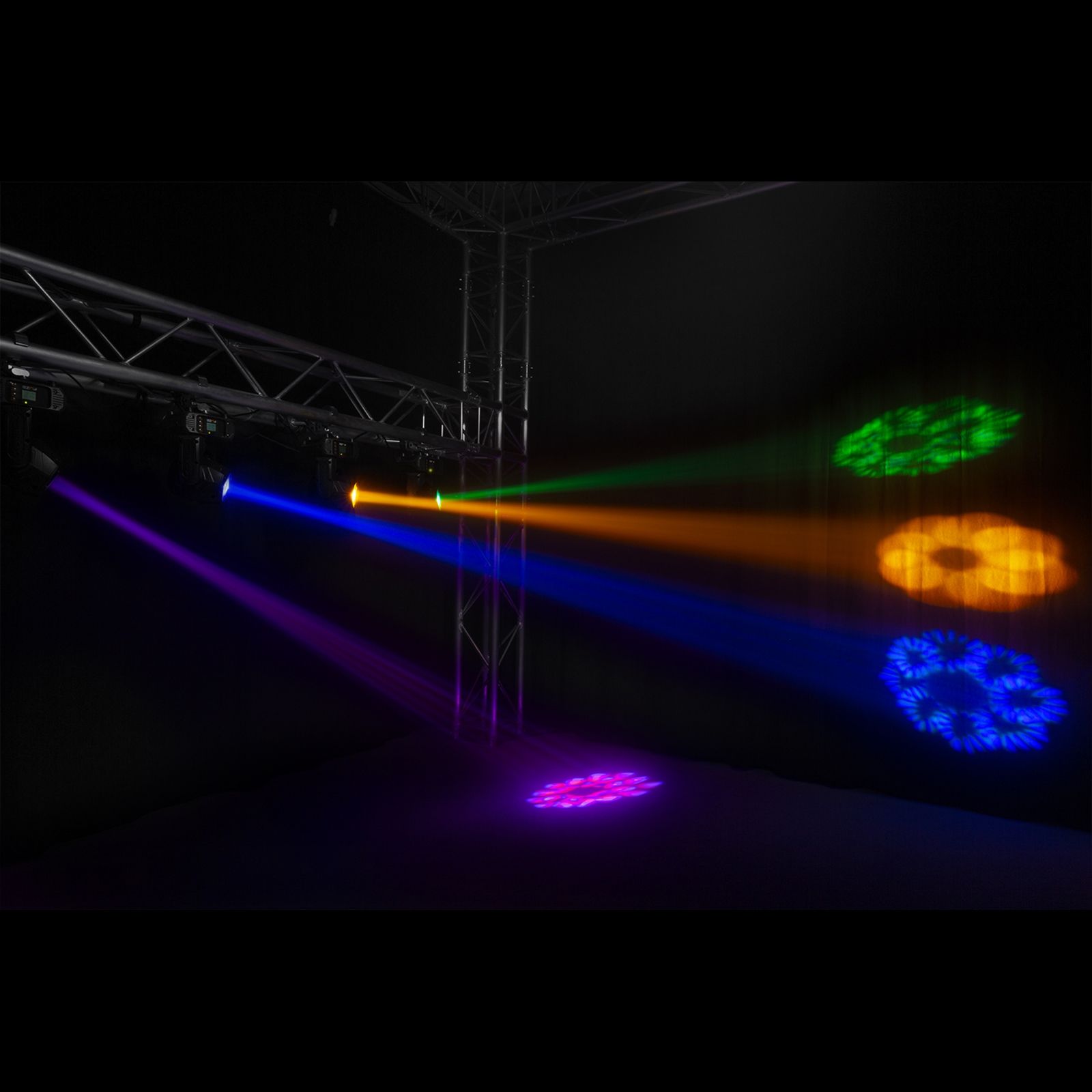

- Gobo Wheel: 17x metal gobos + open
- Gobo shake function
- 12 Colours + open
- Rotatable 8 facet prism
- 0-100% Electronic Dimmer
- Pan and Tilt Ranges: 360°, 540°, 630° pan / 90°, 180°, 270° tilt movement
- Strobe: 1-11Hz
- Automatic pan/tilt correction
- Reset function
- Control panel with LCD display

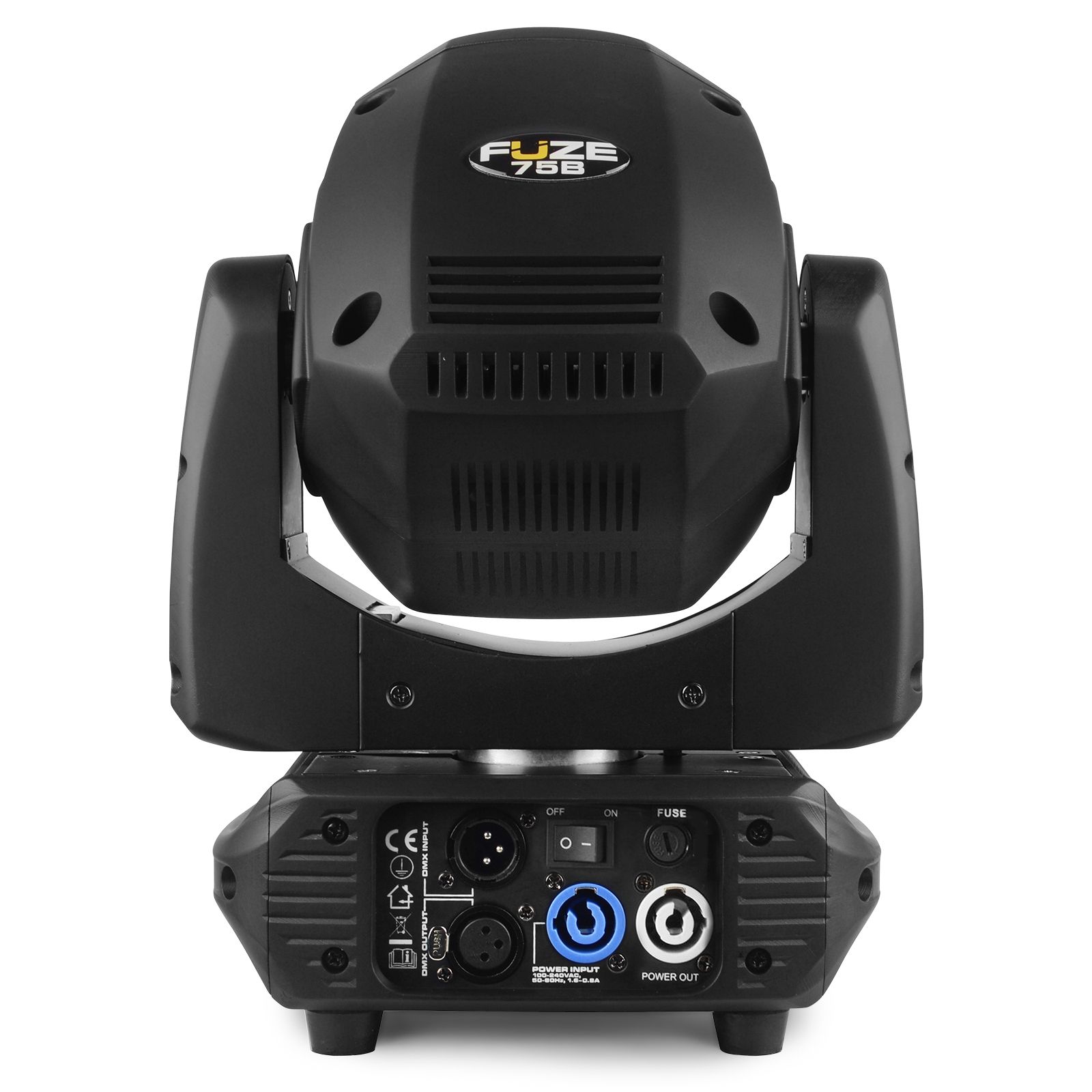

- DMX in/output via 3-pin XLR
- Powerconnector input/output
- Quick lock omega clamp included
- DMX cable included
- Powerconnector cable and safety cord included

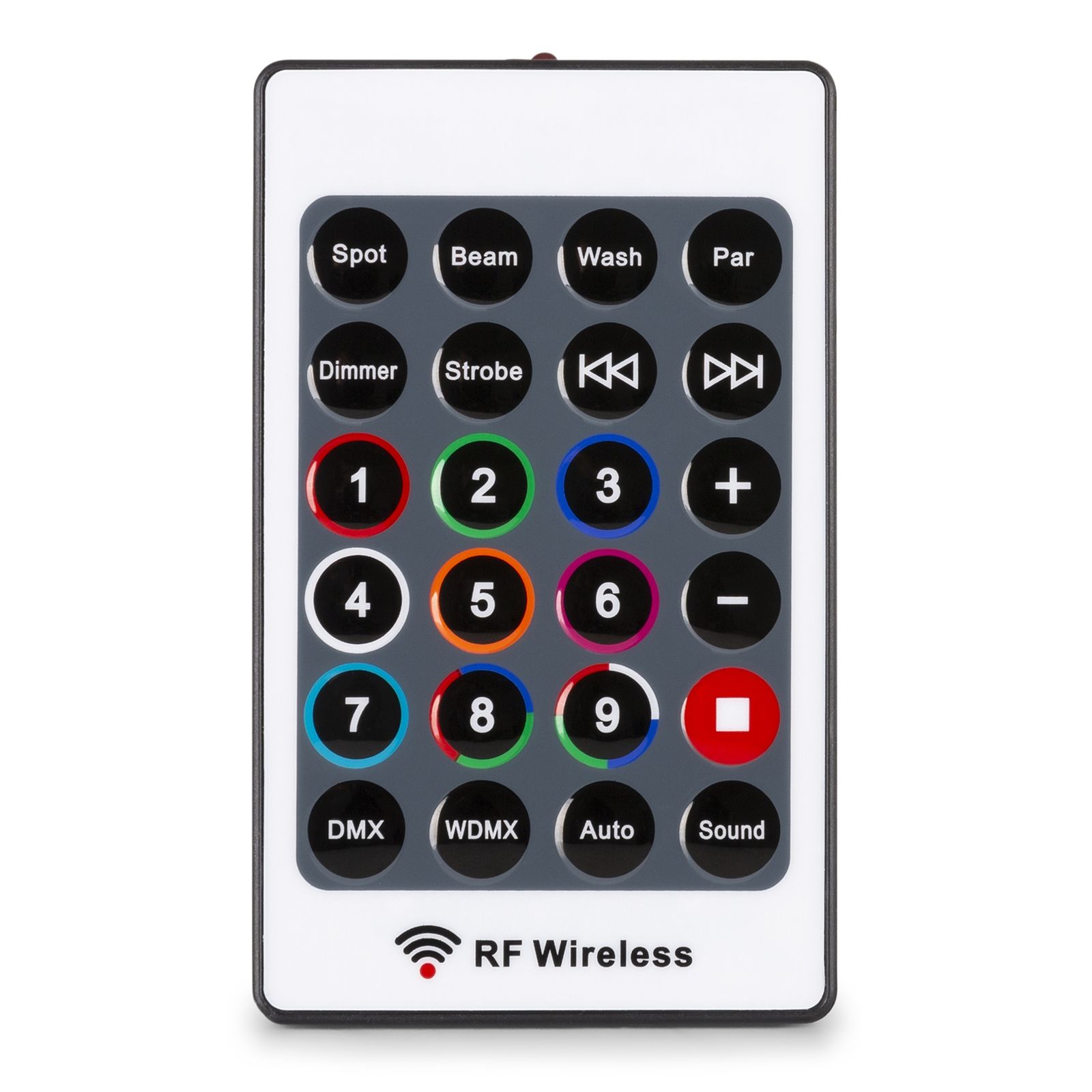

- Included remote control
Specifications
BrandbeamZ
Product serieFuze series
ColourBlack
Moving head typeBeam
Light source
Light source: Beam
- 1x 75W White LED
Colour Temp. White LED4000K
Illuminance190000 lx @ 1m
Optics
Beam angle: Beam
- 2°
ZoomNo
Movement
Pan Movement630° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels10, 12
RDMNo
DMX connector3-pin XLR
Connections
Input connections
- N/A
- N/A
Output connections
- N/A
- N/A
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 245 x 230 x 290 mm (W x D x H)
Weight
- 5.2 kg
Accessories

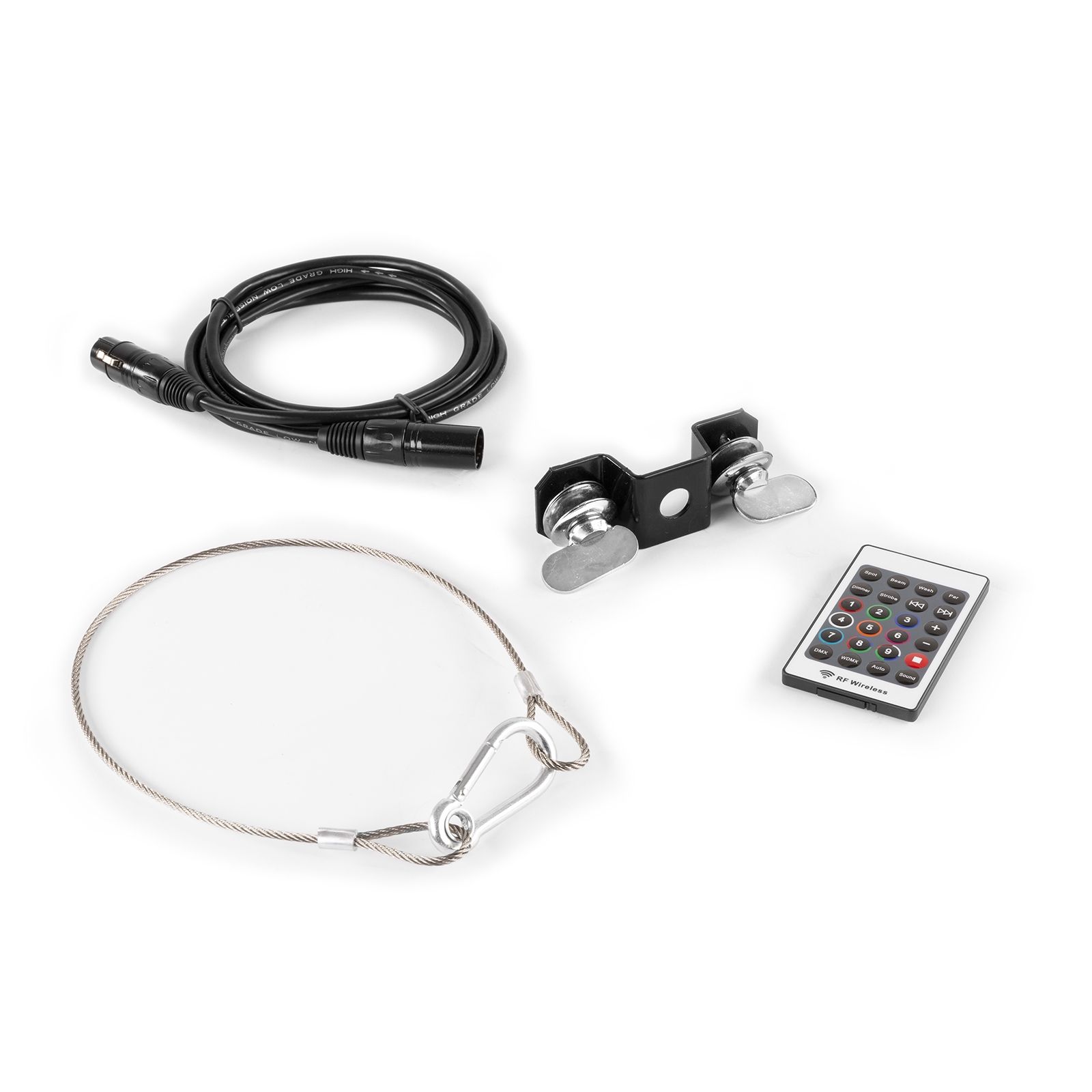

Included Accessories
- DMX cable
- Mounting bracket
- Power cable
- Remote control (wireless)
- Safety cord
