PD412P

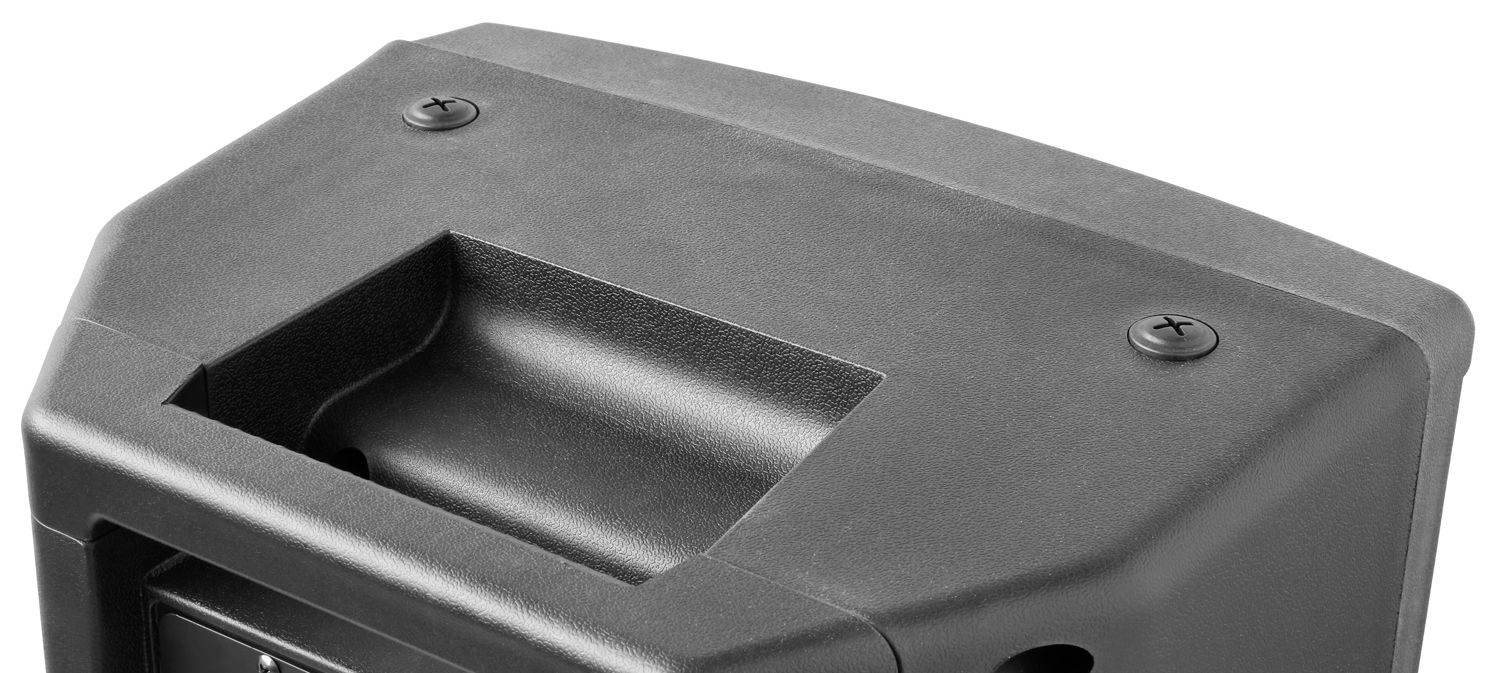

Passive Speaker 12" 1200W
SKU 178.273
|EAN 8715693296617
+5
All product information
Compare
PD4 series
Description
Highlights
- 1200W Passive 2-way 12" speaker
- 1.35" Titanium compression driver
- Built-in 2-way passive crossover

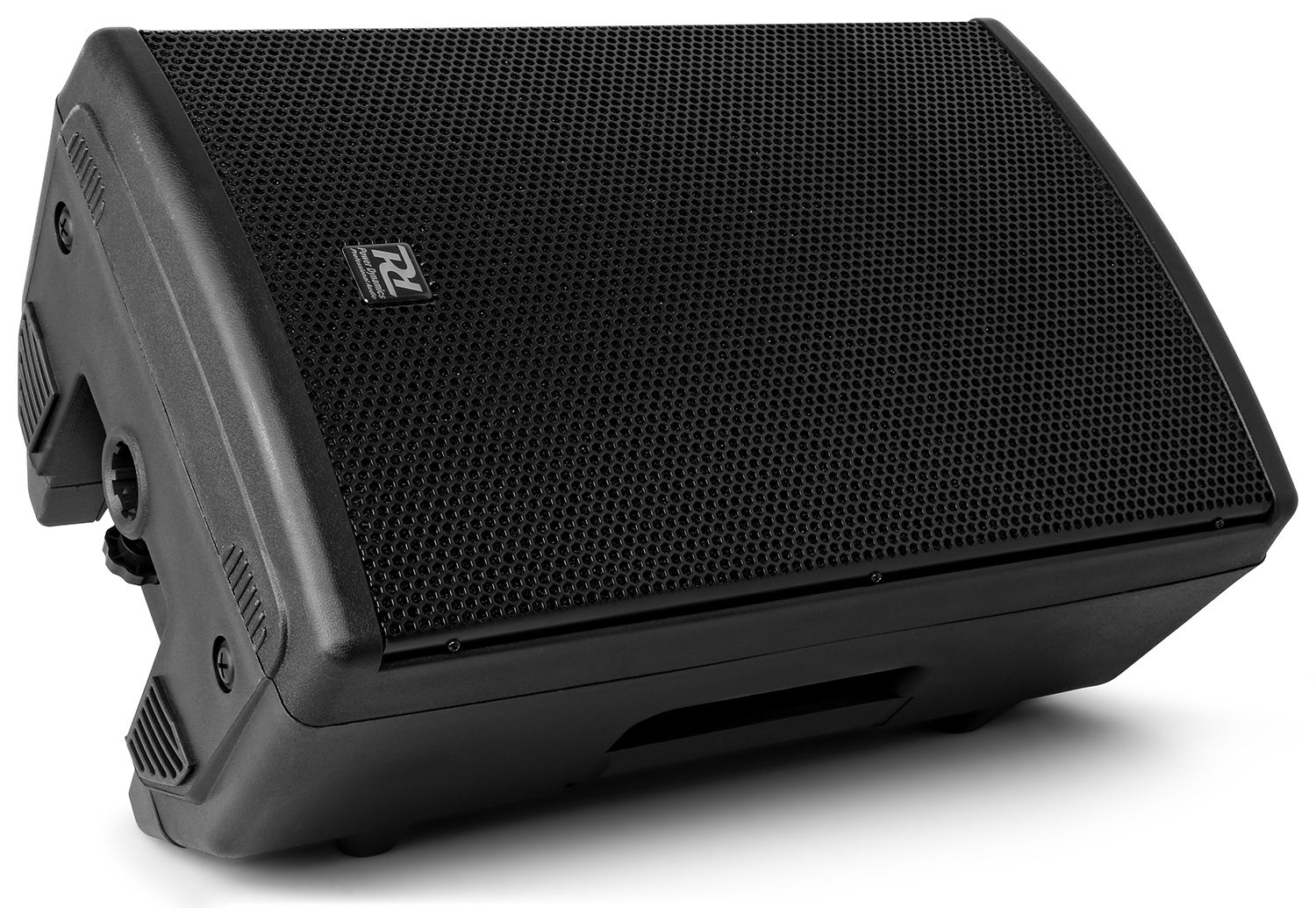

- Angled design for use as stage monitor

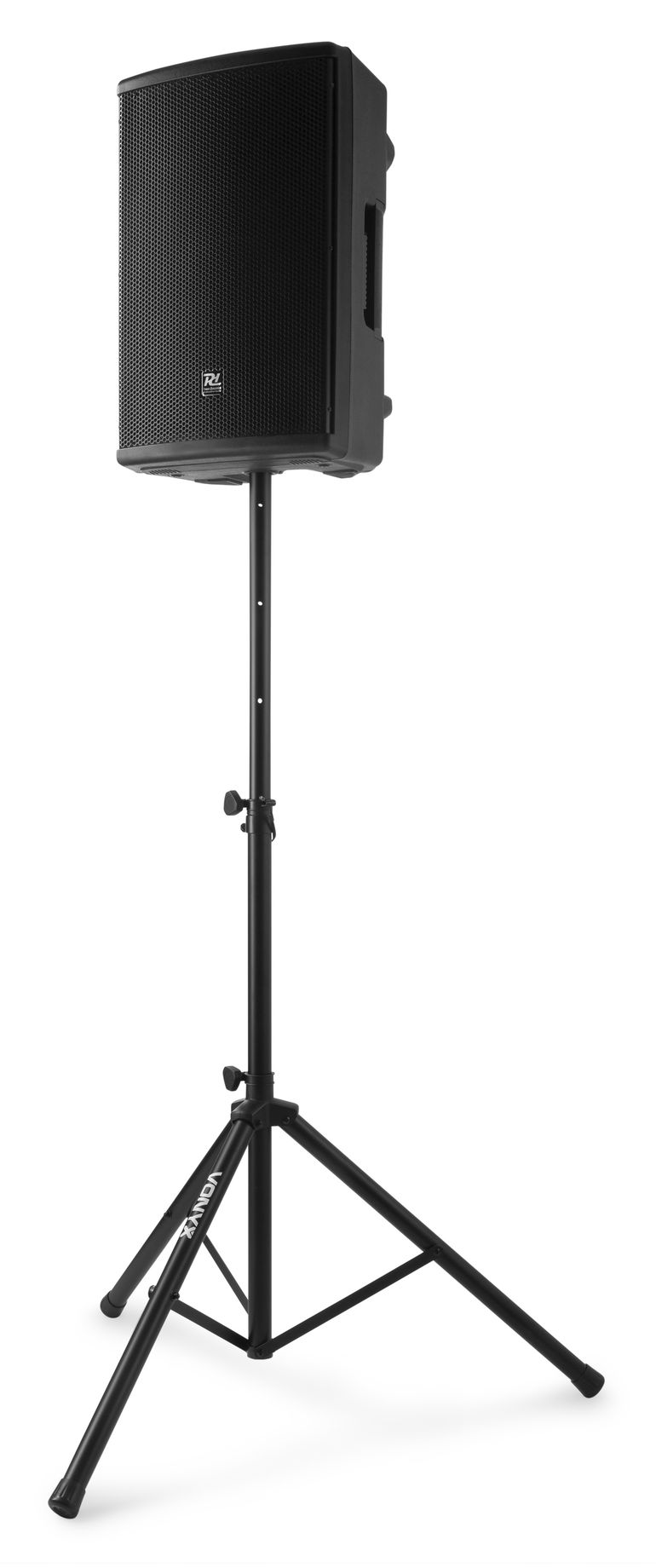

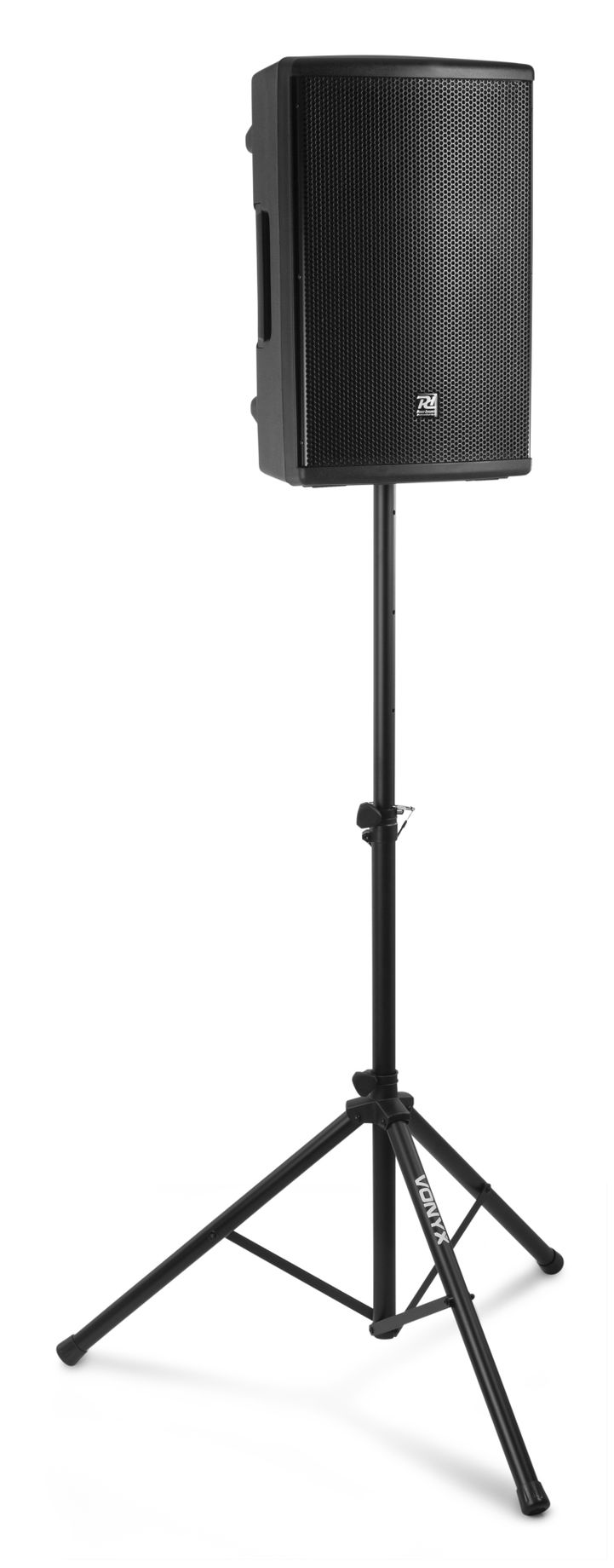

- 35mm socket for tripod or pole-mounting
Specifications
BrandPower Dynamics
Product seriePD4 series
ColourBlack
Speaker typePassive (non-amplified)
Speaker Power Peak1200 W
Speaker Power600 W
Speaker Power RMS300 W
Frequency Response40 - 20,000 Hz
Sensitivity (1W/1m)95 dB
Max. SPL (Peak)126 dB
Impedance8 Ω
Dispersion (H x V)100° x 60°
Audio specifications
Crossover Frequency2500 Hz
Tweeter diameter1.35"
Woofer diameter12"

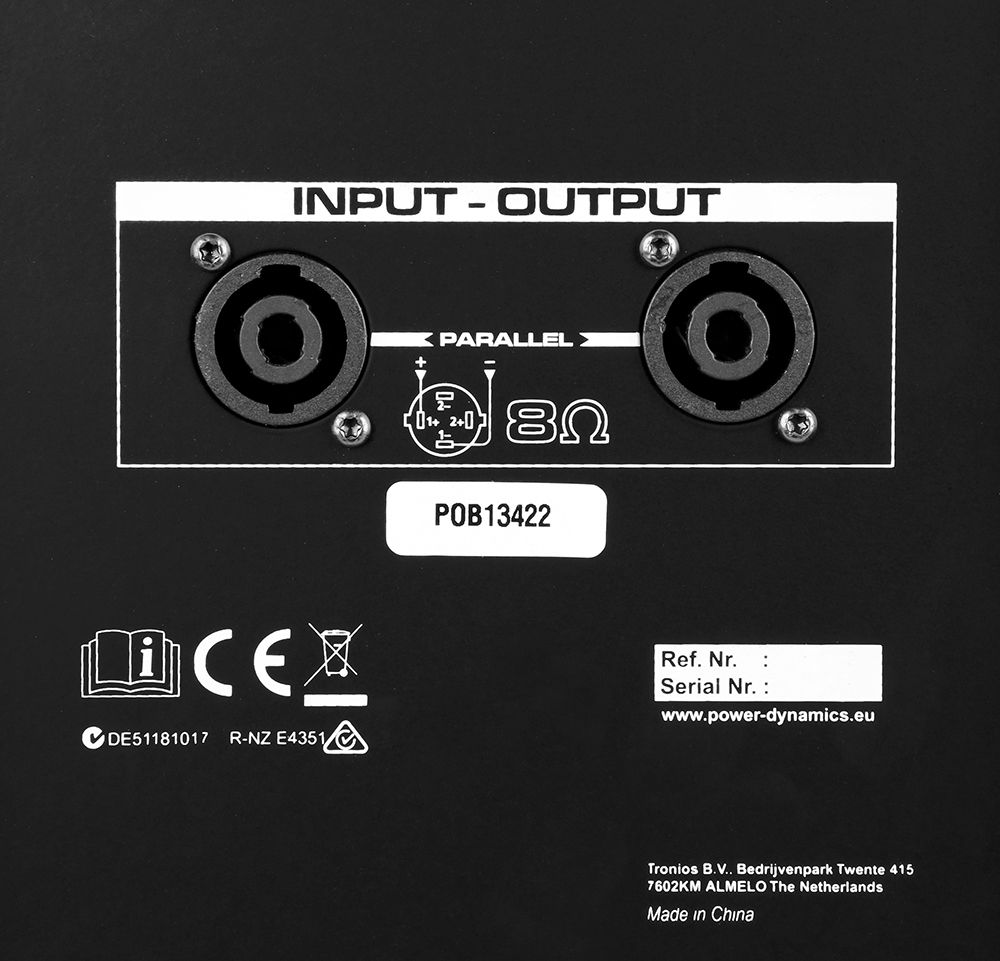

Connections
Input connections
- NL4
Output connections
- NL4
Mechanical
Stand Fitting35mm pole adapter on bottom
Dimensions
- 315 x 380 x 595 mm (W x D x H)
Weight
- 13.1 kg
Manuals & Documents
Manual
PDF
