PD412A
Bi-amplified Active Speaker 12" 1400W
SKU 178.263
|EAN 8715693289695
+3
All product information
Compare
PD4 series
Description
Highlights
- 1400W Bi-amplified 12" speaker
- 1.35" Titanium compression driver
- Line and mic input
- Built-in 2-way active crossover
- 4 Preset EQ settings
- Efficient class-D amplifier
- BT-receiver for audio streaming

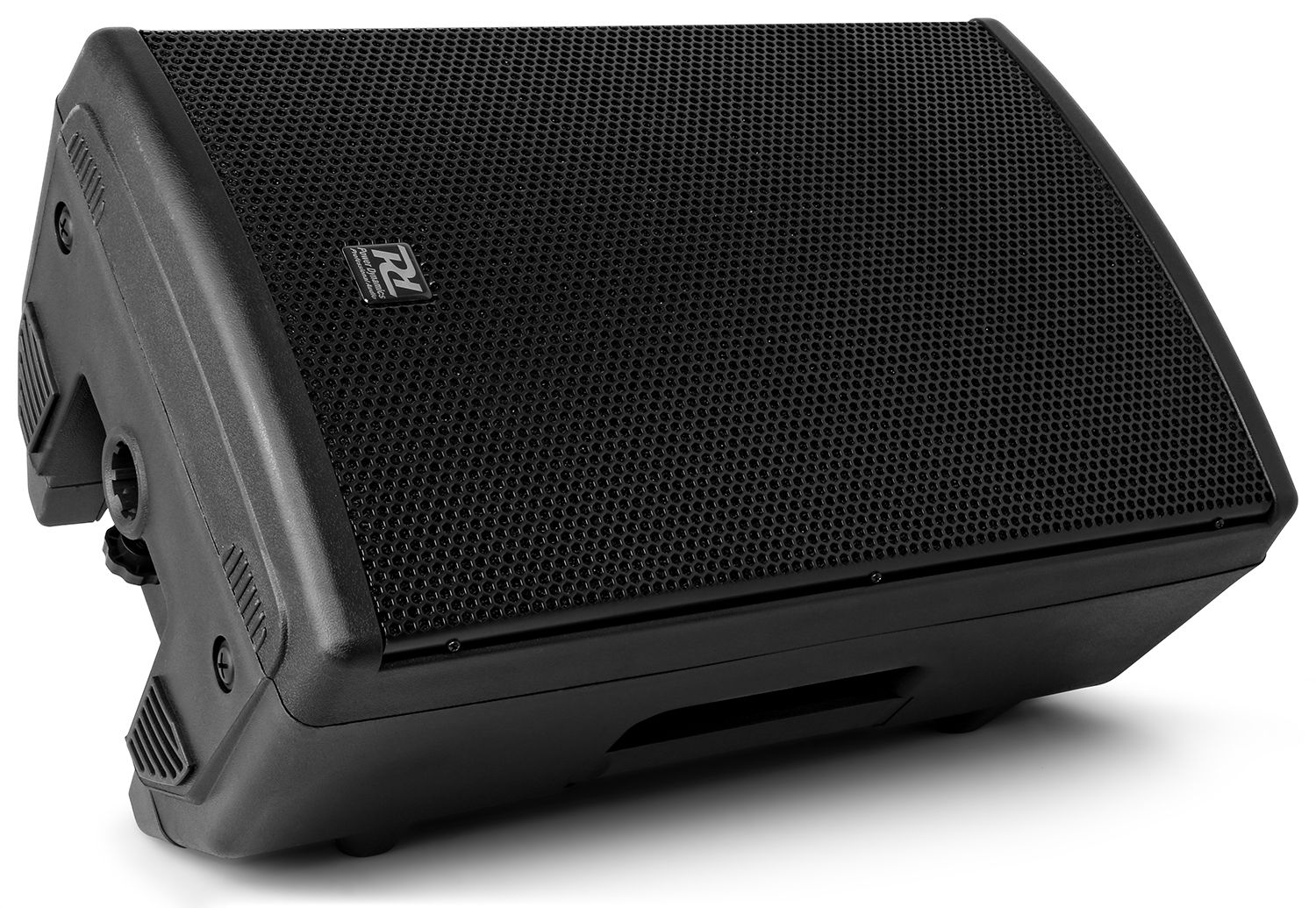

- Angled design for use as stage monitor
- 35mm socket for tripod or pole-mounting
Specifications
BrandPower Dynamics
Product seriePD4 series
ColourBlack
Speaker typeActive (amplified)
Speaker Power Peak1400 W
Speaker Power RMS350 W
Frequency Response40 - 20,000 Hz
Max. SPL (Peak)123 dB
Impedance4 Ω
Dispersion (H x V)100° x 60°
Playback
Playback optionsBT streaming, Line input, Microphone input
Sound editing
DSP Resolution24-bit
Audio specifications
Crossover Frequency2500 Hz
Tweeter diameter1.35"
Woofer diameter12"
Woofer Voice Coil3 "
Amplifier specifications
Amplifier classClass D
Connections
Input connections
- XLR
- RCA
- 6.3 mm jack
- 3.5 mm jack
Output connections
- XLR
Mechanical
Stand Fitting35mm pole adapter on bottom
Dimensions
- 315 x 380 x 595 mm (W x D x H)
Weight
- 15.7 kg
Manuals & Documents
Manual
PDF
