PD410P

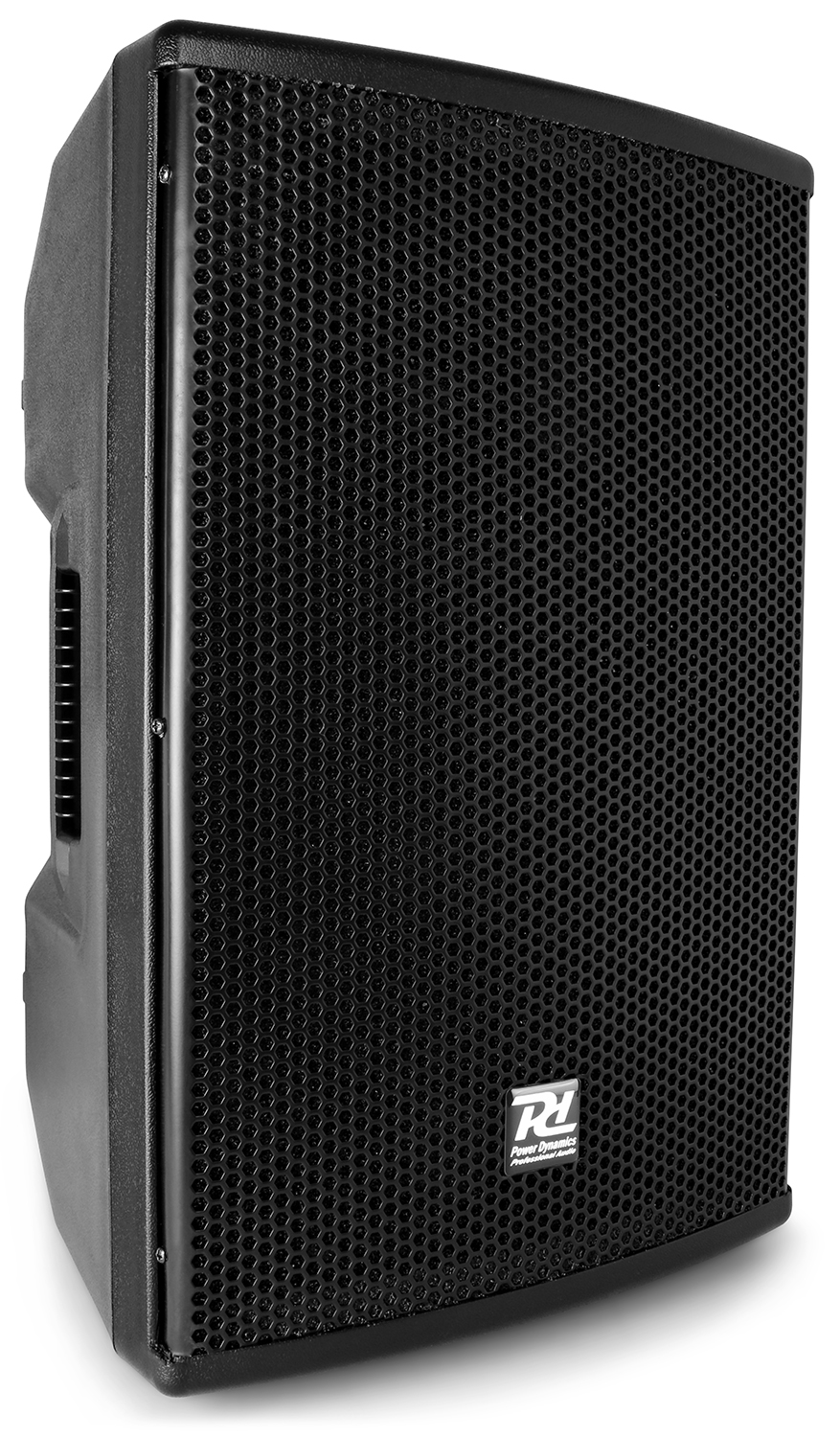

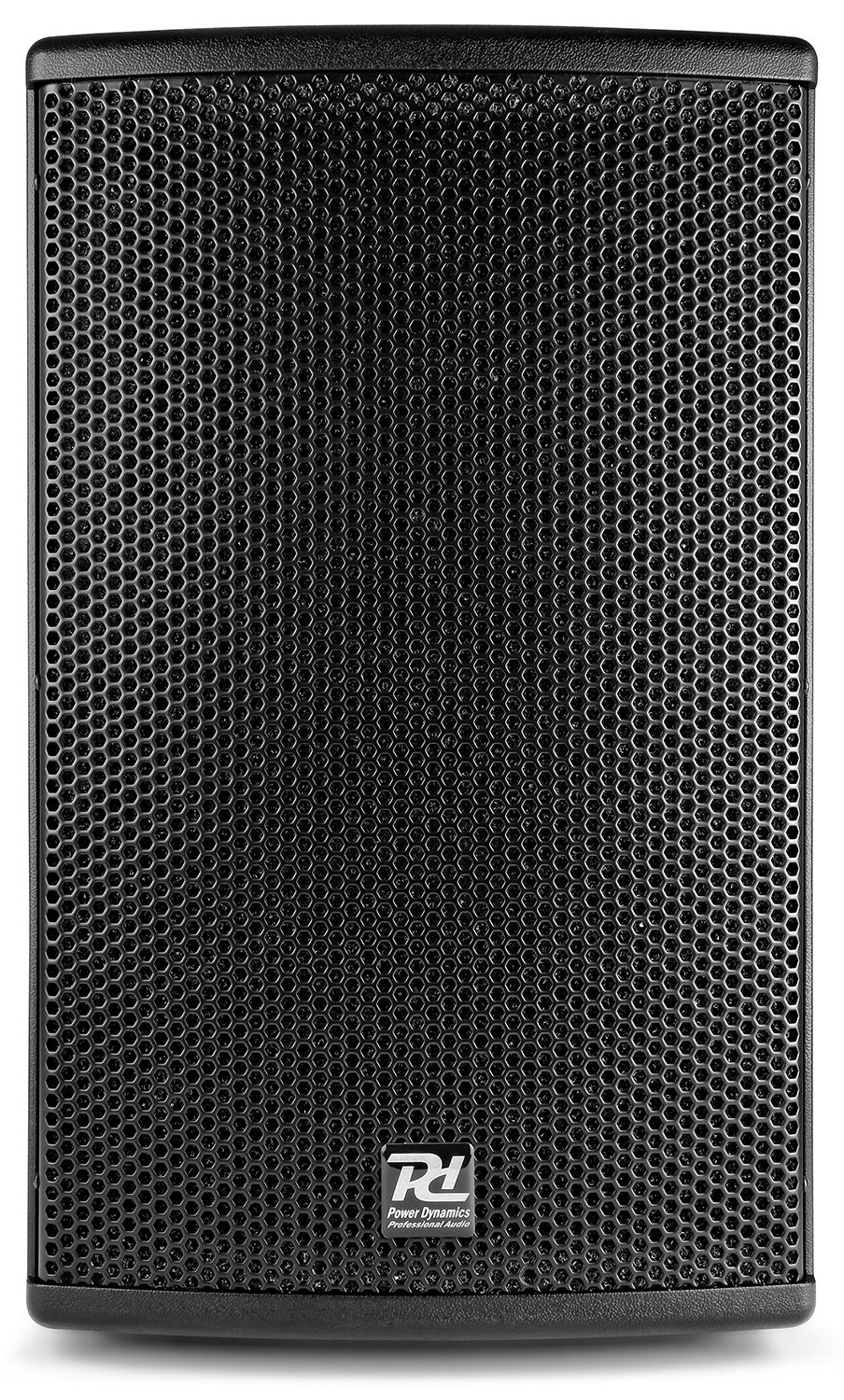

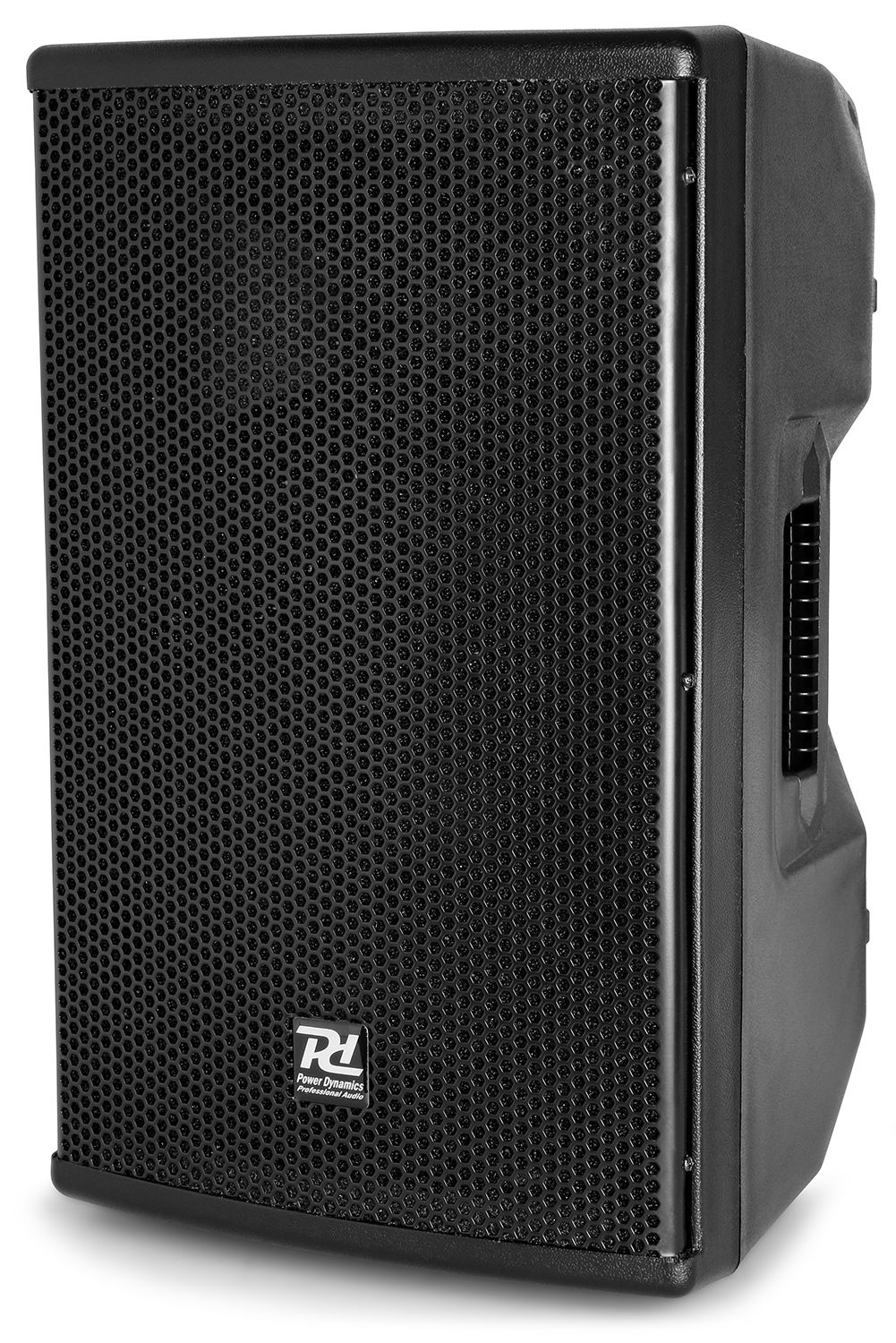

Passive Speaker 10" 800W
SKU 178.270
|EAN 8715693296600
+2
All product information
Compare
PD4 series
Description
Highlights
- 800W Passive 2-way 10" speaker
- 1" Compression driver
- Built-in 2-way passive crossover

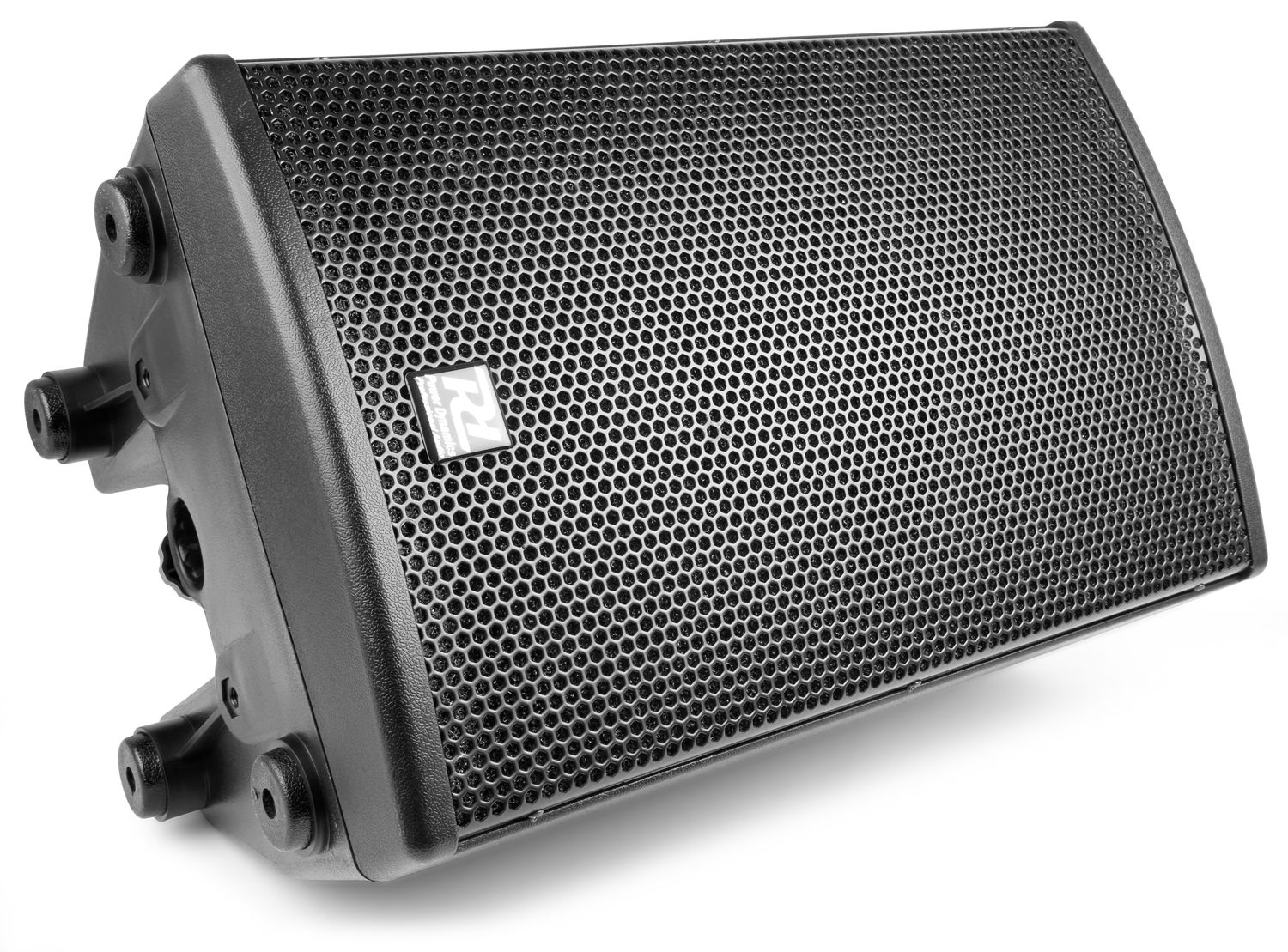

- Angled design for use as stage monitor
- 35mm socket for tripod or pole-mounting
Specifications
BrandPower Dynamics
Product seriePD4 series
ColourBlack
Speaker typePassive (non-amplified)
Speaker Power Peak800 W
Speaker Power400 W
Speaker Power RMS200 W
Frequency Response50 - 20,000 Hz
Sensitivity (1W/1m)94 dB
Max. SPL (Peak)123 dB
Impedance8 Ω
Dispersion (H x V)110° x 60°
Audio specifications
Crossover Frequency2800 Hz
Tweeter diameter1"
Woofer diameter10"

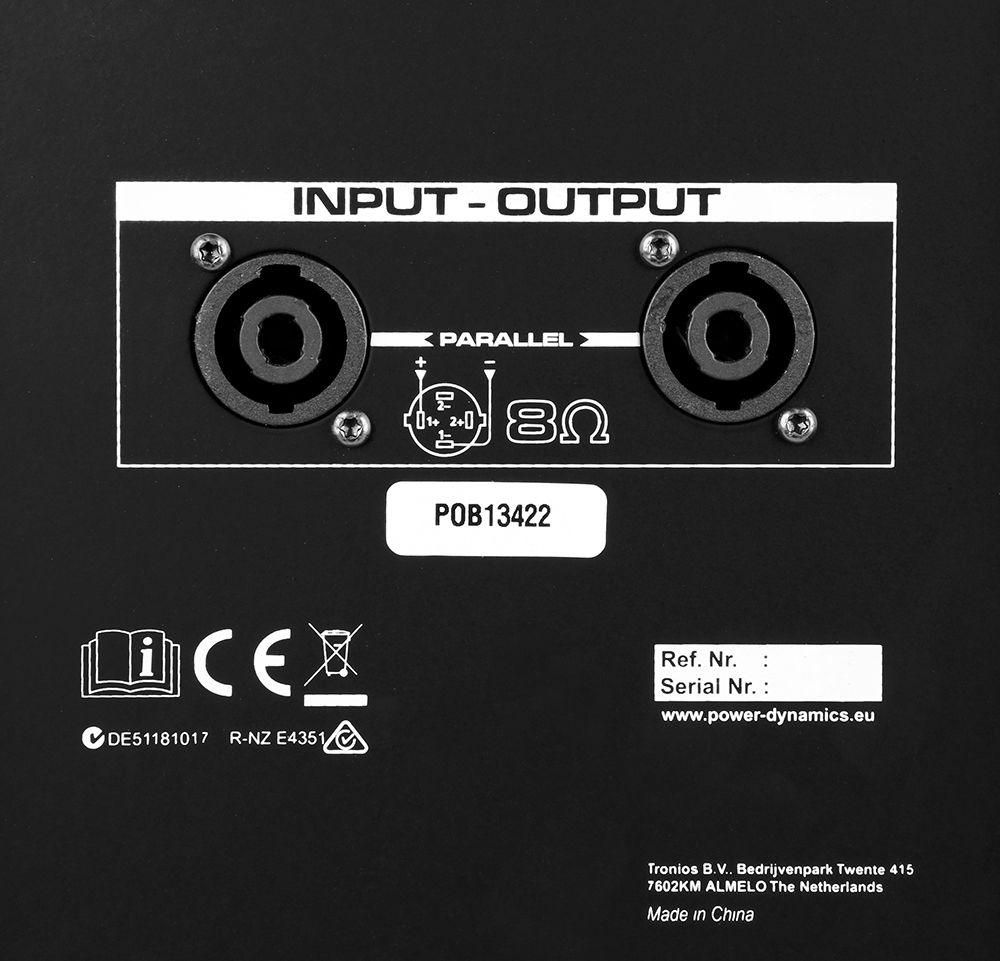

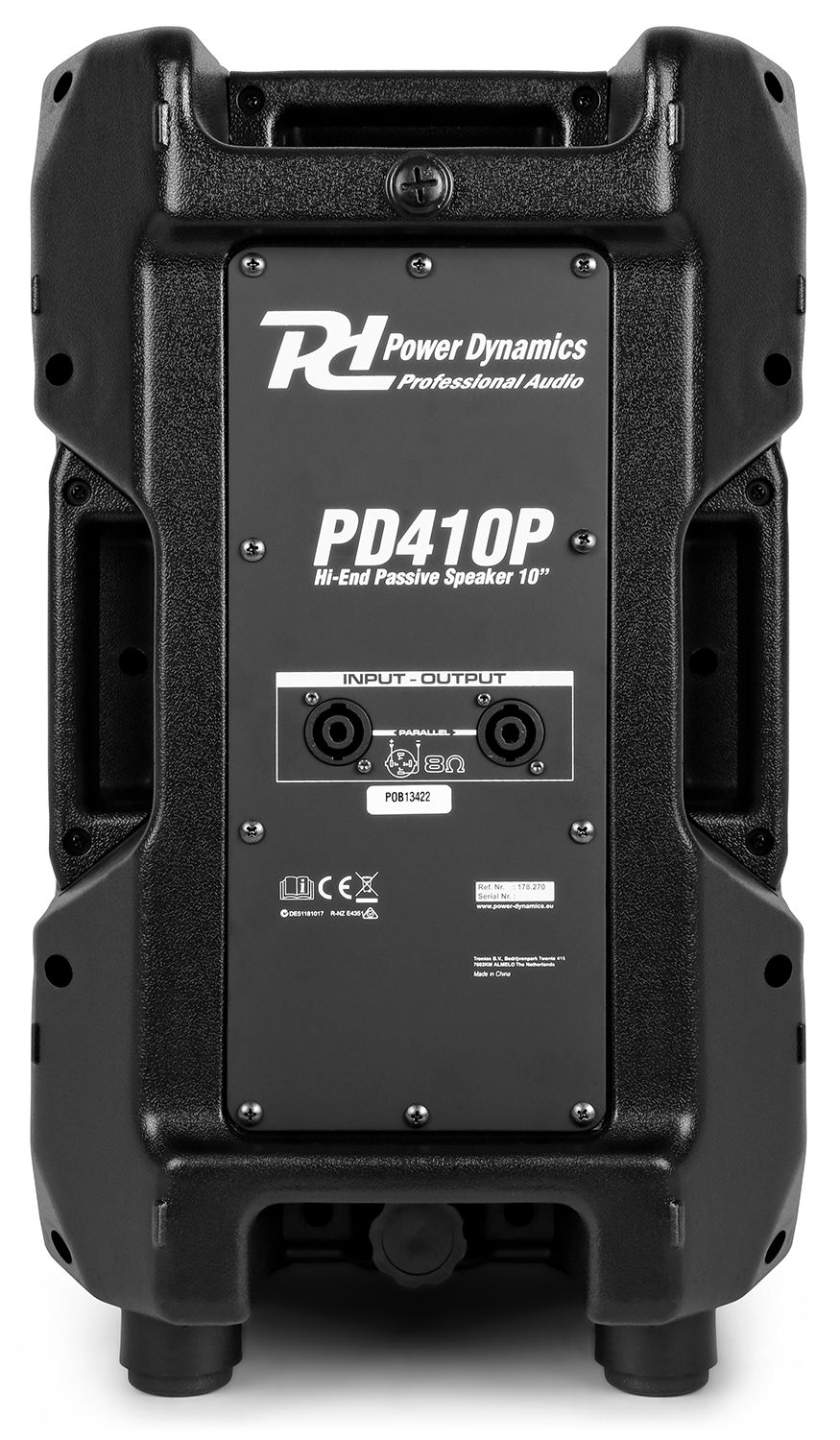

Connections
Input connections
- NL4
Output connections
- NL4
Mechanical
Stand Fitting35mm pole adapter on bottom
Dimensions
- 330 x 310 x 510 mm (W x D x H)
Weight
- 10.8 kg
Manuals & Documents
Manual
PDF
Ask away
Or ...
Email your question directly
If you have any questions about this product or serie? Fill in this form and we'll answer your question as soon as possible.
