PD410A
BI-Amplified Active Speaker 10" 800W
SKU 178.260
|EAN 8715693296594
+3
All product information
Compare
PD4 series
Description
Highlights
- 800W Bi-amplified 10" speaker
- 1" Compression driver
- Line and mic input
- Built-in 2-way active crossover
- 4 Preset EQ settings
- Efficient class-D amplifier
- BT-receiver for audio streaming

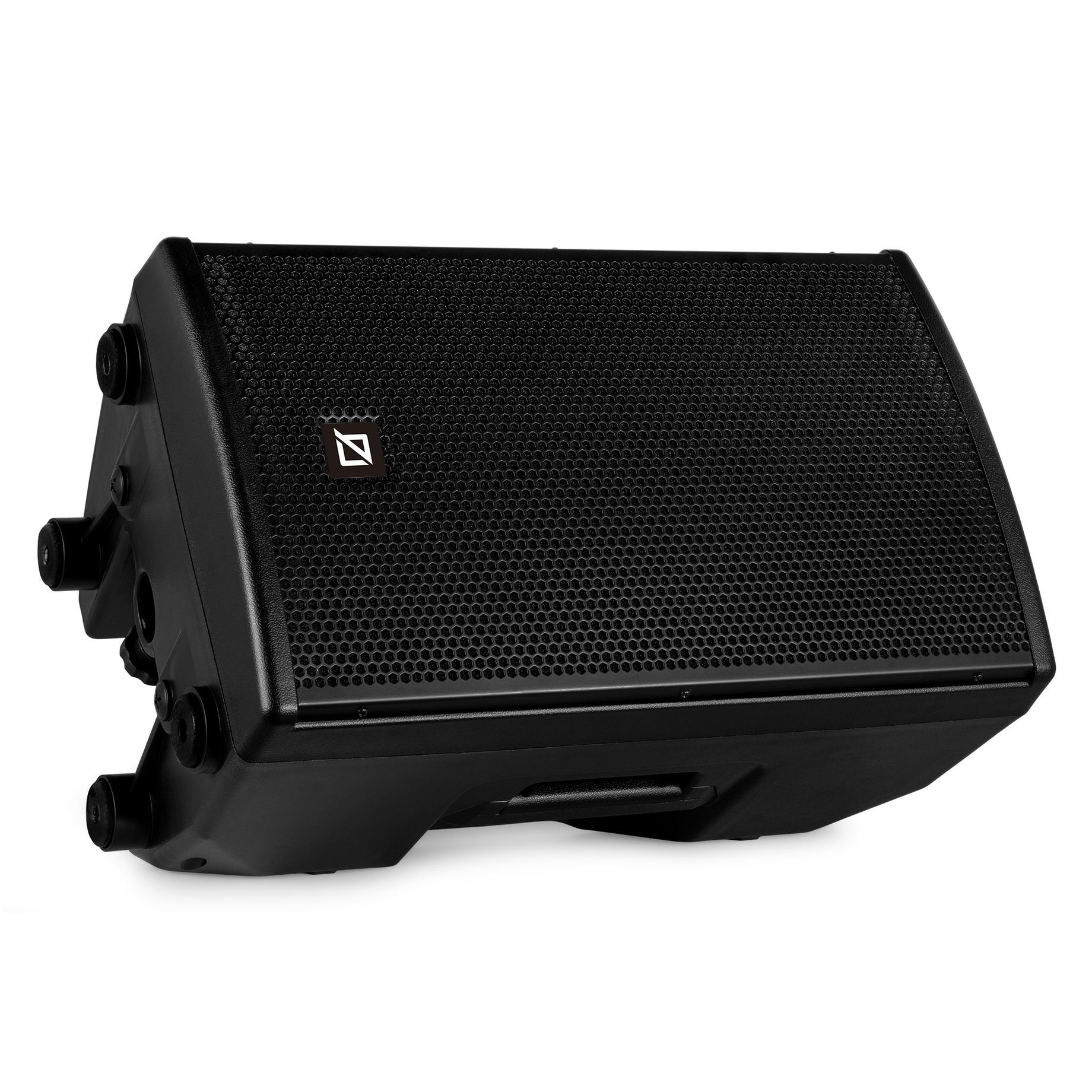

- Angled design for use as stage monitor

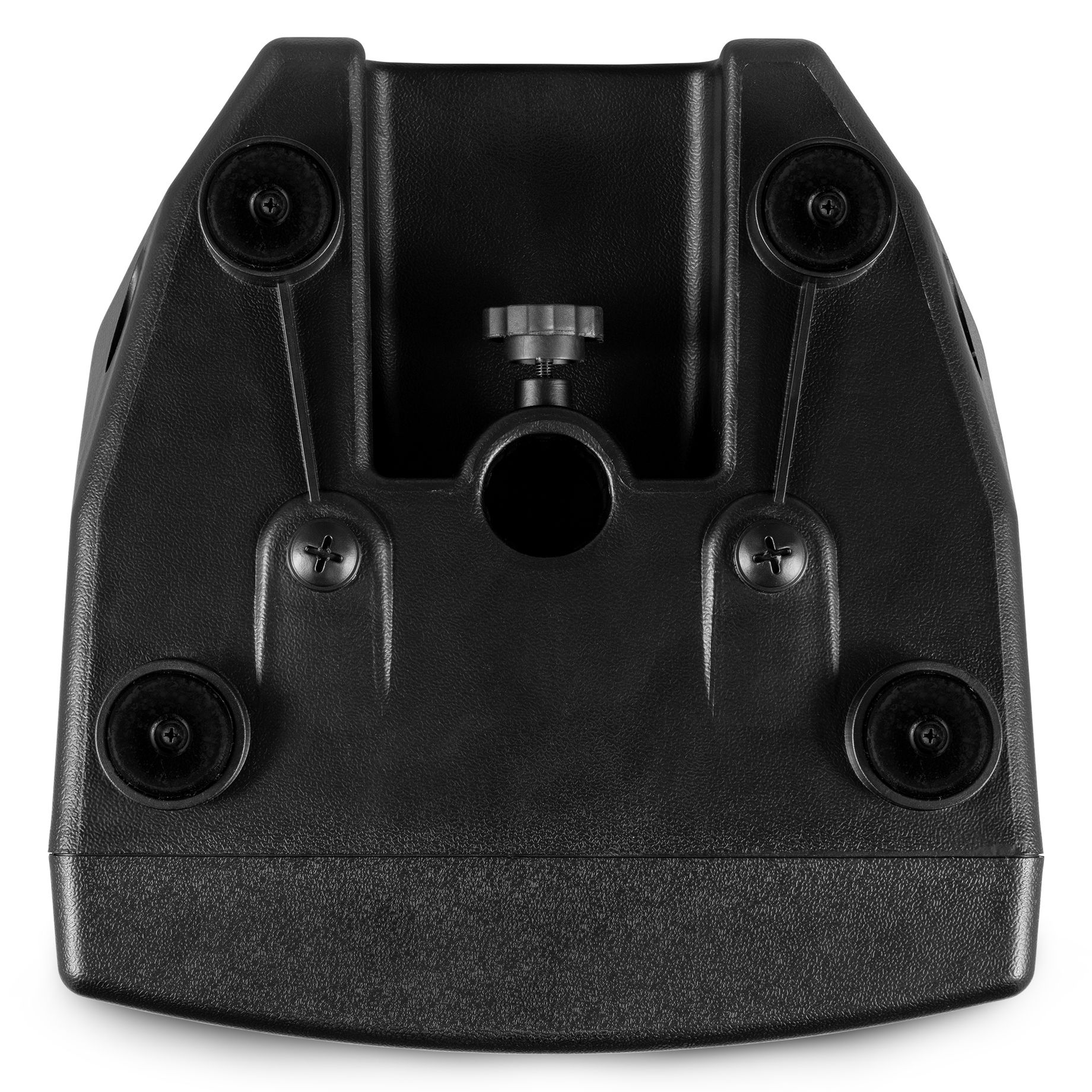

- 35mm socket for tripod or pole-mounting
Specifications
BrandPower Dynamics
Product seriePD4 series
ColourBlack
Speaker typeActive (amplified)
Speaker Power Peak800 W
Speaker Power RMS200 W
Frequency Response50 - 20,000 Hz
Sensitivity (1W/1m)92 dB
Max. SPL (Peak)121 dB
Impedance4 Ω
Dispersion (H x V)110° x 60°
Playback
Playback optionsBT streaming, Line input, Microphone input
Sound editing
DSP Resolution24-bit
Audio specifications
Crossover Frequency2500 Hz
Tweeter diameter1"
Woofer diameter10"
Woofer Voice Coil2 "
Amplifier specifications
Amplifier classClass D

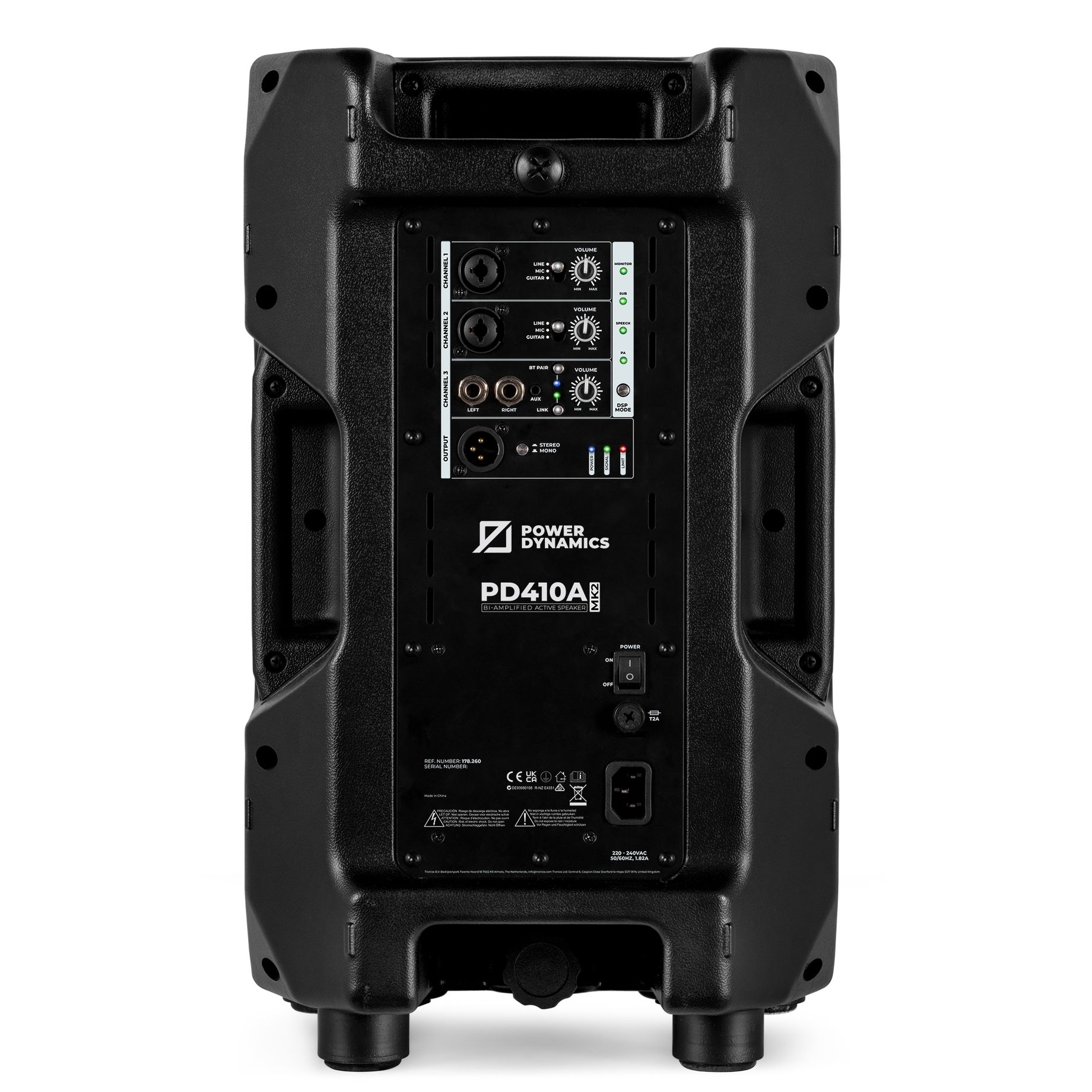

Connections
Input connections
- XLR
- RCA
- 6.3 mm jack
- 3.5 mm jack
Output connections
- XLR
Mechanical
Stand Fitting35mm pole adapter on bottom
Dimensions
- 330 x 310 x 510 mm (W x D x H)
Weight
- 11.6 kg
