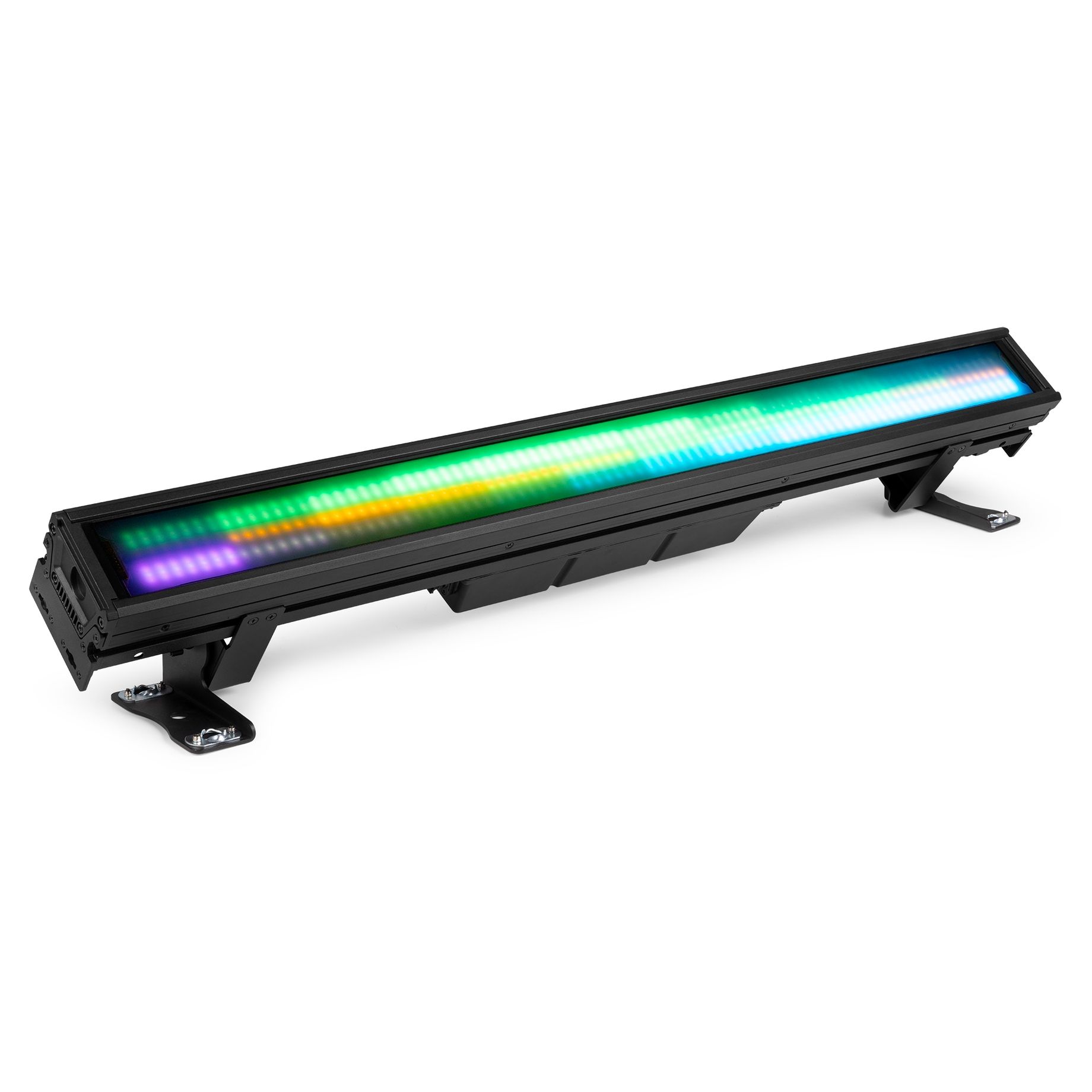

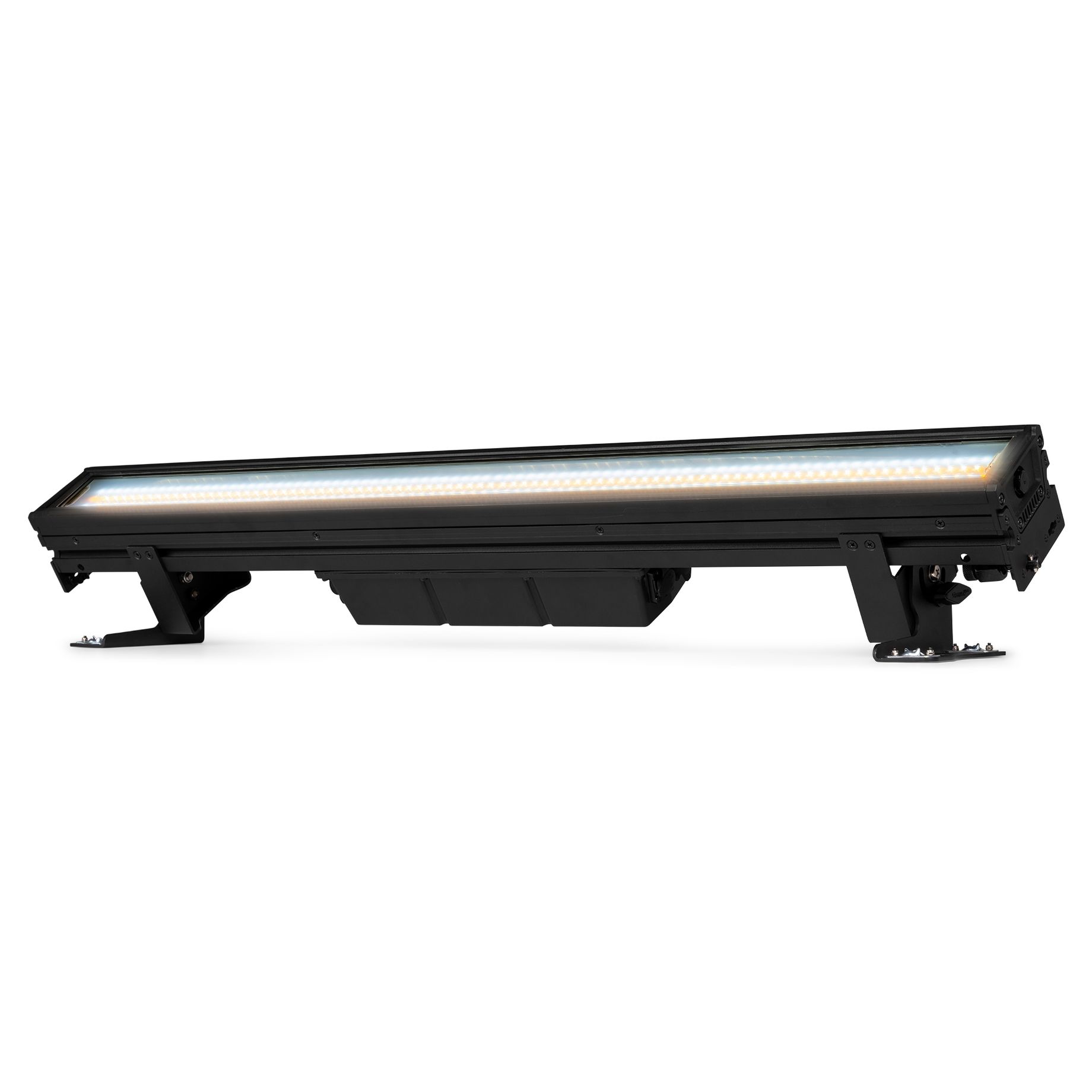

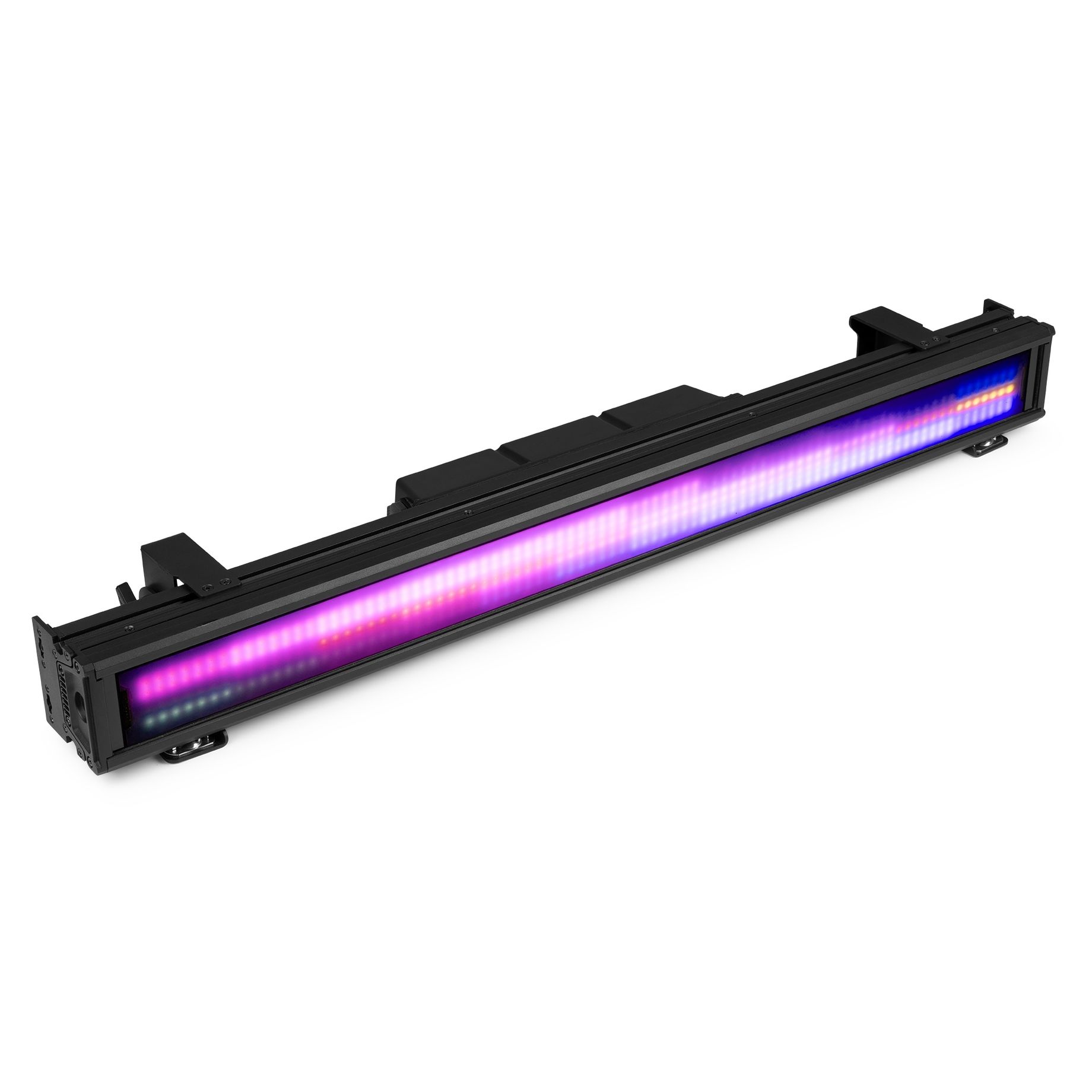

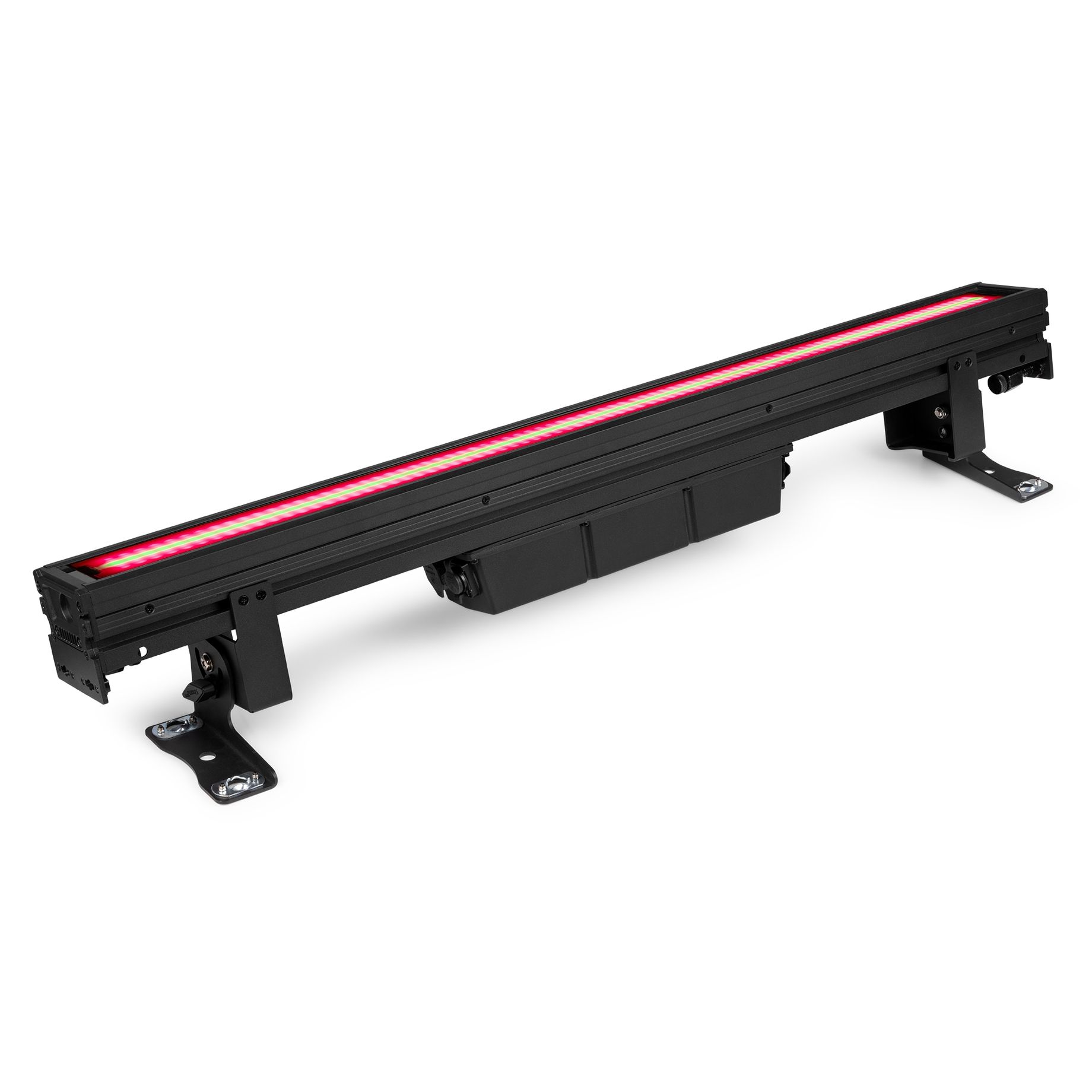

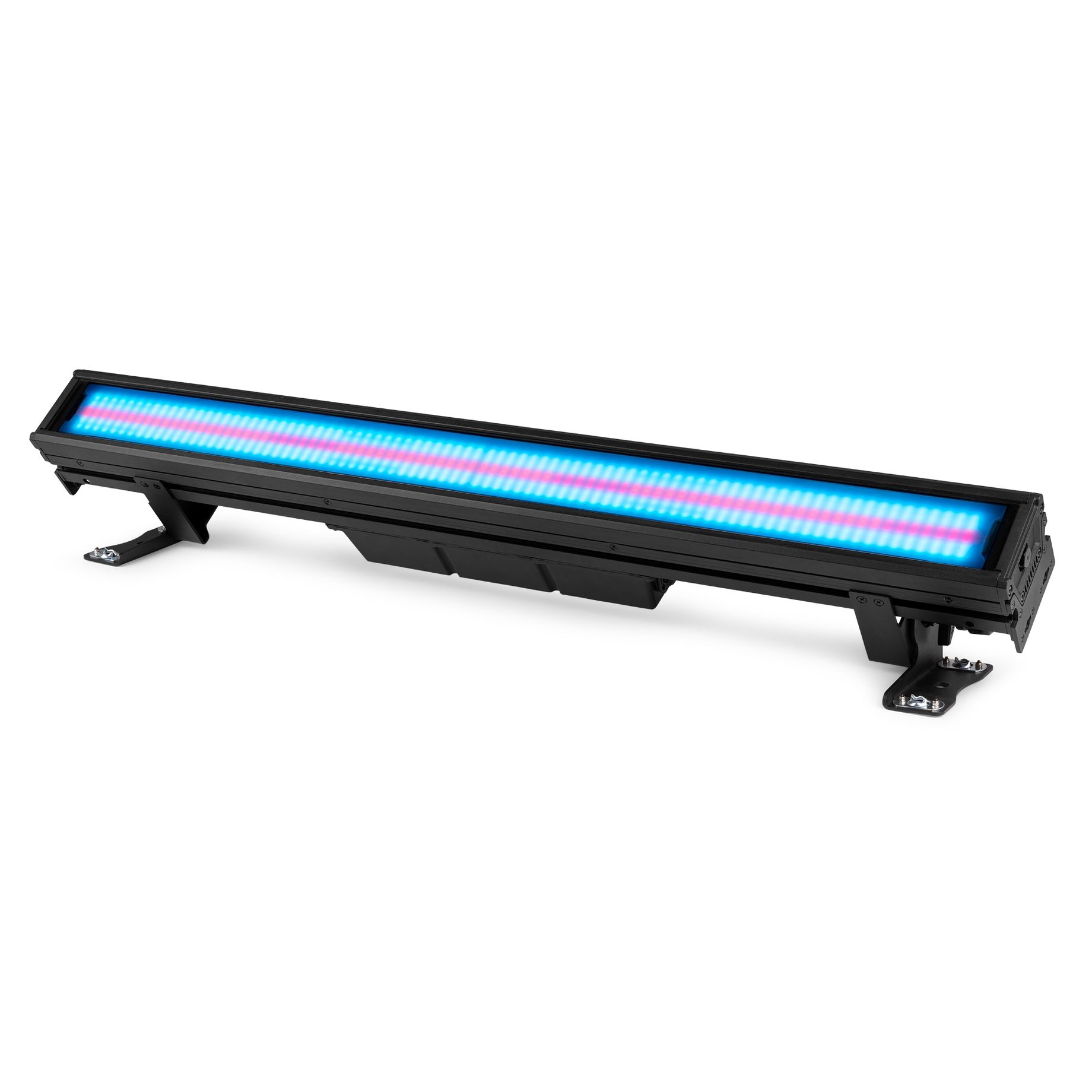

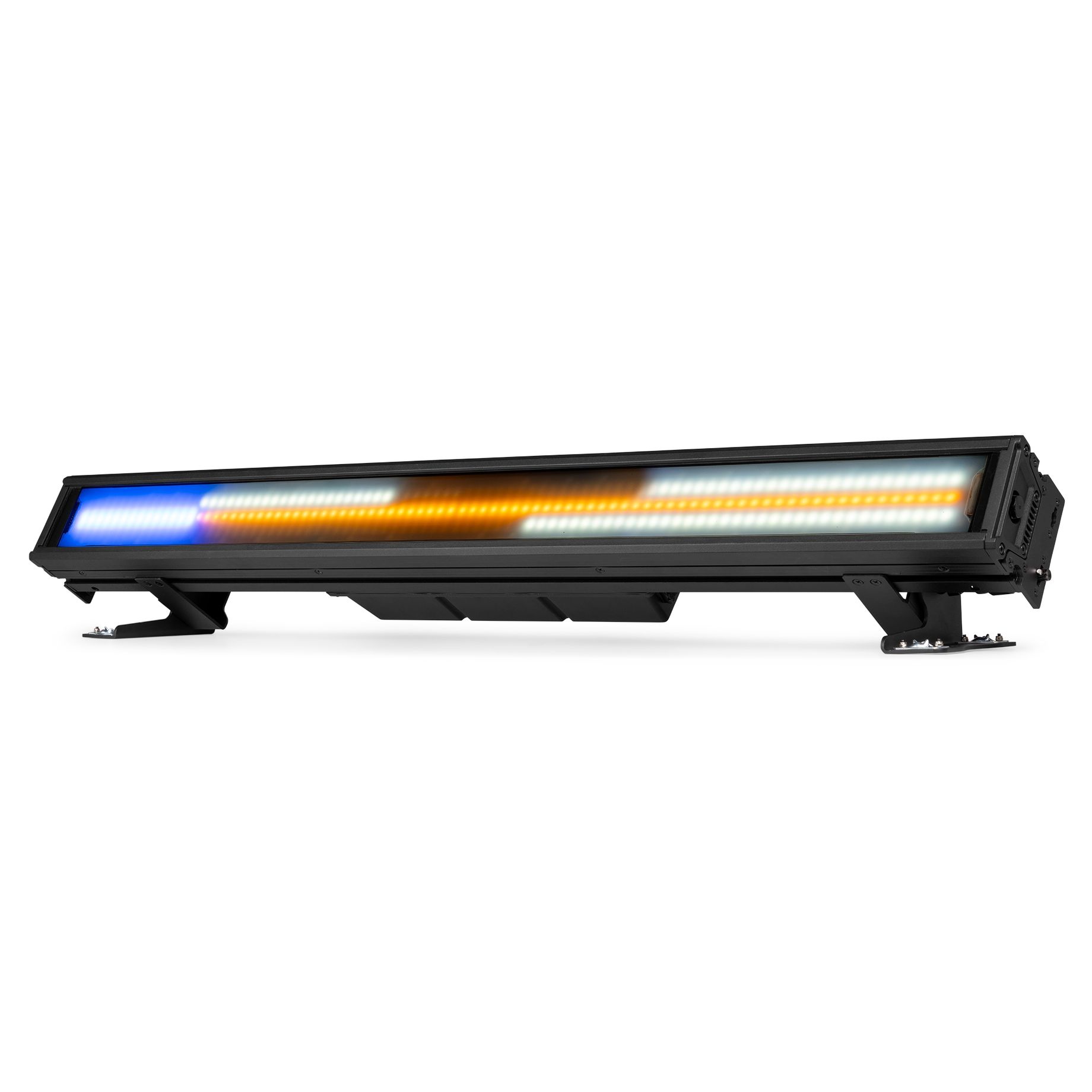

LCB400IP
Outdoor LED BAR
SKU 150.170
|EAN 8715693354232
+12
All product information
Compare
LCB-IP series
Description
Highlights
- IP65 LED Bar
- 504x SMD RGB LEDs
- 168x SMD Cool White LEDs
- 84x SMD Amber LEDs

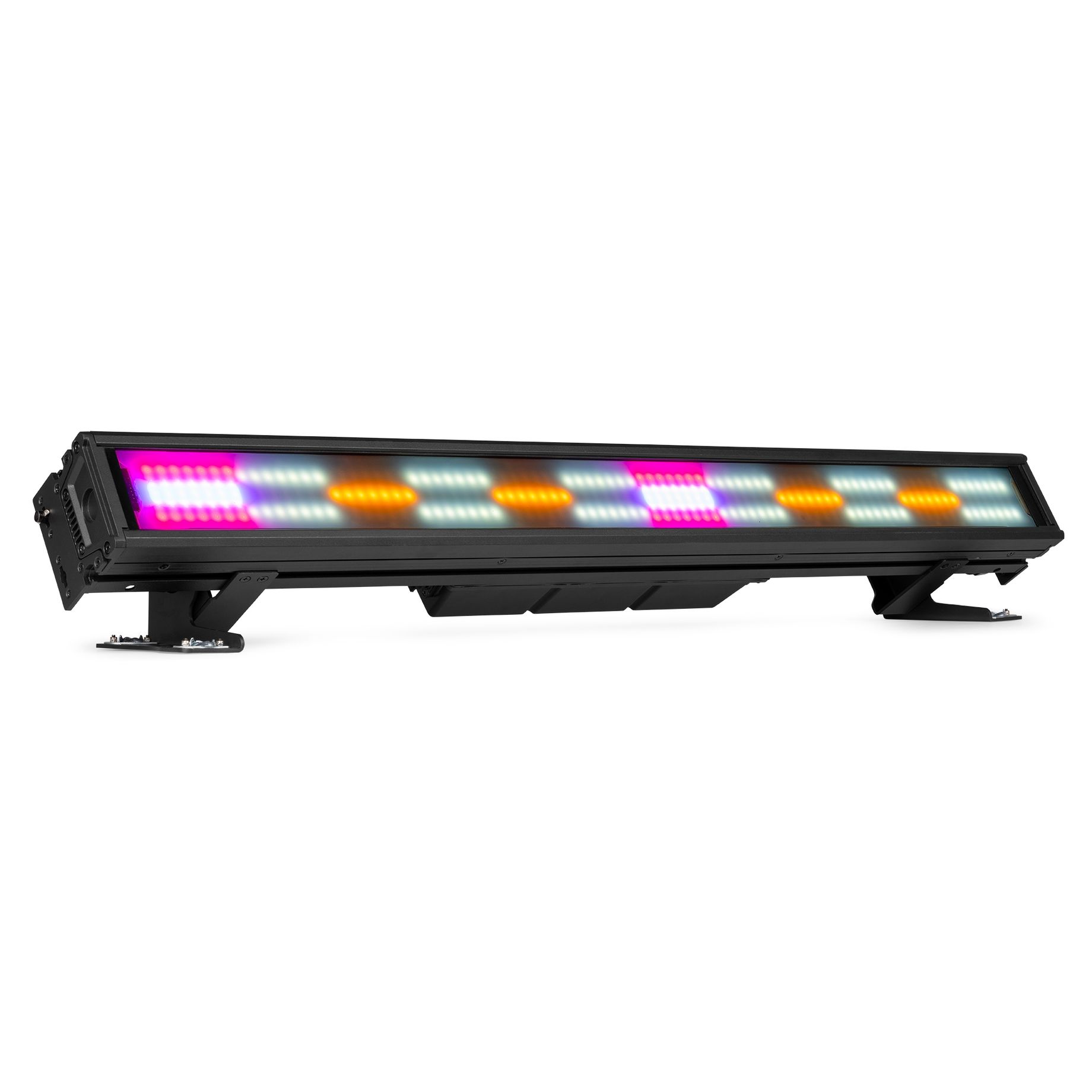

- Separate controllable sections (RGB 36, CW 24 and Amber 12 sections)
- Weatherproof IP65 for indoor/outdoor use
- Pre-programmed shows and adjustable speed
- Electronic frost filter
- Strobe effect
- DMX and Stand-alone mode
- Master/Slave function

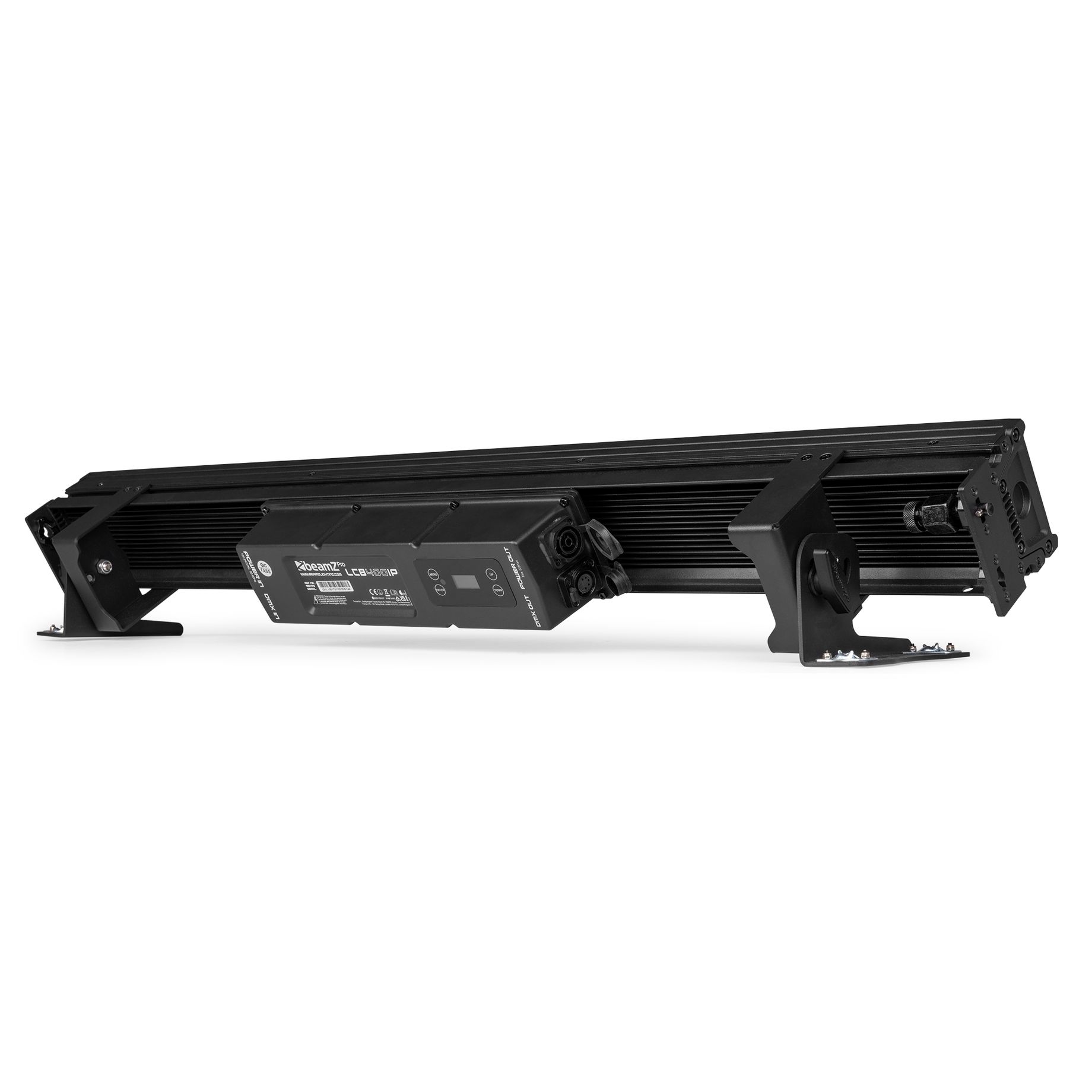

- Control panel with OLED display
- Aluminium housing with convection cooling
- Waterproof in/output connectors for DMX and power
Specifications
BrandbeamZ Professional
Product serieLCB-IP series
ColourBlack

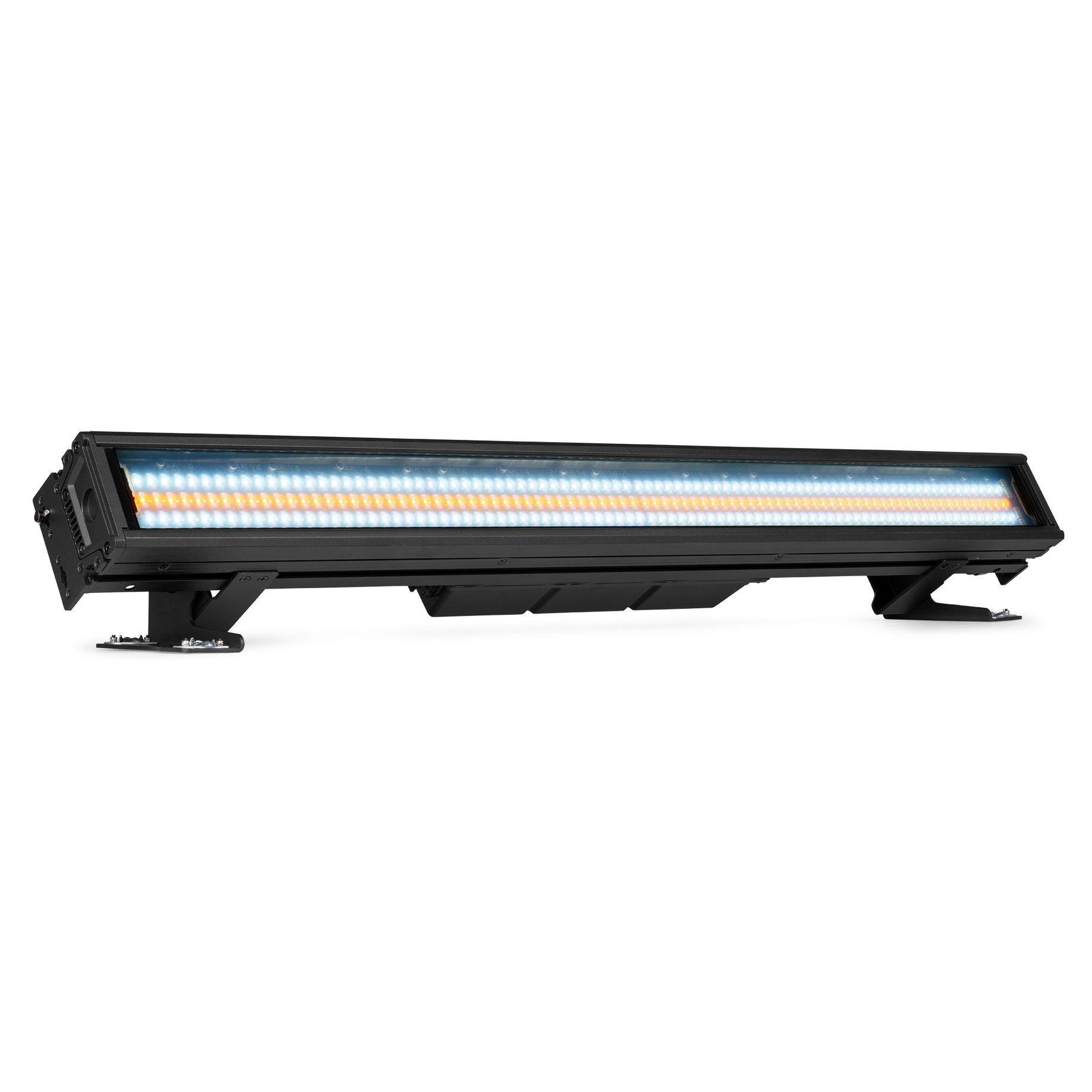

Light source
Light source: Wash
- 504x 0.5W RGB LED
Light source: Strobe
- 168x 0.5W Cool white LED
Light source: Blinder
- 84x 0.5W Amber SMD LED
Illuminance 19772 lx @ 0.5m
Optics
Beam angle
- 93°
Features
Flash Per Second1 - 25 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels4, 6, 7, 12, 15, 35, 45, 75, 159
RDMYes
DMX connector5-pin XLR
Connections

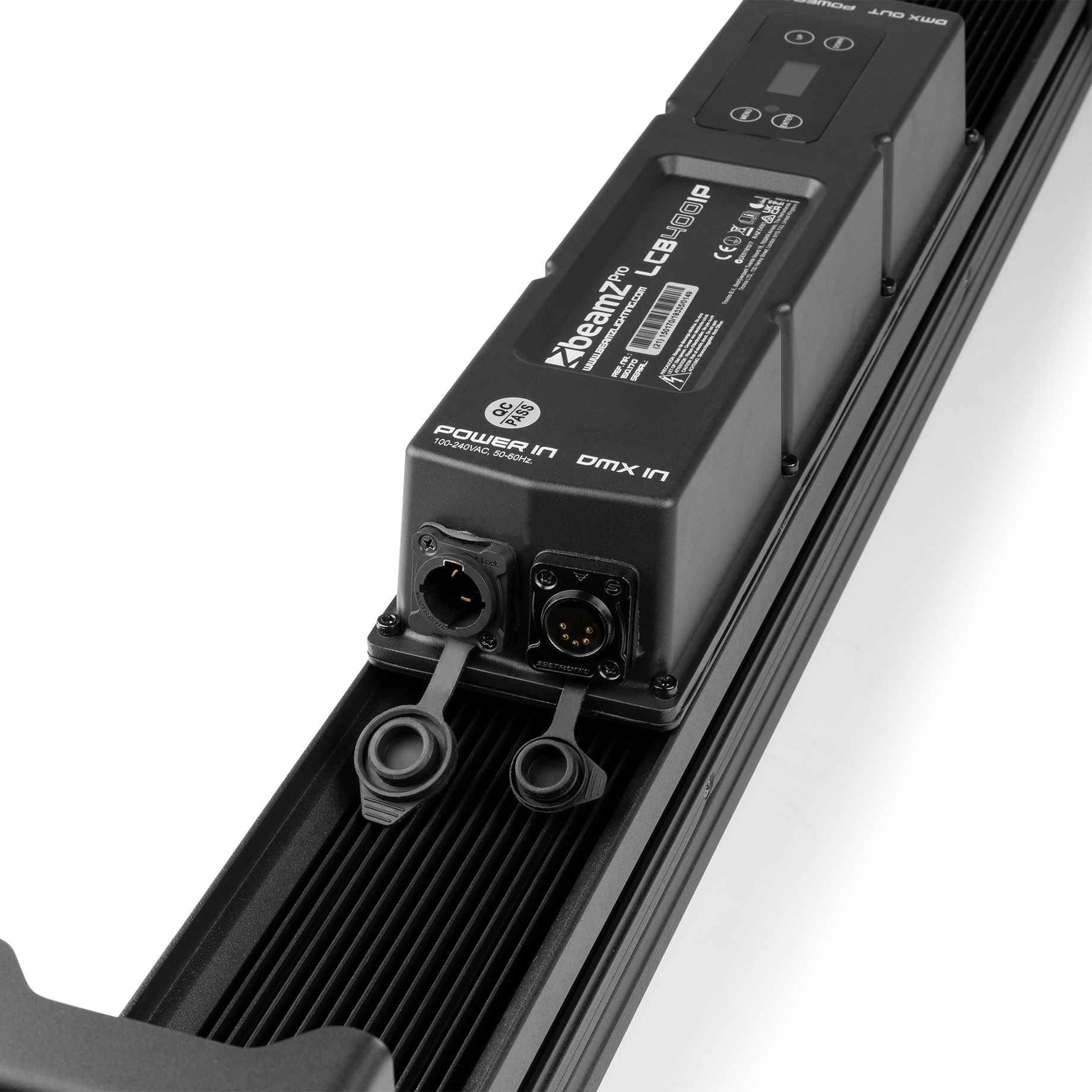

Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 5-pin XLR IP65 (M)

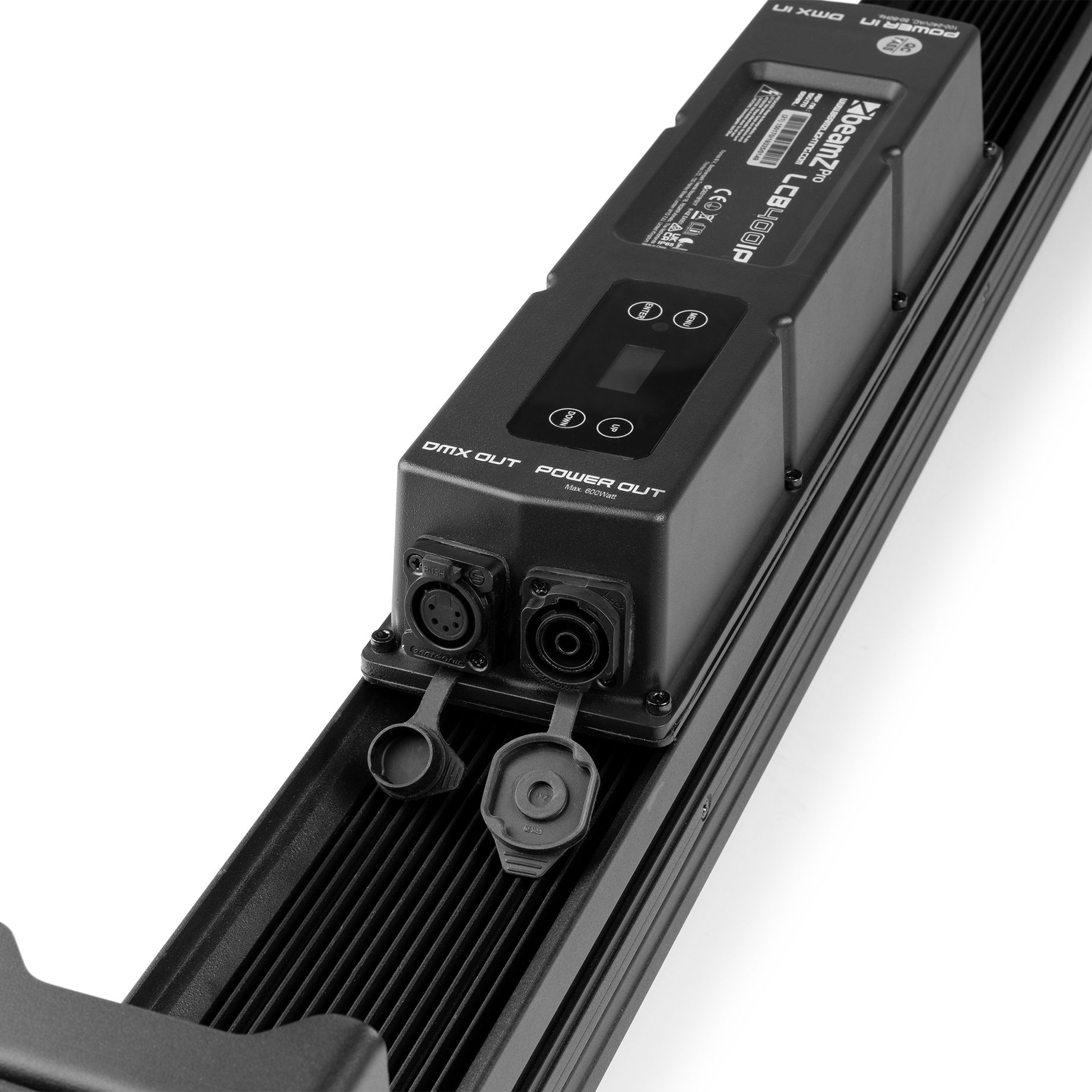

Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeOLED
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 1040 x 140 x 115 mm (W x D x H)
Weight
- 9.8 kg

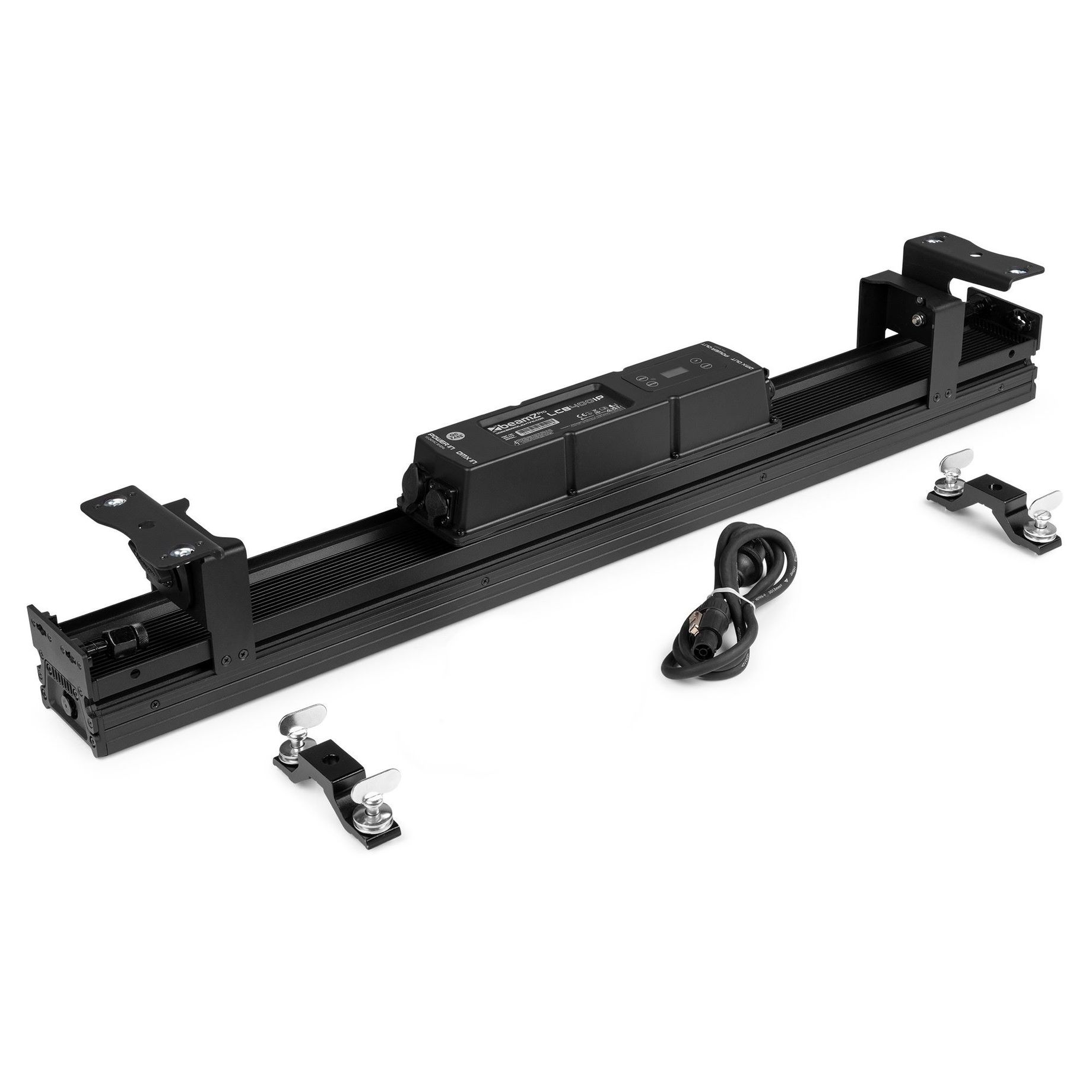

Accessories
Included Accessories

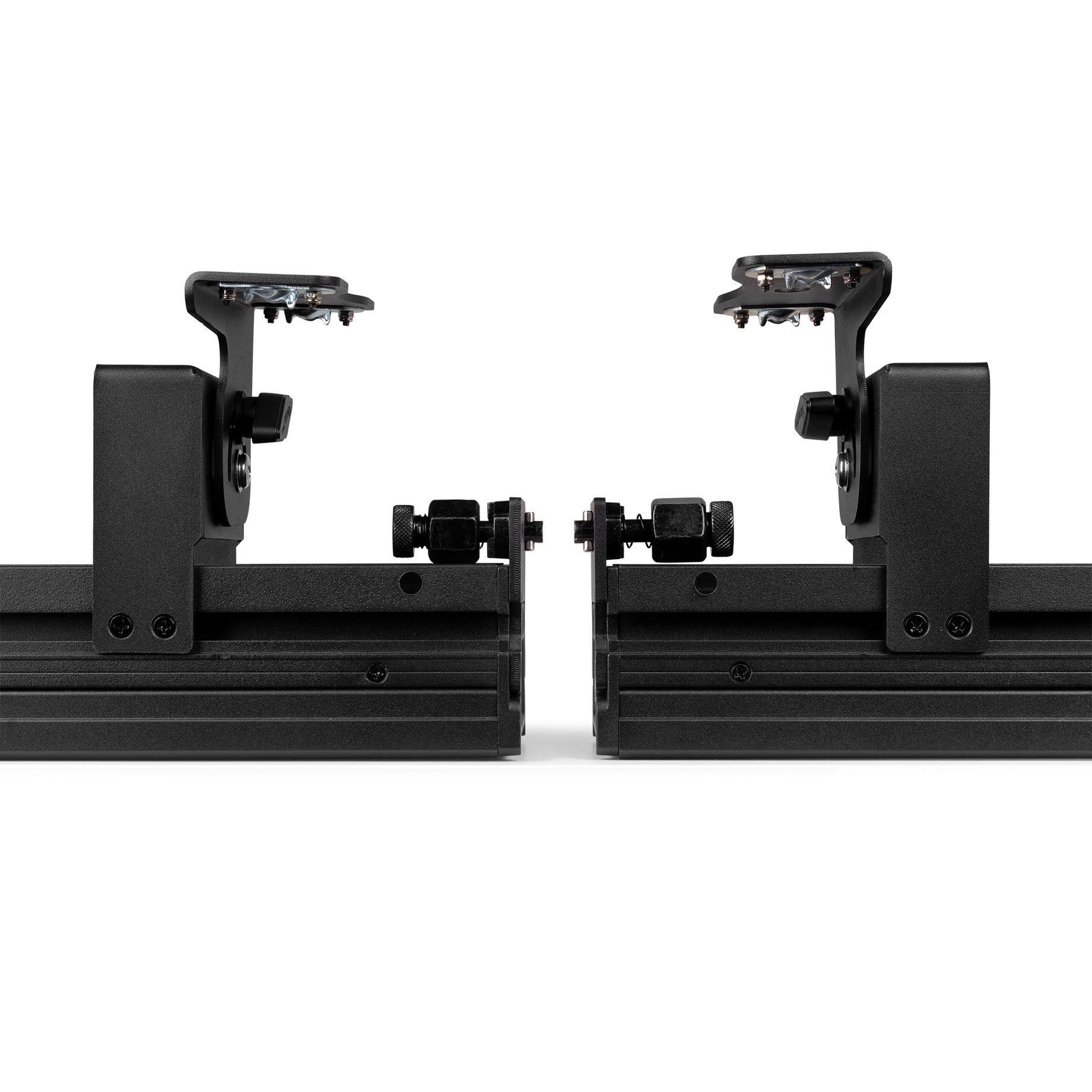

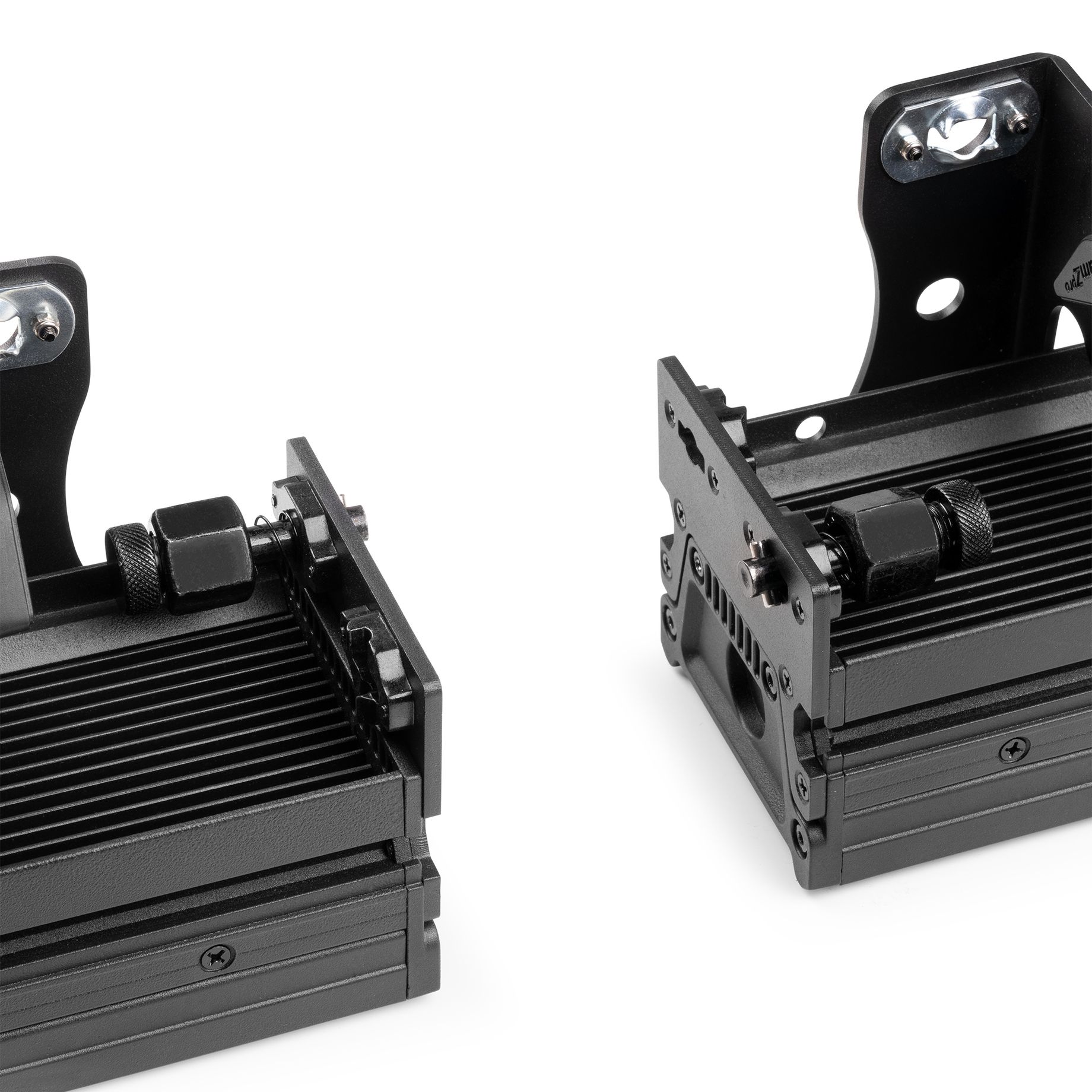

- Mounting bracket
Manuals & Documents
Manual
PDF
