LCB246IP

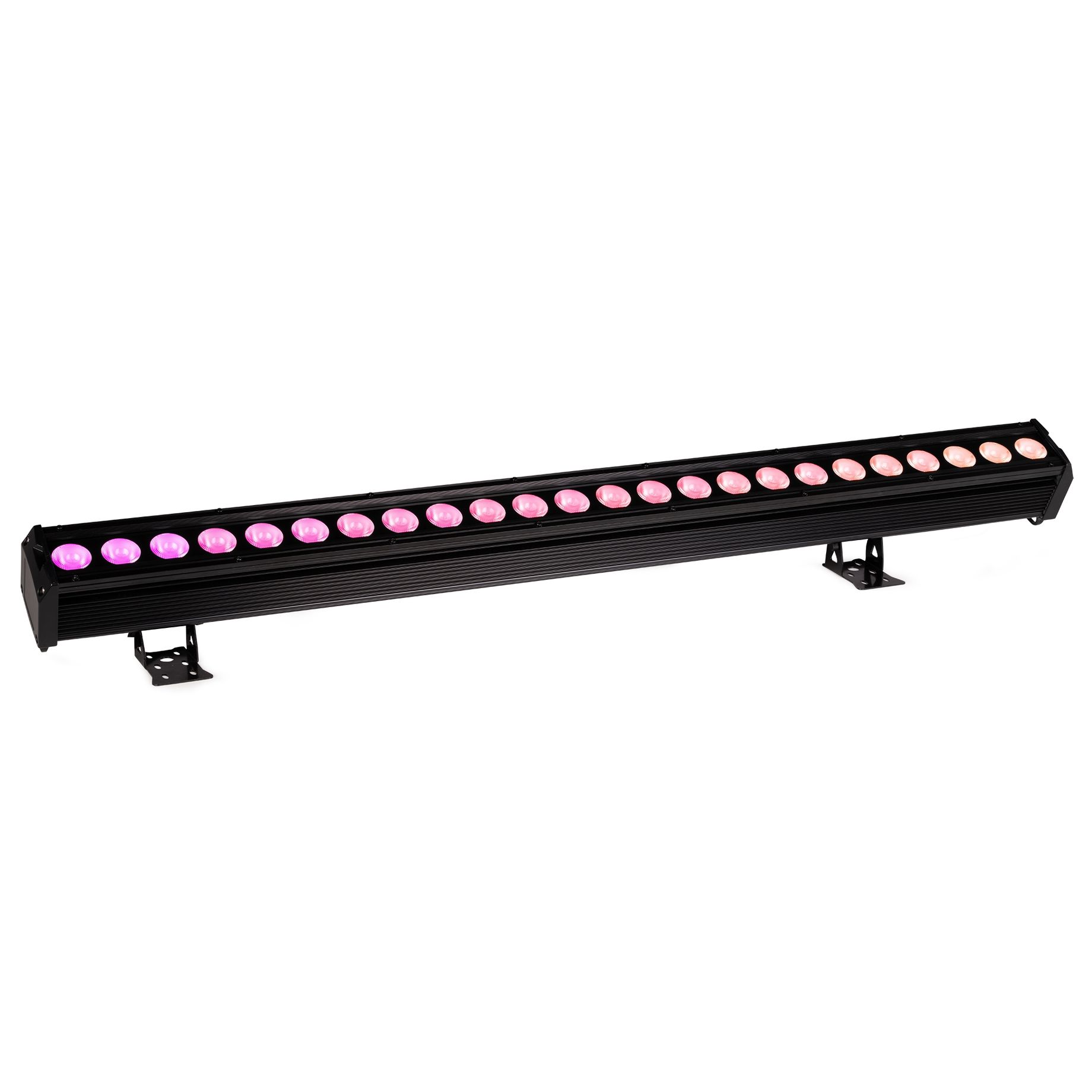

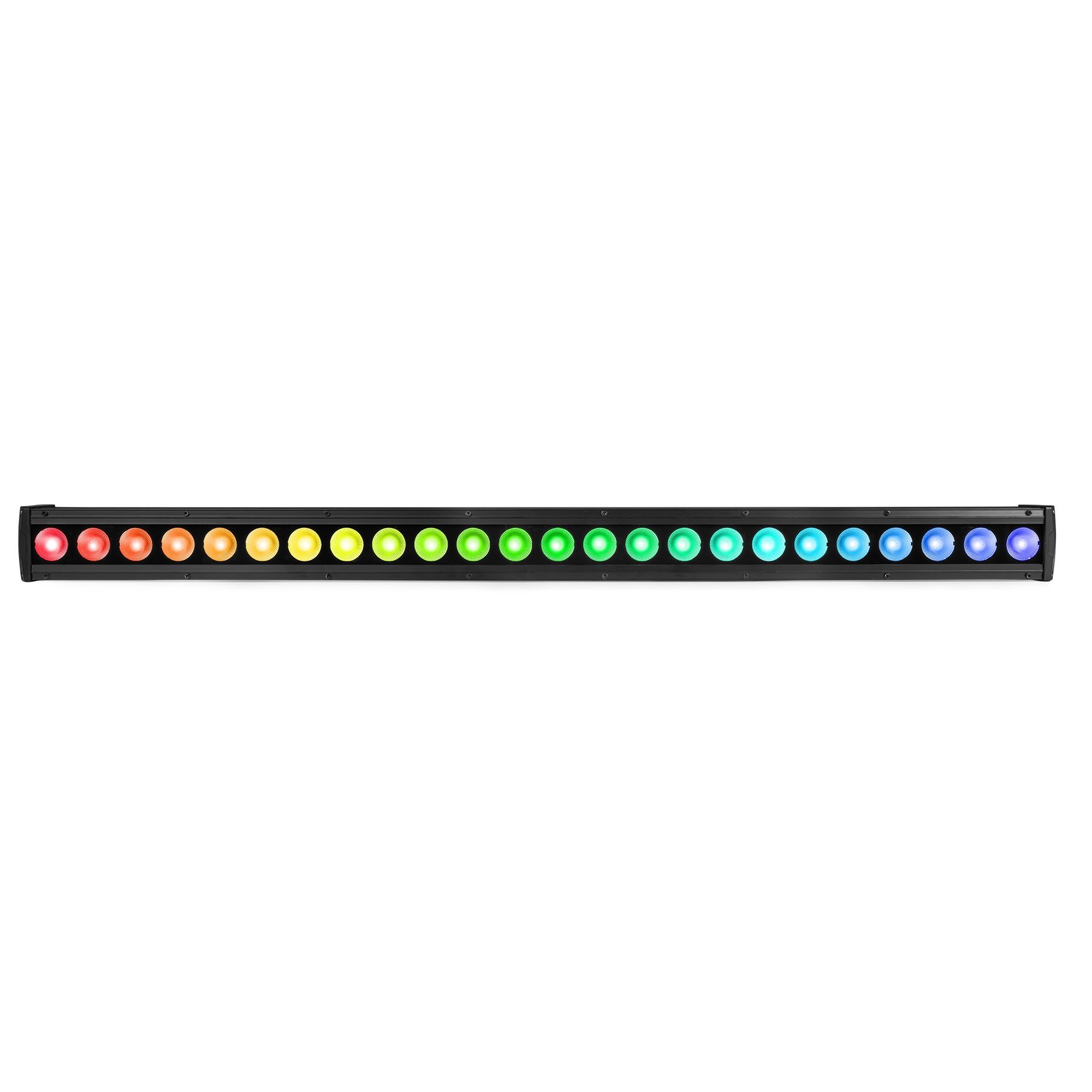

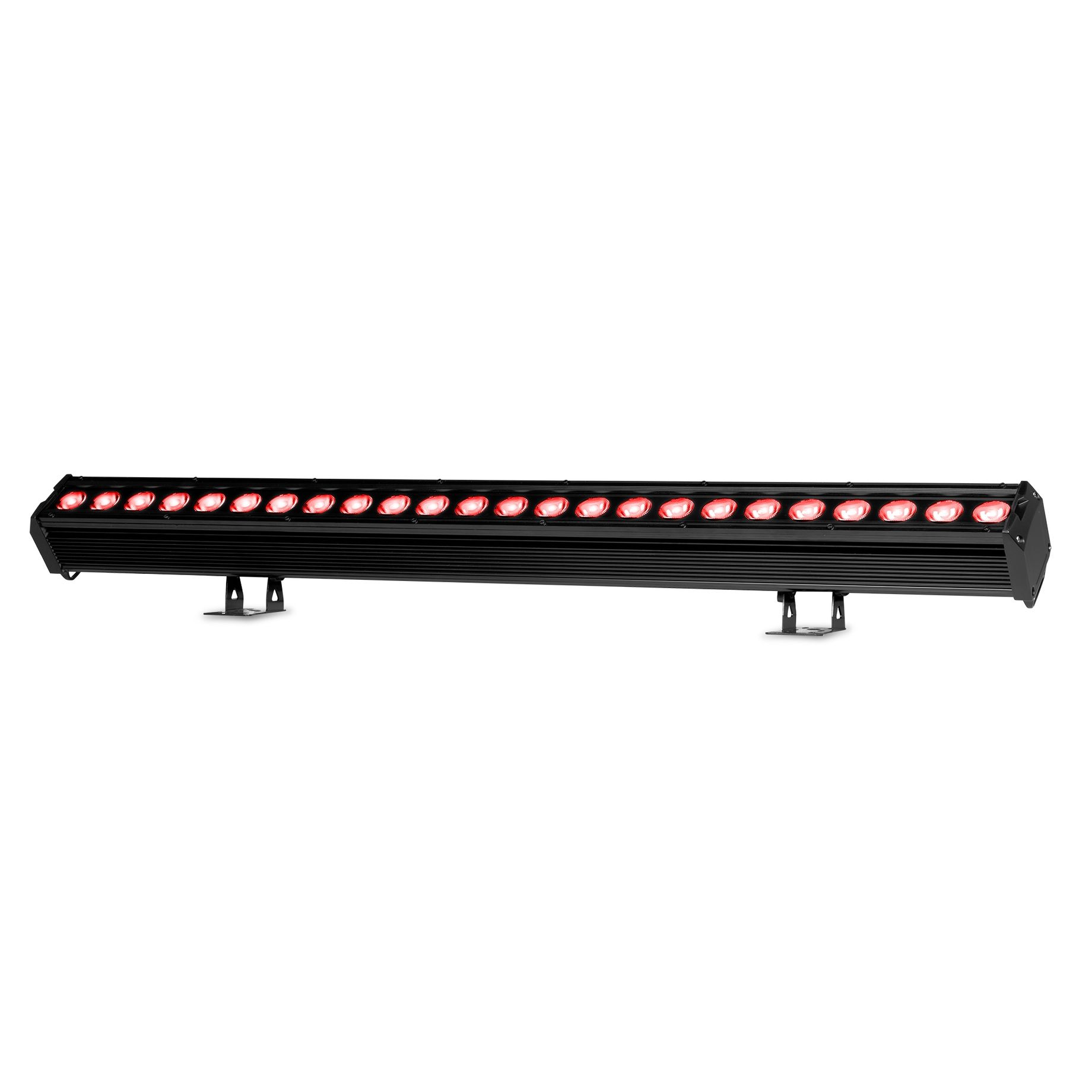

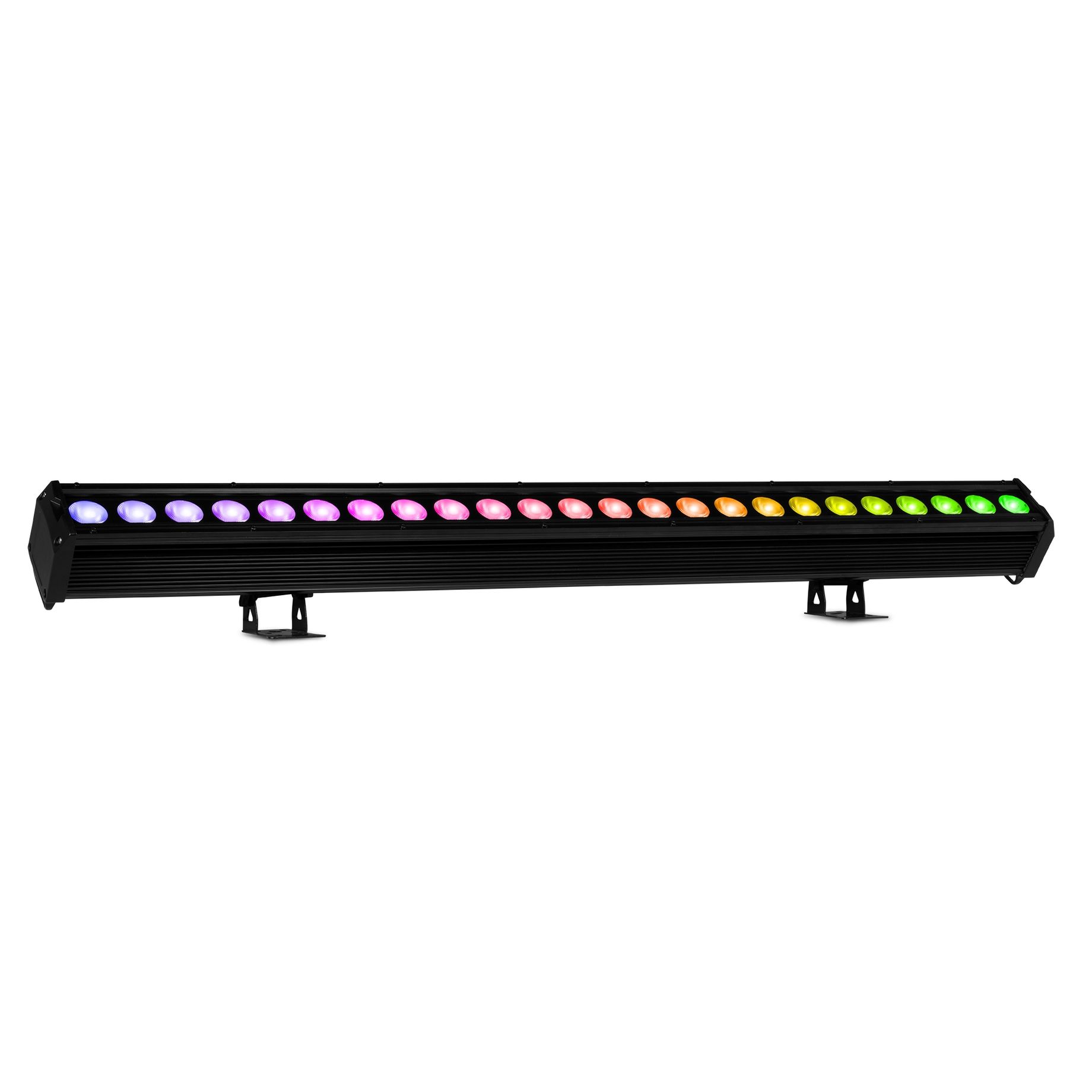

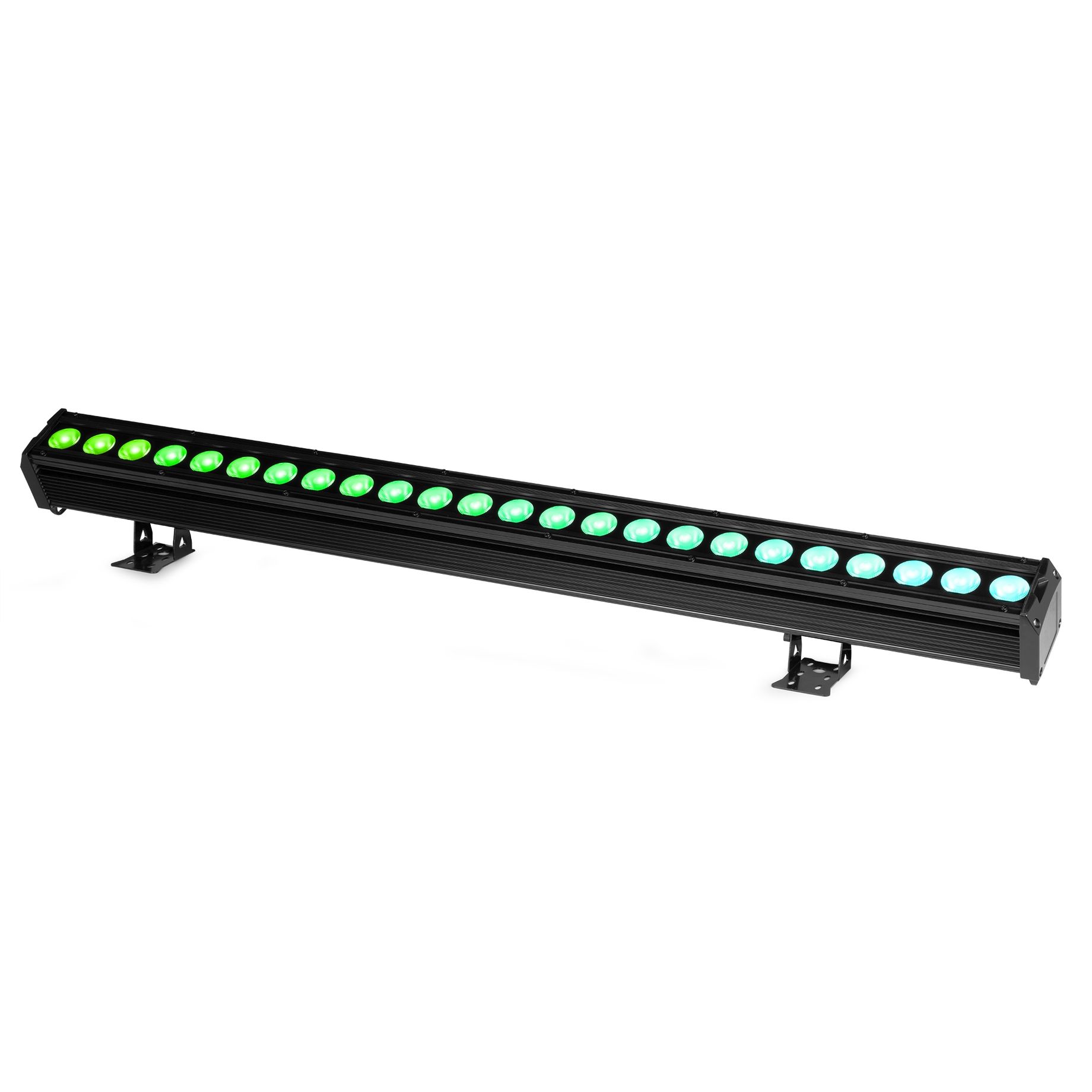

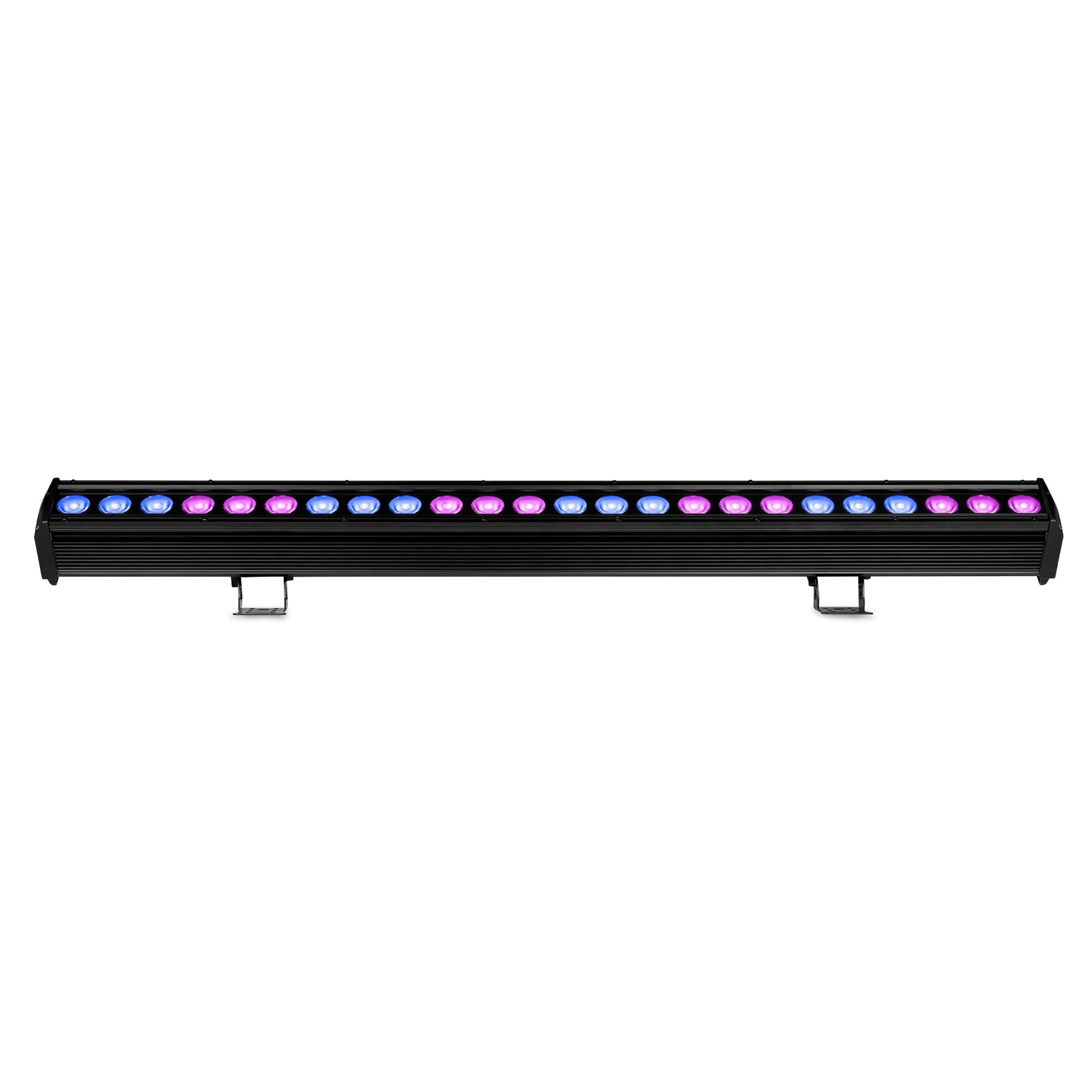

Outdoor LED BAR 24x 6W
SKU 150.190
|EAN 8715693351460
+5
All product information
Compare
LCB-IP series
Description
Highlights
- 24x 6W 6-in-1 LEDs
- RGBWA-UV colour mixing
- LEDs with independent control ability
- Waterproof IP65 for indoor/outdoor use
- Different colour presets
- Pre-programmed shows and adjustable speed
- Electronic dimming
- Strobe effect
- DMX and Stand-alone mode
- Master/Slave function
- Control panel with LED display (touch button)
- Aluminium housing with convection cooling
- Waterproof connectors DMX and power
Specifications
BrandbeamZ
Product serieLCB-IP series
ColourBlack
Light source
Light source
- 24x 6W RGBWA-UV LED
Illuminance11023 lx @ 1m
Optics
Beam angle
- 20°
Features
Flash Per Second1 - 23 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels6, 8, 11, 48, 52
RDMNo
DMX connector3-pin Screw Connector

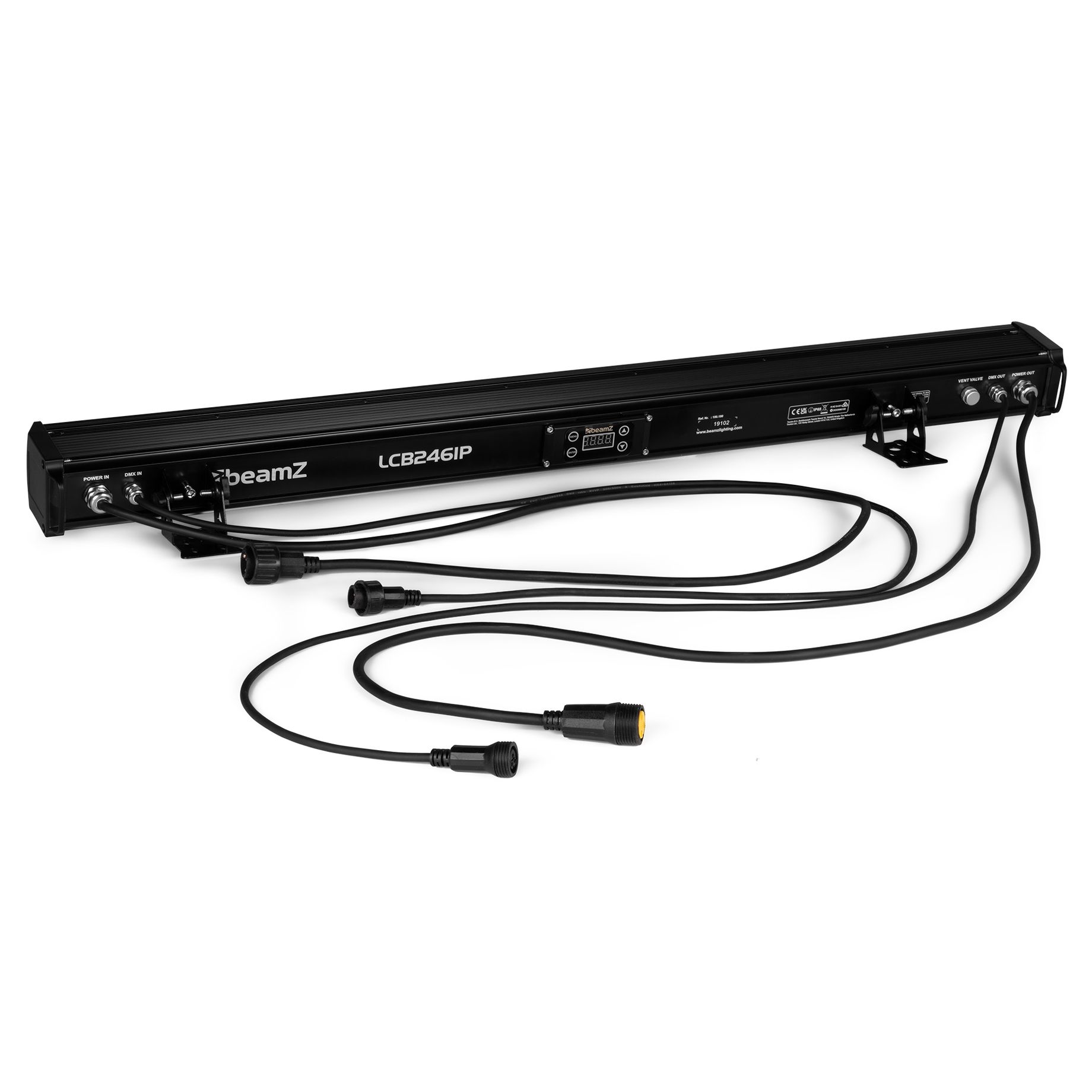

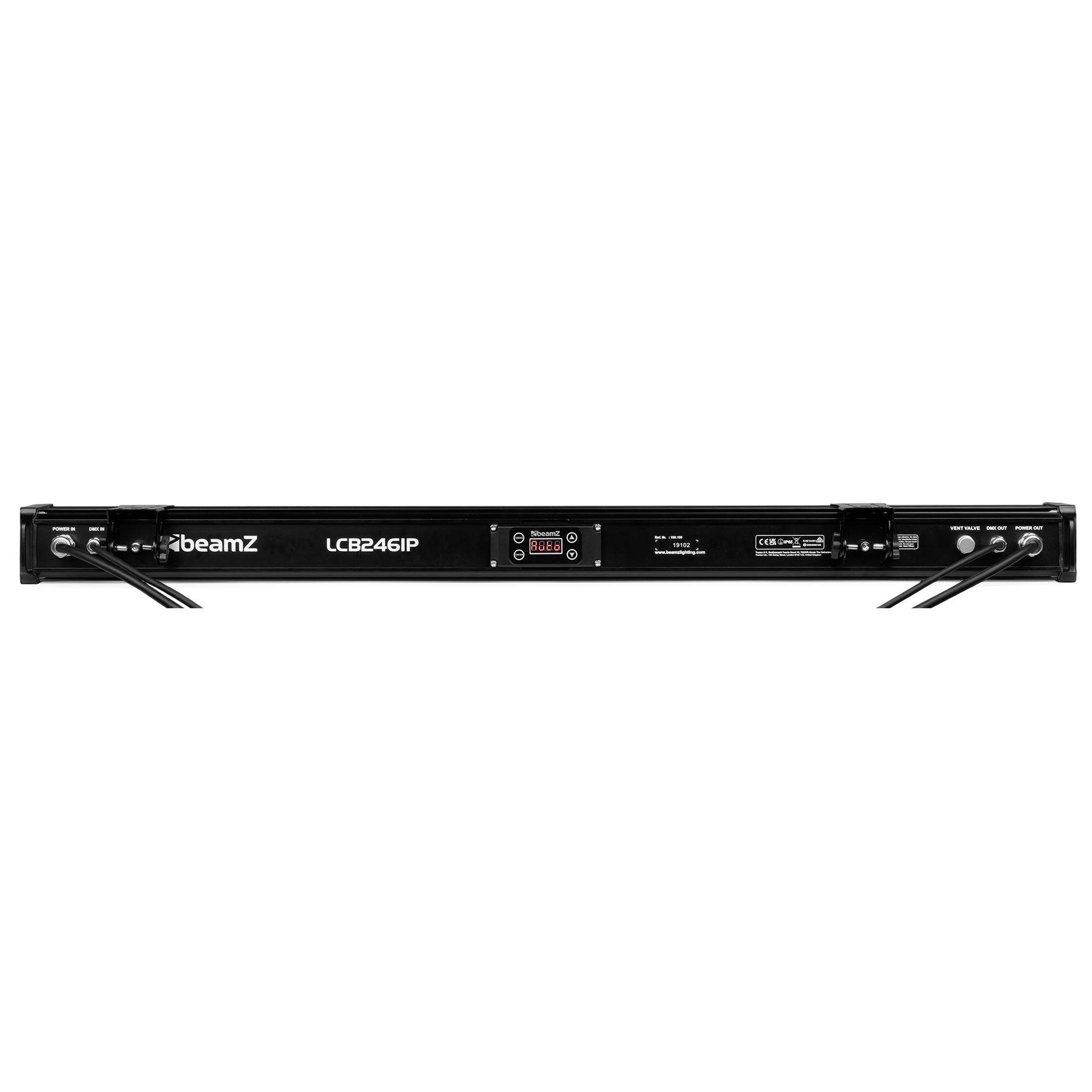

Connections
Input connections
- 1x Power - Fixed power lead
- 1x DMX - 3-pin XLR Screw Connector M
Output connections
- 1x Power - Fixed power lead
- 1x DMX - 3-pin XLR Screw Connector F
Hardware features
Display typeLCD
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 1000 x 80 x 135 mm (W x D x H)
Weight
- 3.75 kg

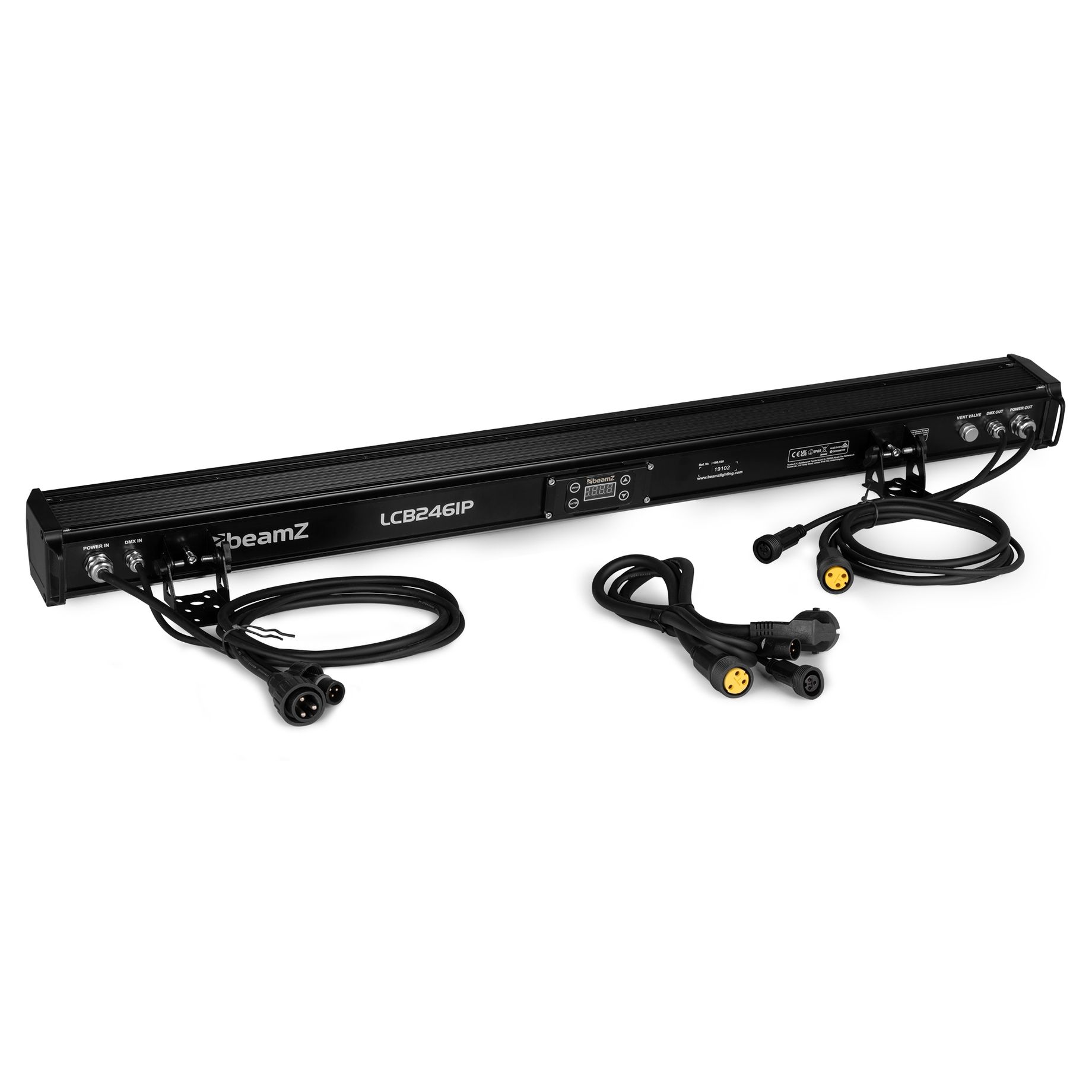

Accessories
Included Accessories
- Mounting bracket
- Power cable
