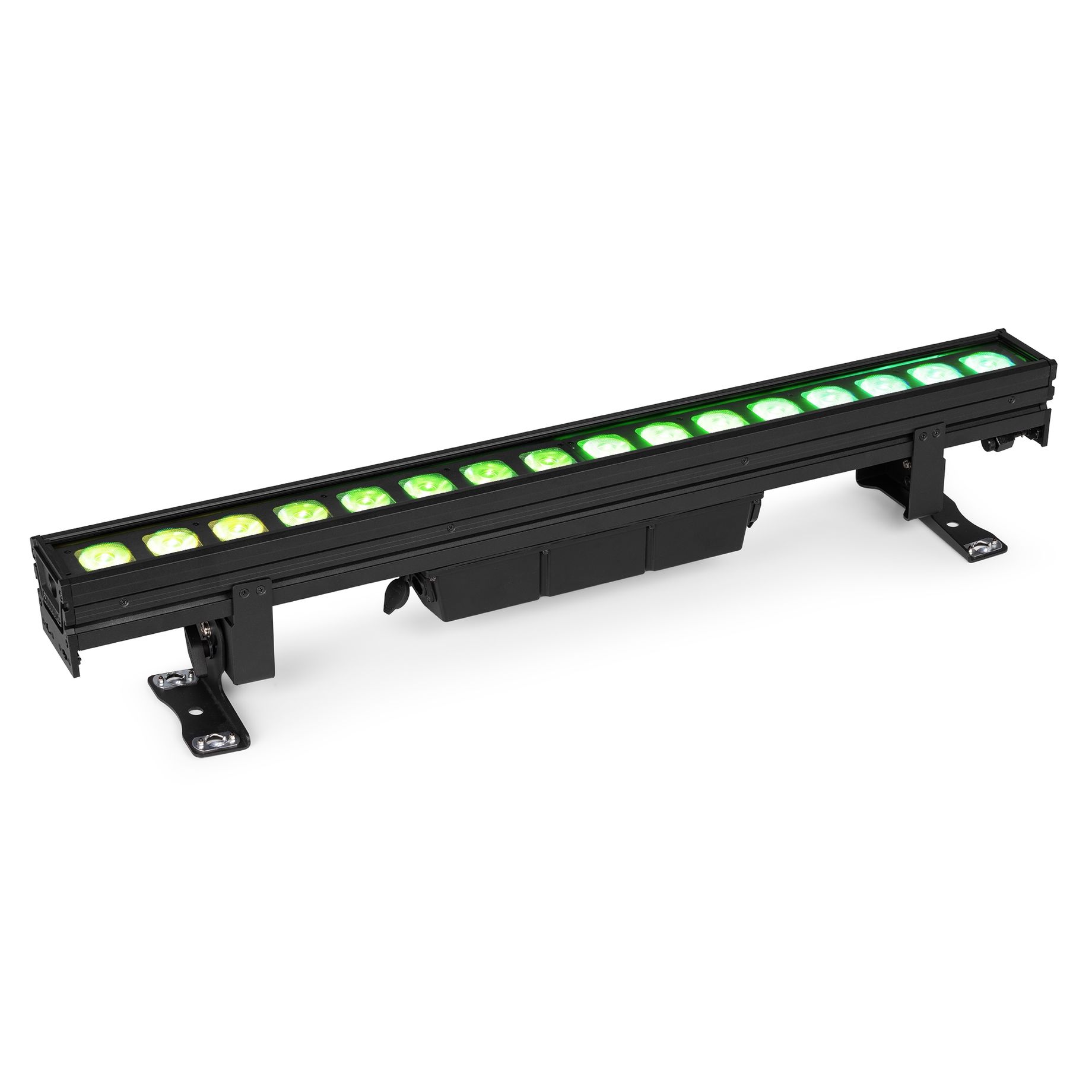

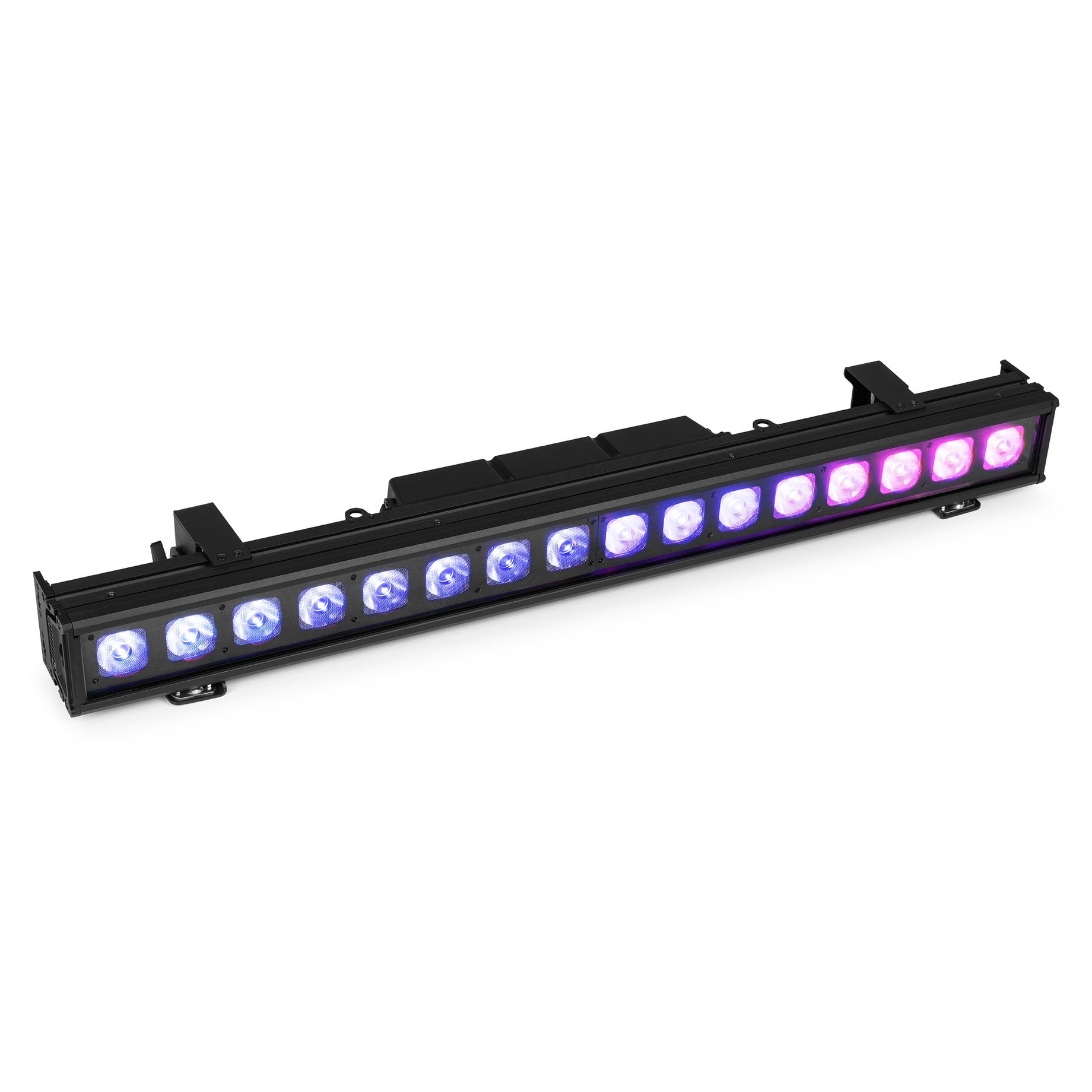

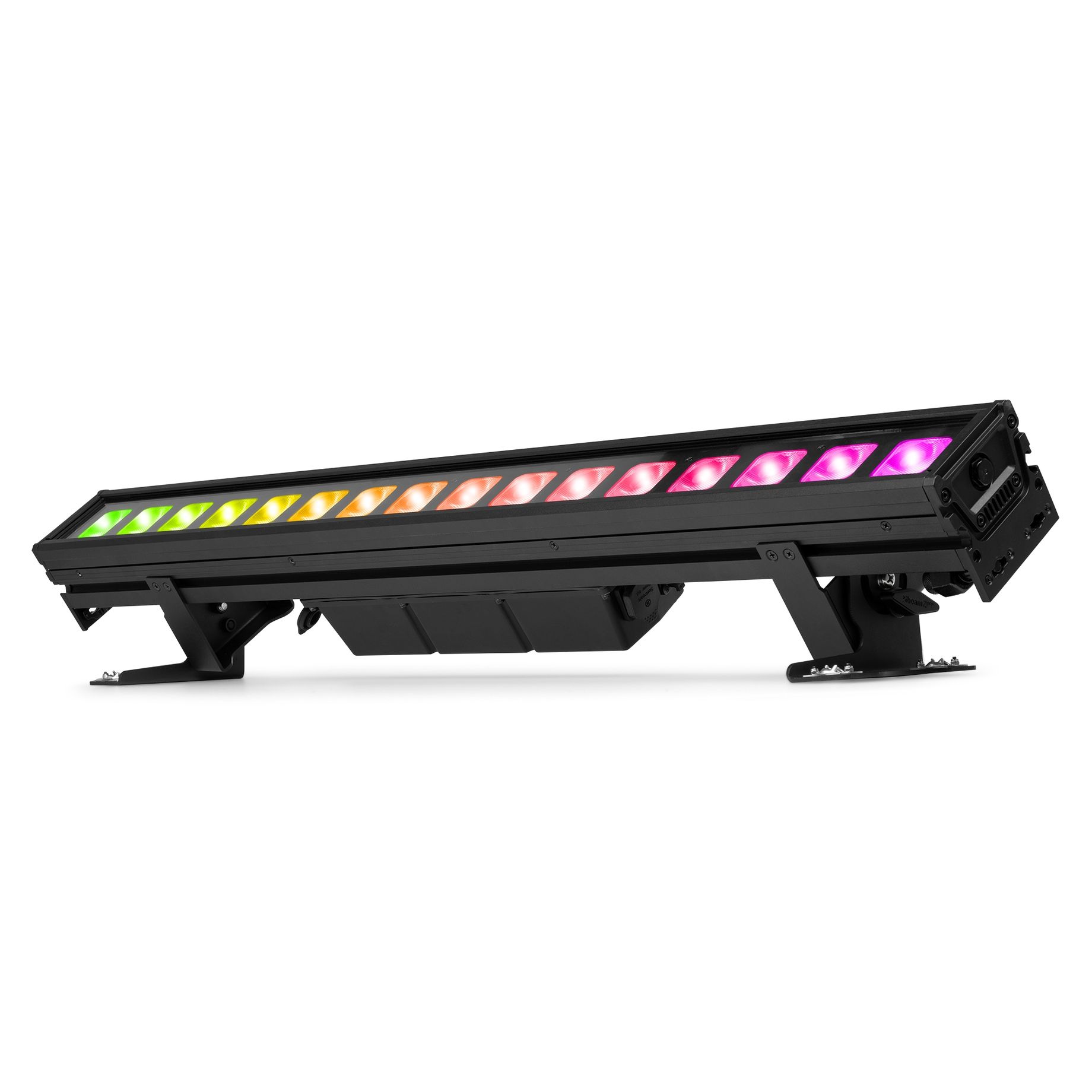

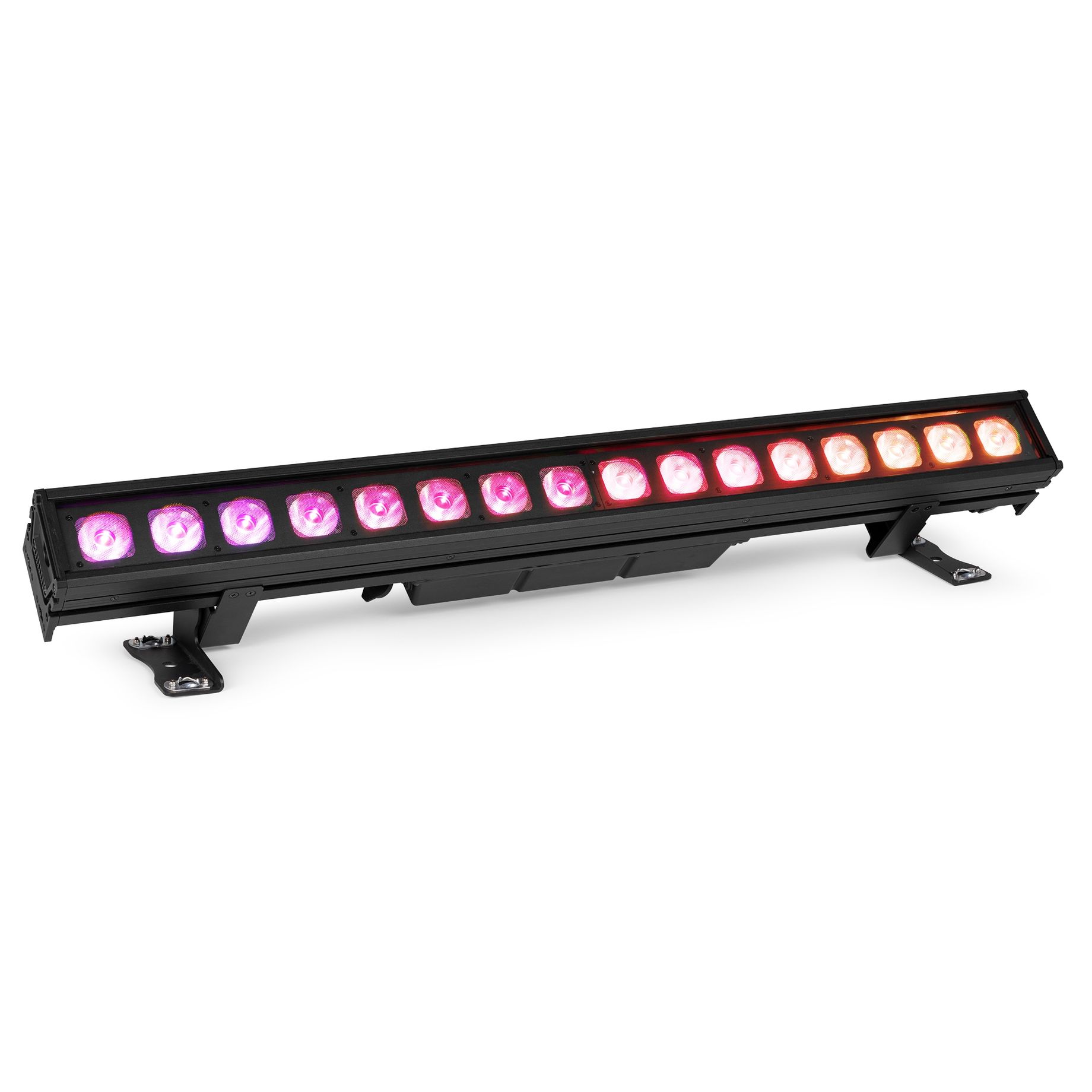

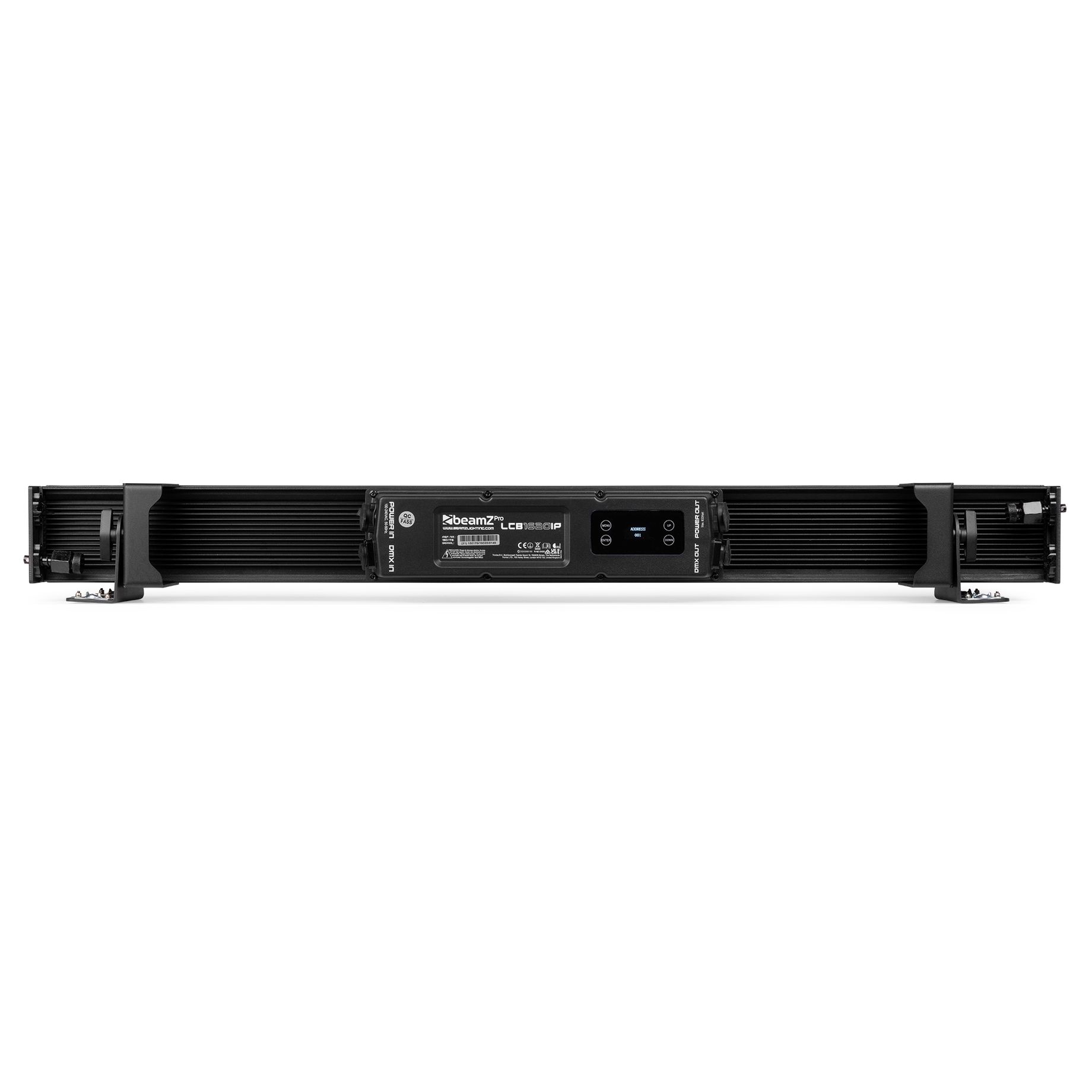

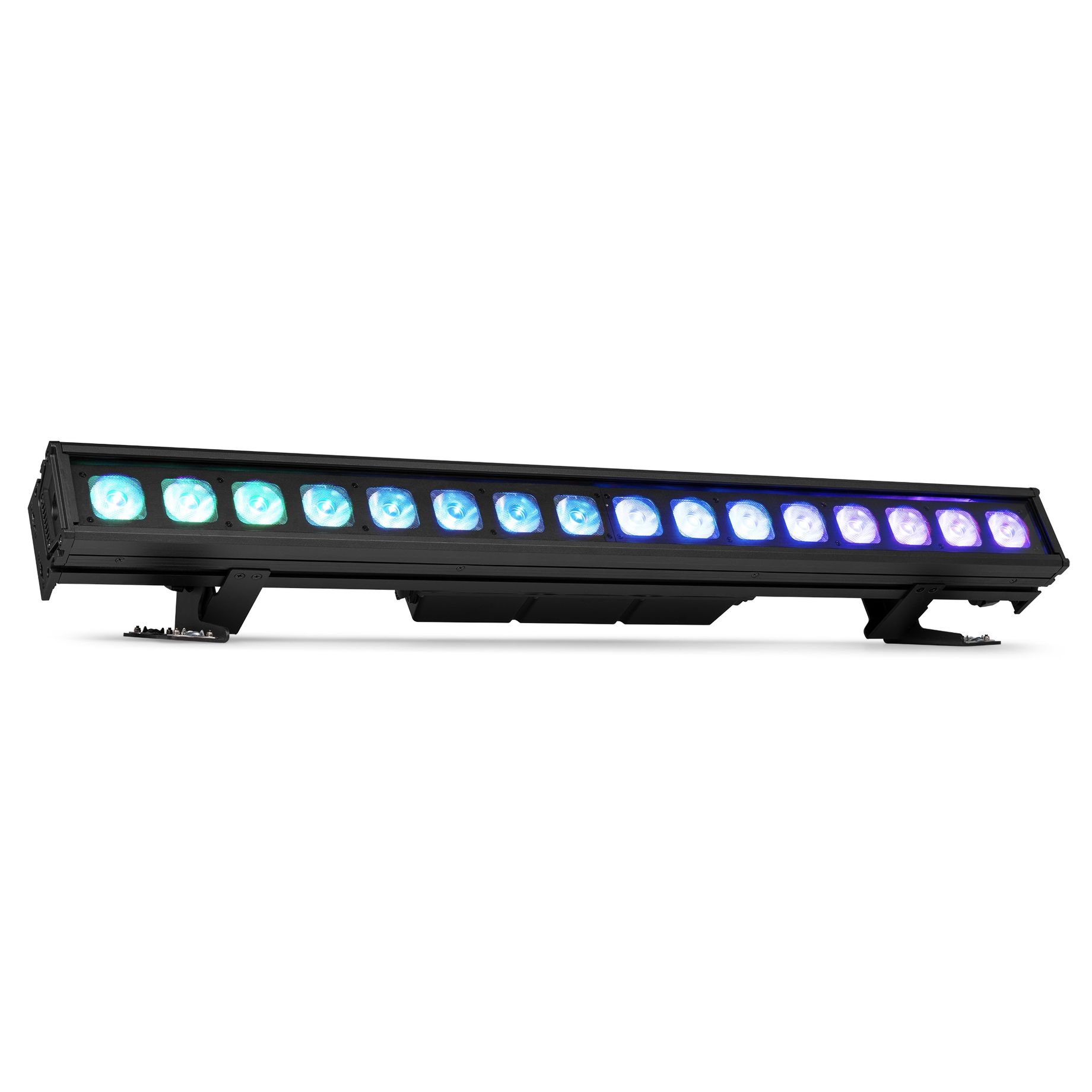

LCB1620IP
LED Bar IP65 16x 20W RGBL
SKU 150.176
|EAN 8715693363937
New
+1
All product information
Compare
LCB-IP series
Description
Highlights
- High-performance outdoor LED bar
- 16× 20W RGBL 4-in-1 high-power LEDs
- IP65-rated aluminium housing for outdoor use
- Full pixel control with multiple DMX channel modes
- RDM compatible for remote configuration
- Smooth 16-bit dimming with multiple curves
- Selectable PWM frequencies up to 20kHz (flicker-free)
- Built-in auto programs, chases and colour macros
- Static colour and custom colour calibration modes
- Strobe effects with multiple patterns
- Natural convection cooling (silent operation)
- OLED display with 4-button touch interface
- Master/Slave and Stand-alone operation
- Rugged IP-rated connectors for power and DMX
- Including brackets with Quicklock
Specifications
BrandbeamZ Professional
Product serieLCB-IP series
ColourBlack
Light source
Light source
- 16x 20W RGBL LED
Illuminance30811 lx @ 1m
Optics
Beam angle
- 49°
Features
Flash Per Second1 - 25 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels3, 4, 5, 10, 14, 22, 38, 48, 64
RDMYes
DMX connector5-pin XLR
Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeOLED
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 1000 x 150 x 170 mm (W x D x H)
Weight
- 9.35 kg
Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
