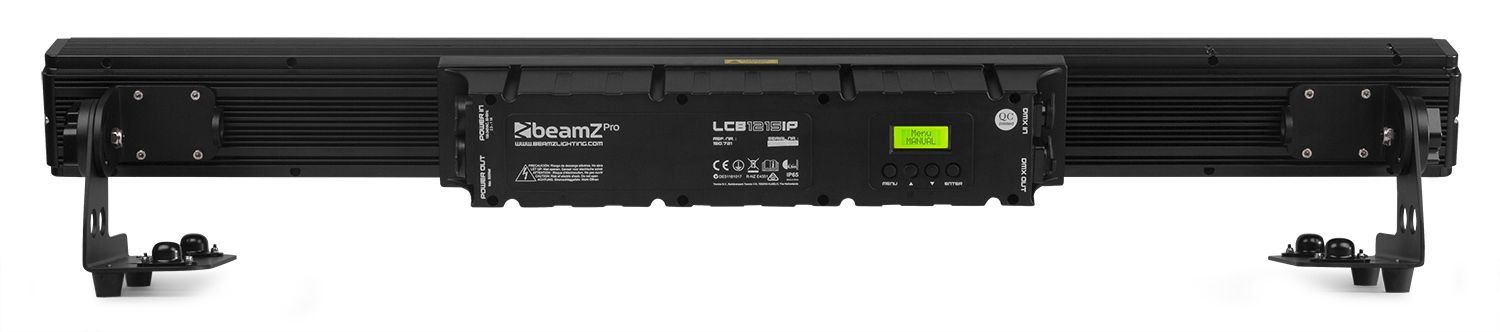

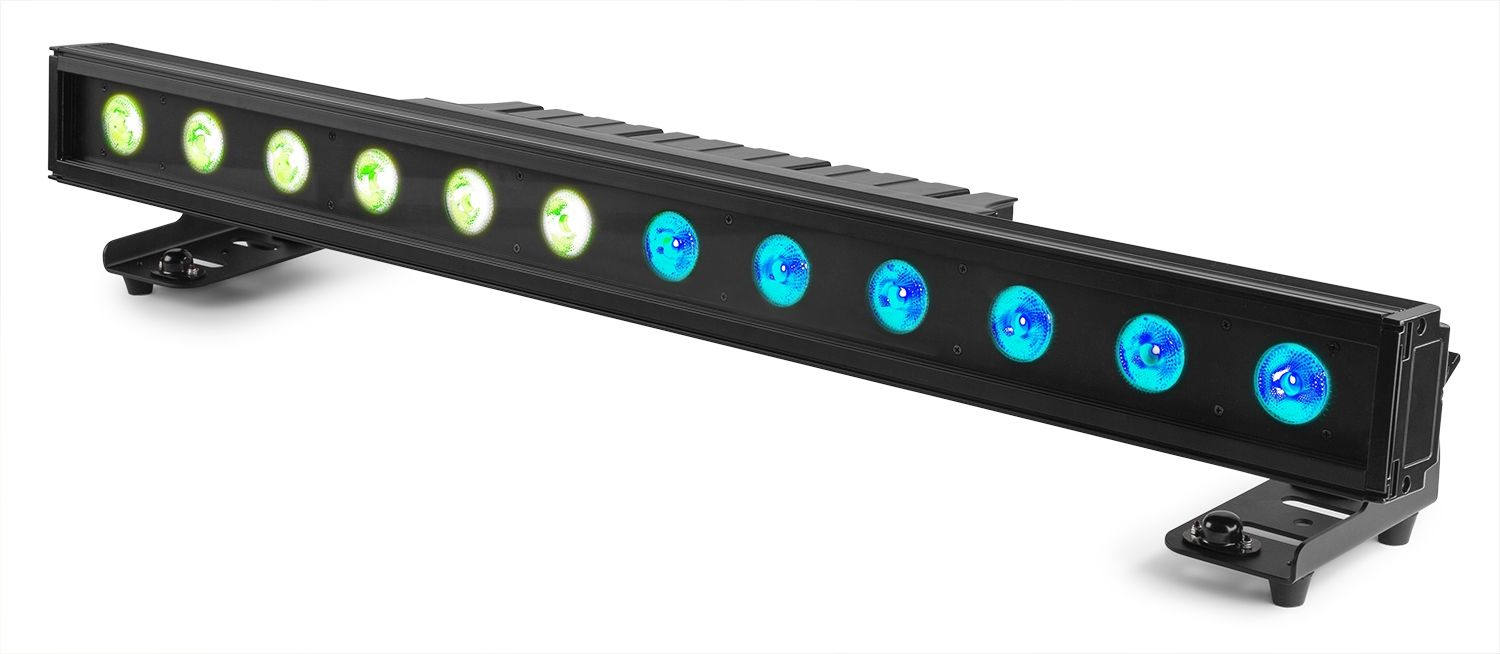

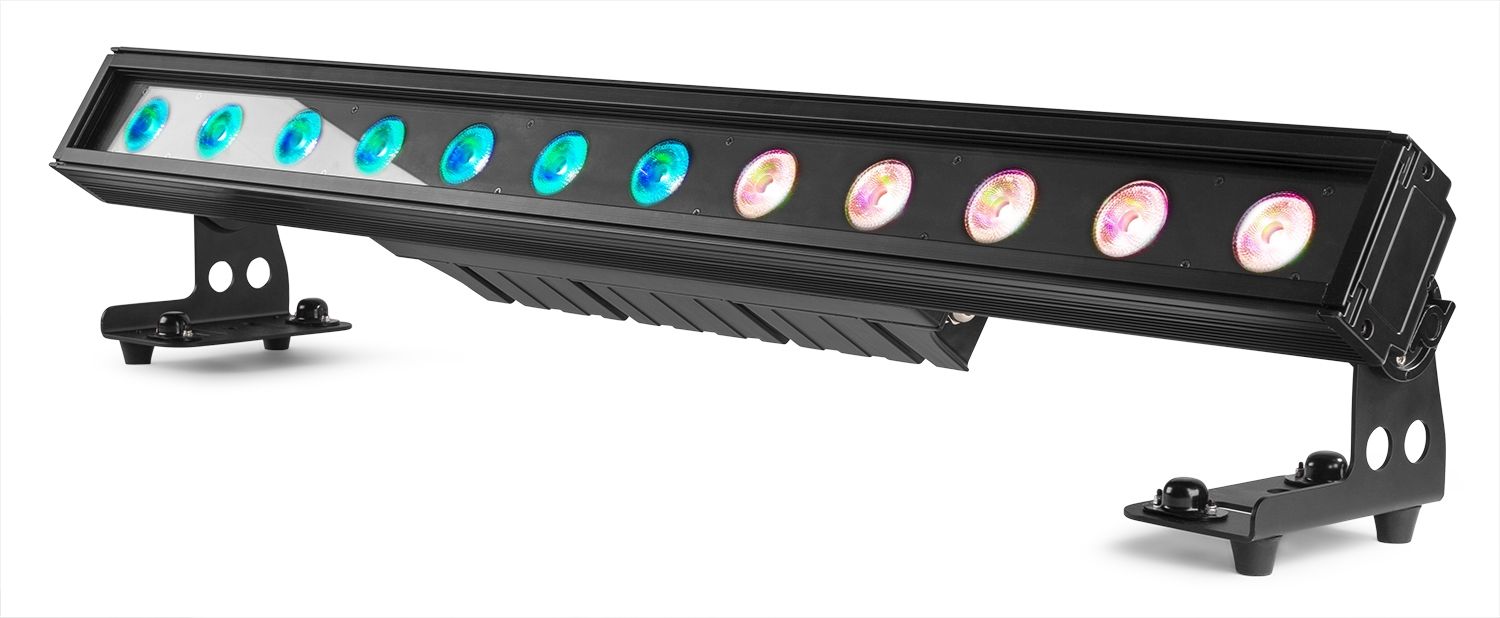

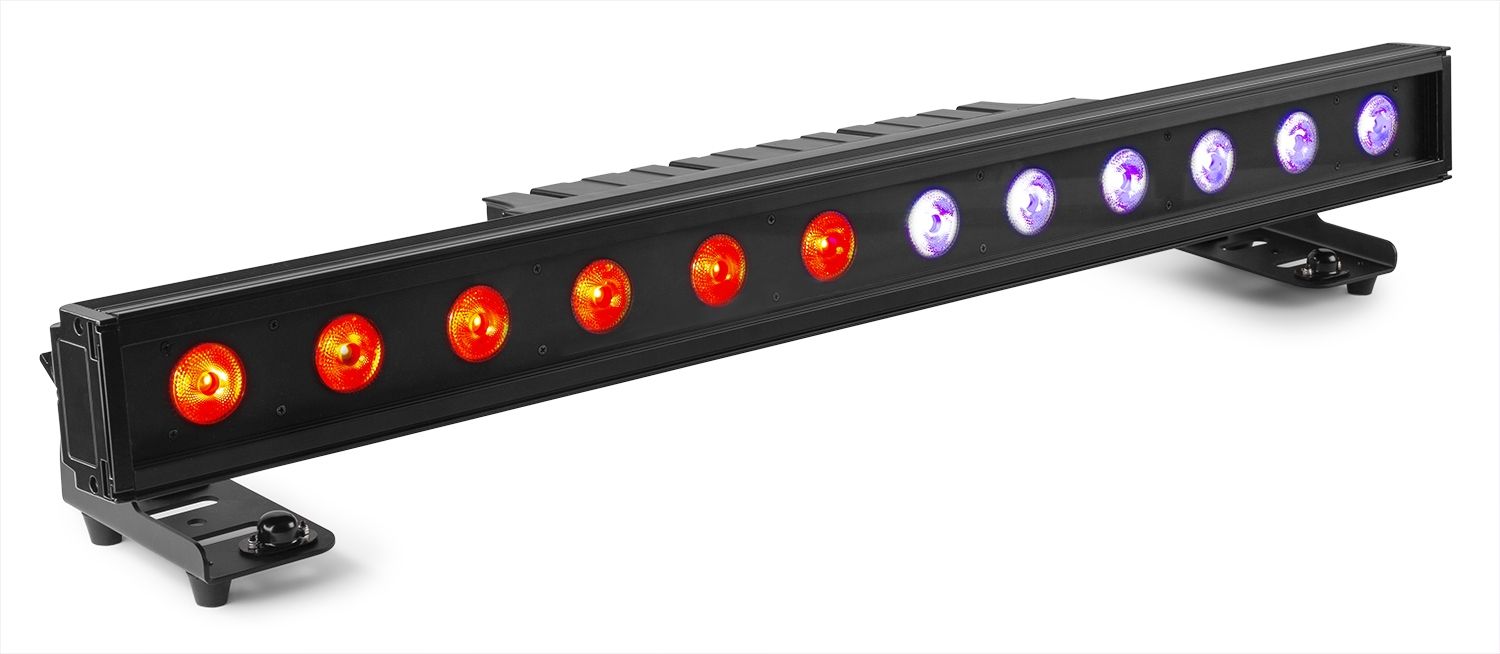

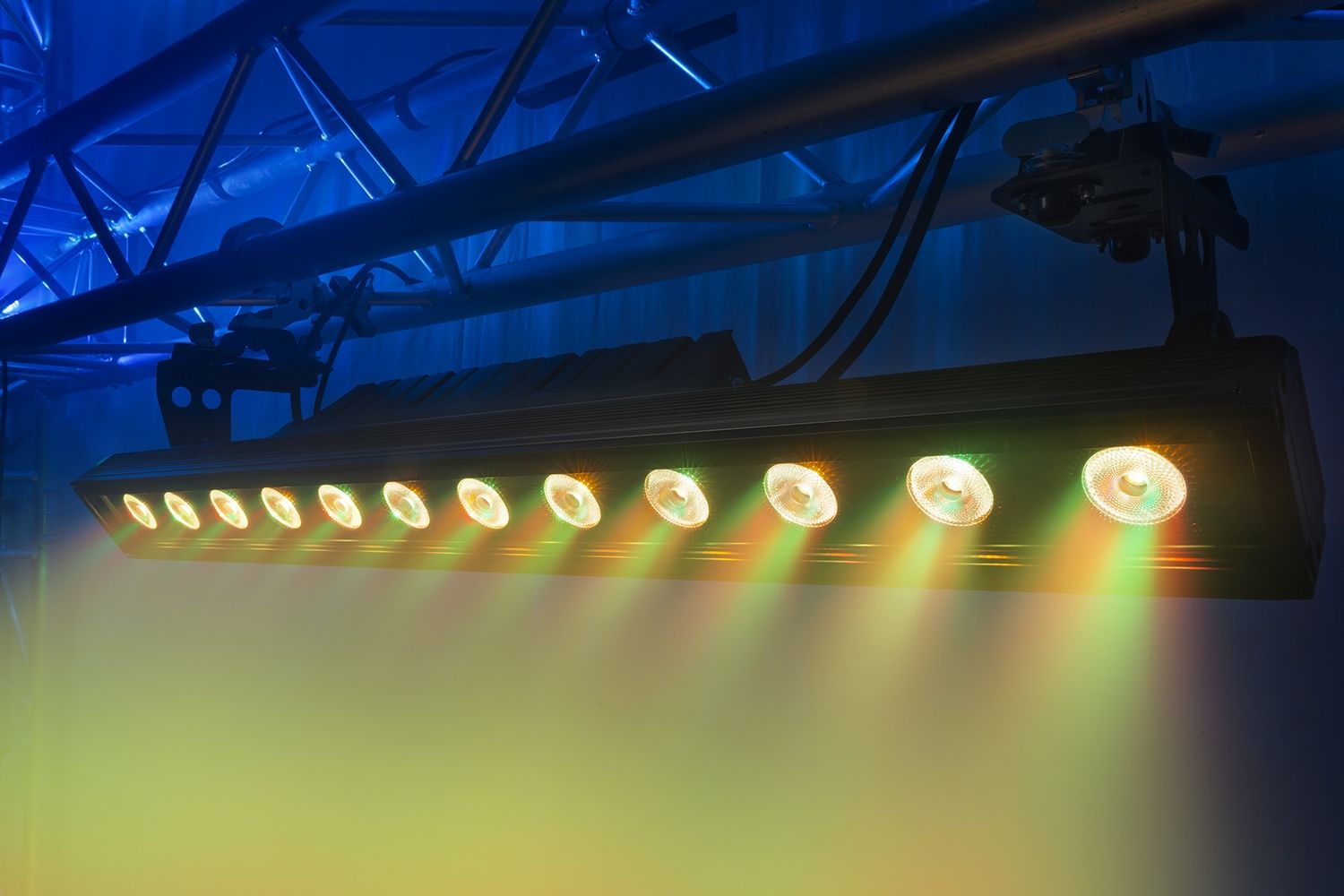

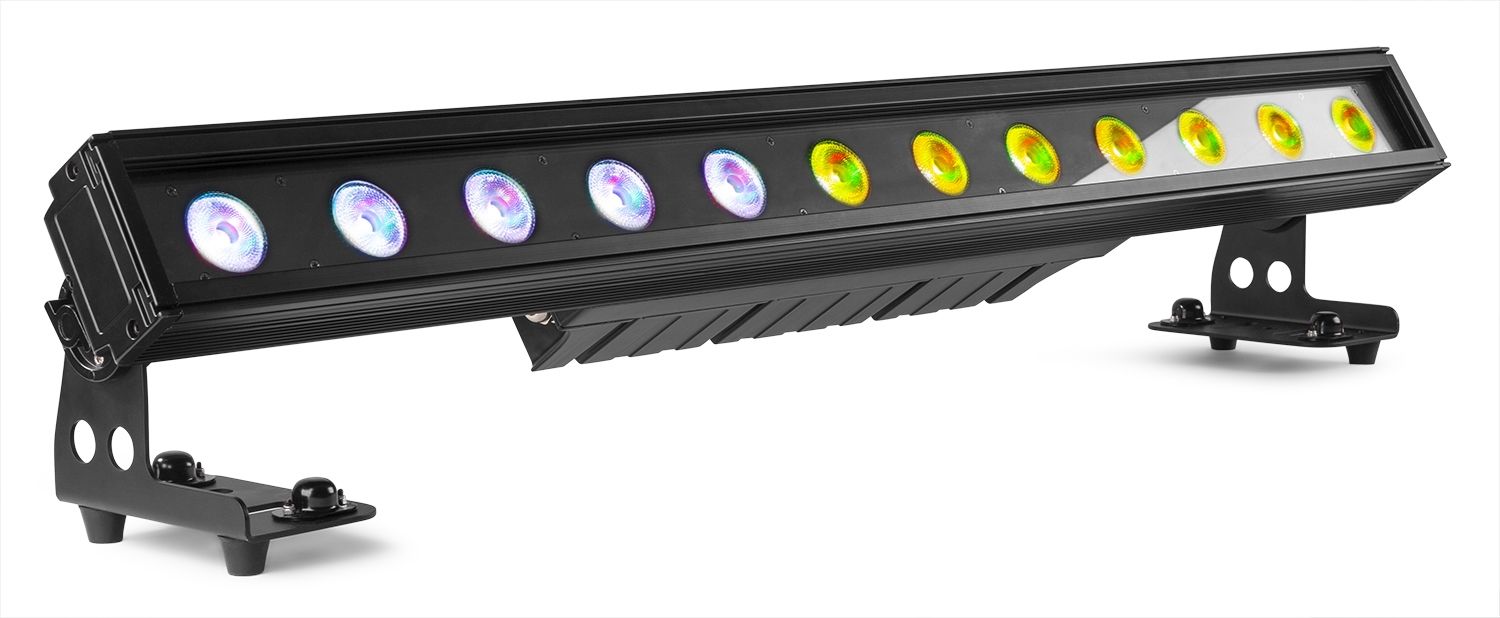

LCB1215IP

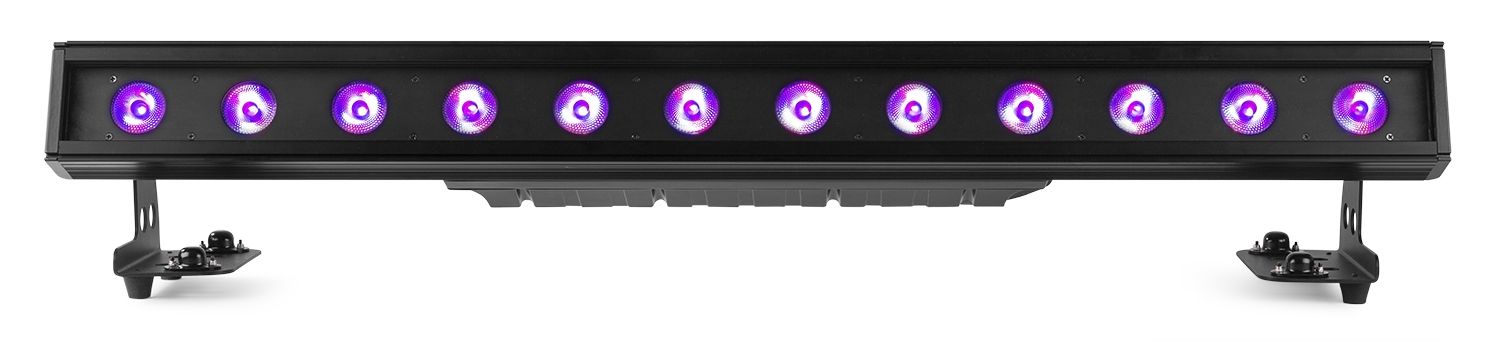

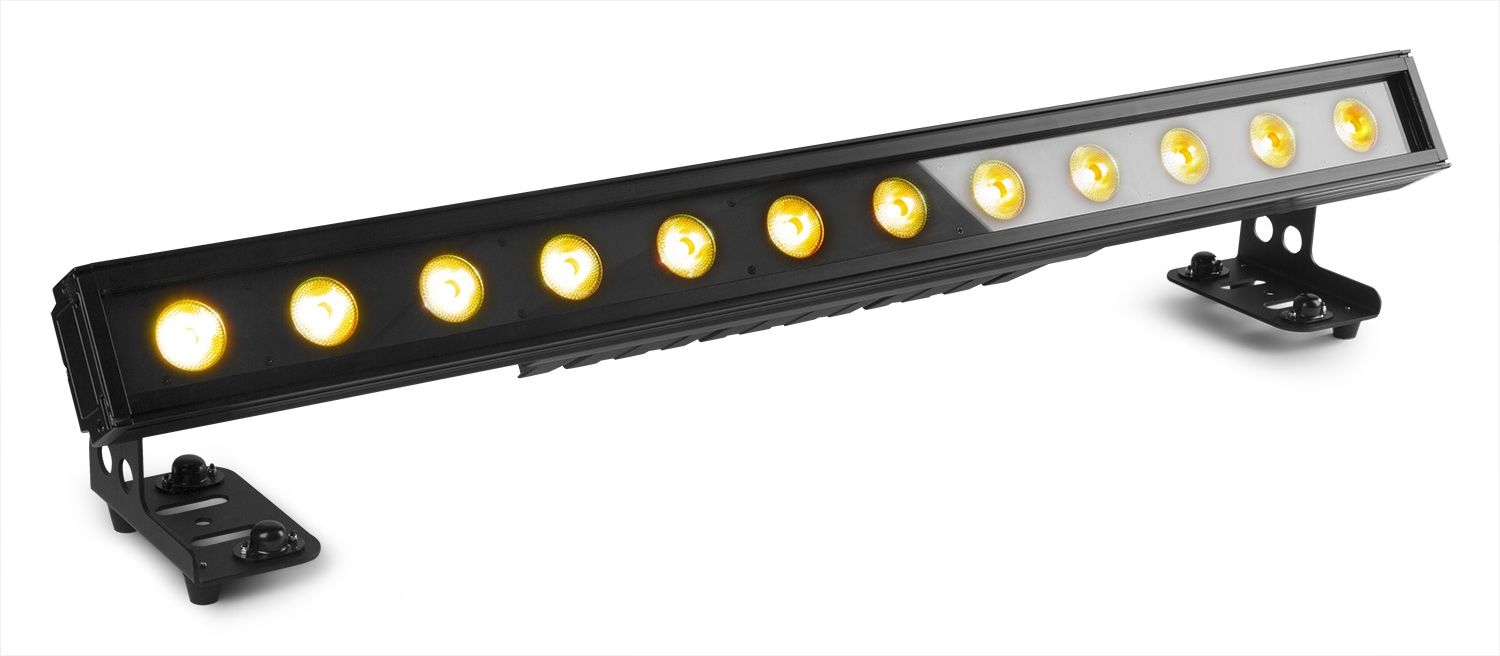

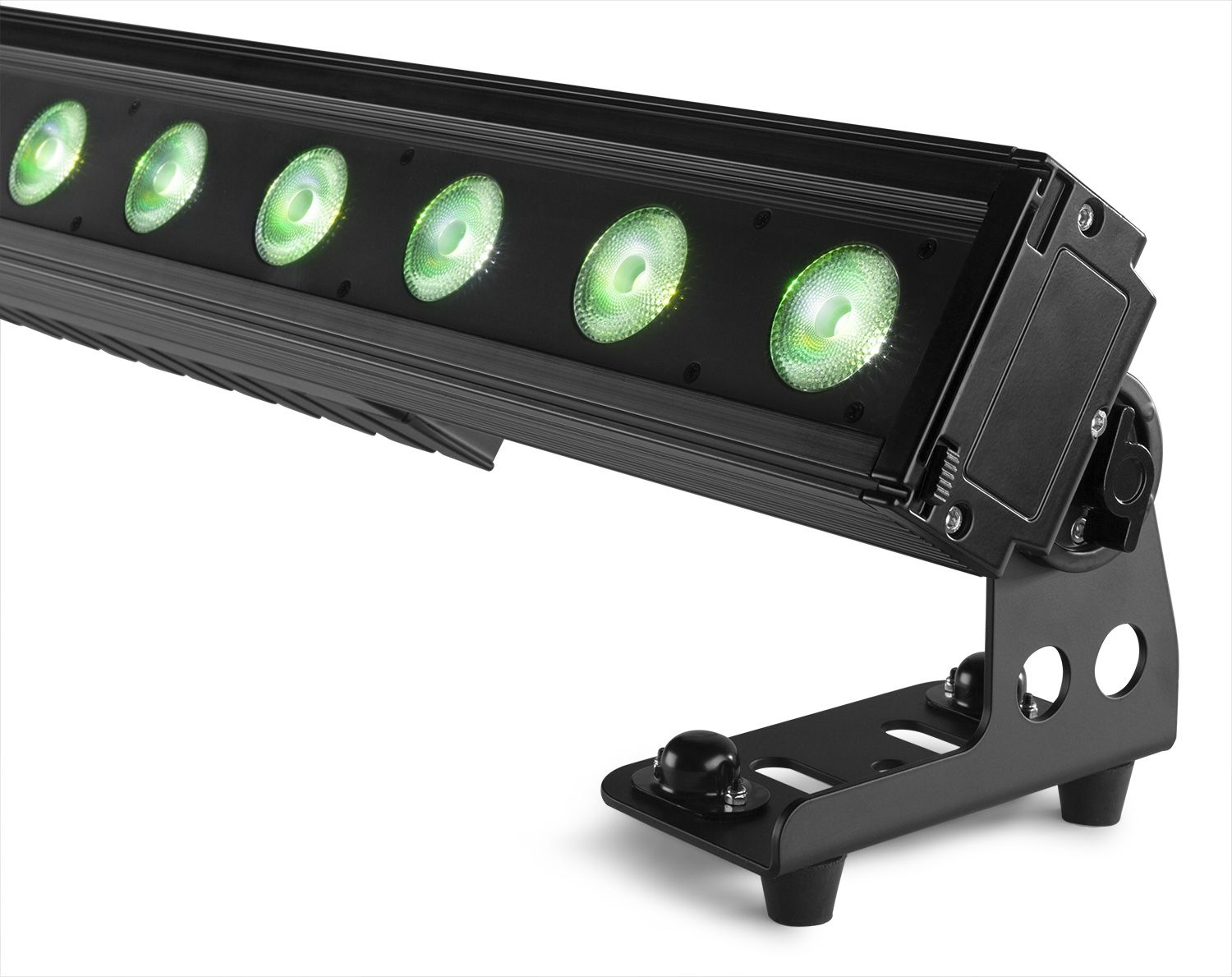

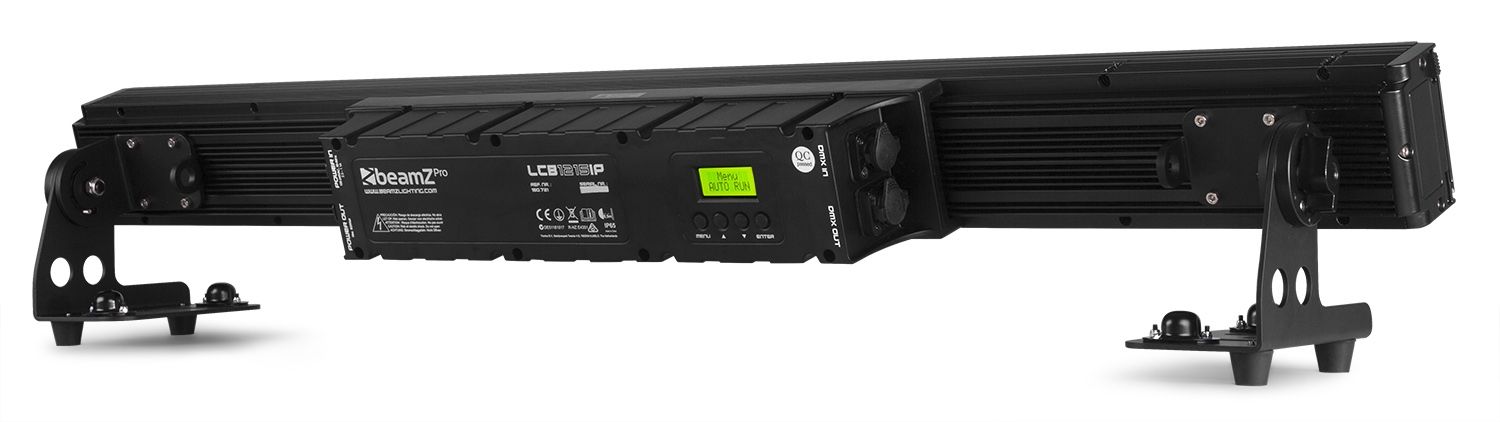

LED Bar IP65 12x 15W 6-in-1 LEDs
SKU 150.721
|EAN 8715693314168
+14
All product information
Compare
LCB-IP series
Description
Highlights
- 12x 15W 6-in1 LEDs
- RGBAW+Lime colour mixing
- Die-cast aluminium housing
- Single Pixel Control
- Noiseless and flicker-free operation
- Waterproof IP65 for outdoor use
- 9 Different DMX modes
- DMX, Stand-alone or master/slave mode
- Auto mode with adjustable speed
- RDM Function
- 4 selectable dimmer curves

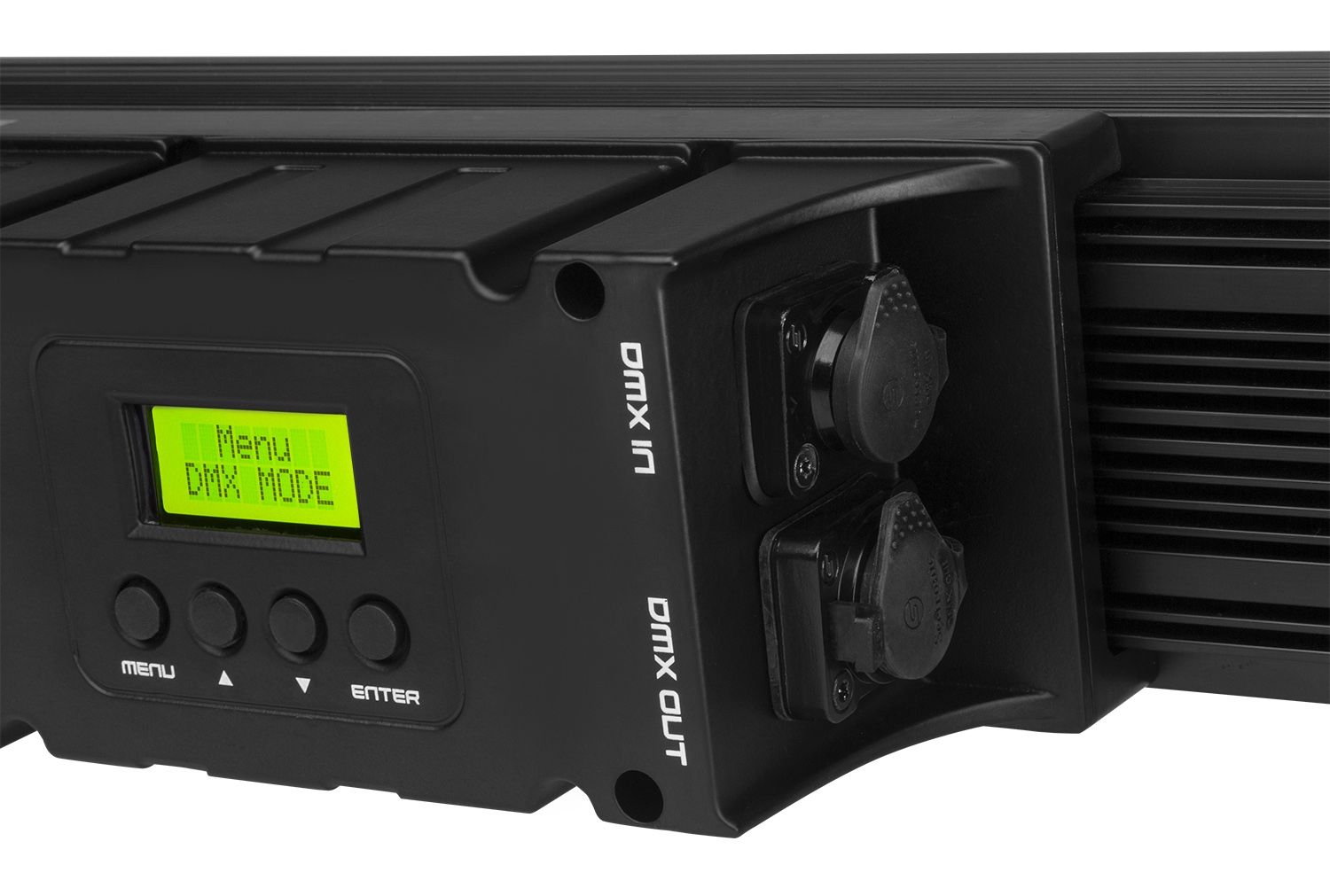

- DMX in/output via 3-pin XLR

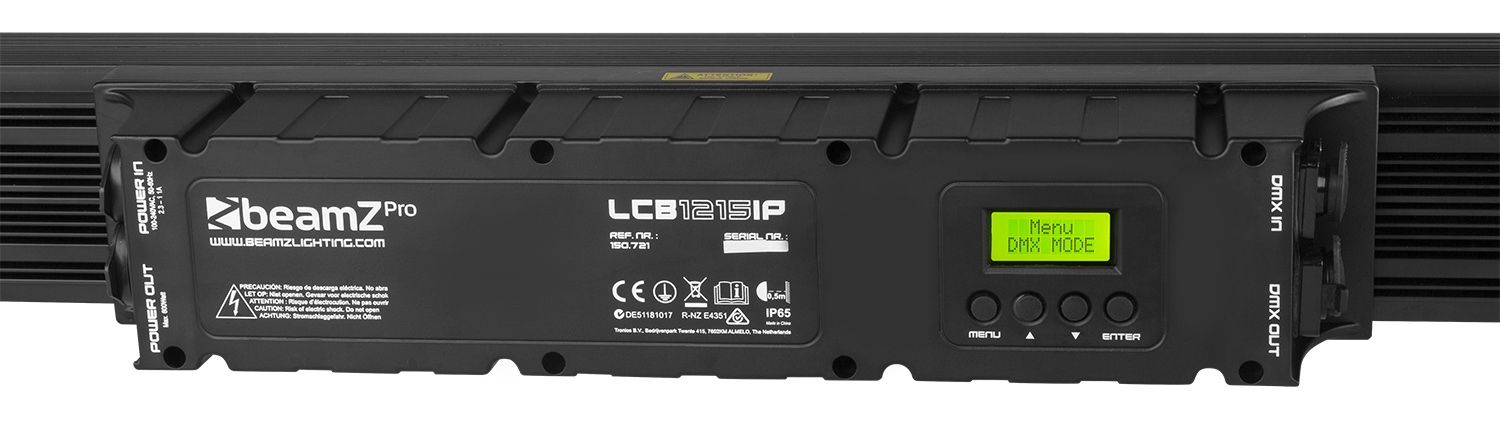

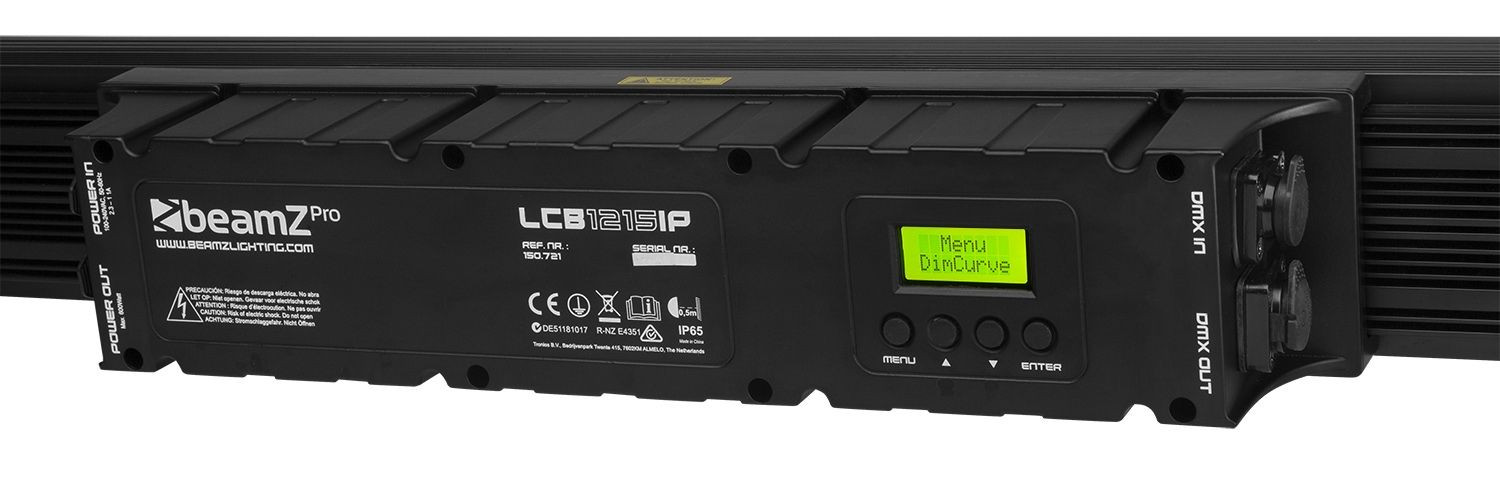

- Control panel with LCD display
- Key-lock function

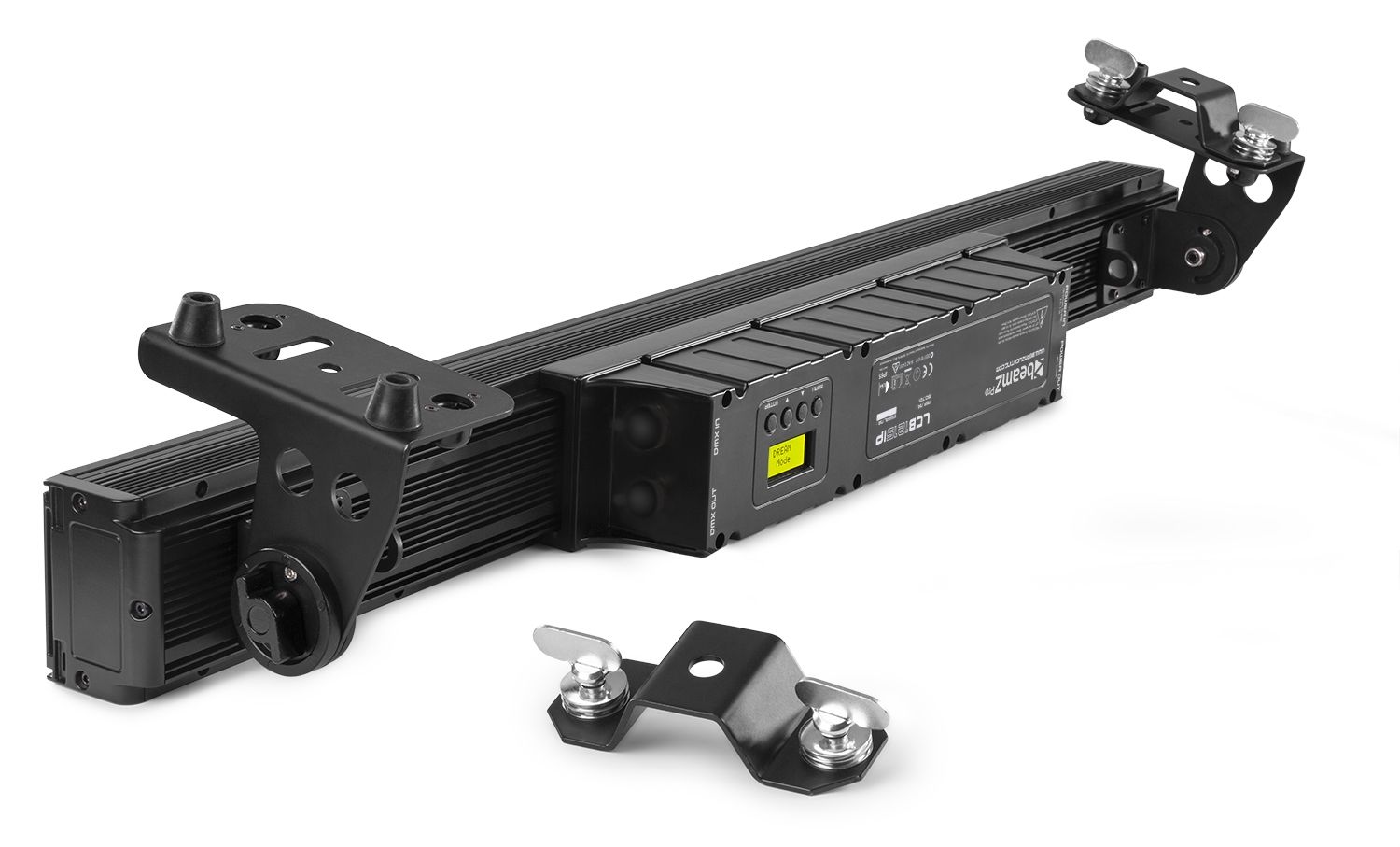

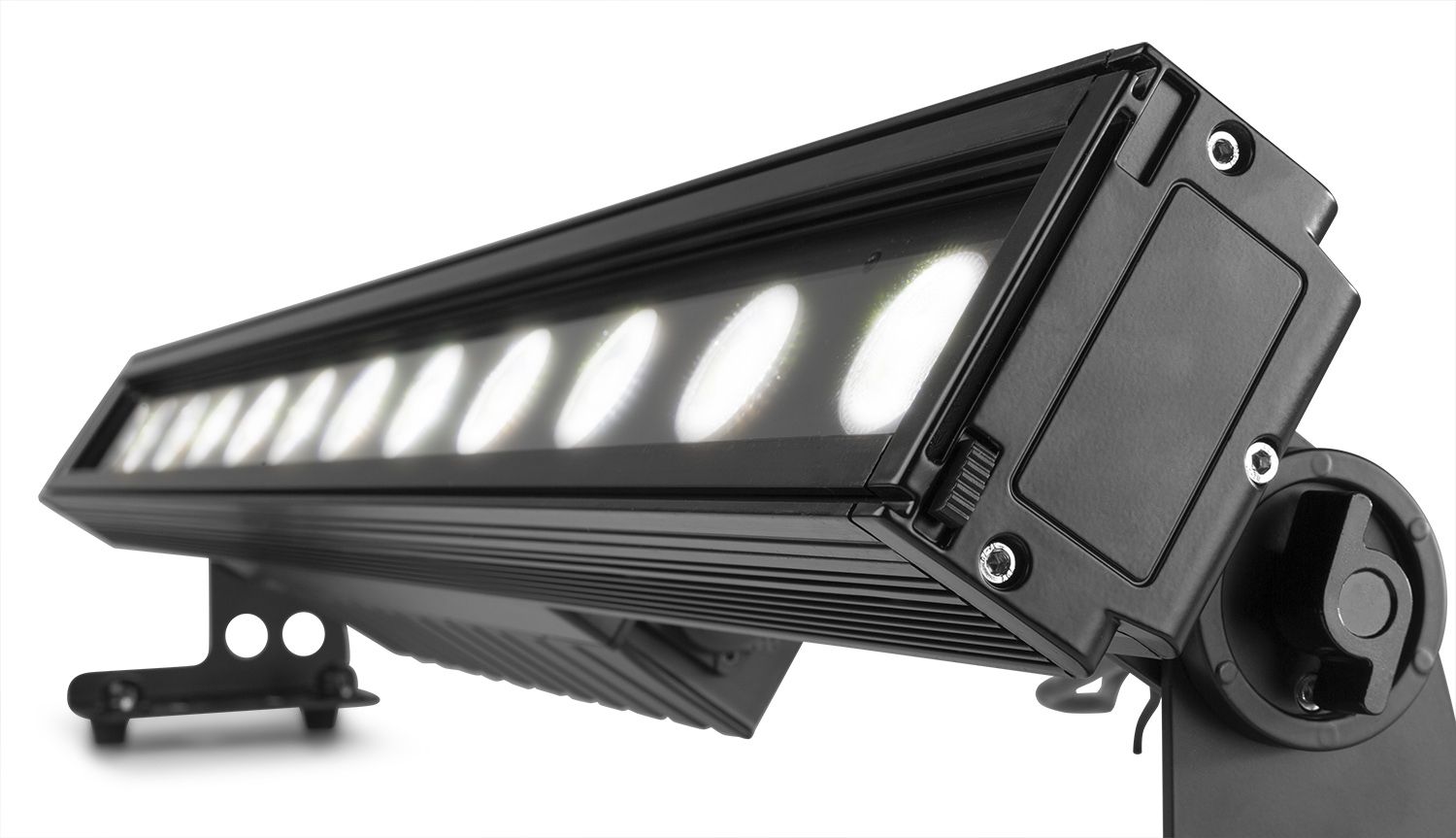

- Including brackets with Quicklock
Specifications
BrandbeamZ Professional
Product serieLCB-IP series
ColourBlack
Light source
Light source
- 12x 15W RGBWAL LED
Illuminance12616 lx @ 1m
Optics
Beam angle
- 21° x 51°
Features
Flash Per Second1 - 20 Hz
Daisy ChainYes (max. 6 bars)
Control
Control modesAuto programs, DMX, Manual
DMX Channels2, 8, 11, 38, 41, 74, 77
RDMYes
DMX connector5-pin XLR
Connections
Input connections

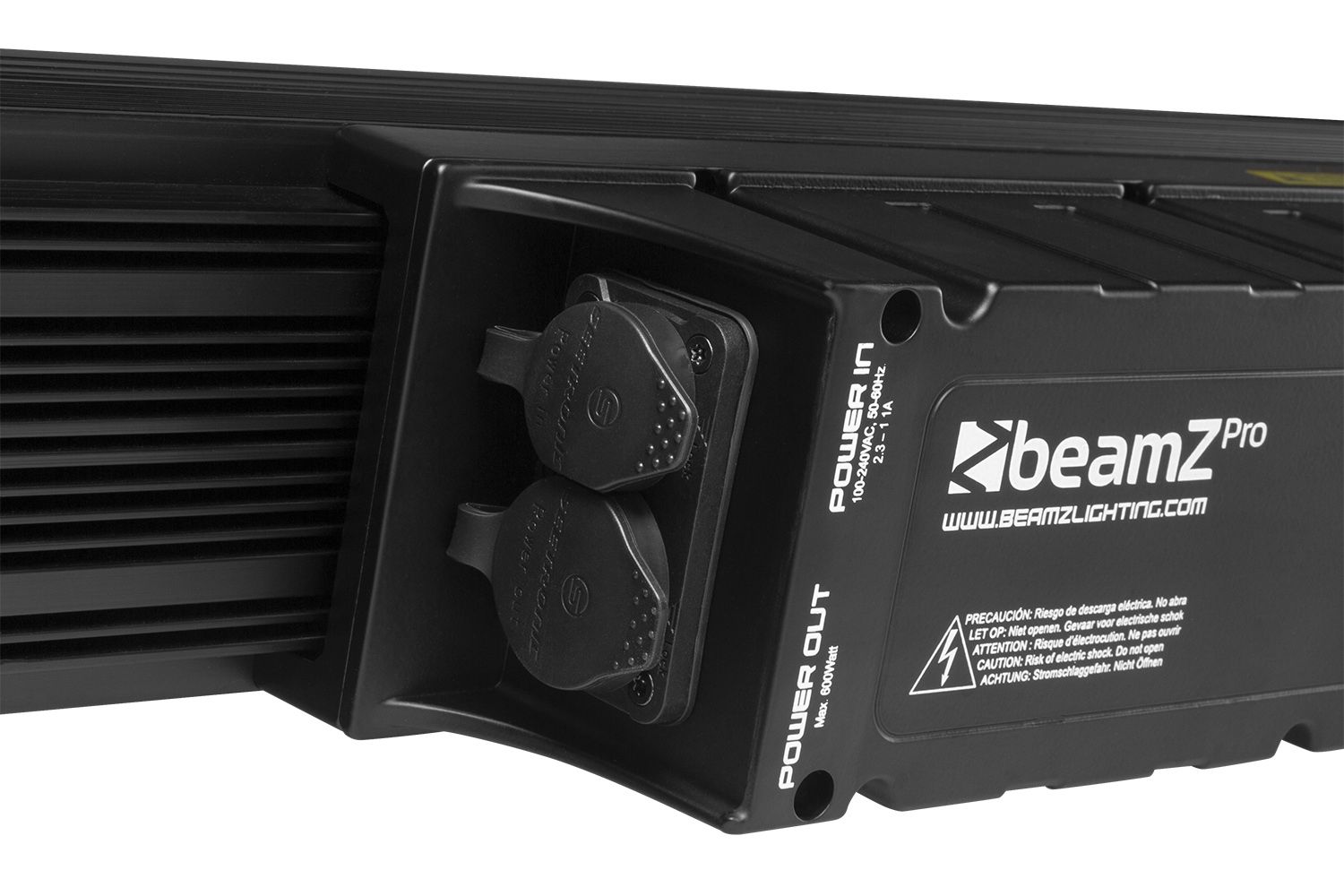

- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 1000 x 90 x 205 mm (W x D x H)
Weight
- 10.5 kg
Accessories
Included Accessories
- Mounting bracket
