BS960

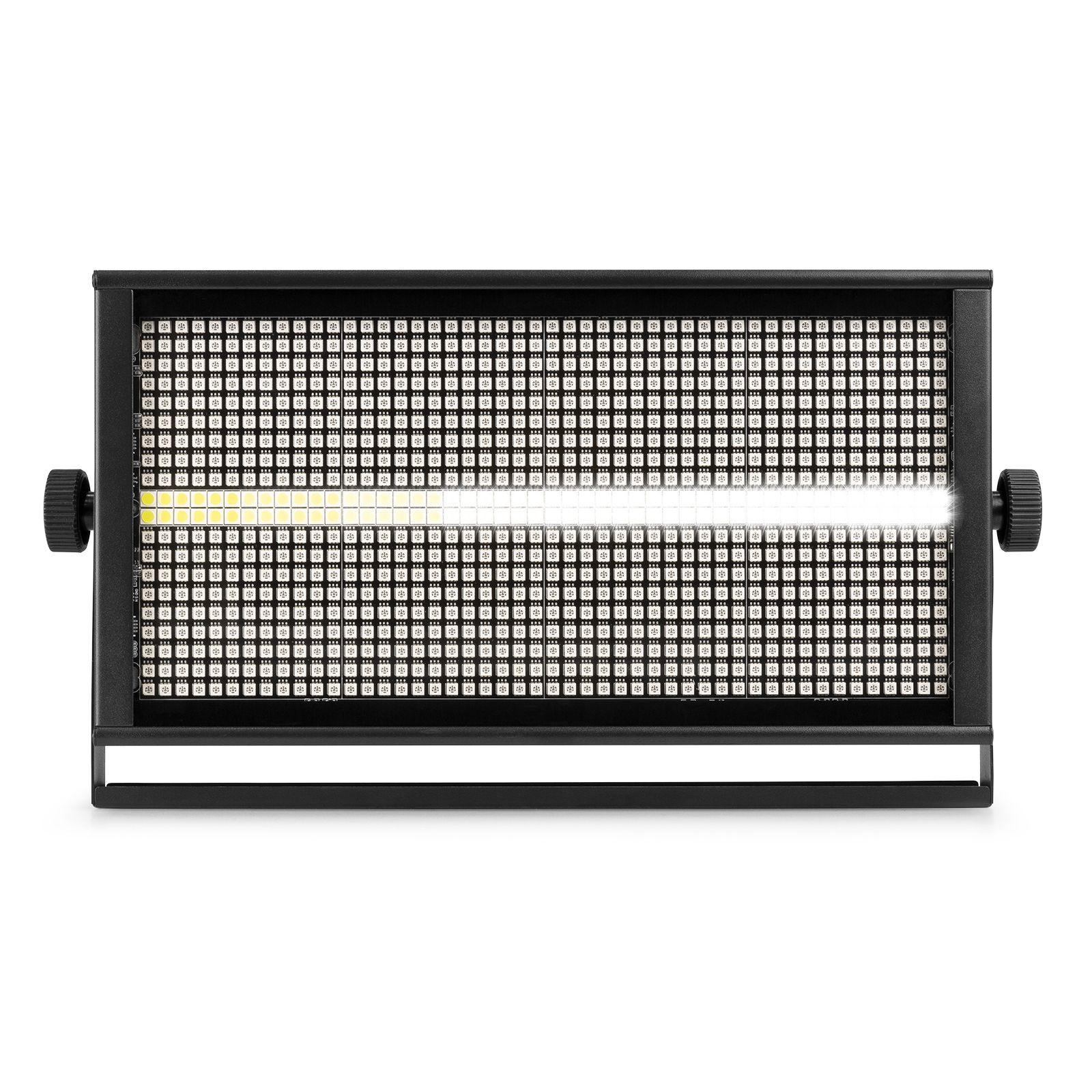

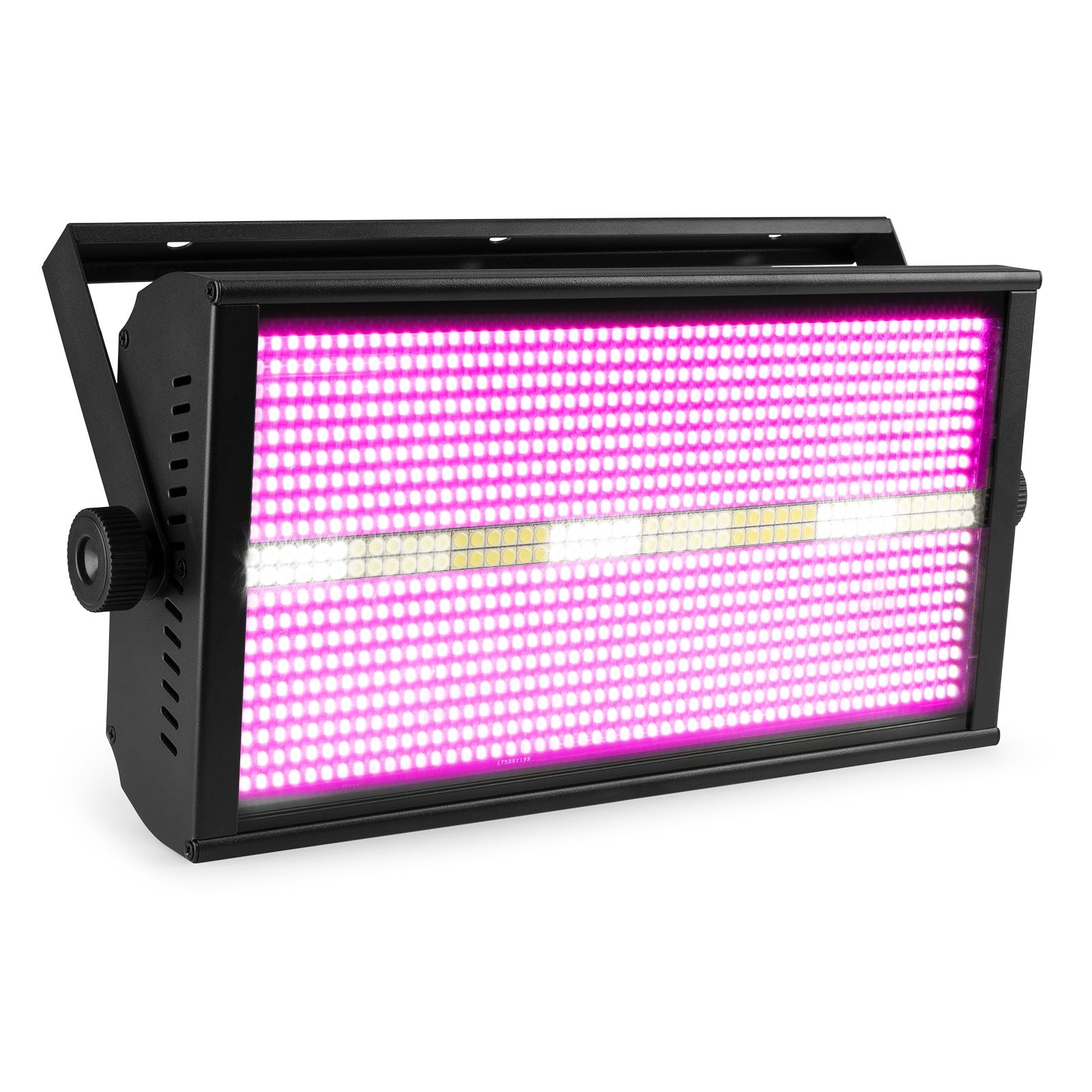

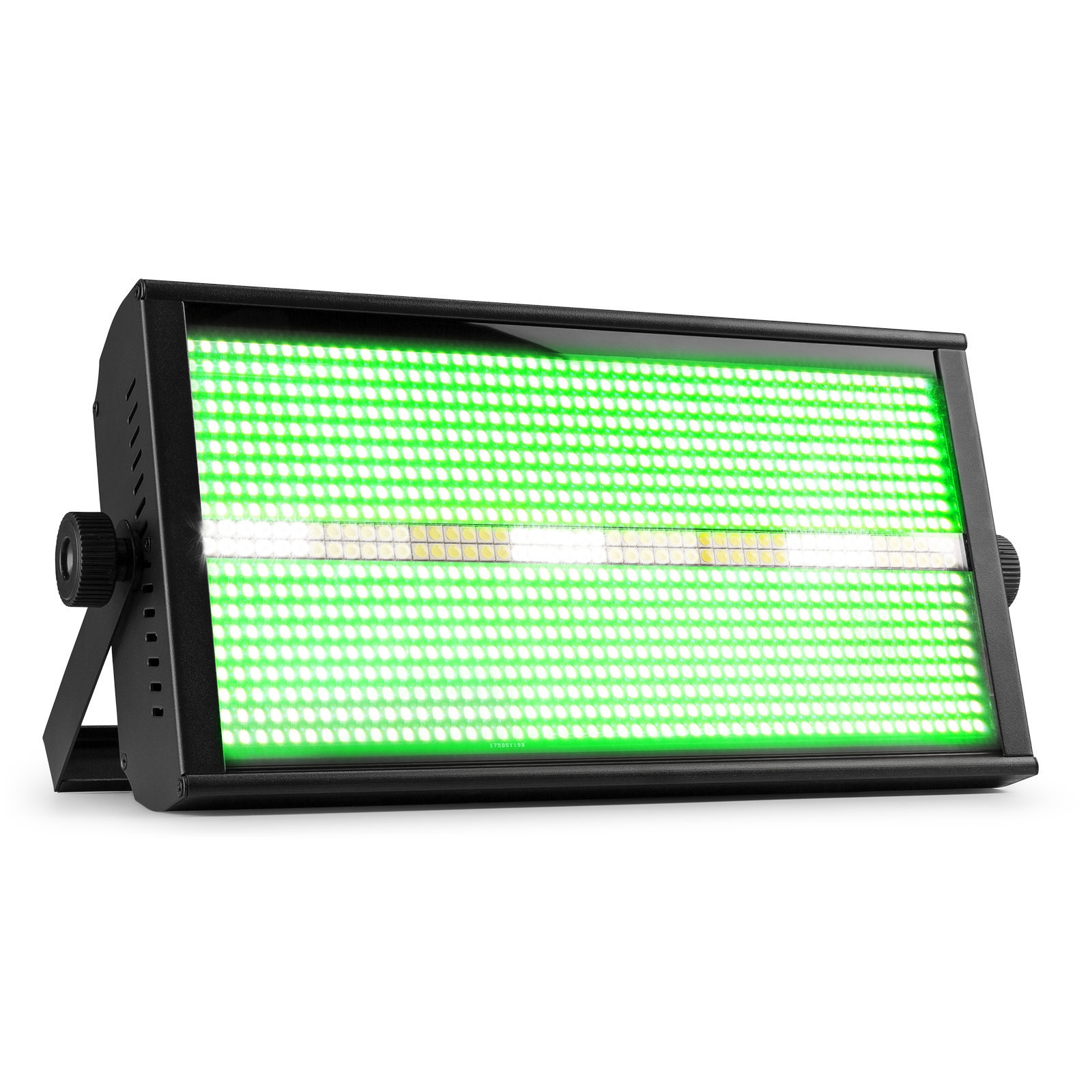

Stroboscope LED RGBW Combi
SKU 153.292
|EAN 8715693342734
+2
All product information
Compare
BS series
Description
Highlights
- Stroboscope, Blinder and Wash fixture
- 864x RGB SMD LEDs
- 96x White SMD LEDs
- RGB + Cool White colour mixing

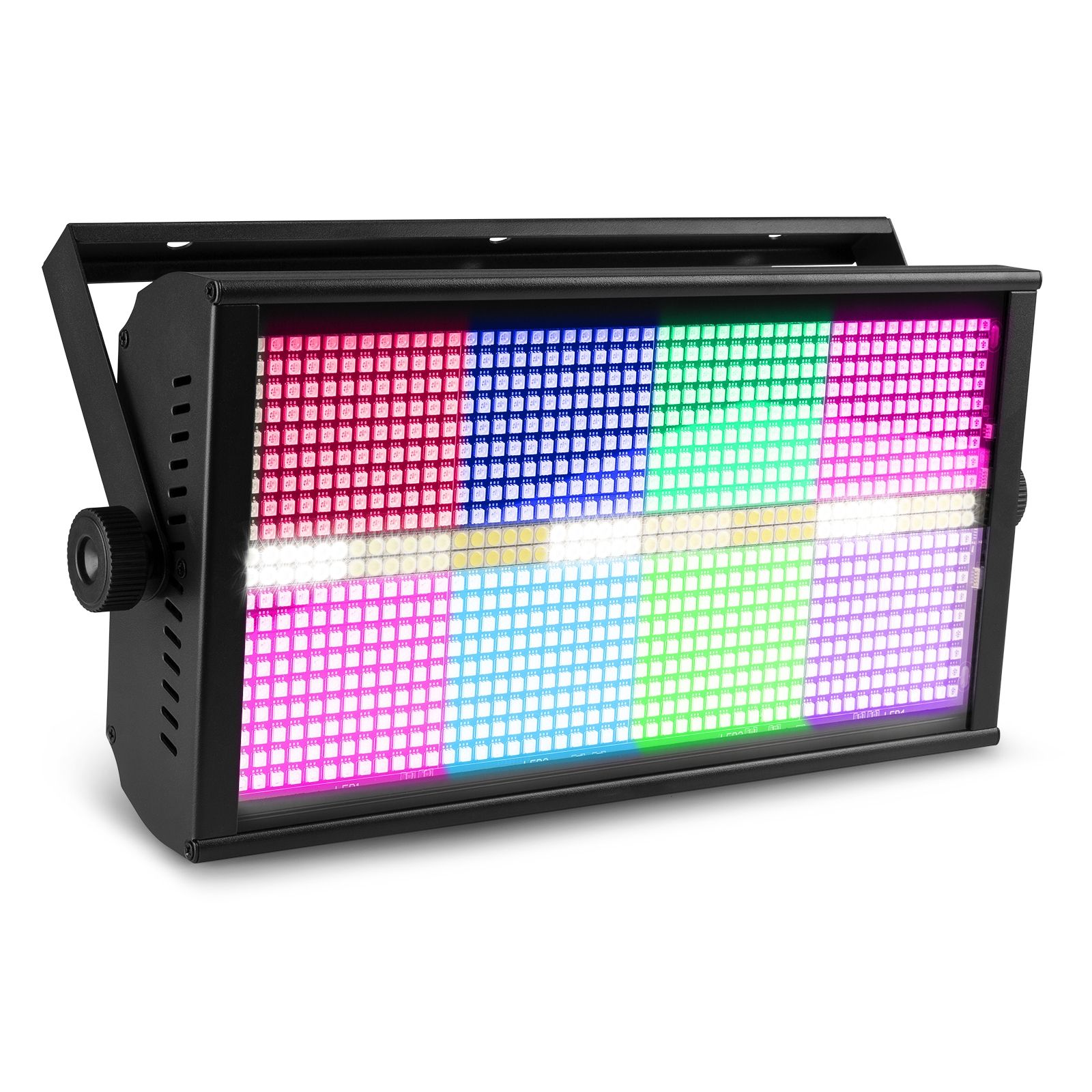

- Controllable in 16 segments (8 RGB and 8 White LED zones)
- DMX512, stand alone and Master/slave Mode
- Automatic programs and Pre-programmed shows
- Adjustable speed 1-100
- Fan cooled metal housing
- Various dimmer curves adjustable
- Power connector in/output
Specifications
BrandbeamZ
Product serieBS series
ColourBlack
Light source
Light source: Wash
- 864x RGB SMD LEDs SMD LED
Light source: Strobe
- 96x Cool white LED
Illuminance21182 lx @ 1m
Optics
Beam angle
- 44° x 61°
Features
Flash Per Second1 - 30 Hz
Control
Control modesAuto programs, DMX, Master/Slave
DMX Channels4, 11, 32, 39
DMX connector3-pin XLR

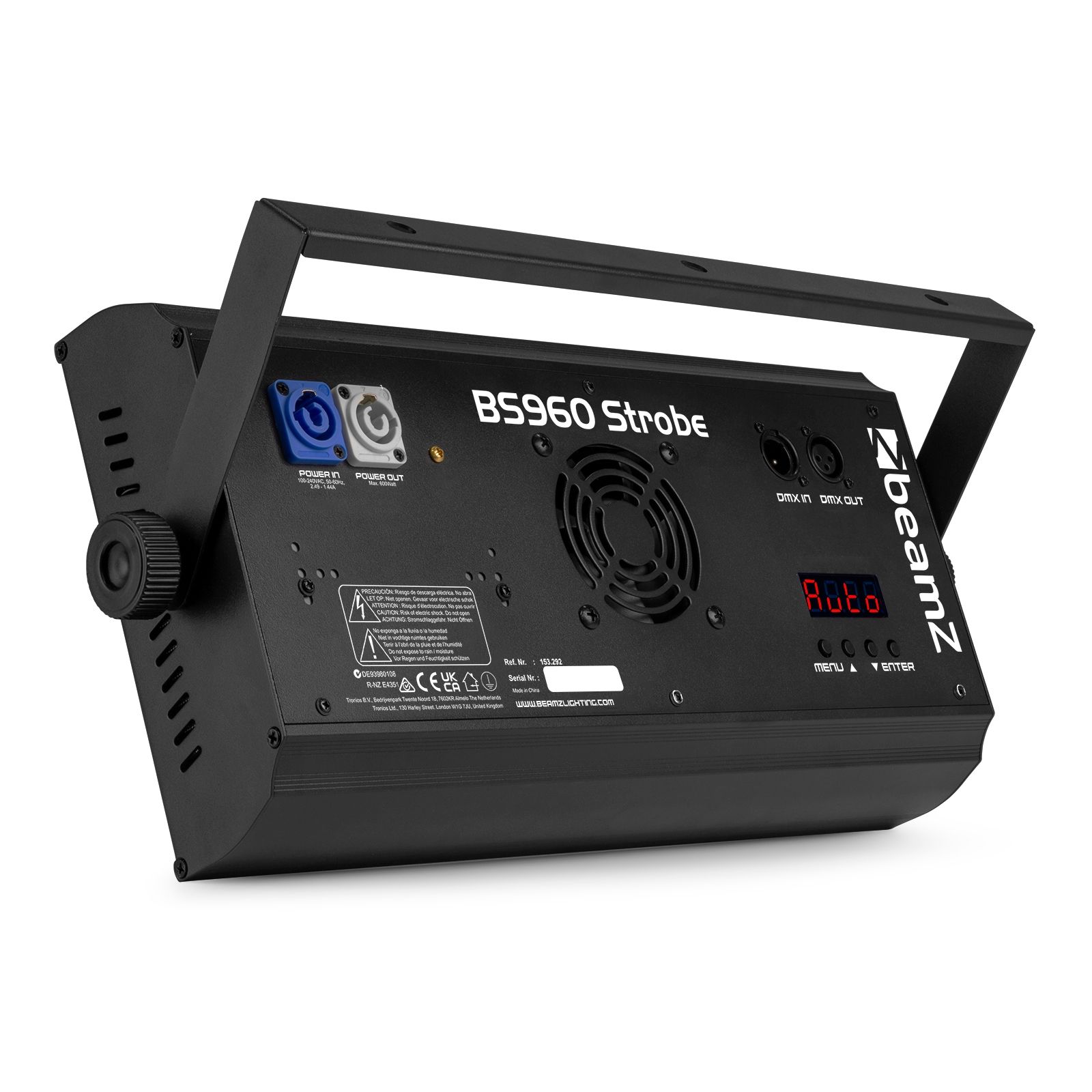

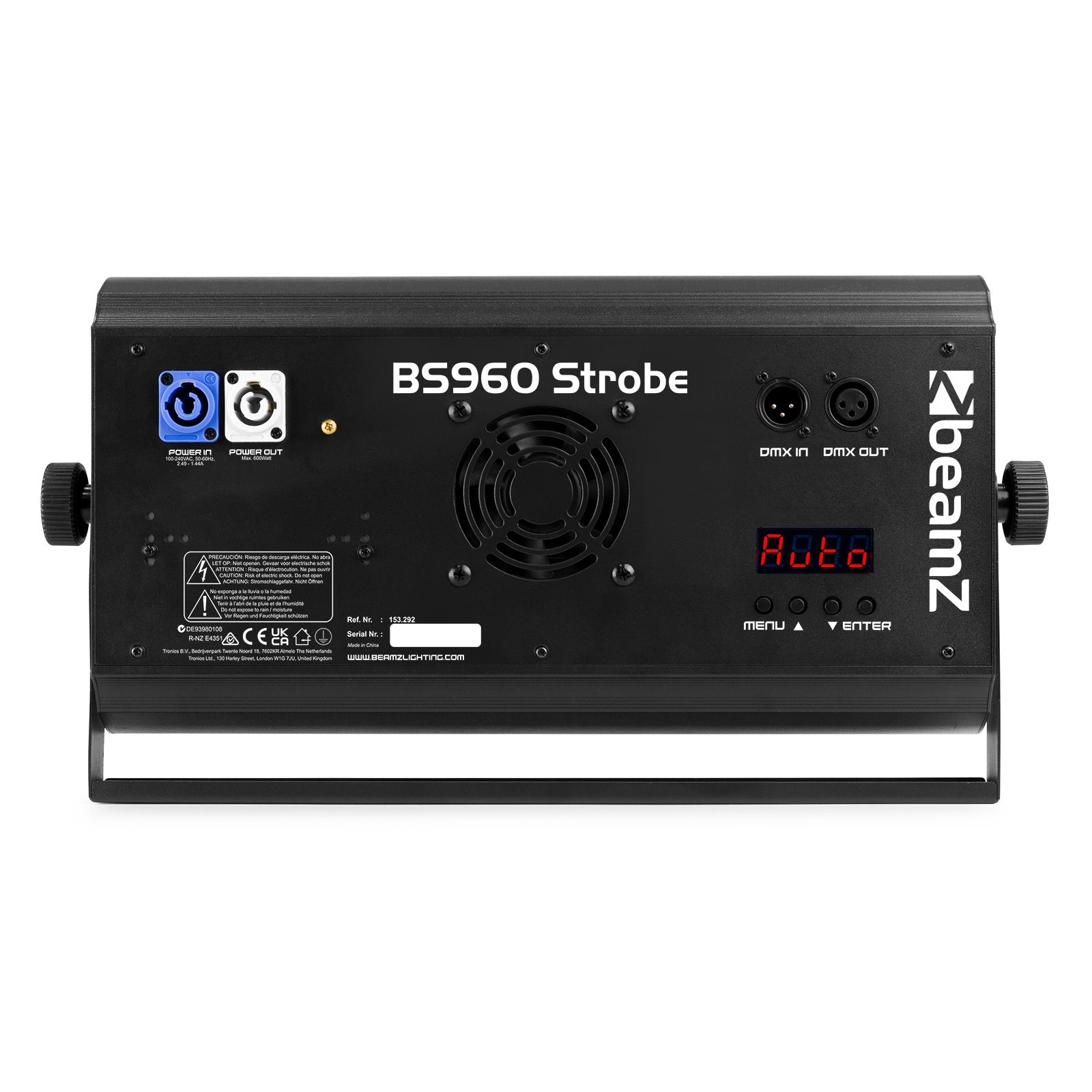

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 450 x 75 x 240 mm (W x D x H)
Weight
- 3.7 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
