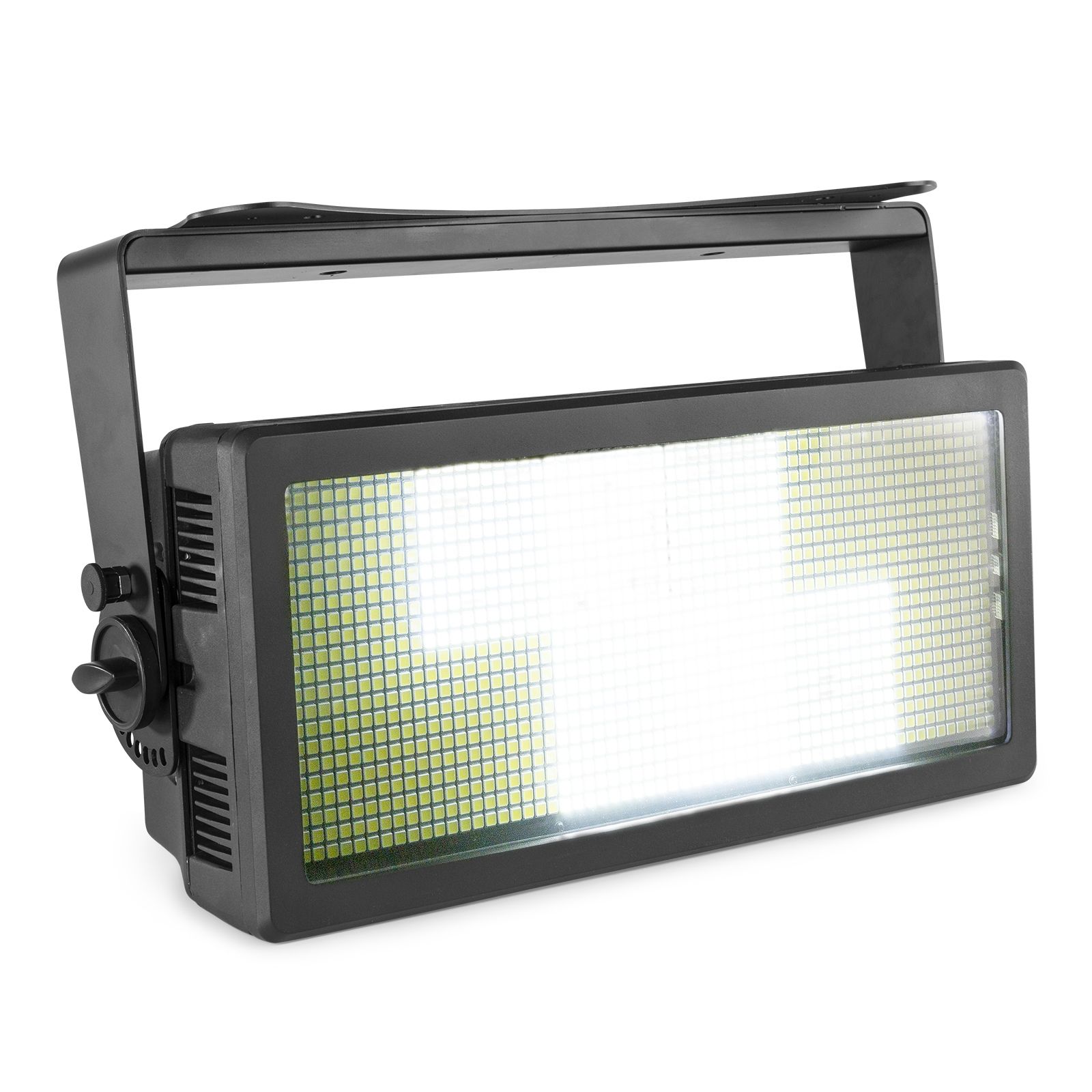

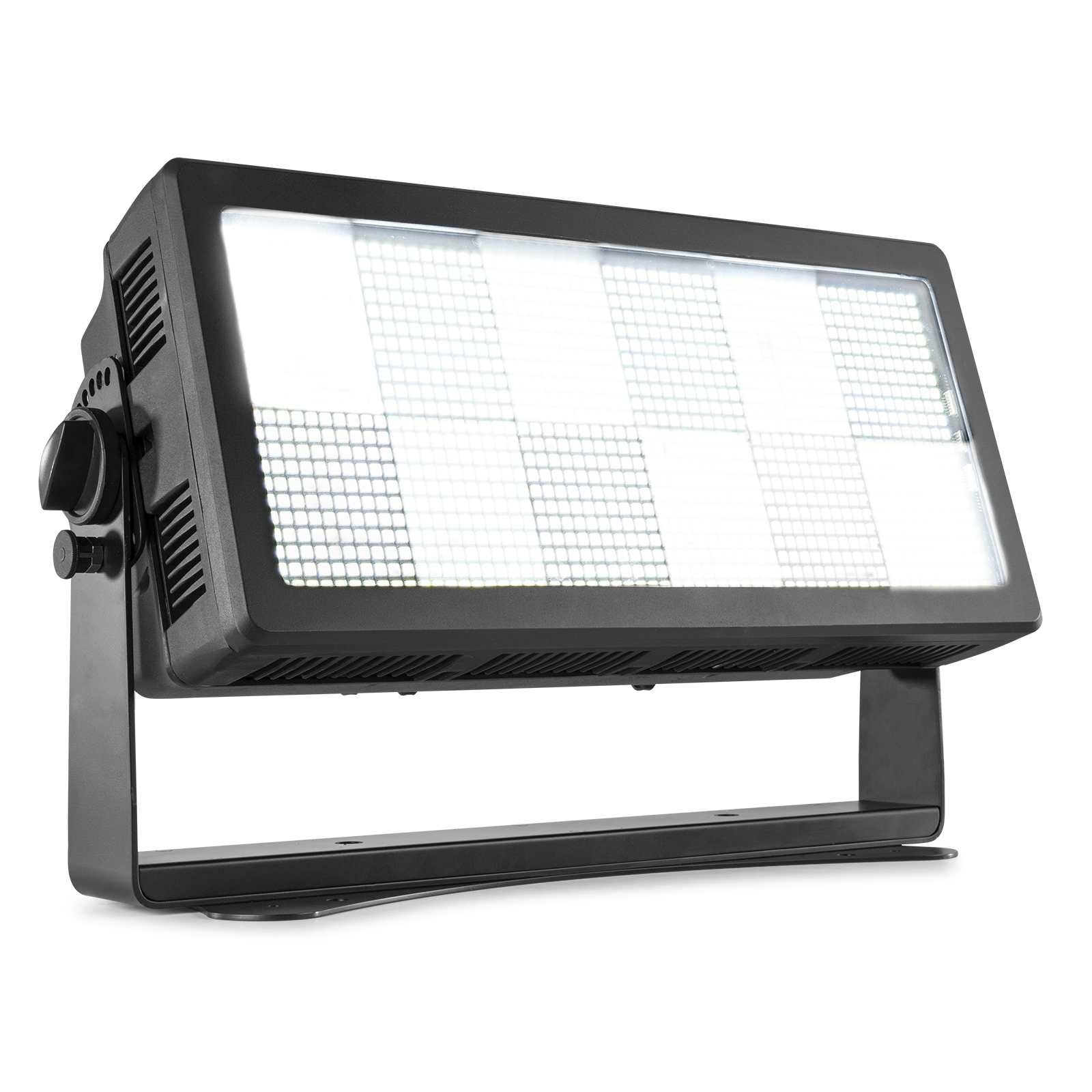

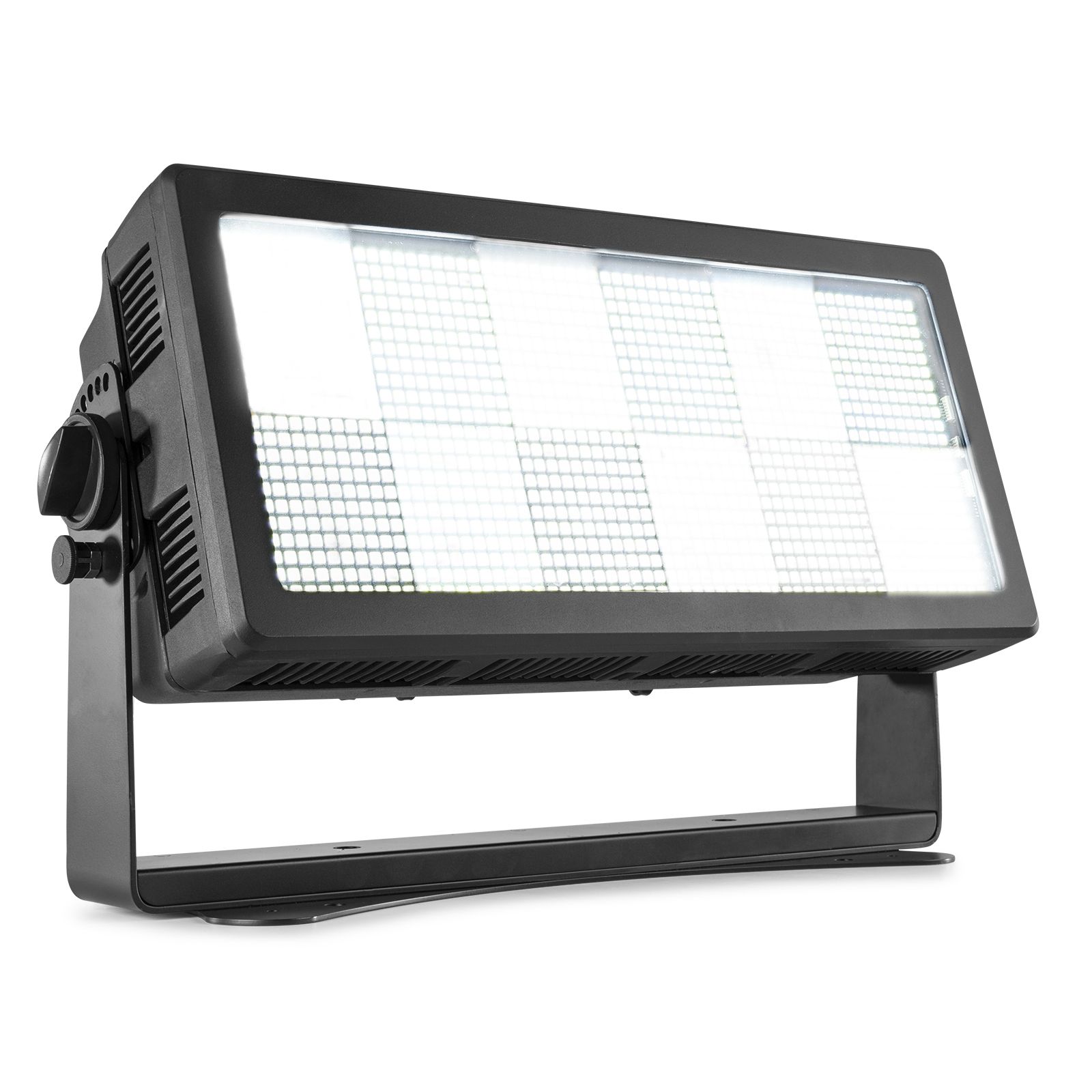

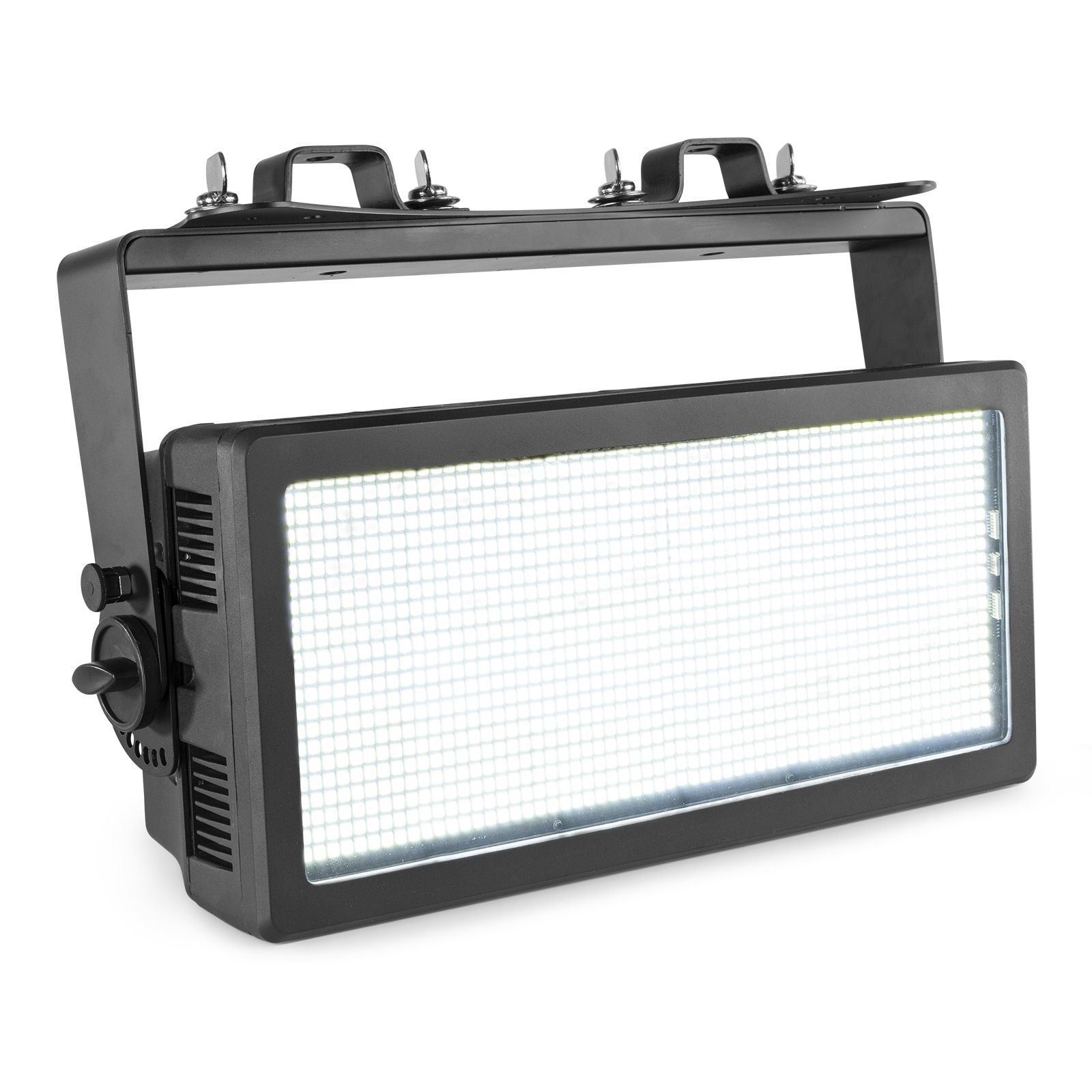

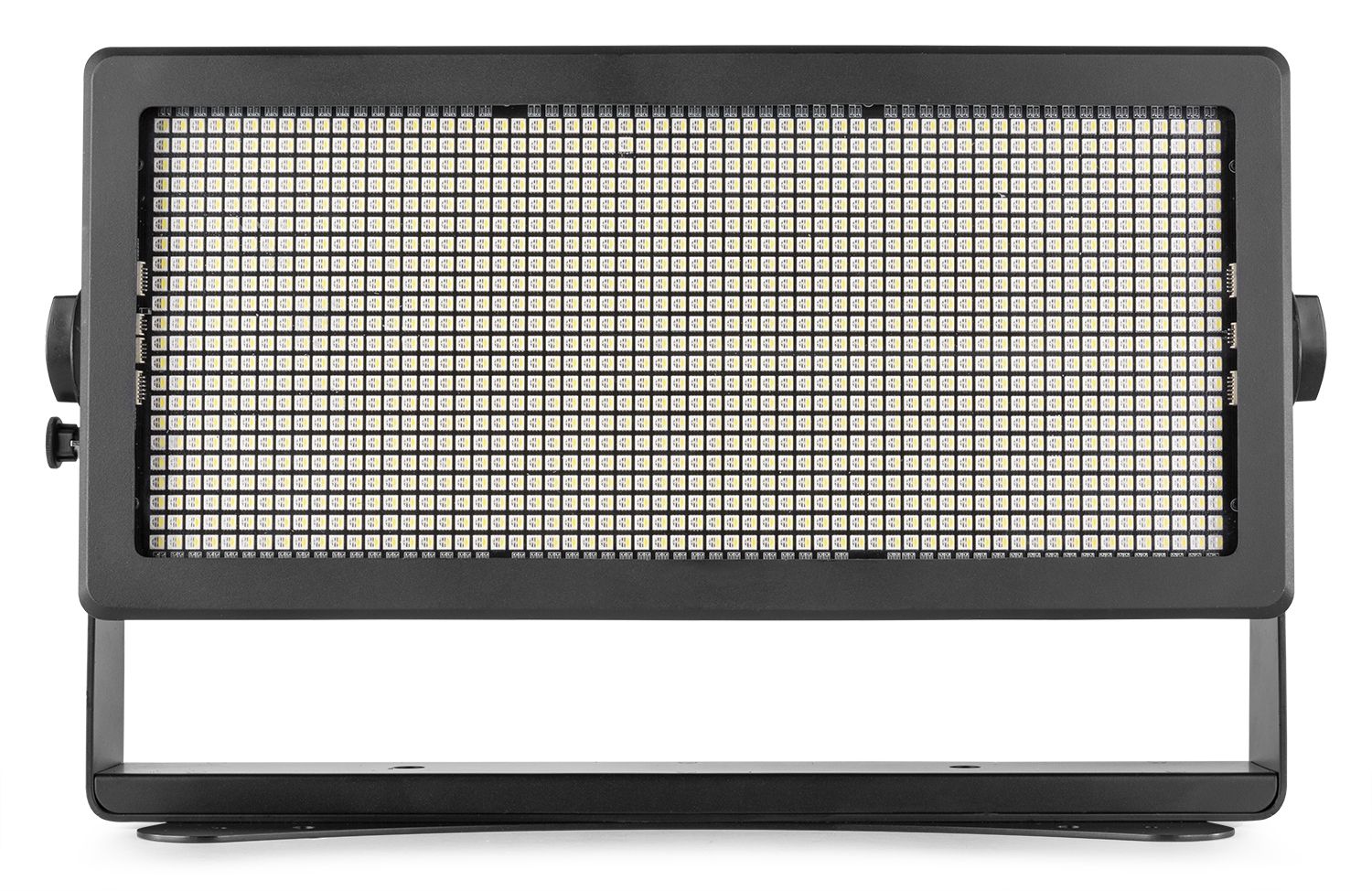

BS1500W
Stroboscope LED CW IP65
SKU 153.301
|EAN 8715693317039
+9
All product information
Compare
BS series
Description
Highlights
- Stroboscope and Blinder fixture

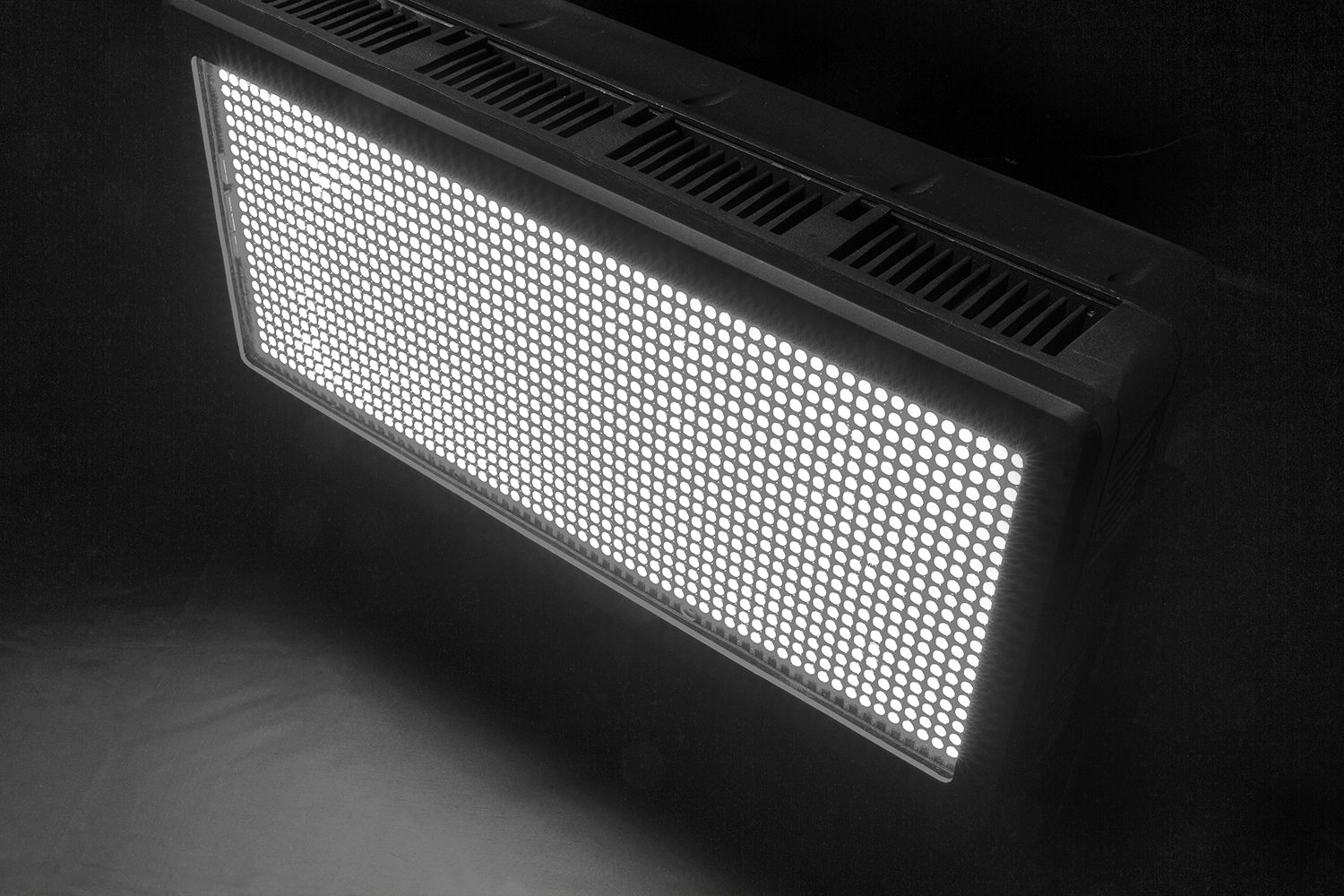

- 1320x SMD LEDs
- Colour: cool white
- IP65 rated waterproof design

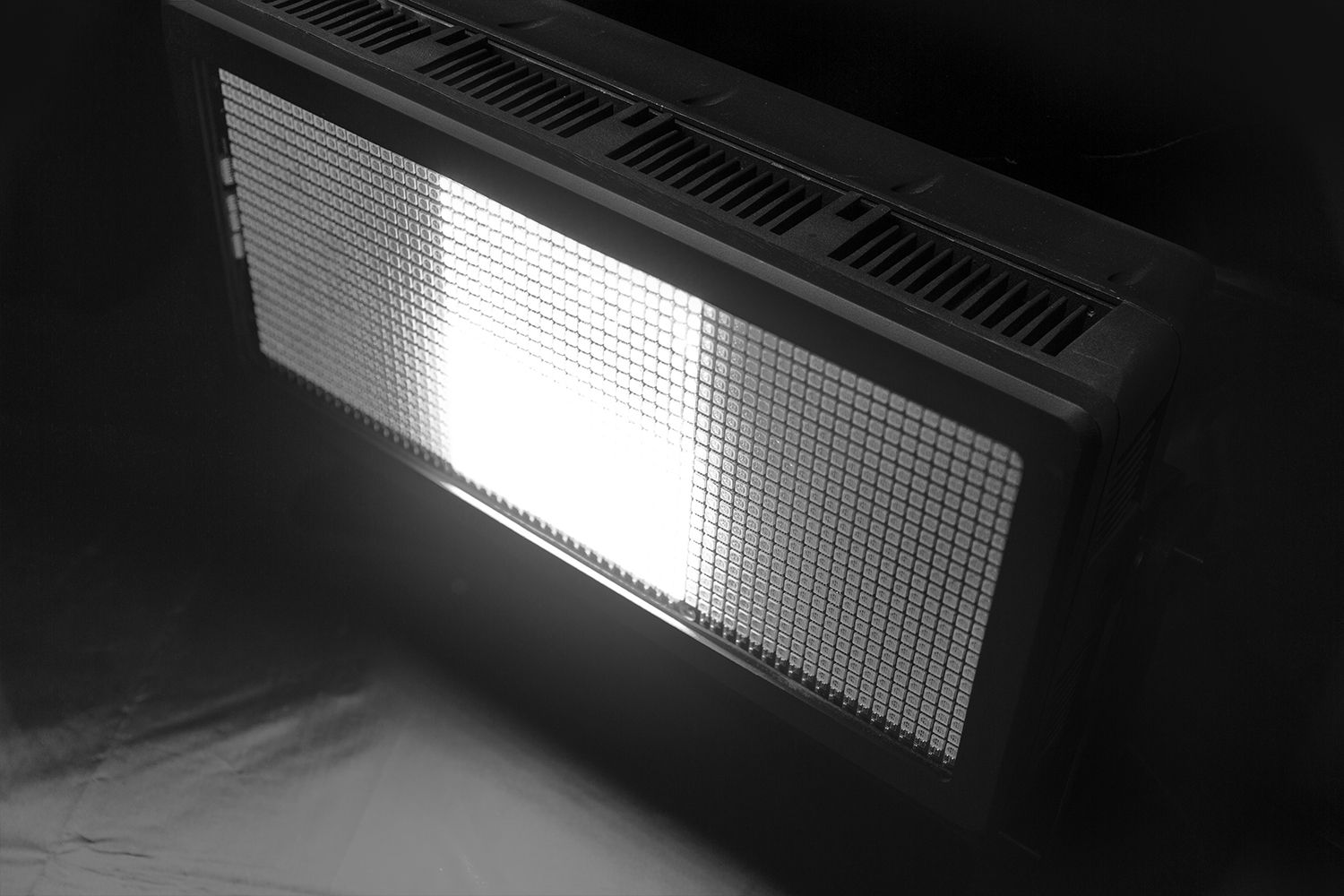

- Controllable in 12 segments
- DMX512, stand alone and Master/slave Mode
- Automatic programs
- Pre-programmed shows

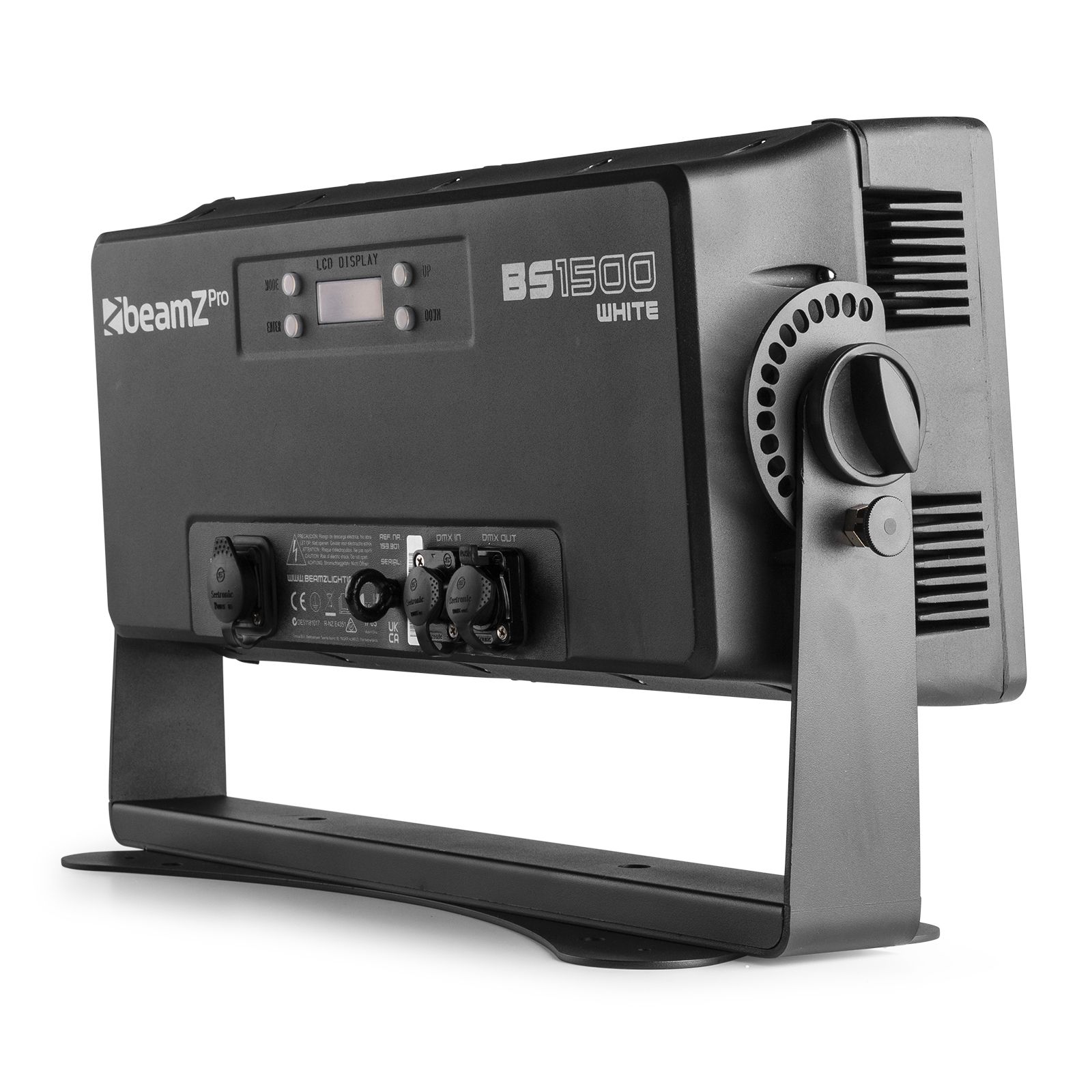

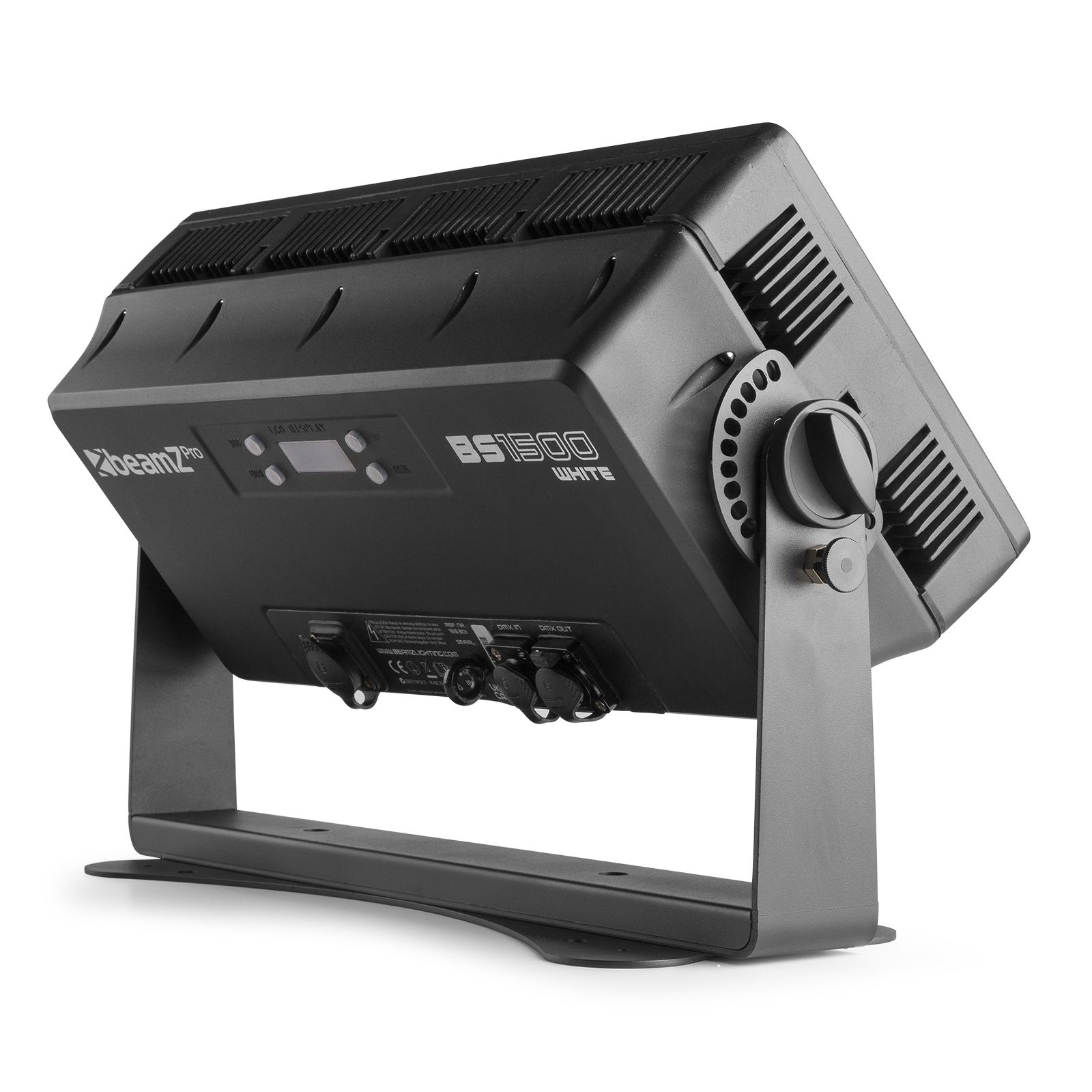

- Control panel with LCD display
- Fan cooled die-cast aluminium housing
- Waterproof DMX connectors
- Power connector True input

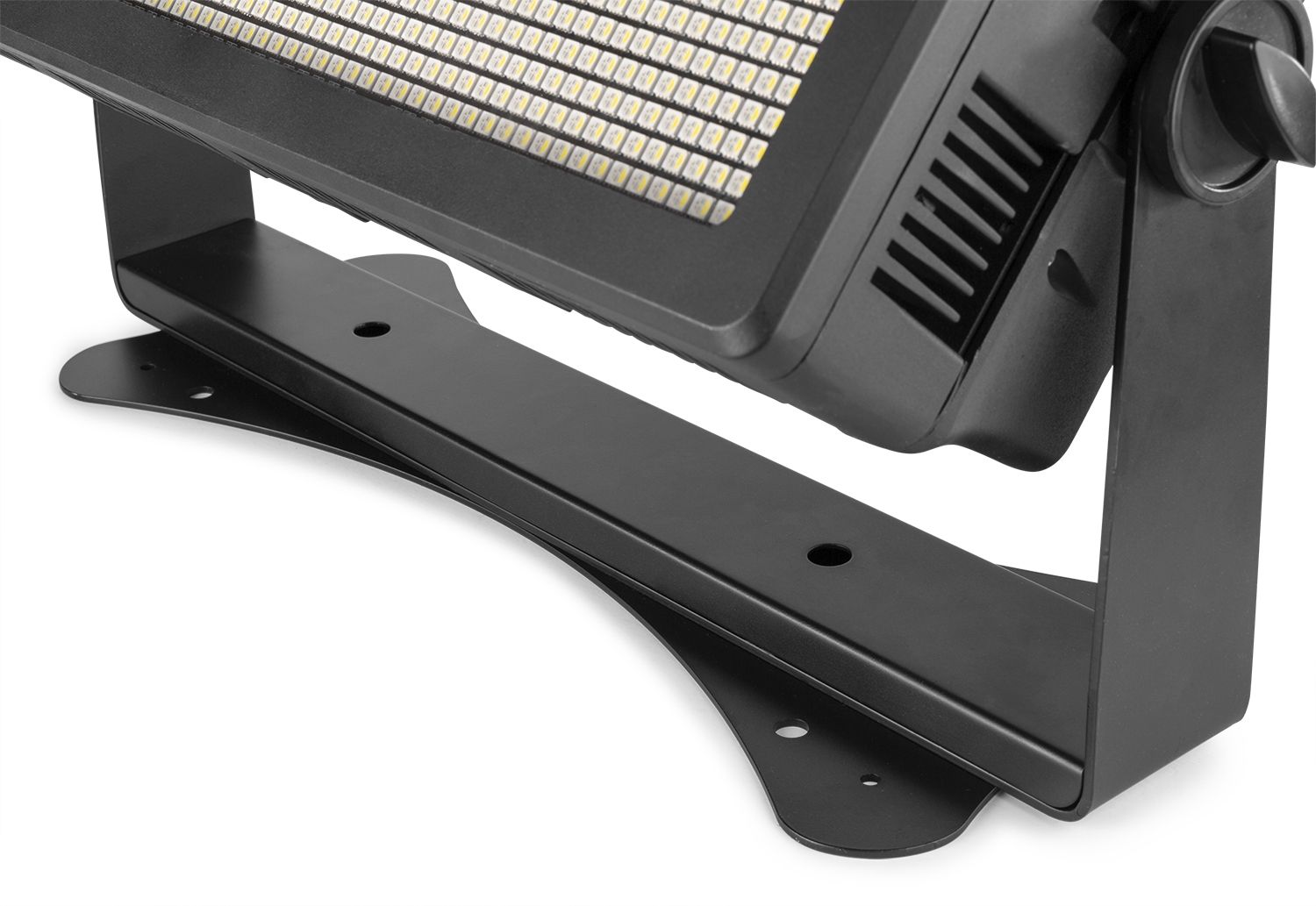

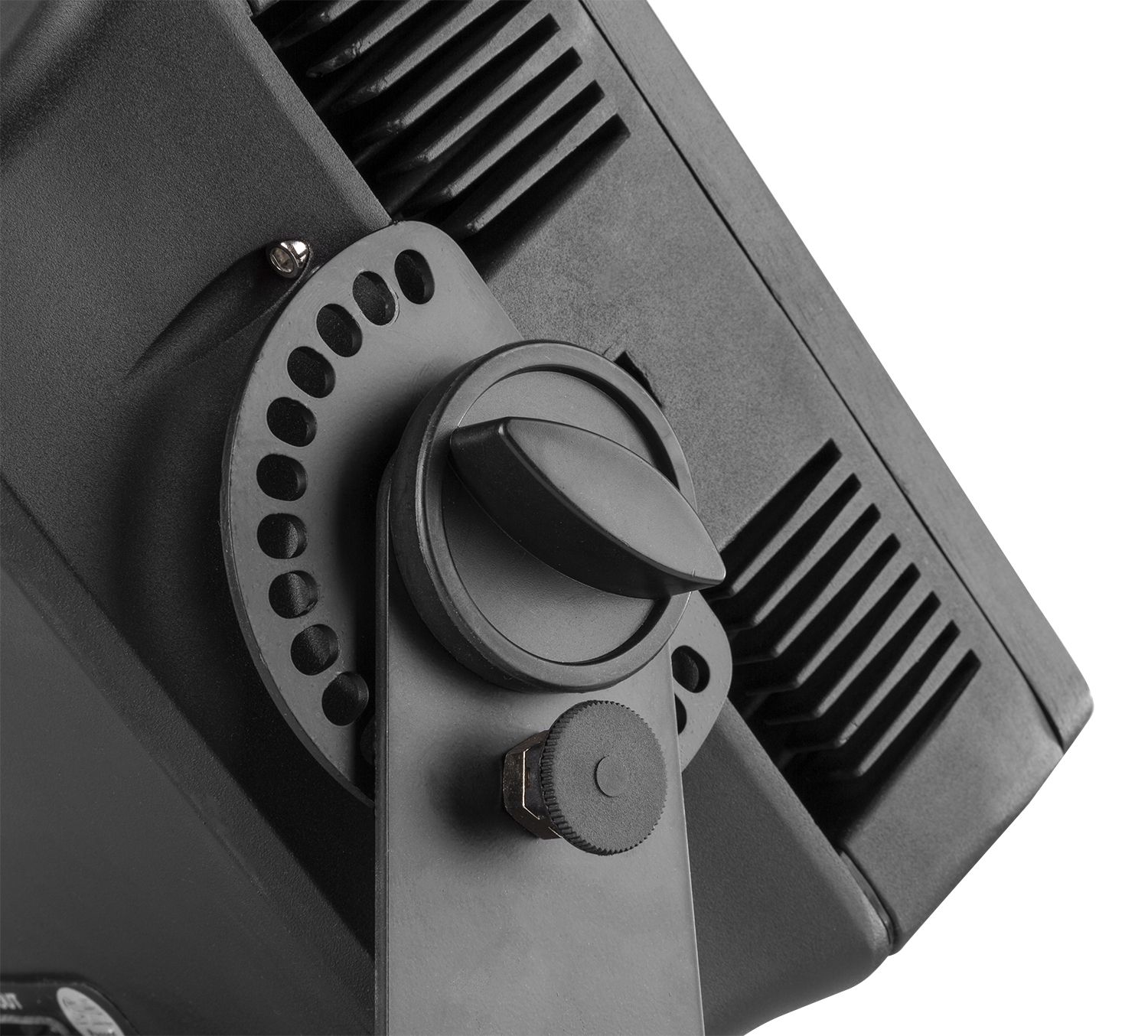

- Installation via quick-lock Omega bracket (included)
Specifications
BrandbeamZ Professional
Product serieBS series
ColourBlack
Light source
Light source
- 1.32x 1W Cool white
Optics
Beam angle
- 67° x 33°
Features
Flash Per Second1 - 18 Hz
Control
Control modesAuto programs, DMX, Master/Slave
DMX Channels4, 12, 16
DMX connector3-pin XLR

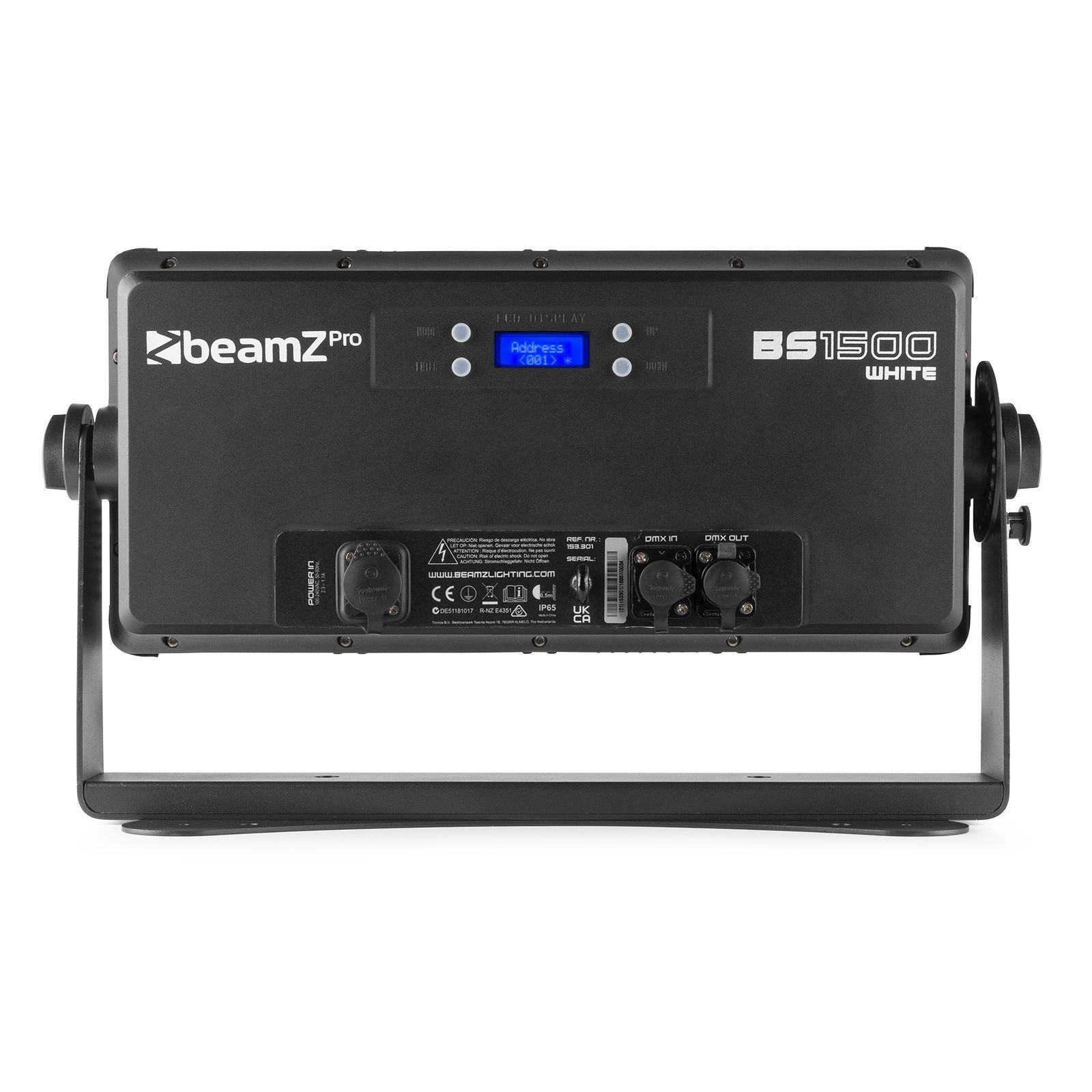

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
Output connections
- 1x DMX - 3-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingFan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 490 x 170 x 290 mm (W x D x H)
Weight
- 12.65 kg

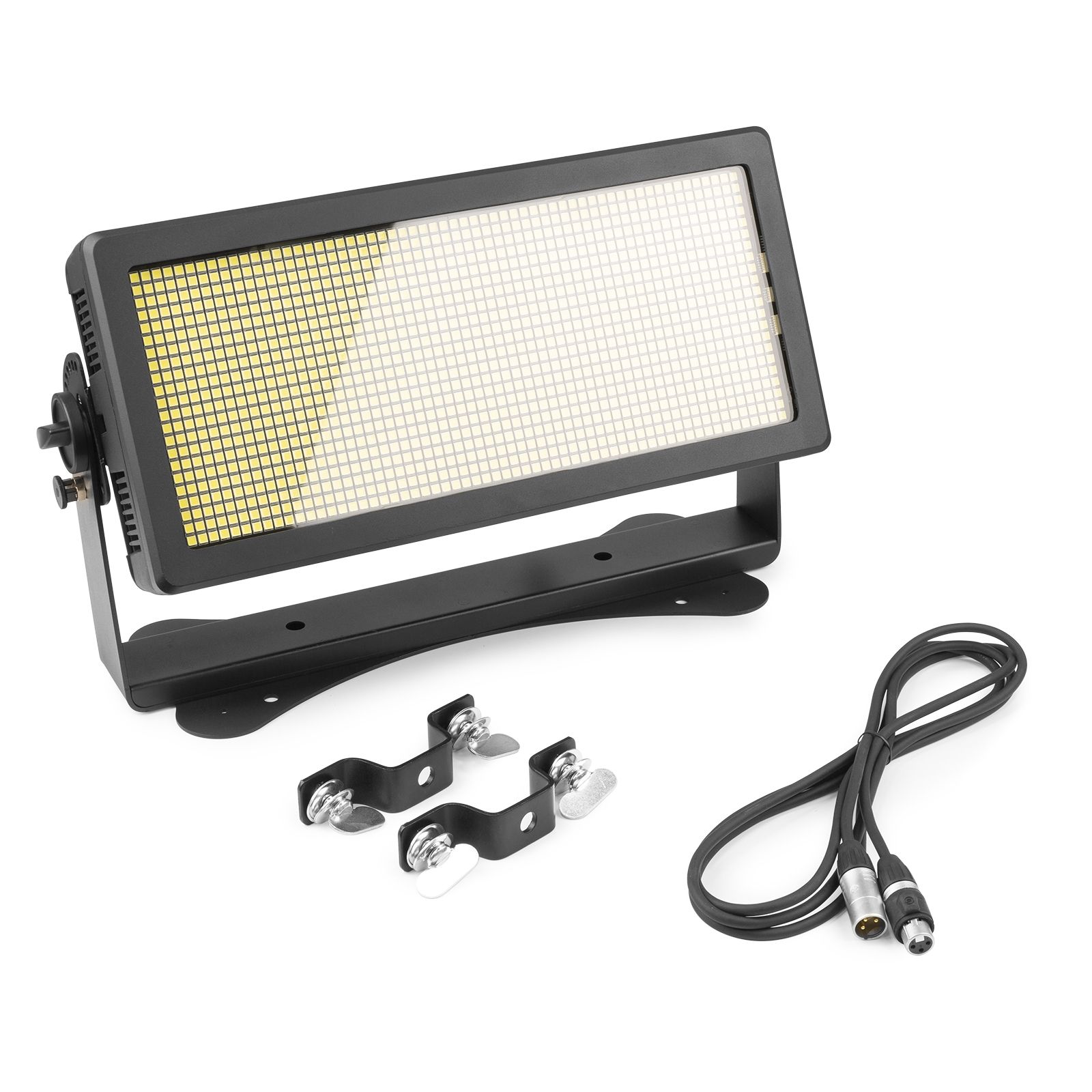

Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
