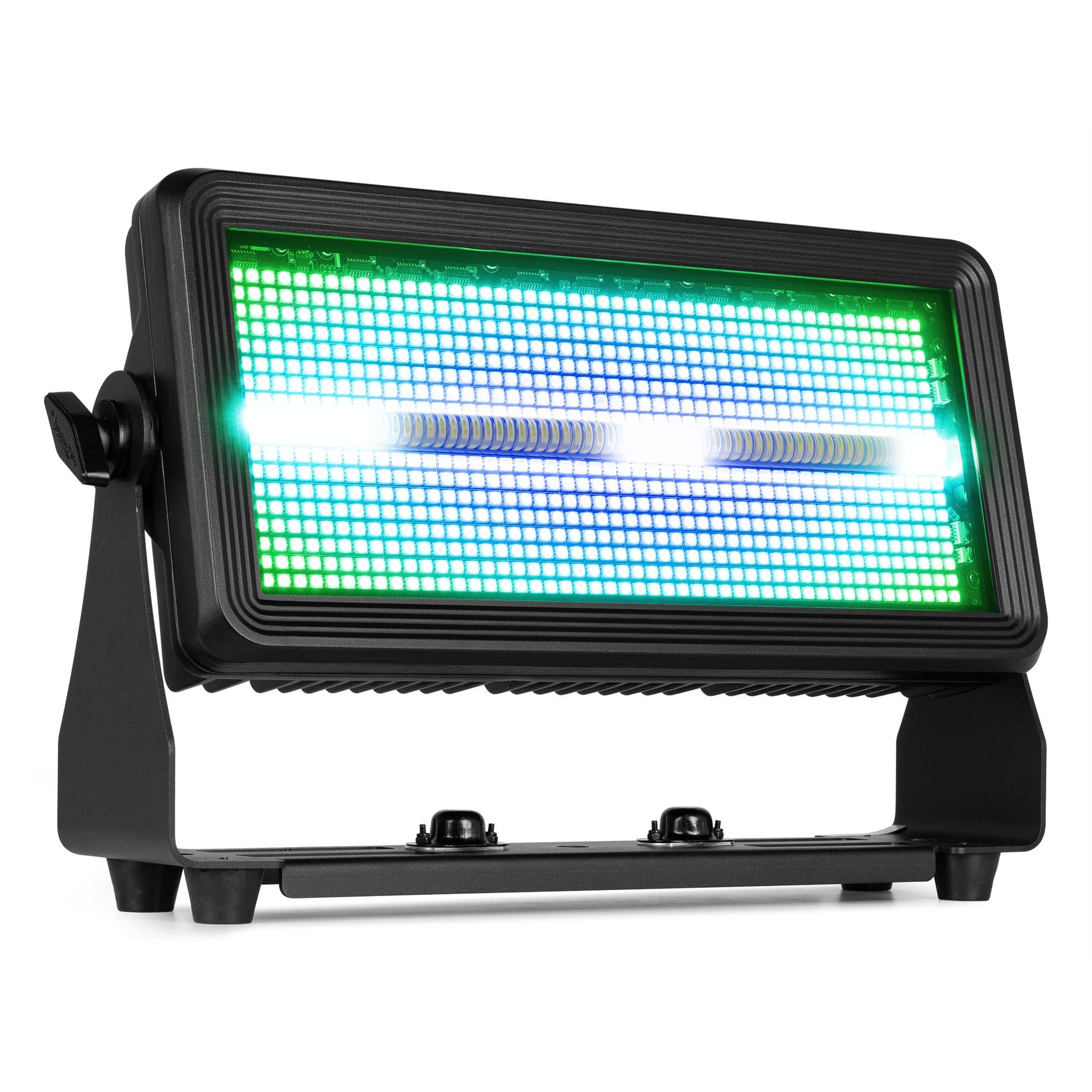

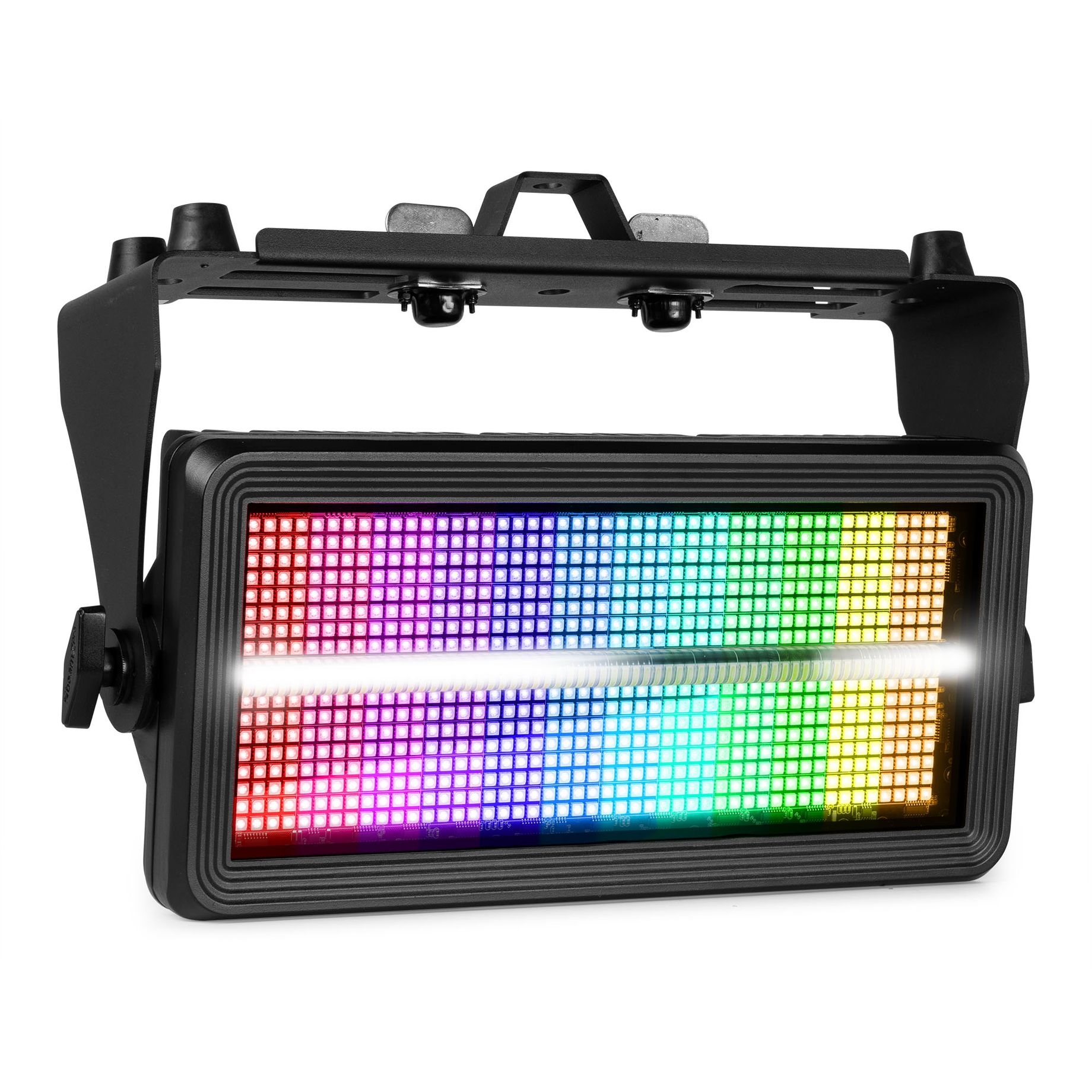

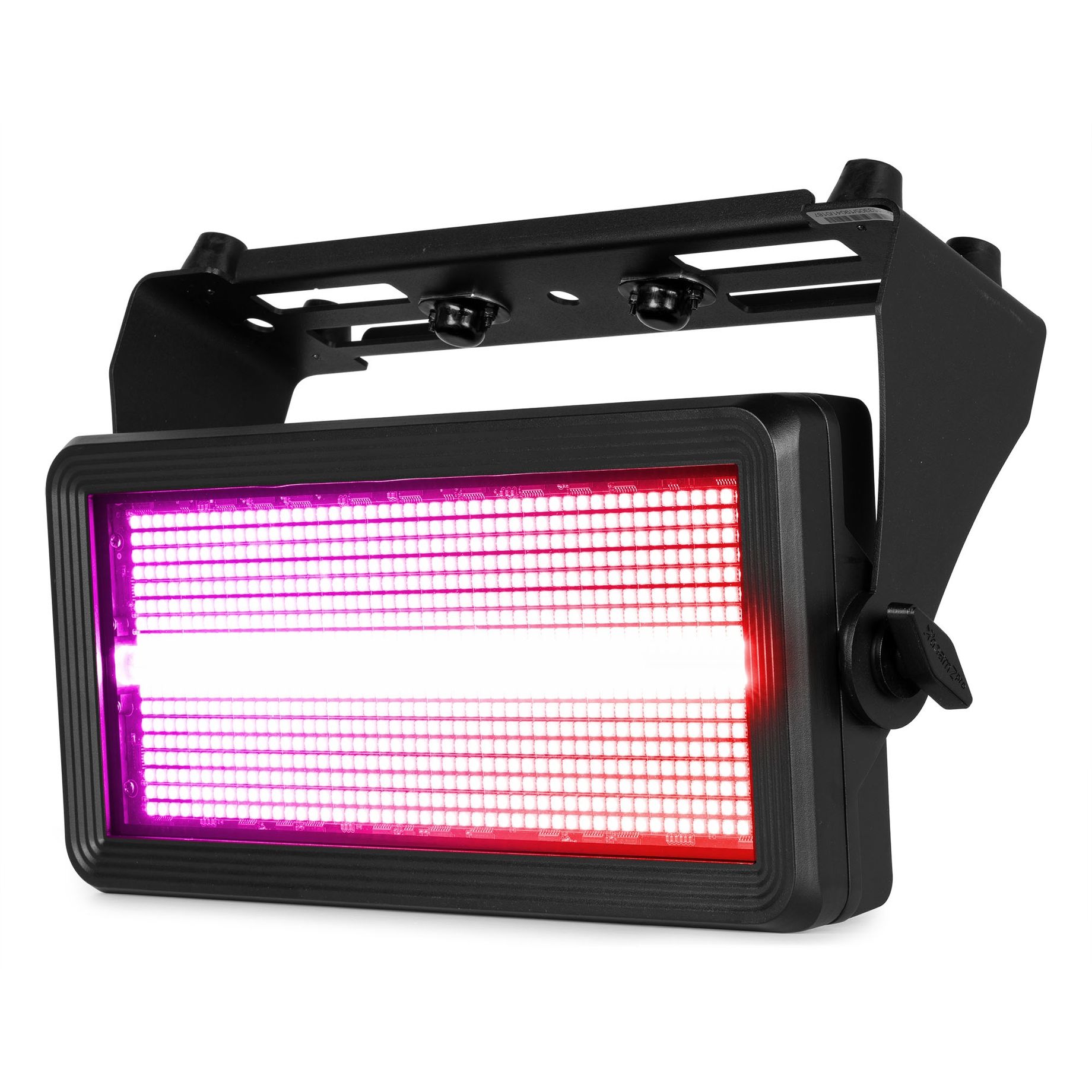

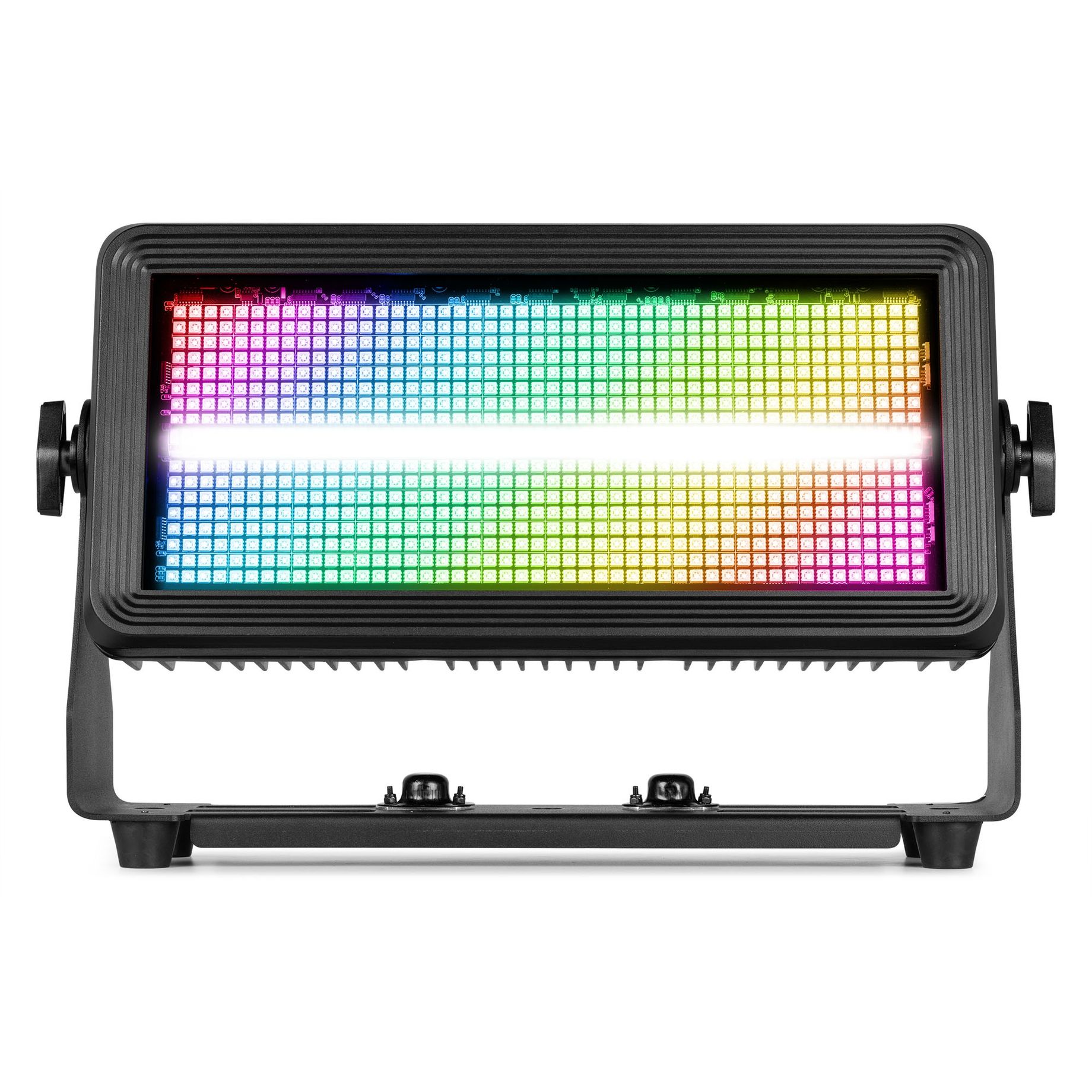

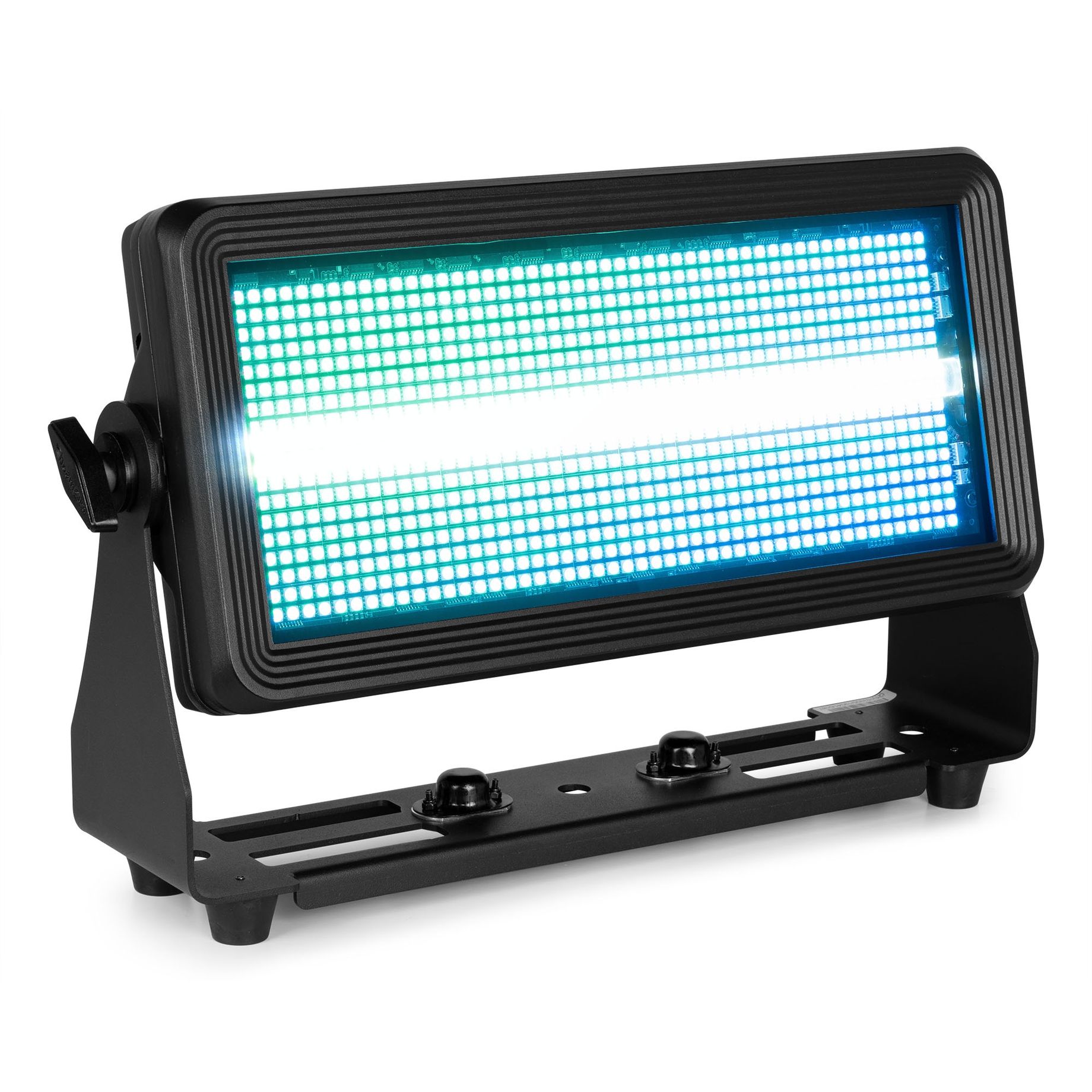

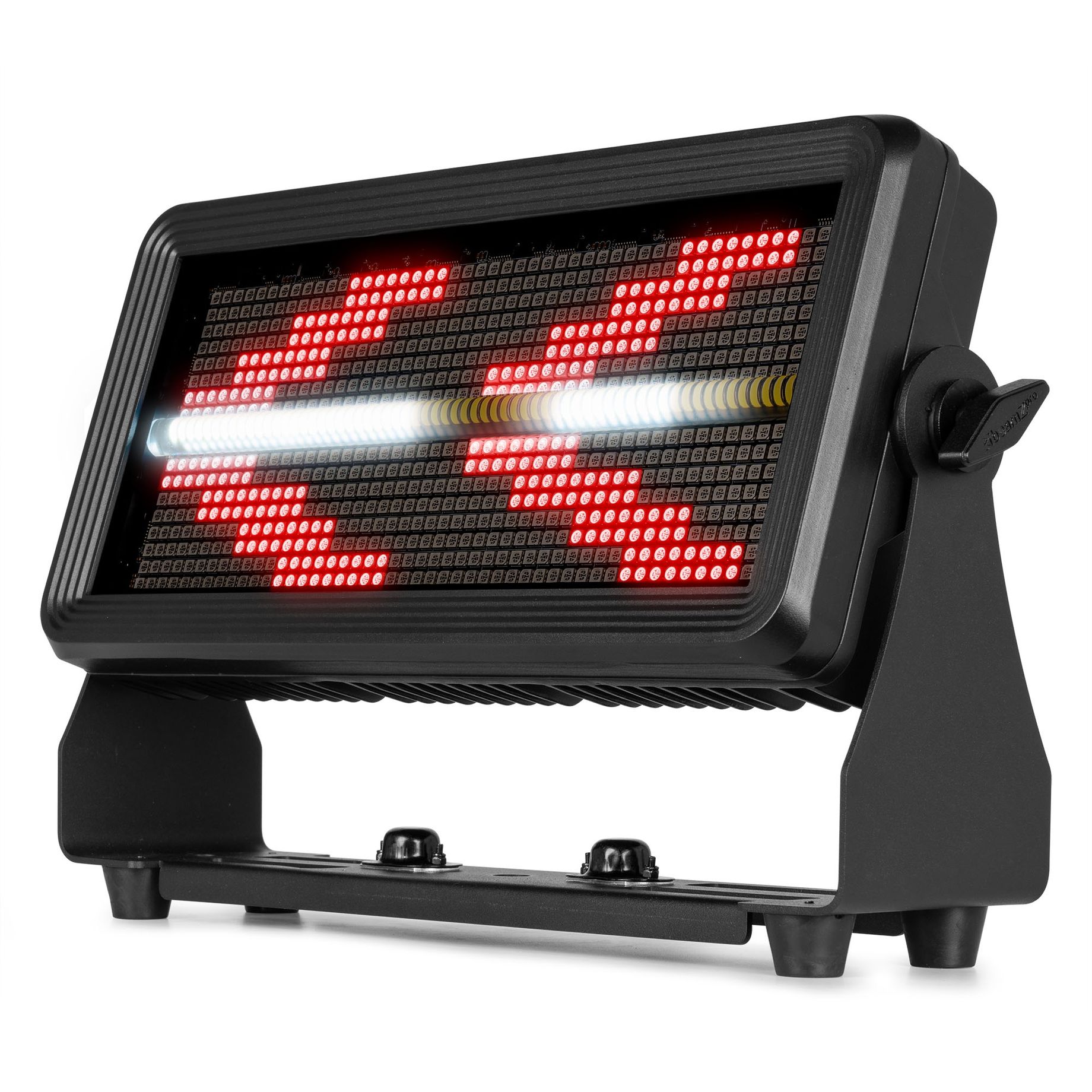

BS1100IP
Outdoor Stroboscope LED RGB/CW
SKU 153.305
|EAN 8715693350661
+5
All product information
Compare
BS series
Description
Highlights
- Stroboscope, Blinder and Effect fixture
- 768x RGB SMD LEDs
- 128x Cool White SMD LEDs
- RGB + Cool White colour mixing
- DMX512, stand alone and Master/slave Mode
- Automatic programs with adjustable speed
- Convection cooled aluminium housing
- Various dimmer curves adjustable
- Control panel with LCD display
- IP65-classification for indoor and outdoor use
- Power connector in/output
- Quick lock omega clamp included
Specifications
BrandbeamZ Professional
Product serieBS series
ColourBlack
Light source
Light source: Wash
- 768x 0.5W RGB SMD LEDs LED
Light source: Strobe
- 128x 3W Cool white LED
Illuminance7495 lx @ 1m
Optics
Beam angle
- 54° x 65°
Features
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels4, 17, 129
DMX connector3-pin XLR

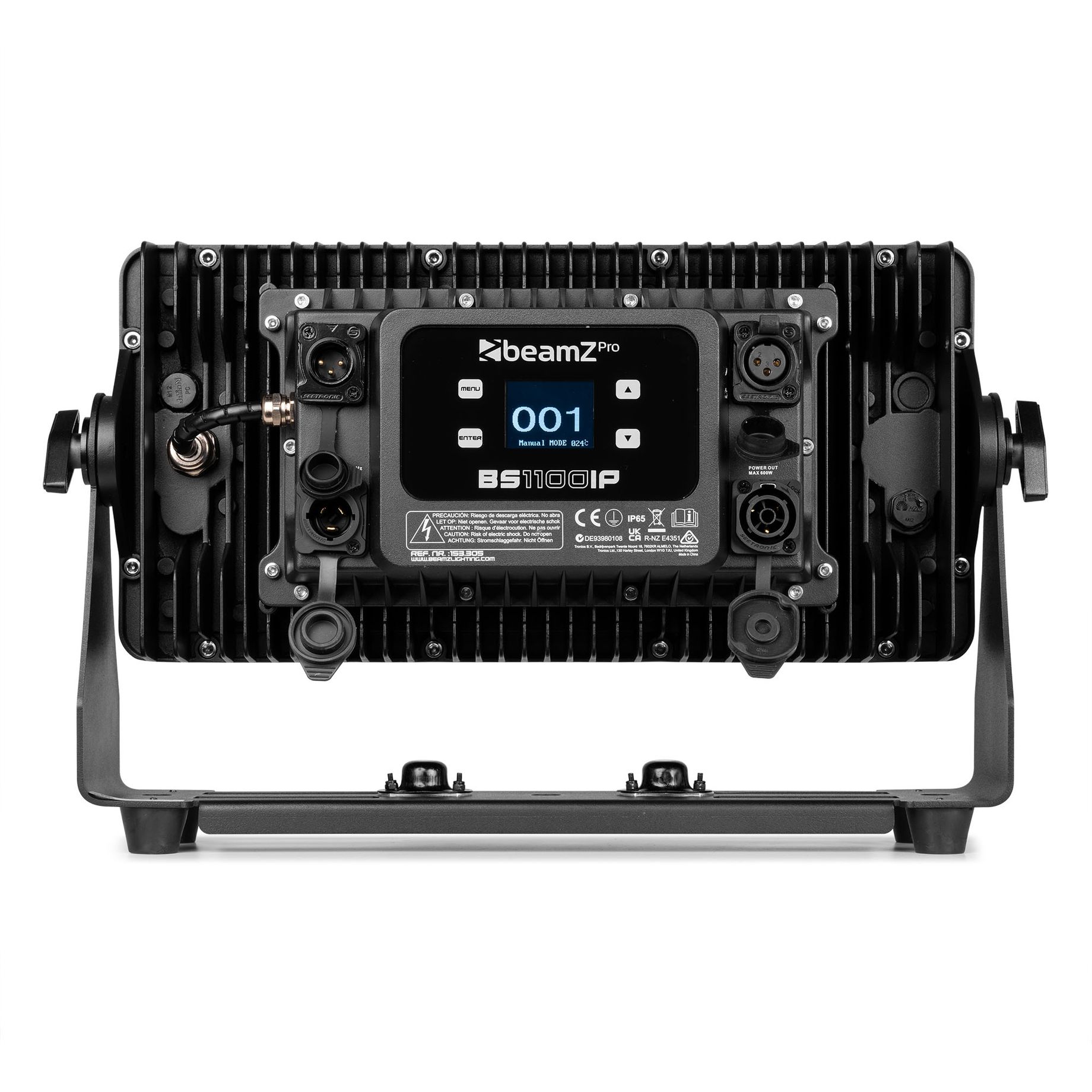

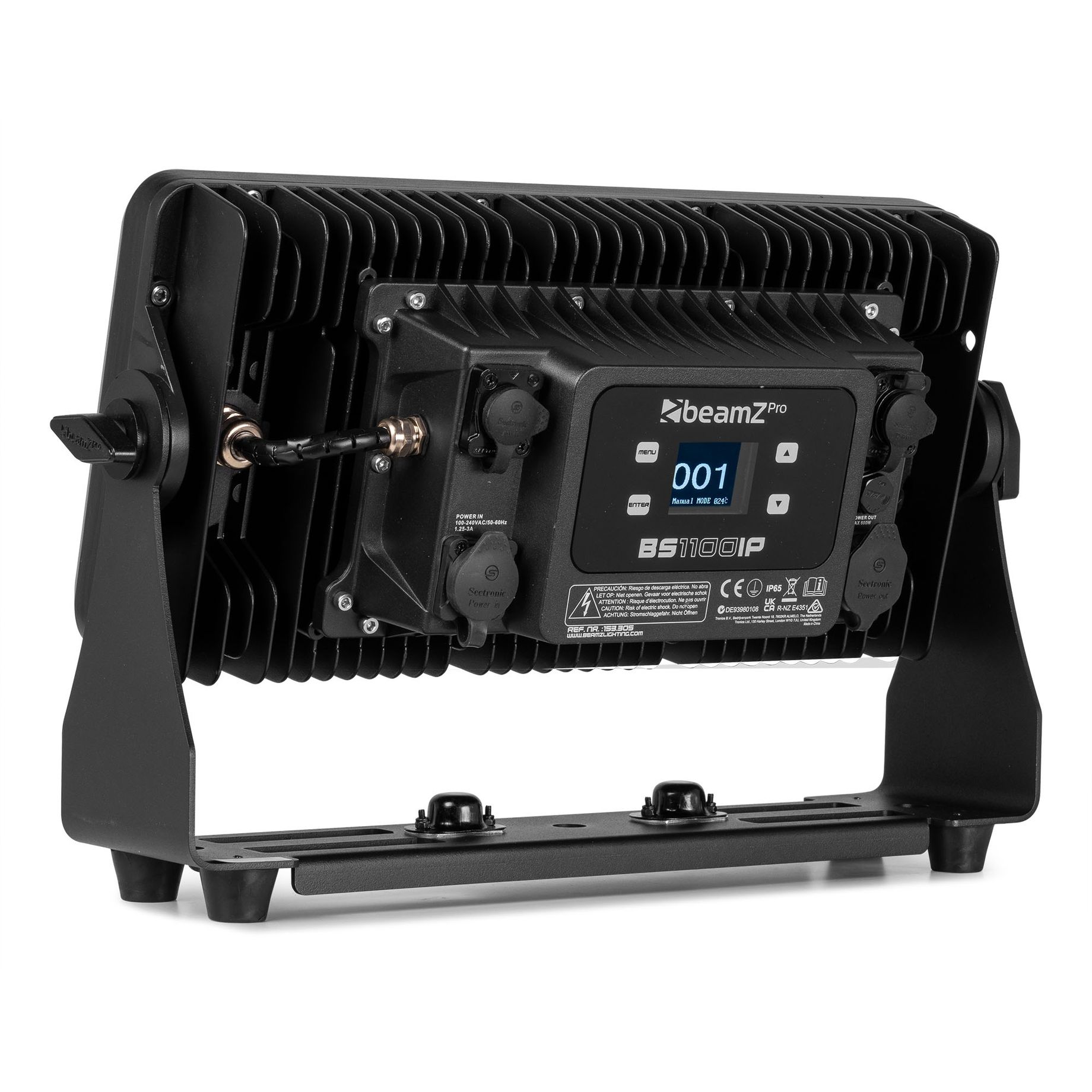

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 460 x 185 x 260 mm (W x D x H)
Weight
- 7.05 kg

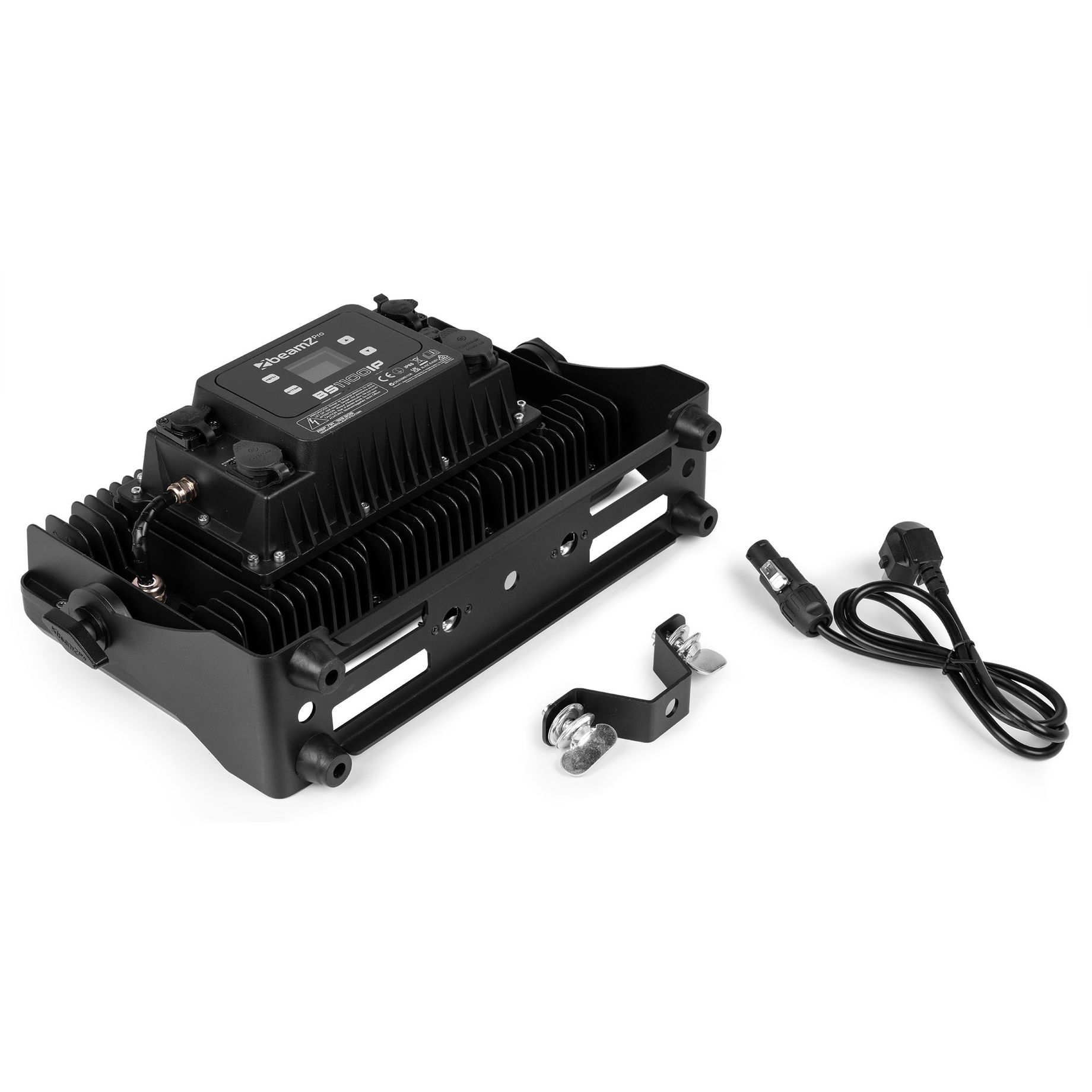

Accessories
Included Accessories
- Mounting bracket
