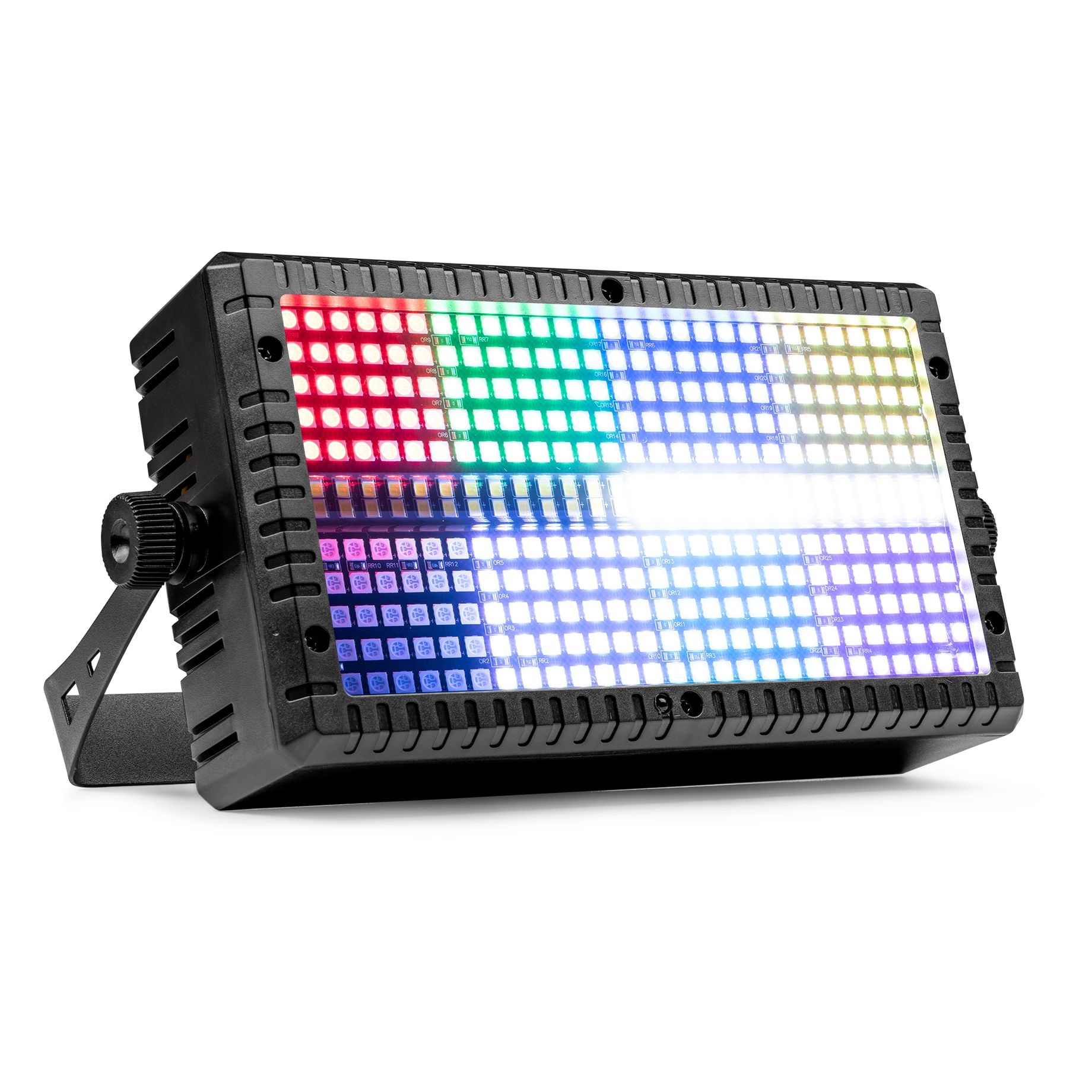

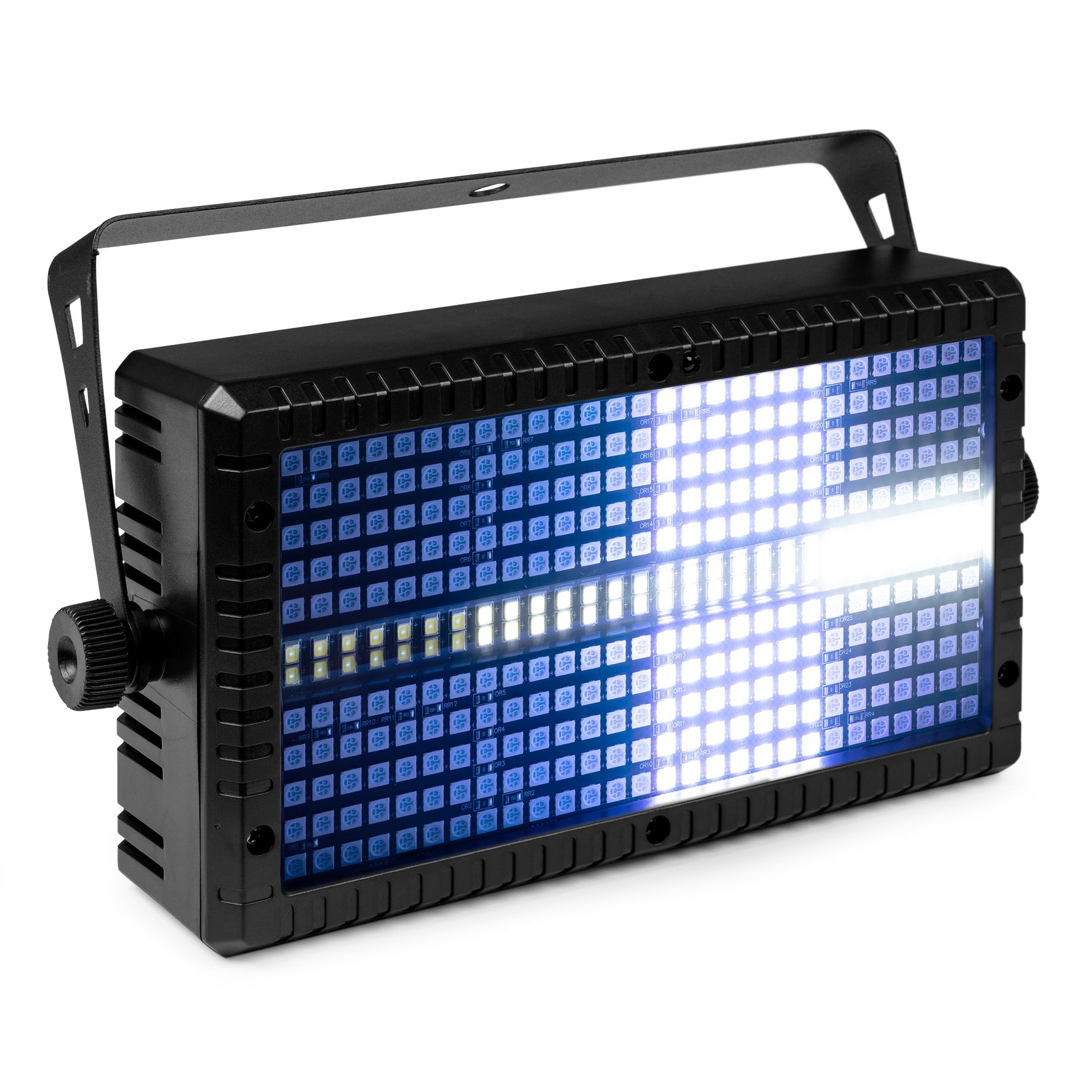

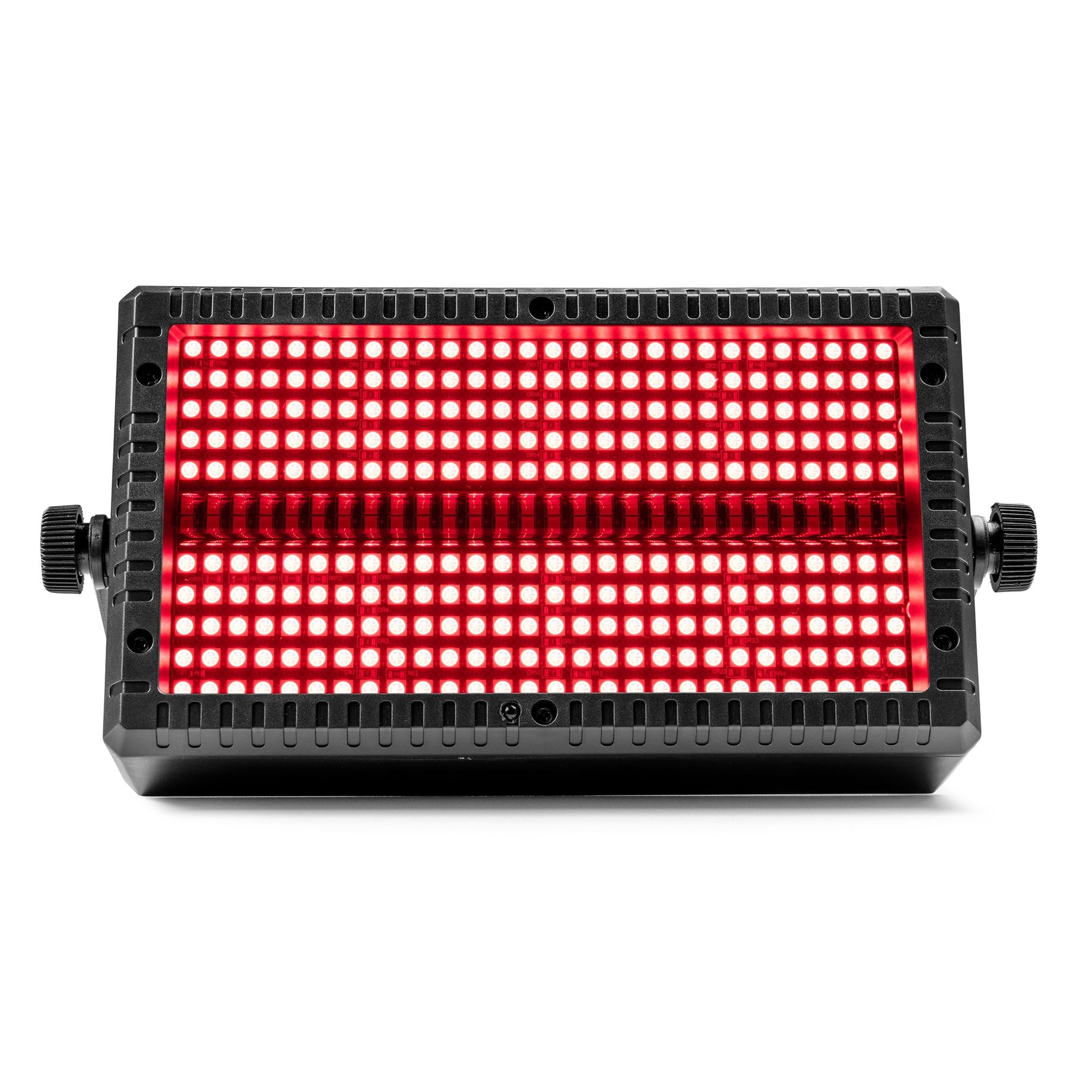

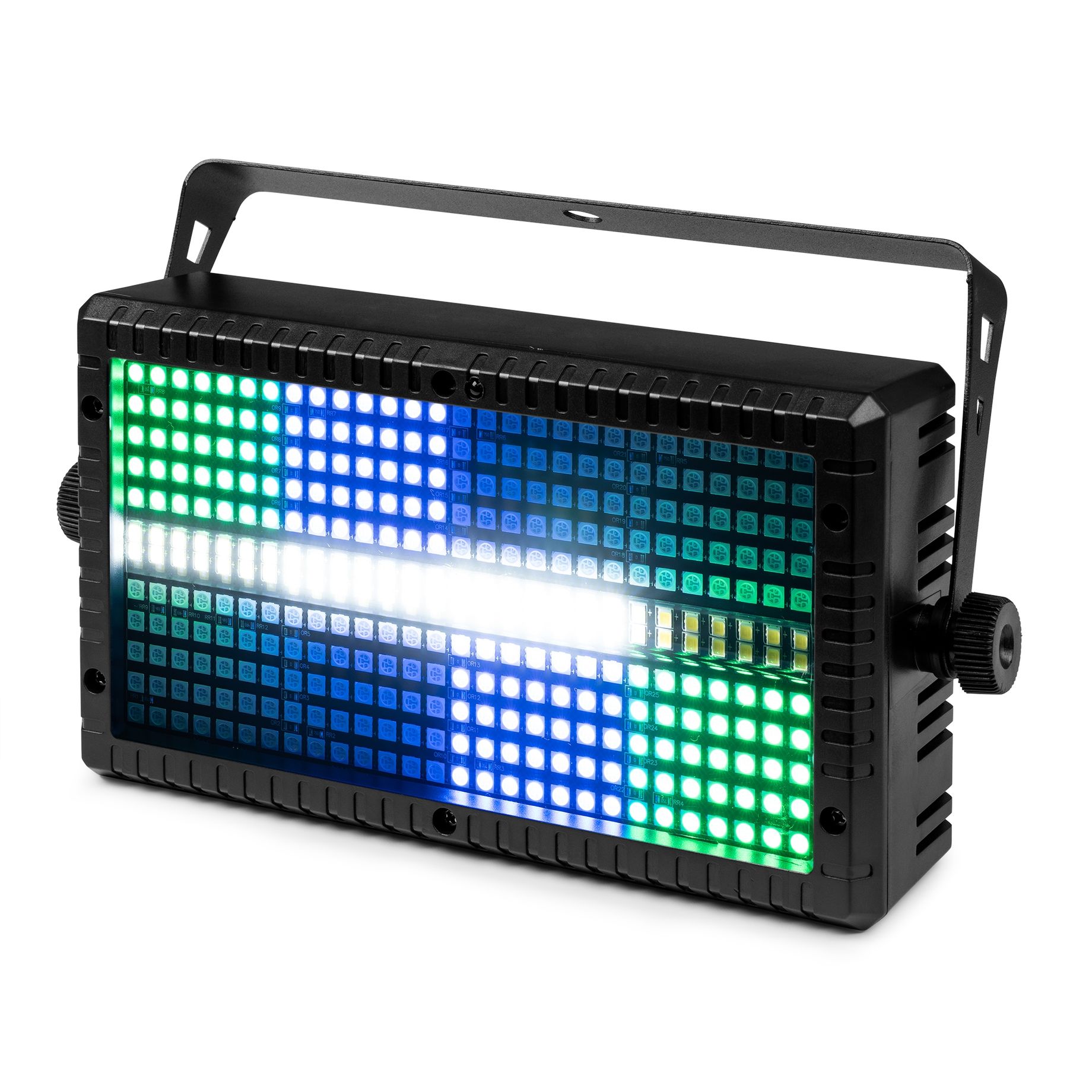

BS336

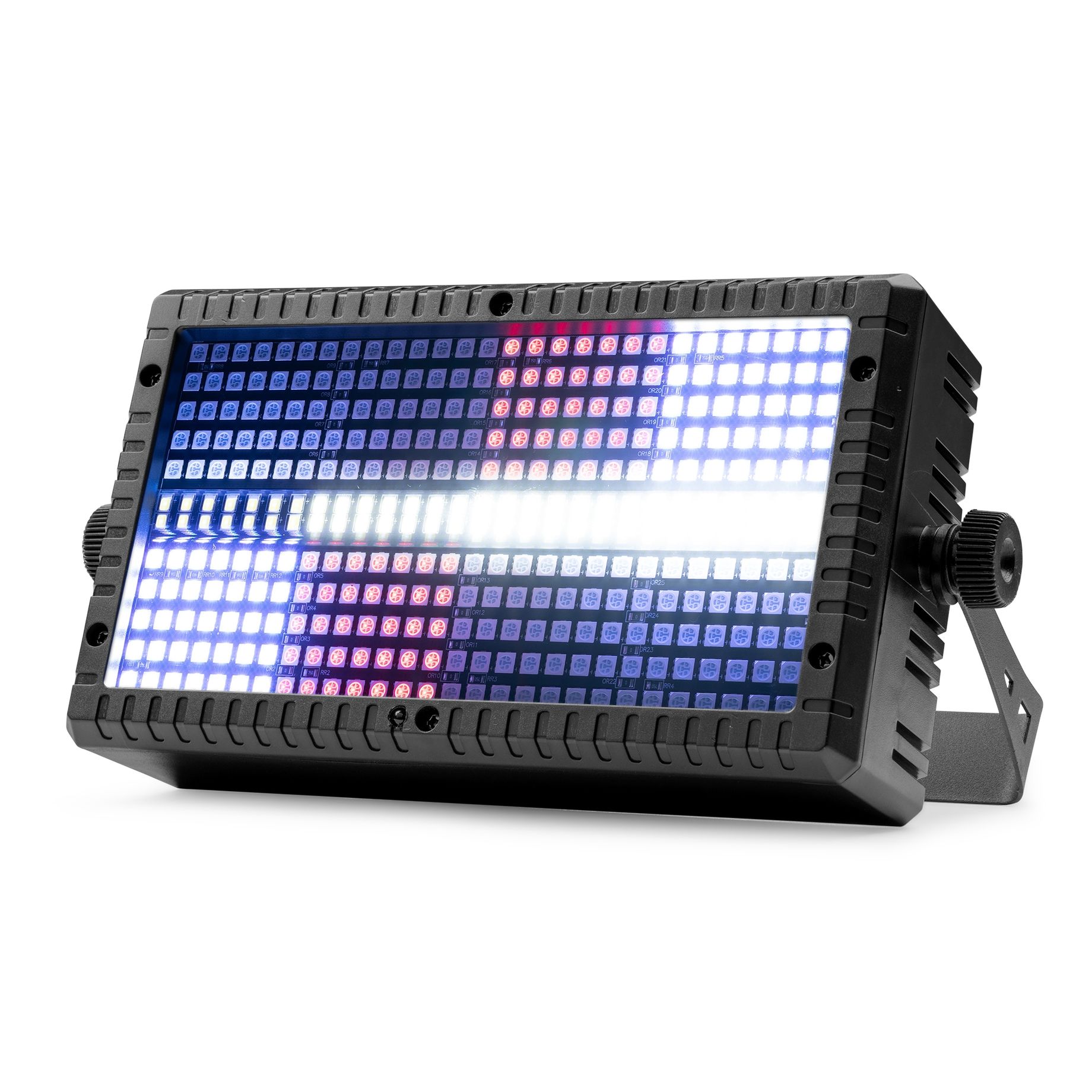

Stroboscope LED RGB+W Combi
SKU 153.289
|EAN 8715693353181
+5
All product information
Compare
BS series
Description
Highlights
- Stroboscope, Blinder and Wash fixture
- 280x RGB SMD LEDs
- 56x White SMD LEDs
- RGB + White colour mixing
- Controllable in 12 segments (8 RGB and 4 White LED zones)
- DMX512, stand alone and Master/slave Mode
- Sound activated with adjustable sensitivity
- Automatic programs and Pre-programmed shows
- Adjustable speed 1-15
- Fan cooled ABS housing
- Various dimmer curves adjustable
- IEC Power input
- Wireless remote control
Specifications
BrandbeamZ
Product serieBS series
ColourBlack
Light source
Light source: Wash
- 280x RGB SMD LEDs
Light source: Strobe
- 56x Cool white
Illuminance 2.126 lx @ 0.5m
Optics
Beam angle
- 60°
Features
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave
DMX Channels4, 6, 12, 24, 30
DMX connector3-pin XLR

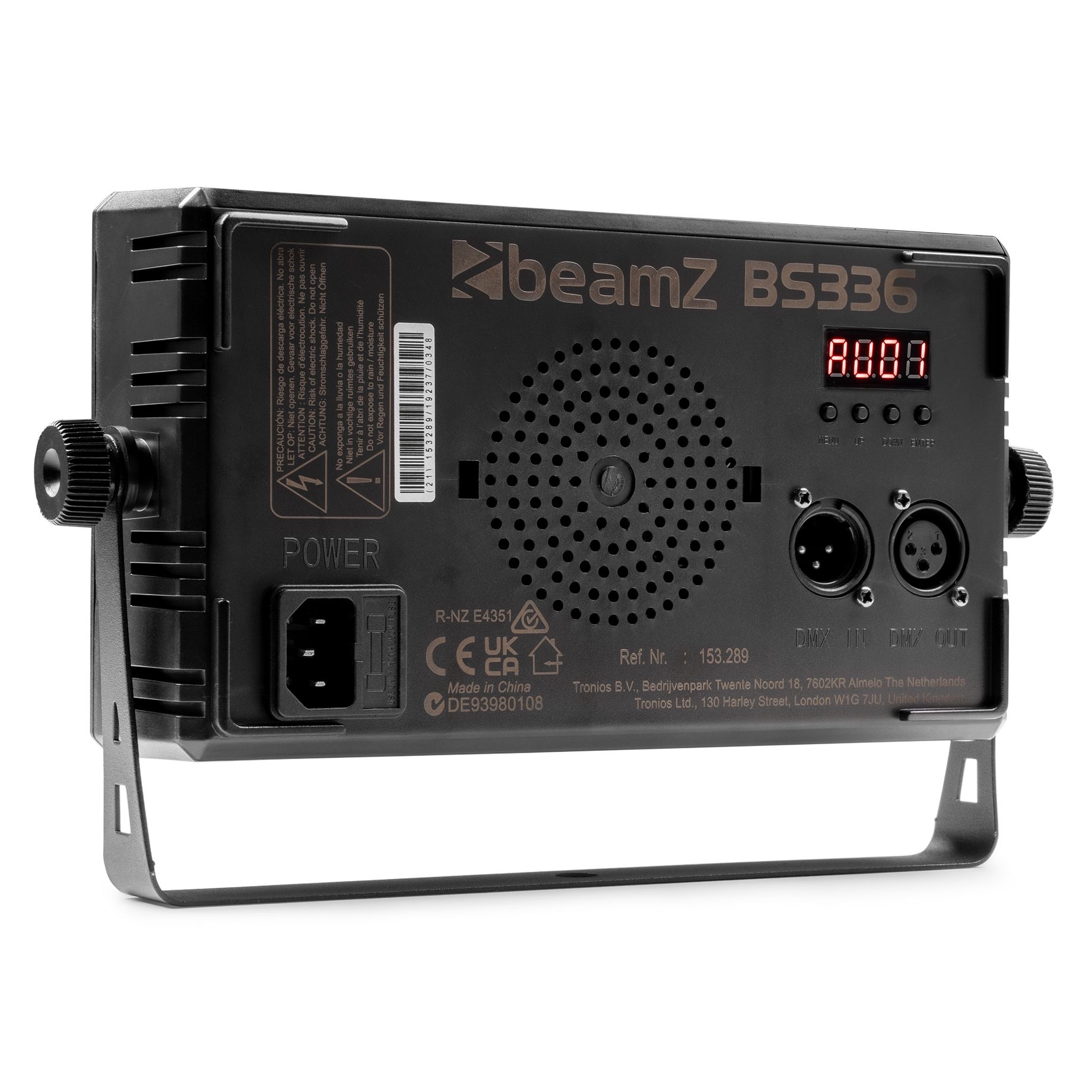

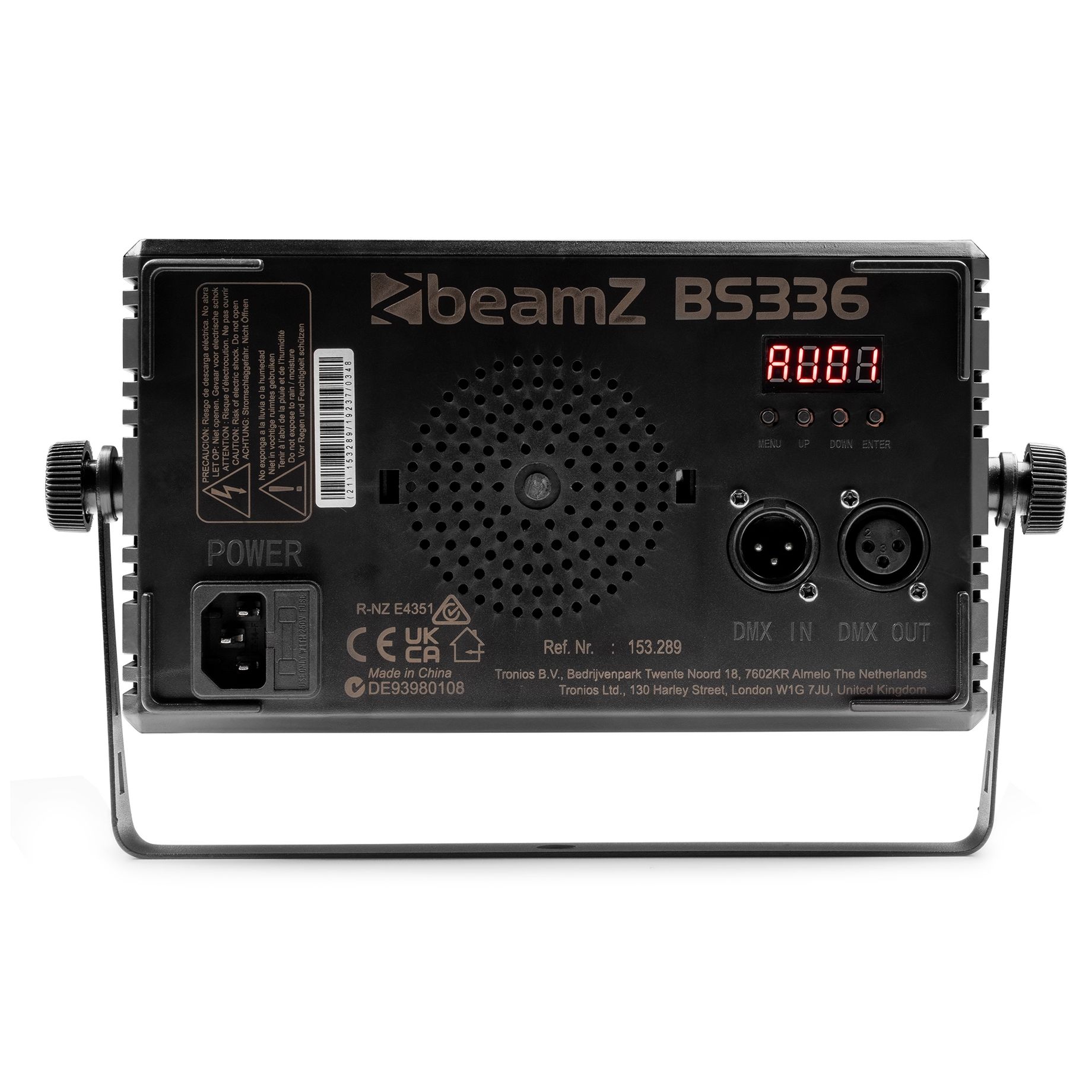

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 265 x 160 x 65 mm (W x D x H)
Weight
- 0.95 kg

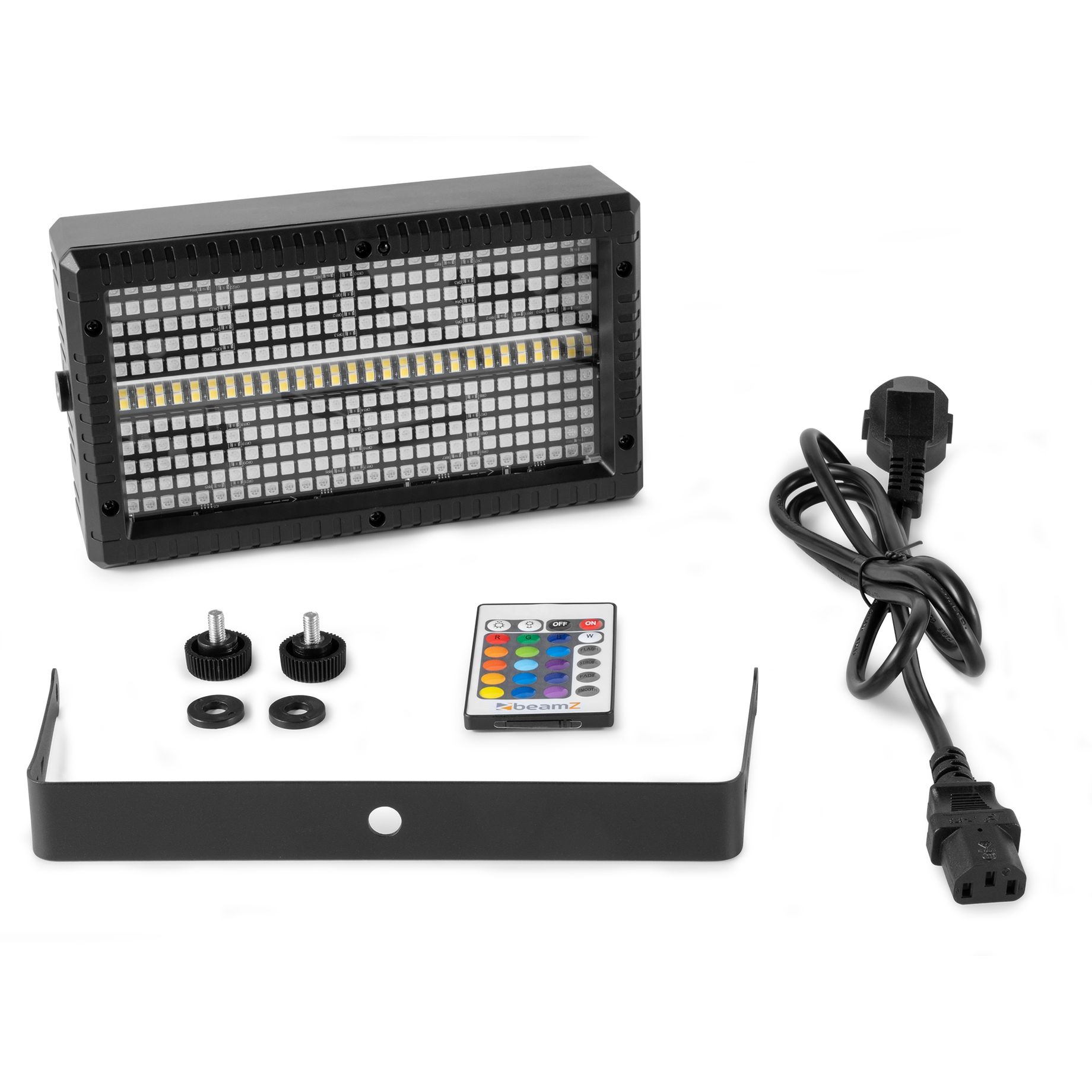

Accessories
Included Accessories
- Mounting bracket

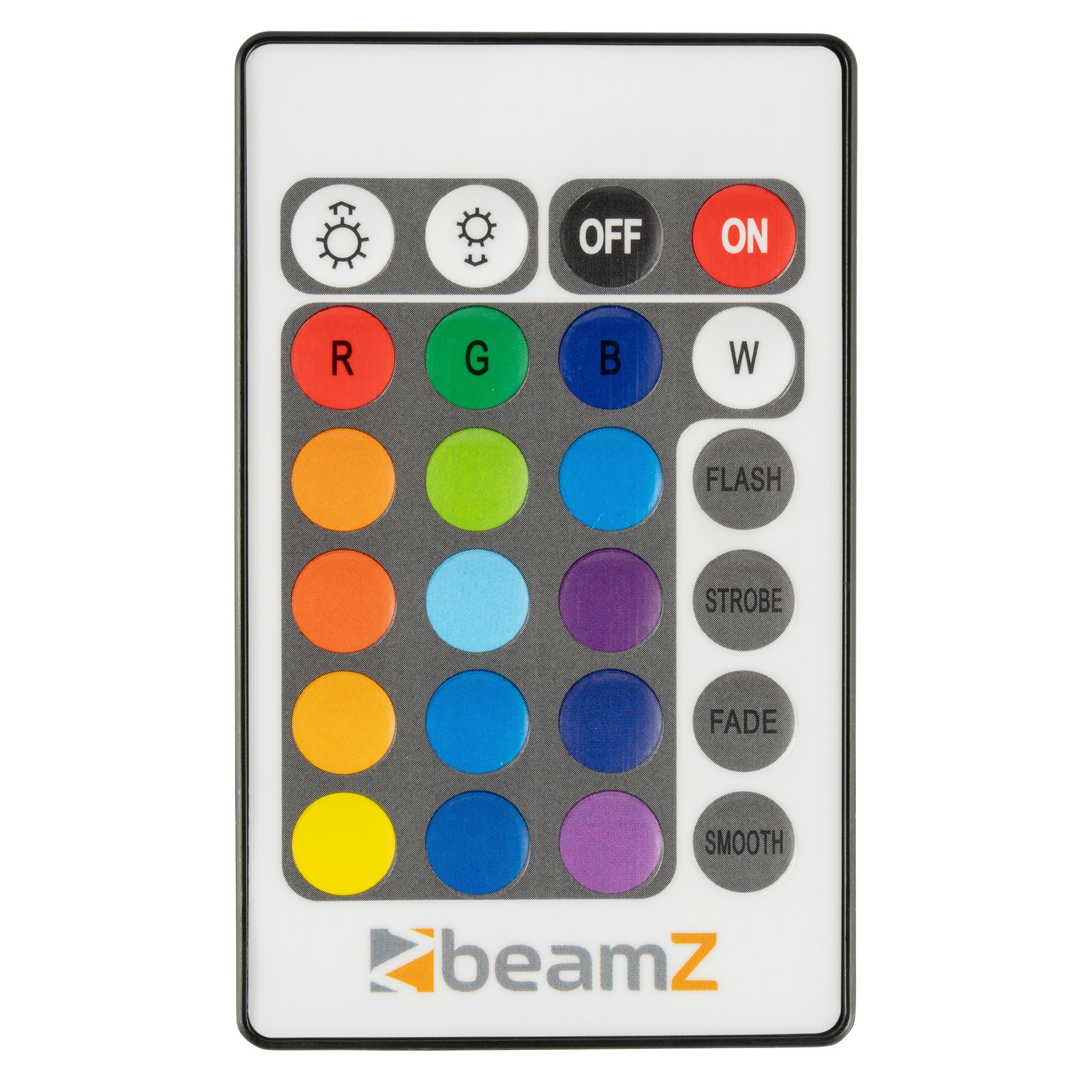

- Remote control (wireless)
Manuals & Documents
Manual
PDF
