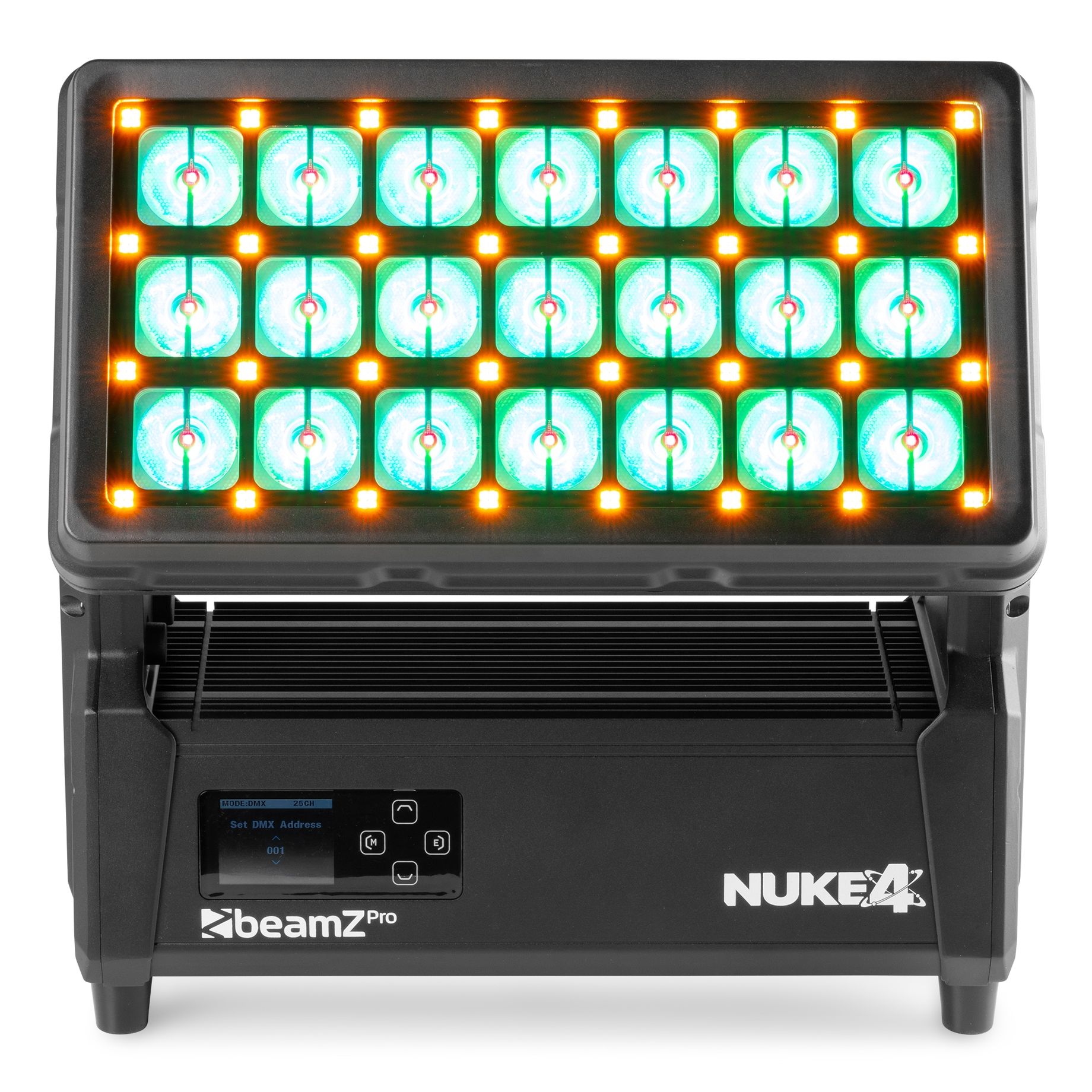

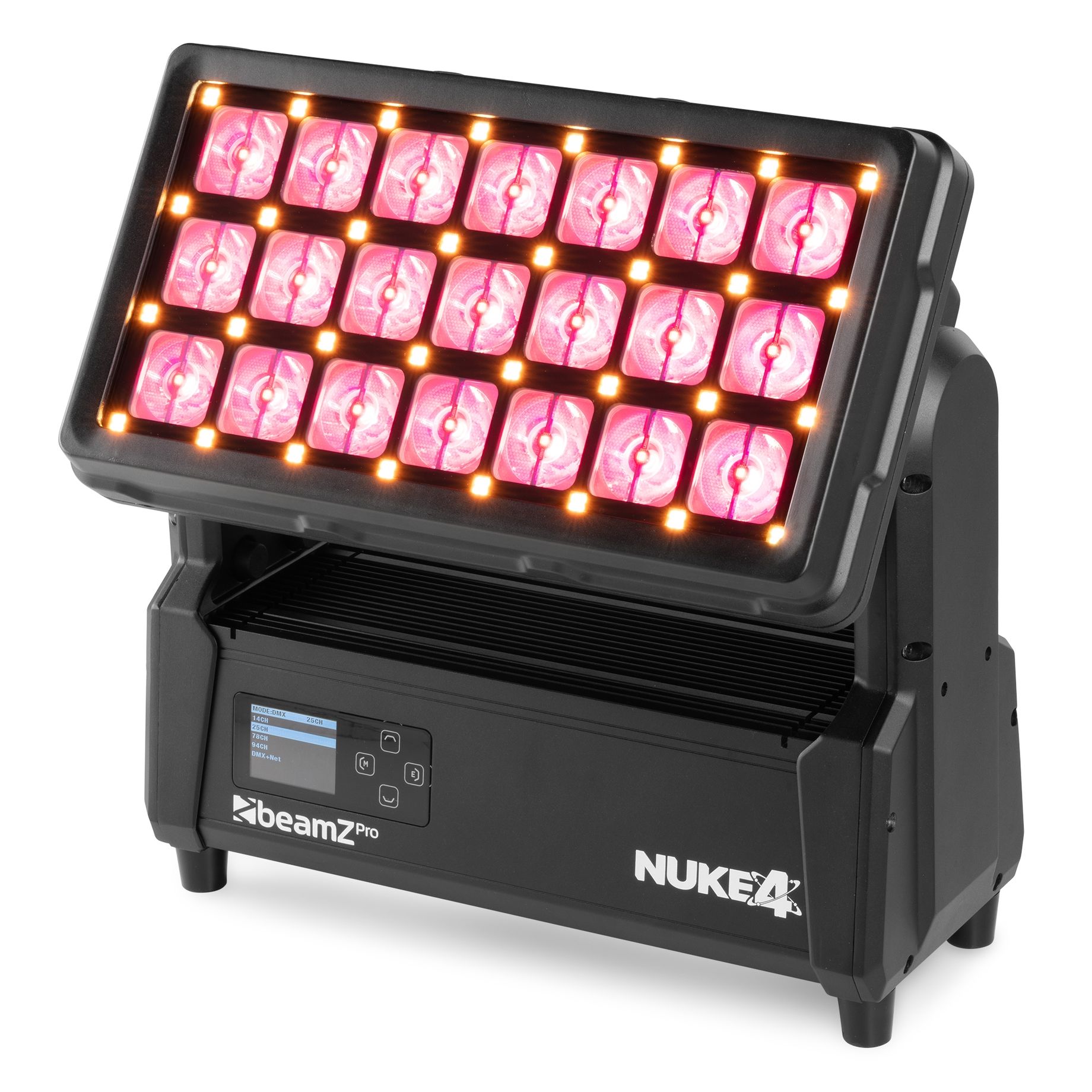

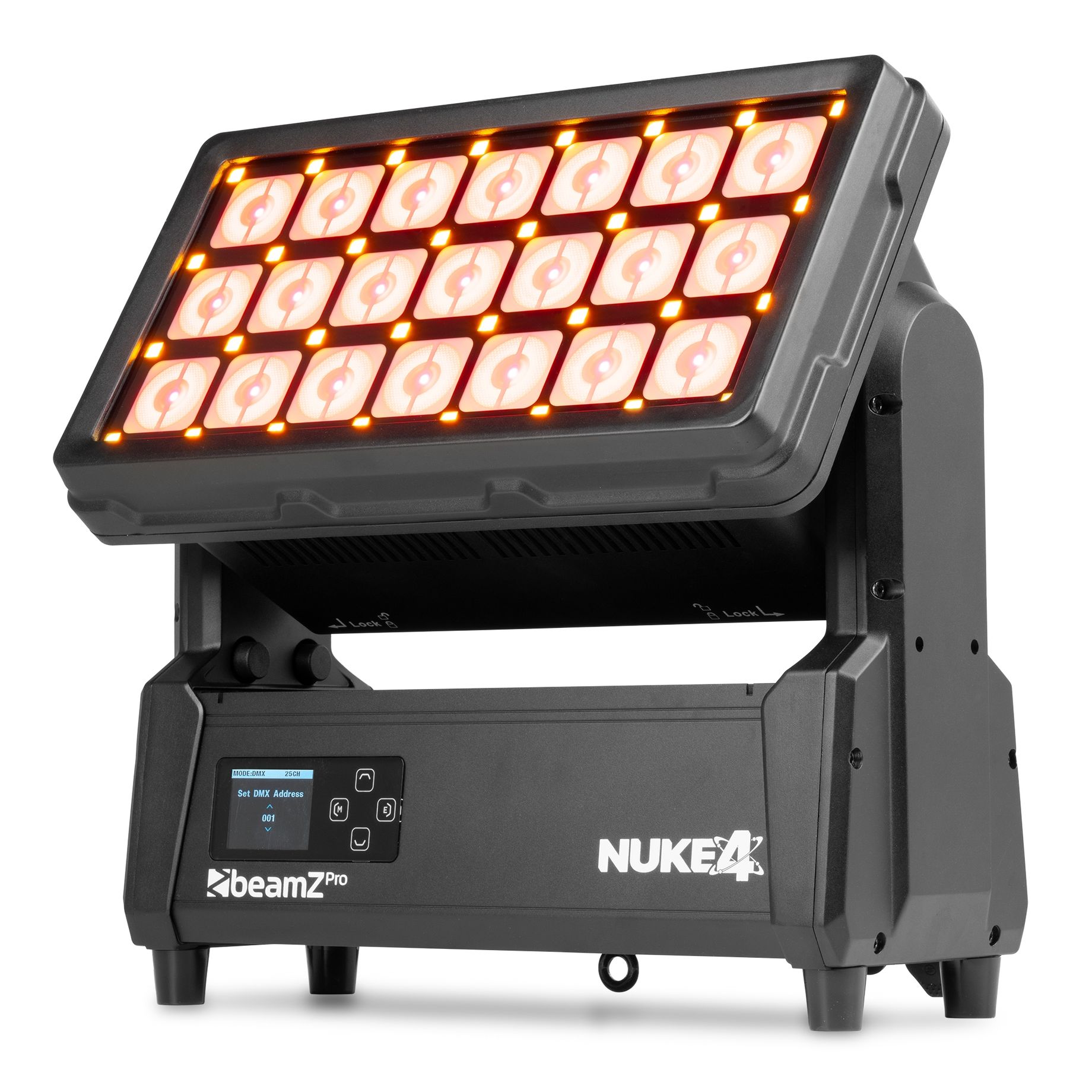

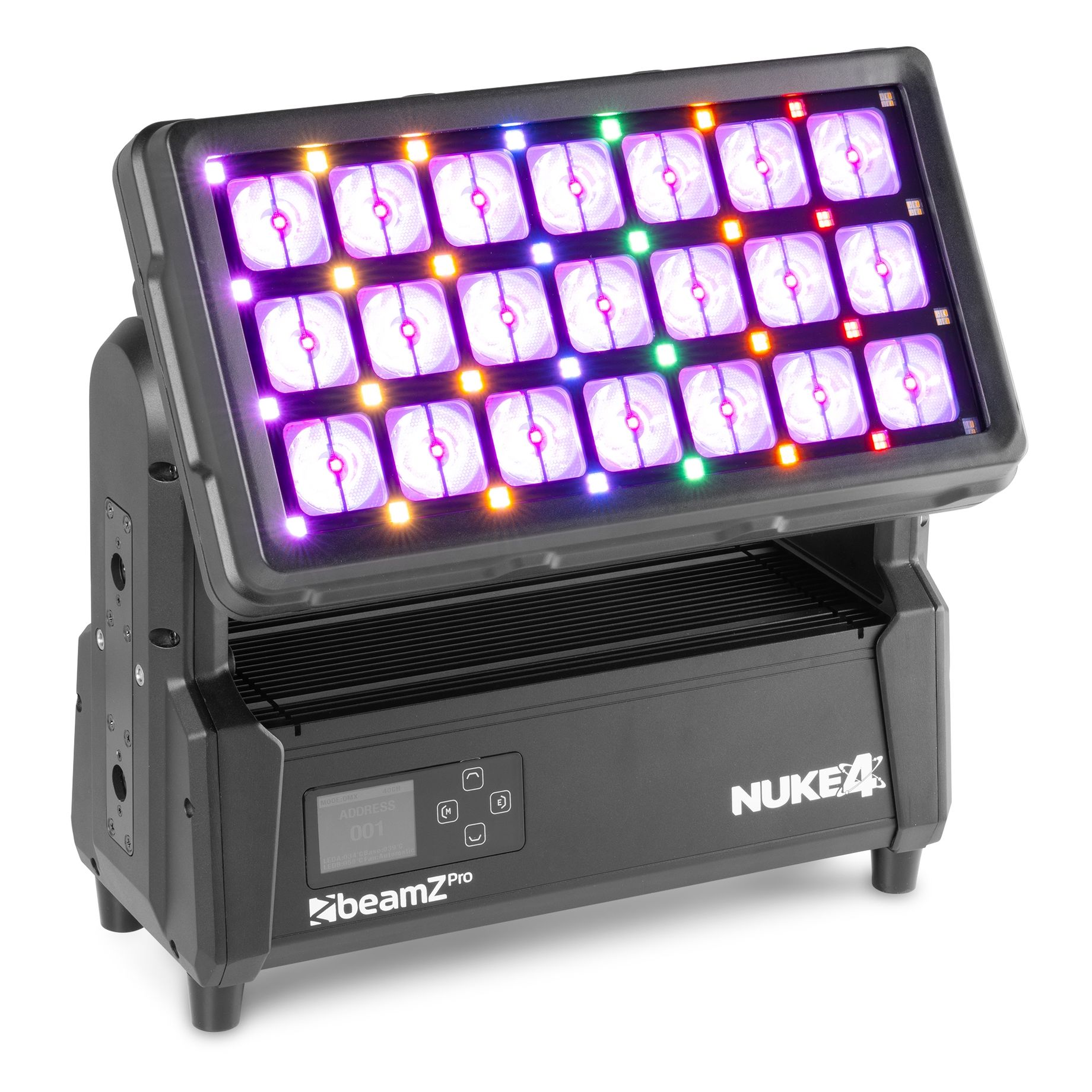

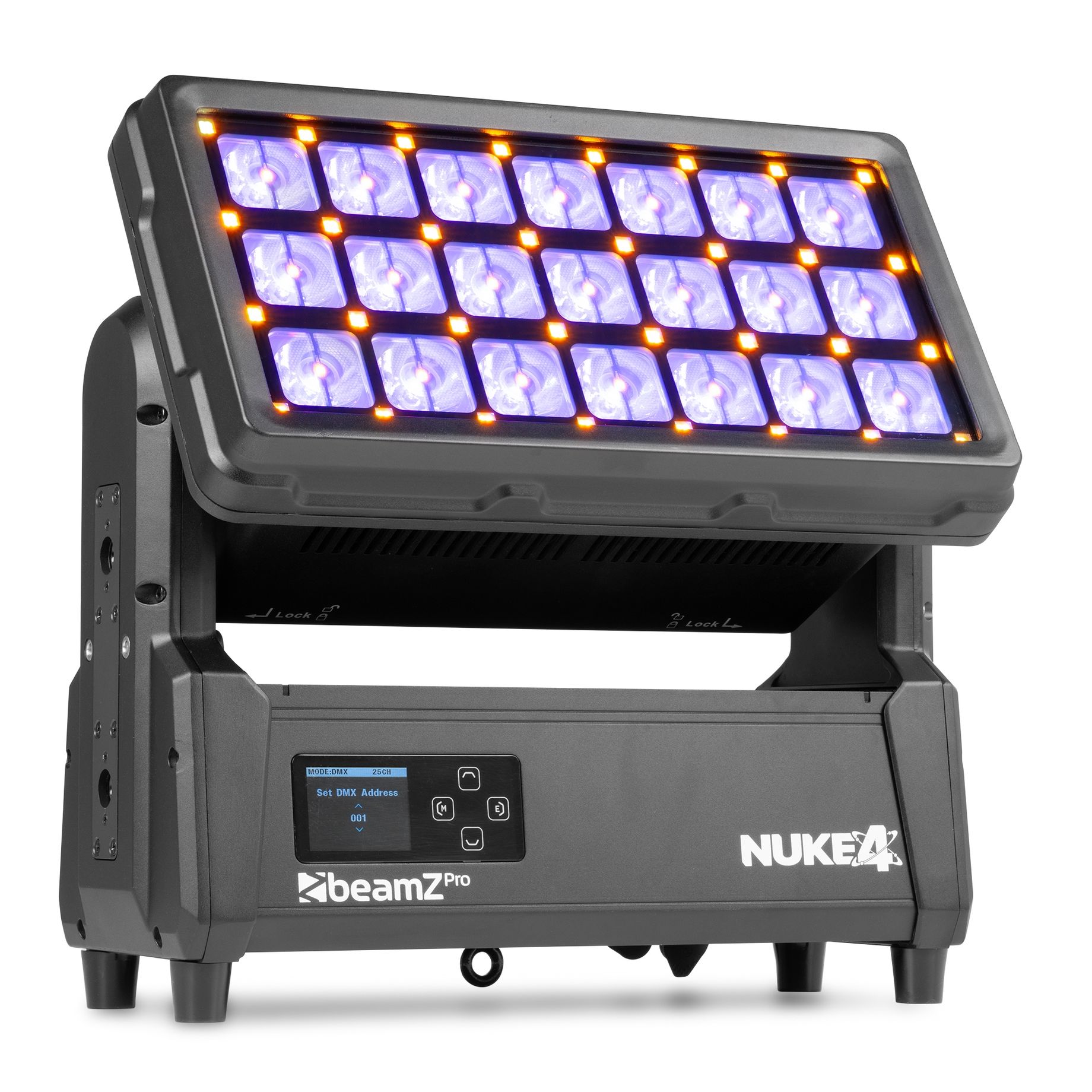

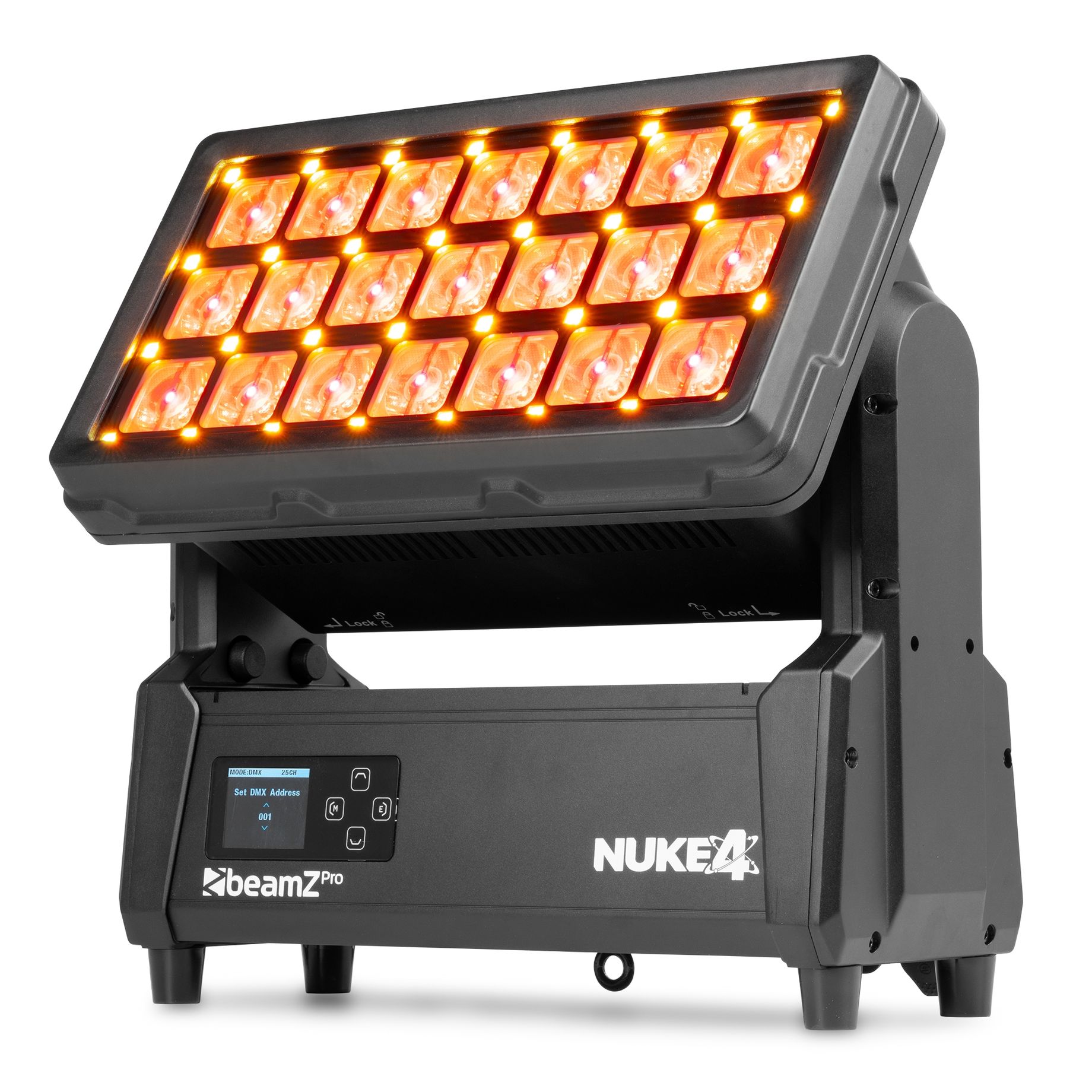

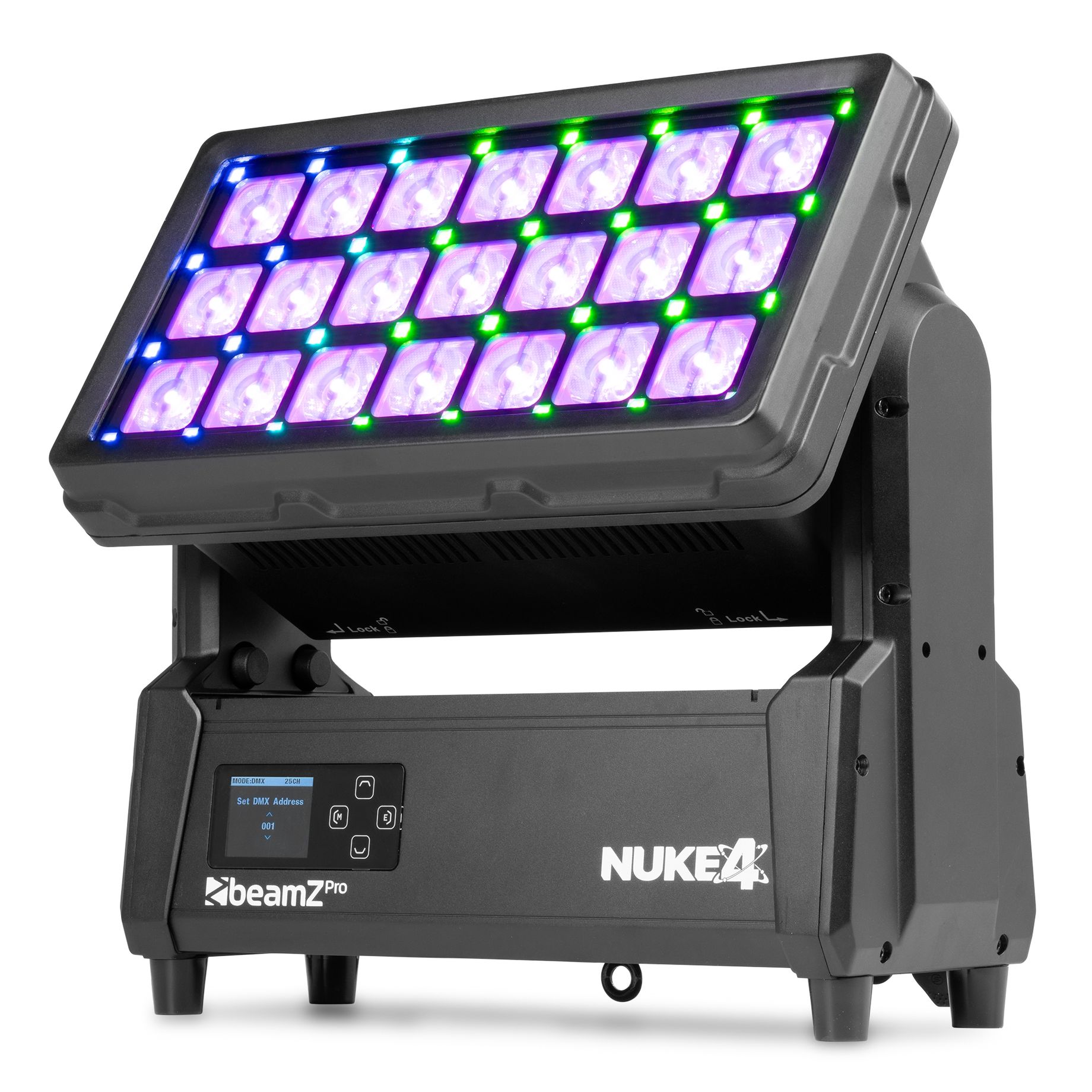

NUKE4
Motorized Beam Outdoor
SKU 153.341
|EAN 8715693365092
+15
All product information
Compare
NUKE series
Description
Highlights
- Hybrid strobe and beam fixture with motorized tilt
- 180° Motorized tilt range

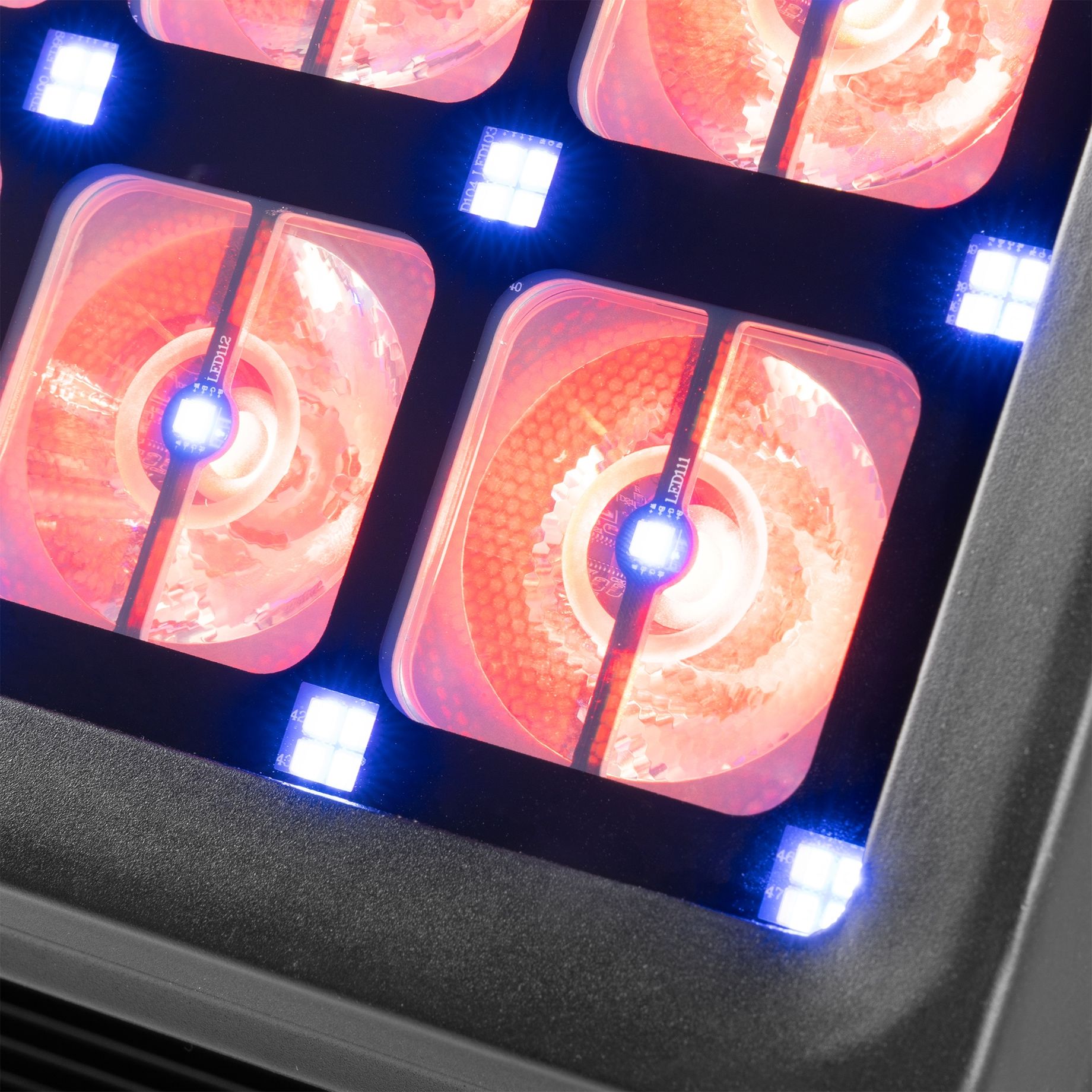

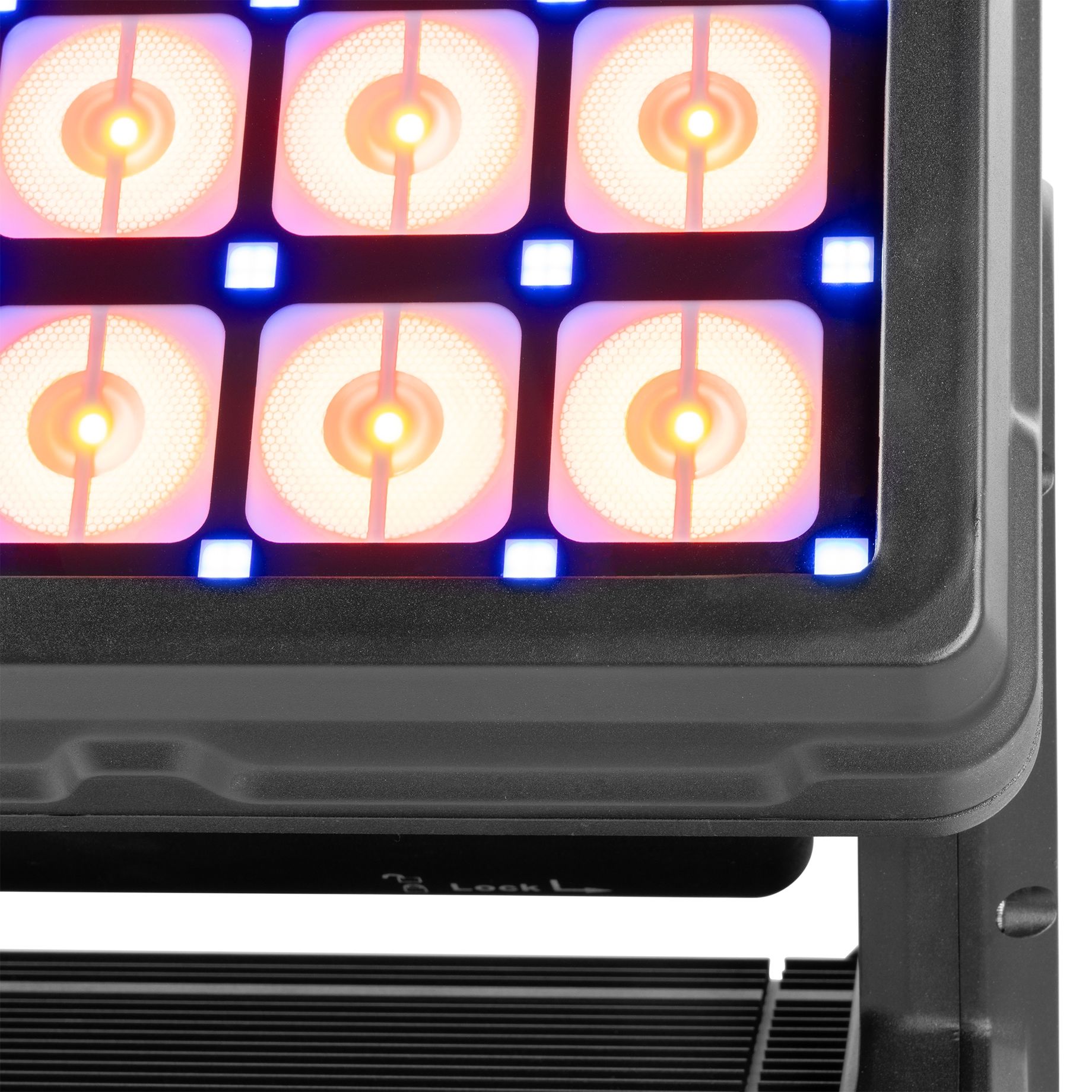

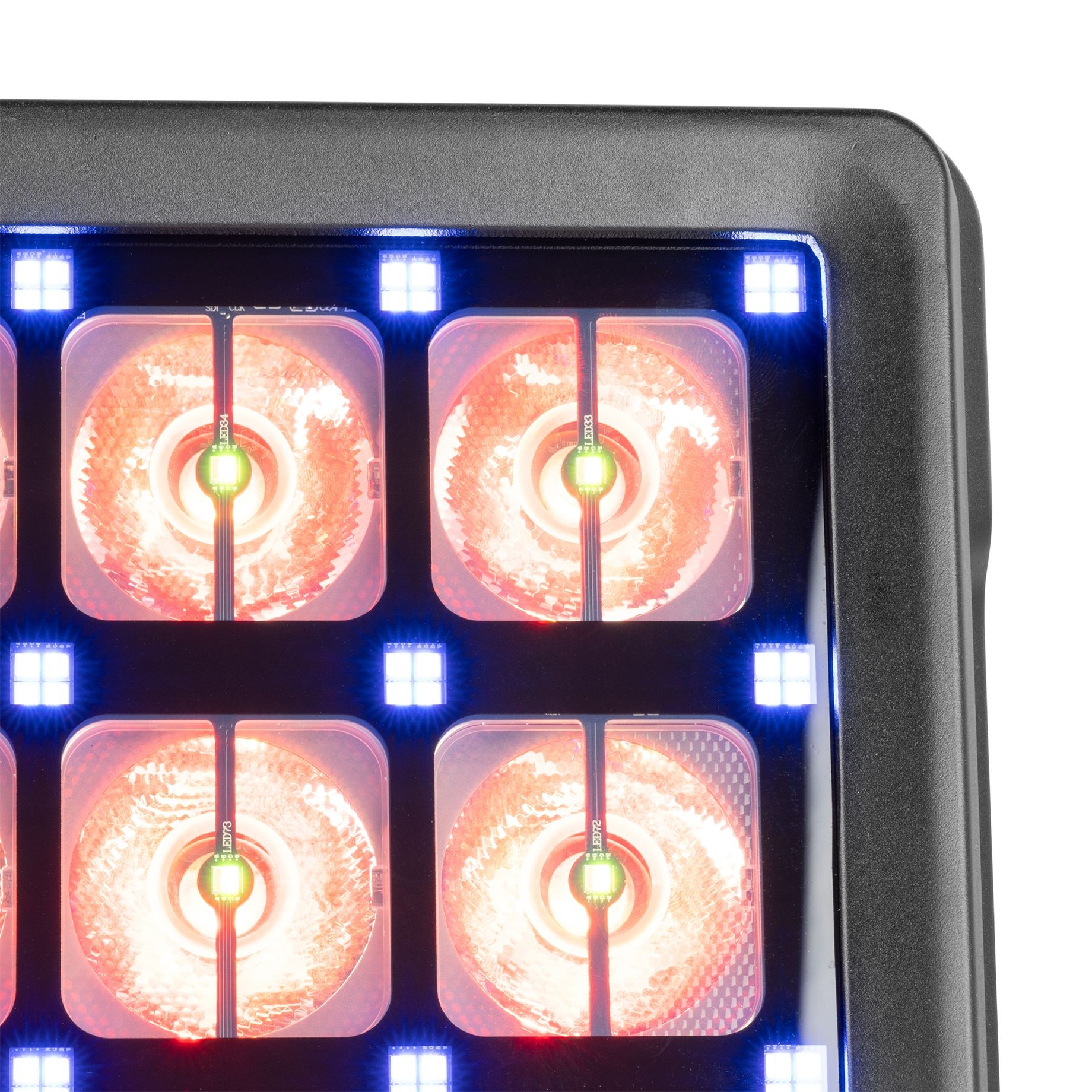

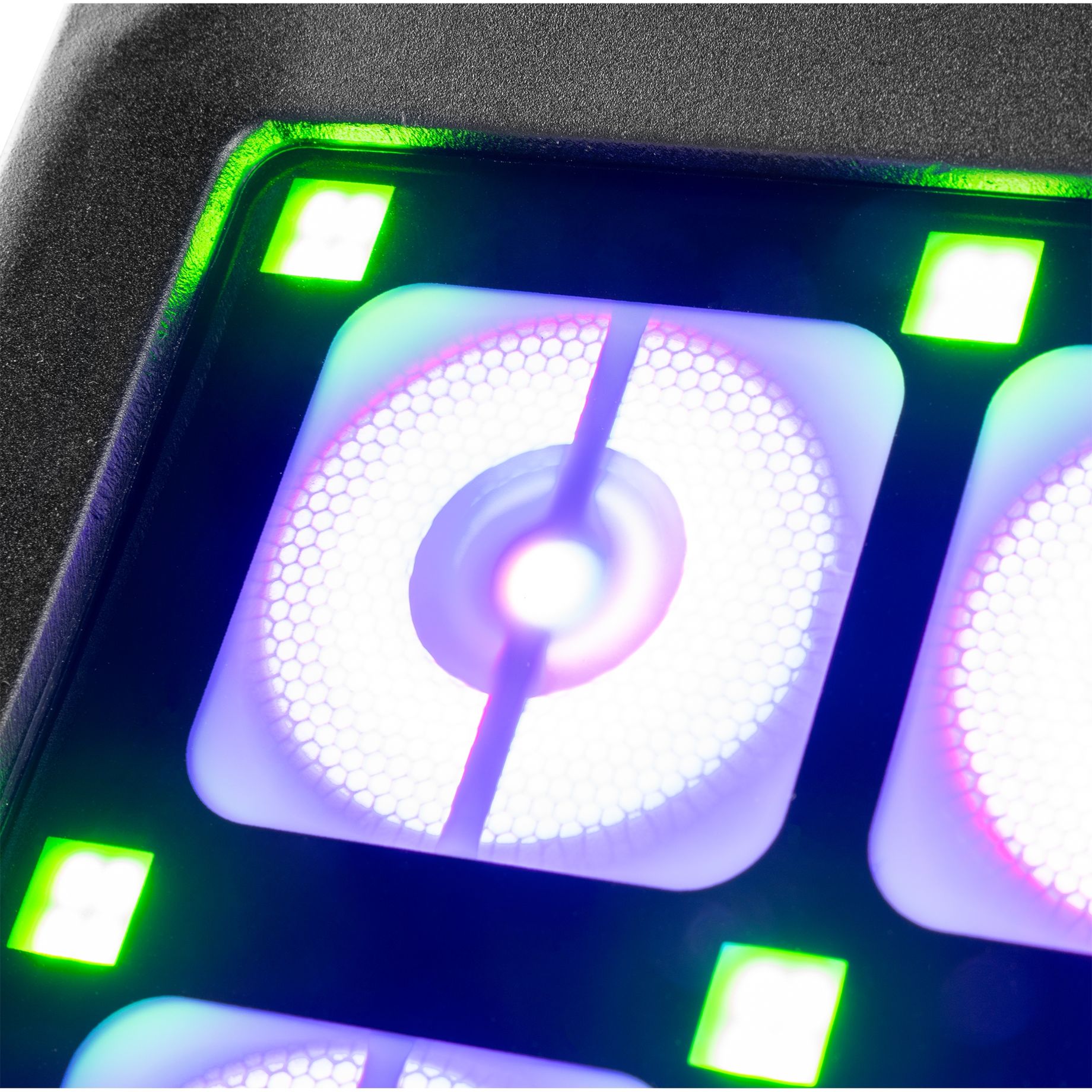

- Top plate: 21x 1W RGBA and 32 x 3 W RGBA LEDs (Dot)
- Bottom plate: 21x 40W RGBW LEDs (Beam)
- Electronic Frost Filter
- Pixel-controllable LEDs
- DMX512, stand-alone and master/slave Mode
- Various DMX channel modes
- DMX (RDM) and ArtNet control capability
- Automatic programs and built-in shows
- Adjustable effect speed

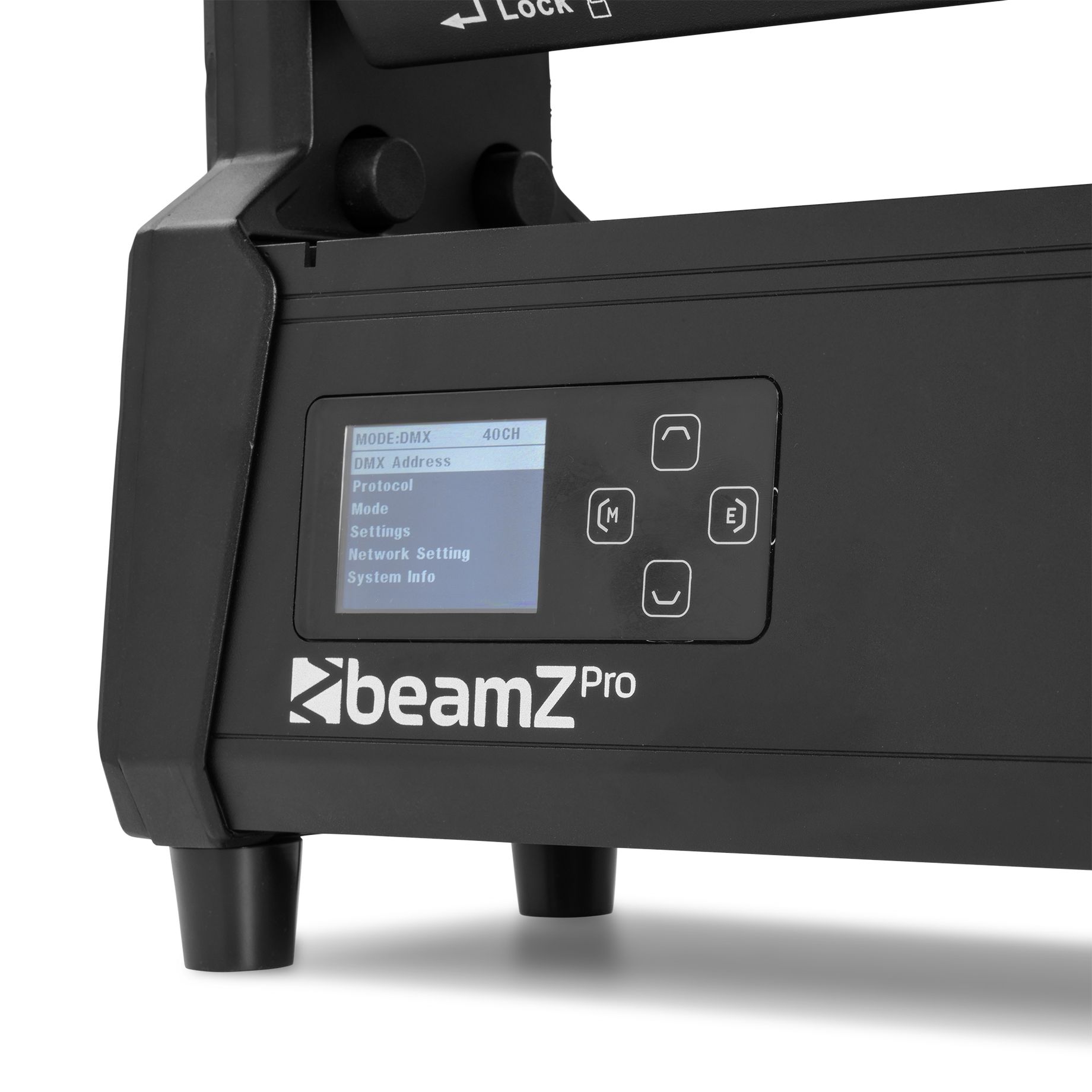

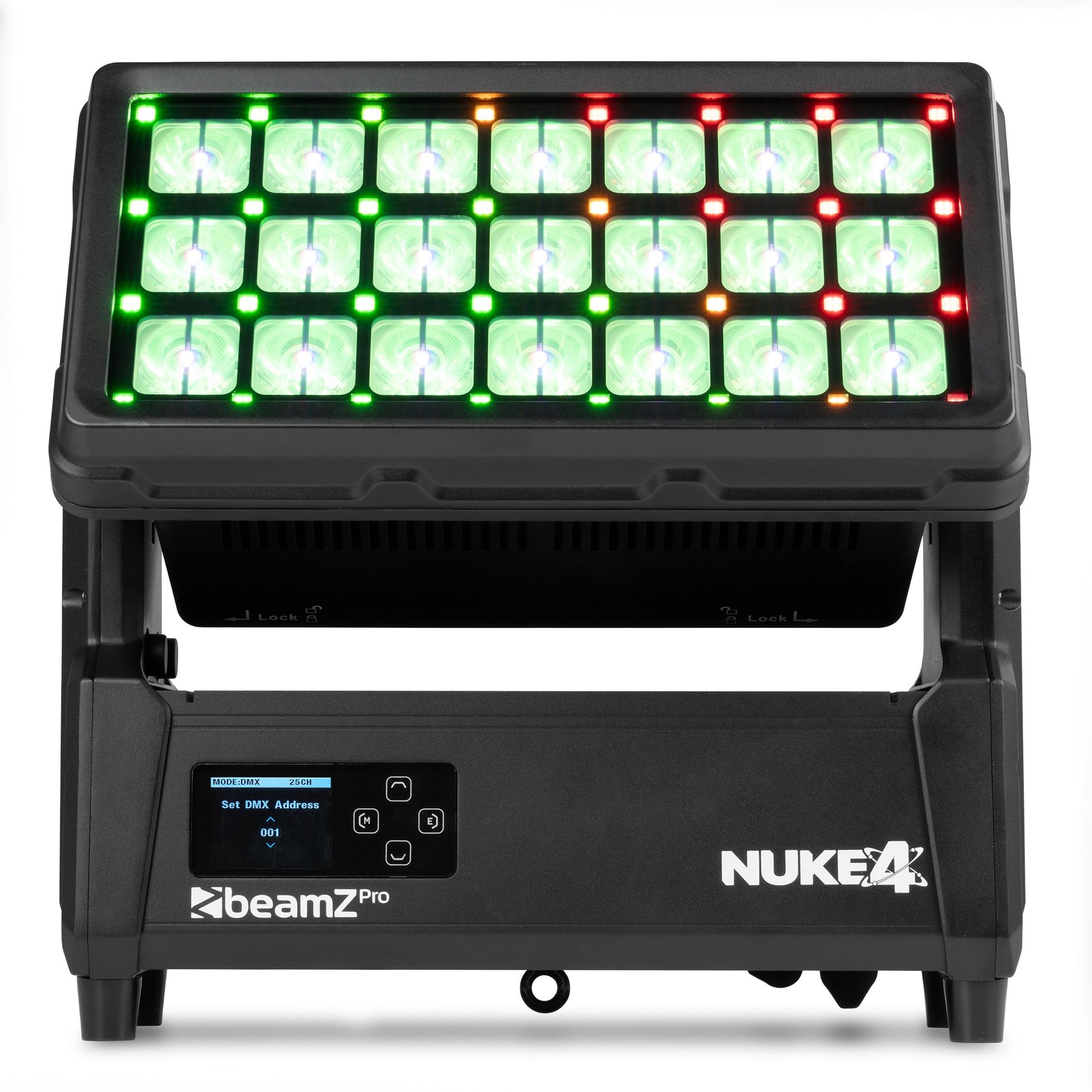

- LCD control panel with key lock
- IP65 weatherproof housing
- Selectable dimmer curves
- P-Con TR1 in/output

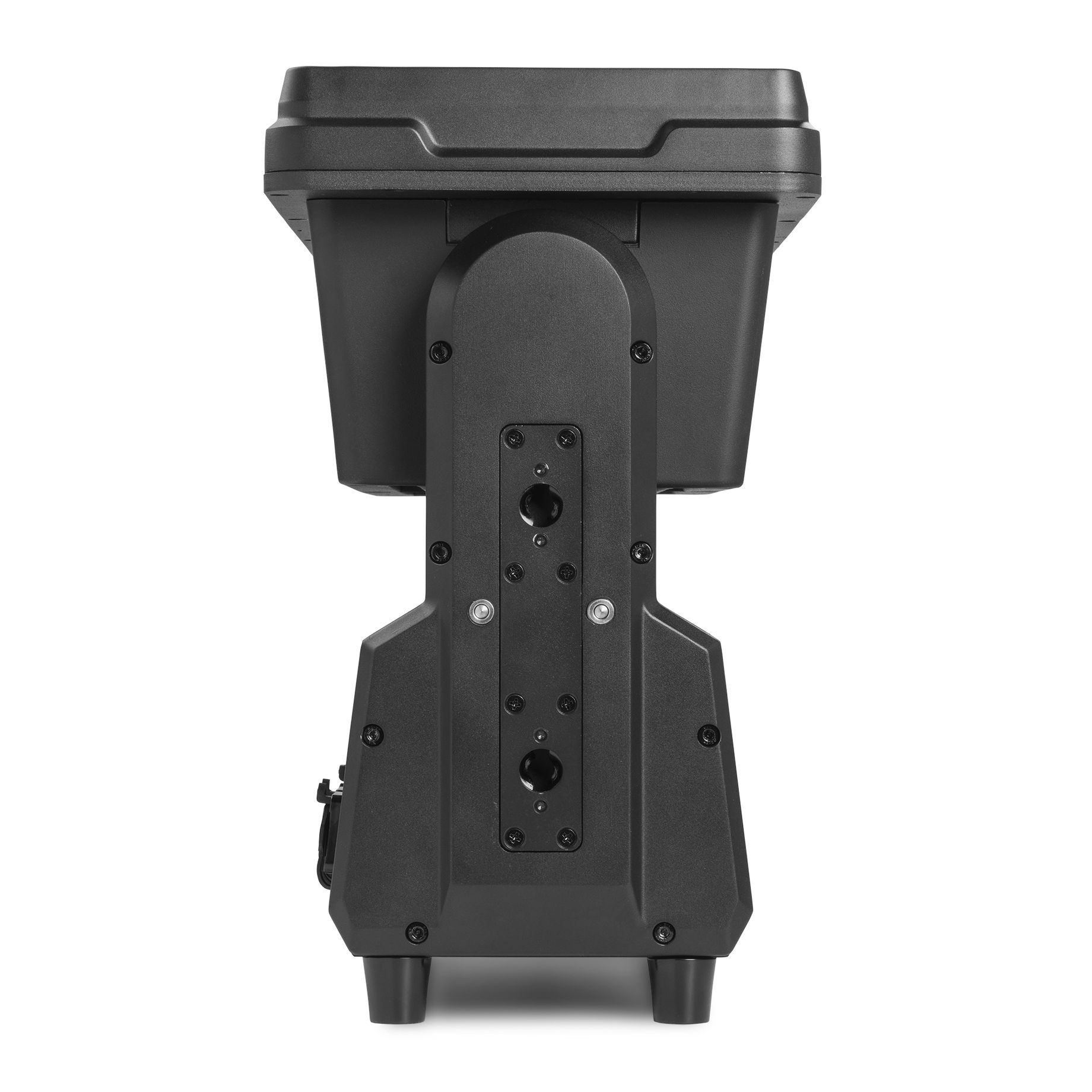

- Omega bracket included
Specifications
BrandbeamZ Professional
Product serieNUKE series
ColourBlack
Moving head typeBeam
Light source
Light source: Top plate
- 21x 1W RGBA LED
Light source: Top plate
- 32x 3W RGBA LED
Light source: Bottom plate
- 21x 40W RGBW LED
Illuminance137393 lx @ 1m
Optics
Beam angle: Bottom plate
- 65°
Beam angle: Top plate
- 17°
ZoomNo
Movement
Tilt Movement180° (16-bit)
Features
Frost FilterNo
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Manual, ART-Net, sACN
DMX Channels40, 334, 482
RDMYes
DMX connector3-pin XLR, 5-pin XLR, RJ45

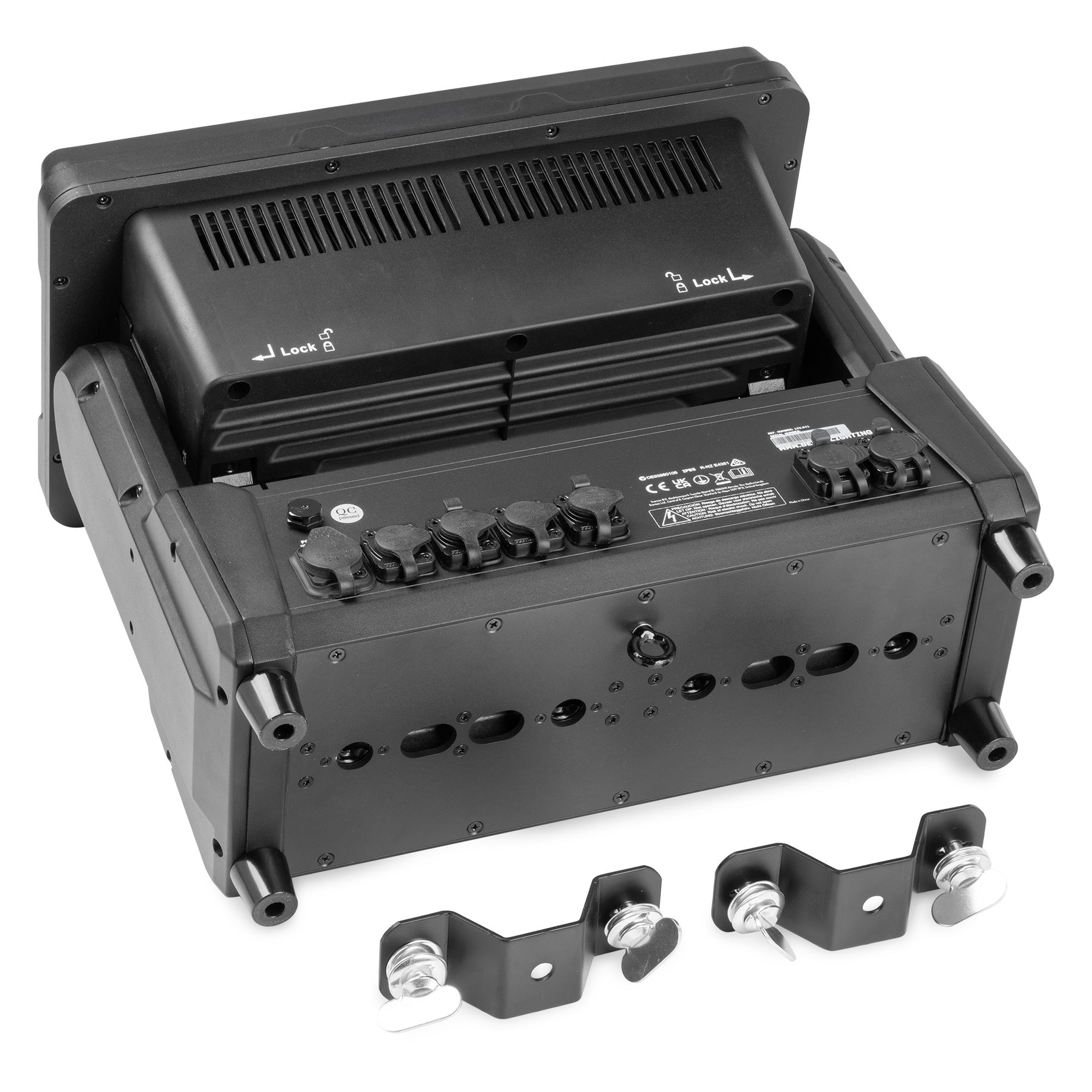

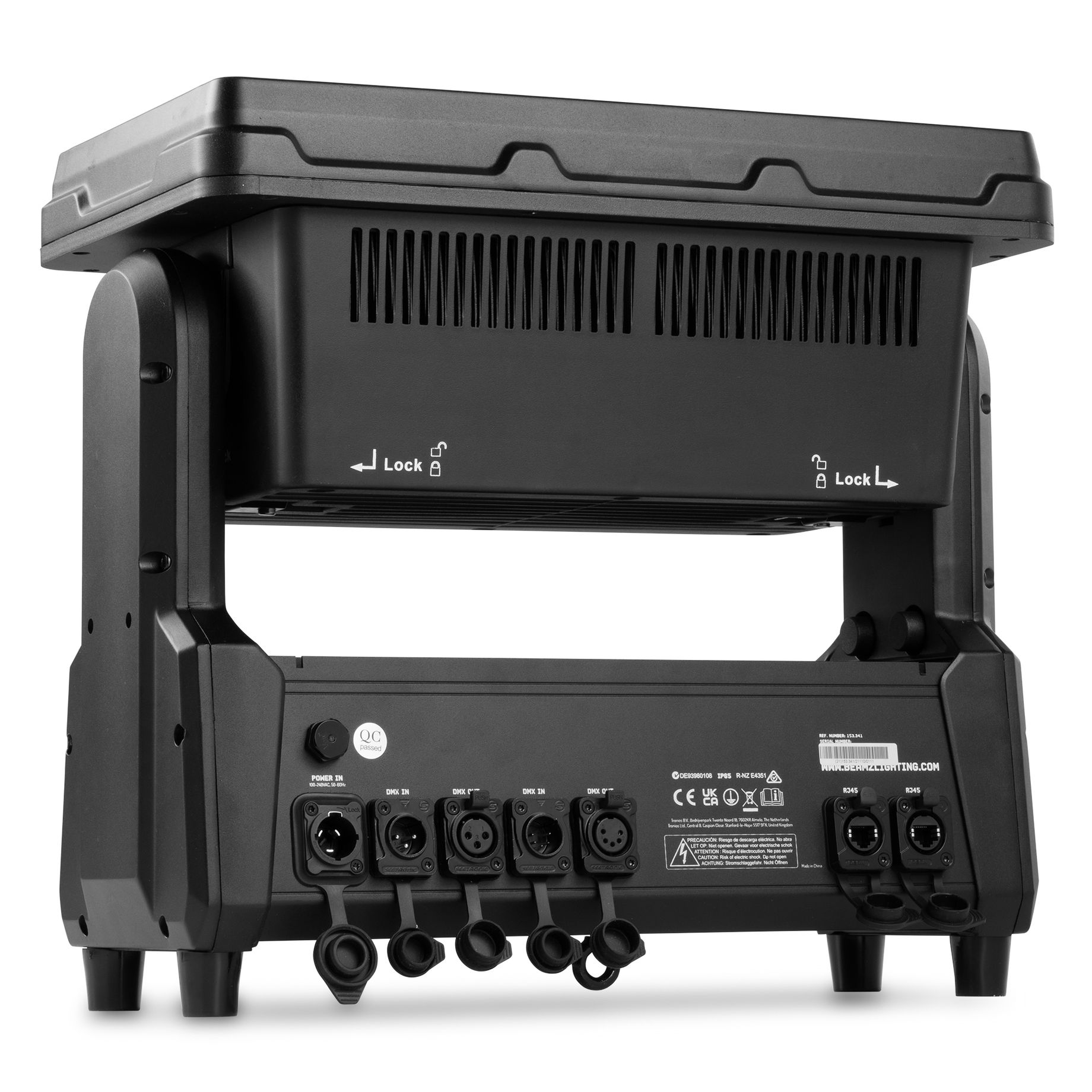

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
- 1x Data - RJ45 (IP65)
Output connections
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
- 1x Data - RJ45 (IP65)
Hardware features
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 425 x 230 x 390 mm (W x D x H)
Weight
- 20.65 kg

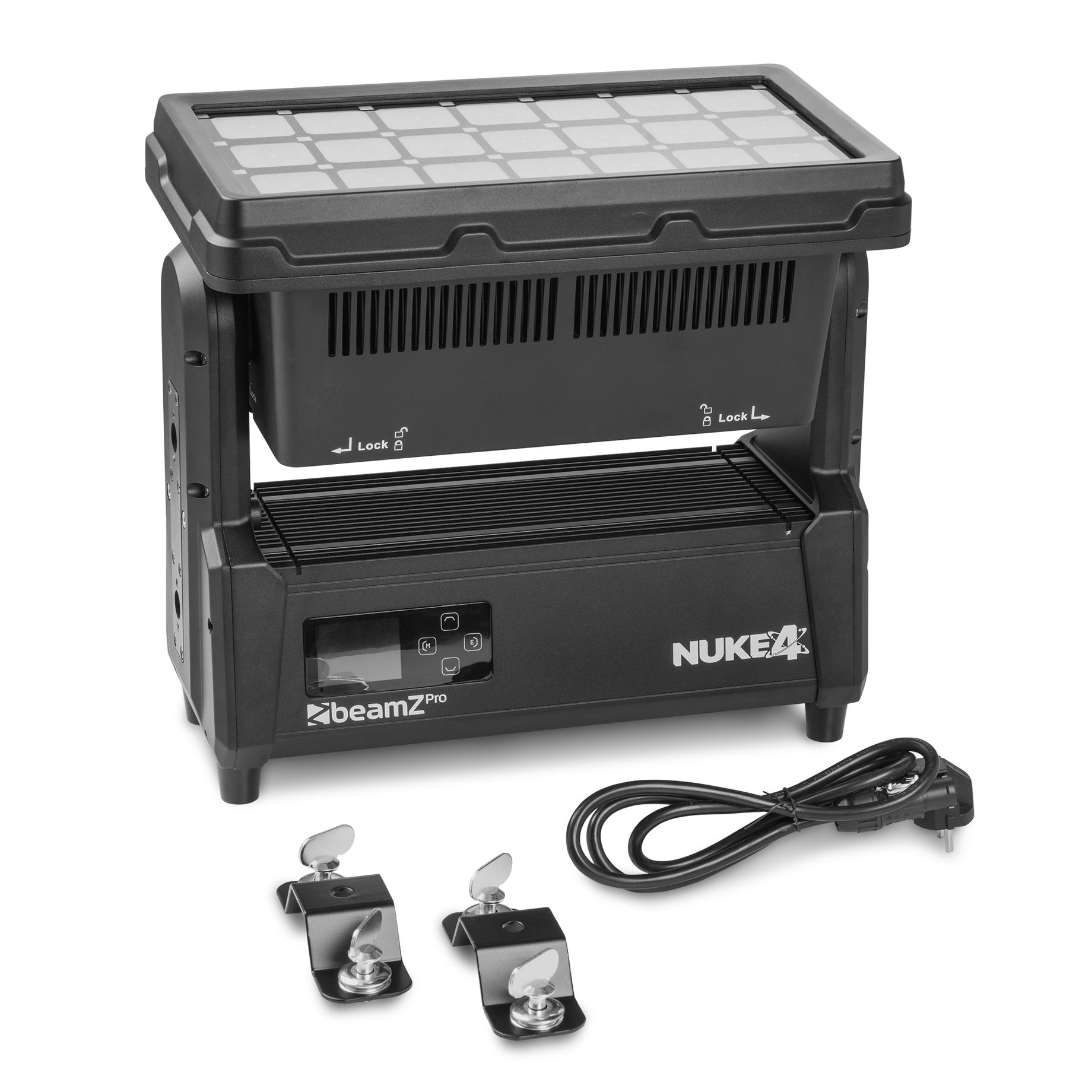

Accessories
Included Accessories

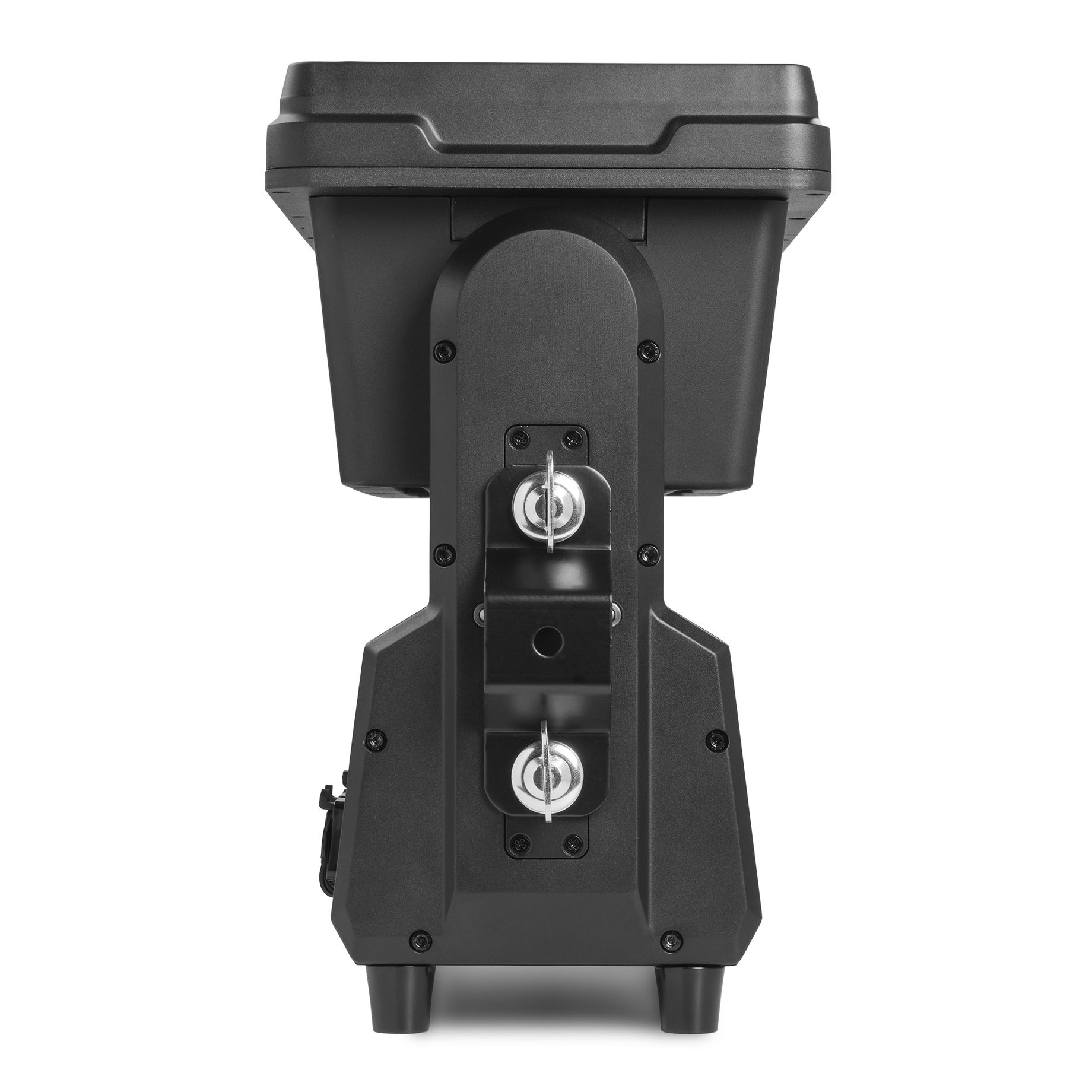

- Mounting bracket
