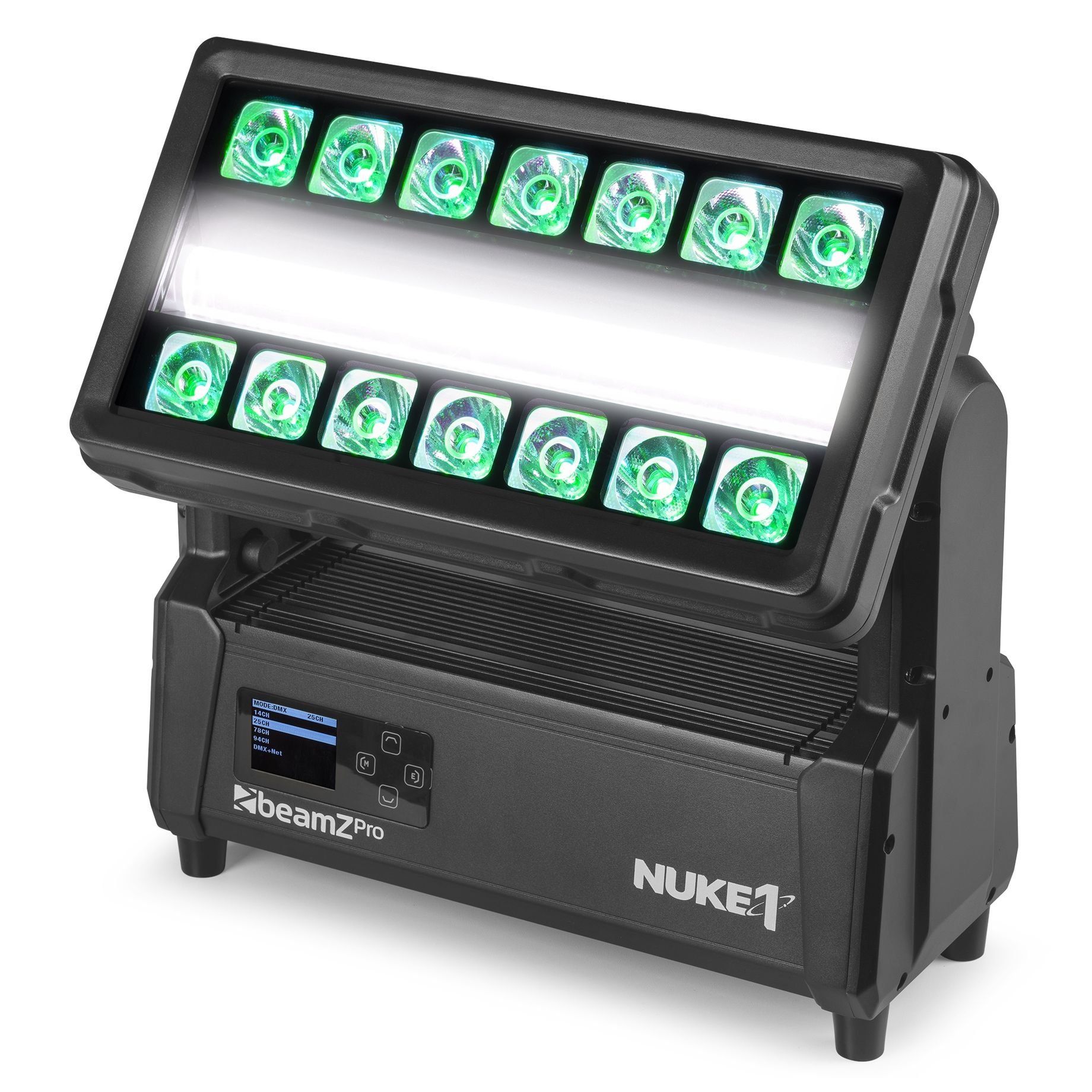

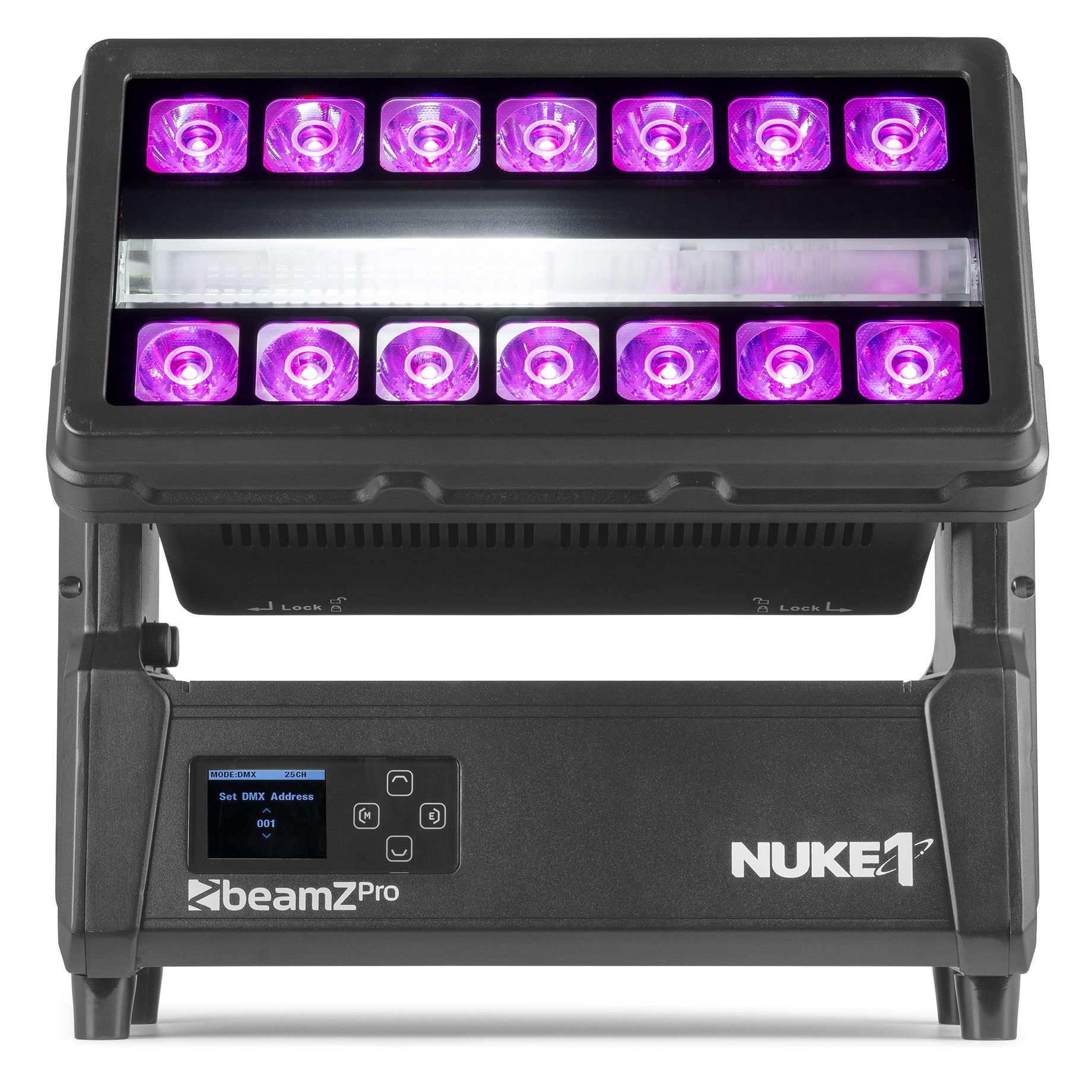

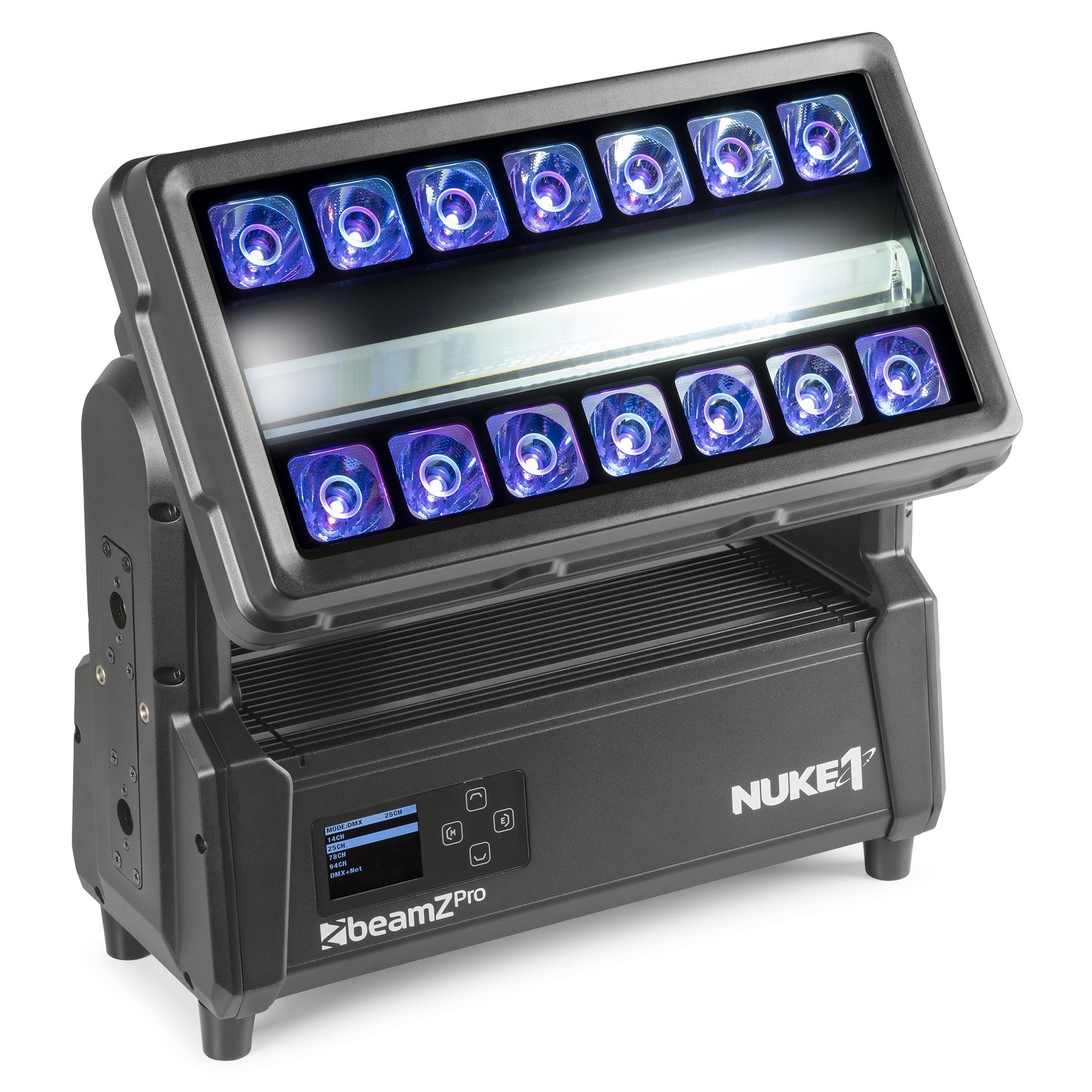

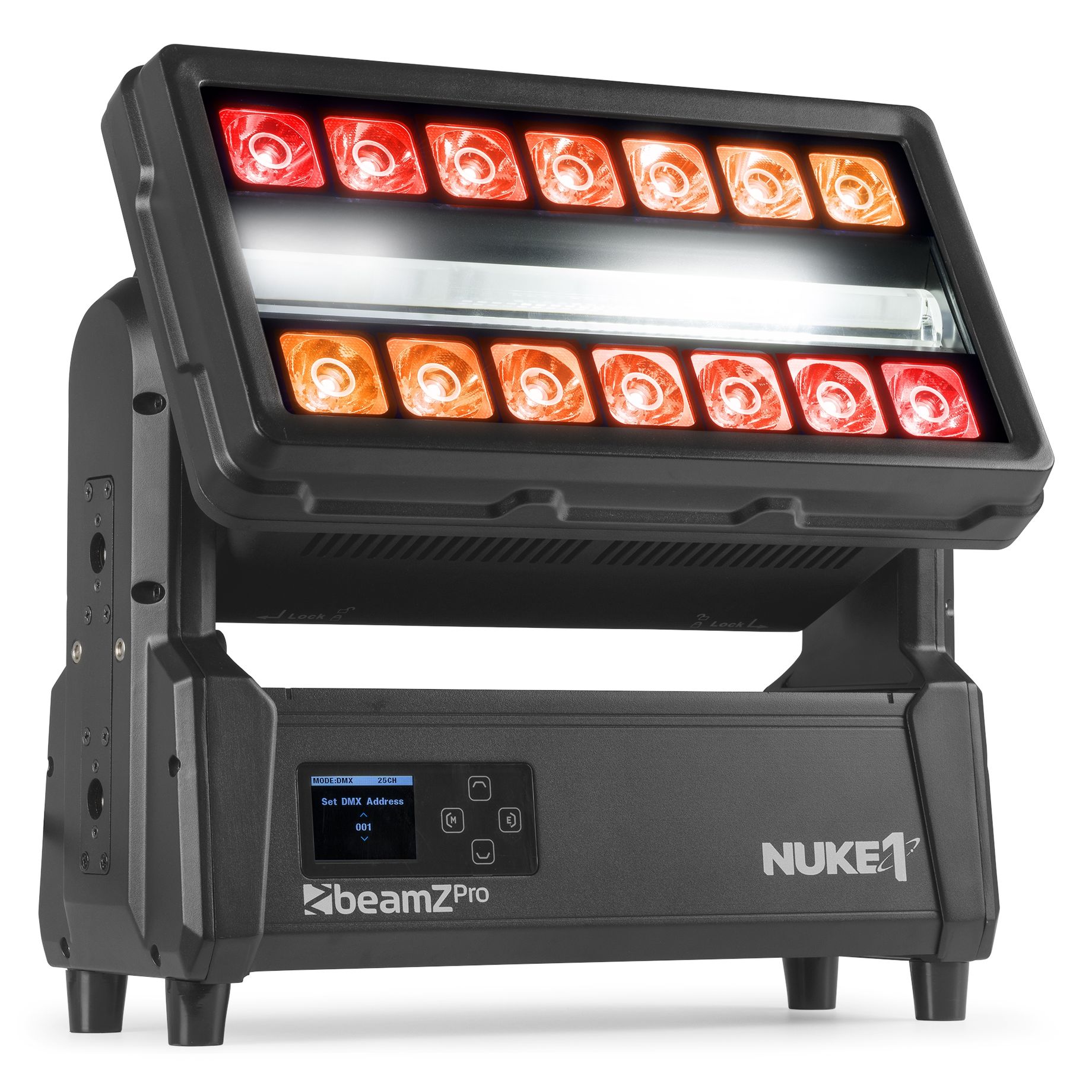

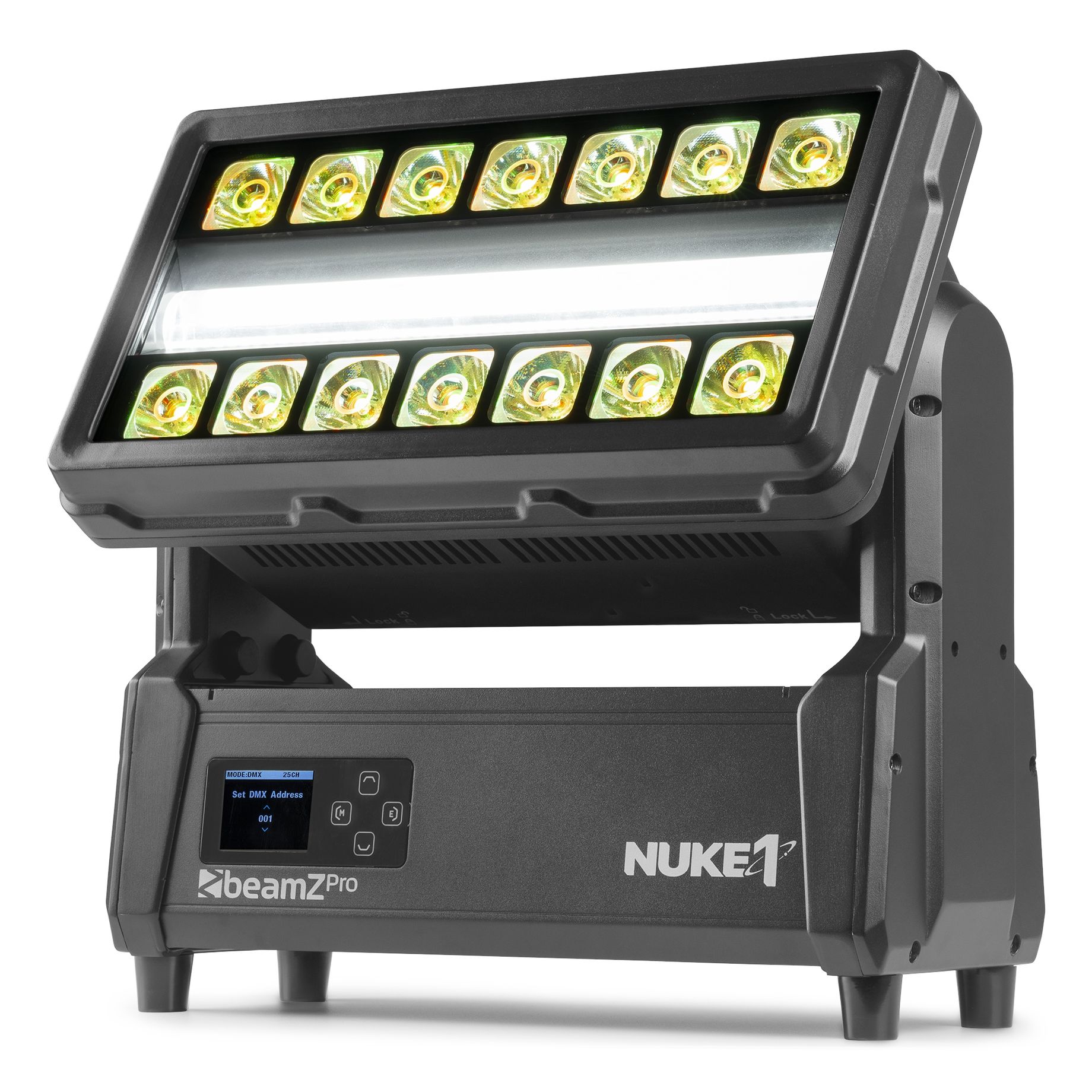

NUKE1
Motorized Strobe/Beam Outdoor
SKU 153.295
|EAN 8715693343397
+12
All product information
Compare
NUKE series
Description
Highlights
- Hybrid strobe/beam with motorized 180° tilt range
- 96x 10W Cool White LEDs controlled in 12 sections
- 14x 40W RGBW High Power LEDs controlled in 14 sections
- Pixel-mappable zones
- RGBW + Cool White colour mixing
- DMX512, stand alone and Master/slave Mode
- 4 Different DMX channel modes
- DMX (RDM) and ArtNet control capability
- Automatic programs and Pre-programmed shows
- Adjustable speed
- Control panel with LCD display and key lock
- Waterproof IP65 for outdoor use
- Various dimmer curves adjustable
- Powerconnector P-Con TR1 input

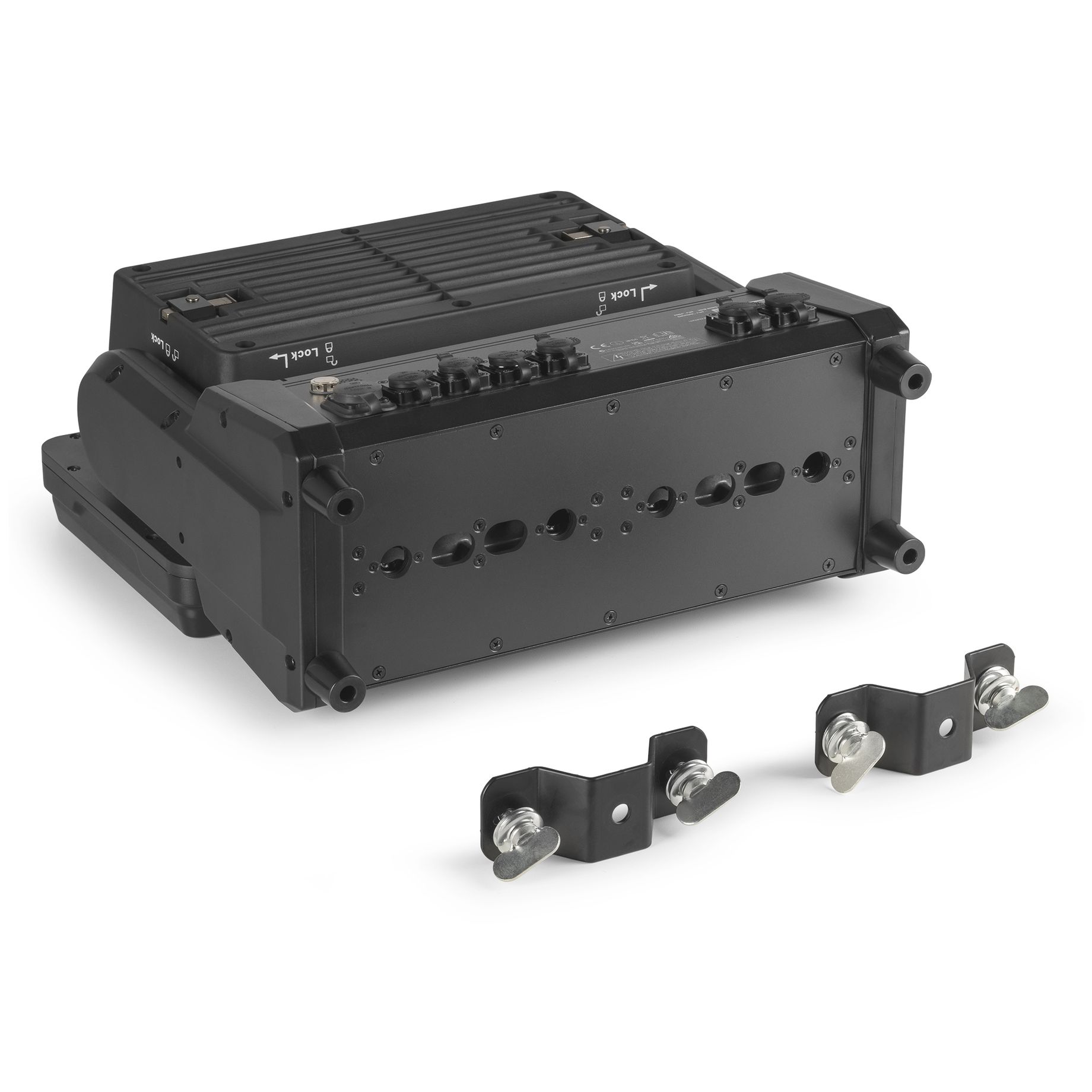

- Omega bracket included
Specifications
BrandbeamZ Professional
Product serieNUKE series
ColourBlack
Moving head typeBeam
Light source
Light source: Beam
- 14x 40W RGBW LED
Light source: Strobe
- 96x 10W Cool white LED
Illuminance61059 lx @ 1m
Optics
Beam angle: Beam
- 6°
Beam angle: Strobe
- 110°
ZoomNo
Movement
Tilt Movement180° (16-bit)
Features
Frost FilterNo
Flash Per Second1 - 31 Hz
Control
Control modesAuto programs, DMX, Manual, ART-Net, sACN
DMX Channels14, 25, 78, 94
RDMYes
DMX connector3-pin XLR, 5-pin XLR, RJ45

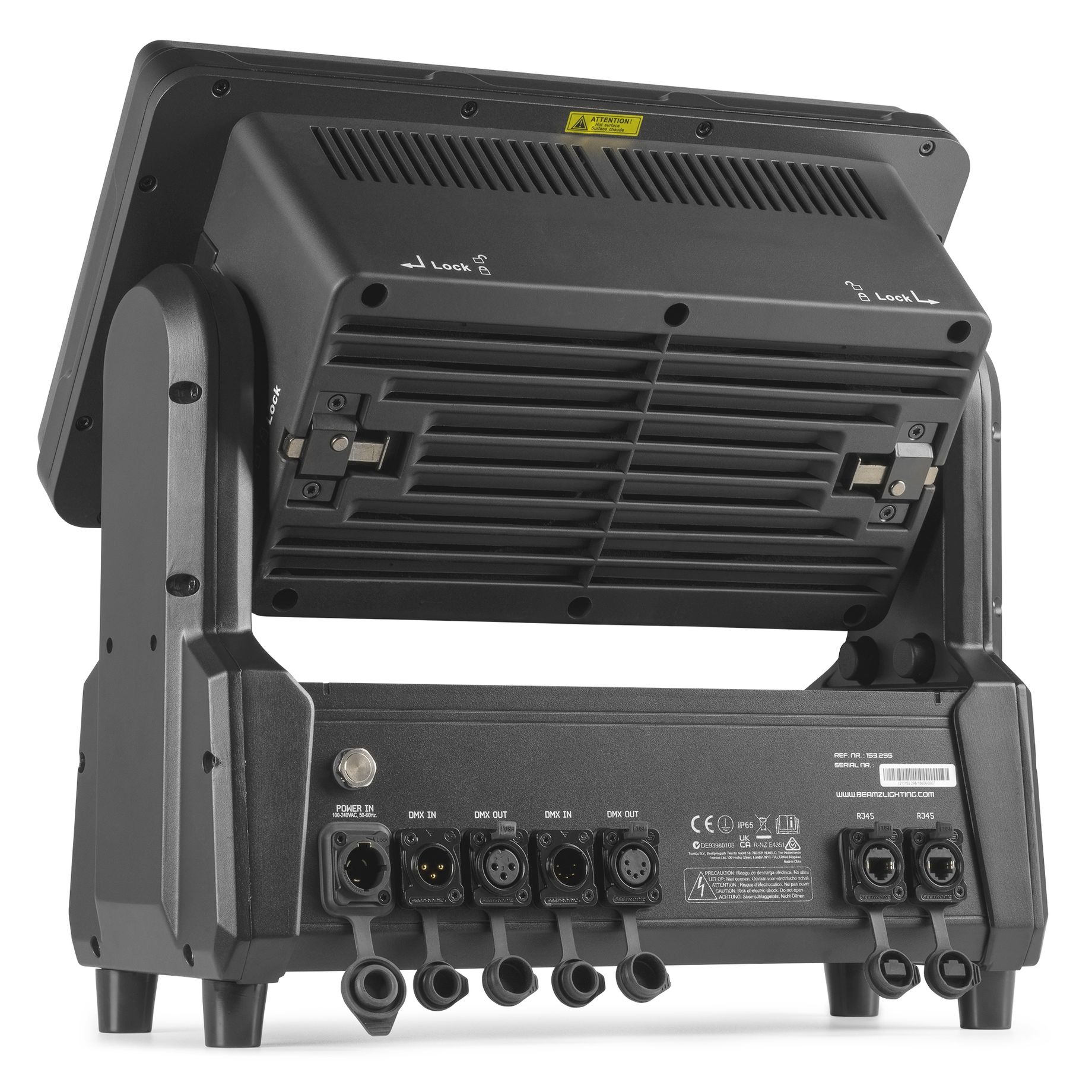

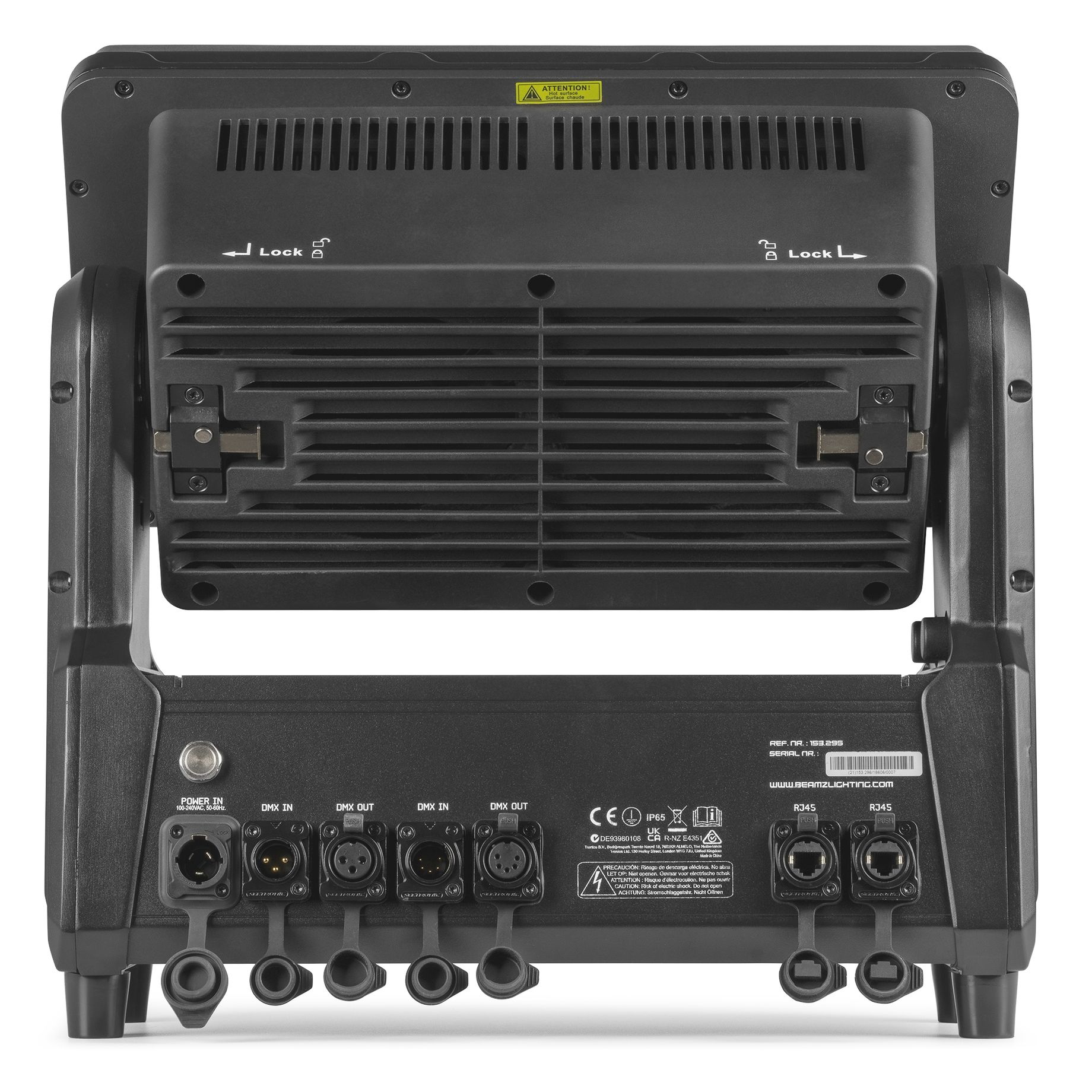

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
- 1x Data - RJ45 (IP65)
Output connections
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
- 1x Data - RJ45 (IP65)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 4225 x 230 x 405 mm (W x D x H)
Weight
- 22.35 kg
Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
