NUKE2

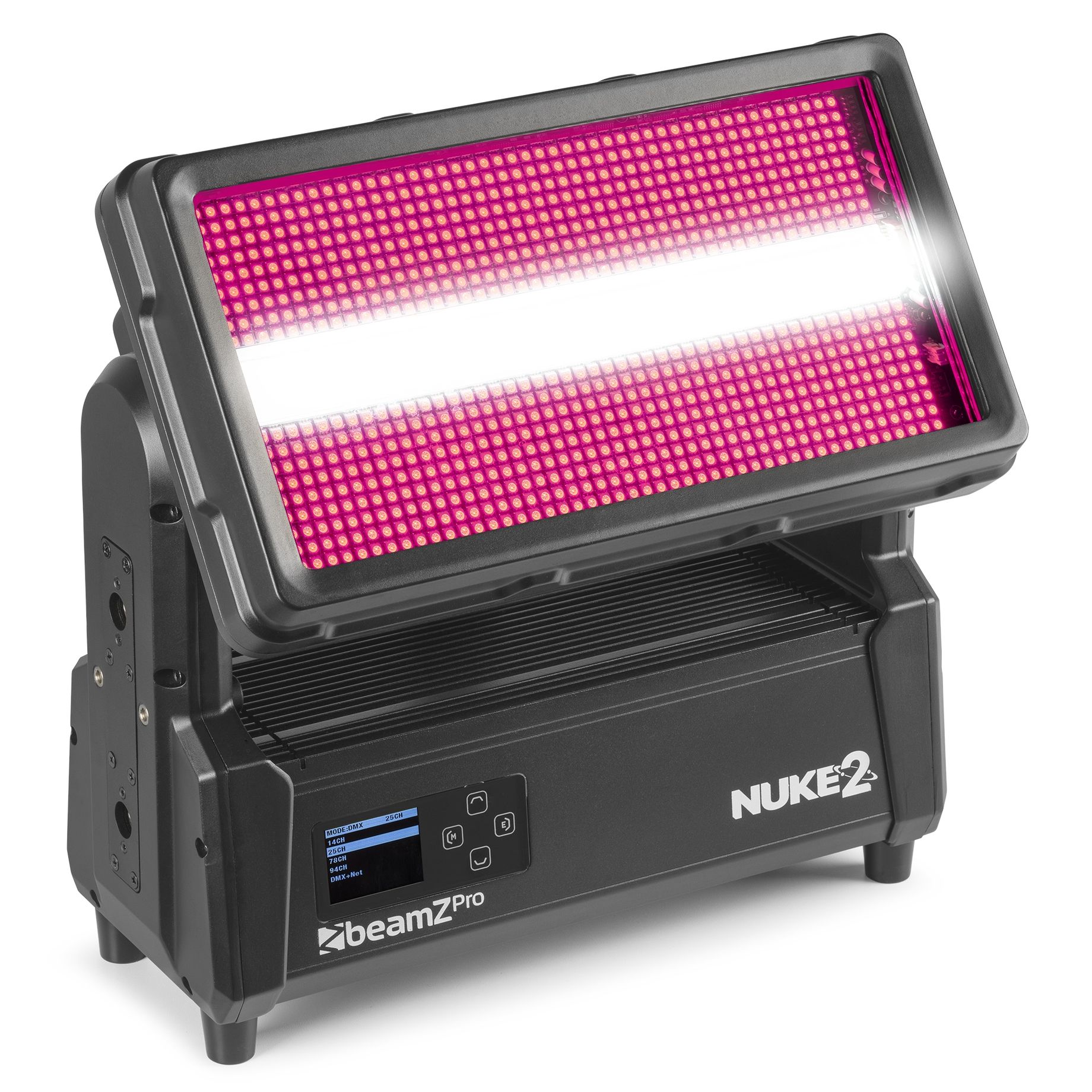

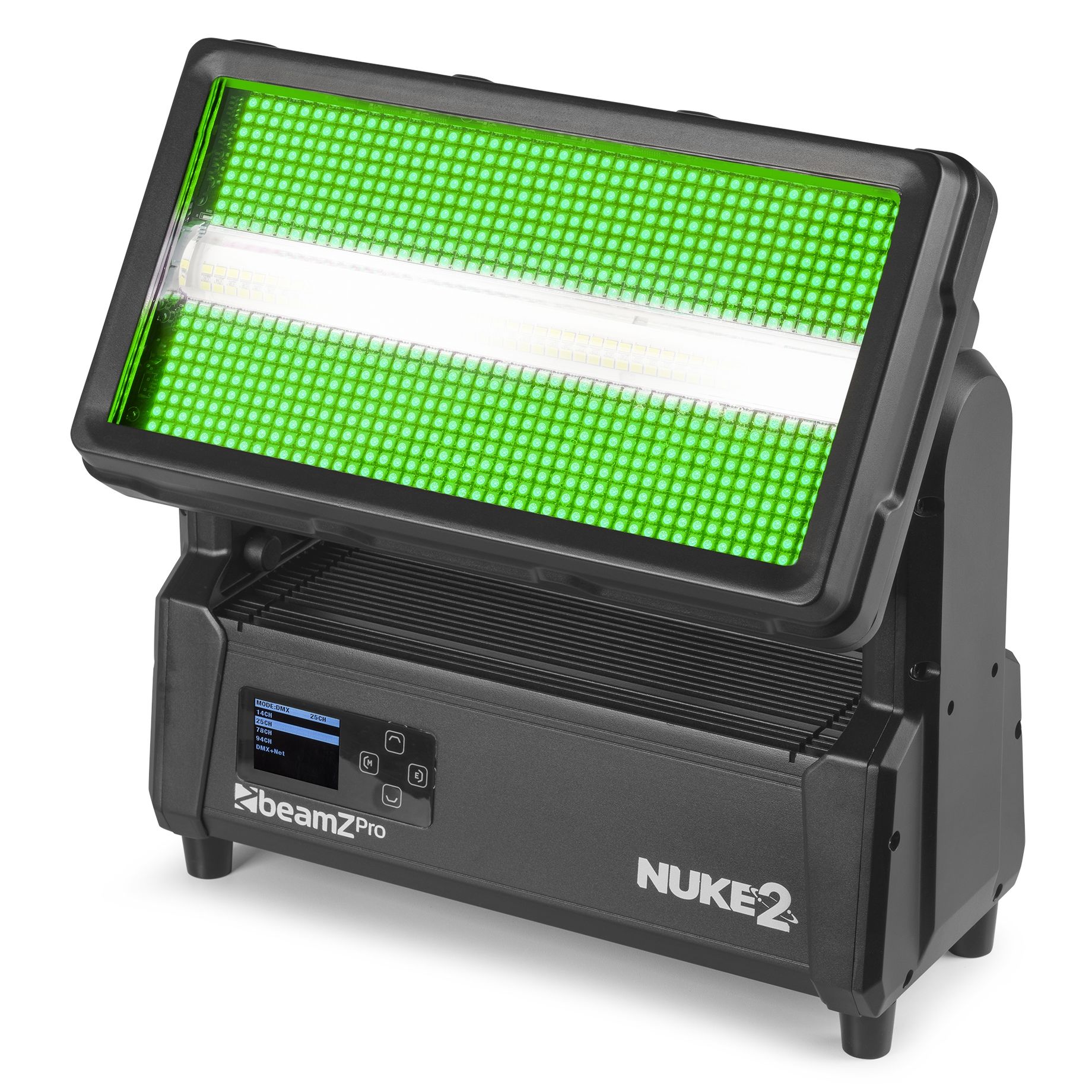

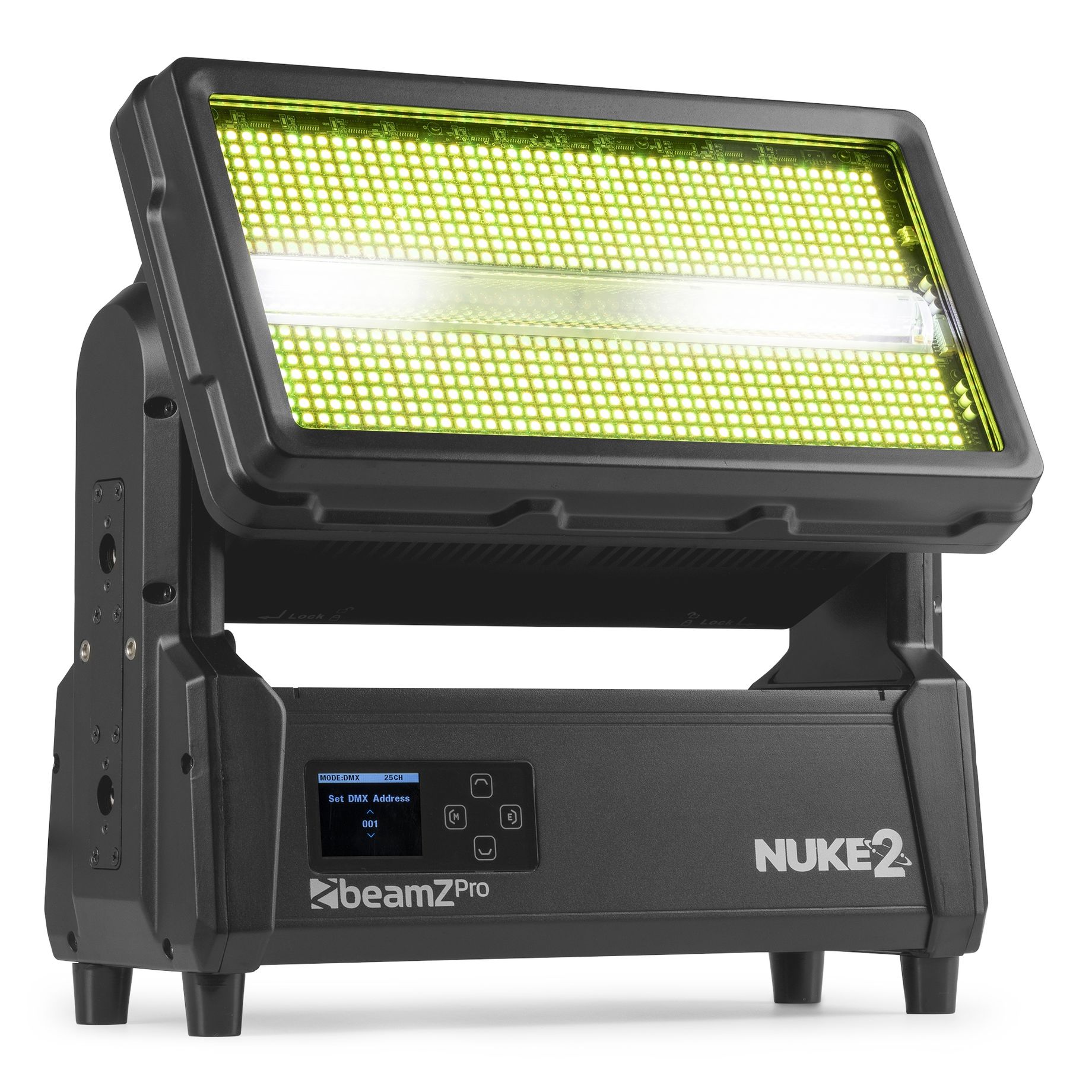

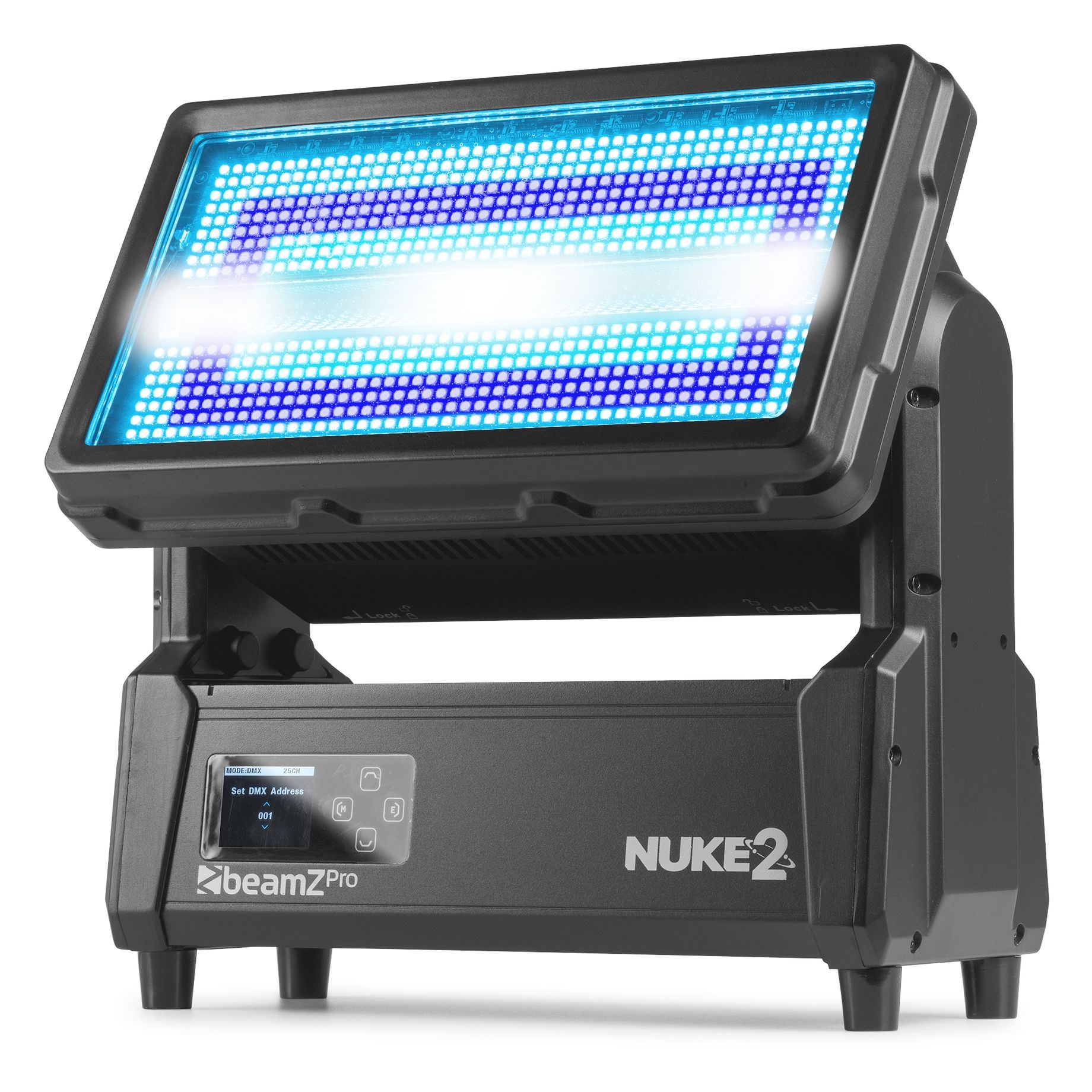

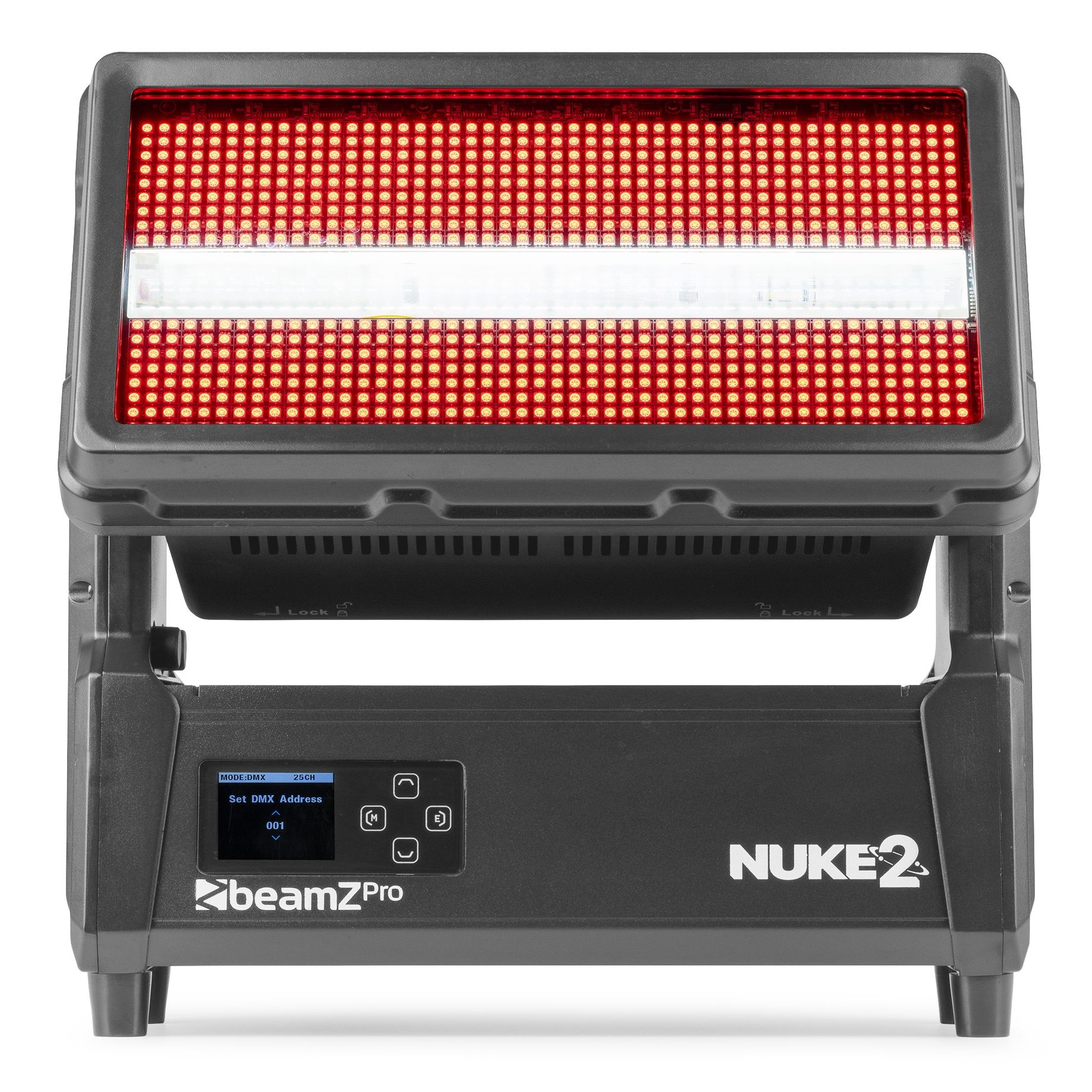

Motorized Strobe/Wash Outdoor
SKU 153.296
|EAN 8715693343403
+12
All product information
Compare
NUKE series
Description
Highlights
- Hybrid strobe/wash with motorized 180° tilt range
- 96x 10W Cool White LEDs controlled in 12 sections
- 864x 0.5W RGB SMD LEDs controlled in 96 sections
- Pixel-mappable zones

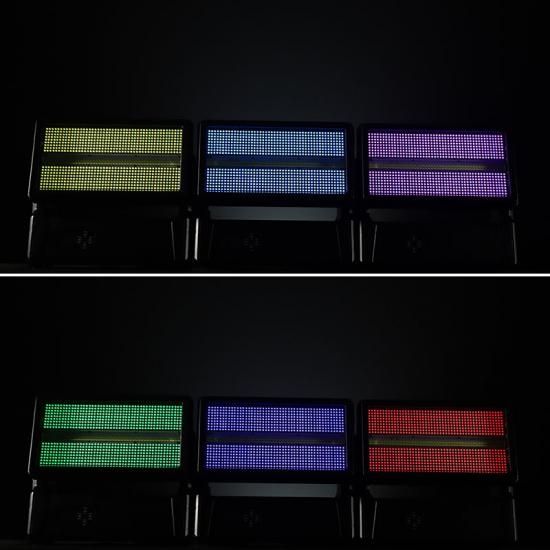

- RGB + Cool White colour mixing
- DMX512, stand alone and Master/slave Mode
- 6 Different DMX channel modes
- DMX (RDM) and ArtNet control capability
- Automatic programs and Pre-programmed shows
- Adjustable speed
- Control panel with LCD display and key lock
- Waterproof IP65 for outdoor use
- Various dimmer curves adjustable
- Powerconnector P-Con TR1 input

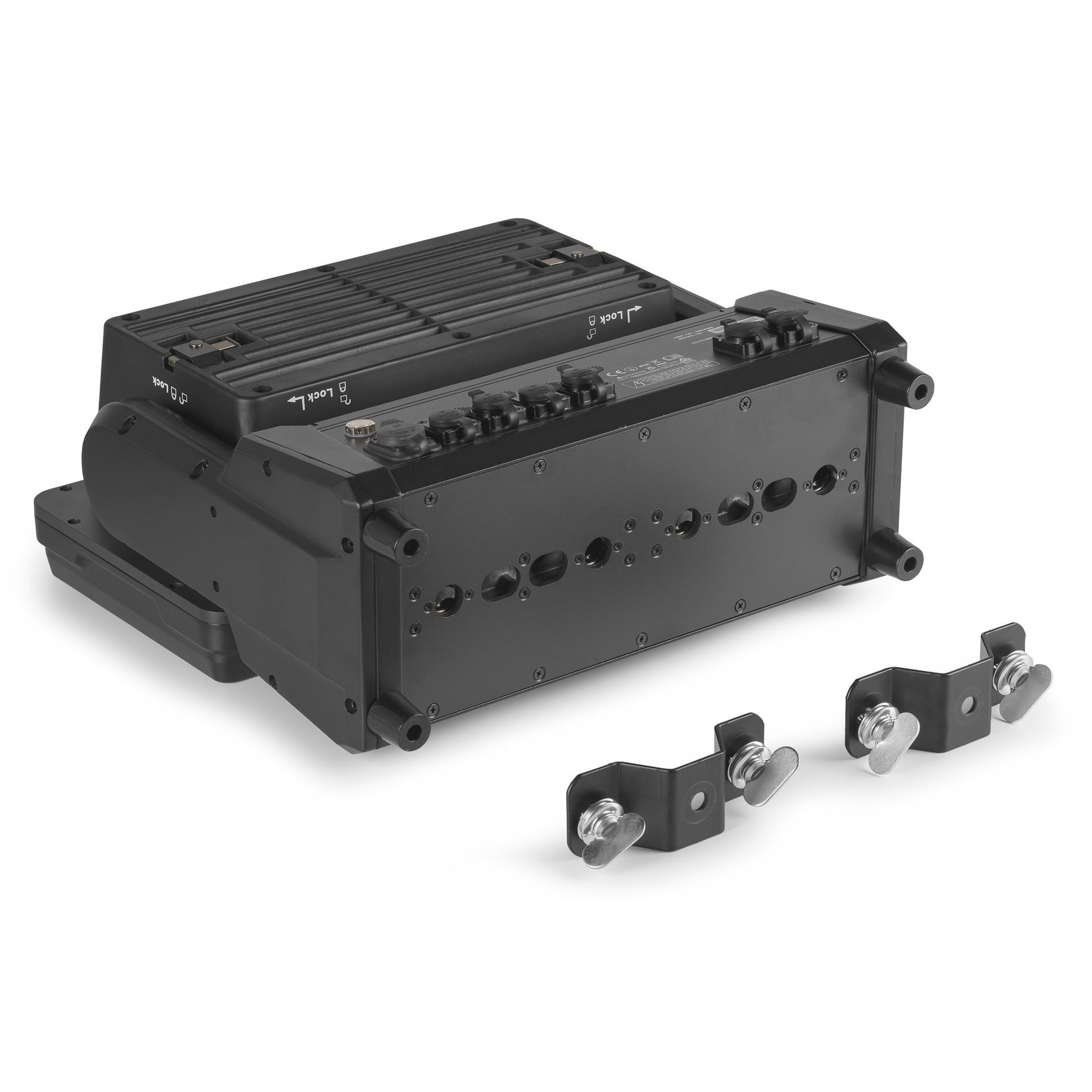

- Omega bracket included
Specifications
BrandbeamZ Professional
Product serieNUKE series
ColourBlack
Moving head typeWash, Beam
Light source
Light source: Wash
- 864x 0.5W RGB LED
Light source: Strobe
- 96x 10W Cool white LED
Illuminance46069 lx @ 1m
Optics
Beam angle: Wash
- 120°
Beam angle: Strobe
- 110°
ZoomNo
Movement
Tilt Movement180° (16-bit)
Features
Frost FilterNo
Flash Per Second1 - 31 Hz
Control
Control modesAuto programs, DMX, Manual, ART-Net, sACN
DMX Channels13, 23, 84, 132, 310, 324
RDMYes
DMX connector3-pin XLR, 5-pin XLR, RJ45

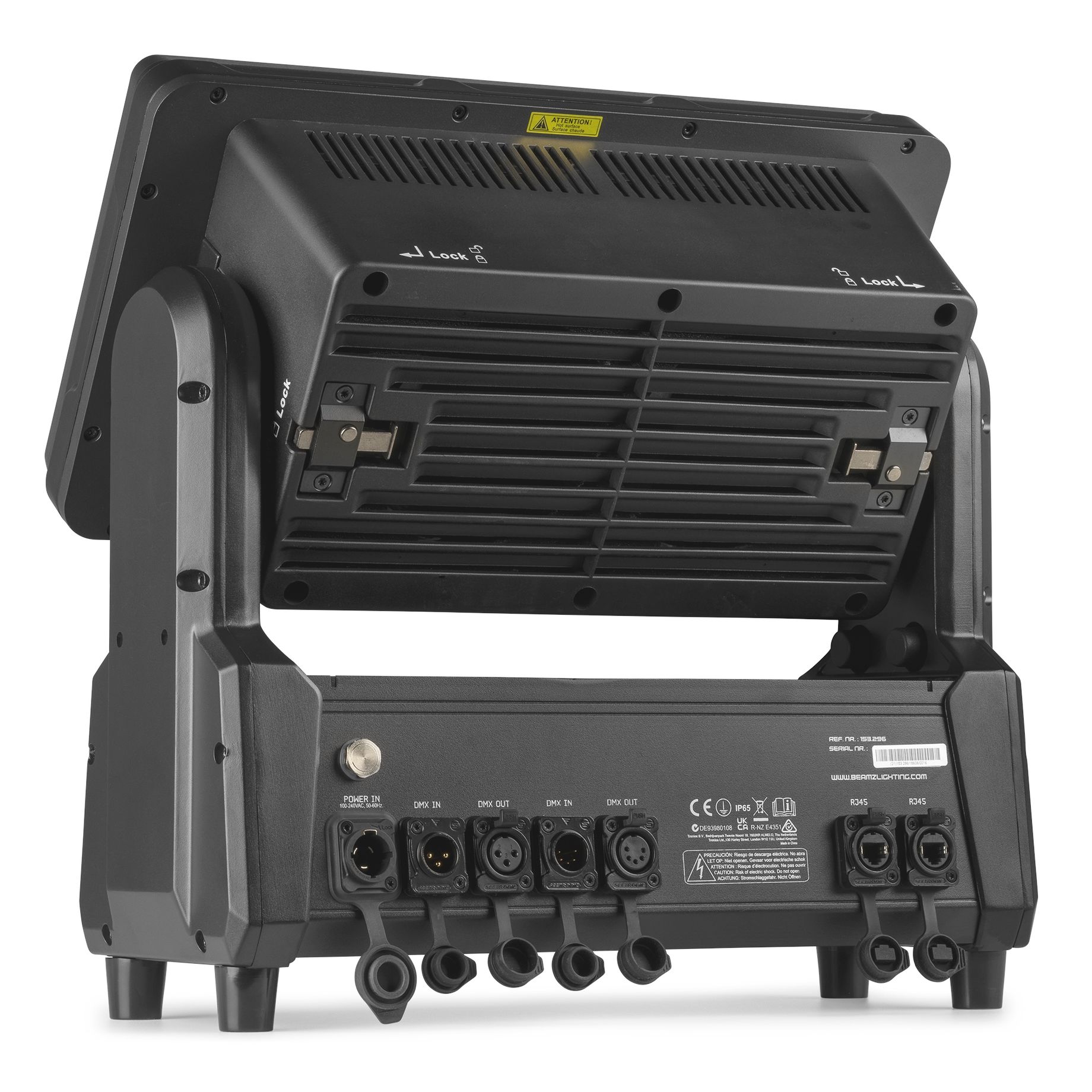

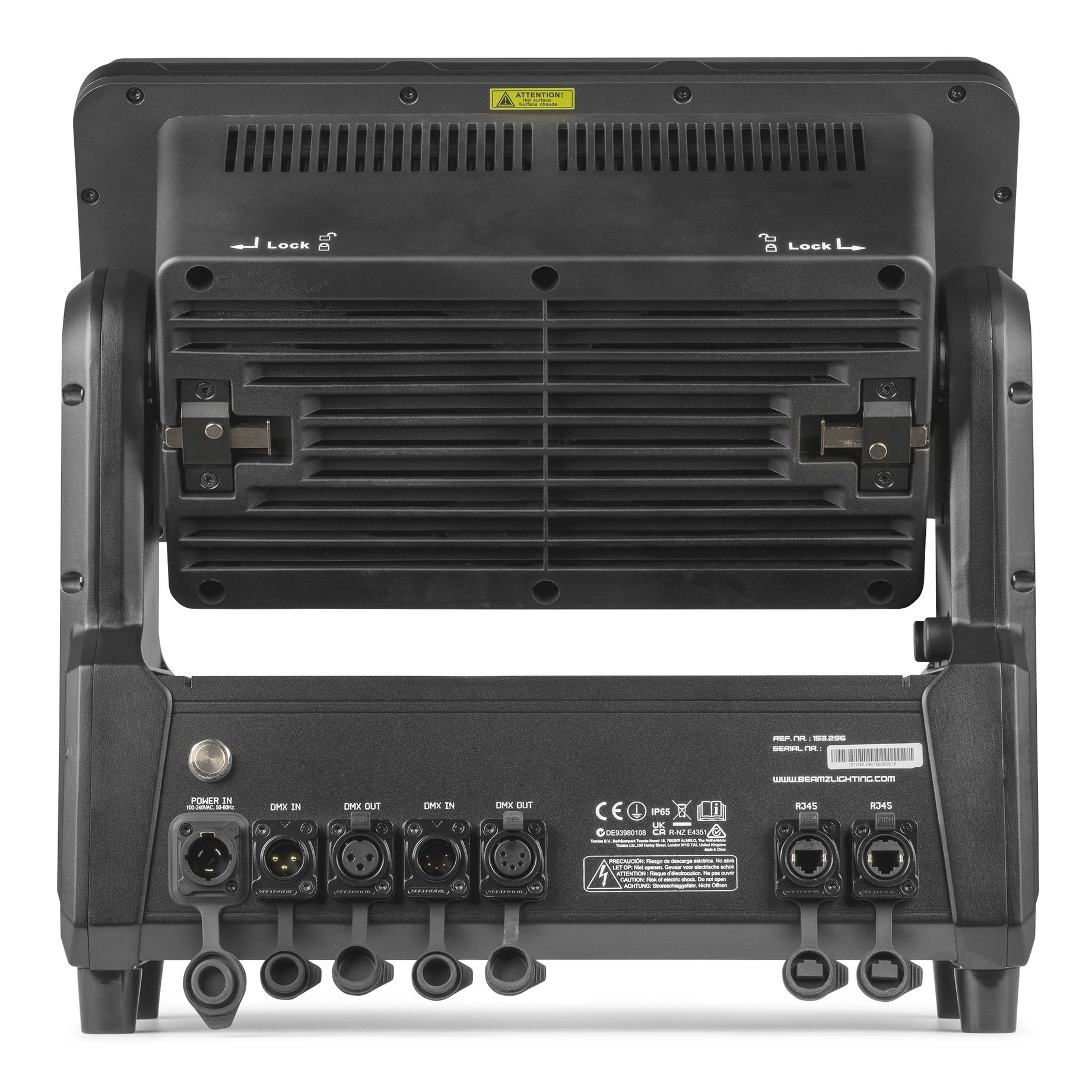

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
- 1x Data - RJ45 (IP65)
Output connections
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
- 1x Data - RJ45 (IP65)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 420 x 173 x 393 mm (W x D x H)
Weight
- 22.3 kg
Accessories
Included Accessories
- Mounting bracket
