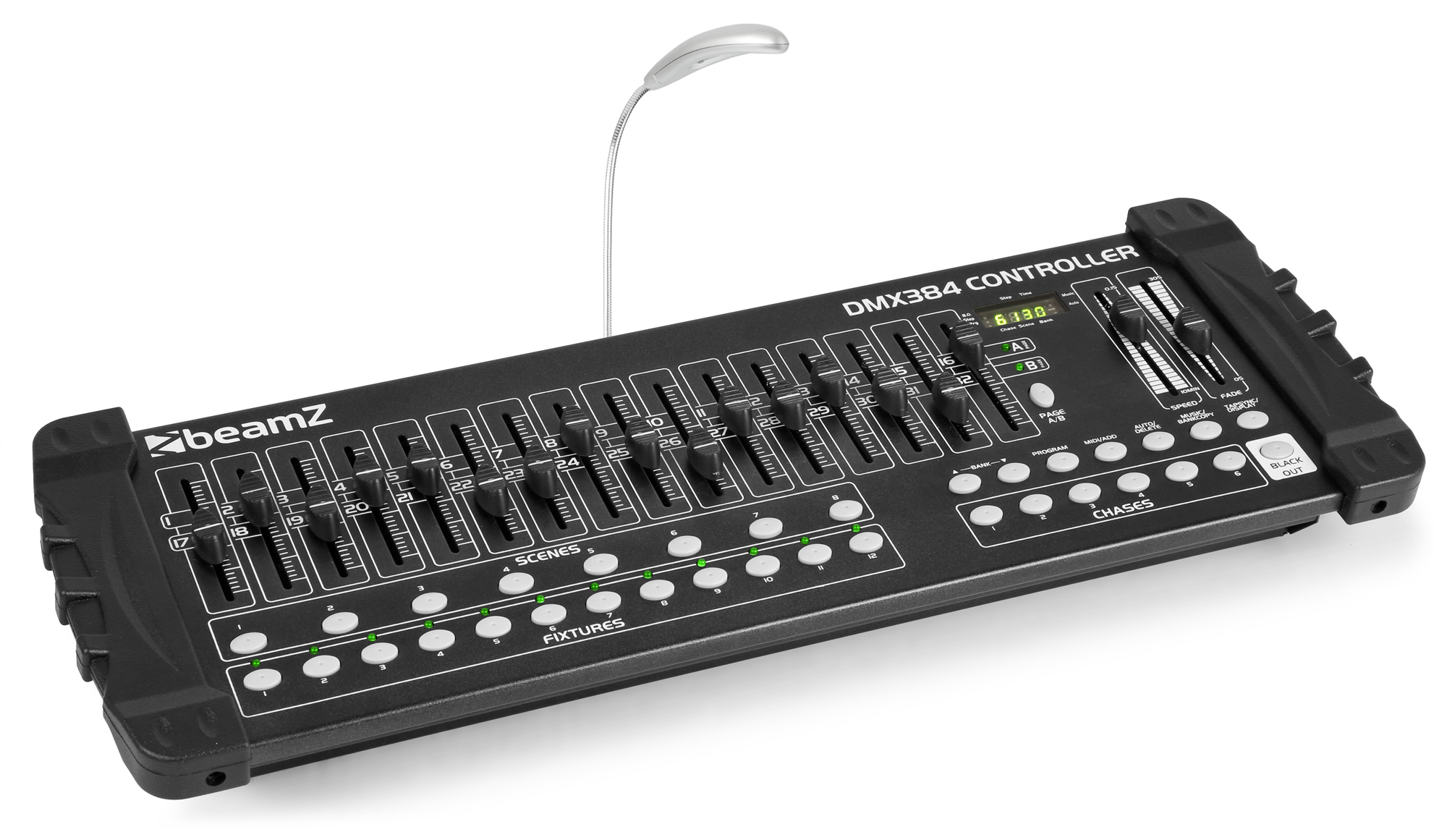

DMX-384
controller 384 channel
SKU 154.048
|EAN 8715693291636
All product information
Compare
DMX series
Description
Highlights
- 384 DMX Channels
- 12 fixture with 32 channels each
- 30 banks of 8 programmable scenes
- 6 programmable chases of 240 scenes
- 16 faders for manual control of channels
- Built-in microphone for music-controlled operation
- Adjustable fade time
- Blackout master button
- Does not work with the BBP EazyLink transmitters (154.077, 154.120 and 154.121)
Specifications
BrandbeamZ
Product serieDMX series
ColourBlack
Control
DMX connector3-pin XLR

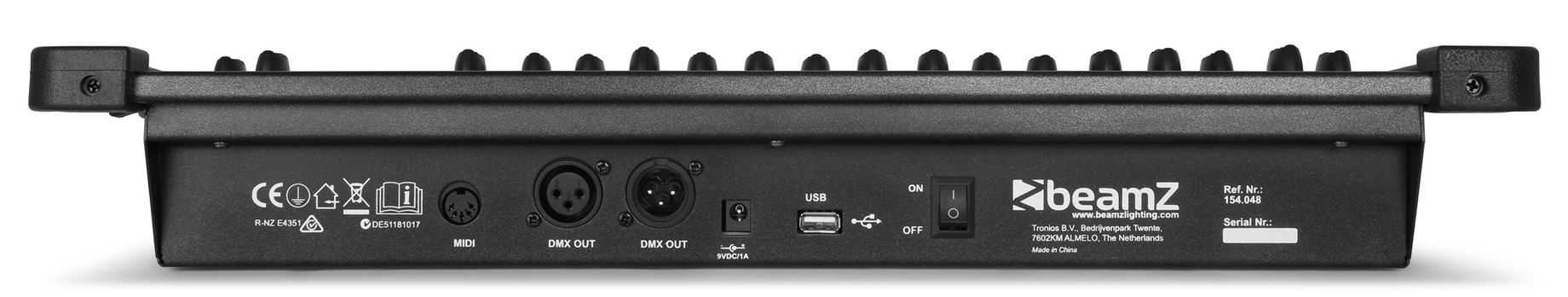

Connections
Input connections
- 1x Power - DC Connector
- 1x Data - USB-A
- 1x MIDI - 5-pin DIN
Output connections
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 3-pin XLR (M)
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 520 x 190 x 80 mm (W x D x H)
Weight
- 2.45 kg
Manuals & Documents
Manual
PDF
