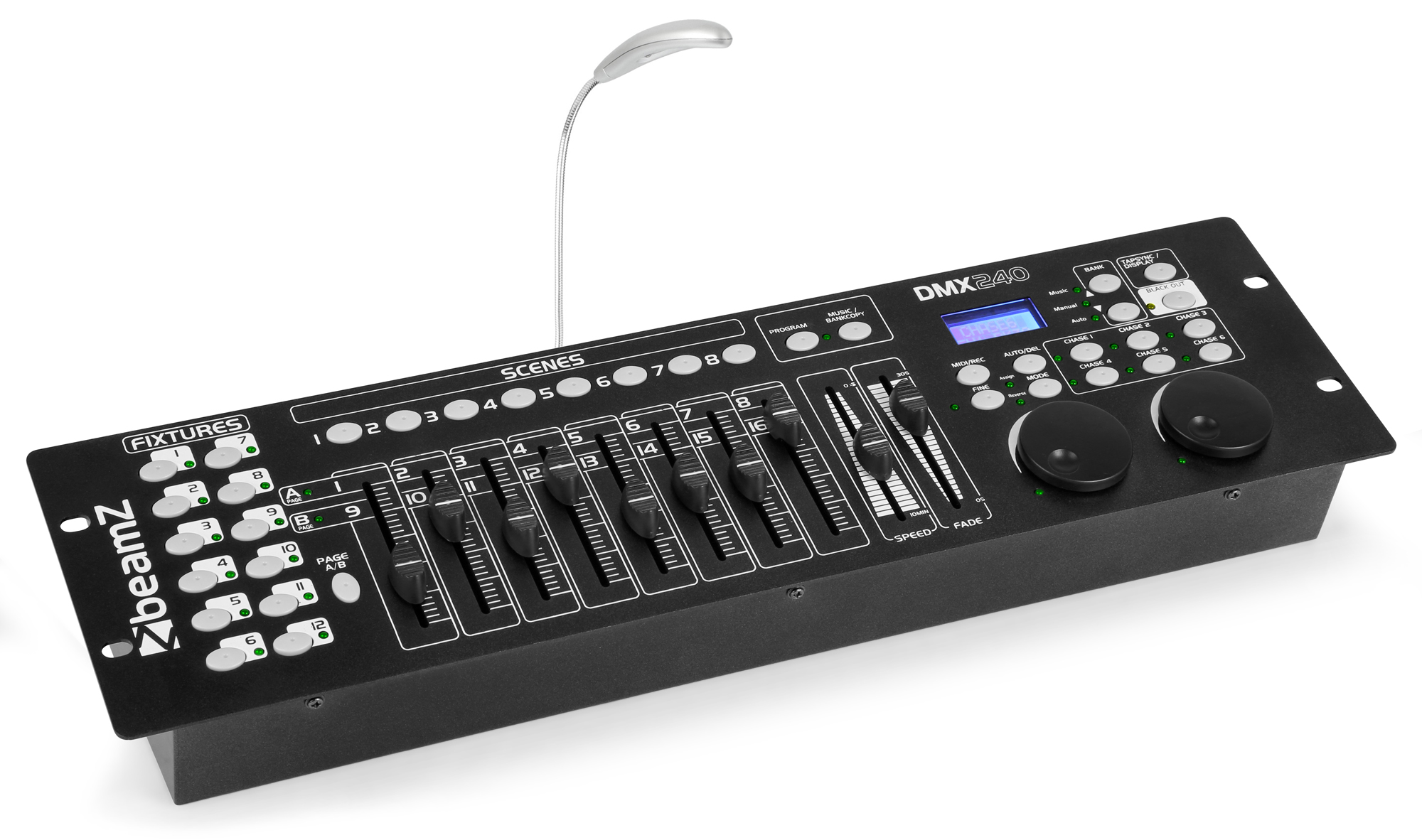

DMX-240
Controller 192-Channel
SKU 154.090
|EAN 8715693258844
All product information
Compare
DMX series
Description
Highlights
- 192 DMX channels
- 12 fixture with 16 channels each
- 30 banks of 8 programmable scenes
- 6 Programmable chases of 240 scenes
- Jog wheels for easy use of pan & tilt
- Function for two devices to exchange data
- 8 faders for manual control
- Built-in microphone or line-input for music-controlled operation
- Adjustable fade time
- Blackout Master button
- DMX polarity selection
- USB for gooseneck lamp
Specifications
BrandbeamZ
Product serieDMX series
ColourBlack
Control
DMX connector3-pin XLR

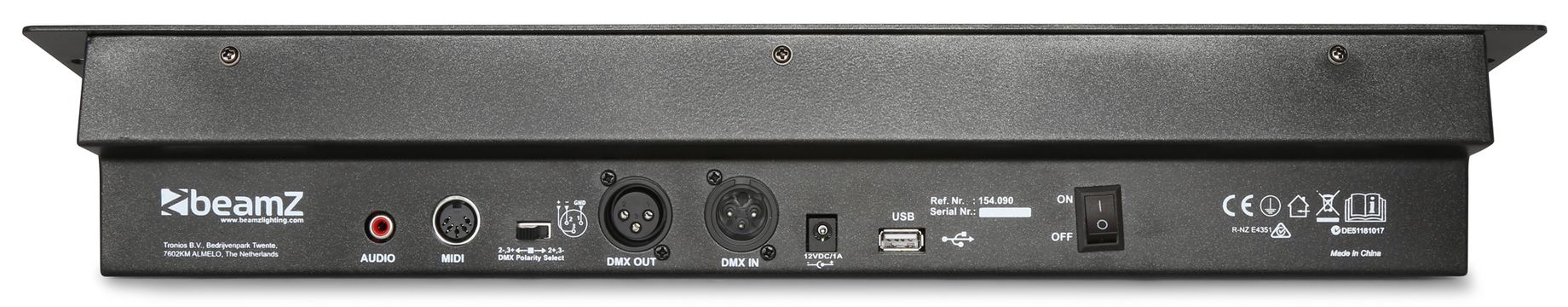

Connections
Input connections
- 1x Power - DC Connector
- 1x DMX - 3-pin XLR (M)
- 1x MIDI - 5-pin DIN
- 1x Data - USB-A
- 1x Balanced Line
Output connections
- 1x DMX - 3-pin XLR (F)
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 132 x 482 x 80 mm (W x D x H)
Weight
- 2.5 kg
