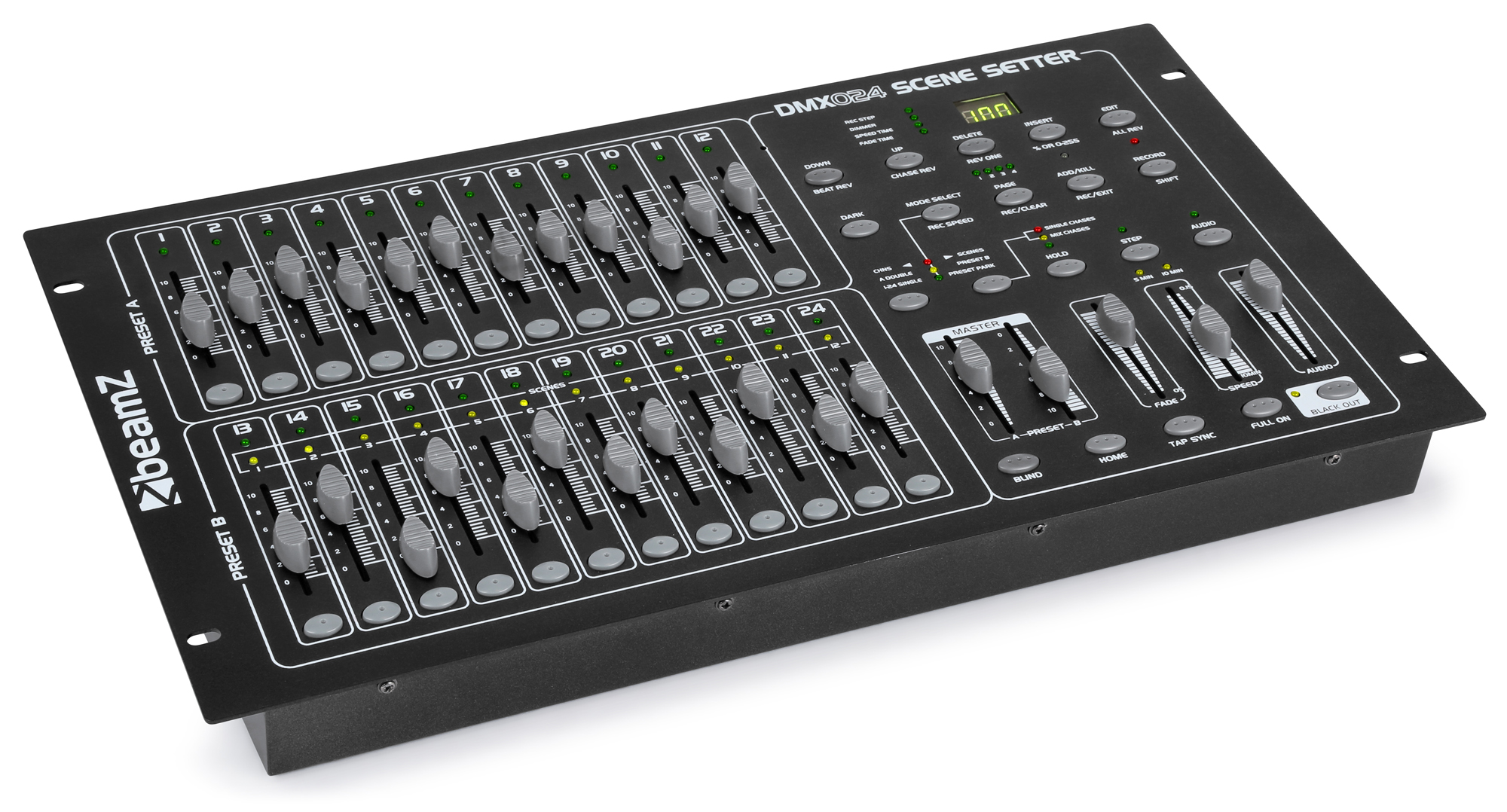

DMX-024
controller Scene Setter
SKU 154.062
|EAN 8715693025361
All product information
Compare
DMX series
Description
Highlights
- 24 DMX channels with individual flash buttons/faders
- 48 programs with up to 99 steps each
- Chase functions, full-on, blackout, tap sync, fade, hold
- LED display for program-step dimmer, speed-time and fade time
- Connection for external triggering (foot pedal)
- Programs can be completed independently or sound activated
- Music control via microphone or line input
- Midi Interface
- Suitable for 19 "Mounting (6U)
Specifications
BrandbeamZ
Product serieDMX series
ColourBlack
Control
DMX connector3-pin XLR

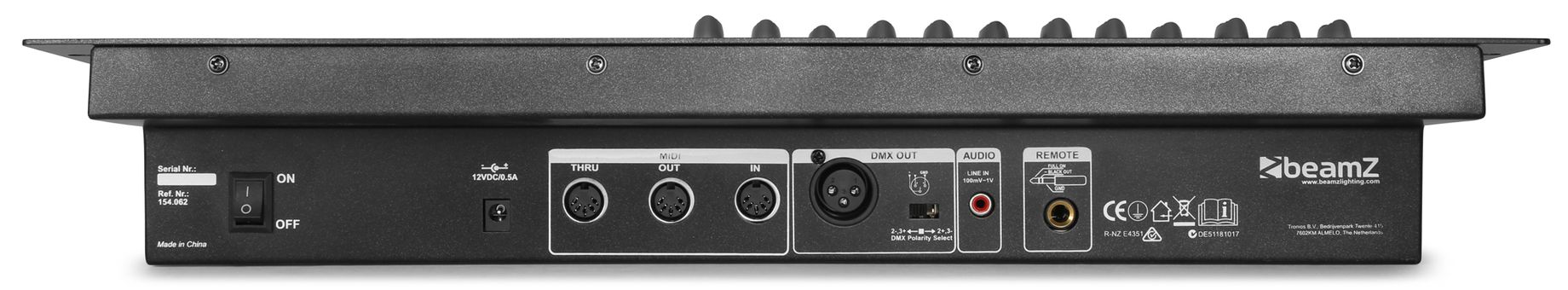

Connections
Input connections
- 1x Power - DC Connector
- 1x MIDI - 5-pin DIN
Output connections
- 1x MIDI - 5-pin DIN
- 1x MIDI - 5-pin DIN
- 1x DMX - 3-pin XLR (F)
Electrical
Power Supply100-240VAC 50/60Hz (12V Adapter)
Mechanical
Dimensions
- 48.2 x 8.5 x 26.5 mm (W x D x H)
Weight
- 4.3 kg
Manuals & Documents
Manual
PDF
Manual UK
PDF
Manual FR
PDF
