BTK200W

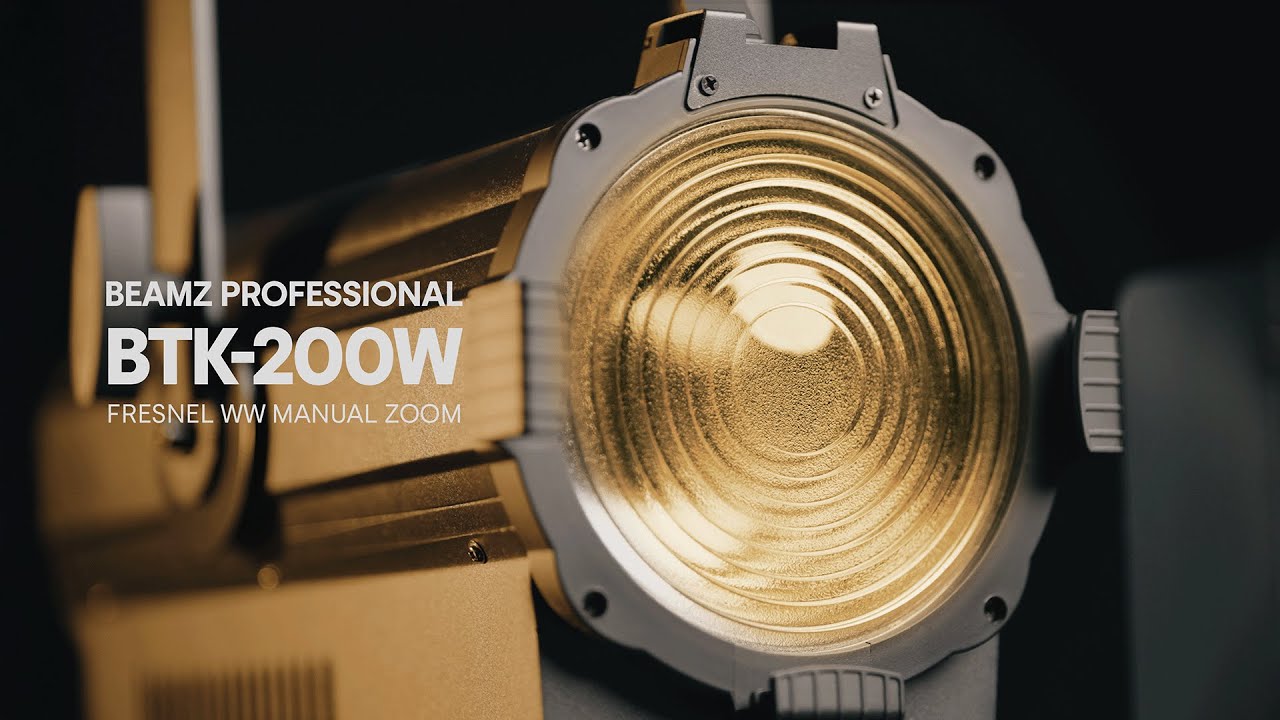

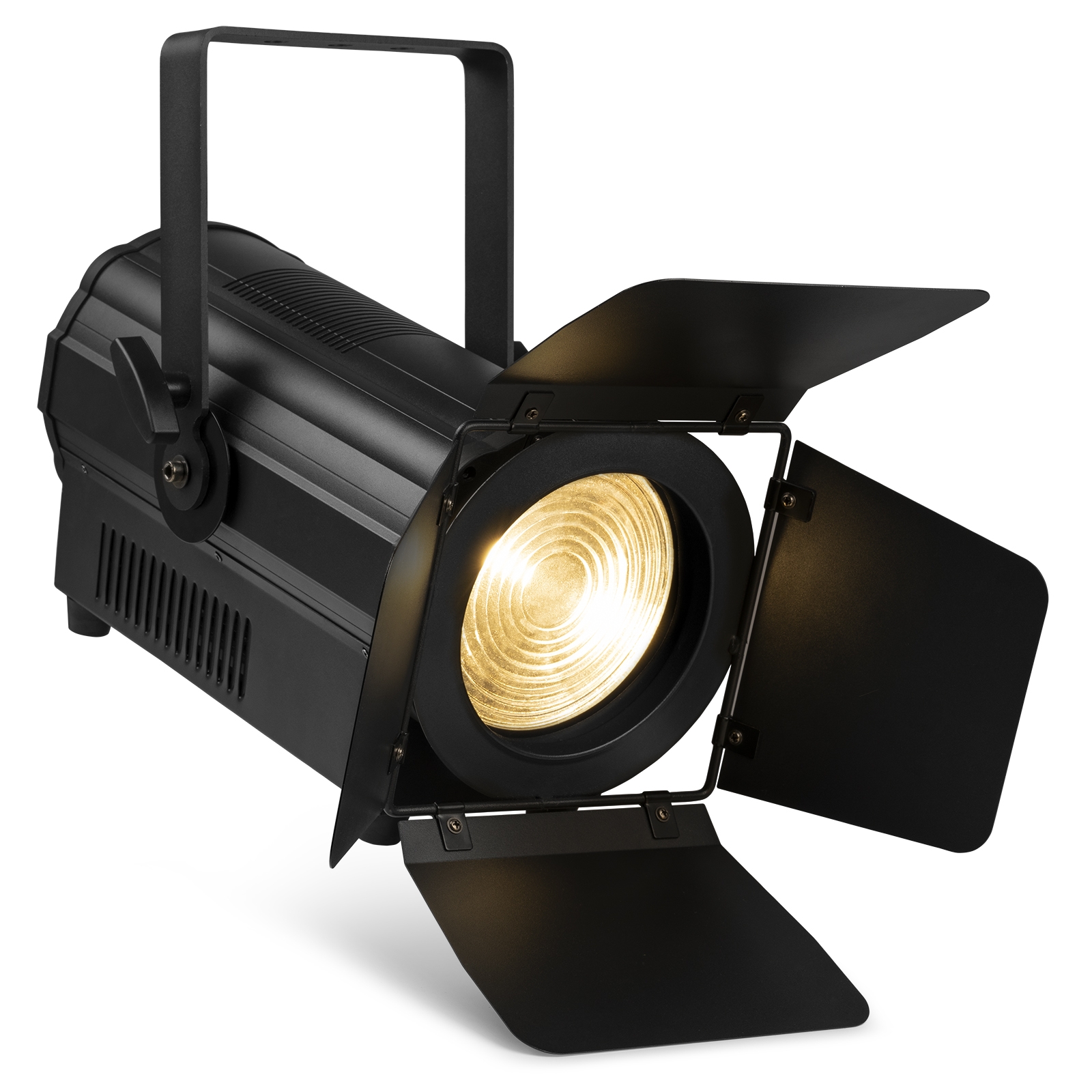

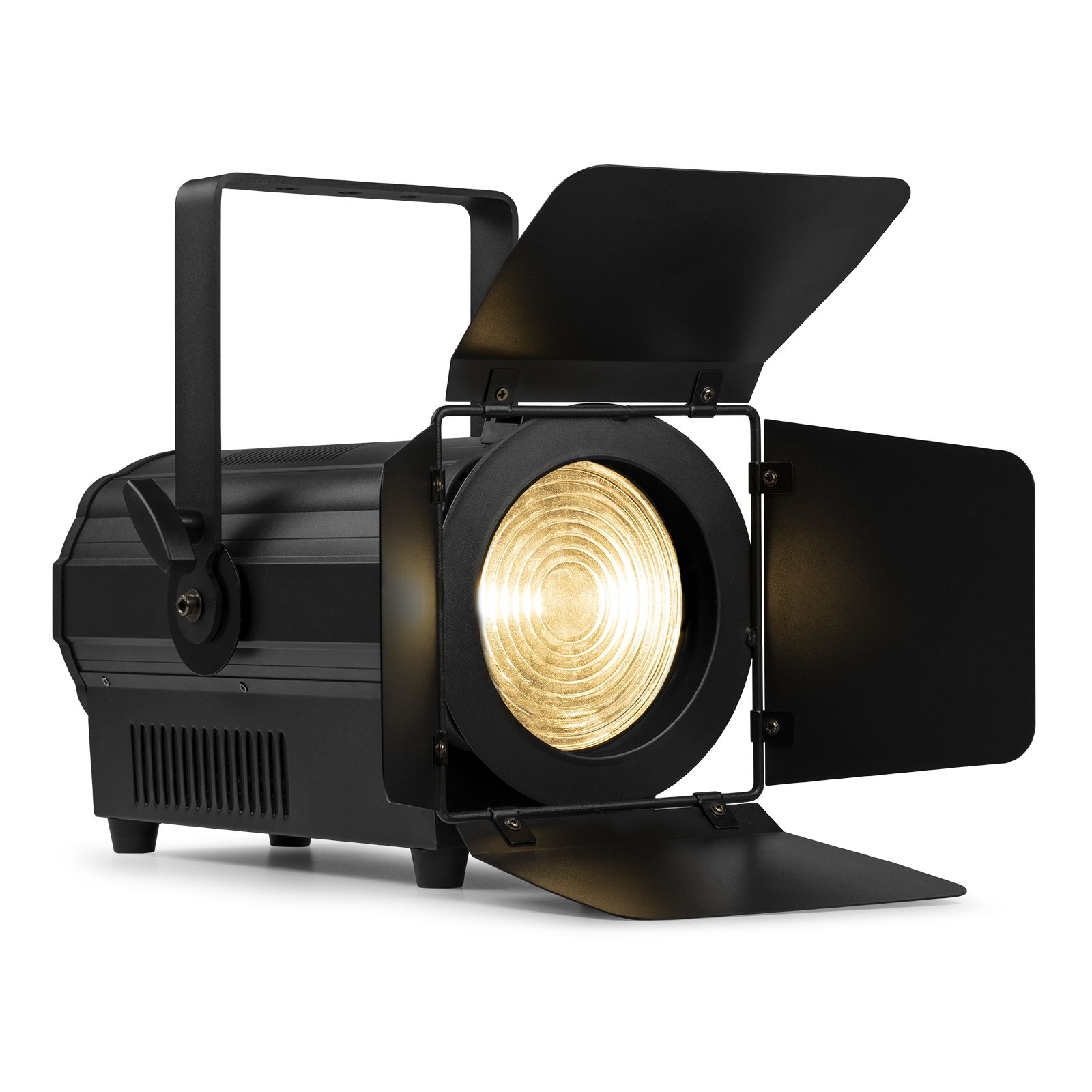

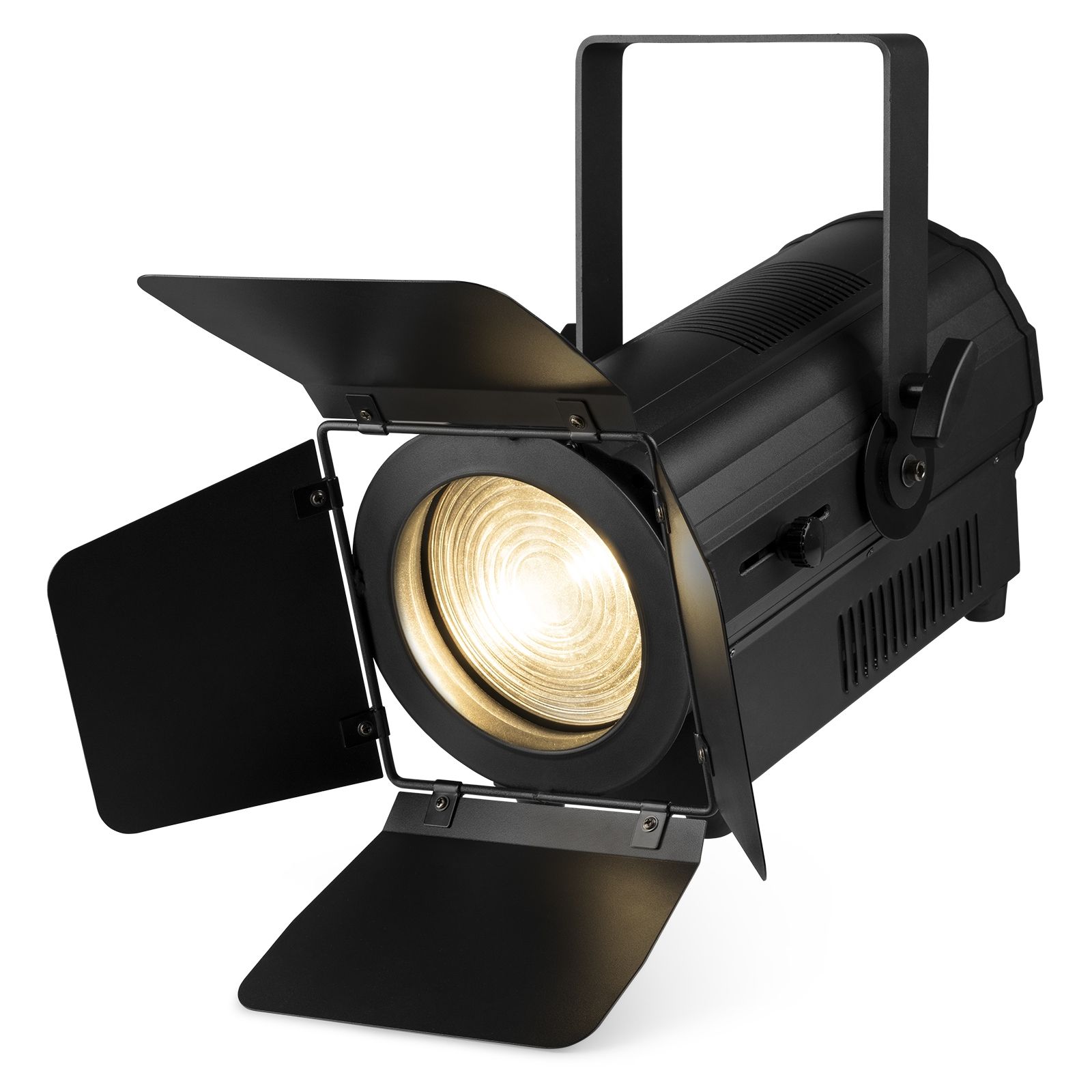

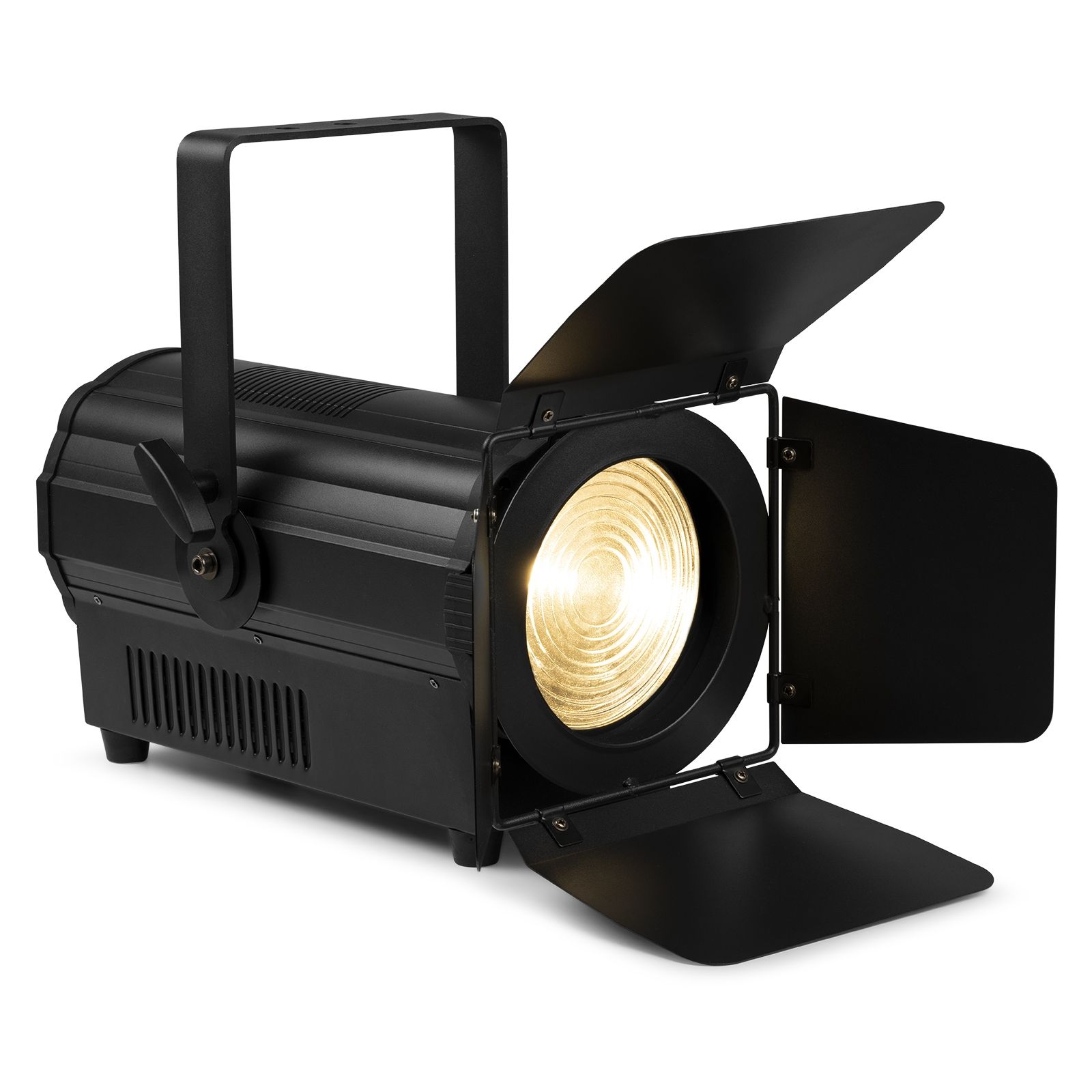

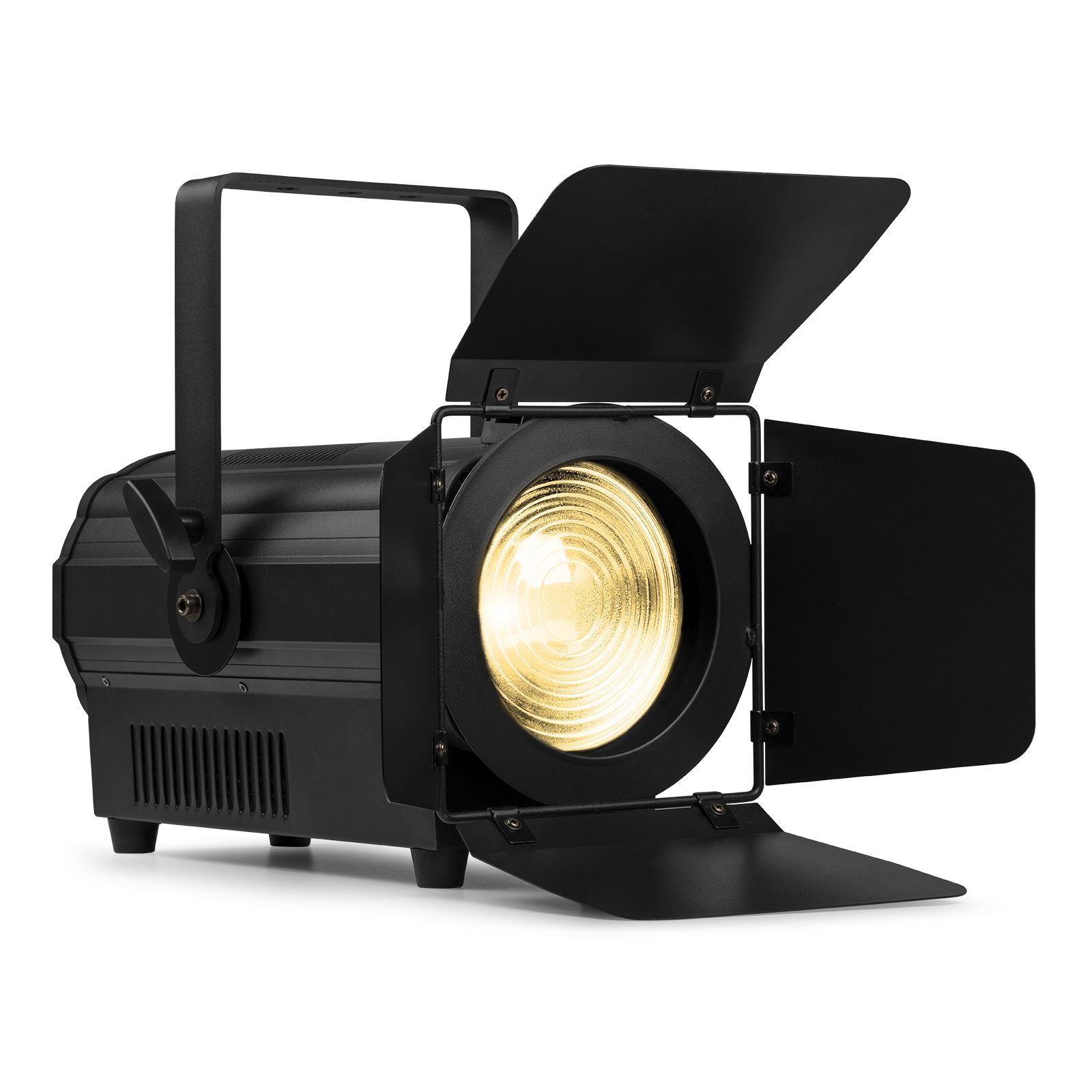

Fresnel 200W WW Manual Zoom
SKU 155.105
|EAN 8715693345100
+2
All product information
Compare
BTK series
Description
Highlights
- 200W Warm White COB LED
- Colour Temperature: 3000K
- Lifetime LED: 50.000 hours
- Manual zoom
- Compact and lightweight Aluminium body
- HQ optical system
- CRI 97 (Colour Rendering Index) TLCI up to 98
- Flicker free

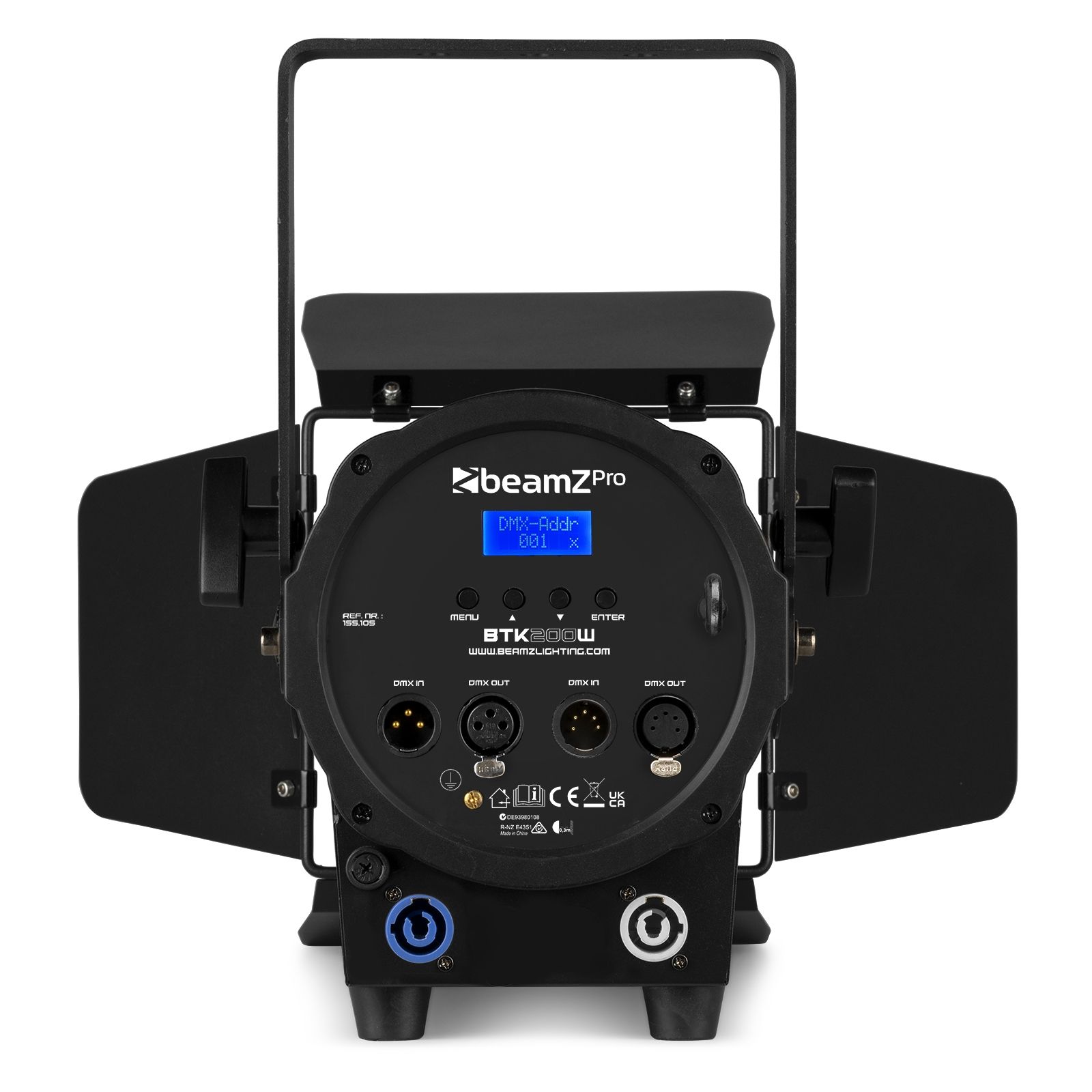

- Control Panel: LED Display
- DMX 3/5-pin or manual control options
- Intelligent temperature control for silent operation
- Powerconnector in&out
- Including barndoor
Specifications
BrandbeamZ Professional
Product serieBTK series
ColourBlack
Light source
Light source
- 1x 200W Warm white COB LED (3000K)
Illuminance93261 lx @ 1m
CRI≥97
Optics
Beam angle
- 15 - 46
ZoomYes
Features
Flash Per Second1 - 19 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels2
RDMNo
DMX connector3-pin XLR, 5-pin XLR
Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 400 x 250 x 250 mm (W x D x H)
Weight
- 6.3 kg
Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
