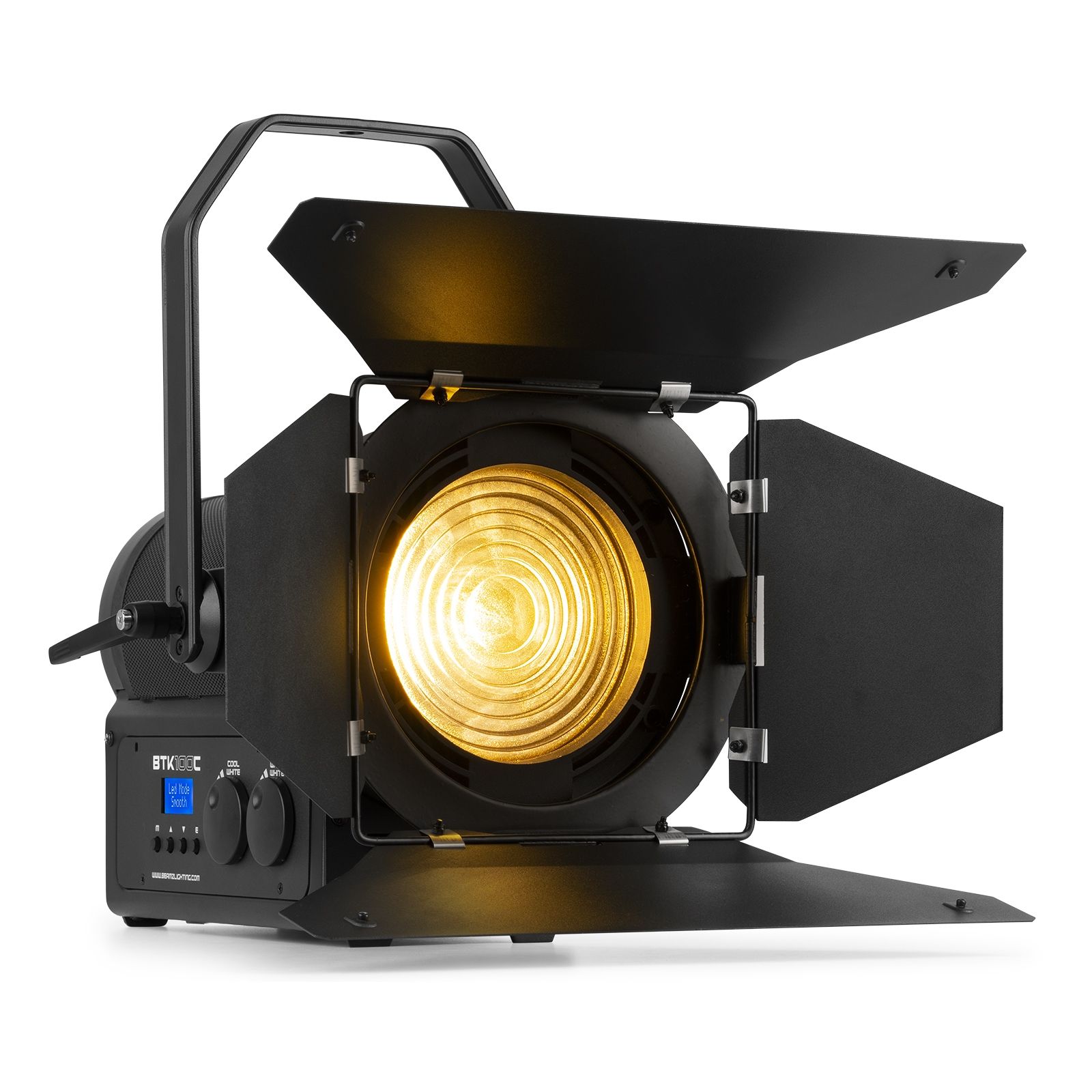

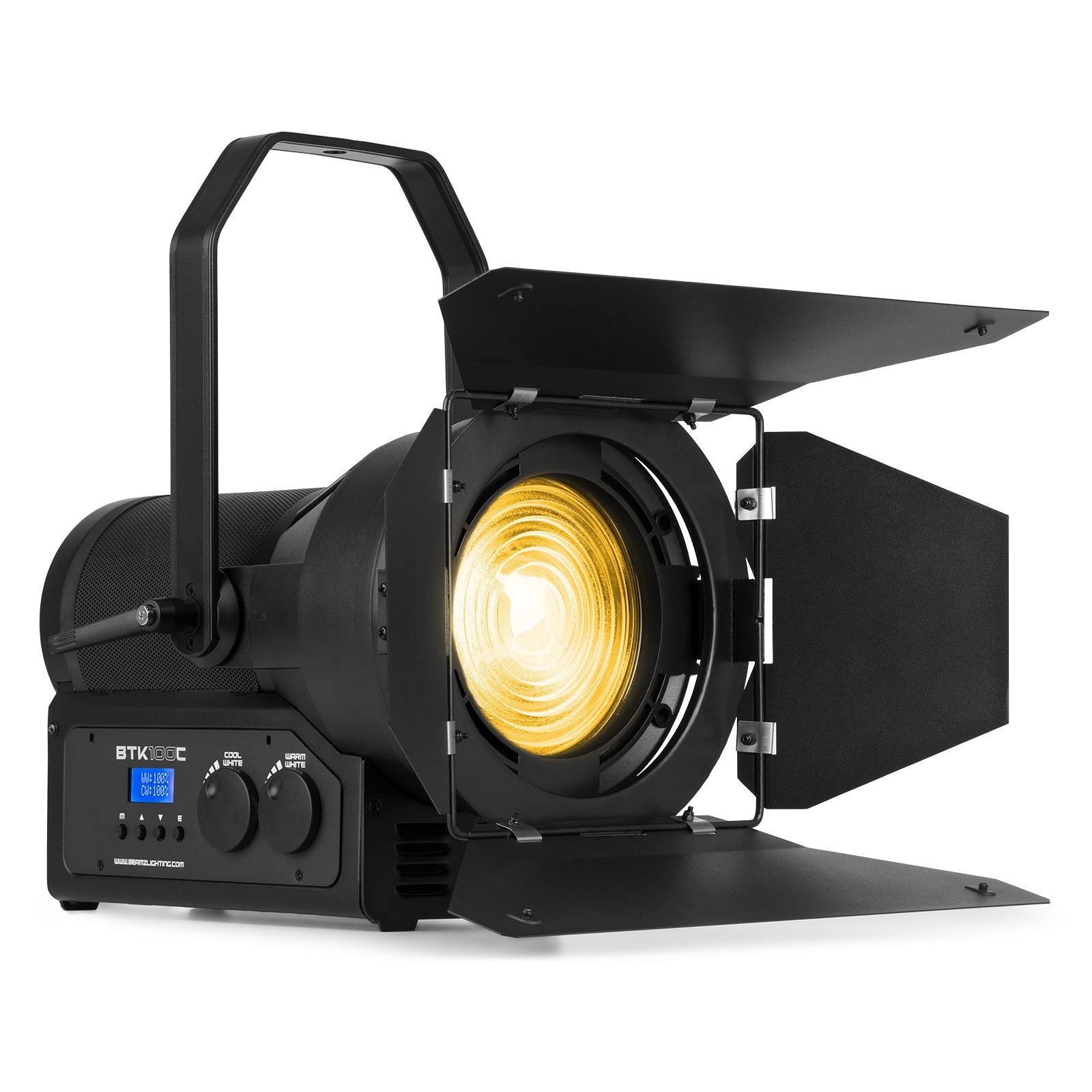

BTK100C

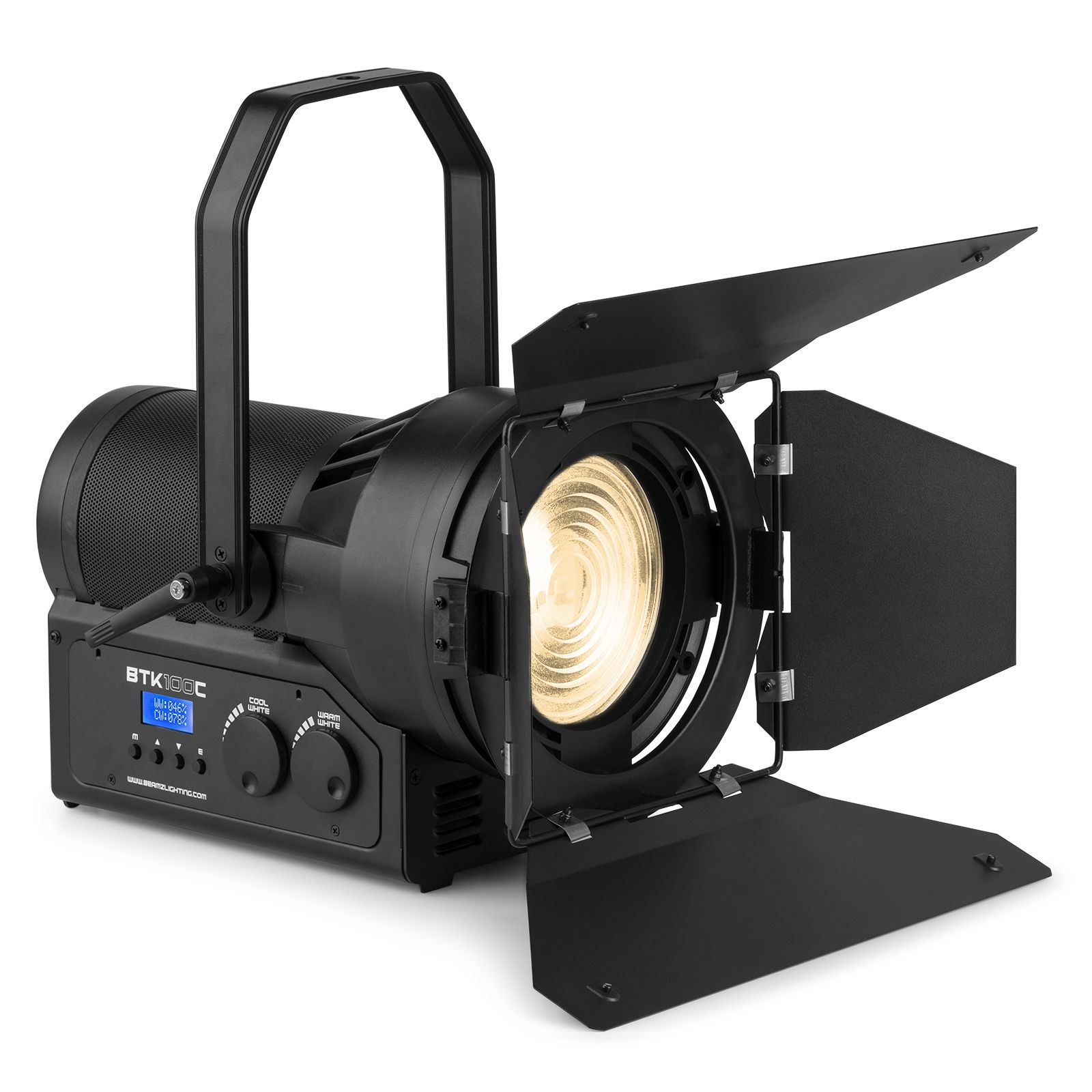

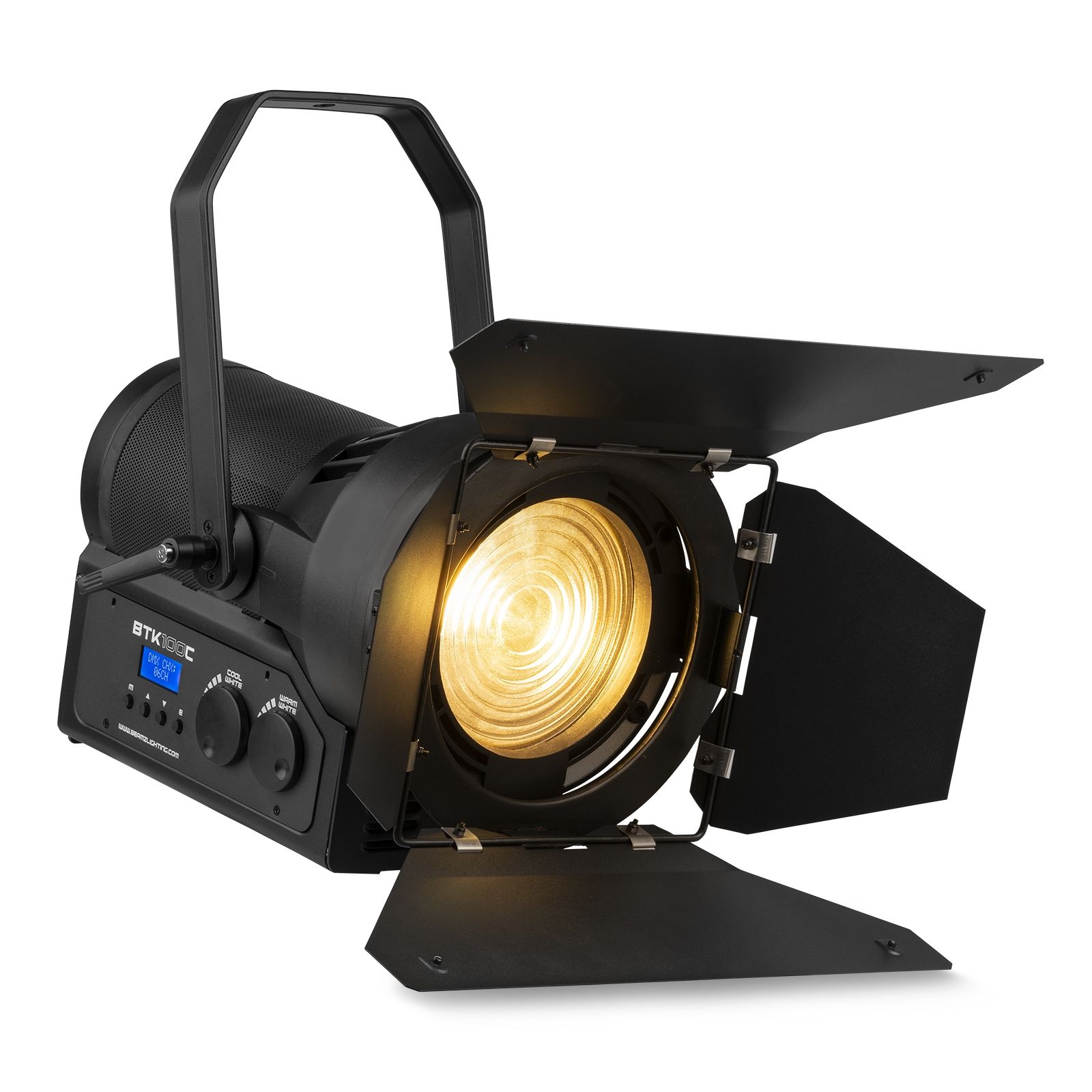

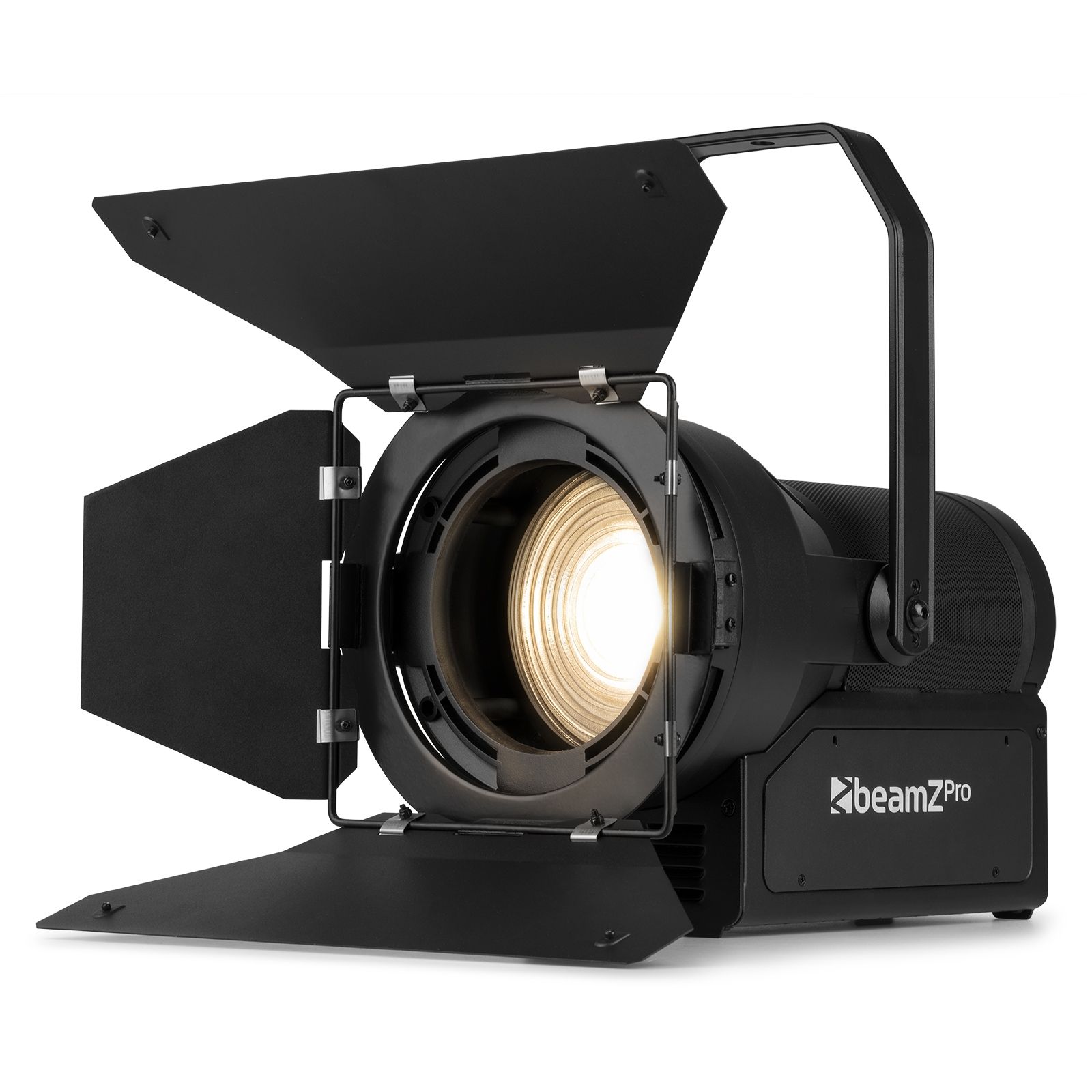

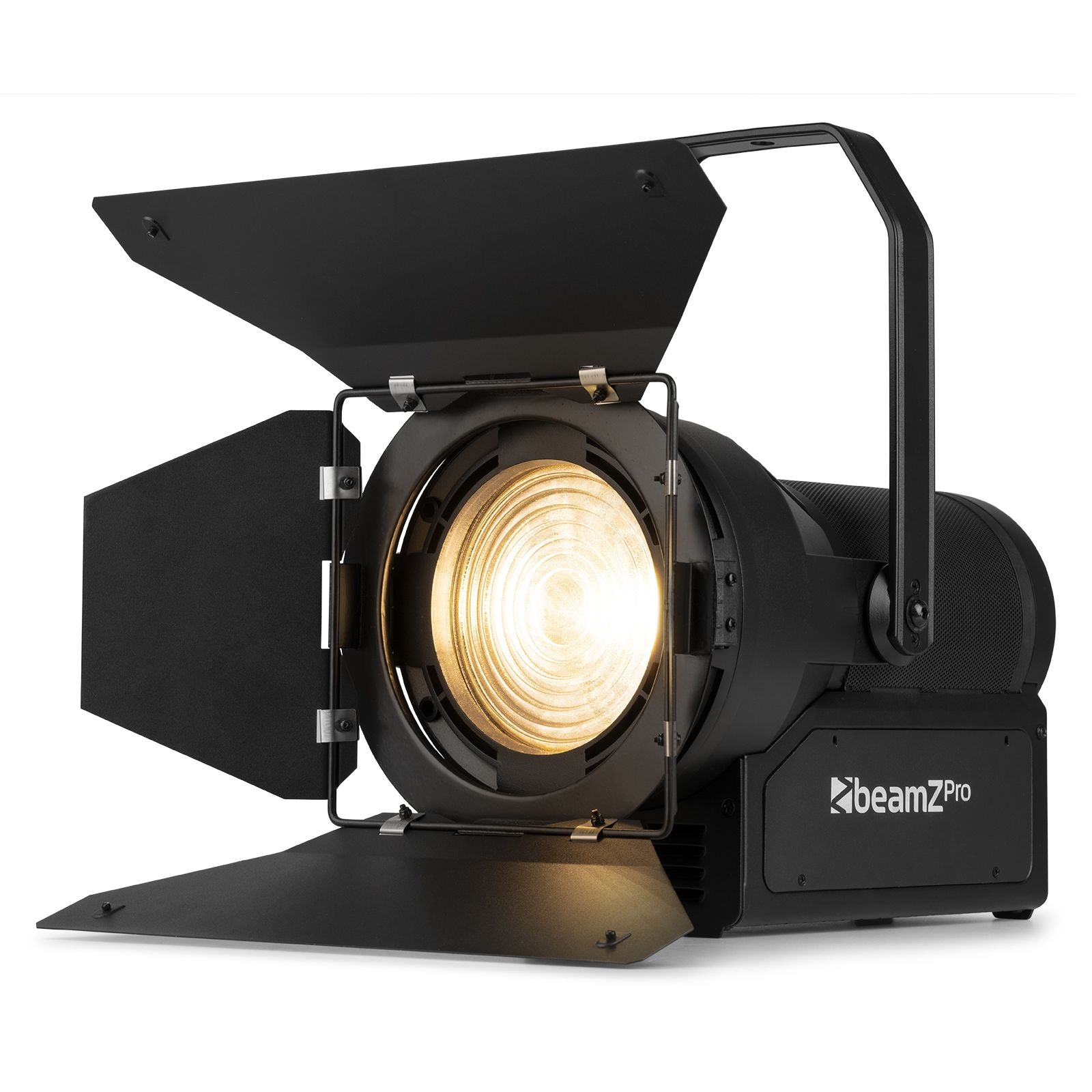

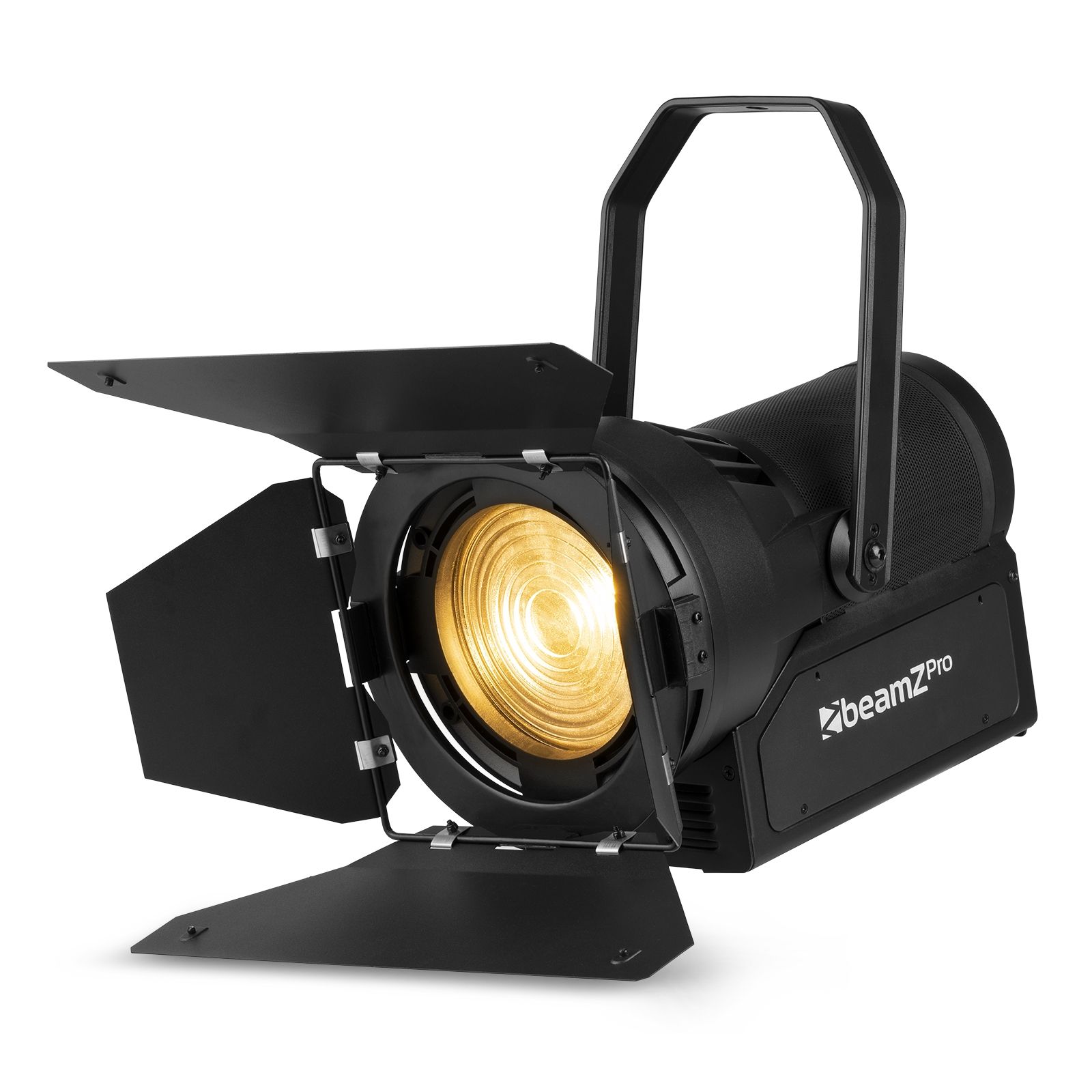

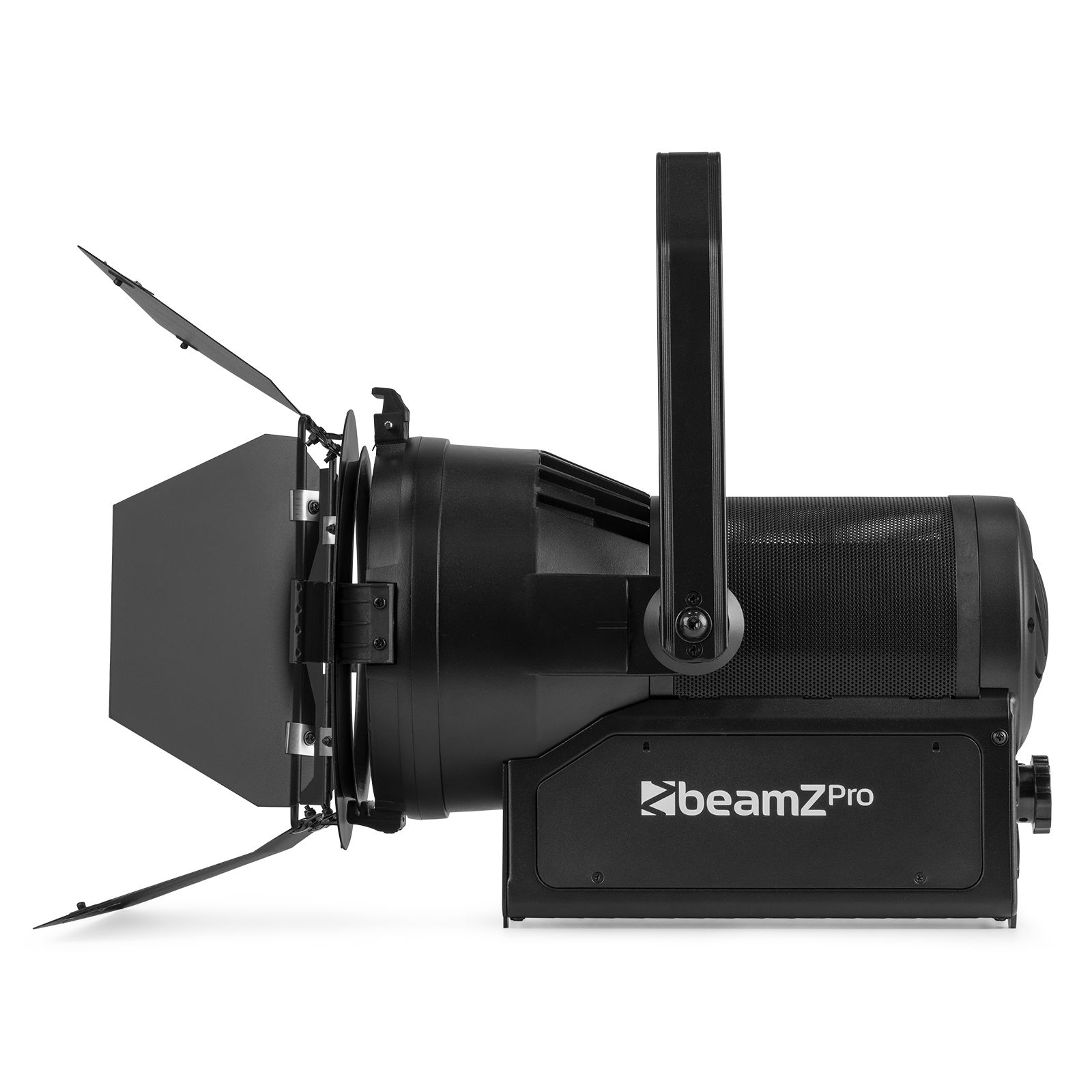

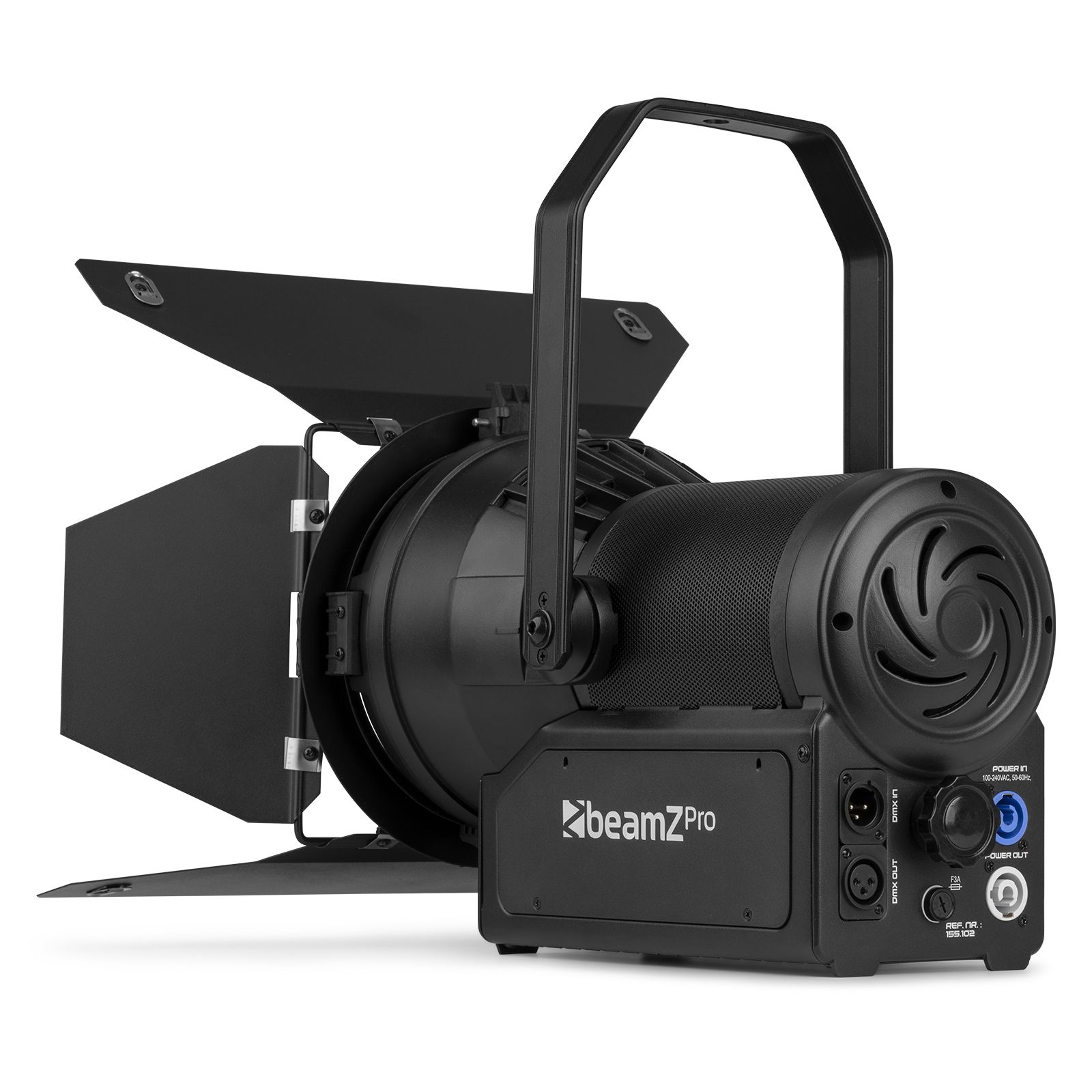

Fresnel 100W CW/WW Manual Zoom
SKU 155.102
|EAN 8715693345087
+9
All product information
Compare
BTK series
Description
Highlights
- 100W Cool White/Warm White COB LED
- Colour Temperature: between 2800K and 6000K
- Lifetime LED: 50.000 hours
- Manual zoom
- Compact and lightweight Aluminium body
- HQ optical system
- CRI >95 (Colour Rendering Index)
- Dimming: 0 - 100% (2 manual dimmers)
- Flicker free

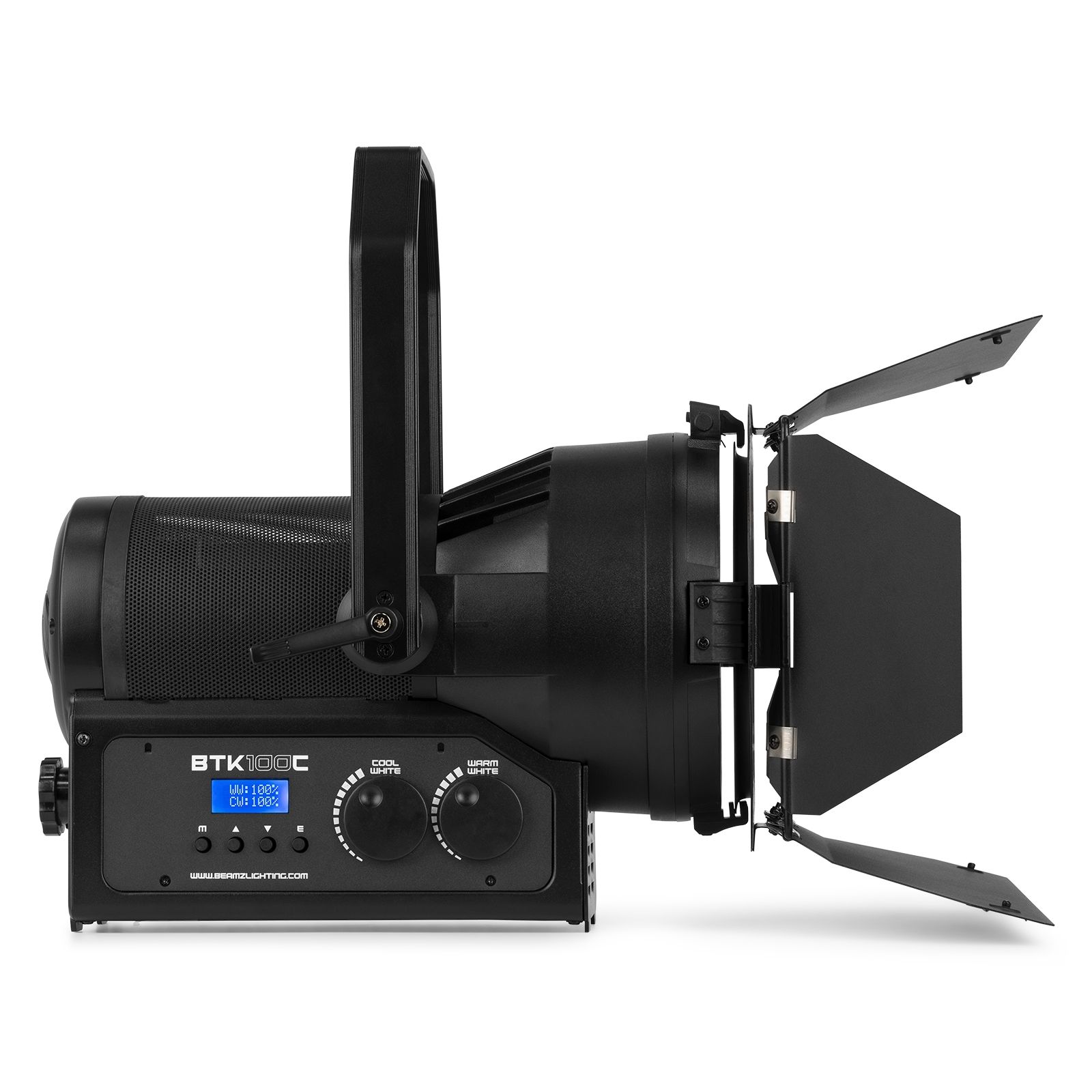

- Control Panel: LED Display
- DMX 3-pin or manual control options
- Intelligent temperature control for silent operation
- P-Con in&out

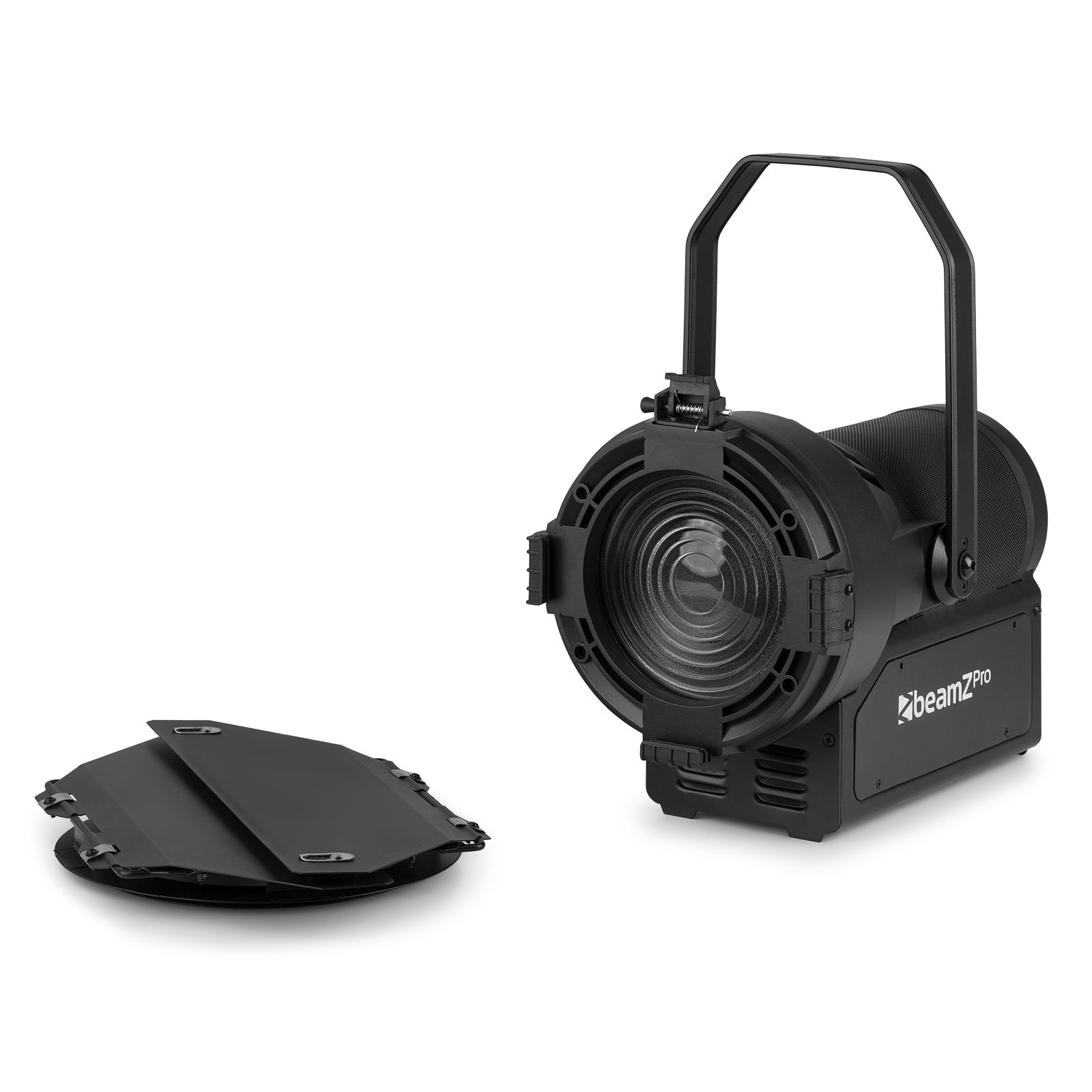

- Including barndoor
Specifications
BrandbeamZ Professional
Product serieBTK series
ColourBlack
Light source
Light source
- 1x 100W CW/WW COB LED
Colour Temperature2.8 - 6 K
Illuminance43854 lx @ 1m
CRI≥95
Optics
Beam angle
- 15 - 40
ZoomYes
Features
Flash Per Second1 - 12 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels2, 6
RDMNo
DMX connector3-pin XLR

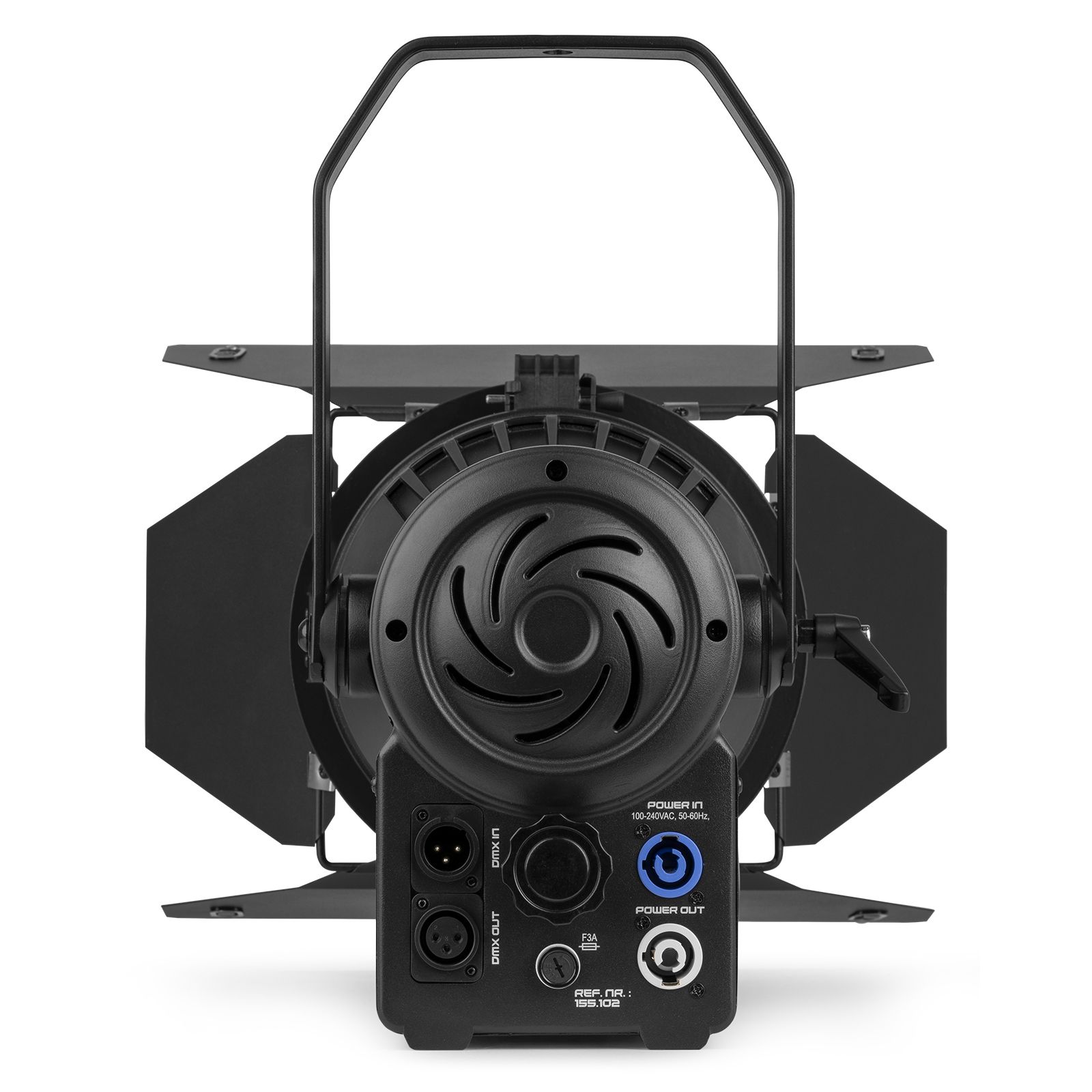

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 210 x 355 x 390 mm (W x D x H)
Weight
- 4.95 kg
Accessories
Included Accessories
- Mounting bracket
