BTK050Z-3

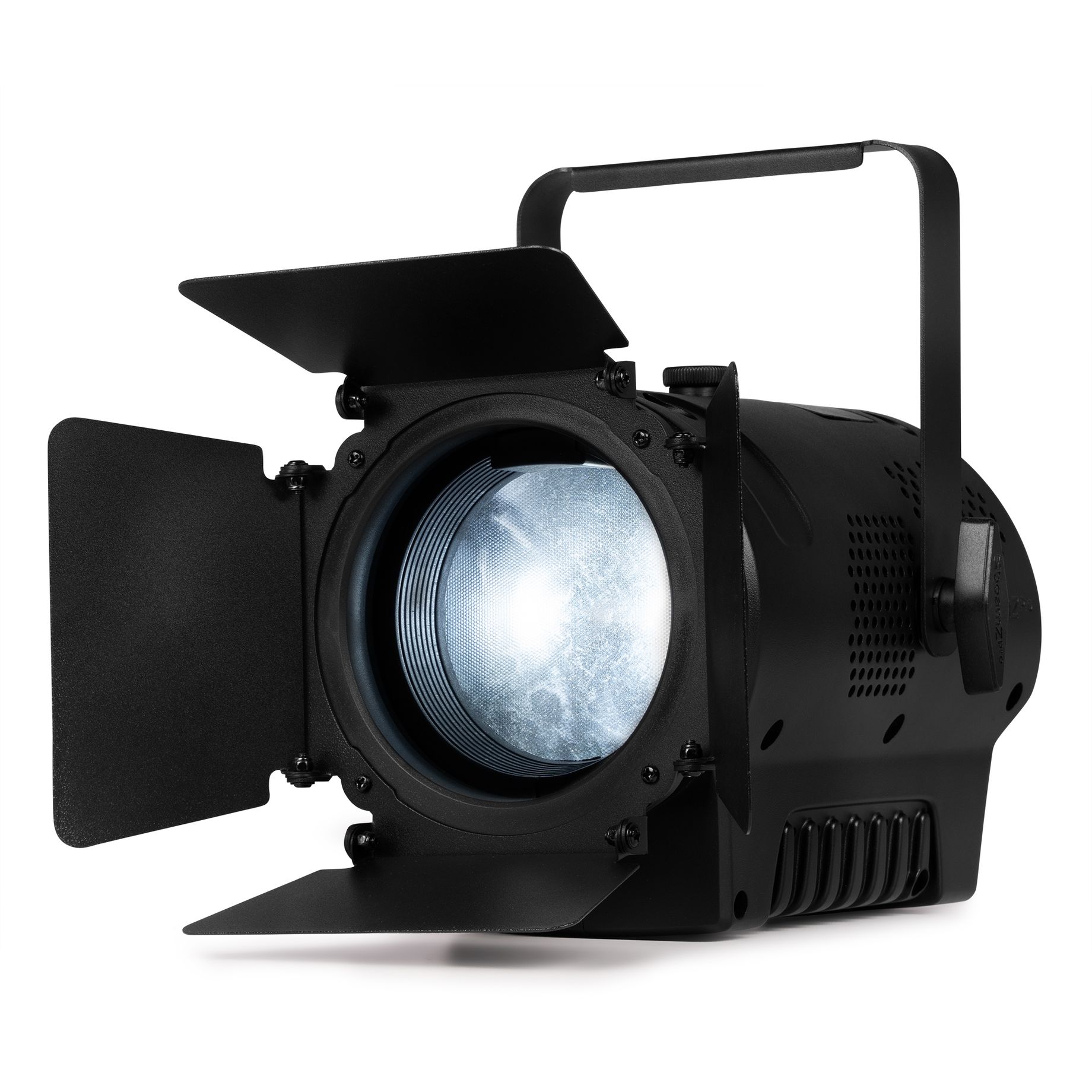

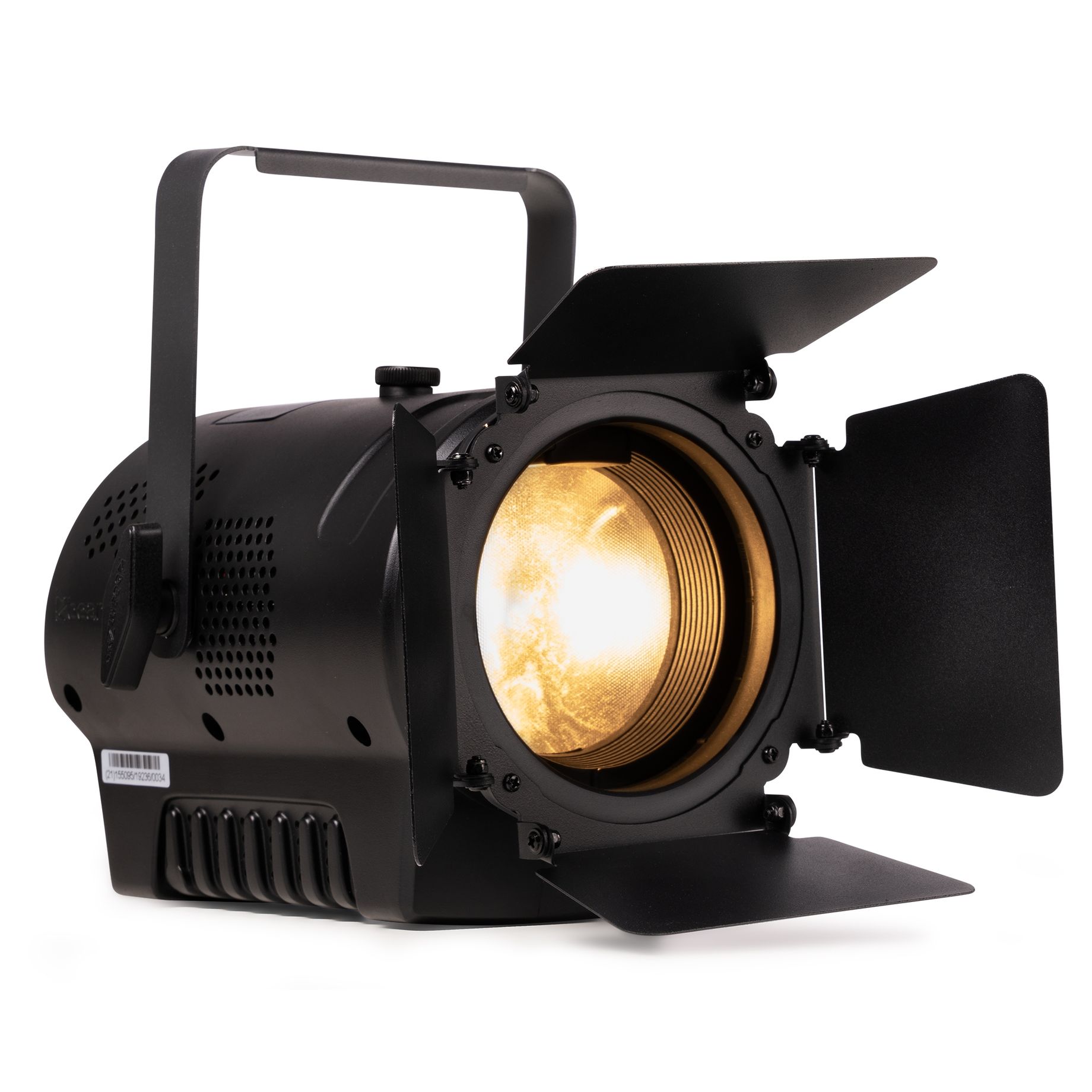

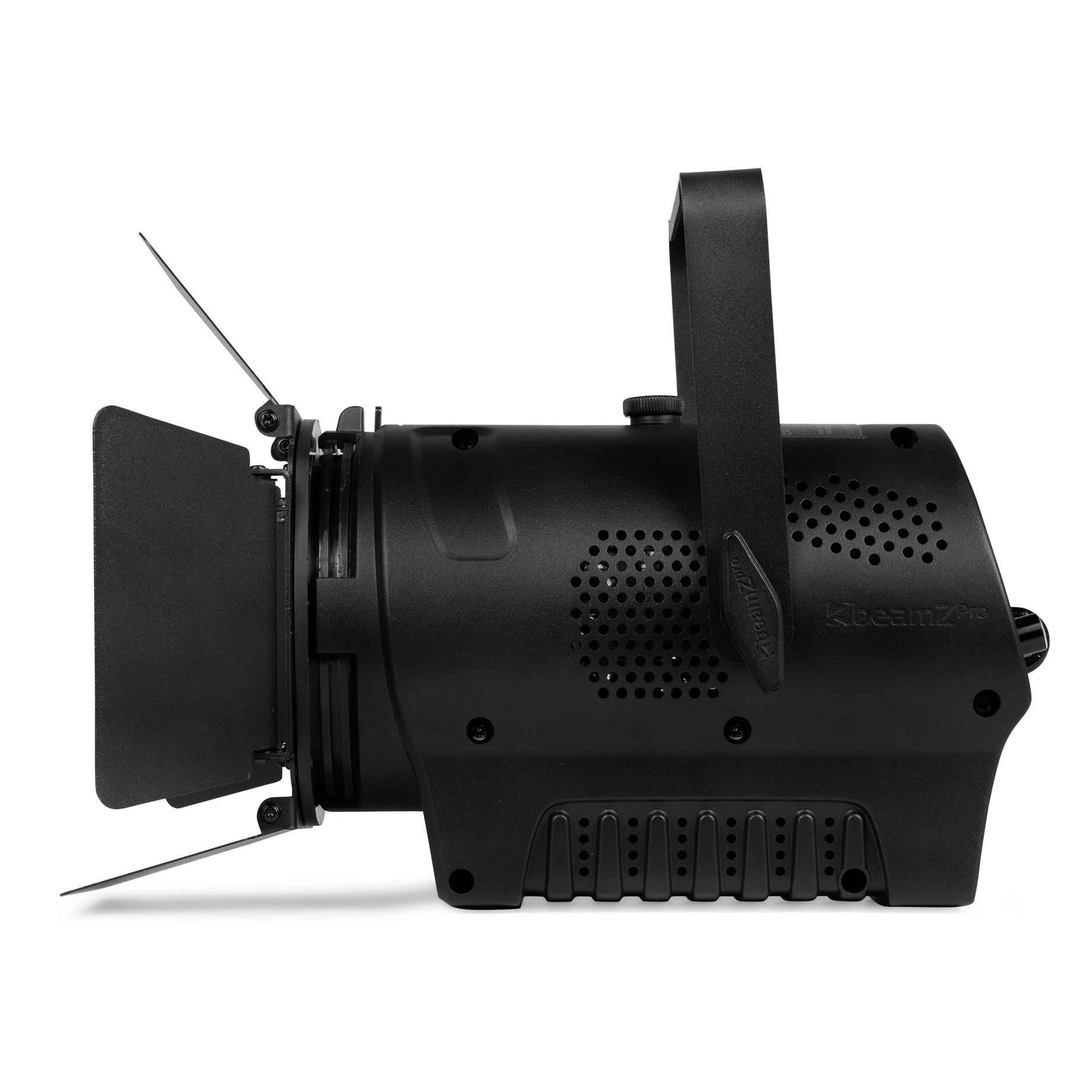

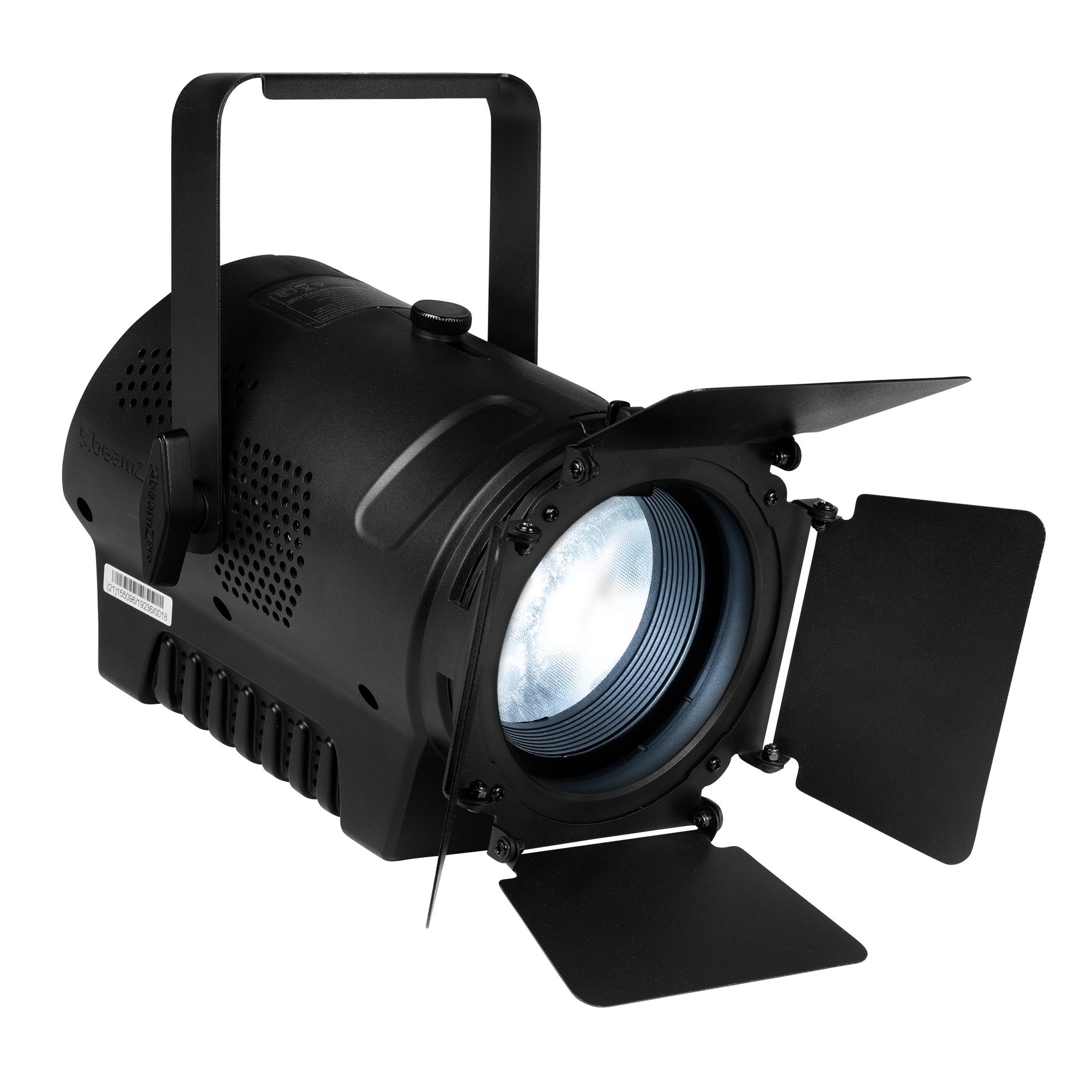

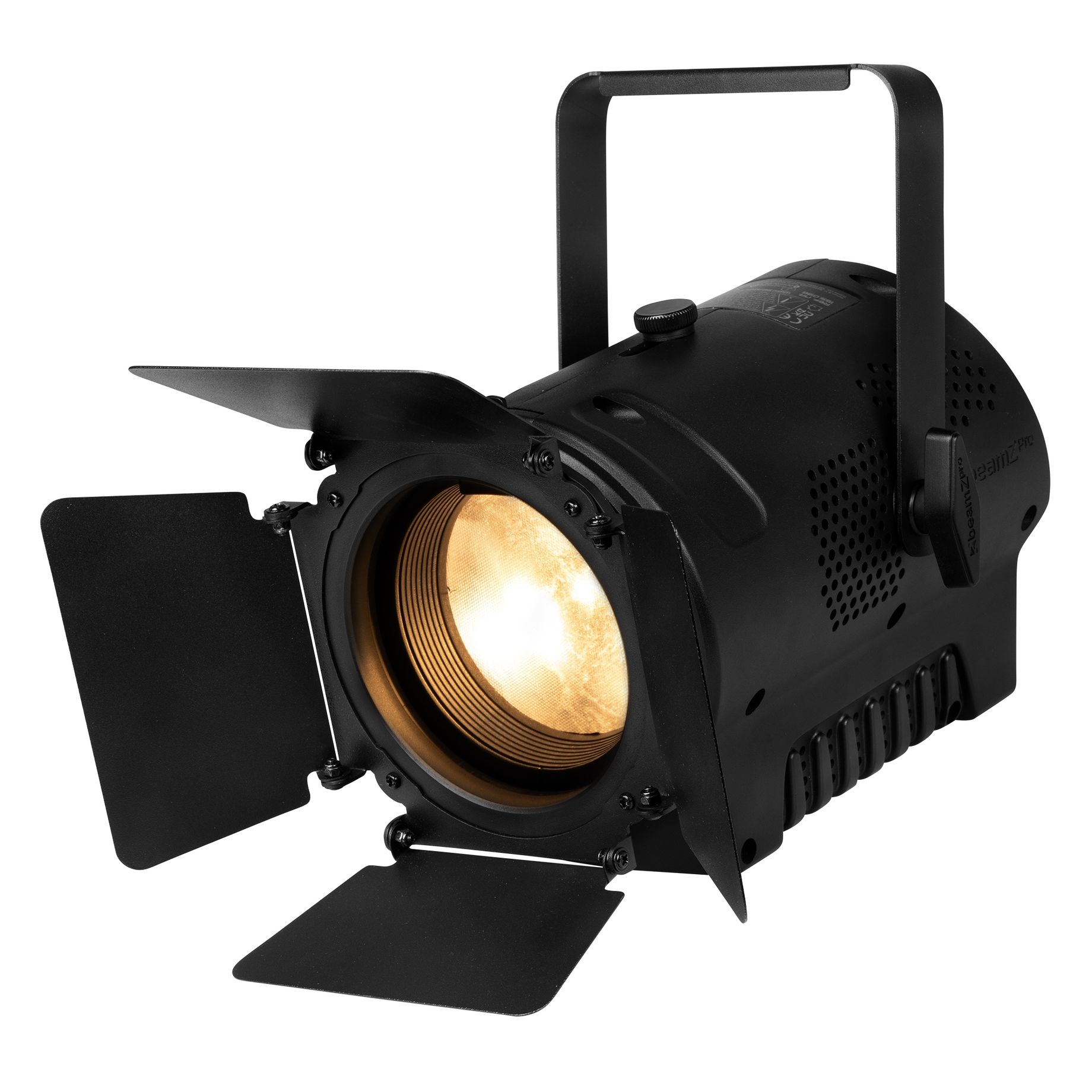

Mini Fresnel Zoom 2x 50W LED WW/CW
SKU 155.096
|EAN 8715693354287
+5
Color
All product information
Compare
BTK series
Description
Highlights
- 50W Cool White + 50W Warm White COB LED
- Colour Temperature: 2700K - 6500K
- Replaces 300-500W Halogen Lamps
- 10° to 60° Manual zoom
- Compact and lightweight body
- HQ optical system
- CRI 92 (Colour Rendering Index) TLCI 98(3200K), TLCI 96(5600k)
- 16 bit dimming via DMX
- Flicker free

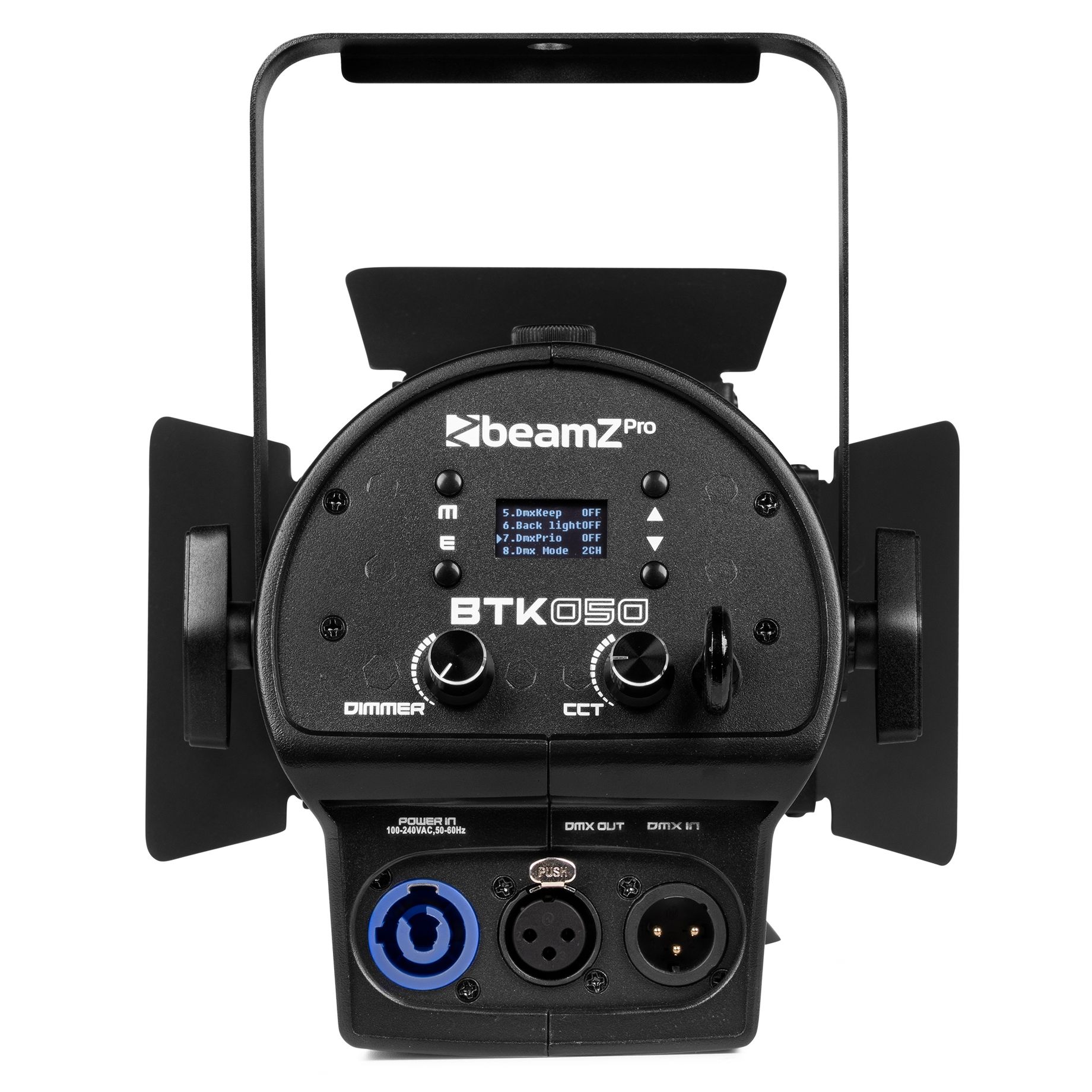

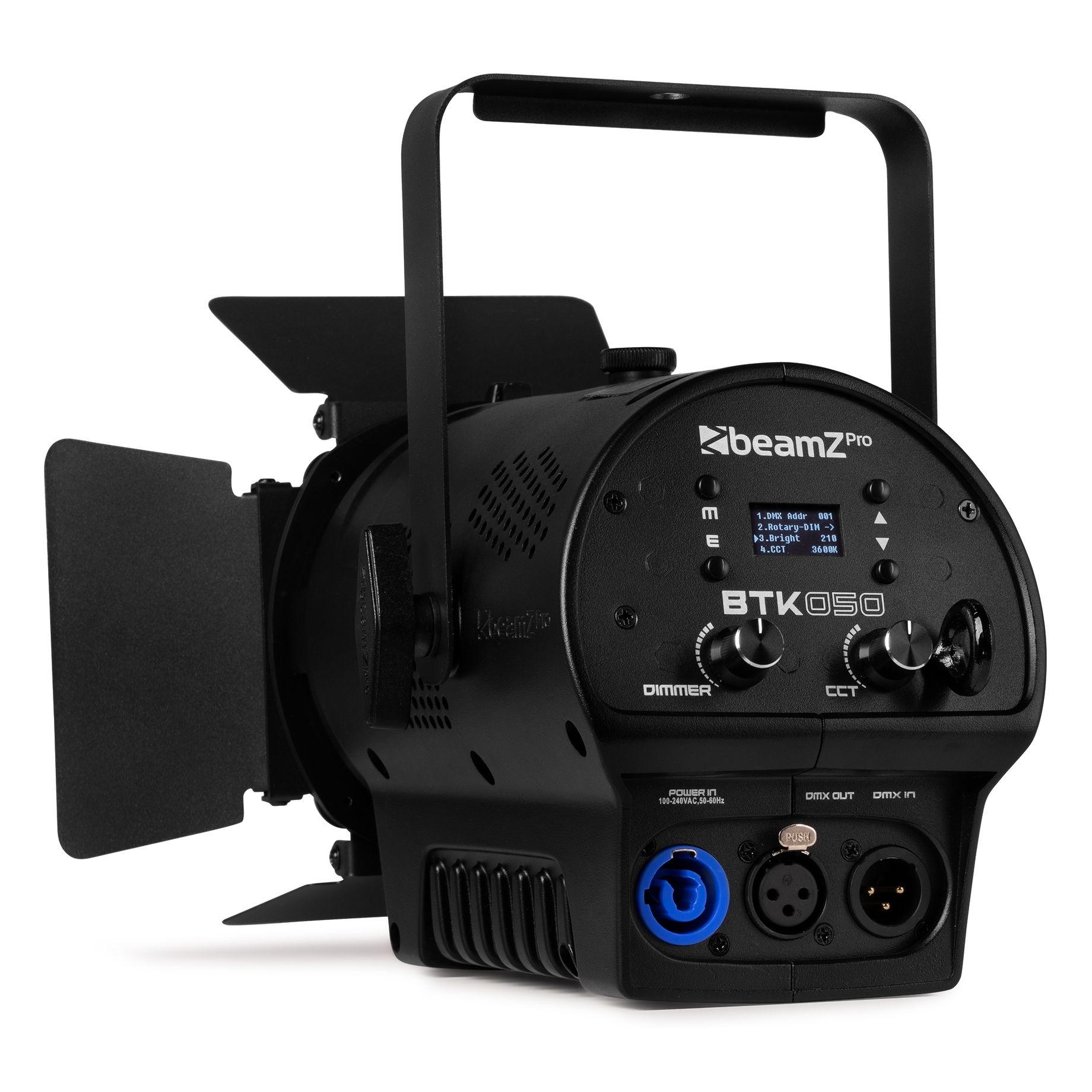

- Control Panel: OLED Display
- DMX (3-pin) and manual control options
- Intelligent temperature control for silent operation
- P-Con Powerconnector input
- Including barndoor
Specifications
BrandbeamZ Professional
Product serieBTK series
ColourBlack
Light source
Light source
- 1x 50W Warm white COB LED
Light source
- 1x 50W Cool white COB LED
Colour Temperature2.7 - 6.5 K
Illuminance18668 lx @ 1m
CRI≥92
Optics
Beam angle
- 10 - 60
ZoomYes
Features
Flash Per Second1 - 13 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels2, 3
RDMNo
DMX connector3-pin XLR
Connections
Input connections
- 1x DMX - 3-pin XLR (M)
- 1x Power - Powerconnector (A)
Output connections
- 1x DMX - 3-pin XLR (F)
- 1x Power - Powerconnector (B)
Hardware features
Display typeOLED
CoolingConvection
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 230 x 175 x 250 mm (W x D x H)
Weight
- 2.5 kg
Accessories
Included Accessories

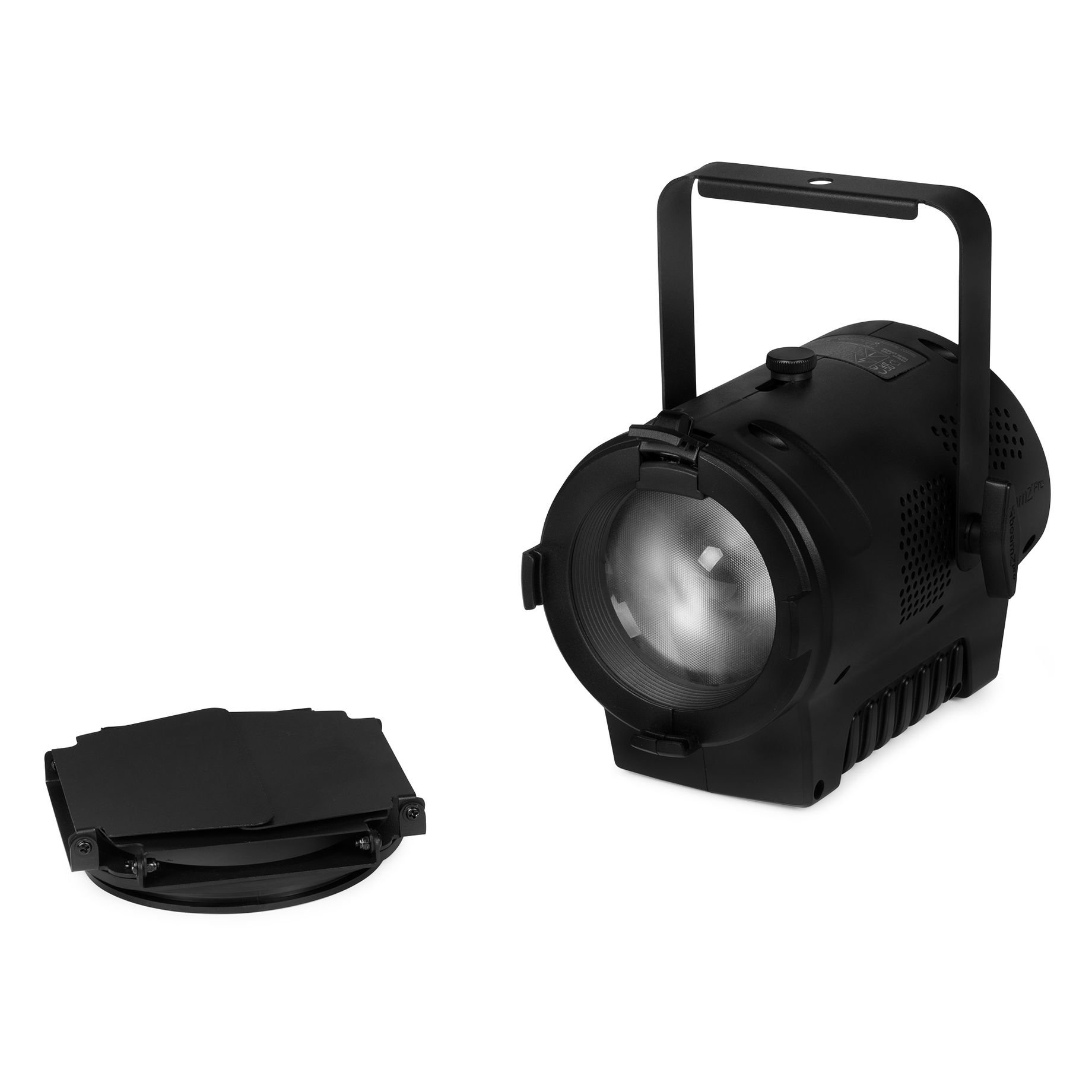

- Barndoor
- Mounting bracket
Manuals & Documents
Manual
PDF
