Tiger

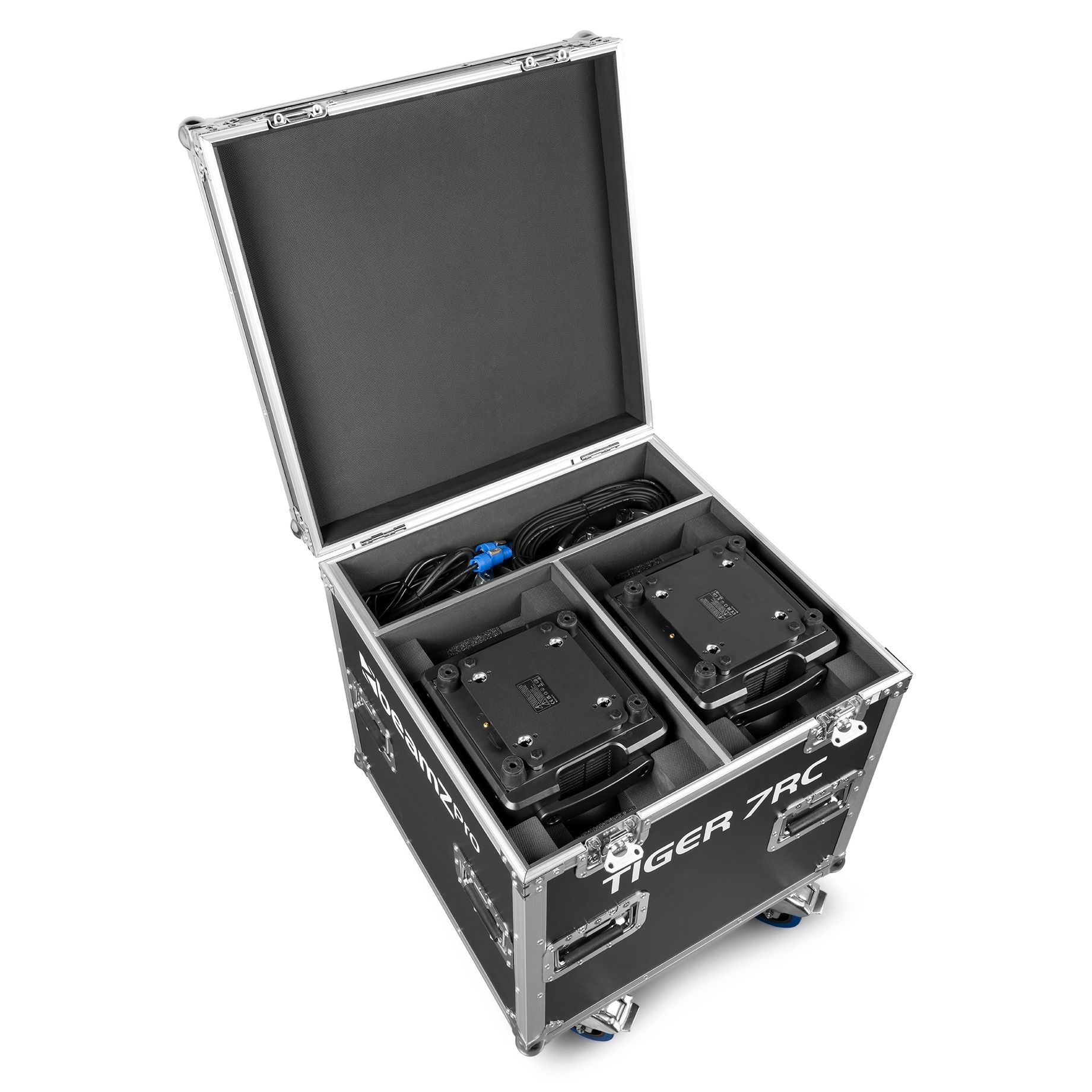

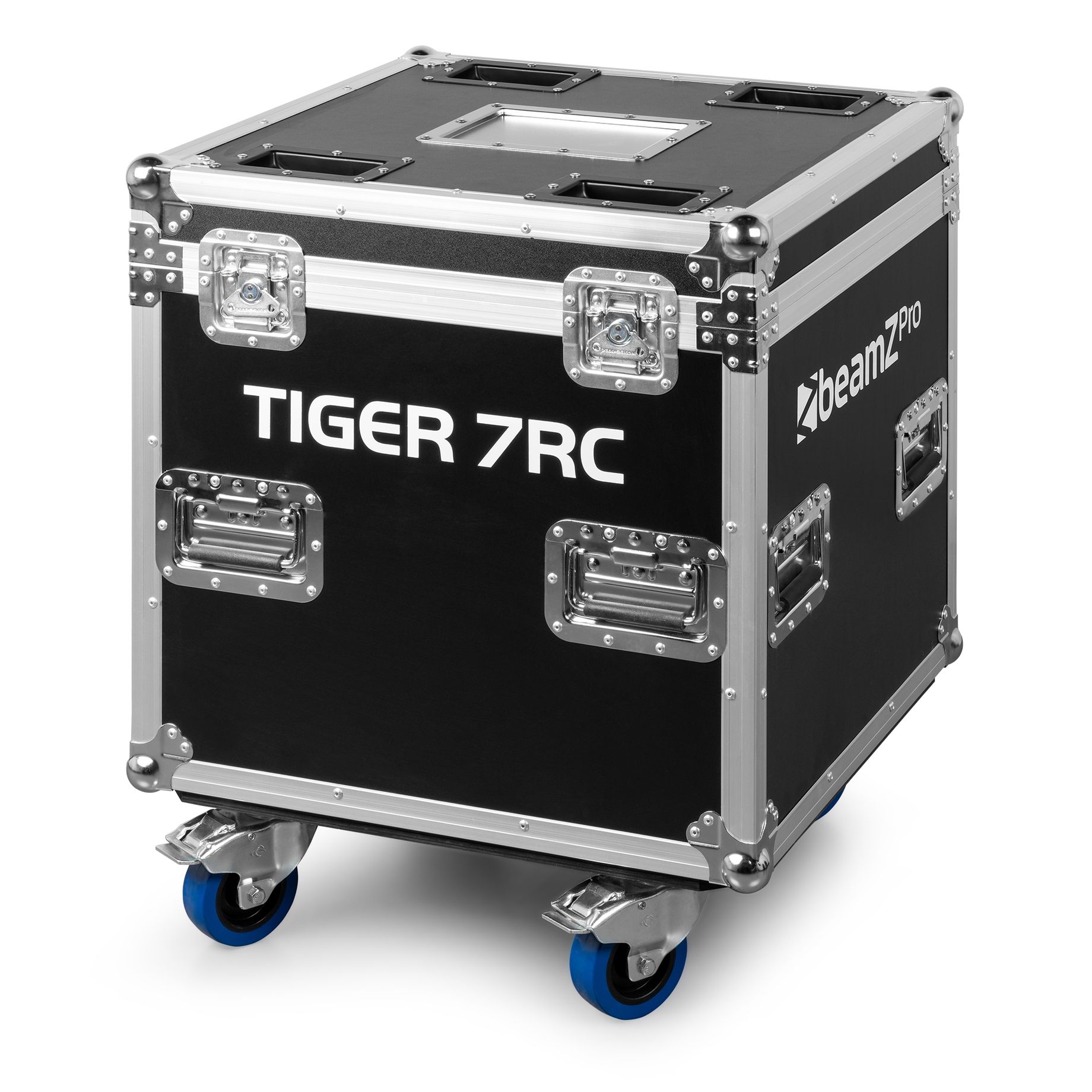

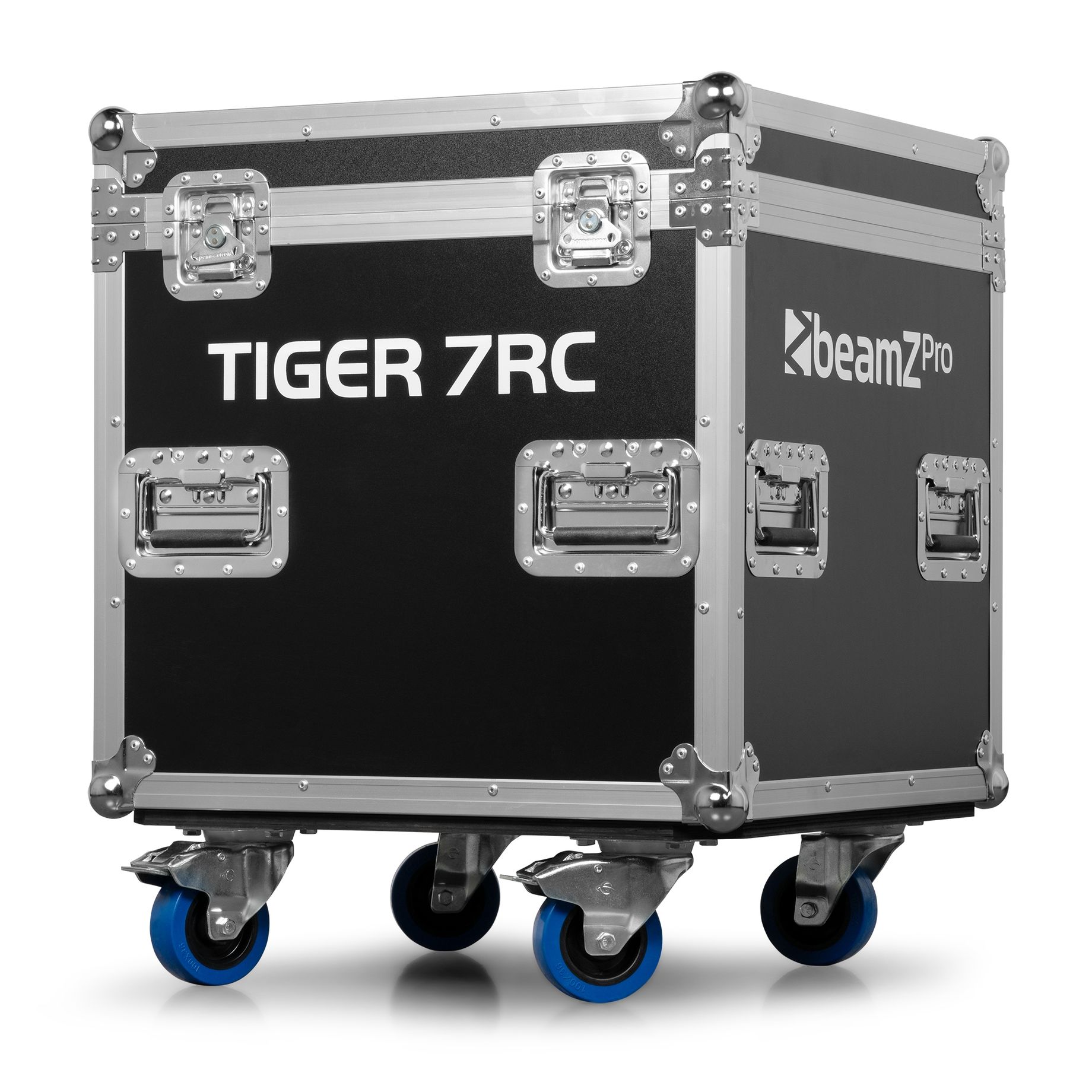

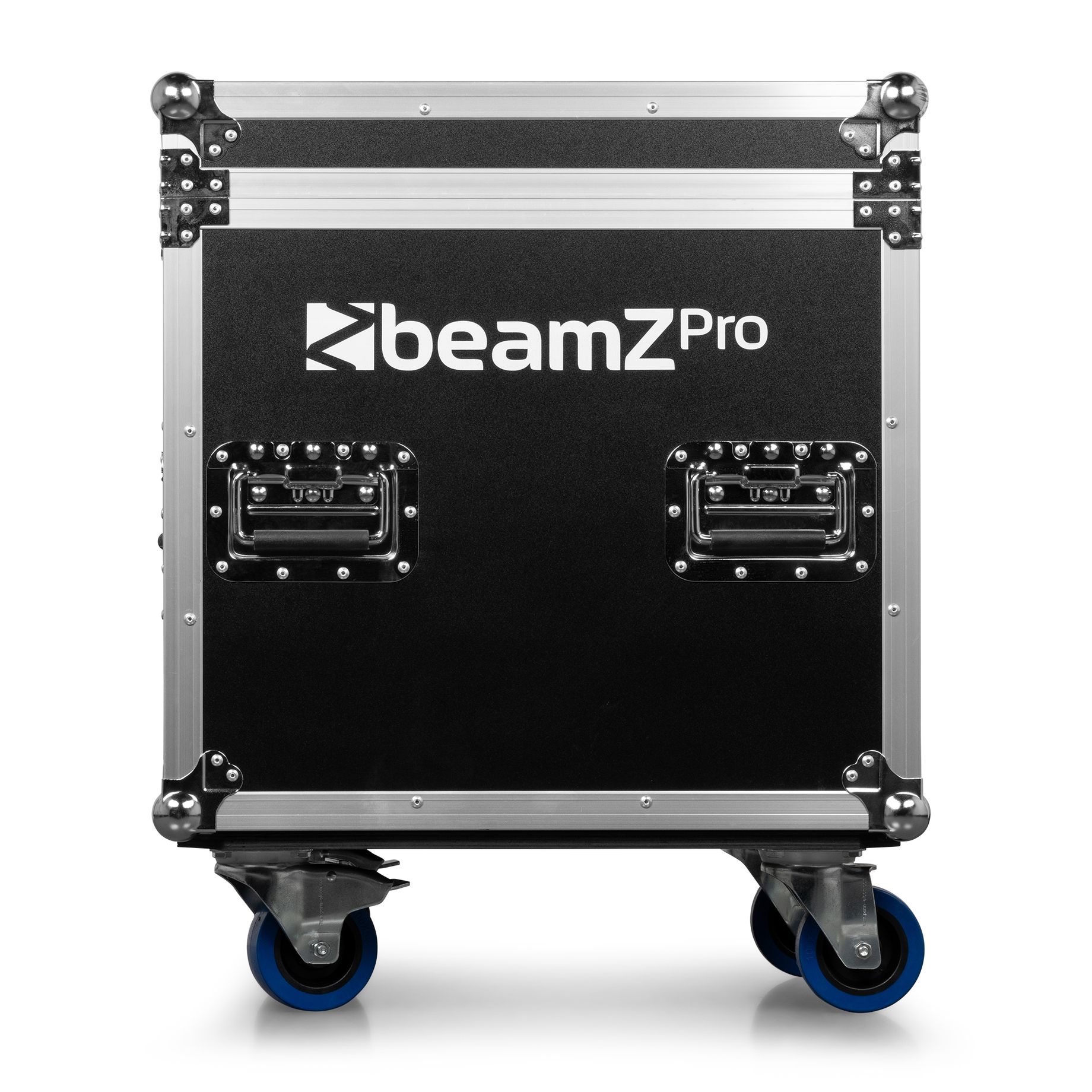

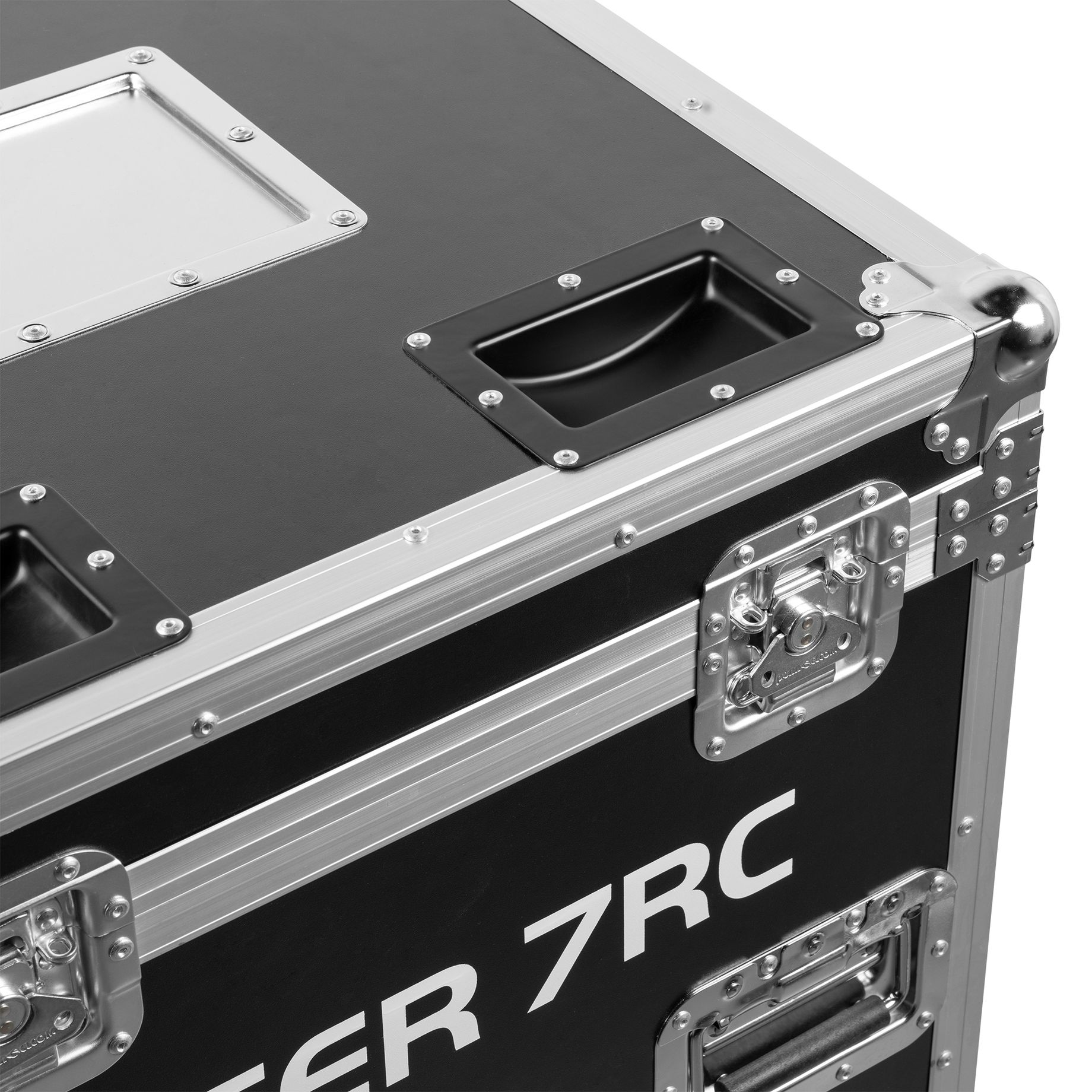

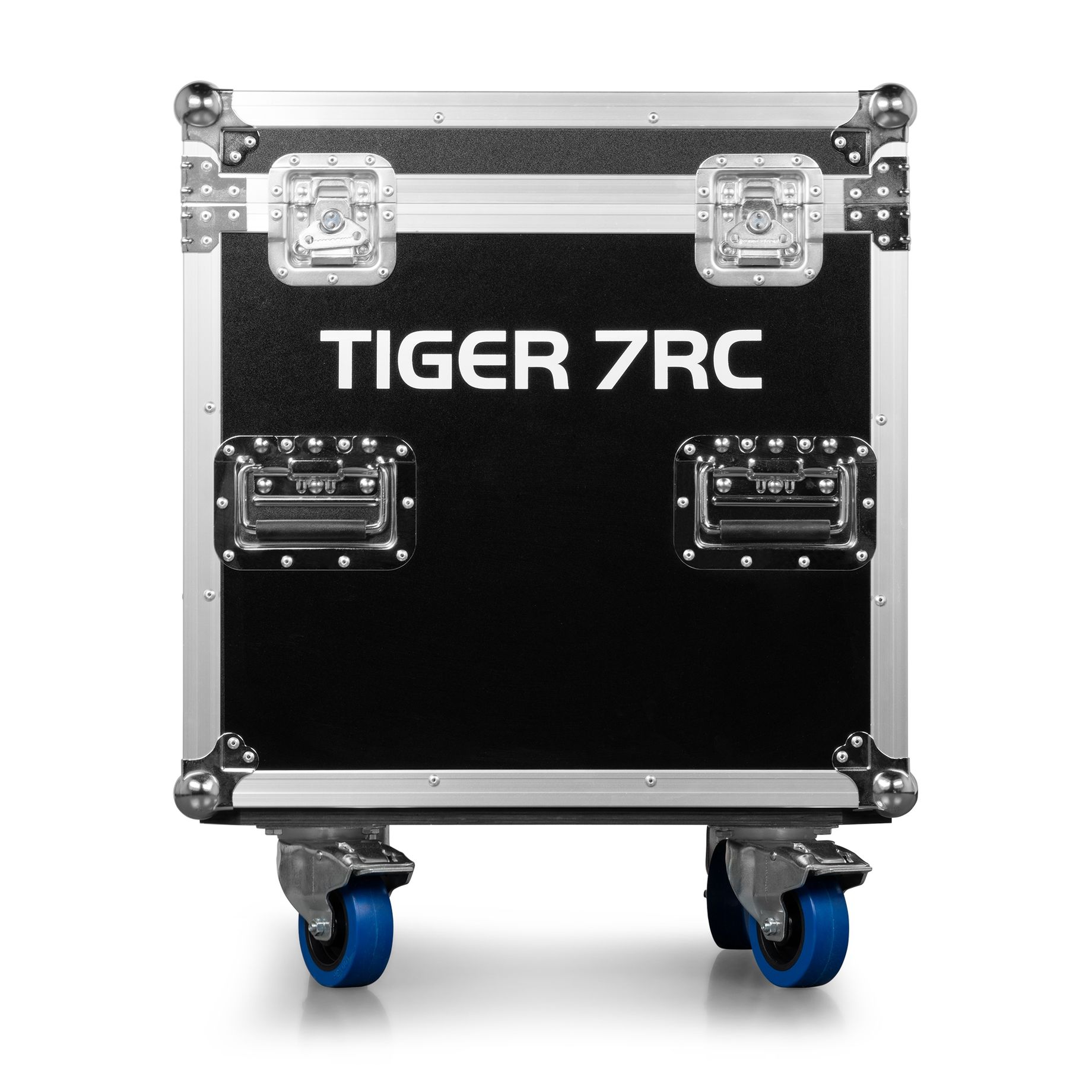

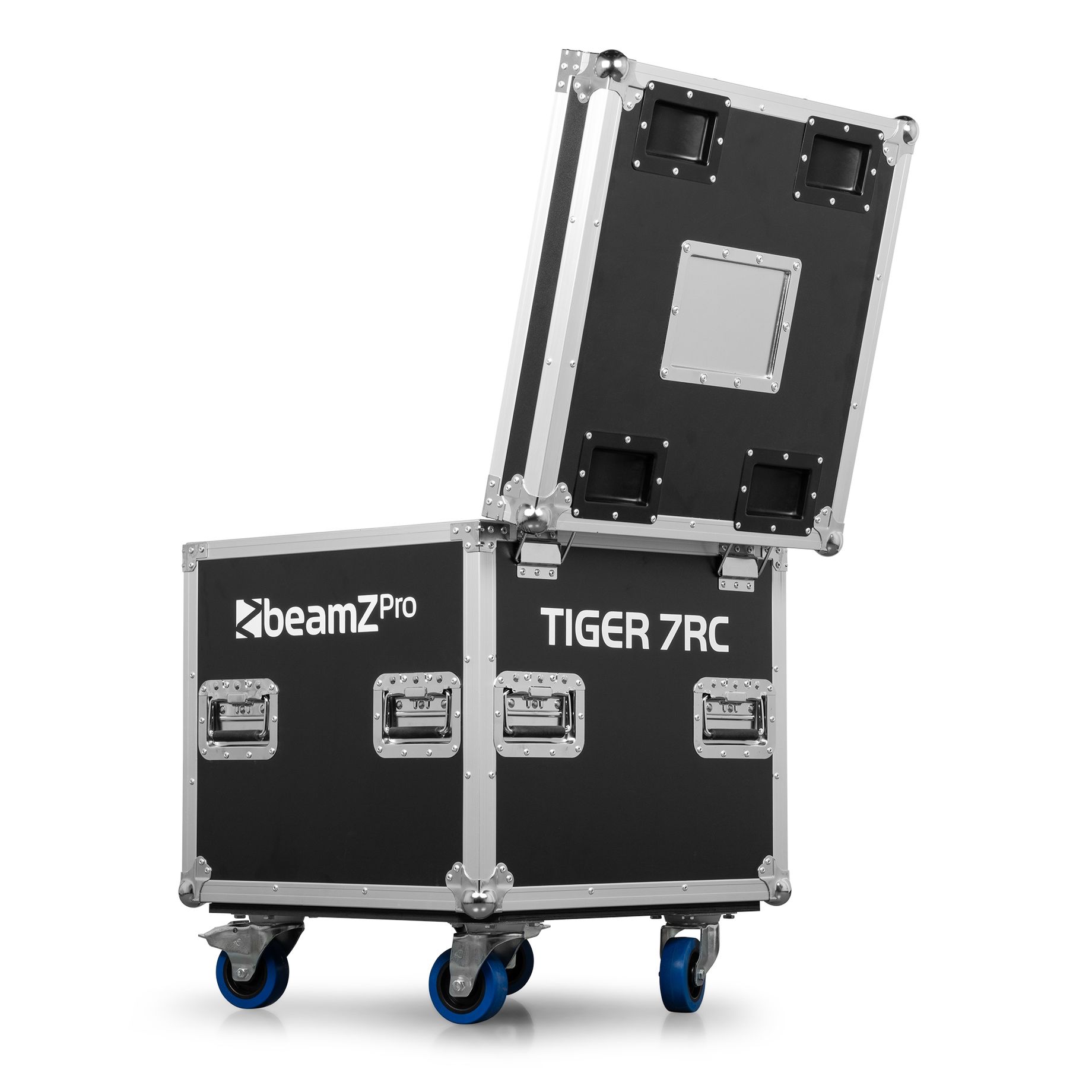

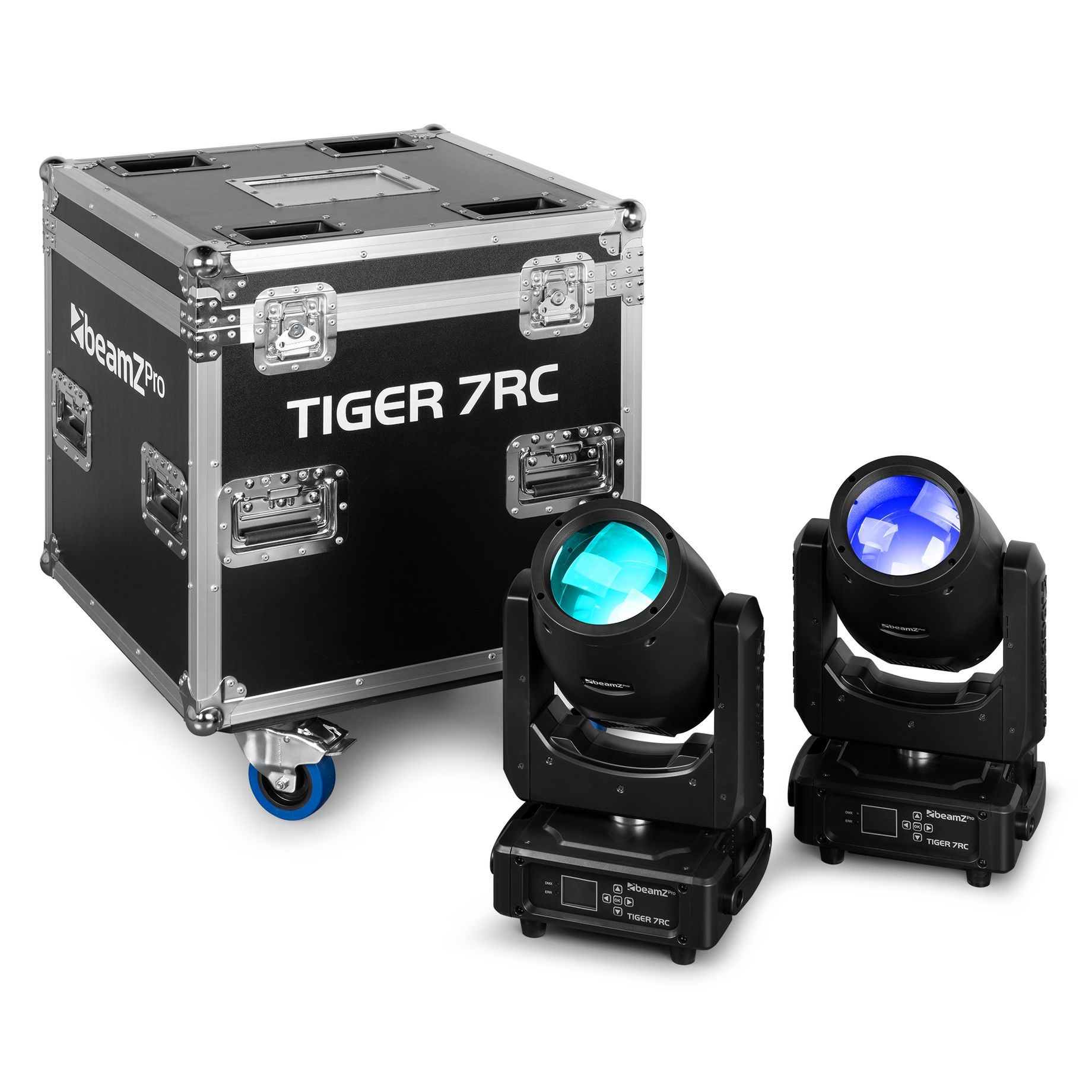

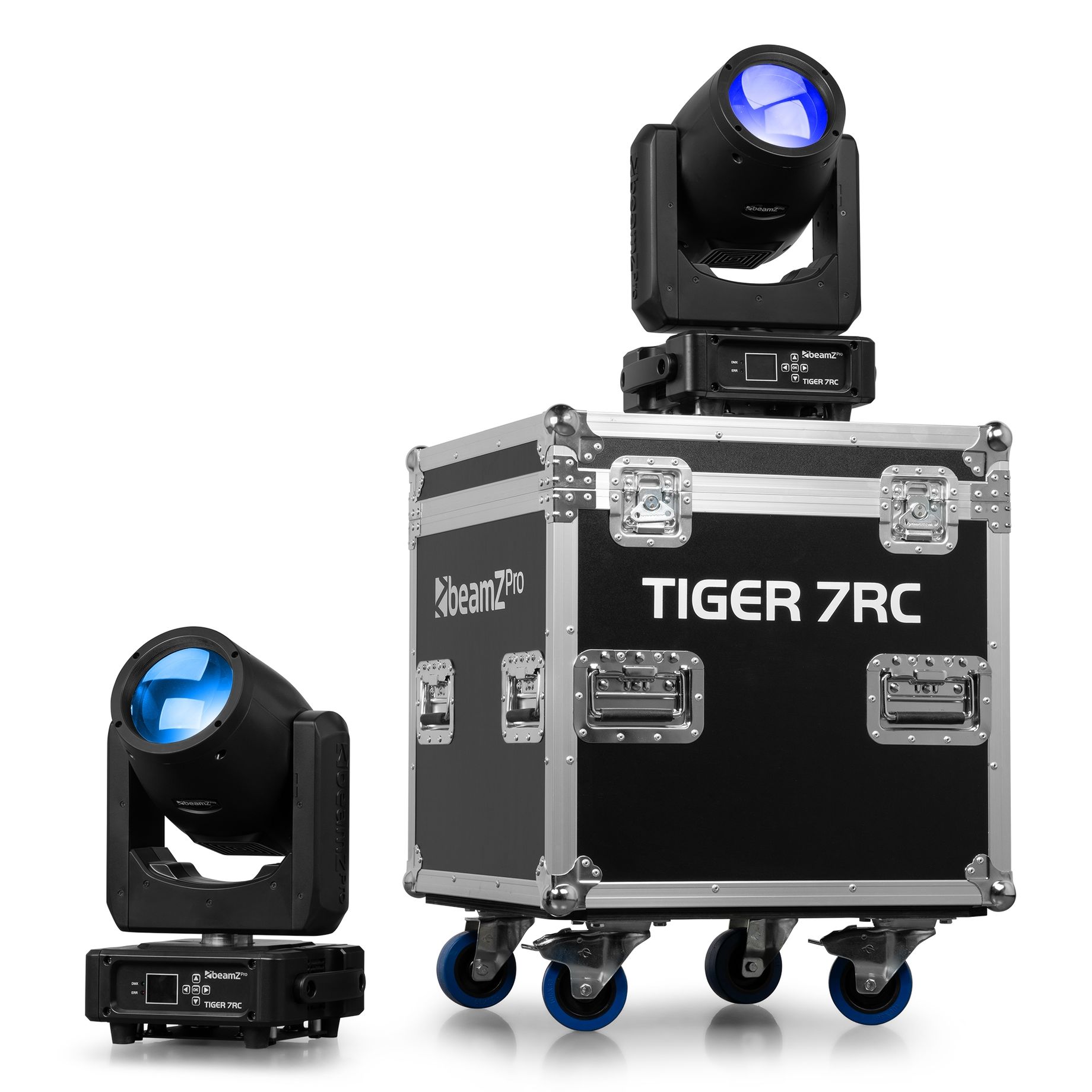

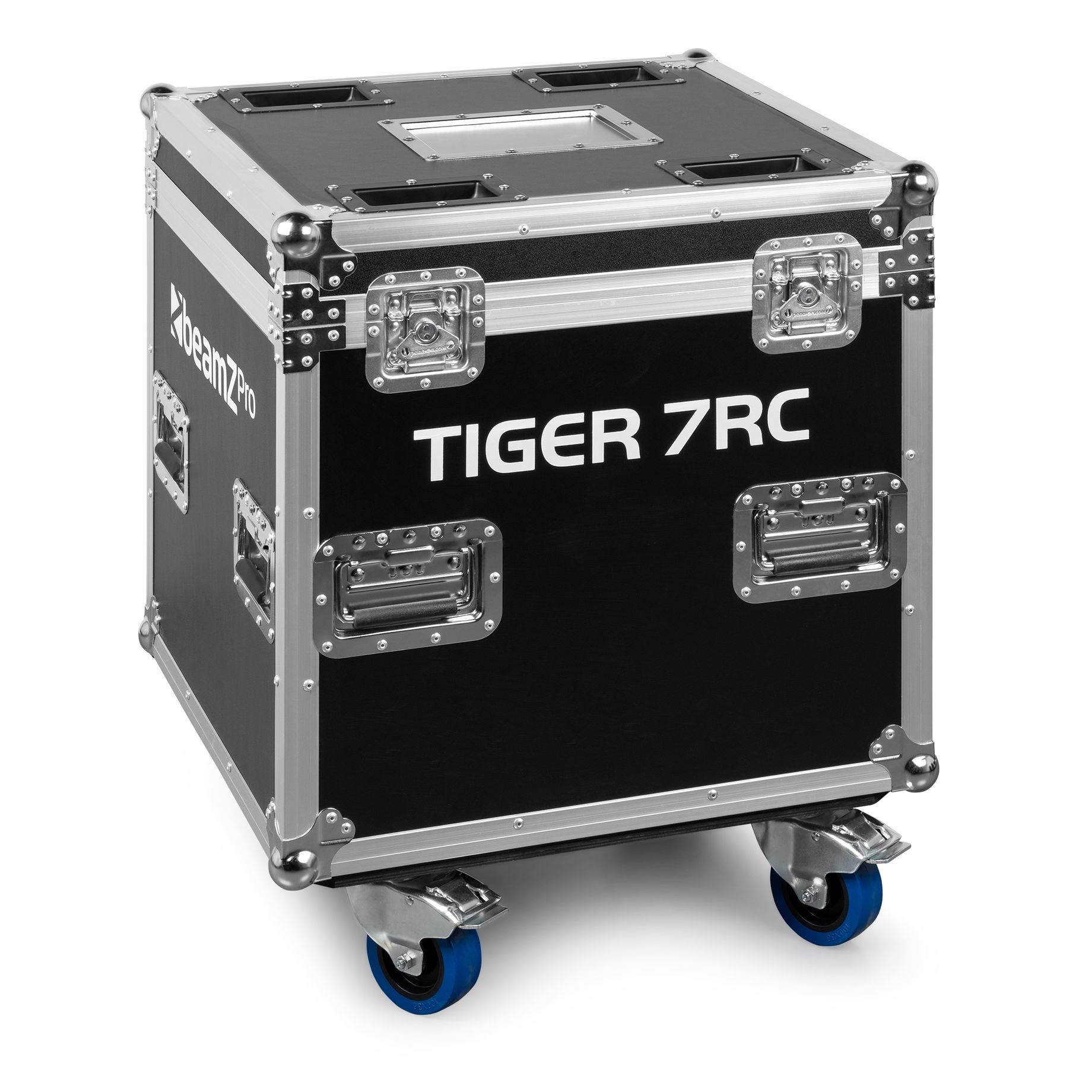

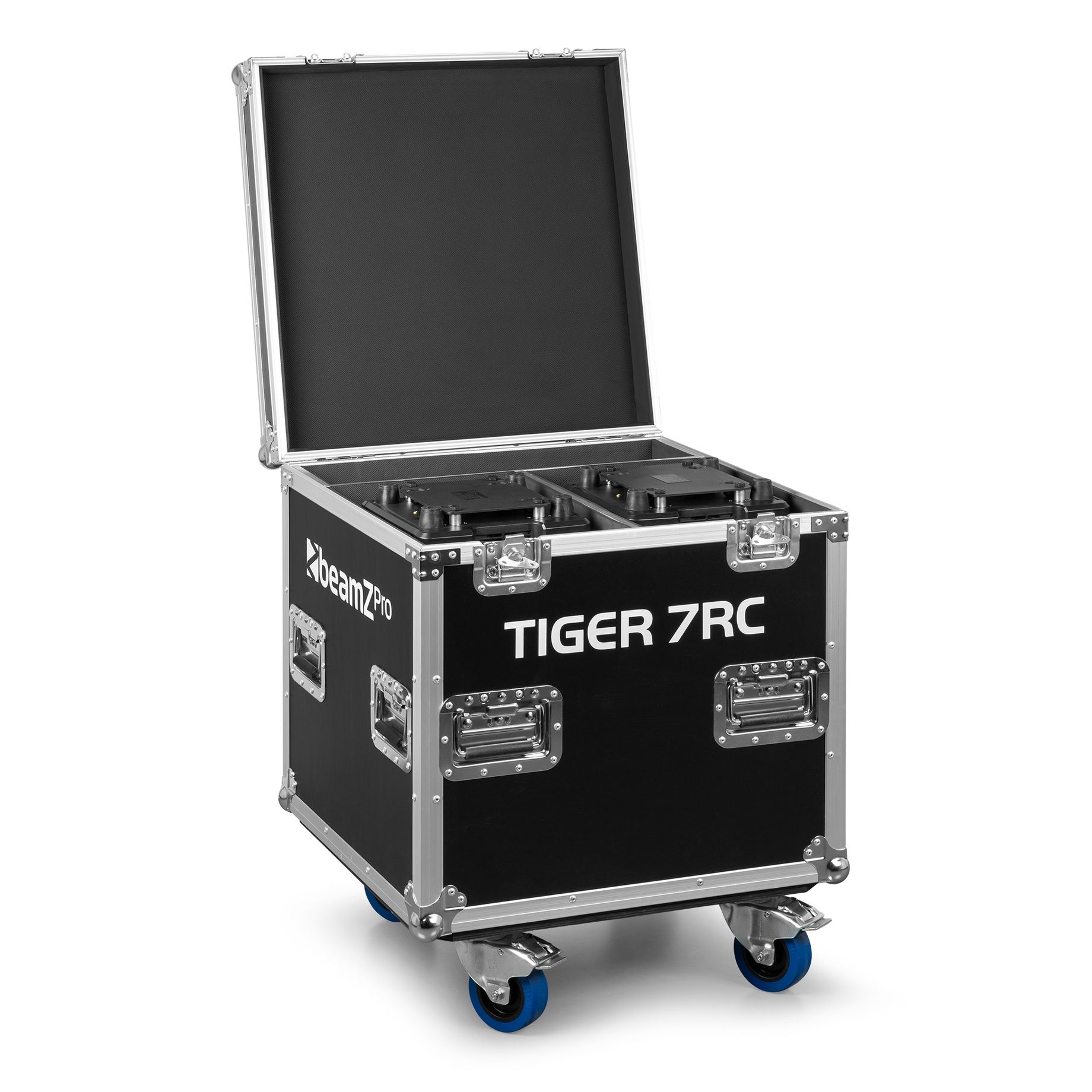

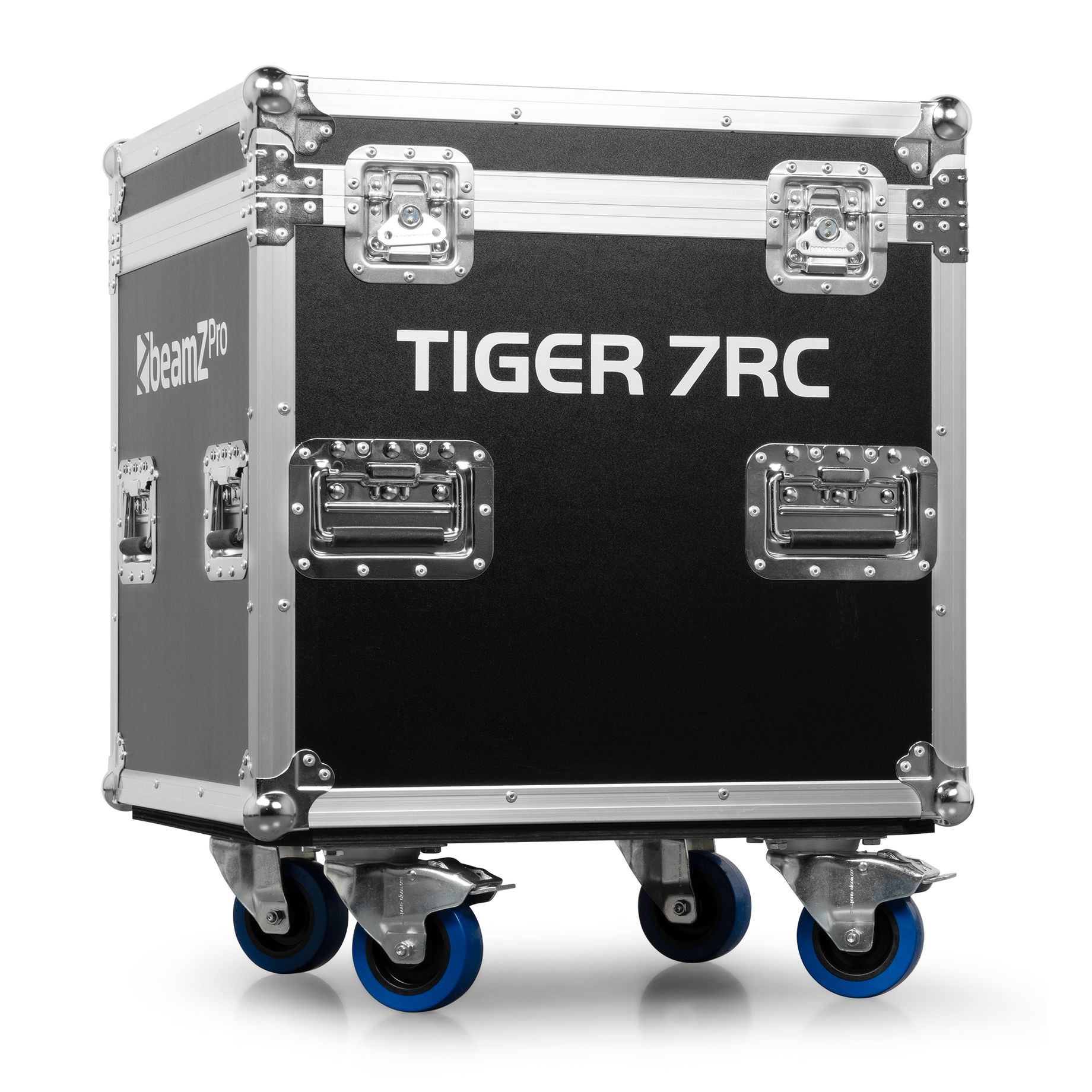

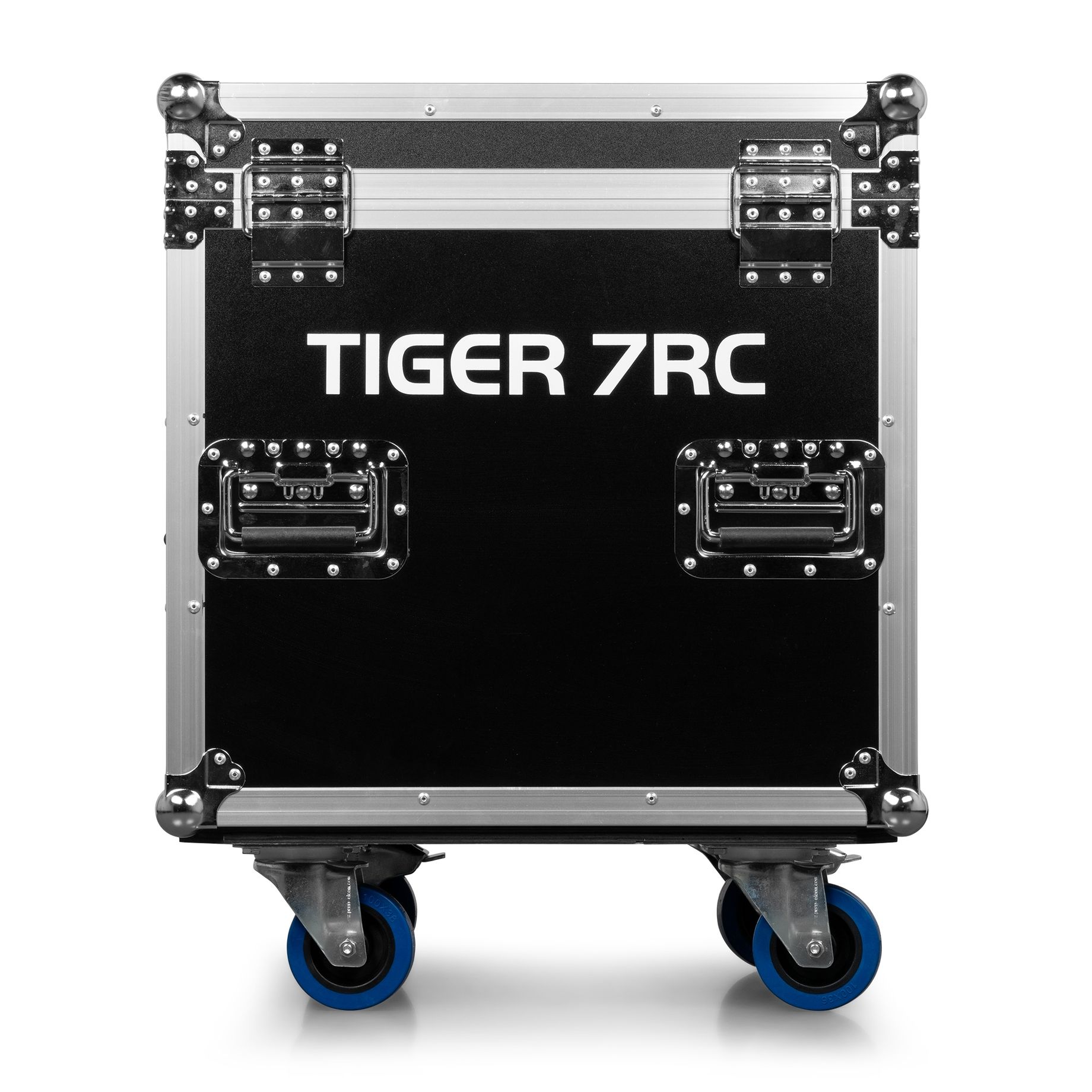

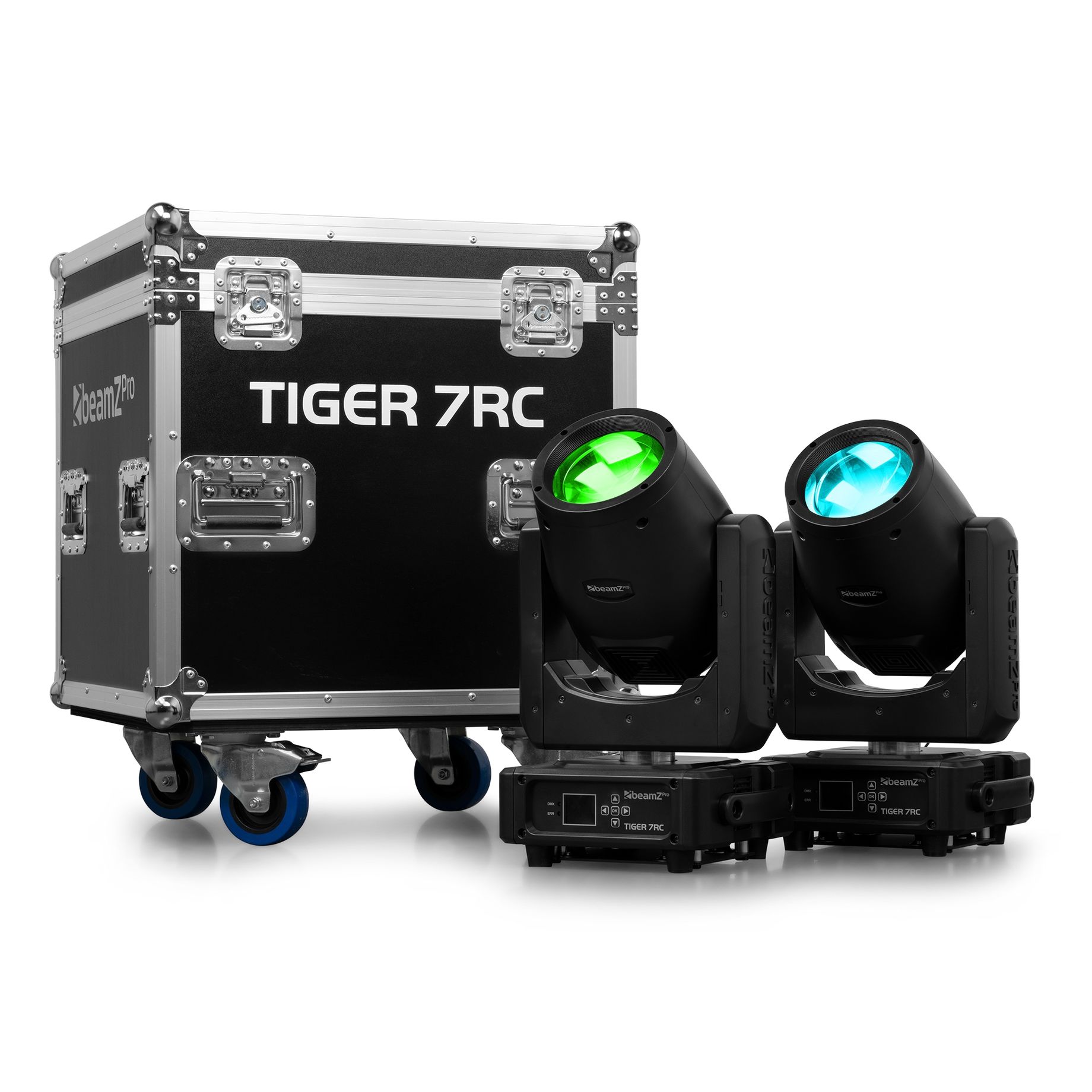

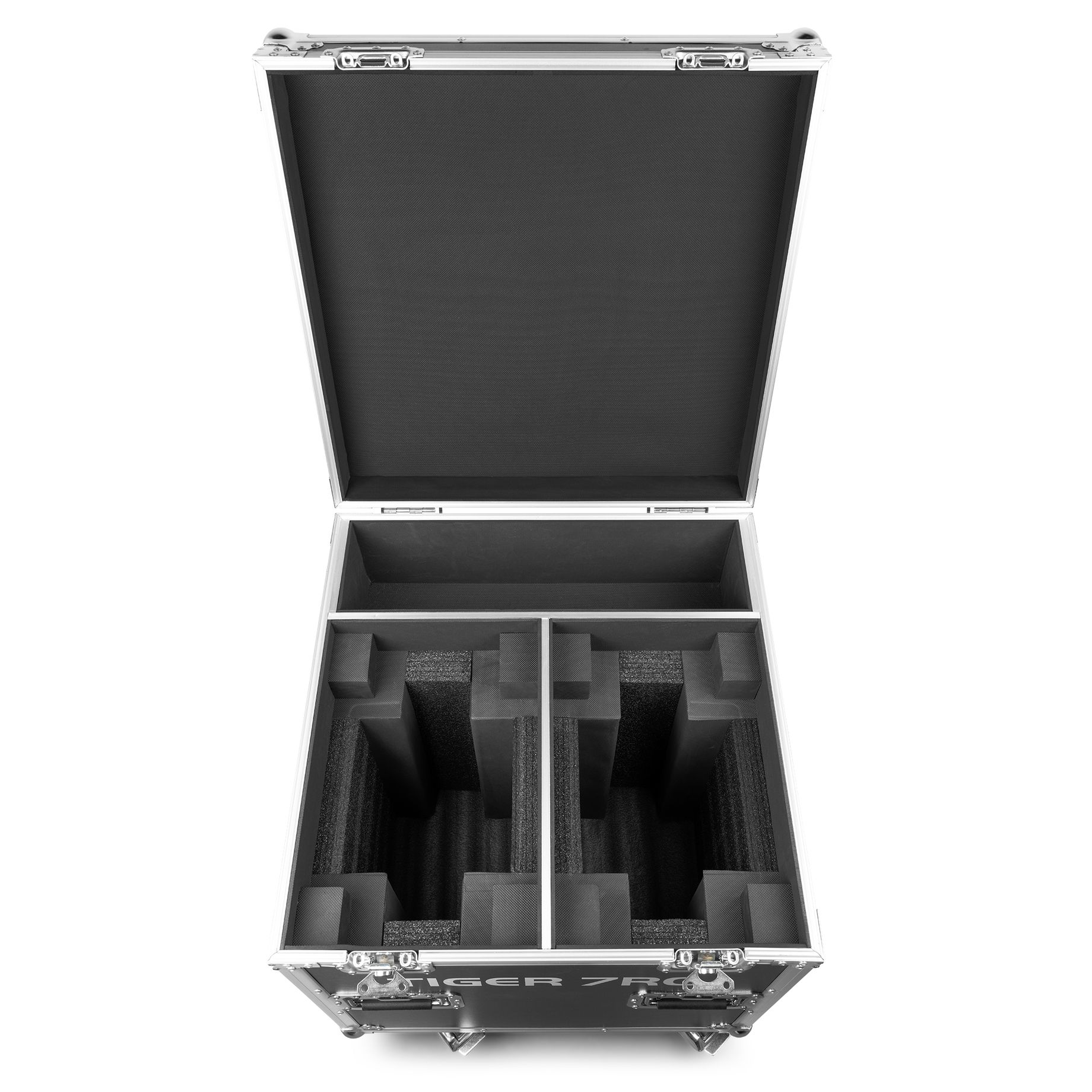

7RC 230W Beam Moving Head 2pcs in Flightcase
SKU 152.027
|EAN 8715693351446
+11
All product information
Compare
Tiger series
Description
Highlights
- 230W 7R High Intensity discharge bulb
- 14 Gobos + open beam
- 14 Colours + open
- Gobo shake effect
- Frost effect lens
- Rotatable 8 facet prism
- Motorized focus
- Mechanical shutter and adjustable speed strobe effect
- Mechanical dimmer
- DMX and Stand-alone mode
- Automatic pan/tilt correction
- Reset function
- Control panel with LCD display
- DMX in/output via 3/5-pin XLR
- P-Con input/output (cable included)
- Quick lock omega clamp included (2x)
Specifications
BrandbeamZ Professional
Product serieTiger series
ColourBlack
Moving head typeBeam
Light source
Light source
- 1x 230W White MSD 7R bulb
Colour Temperature647 K
Illuminance 197.226 lx @ 5m
Optics
Beam angle
- 1°
ZoomNo
FocusMotorised
Movement
Pan Movement540°
Tilt Movement180°
Features
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels16, 20
RDMNo
DMX connector3-pin XLR, 5-pin XLR
Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 280 x 240 x 470 mm (W x D x H)
Weight
- 55.9 kg
Manuals & Documents
Manual
PDF
