Tiger

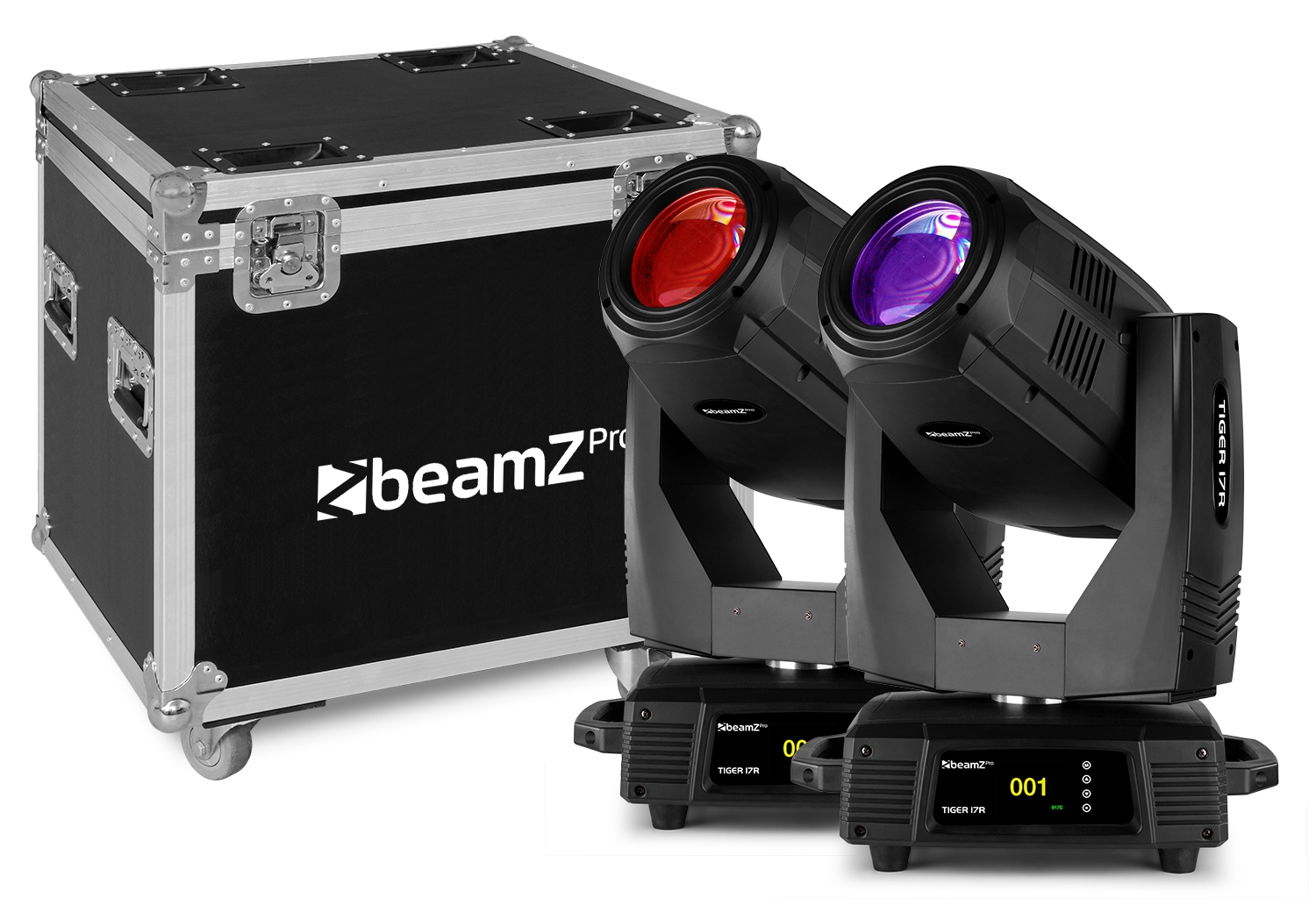

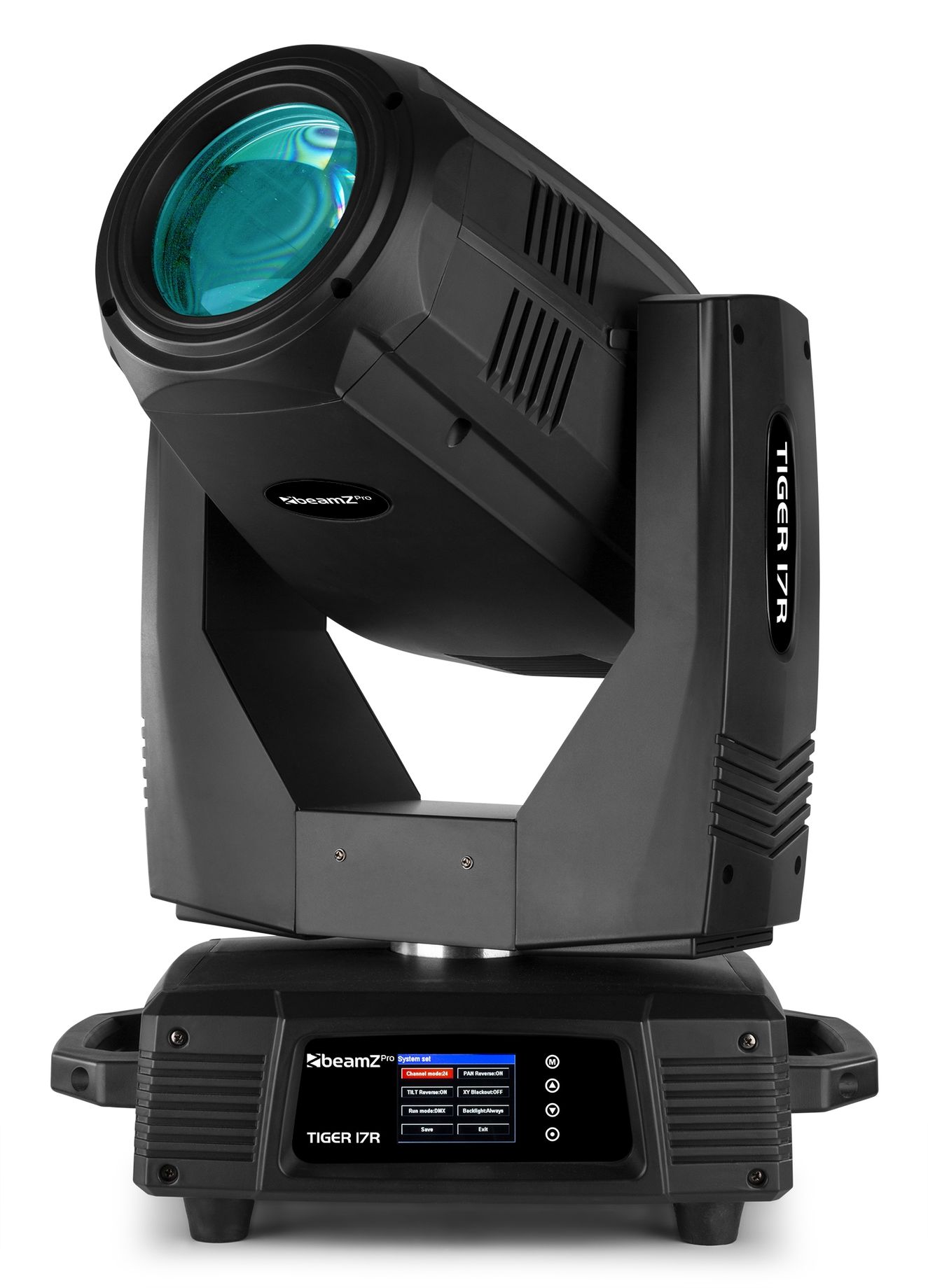

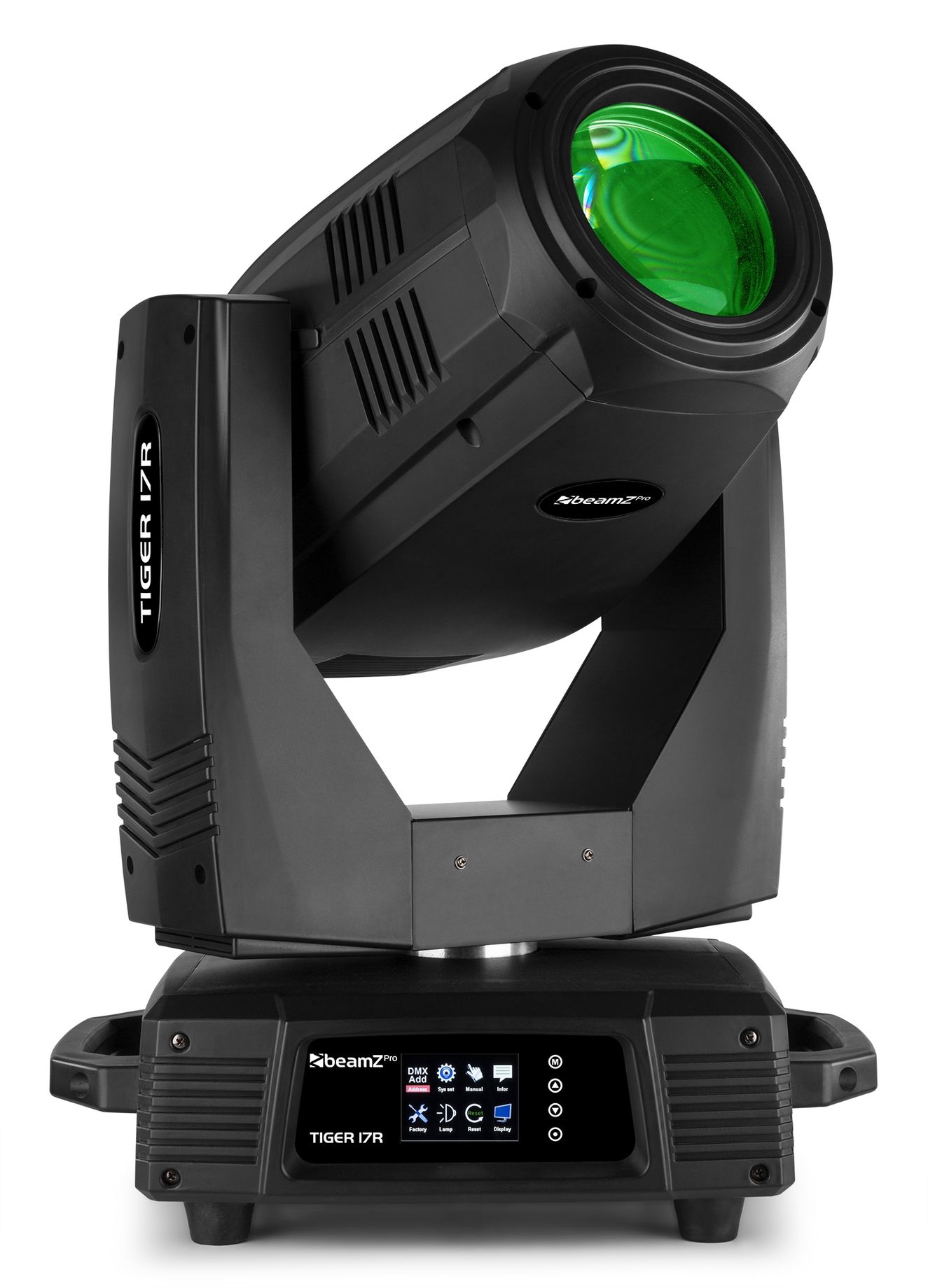

17R 350W Beam/Spot Moving Head 2pcs in Flightcase
SKU 150.398
|EAN 8715693311457
+6
All product information
Compare
Tiger series
Description
Highlights
- 2-in-1: Beam and Spot
- 350W 17R High Intensity discharge bulb included
- Gobo Wheel : 14 static gobos + 9 rotating replaceable glass gobos + open
- Colour Wheel: 13 Colours + open
- Gobo shake effect
- Frost effect filter
- Prisms: rotatable 6 facet prism + rotatable 8 facet prism
- Motorized focus
- Mechanical shutter and adjustable speed strobe effect (1-13 x per sec)
- Dimmer: 0 – 100% linear dimmer
- 16 or 20 DMX Channels
- DMX, Auto mode and Master/Slave function
- Automatic pan/tilt correction
- Pan: 540° and Tilt: 250° Movement
- With pan/tilt lock mechanism
- Pan/Tilt Resolution: 16bit

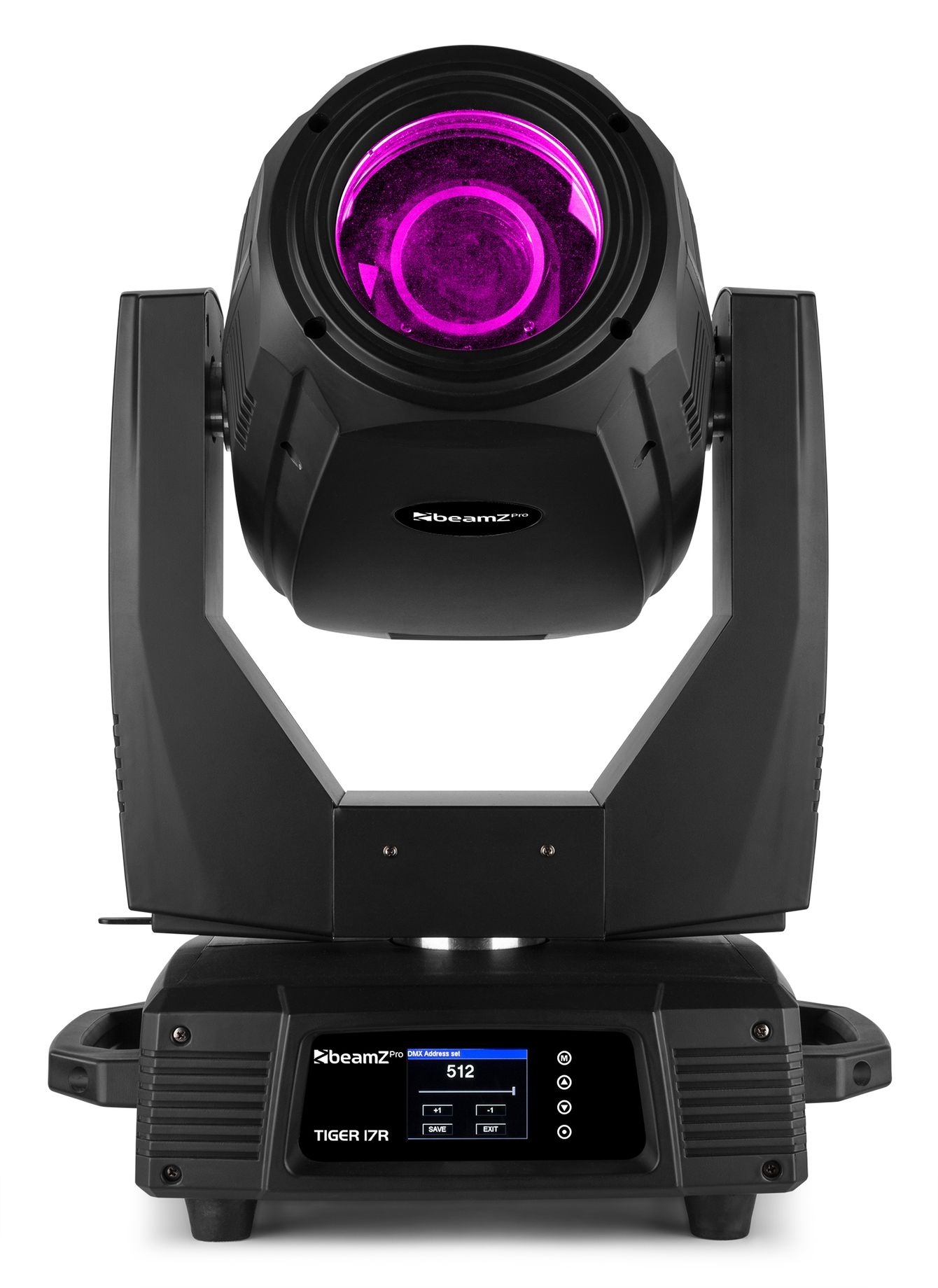

- Control panel with LCD display
- Battery function (mains power not required for fixture setup)
- DMX in/output via 3-pin XLR
- Powerconnector input/output

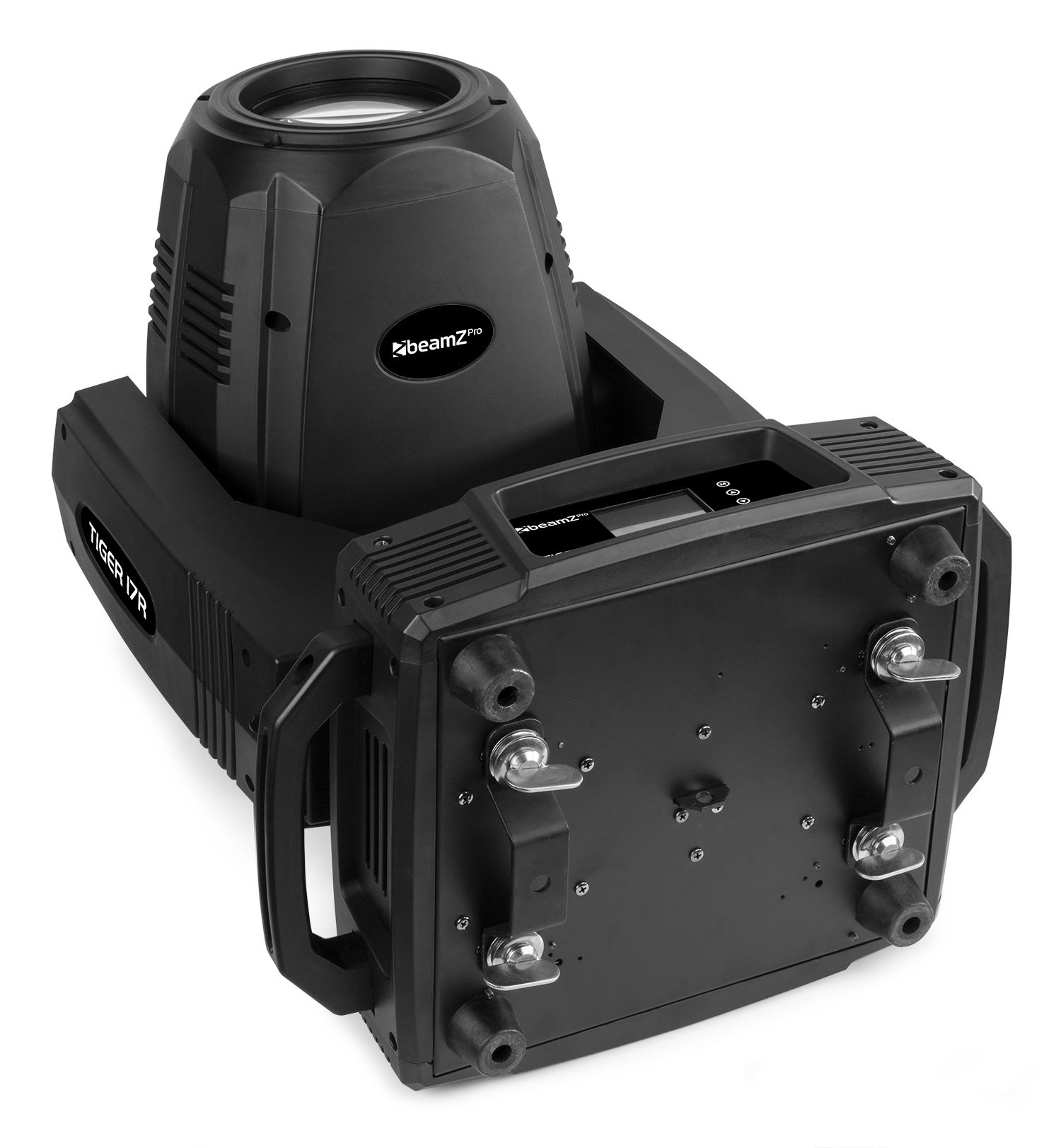

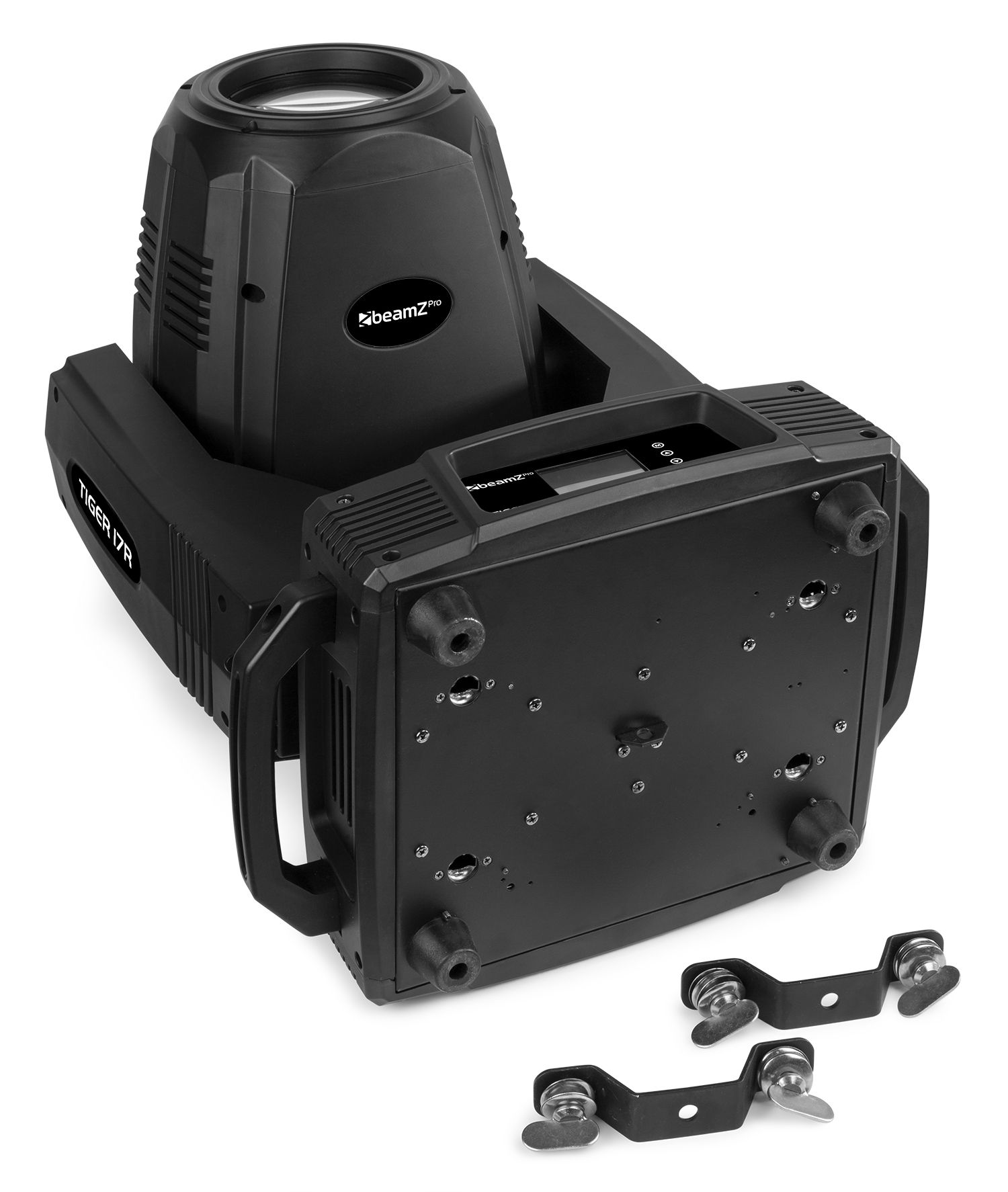

- Quick lock omega clamp included (2x)
- DMX cable included
- Powerconnector cable included
Specifications
BrandbeamZ Professional
Product serieTiger series
ColourBlack
Moving head typeSpot, Beam
Light source
Light source
- 1x 350W White MSD 17R bulb (8000K)
Colour Temperature647 K
Illuminance 145.000 lx @ 10m
Optics
Beam angle
- 5 - 43
ZoomYes
FocusMotorised
Movement
Pan Movement540°
Tilt Movement270°
Features
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels16, 20
RDMNo
DMX connector3-pin XLR

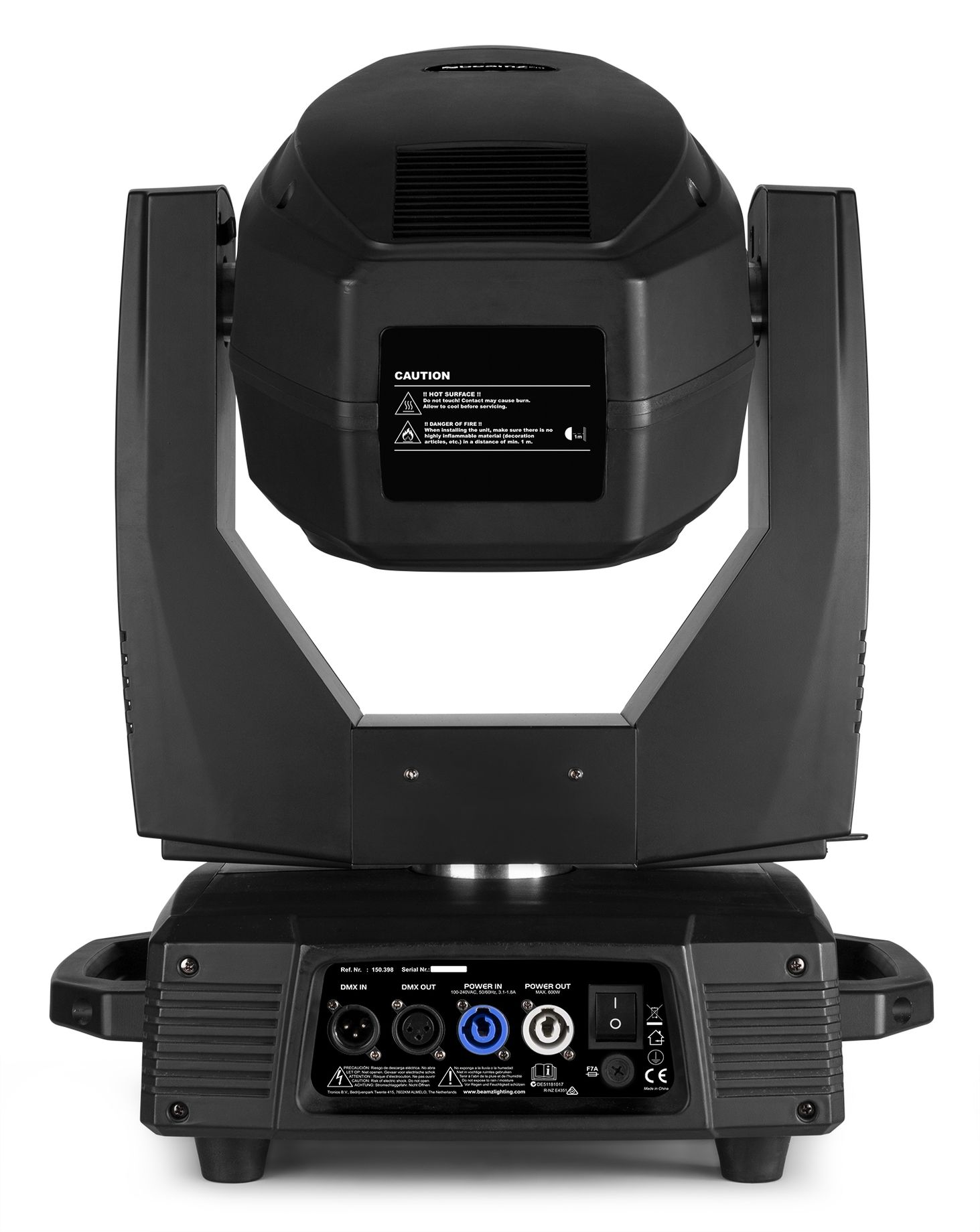

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 420 x 300 x 635 mm (W x D x H)
Weight
- 60 kg
Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
