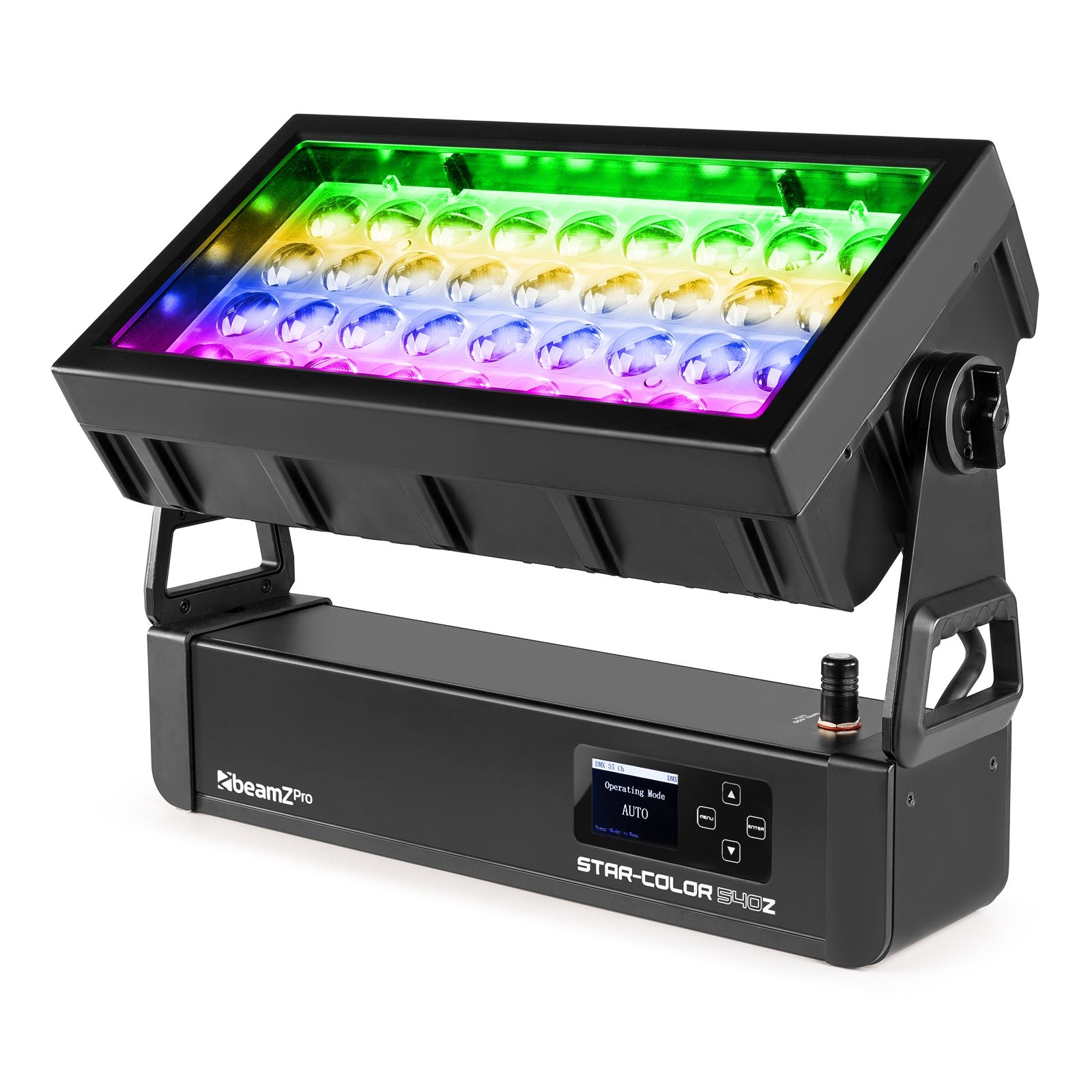

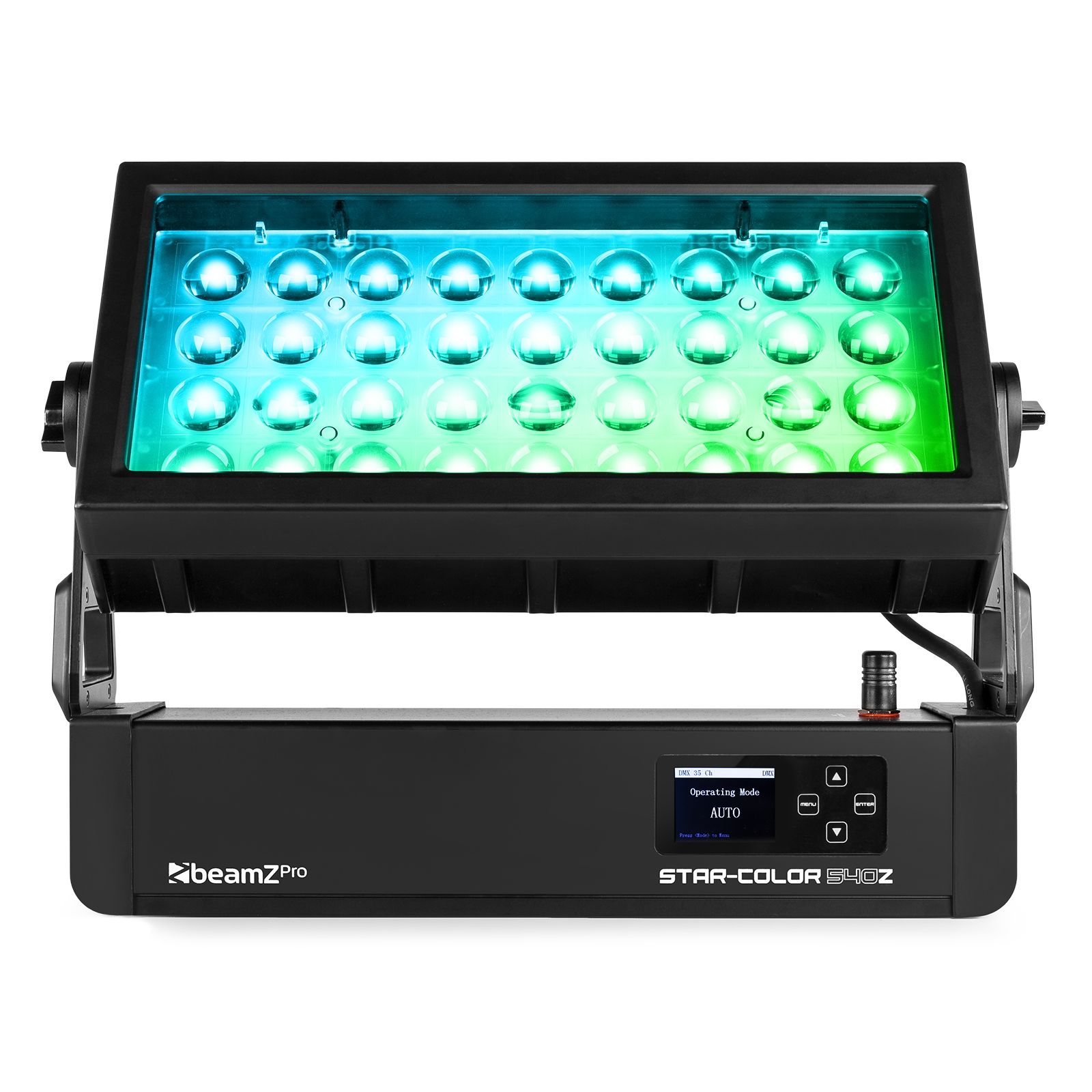

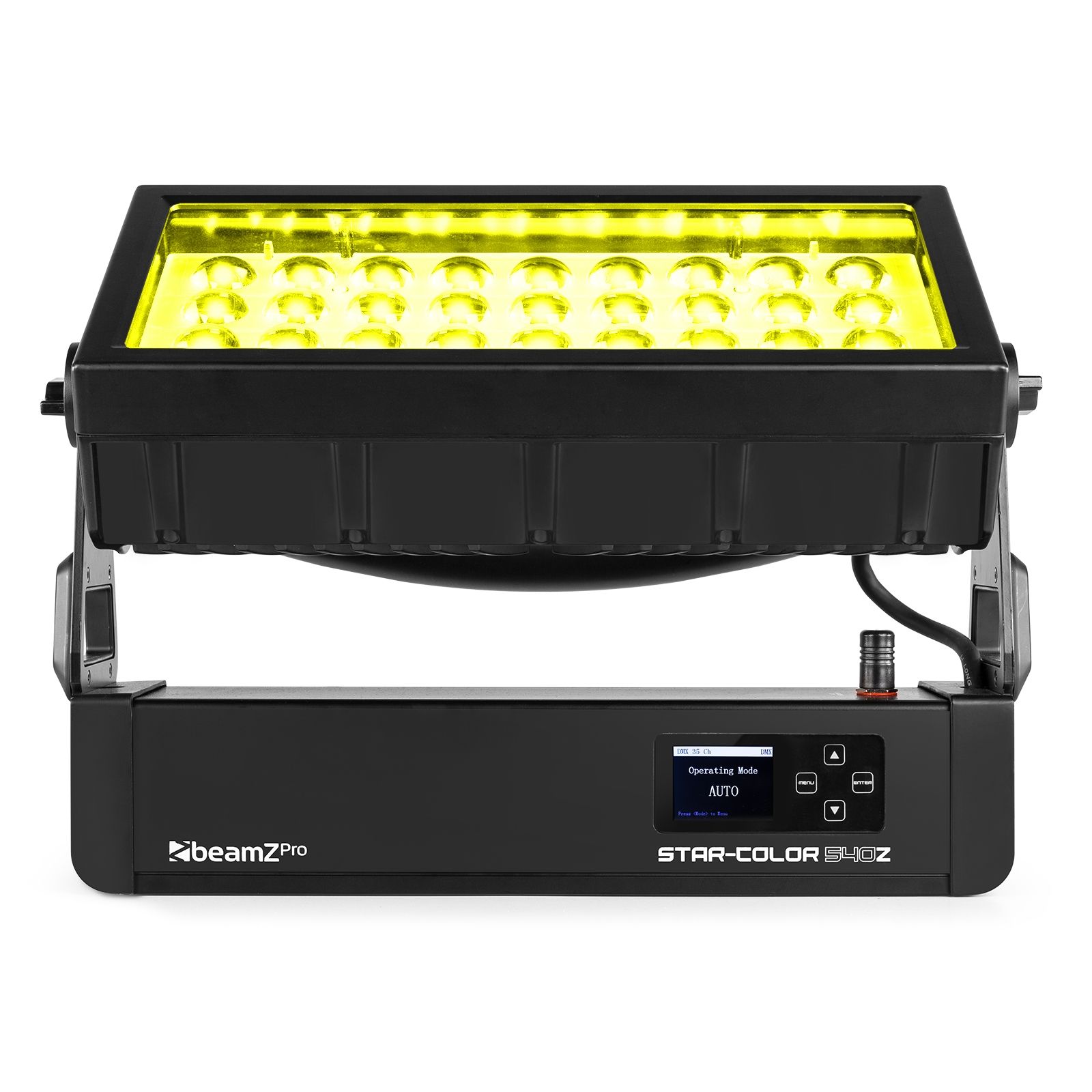

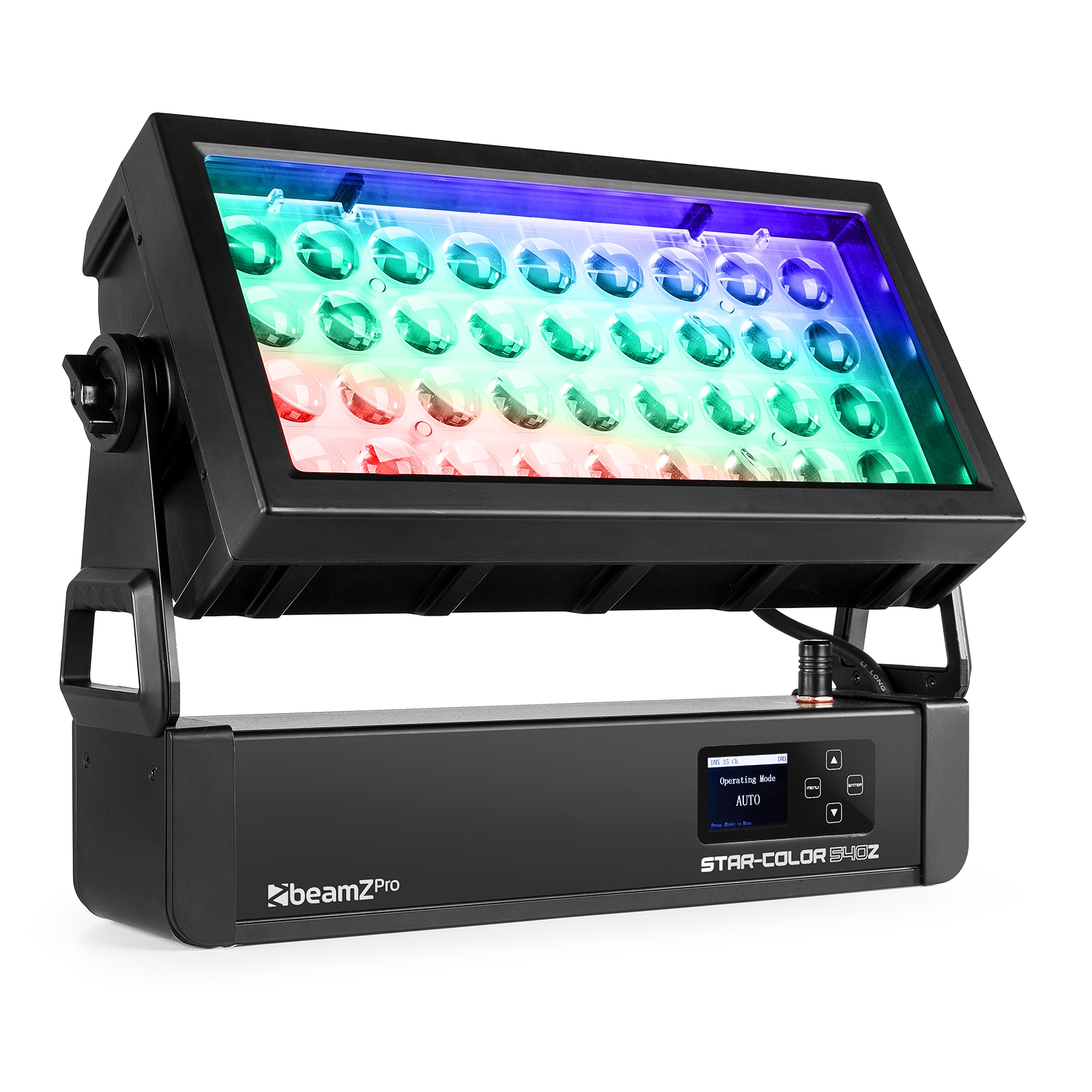

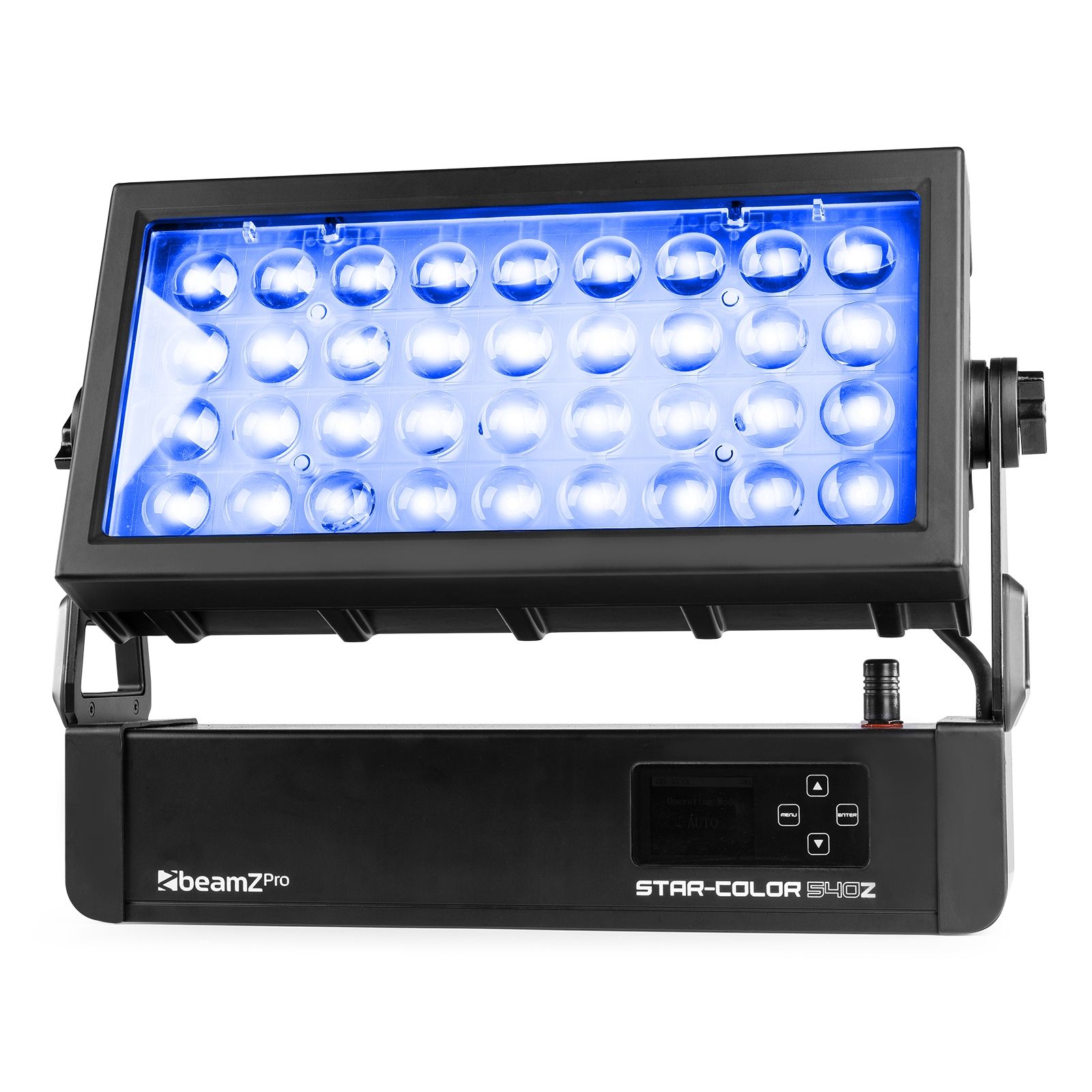

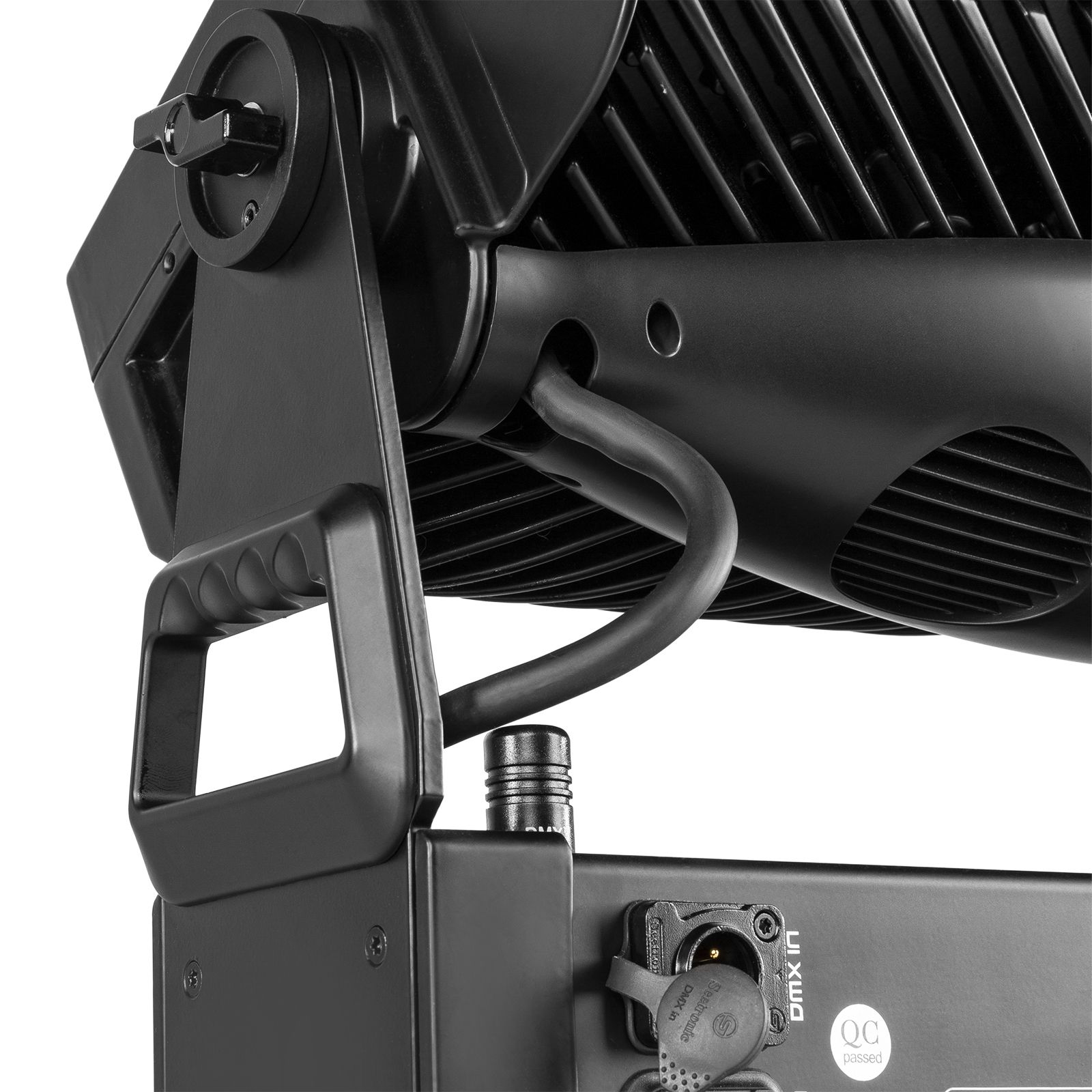

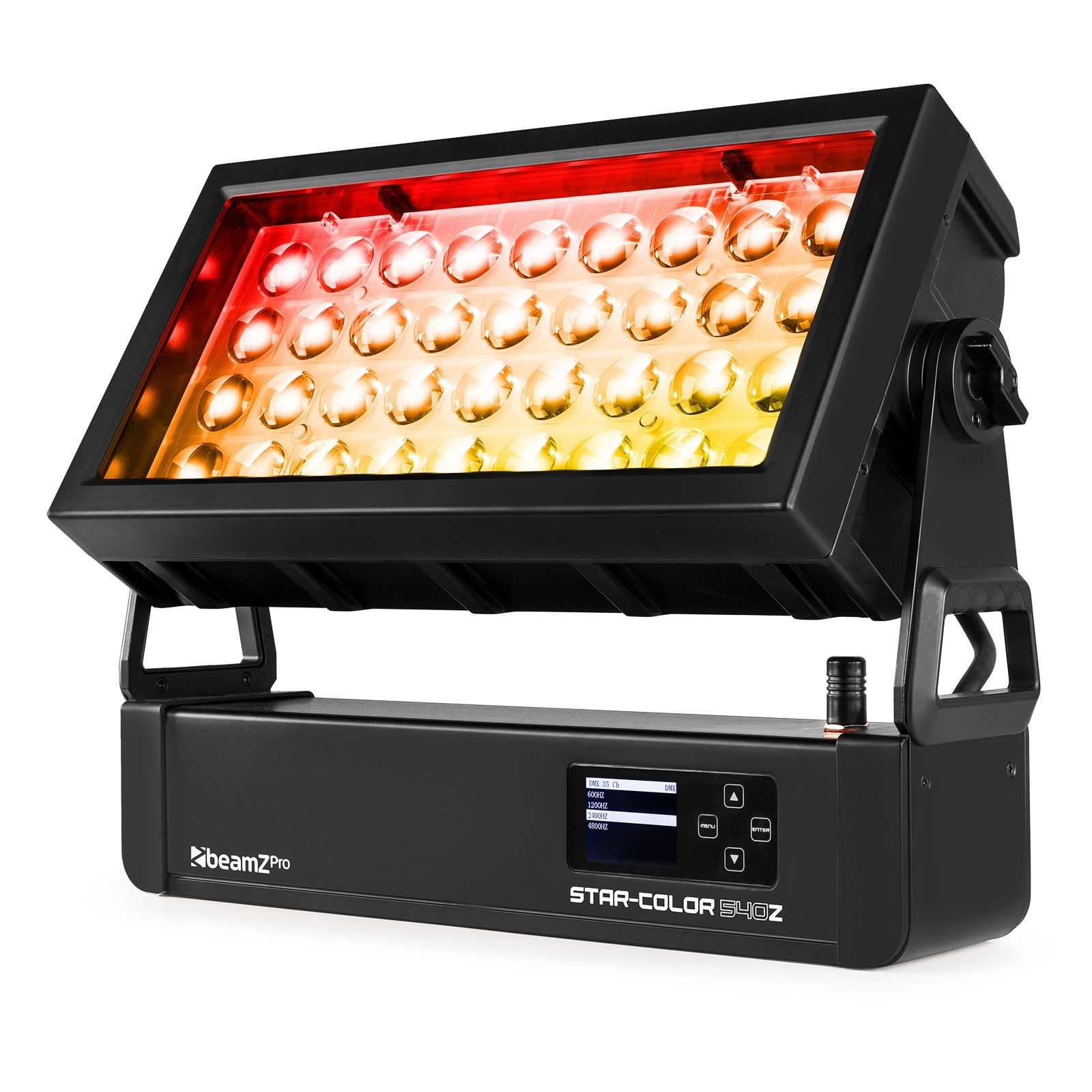

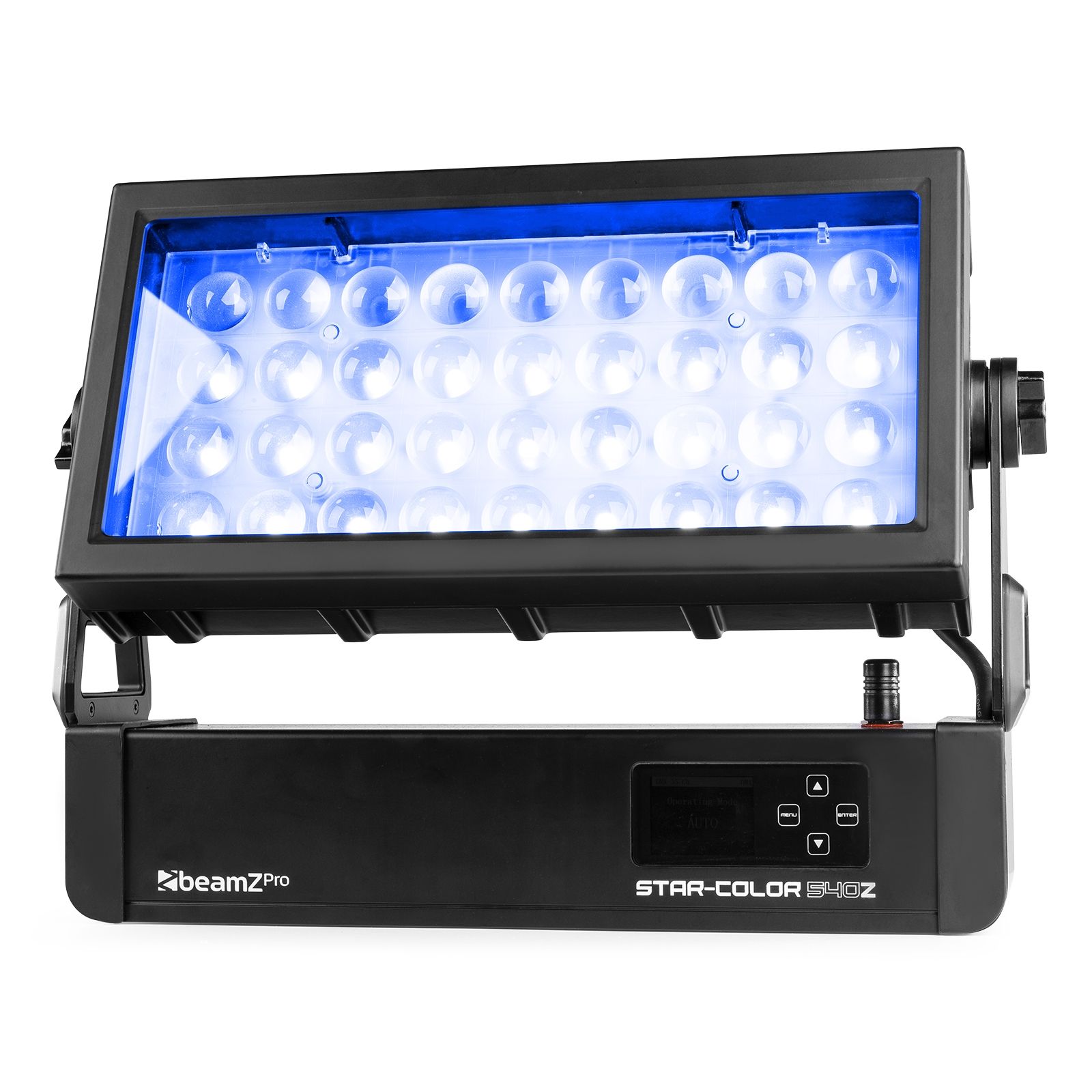

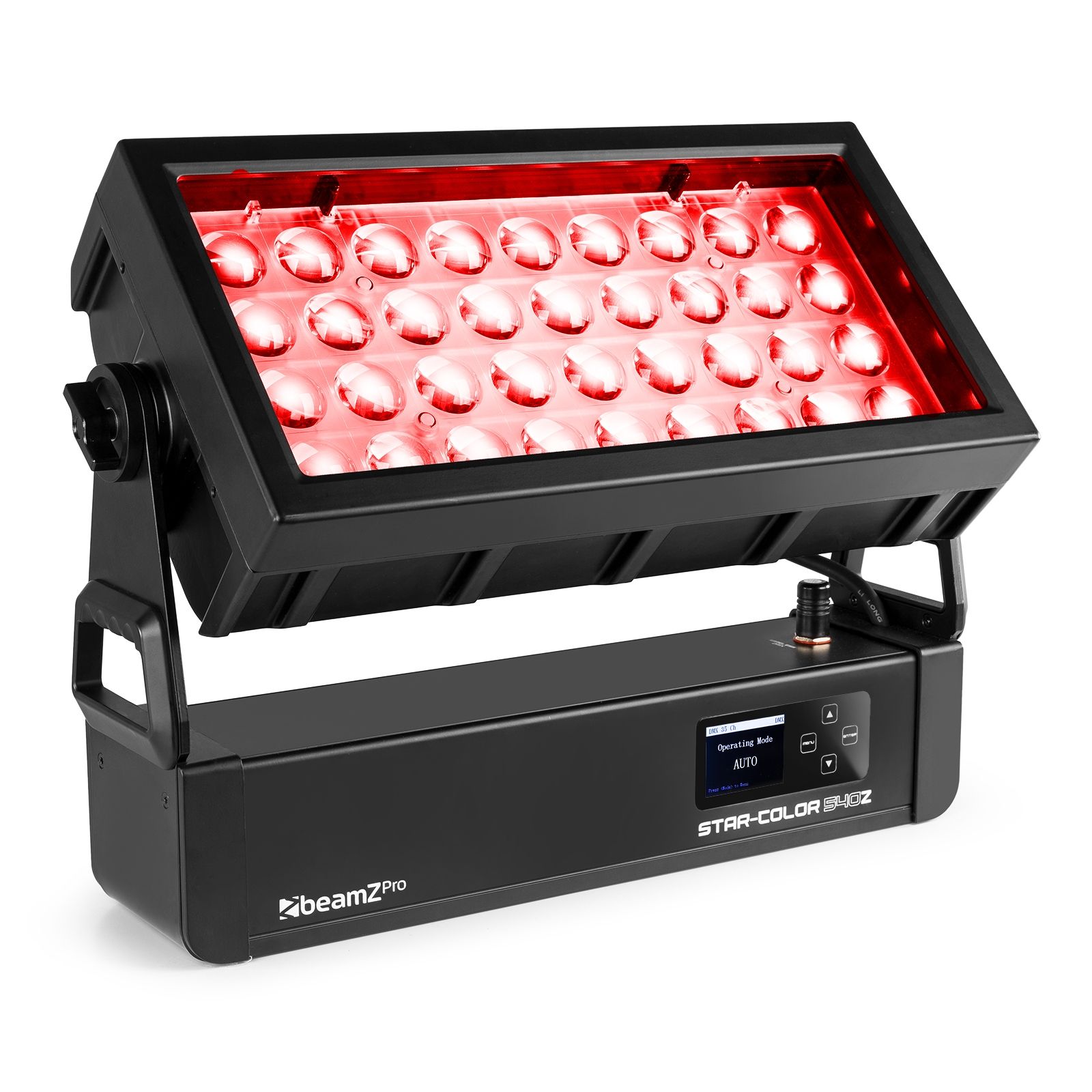

StarColor540Z
Wash Light 36x 15W RGBW Outdoor with Zoom
SKU 150.150
|EAN 8715693334333
+8
All product information
Compare
StarColor series
Description
Highlights
- Professional Wall Wash with zoom
- 36x 15W 4-in-1 LEDs (controlled per row)
- RGBW colour mixing
- Motorized Zoom-function 7° - 58°
- 72x 0.2W RGB LEDs backlight
- IP65 rated waterproof design
- Tempered glass lens and watertight internal gaskets

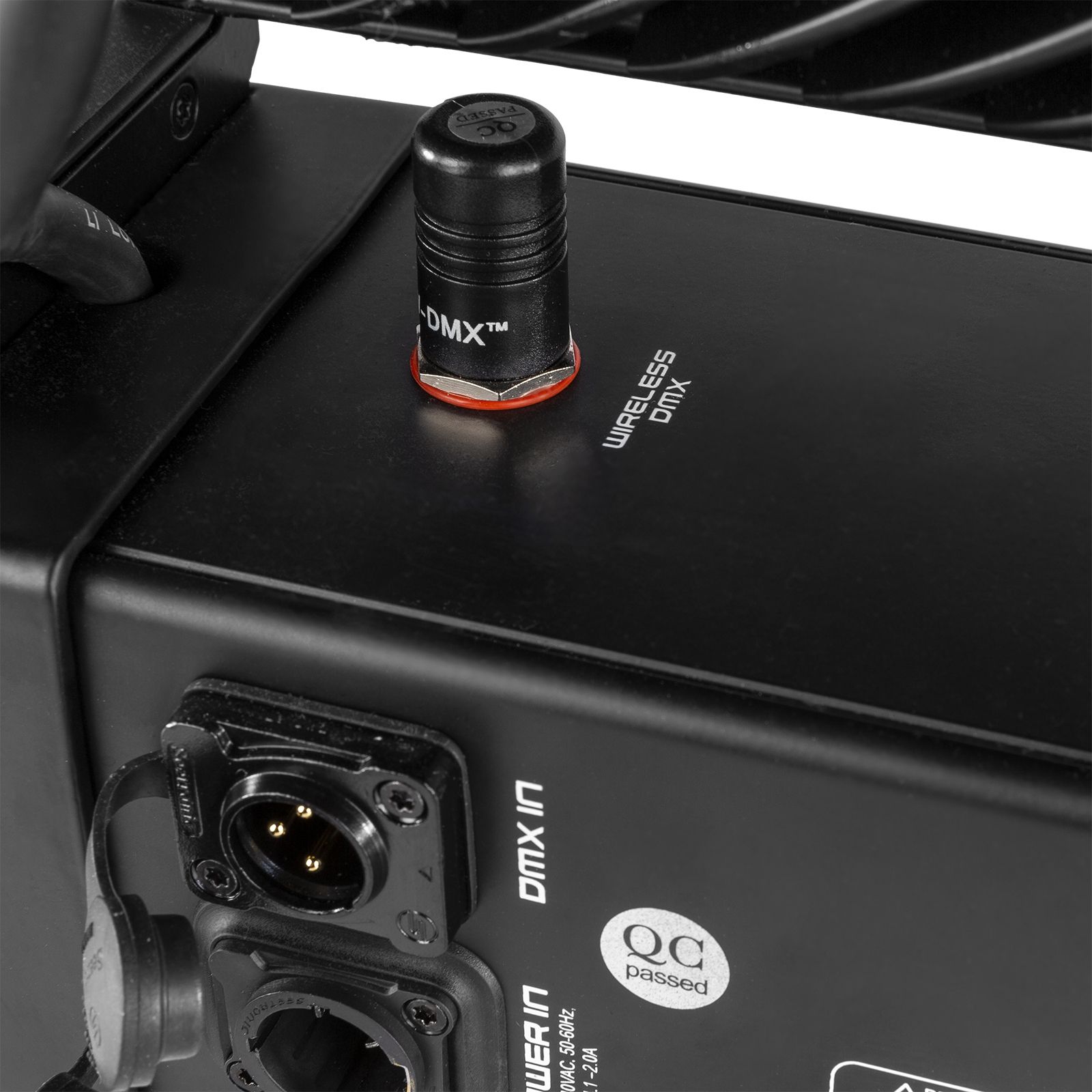

- DMX512 and Wireless Solution WDMX
- Stand alone and Master/slave Mode
- 16 Bit dimmer
- PWM: 600/1200/2400/4800Hz
- Control panel with full-colour 2.4” TFT display
- DMX in/output via 3-pin XLR
- Power connector (P-Con) TR1 in/output
- Multiple built-in colour pre-sets and auto programs
- Quick lock omega clamp included
Specifications
BrandbeamZ Professional
Product serieStarColor series
ColourBlack
Light source
Light source: Wash
- 36x 15W RGBW LED
Light source: Backlight
- 72x 0.2W RGB SMD LED
Illuminance76689 lx @ 1m
Optics
Beam angle
- 8 - 35
Features
Flash Per Second0 - 20 Hz
Control
Control modesAuto programs, DMX, Manual, Wireless DMX
DMX Channels8, 16, 19, 21, 29, 35, 38
RDMYes
DMX connector3-pin XLR, Wireless DMX

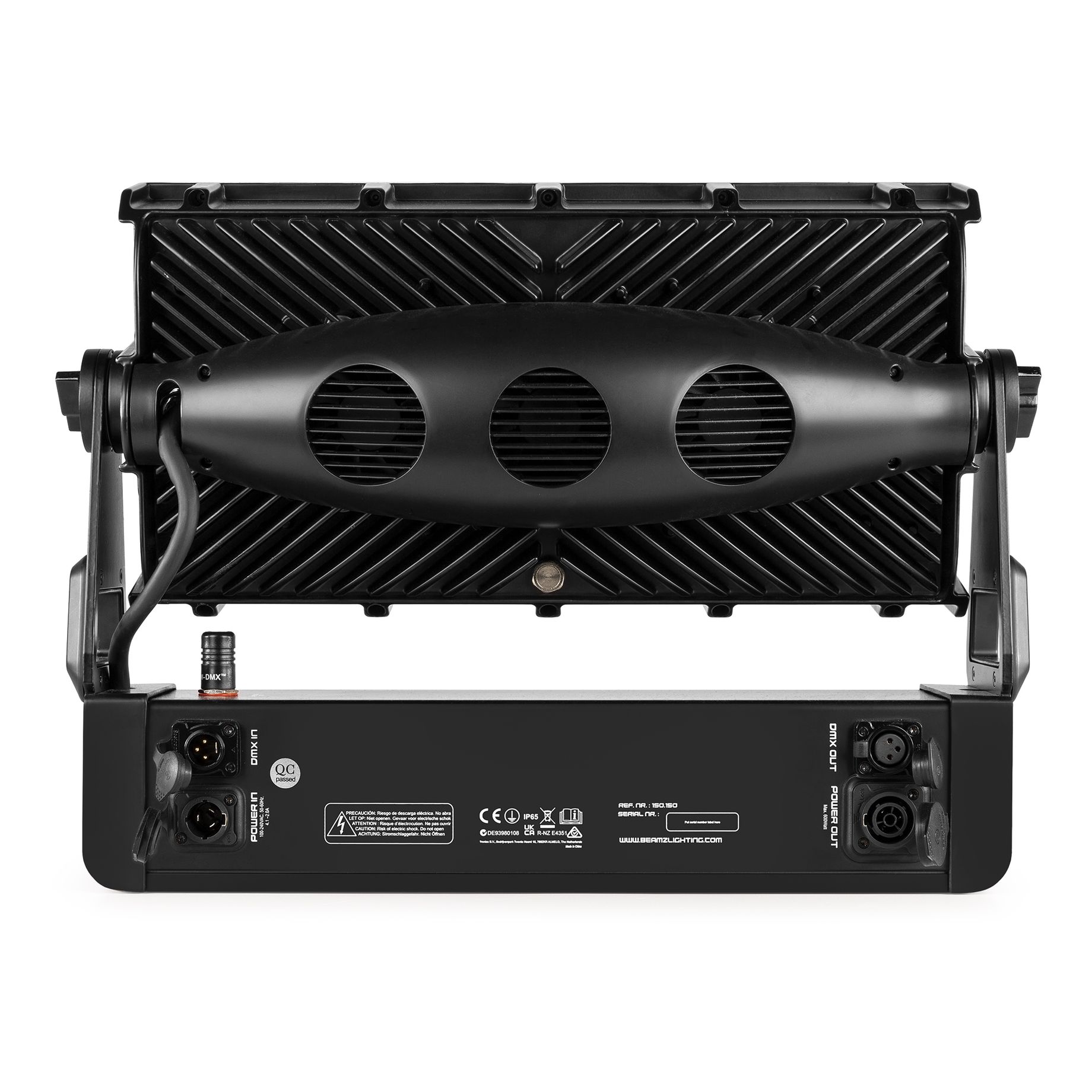

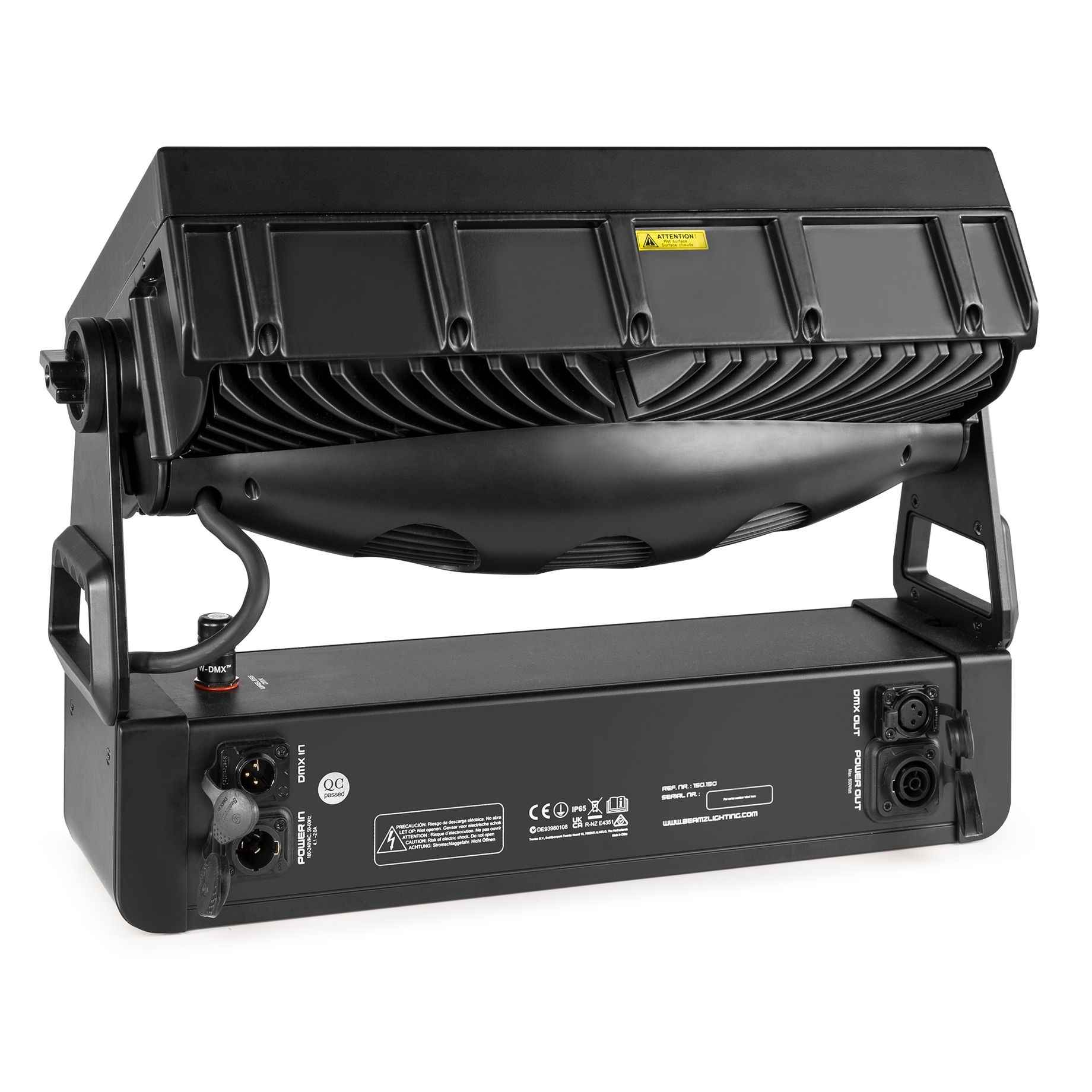

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 370 x 510 x 120 mm (W x D x H)
Weight
- 14.35 kg
Accessories
Included Accessories
- Mounting bracket
