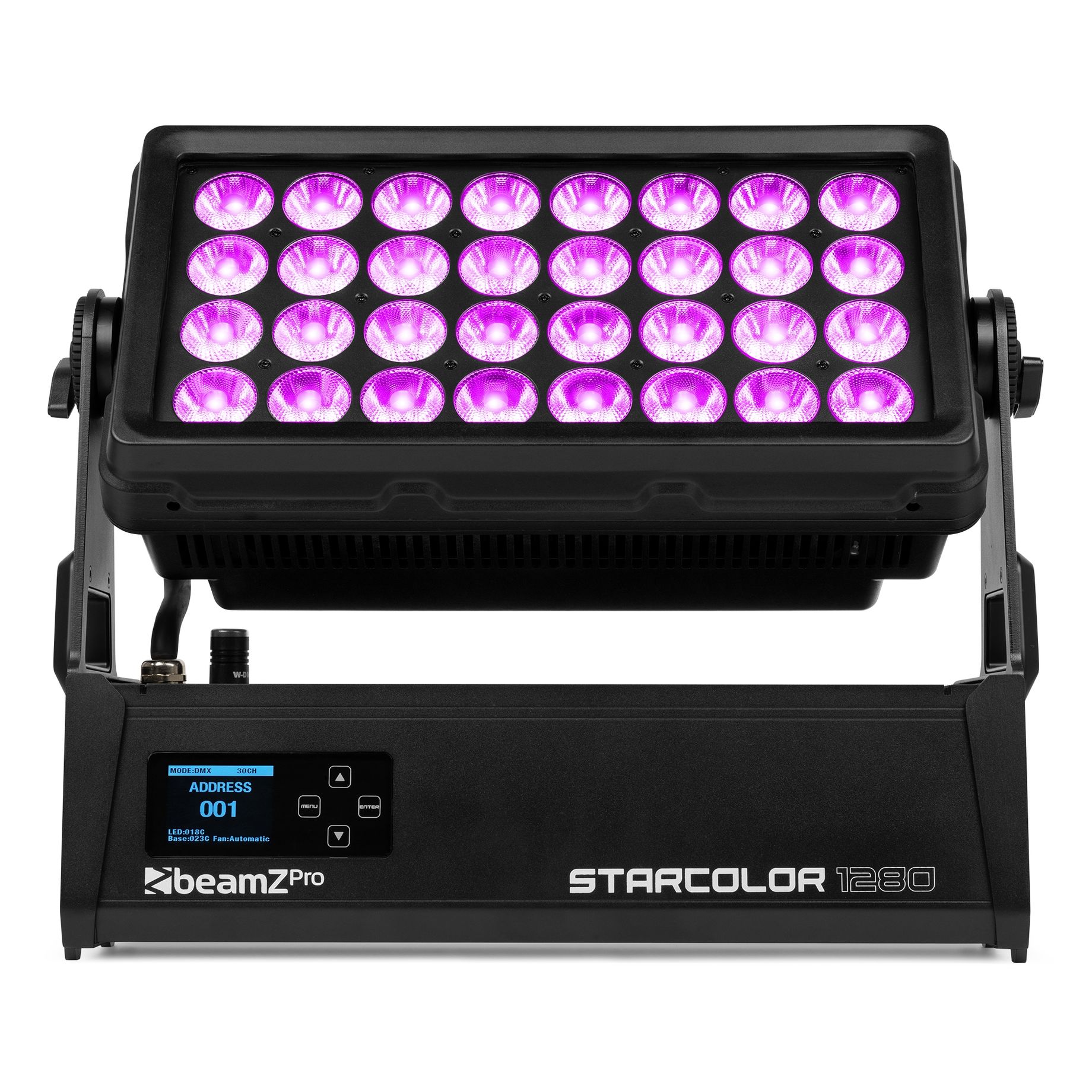

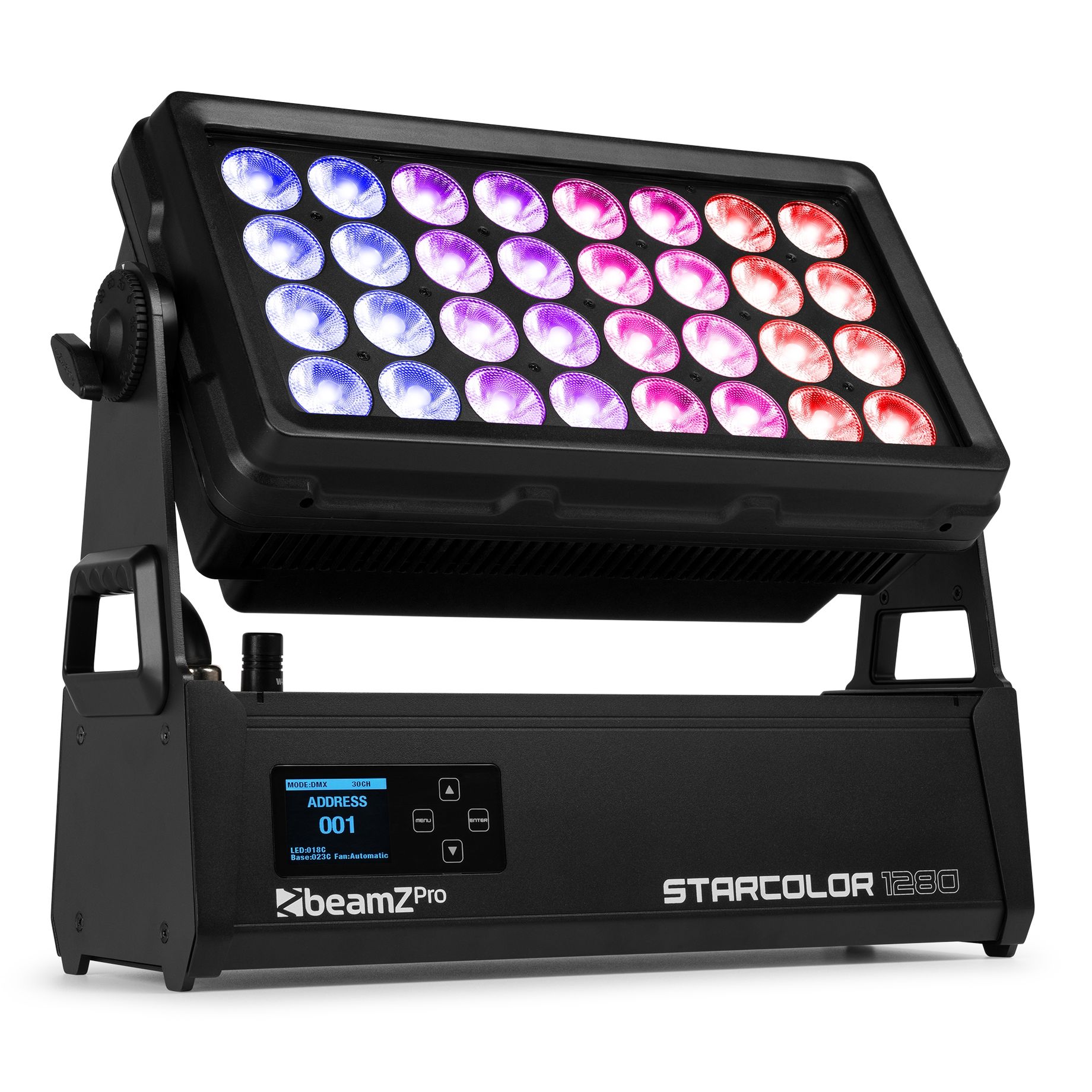

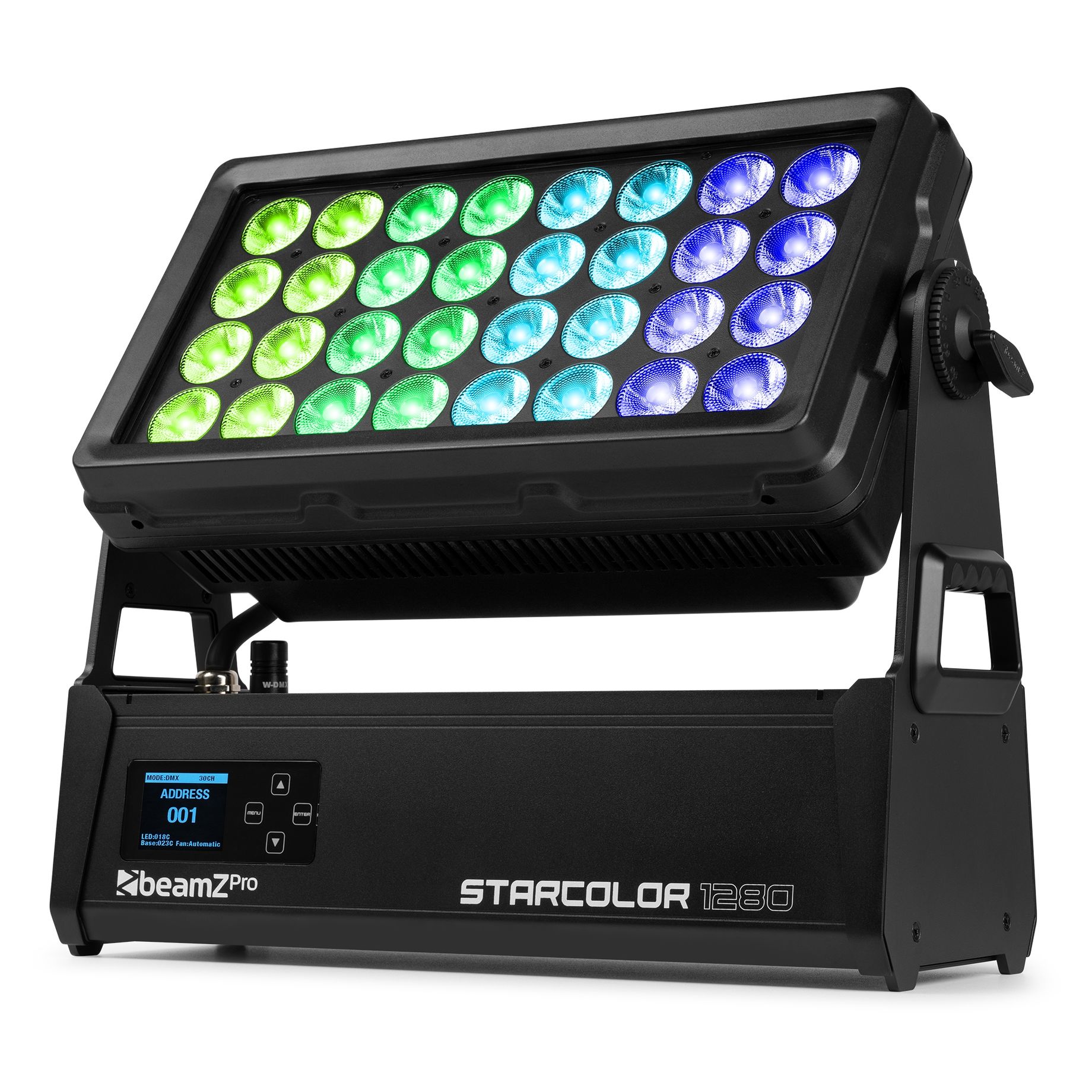

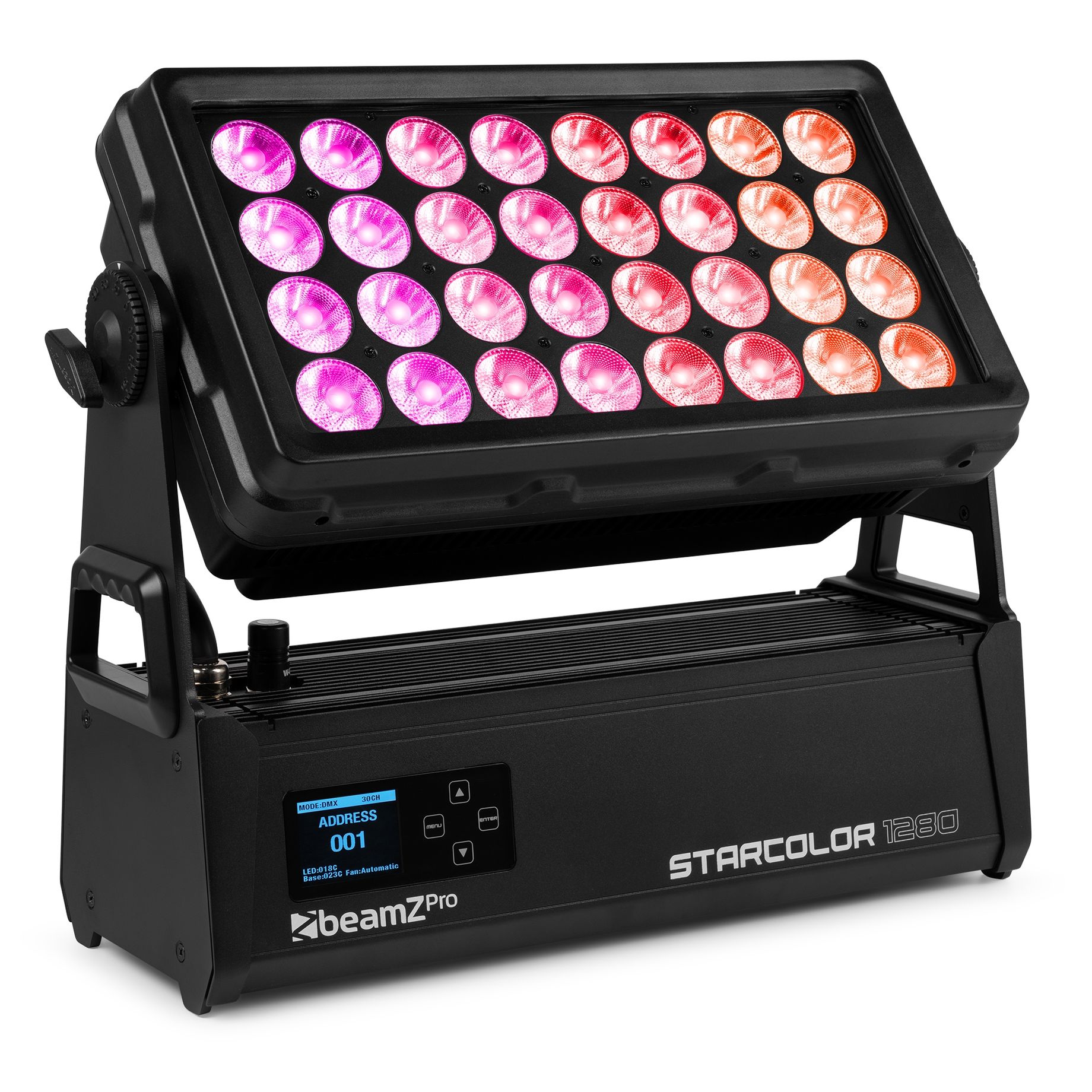

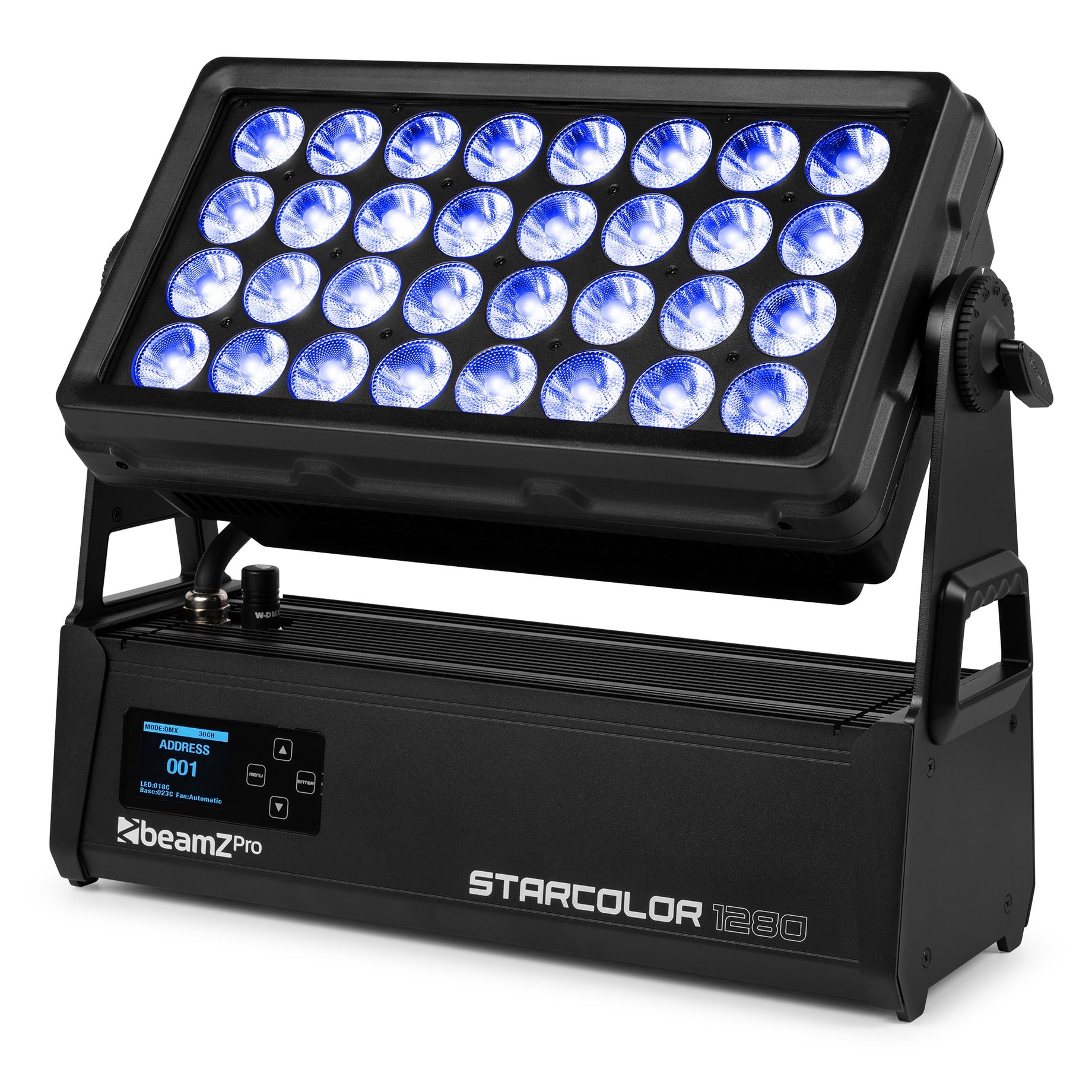

StarColor1280
Wash Light 32x 40W Outdoor
SKU 150.140
|EAN 8715693353778
+4
All product information
Compare
StarColor series
Description
Highlights
- Professional Wall Wash
- 32x 40W 4-in-1 LEDs (control per two vertical rows)
- RGBW colour mixing
- IP65 rated waterproof design
- Tempered glass lens and watertight internal gaskets
- DMX512, CRMX and Wireless Solution WDMX
- Stand alone and Master/slave Mode
- 16 Bit dimmer
- PWM: 800Hz/1200Hz/2000Hz/3600Hz/6000Hz/2000Hz/25KHz
- Control panel with full-colour 2.4” TFT display
- DMX in/output via 3/5-pin XLR, Artnet
- Power connector (P-Con) TR1 in/output
- Multiple built-in colour pre-sets and auto programs
- Quick lock omega clamps included
Specifications
BrandbeamZ Professional
Product serieStarColor series
ColourBlack
Light source
Light source
- 32x 40W RGBW LED
Illuminance183420 lx @ 1m
Optics
Beam angle
- 18°
Features
Flash Per Second0 - 20 Hz
Control
Control modesAuto programs, DMX, Manual, ART-Net, Wireless DMX, sACN
DMX Channels3, 4, 6, 14, 16, 30
RDMYes
DMX connector3-pin XLR, 5-pin XLR, RJ45, Wireless DMX

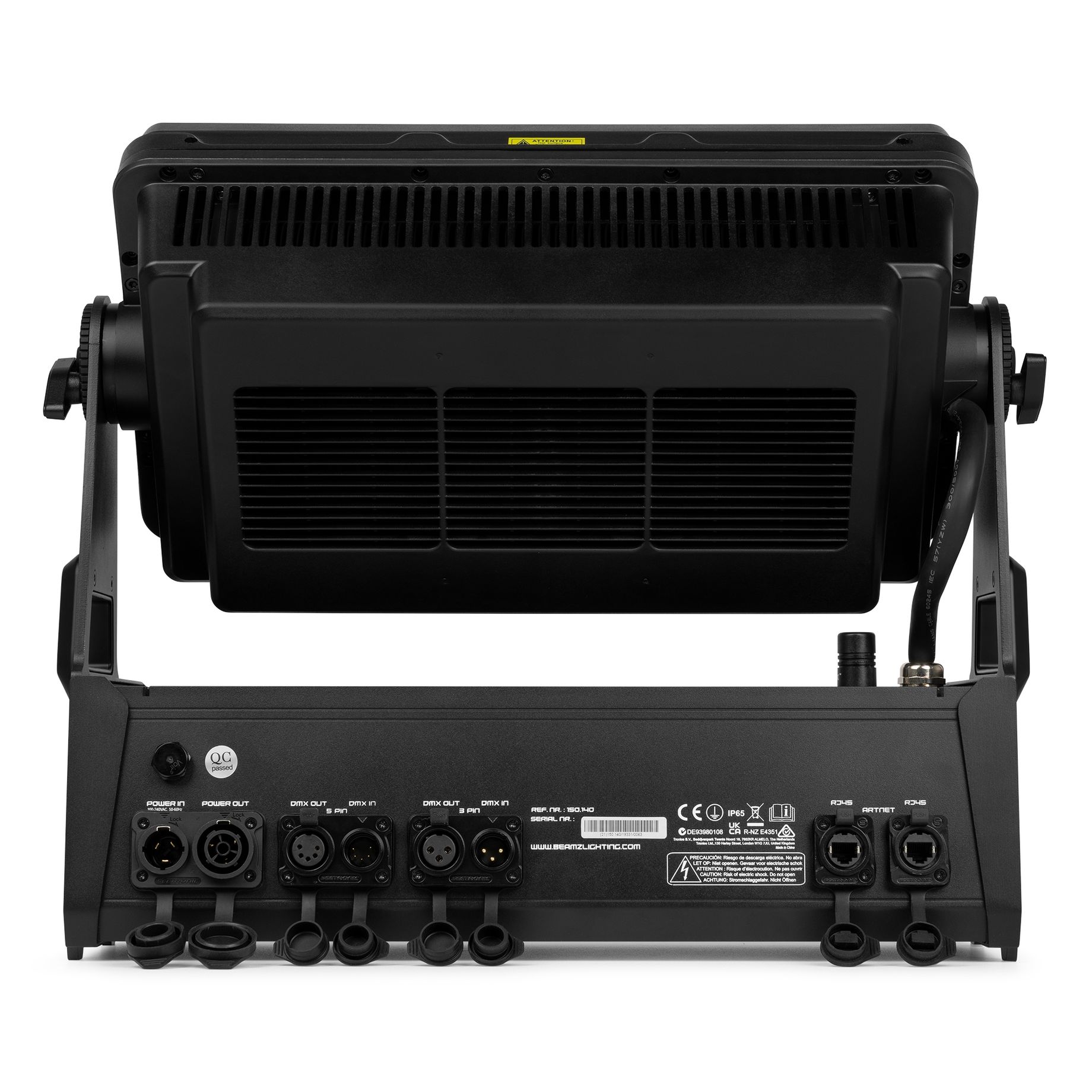

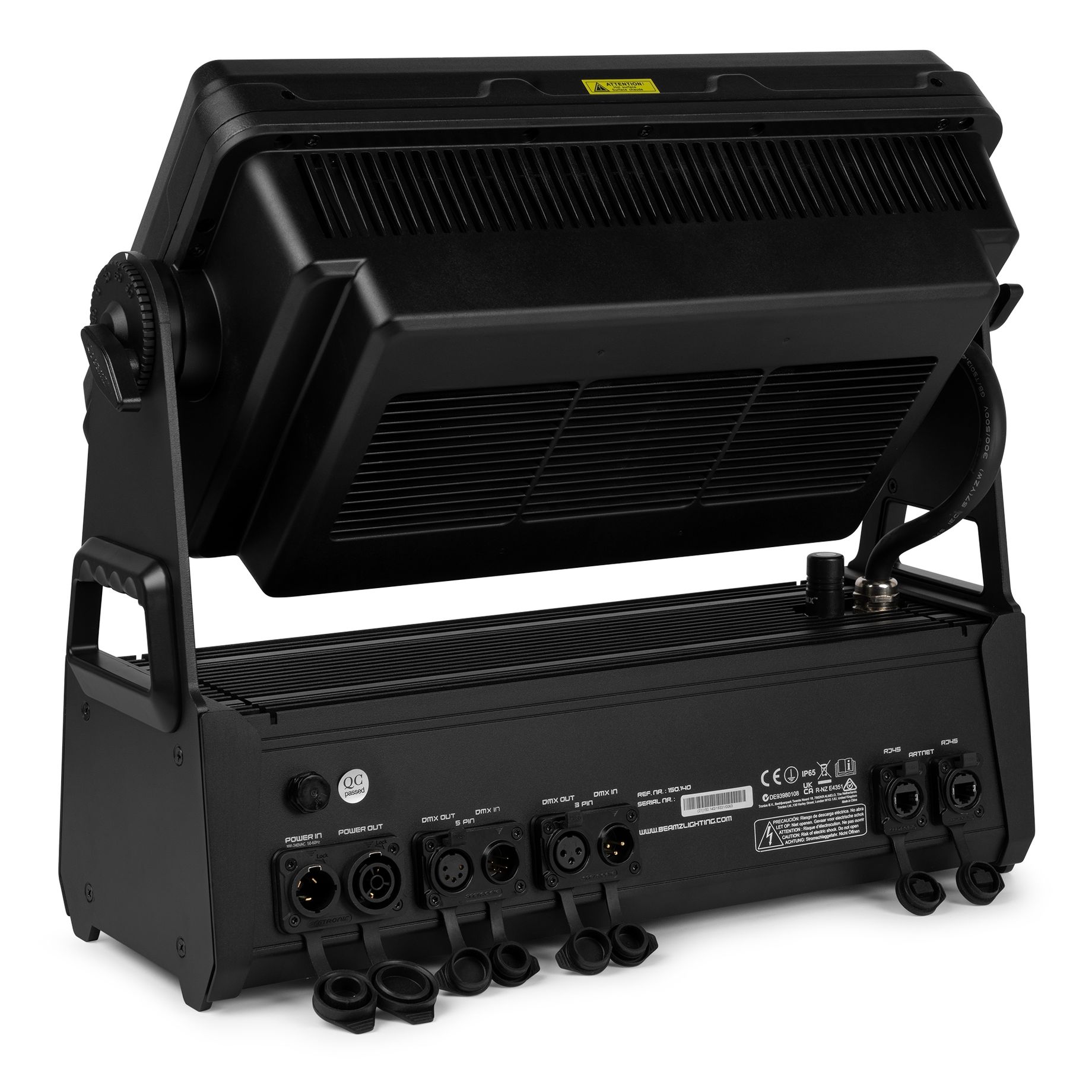

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
- 1x Data - RJ45 (IP65)
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
- 1x Data - RJ45 (IP65)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
- 1x Data - RJ45 (IP65)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 405 x 480 x 230 mm (W x D x H)
Weight
- 15.6 kg
Accessories

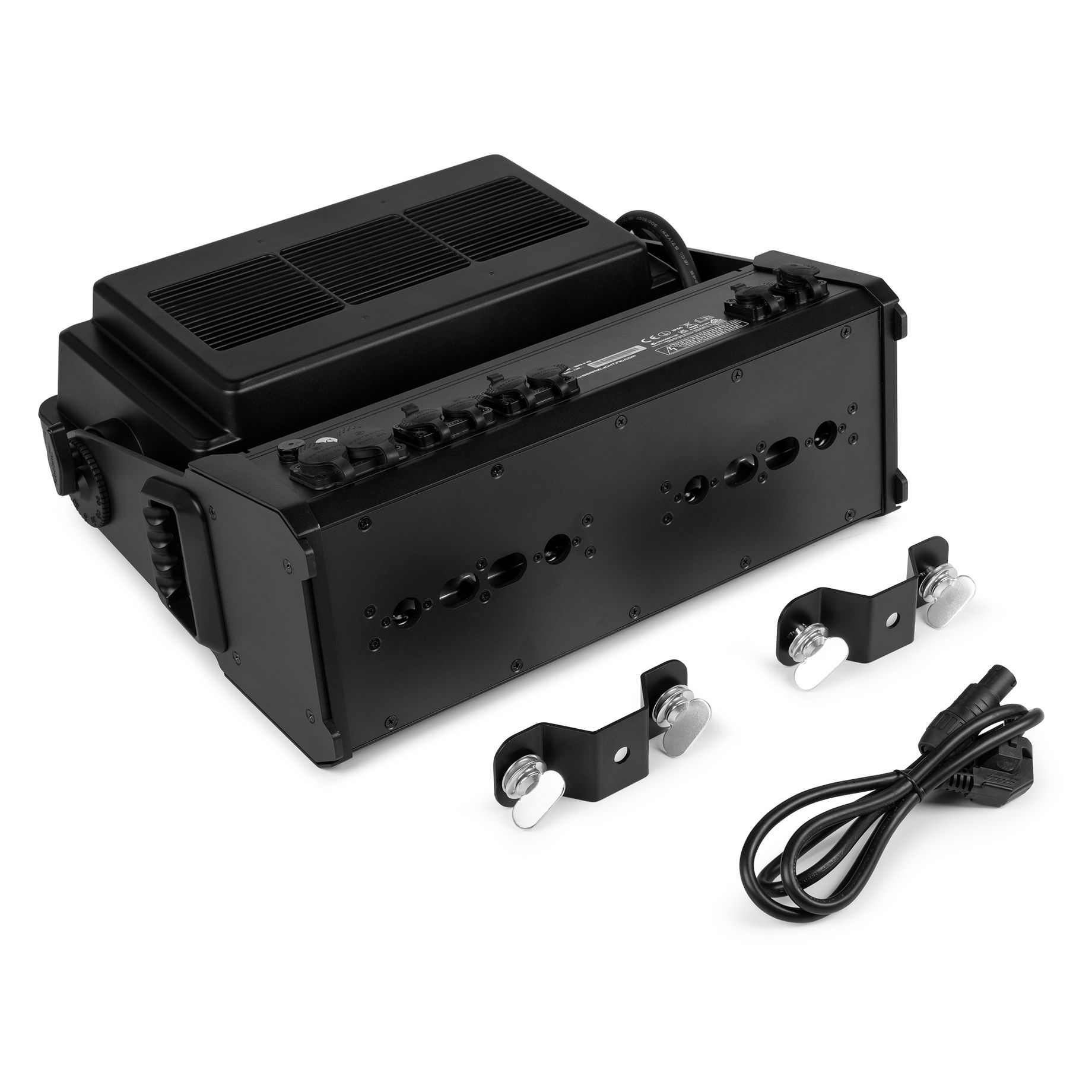

Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
