SFP200

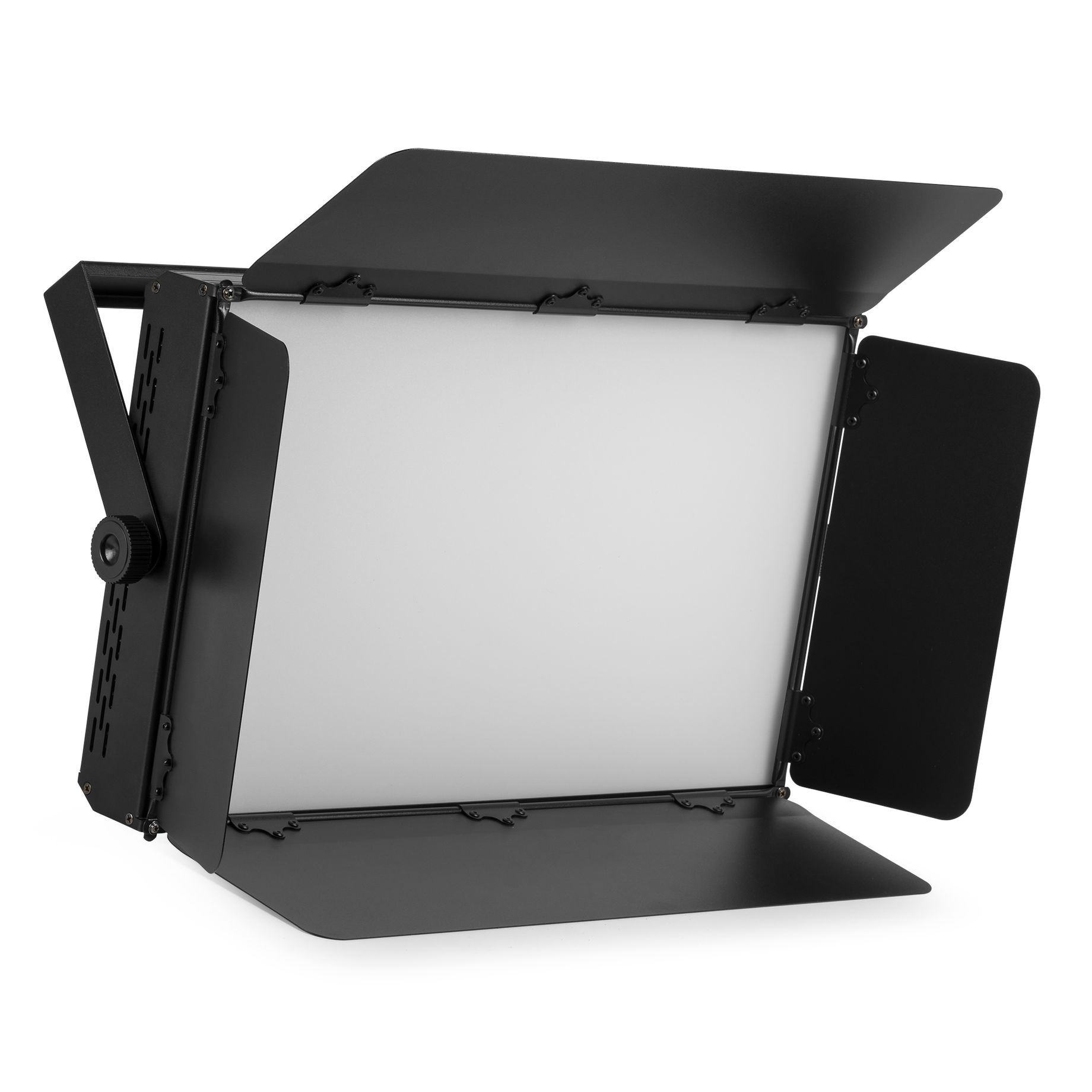

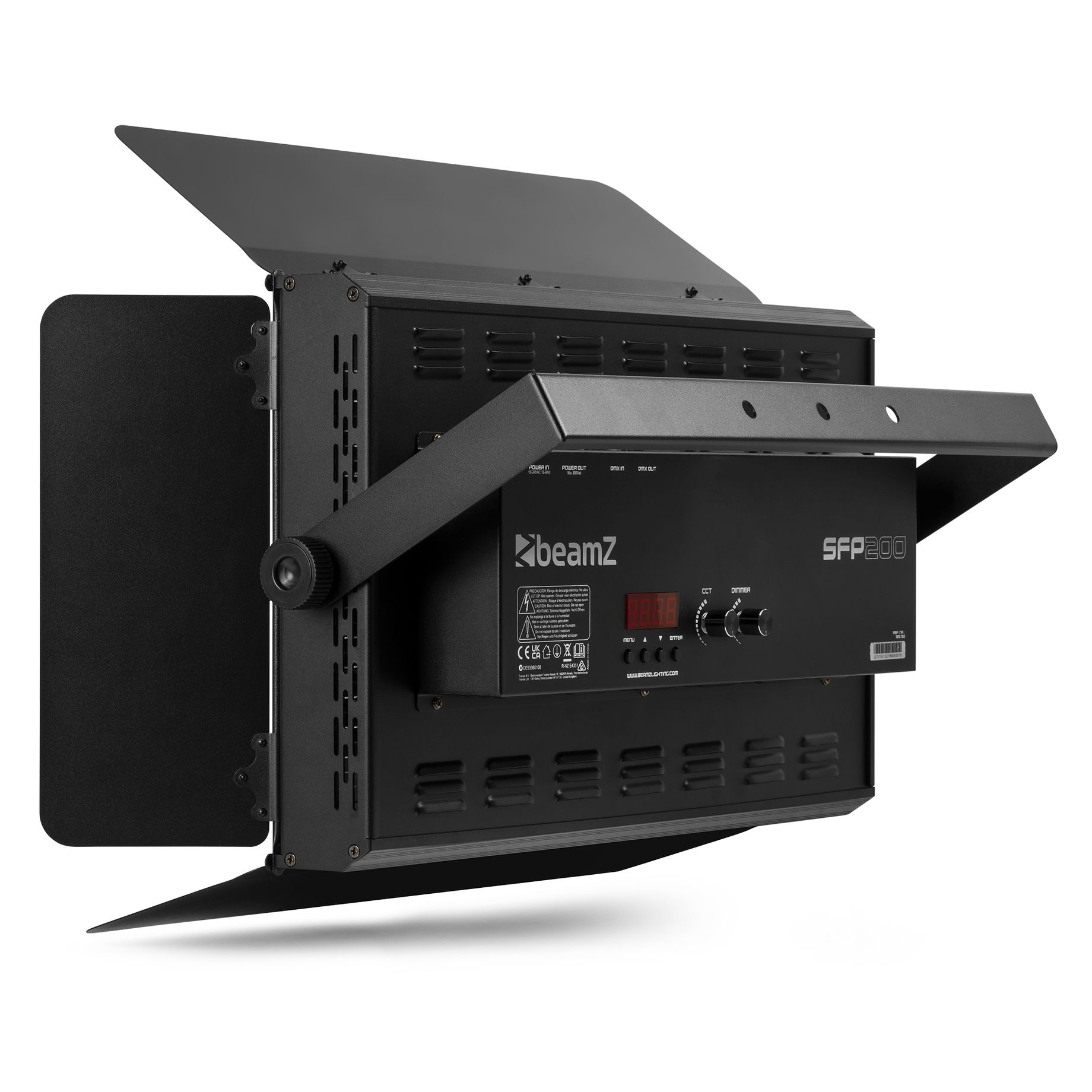

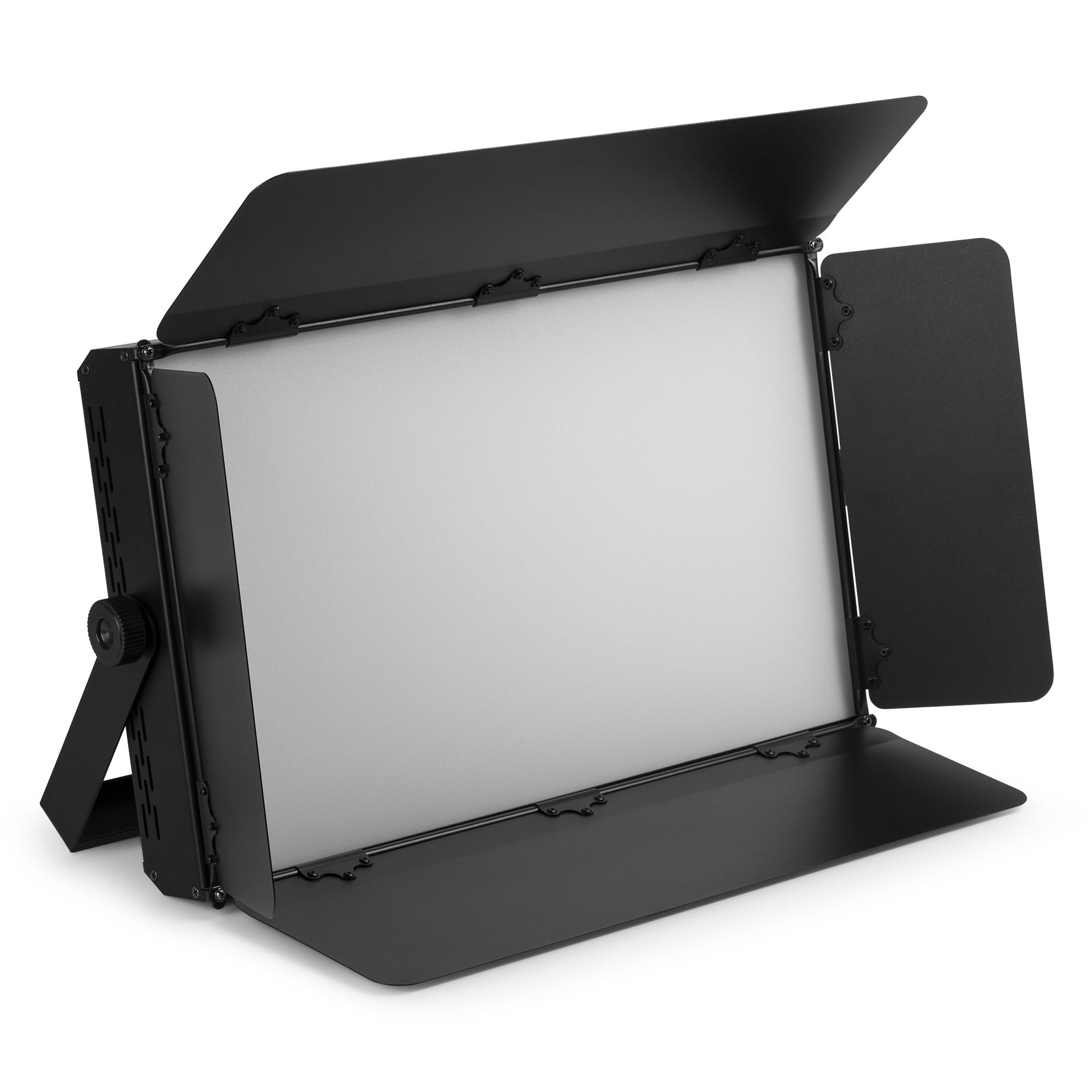

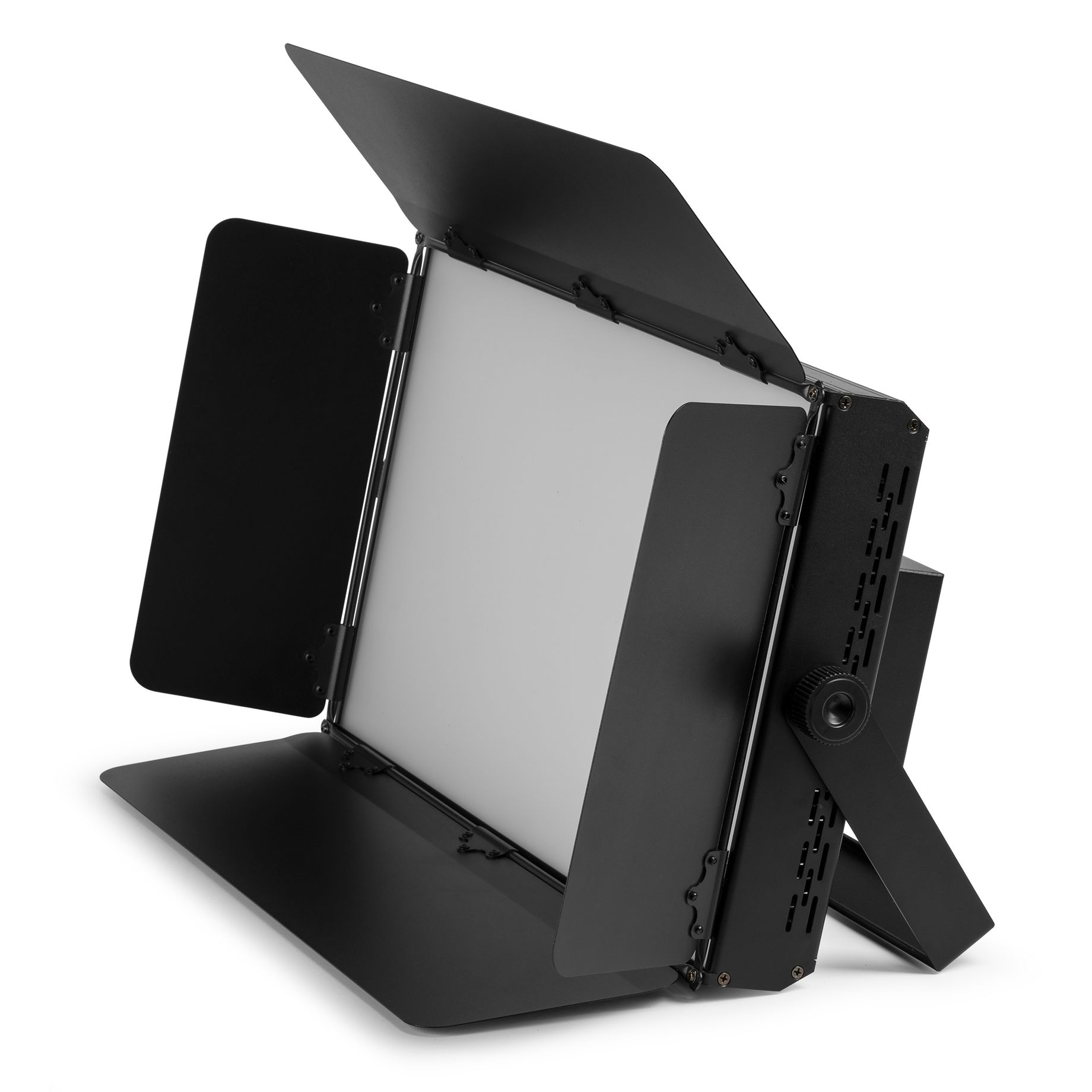

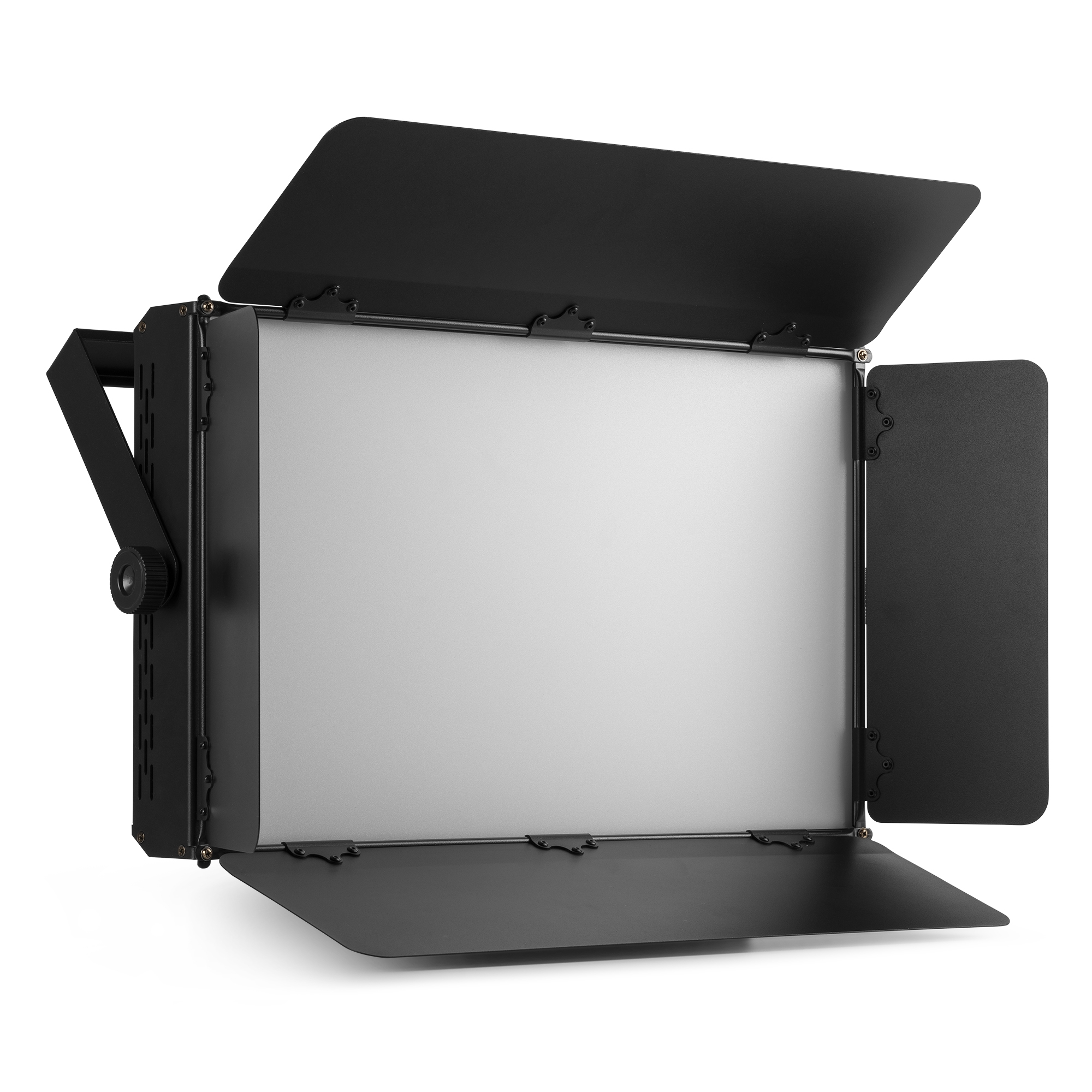

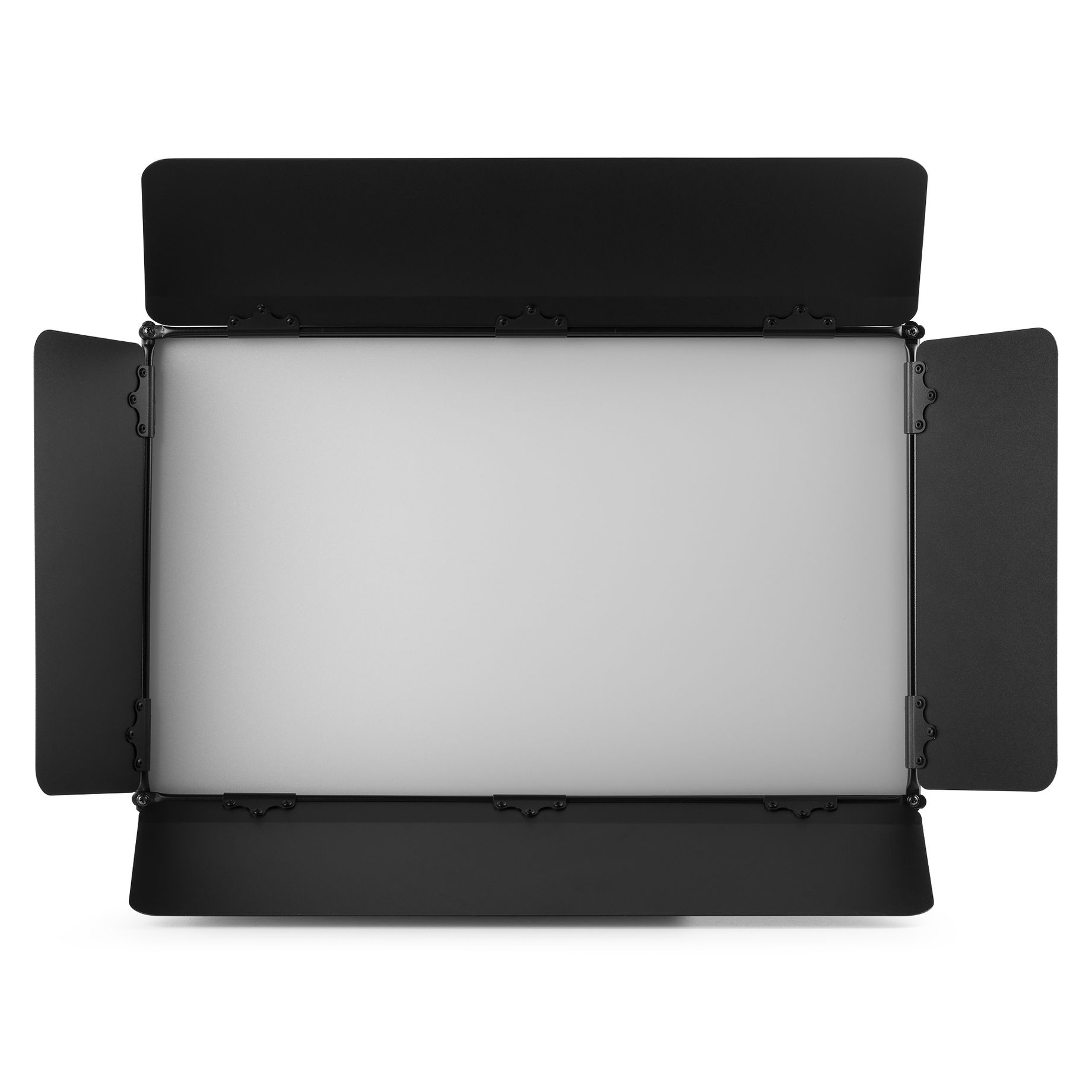

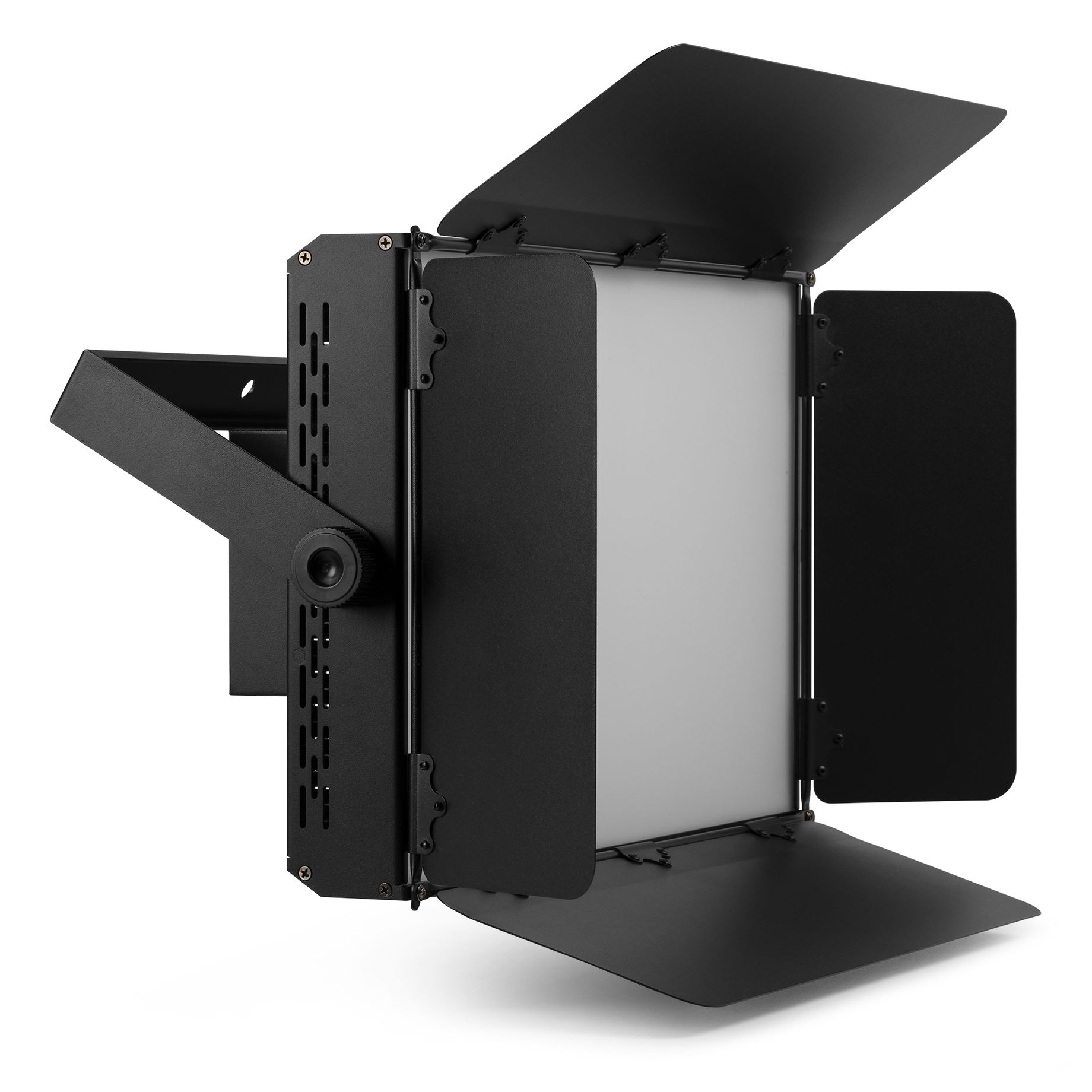

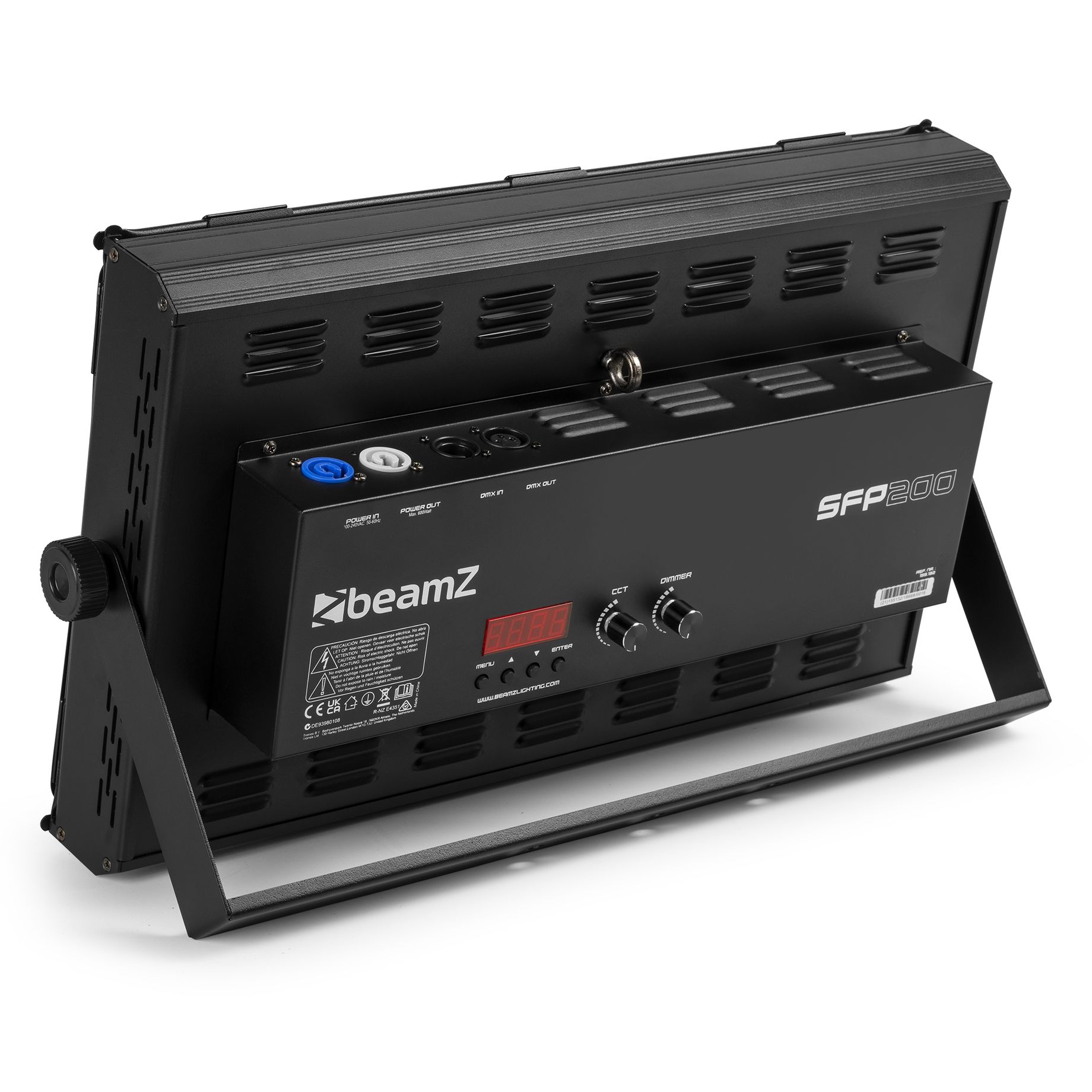

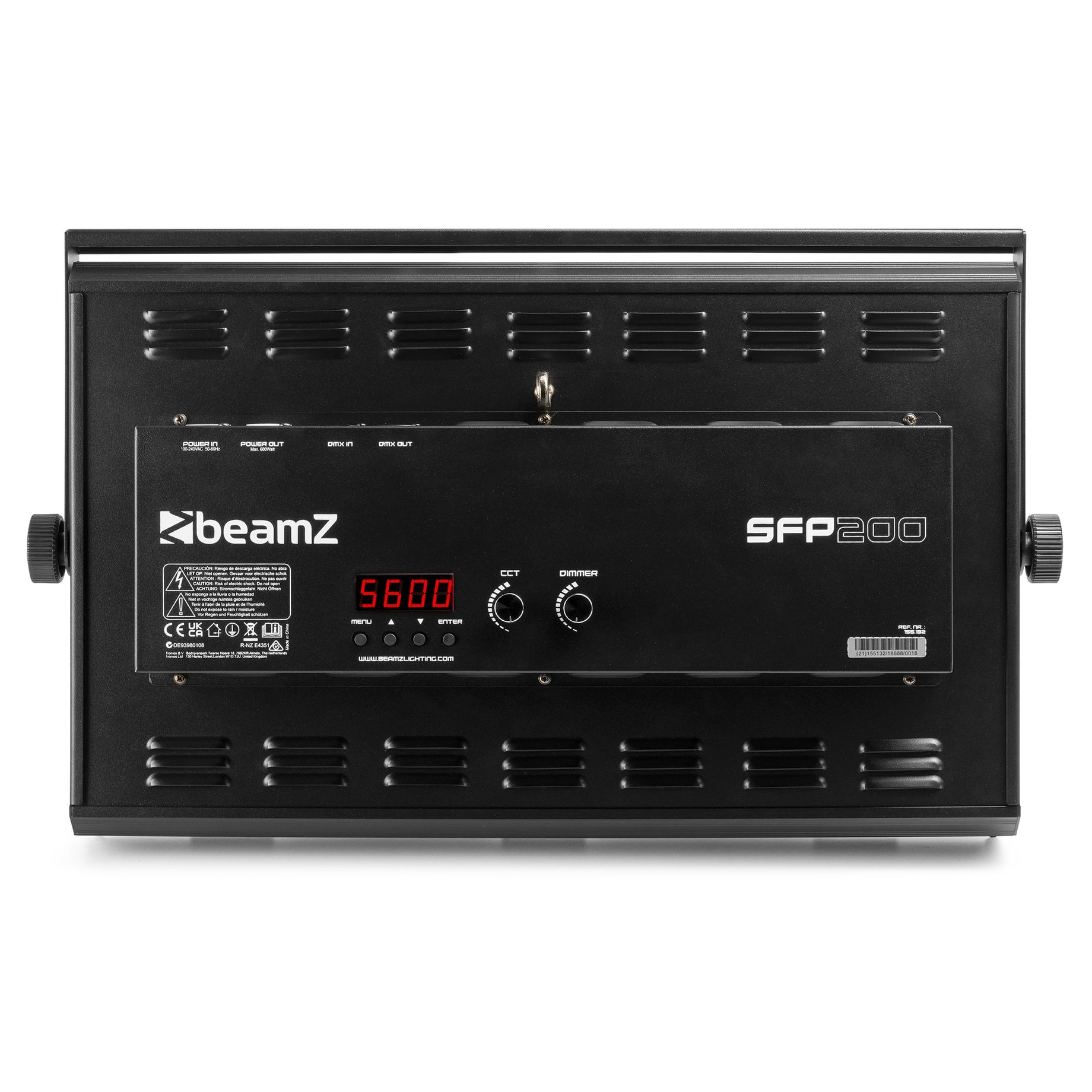

LED Softpanel Light 200W CW/WW
SKU 155.132
|EAN 8715693345148
+8
All product information
Compare
Softpanel series
Description
Highlights
- Soft Panel LED Light with DMX or manual Control
- 612 pcs ultra bright long-life LEDs
- 200W power Cool White / Warm White
- Surface mounted LED technology
- 120° wide beam angle with diffuser
- Colour temperature: 3200K-5600K continuously adjustable
- 0-100% flicker-free dimming
- CRI Ra ≥ 95, TLCI ≥ 93

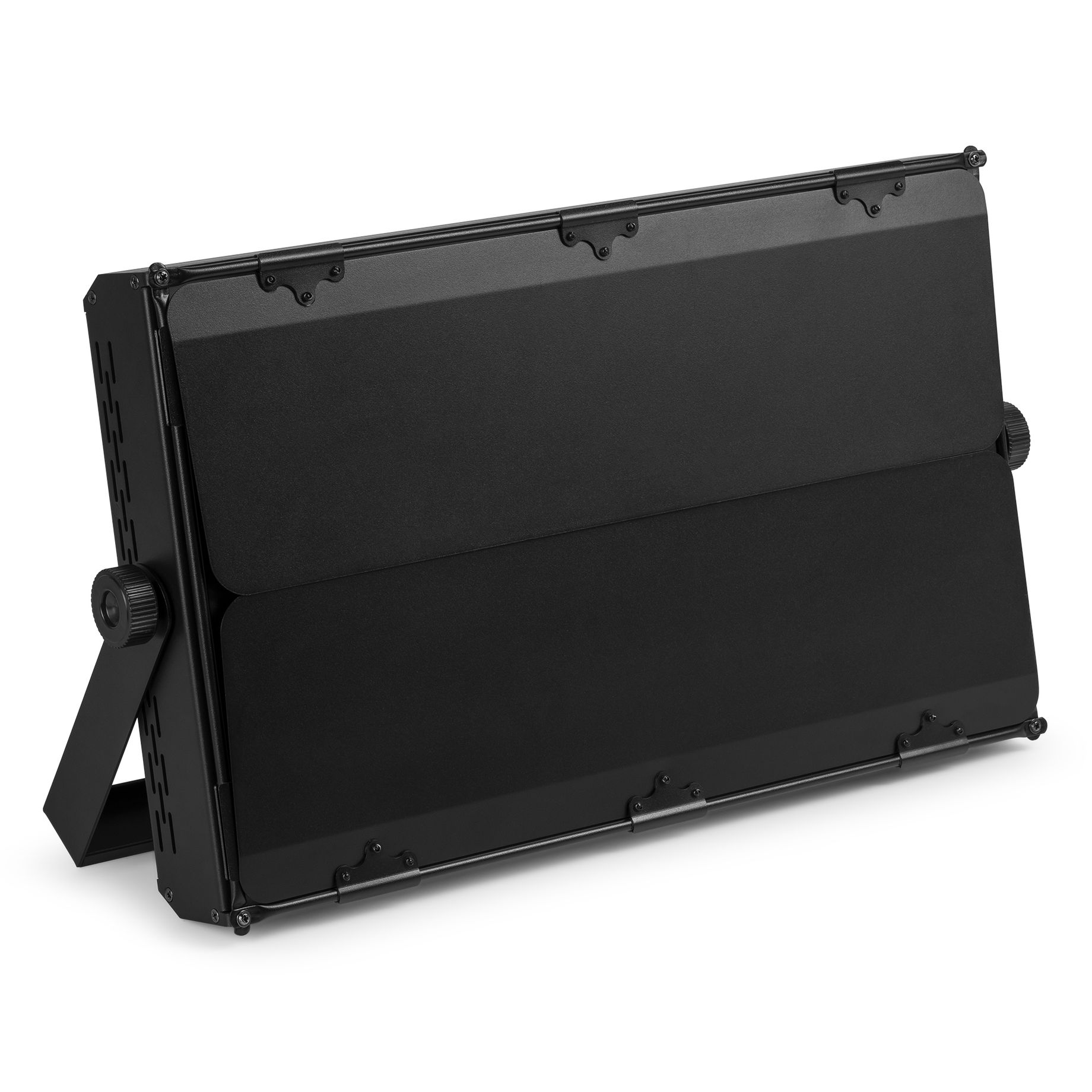

- 4-leaf metal barn doors
- Strong all-metal housing
- U-shape support
- P-Con input/output
Specifications
BrandbeamZ
Product serieSoftpanel series
ColourBlack
Light source
Light source
- 256x 0.5W Cool white LED
Light source
- 256x 0.5W Warm white LED
Colour Temperature3.2 - 5,600 K
Illuminance3952 lx @ 1m
CRI≥95
Optics
Beam angle
- 120°
ZoomNo
Features
Flash Per Second1 - 16 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels3
DMX connector3-pin XLR

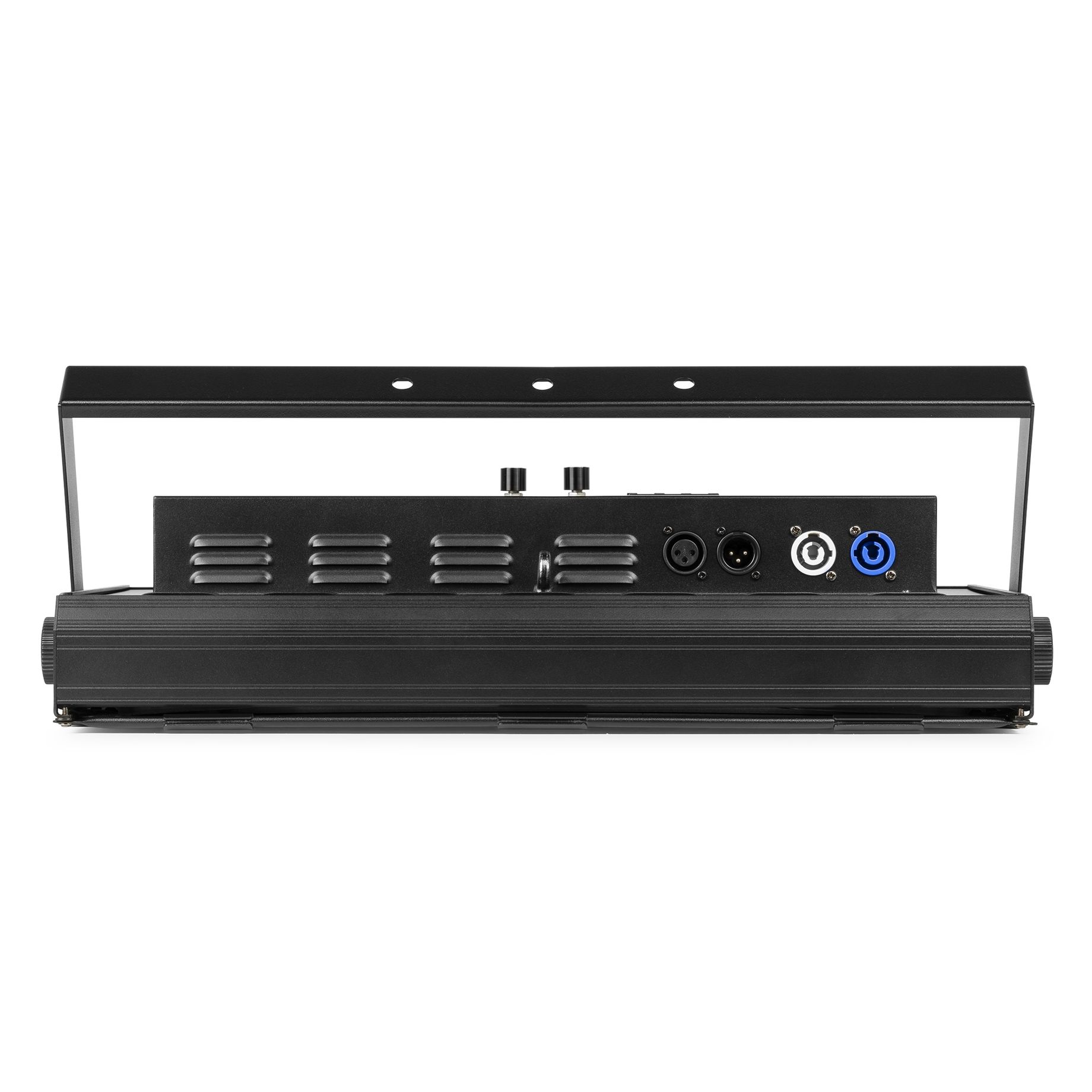

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 310 x 540 x 180 mm (W x D x H)
Weight
- 7.4 kg
Accessories
Included Accessories
- Barndoor
- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
