SFP100

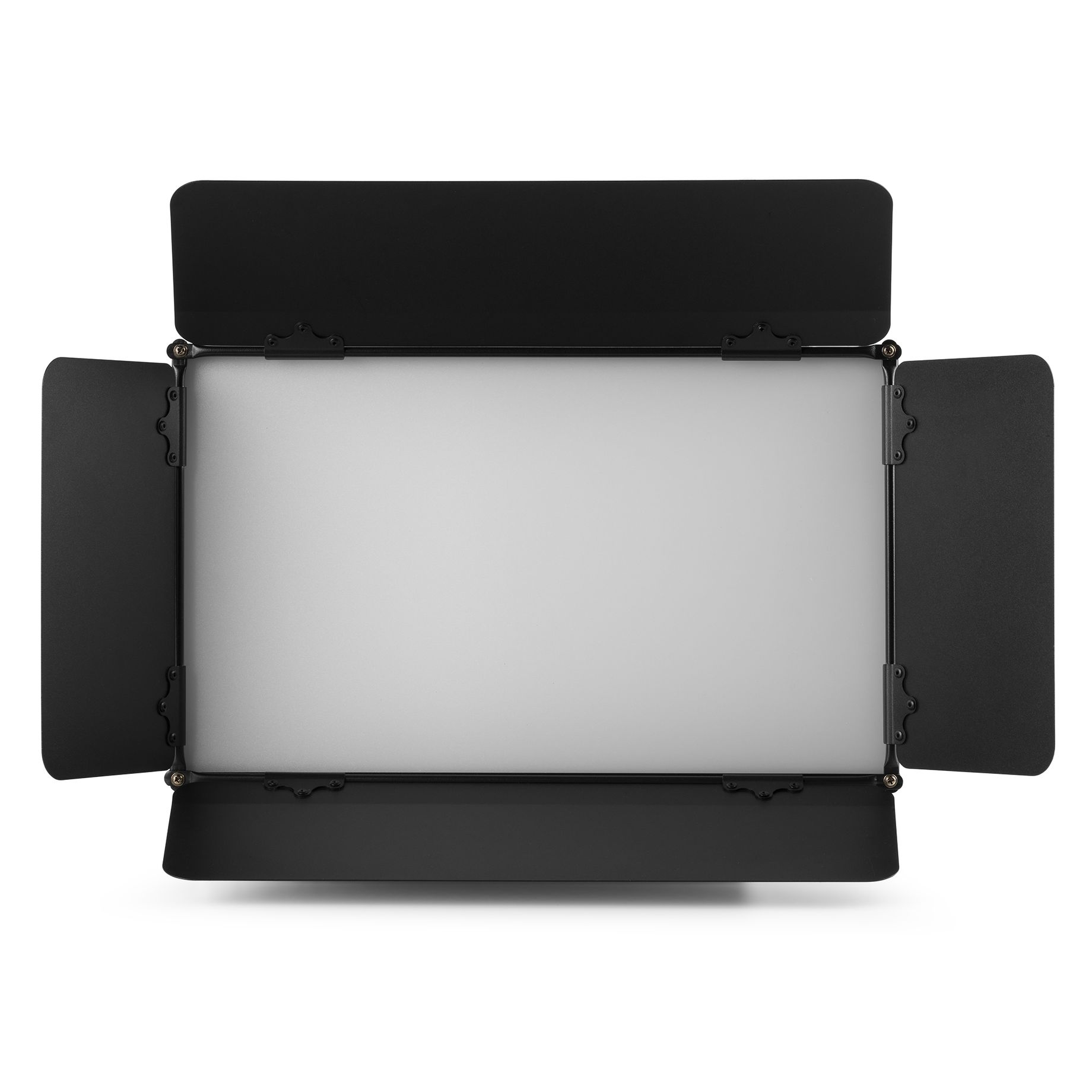

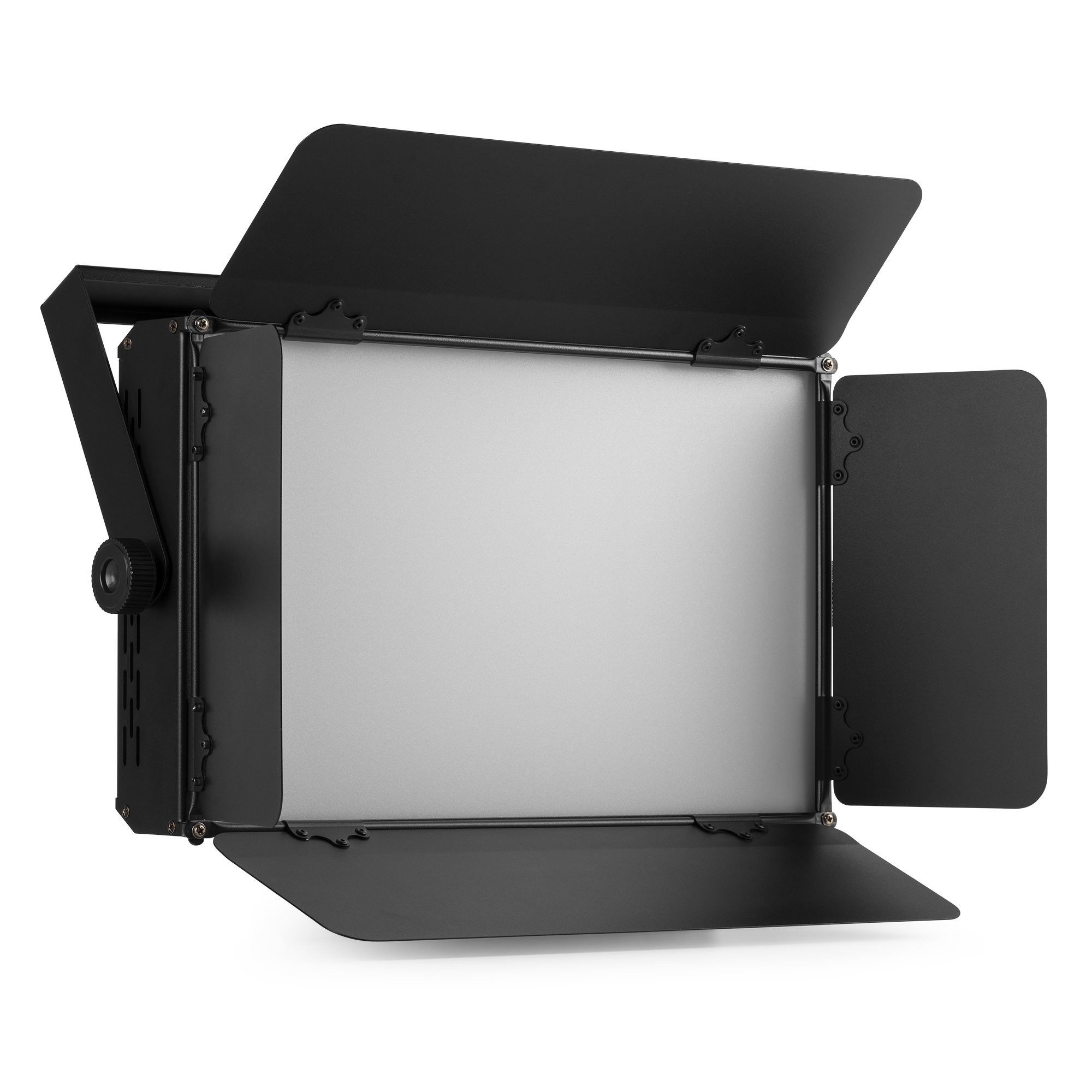

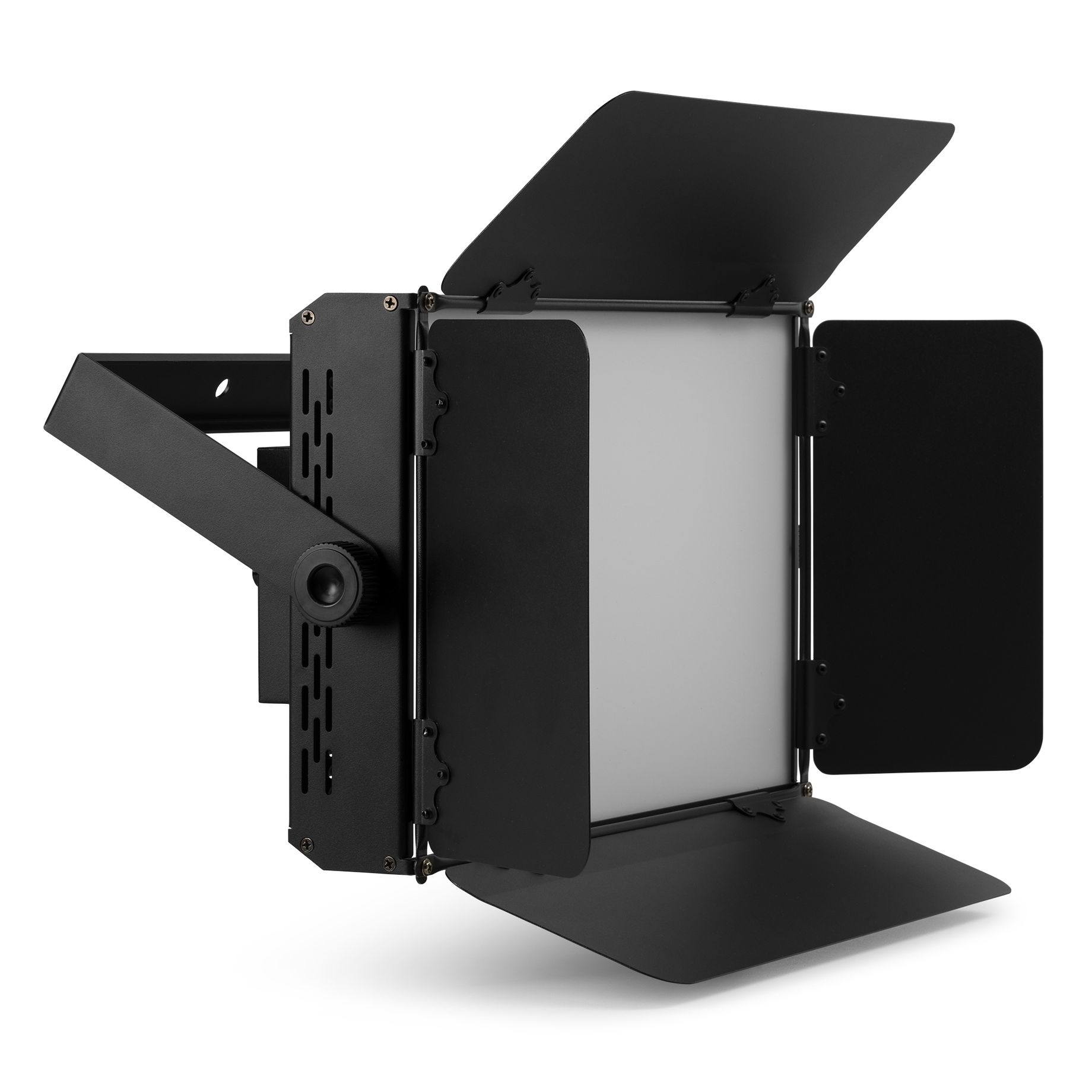

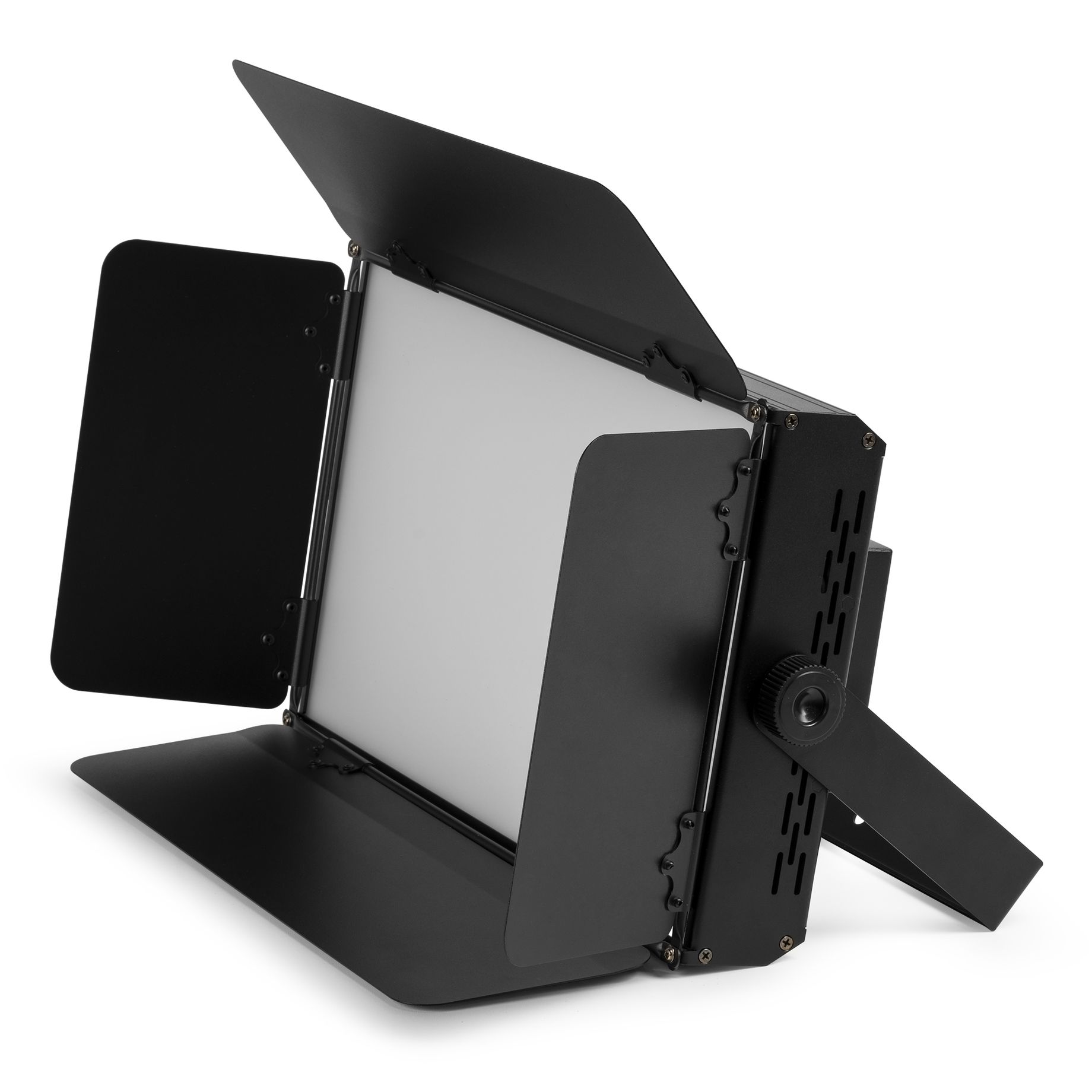

LED Softpanel Light 100W CW/WW
SKU 155.130
|EAN 8715693345124
+8
All product information
Compare
Softpanel series
Description
Highlights
- Soft Panel LED Light with DMX or manual Control
- 256pcs ultra bright long-life LEDs
- 100W power Cool White / Warm White
- Surface mounted LED technology
- 120° wide beam angle with diffuser
- Colour temperature: 3200K-5600K continuously adjustable
- 0-100% flicker-free dimming
- CRI Ra ≥ 95, TLCI ≥ 93
- No Fan, No Noise

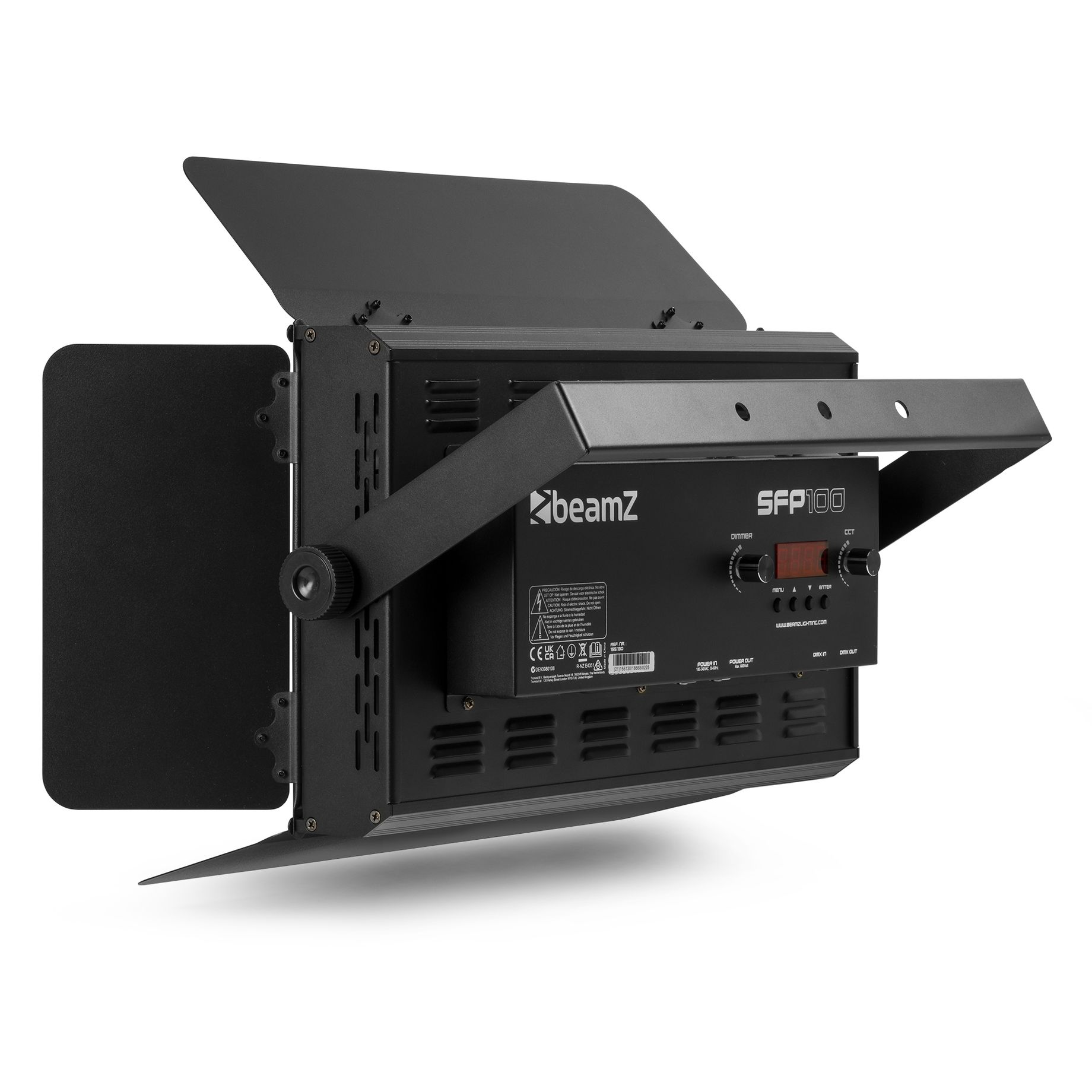

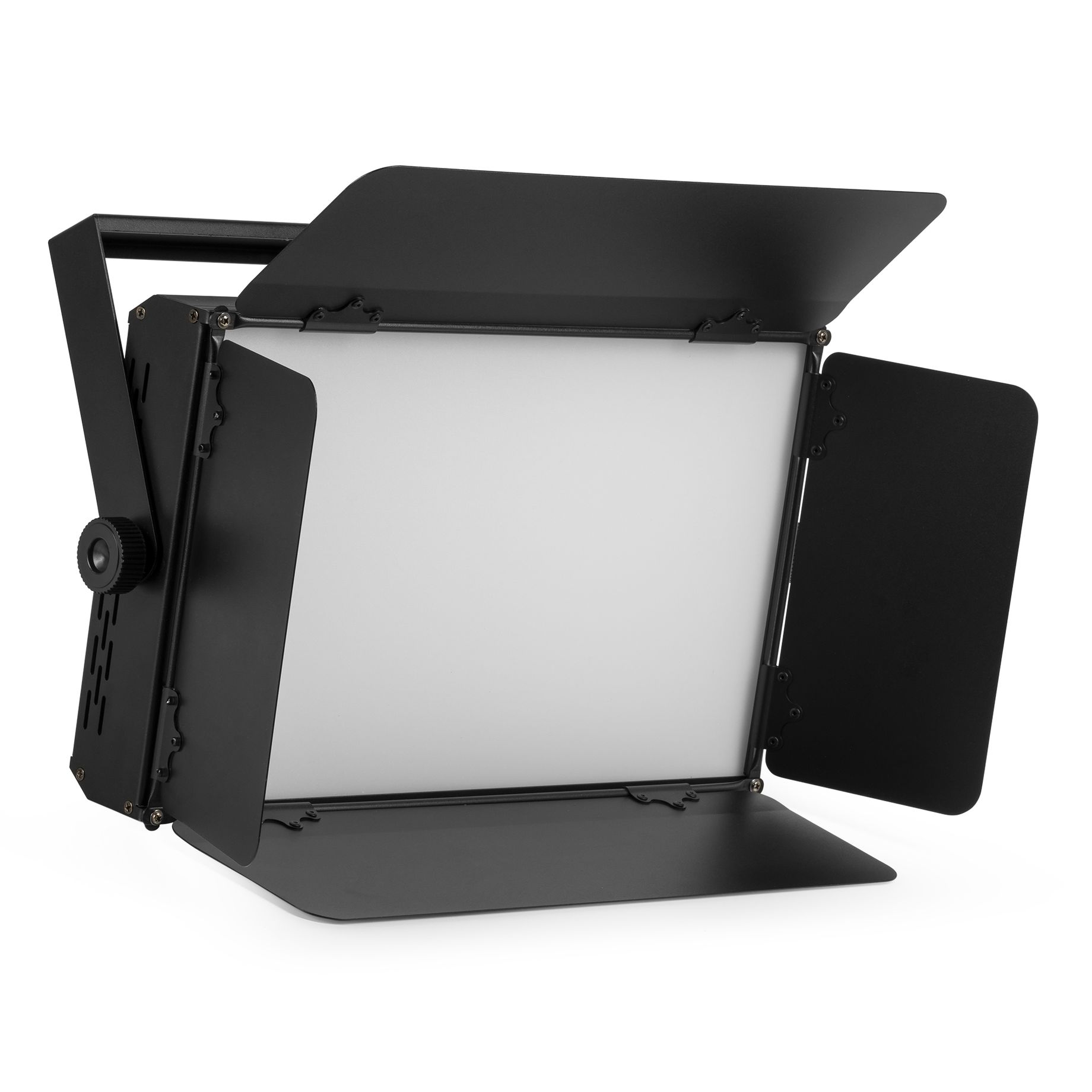

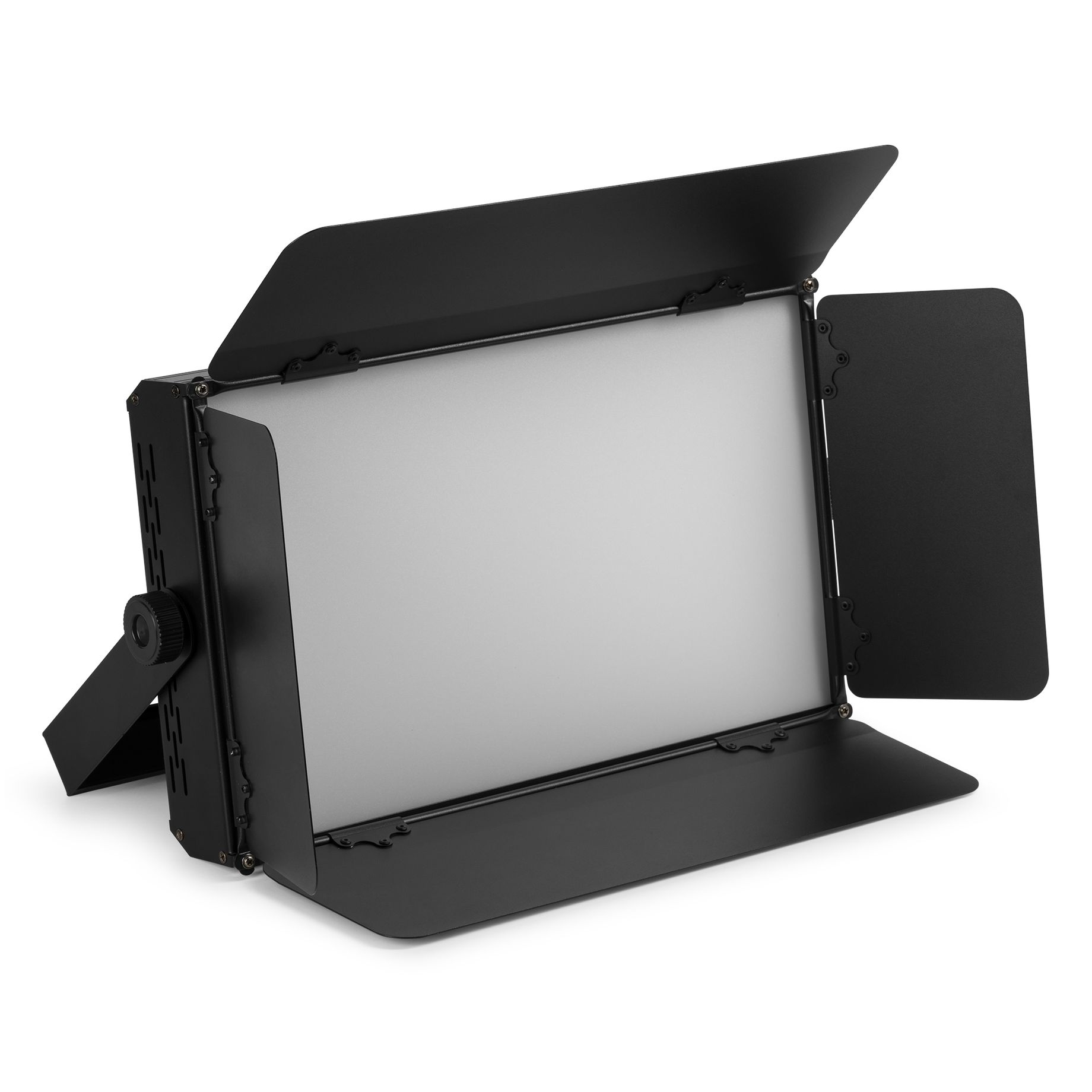

- 4-leaf metal barn doors
- Strong all-metal housing
- U-shape support
- P-Con input/output
Specifications
BrandbeamZ
Product serieSoftpanel series
ColourBlack
Light source
Light source
- 128x 0.5W Cool white LED
Light source
- 128x 0.5W Warm white LED
Colour Temperature3.2 - 5.6 K
Illuminance2242 lx @ 1m
CRI≥95
Optics
Beam angle
- 120°
ZoomNo
Features
Flash Per Second1 - 16 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels3
RDMNo
DMX connector3-pin XLR

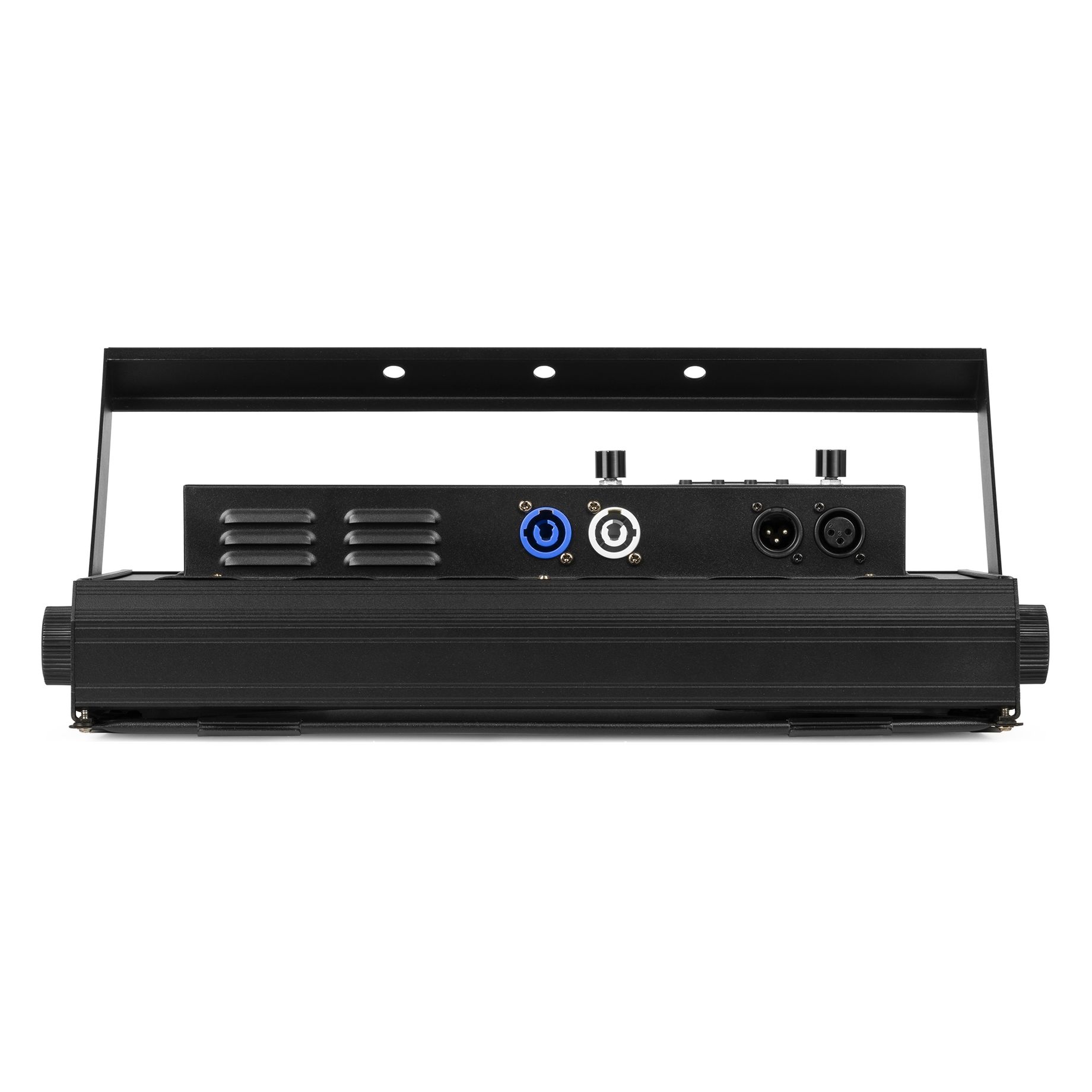

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 480 x 310 x 255 mm (W x D x H)
Weight
- 4.55 kg
Accessories
Included Accessories
- Barndoor
- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
