SB250IPFC

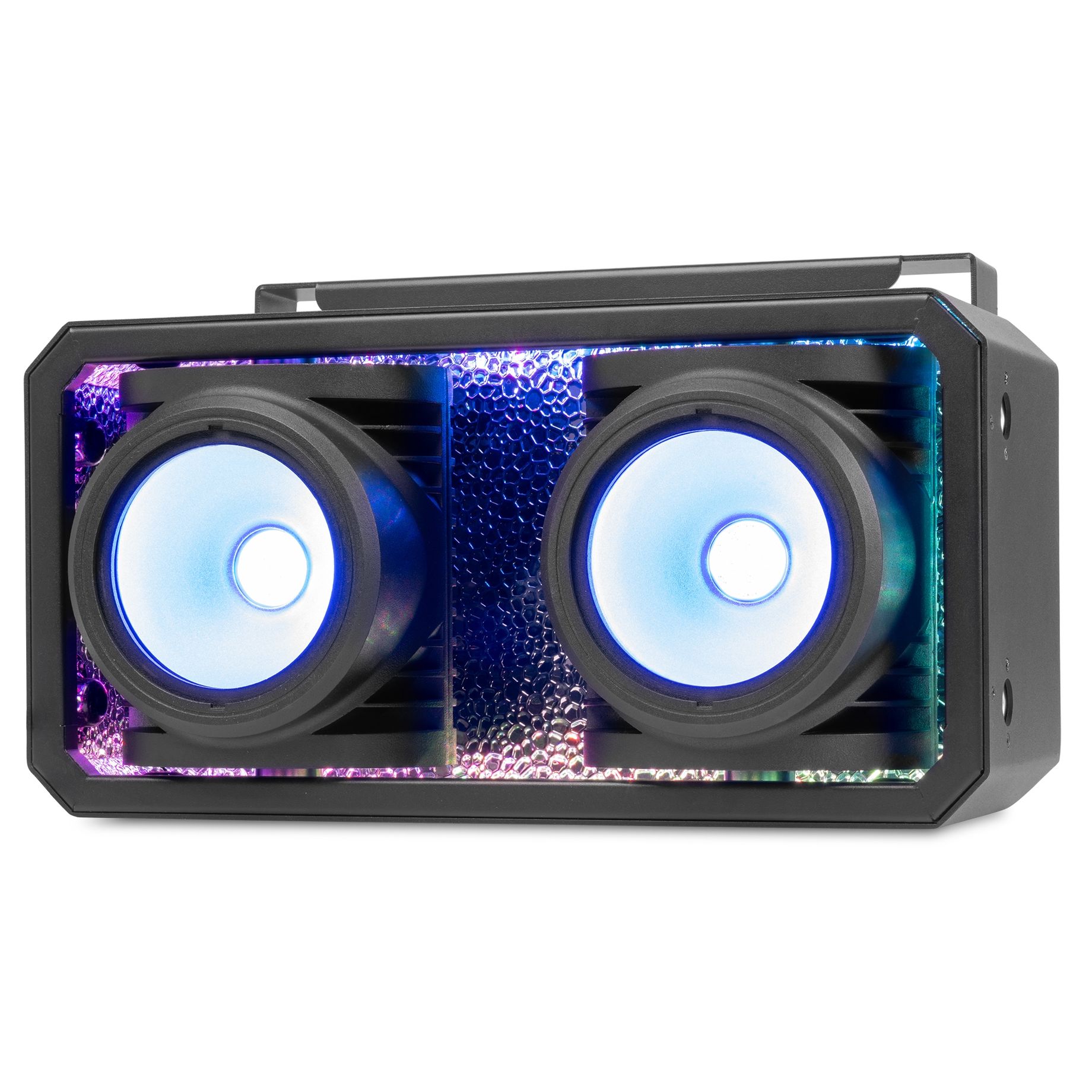

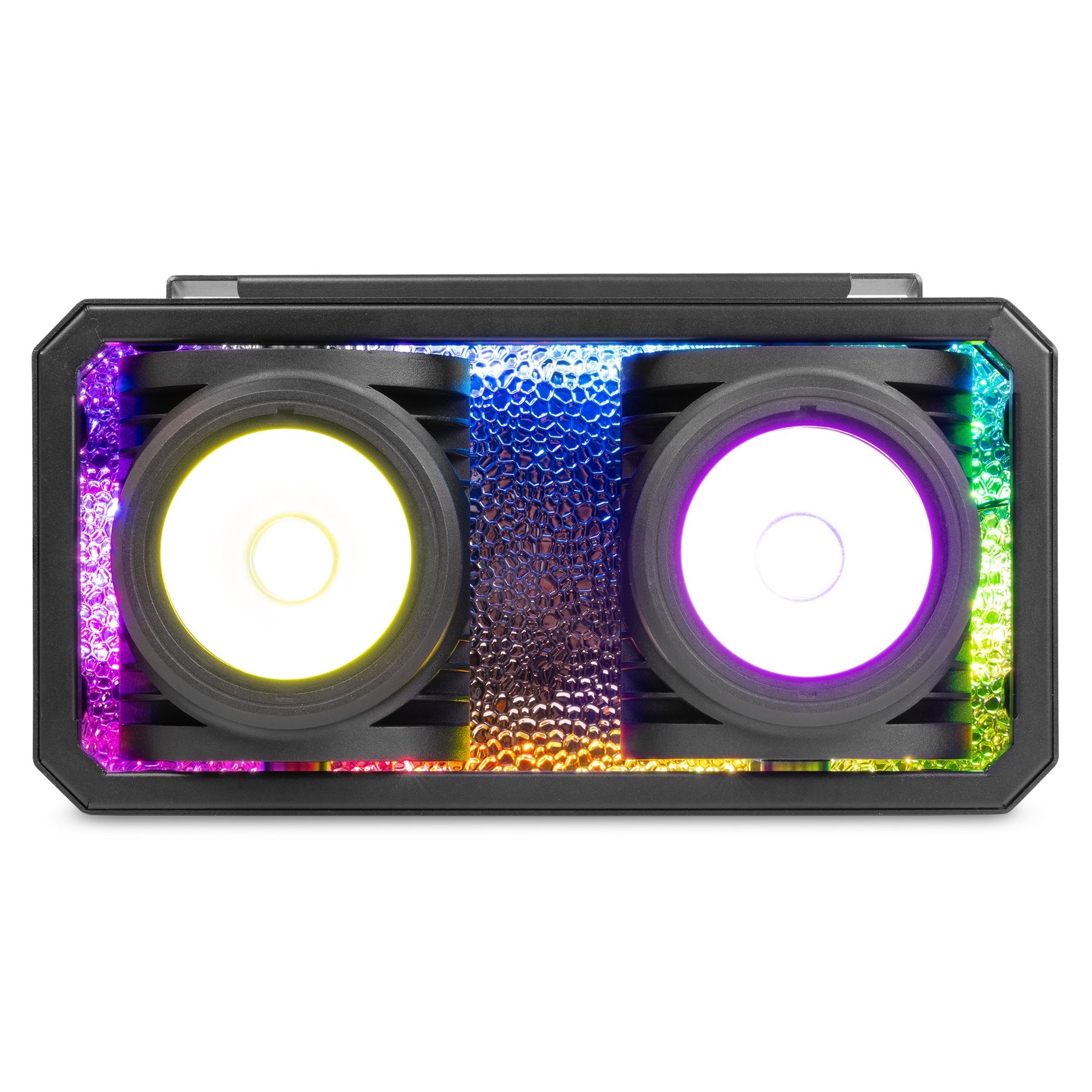

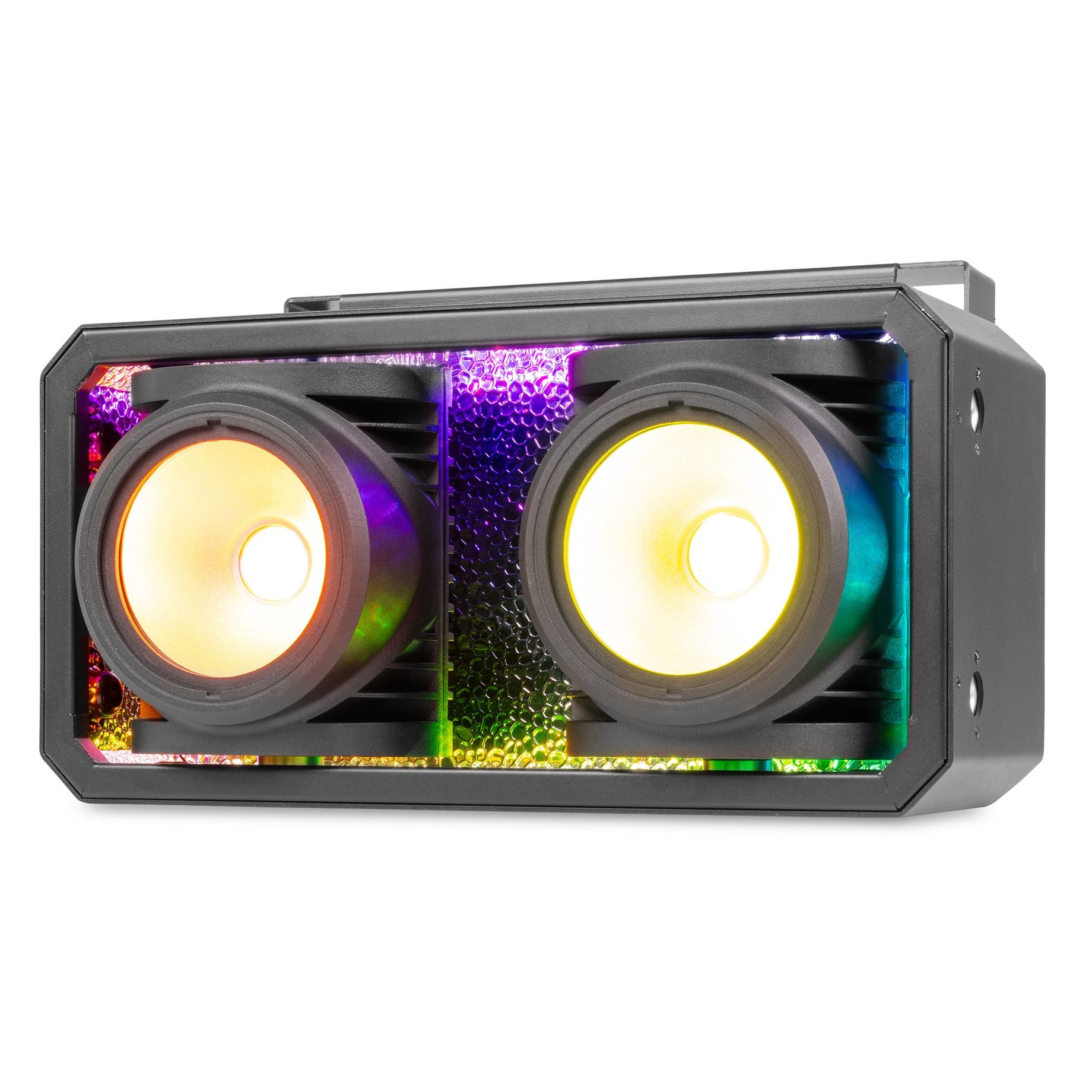

Stage Blinder IP65 RGBAL
SKU 150.453
|EAN 8715693359305
All product information
Compare
SB series
Description
Highlights

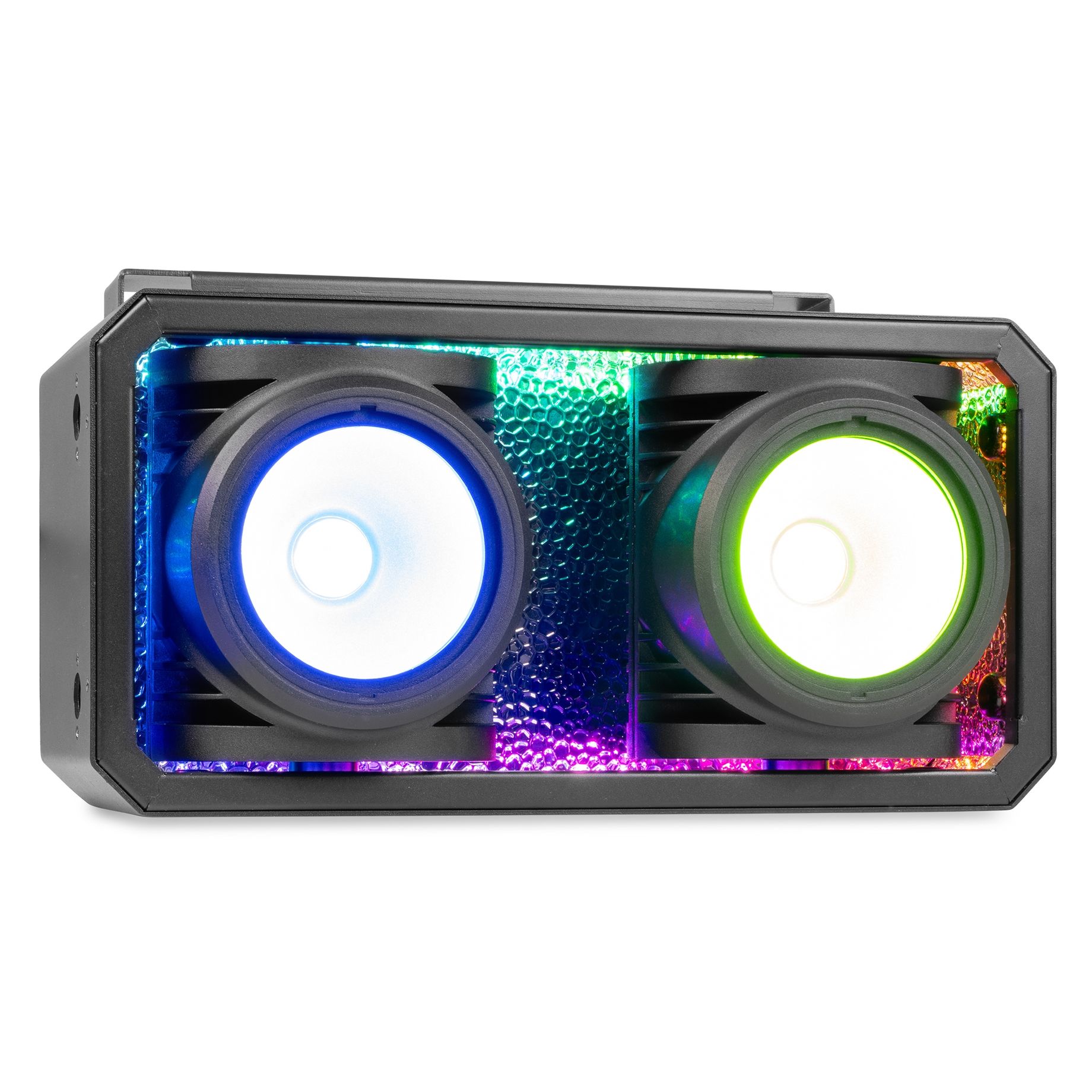

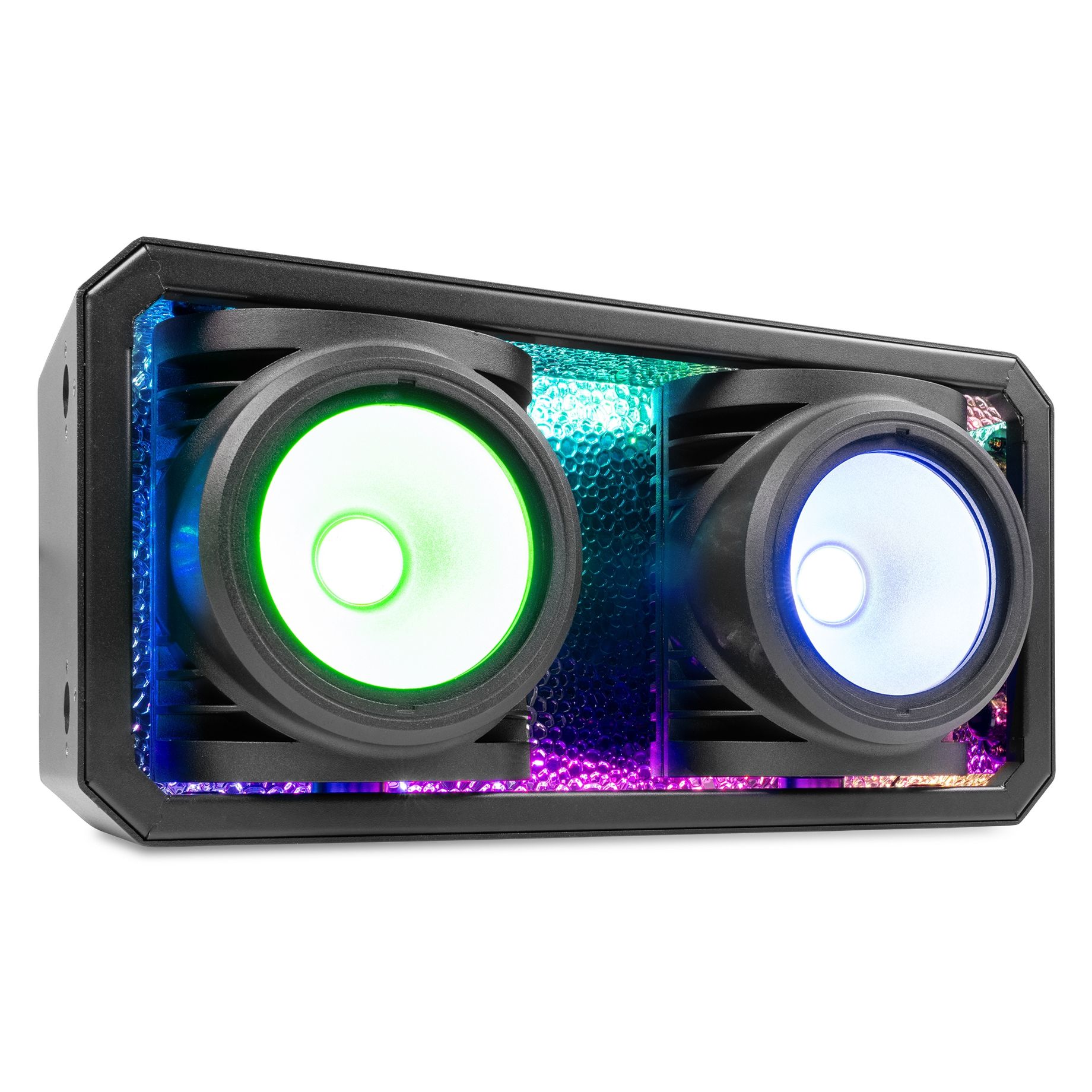

- 2x 100W RGBAL COB LEDs

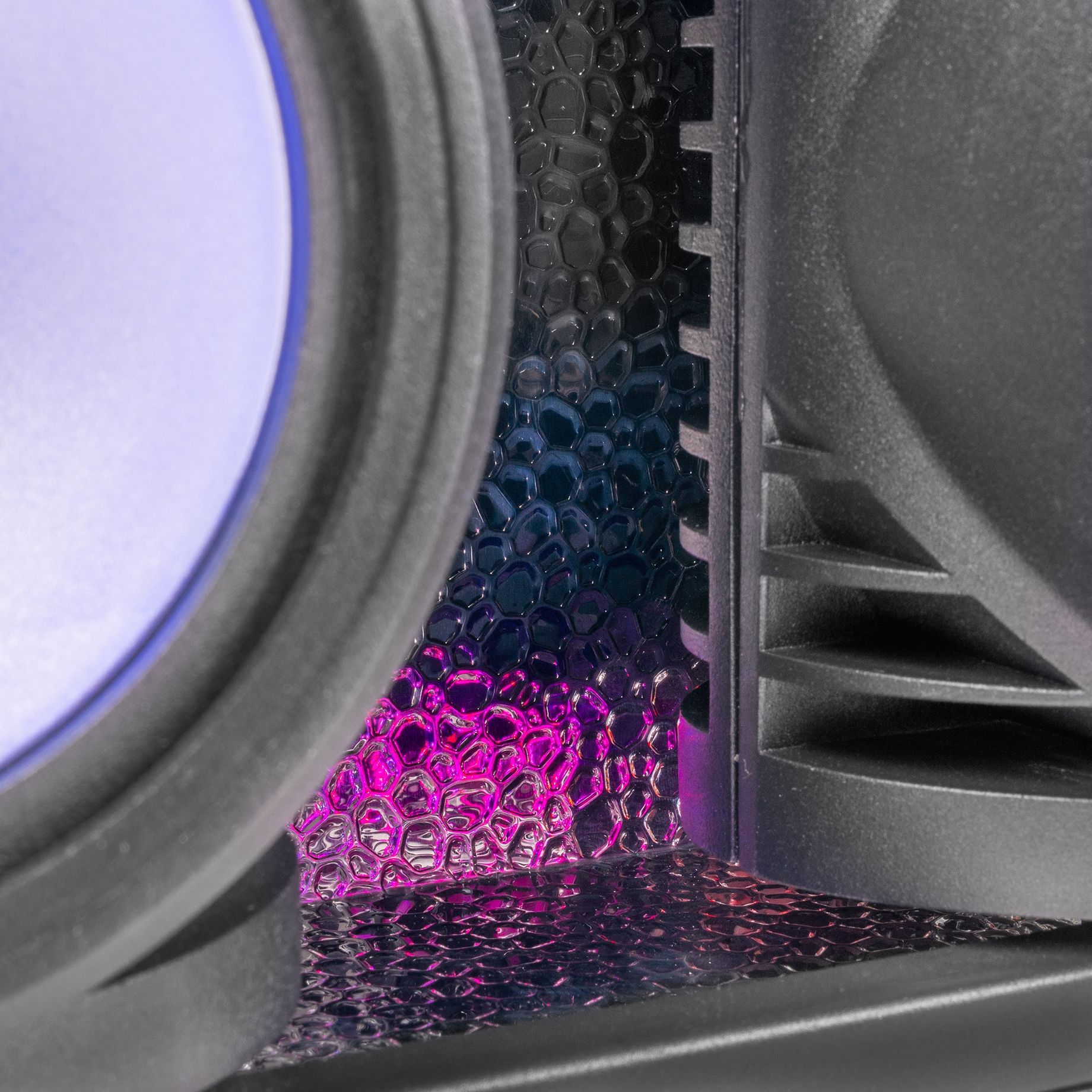

- 54x RGB Backlight LEDs
- Rugged die-cast aluminium exterior

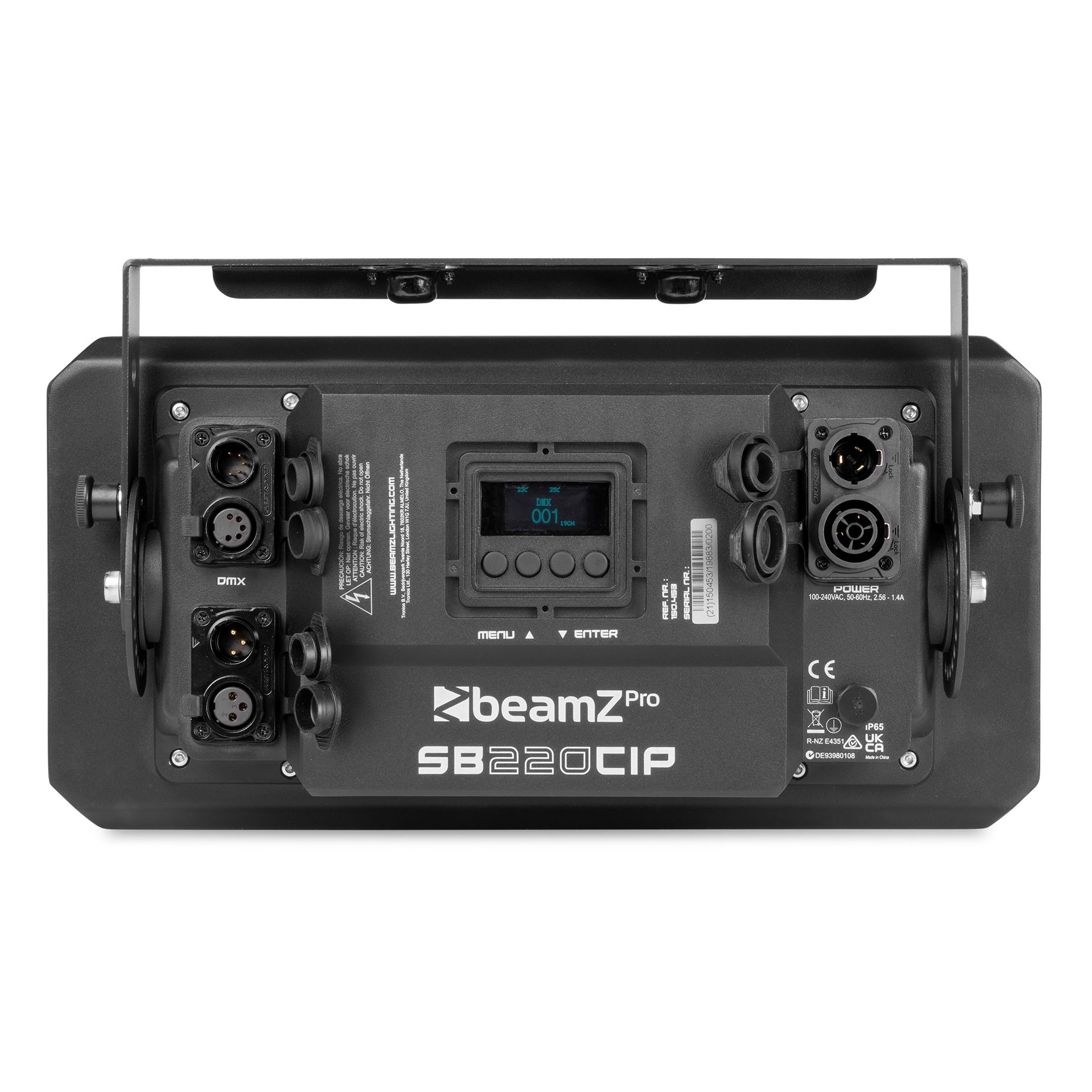

- 4-button control panel and OLED menu display
- DMX/RDM and Stand-alone mode
- Master/slave function
- Auto mode with adjustable speed
- IP65 rated DMX and Powerconnector TR in/out

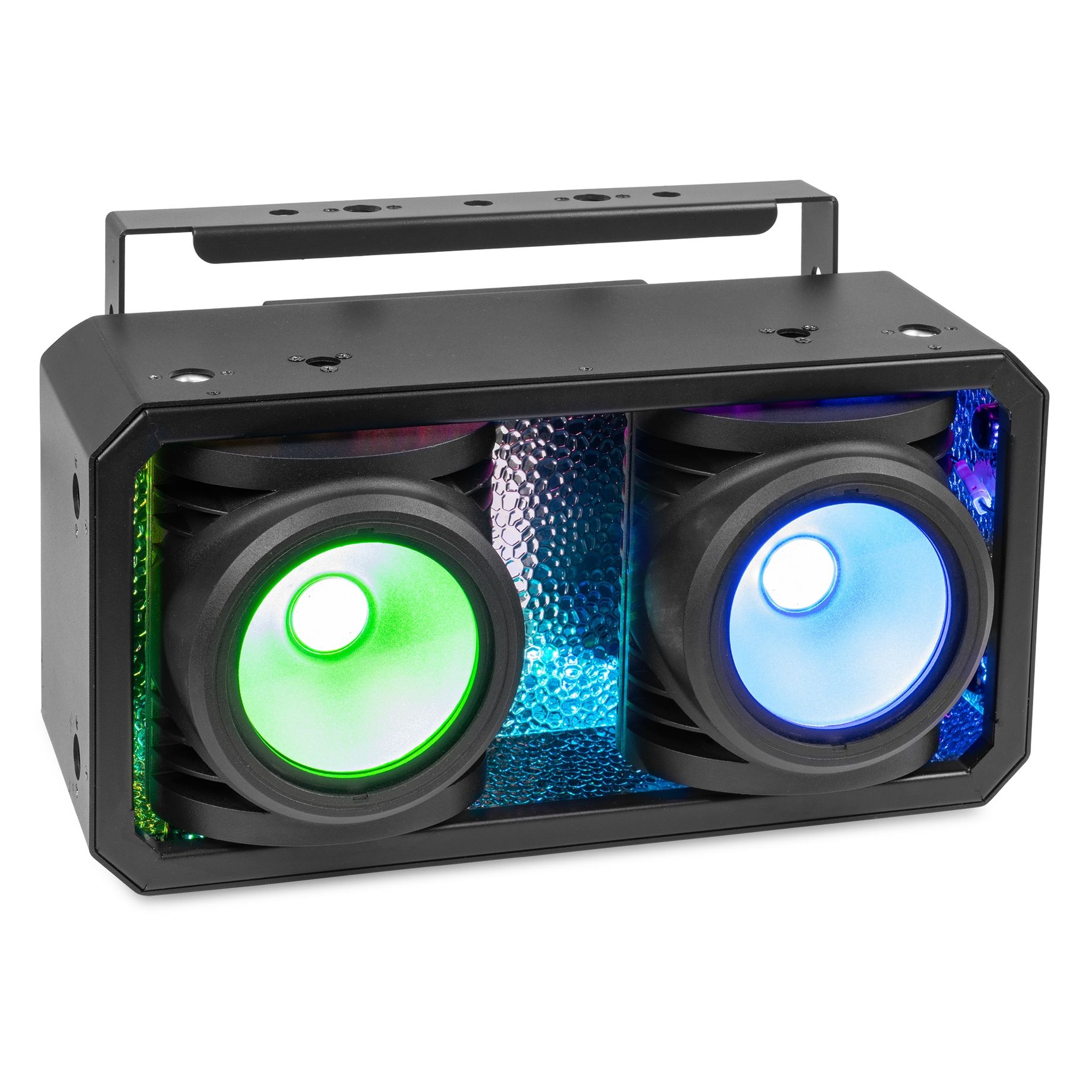

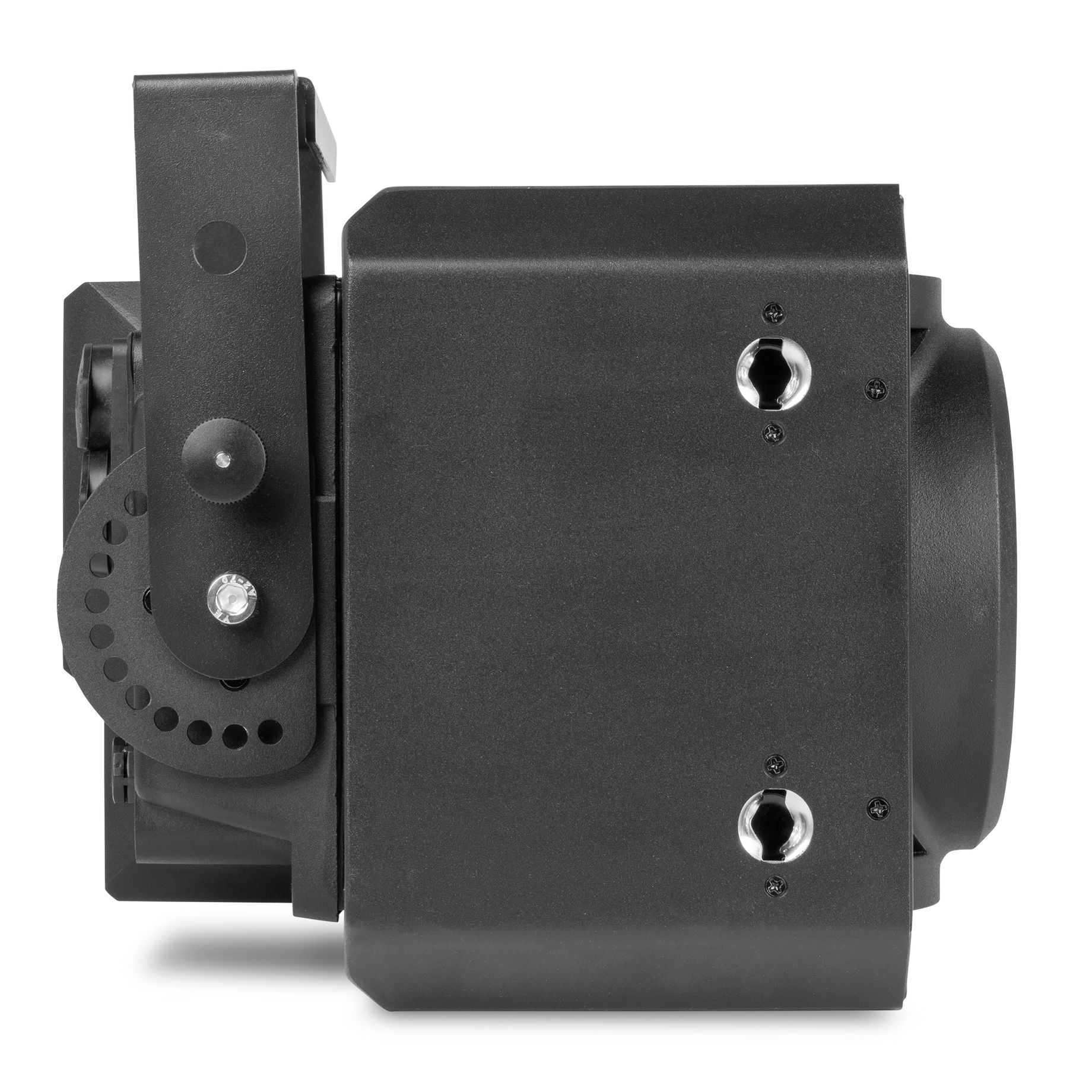

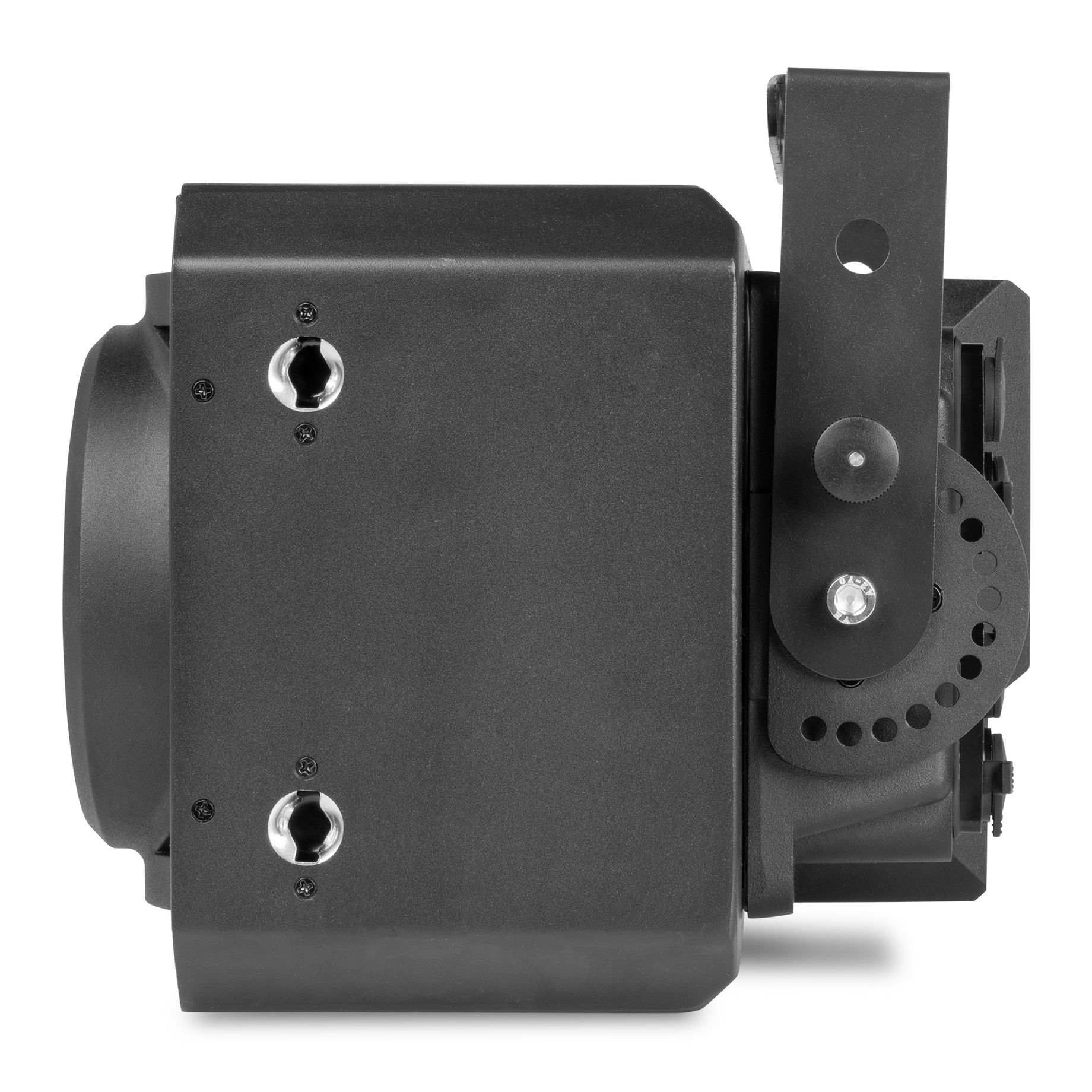

- Quick Lock bracket for different types of mounting

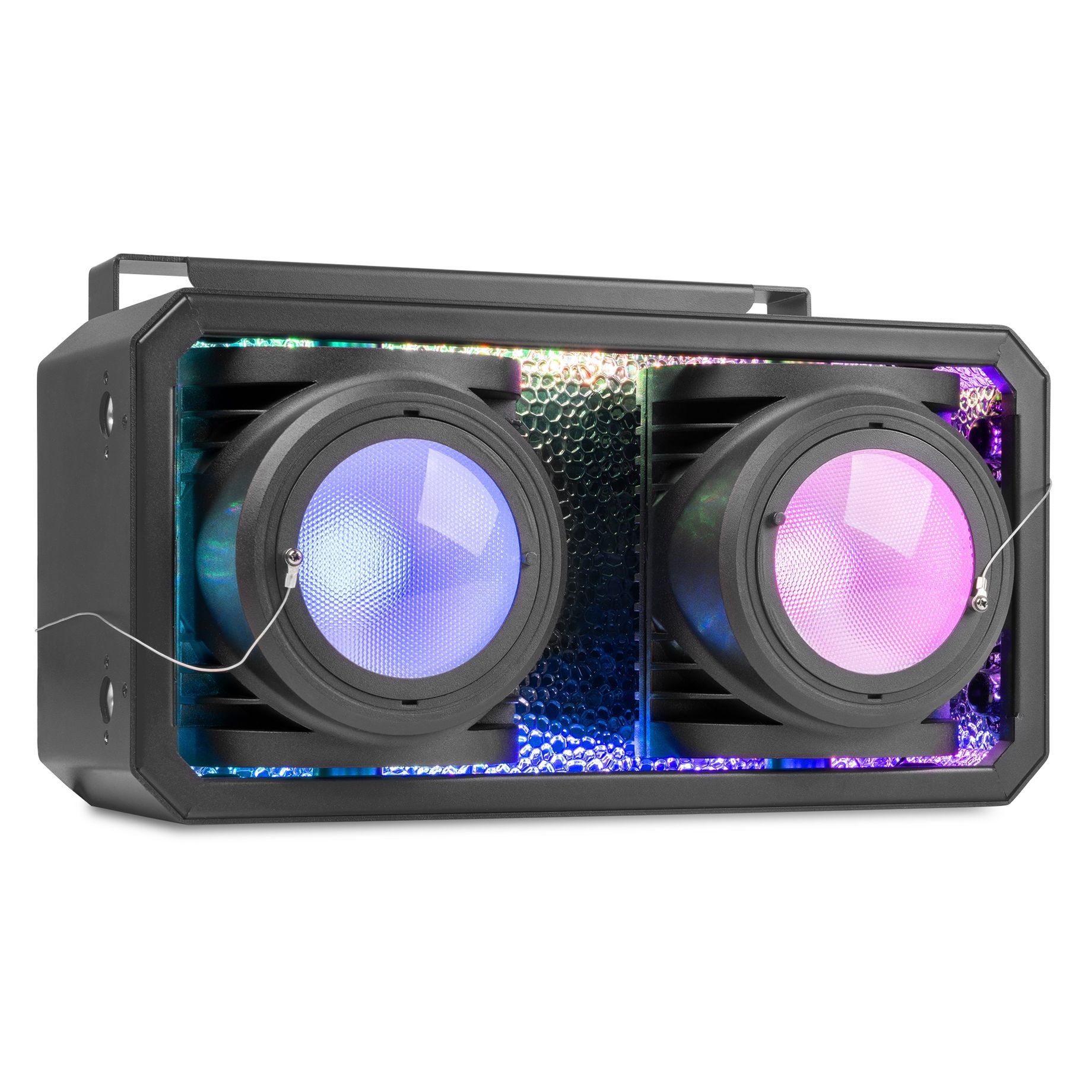

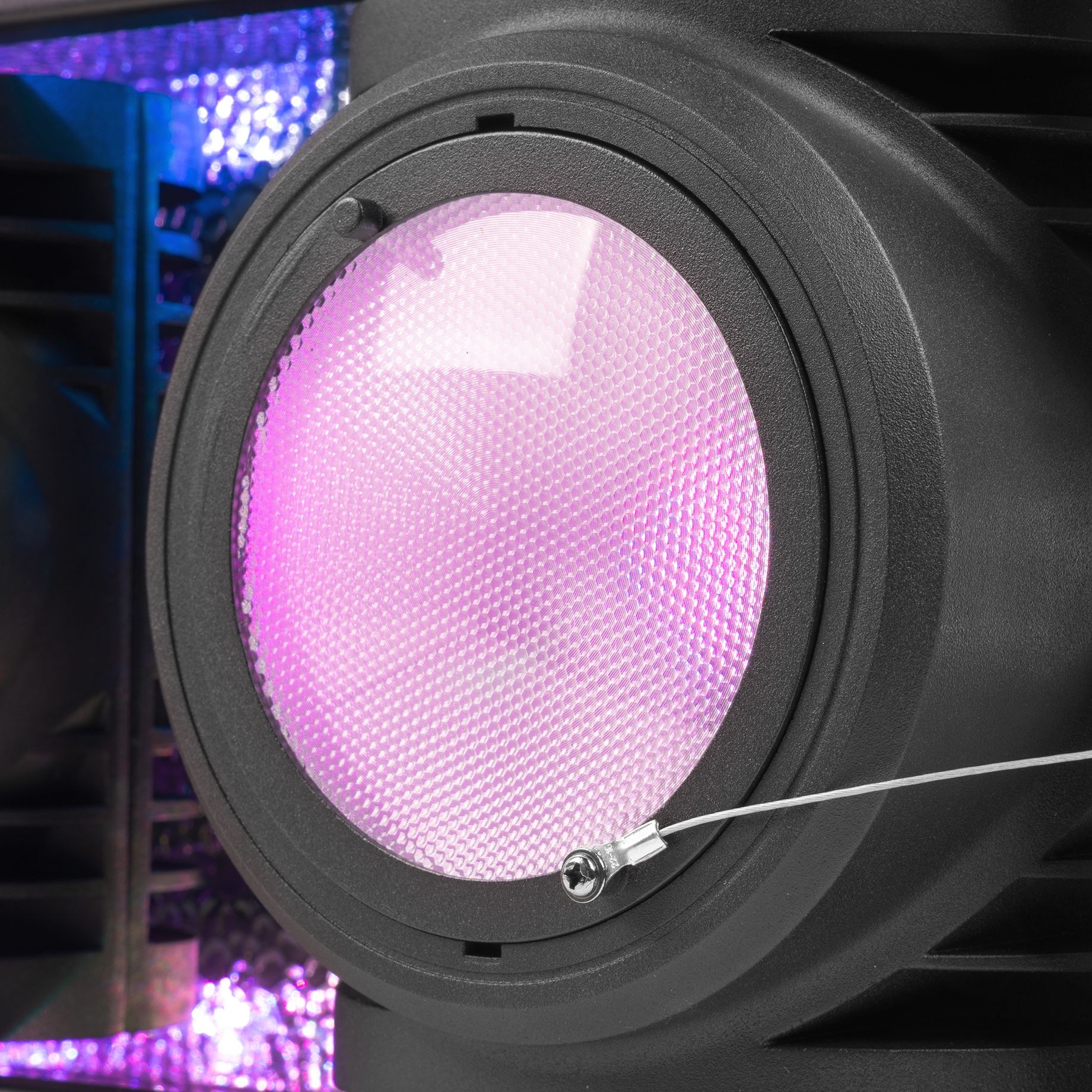

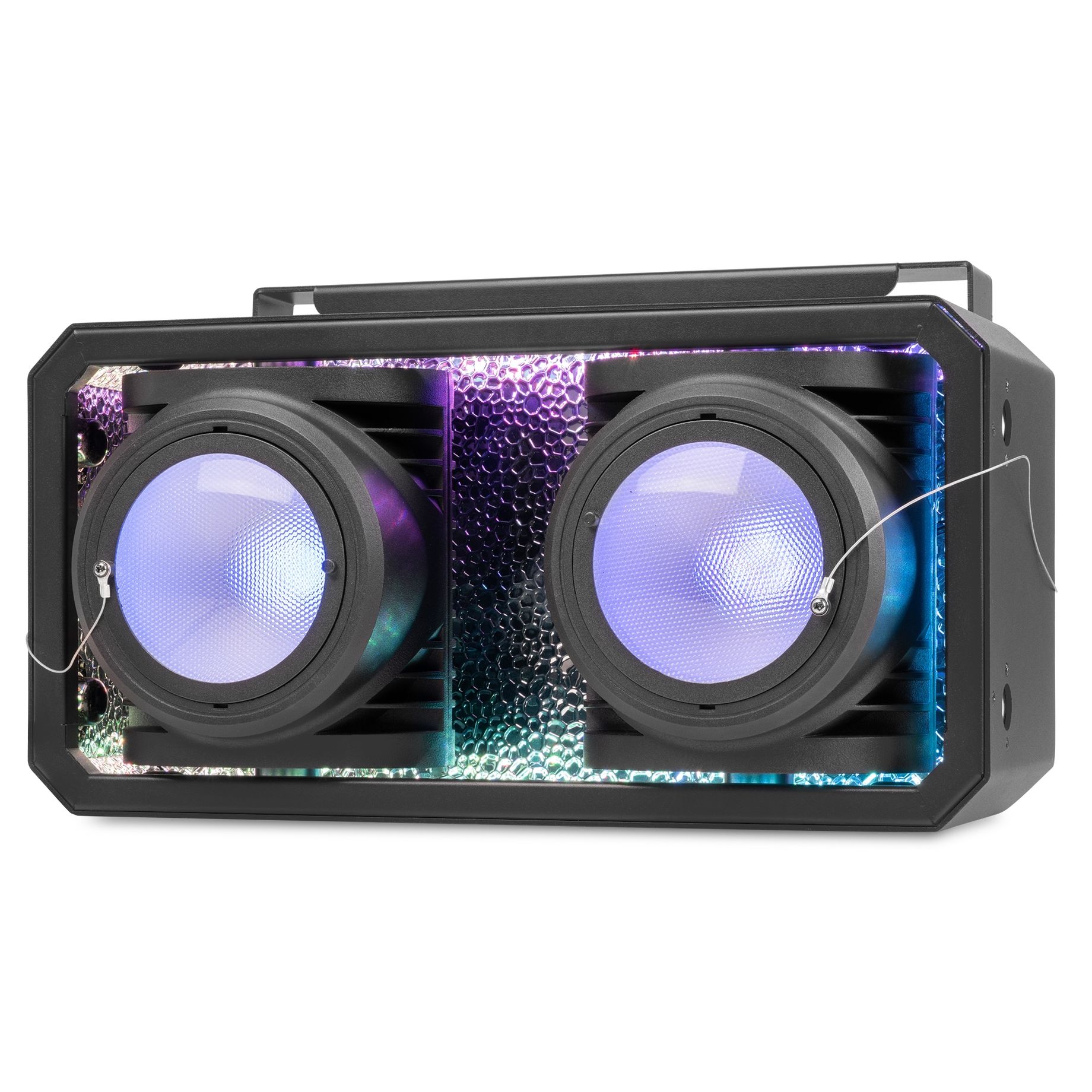

- Including diffusion filters
Specifications
BrandbeamZ Professional
Product serieSB series
ColourBlack
Light source
Light source: Blinder

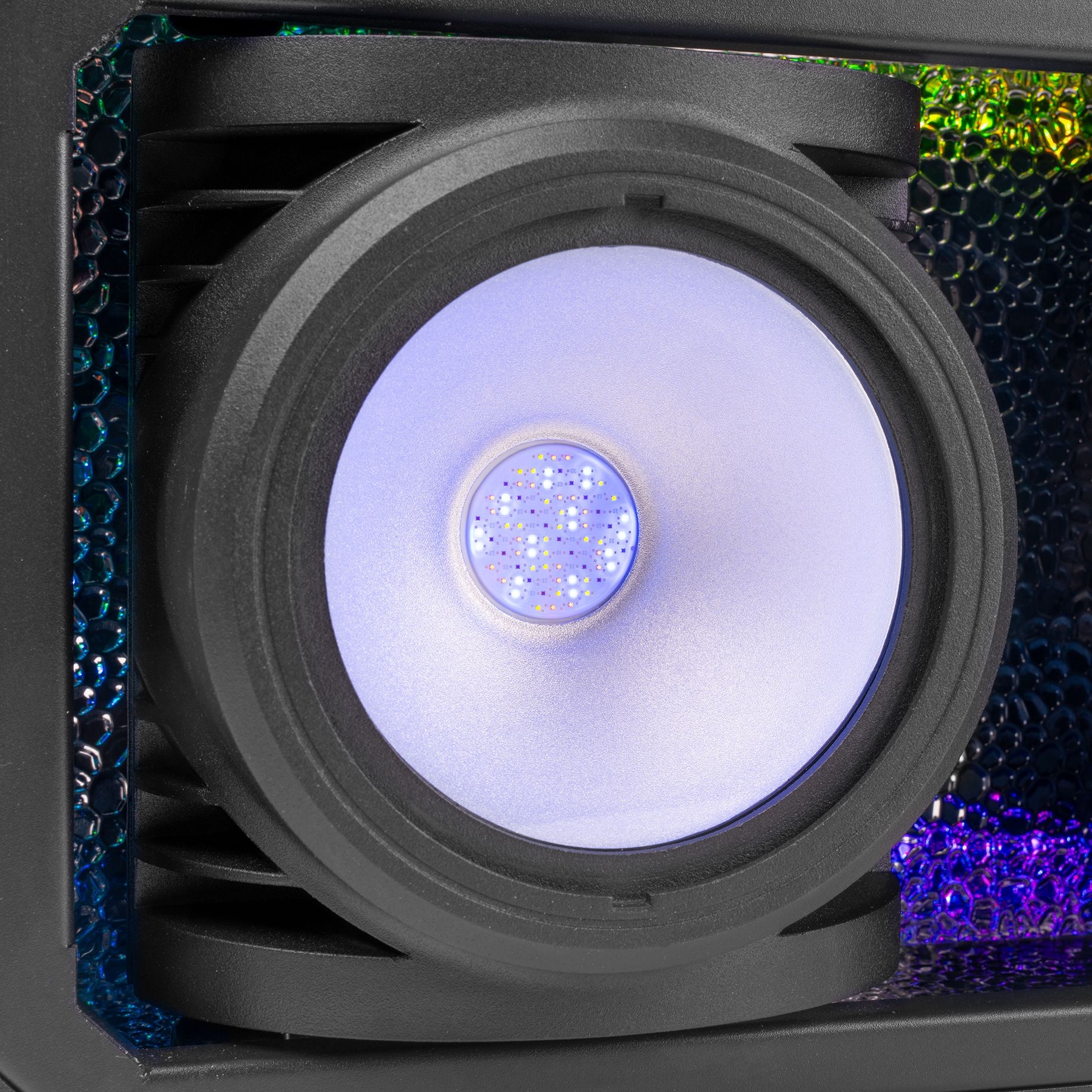

- 2x 100W RGBAL COB LED
Light source: Backlight
- 54x RGB SMD LED
Optics
Beam angle: Blinder
- 48°
Control
Control modesAuto programs, DMX, Master/Slave, Manual
DMX Channels6, 8, 11, 13, 16, 19
RDMYes
DMX connector3-pin XLR, 5-pin XLR
Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeOLED
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 400 x 200 x 243 mm (W x D x H)
Weight
- 11.35 kg

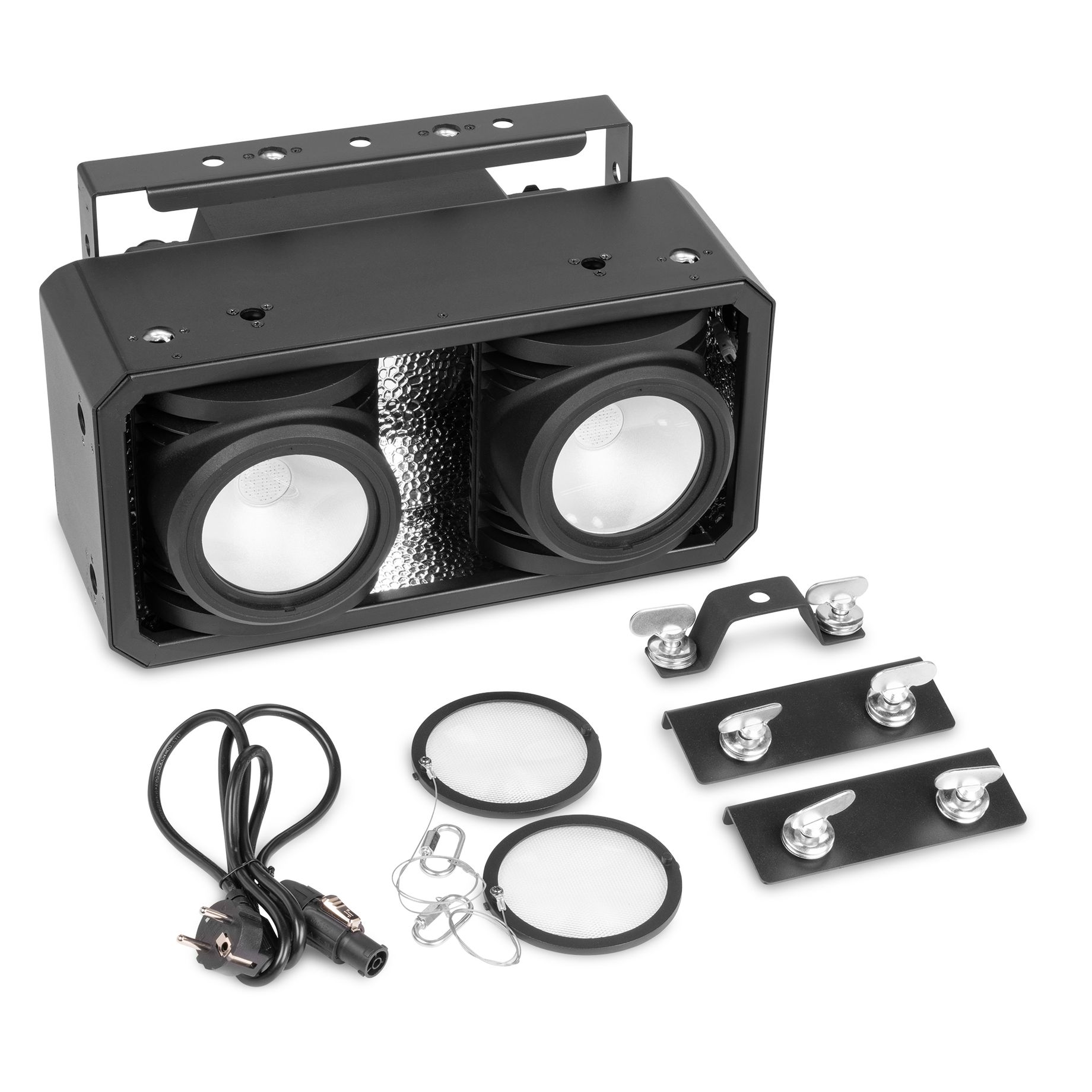

Accessories
Included Accessories
- Mounting bracket
